Product type	Door and window opening/closing sensor
Brand	Aqara
Model	MCCGQ11LM
Dimensions (L × W × H)	41 × 22 × 11 mm
Power supply	1 CR1632 button cell battery
Wireless protocol	Zigbee
Operating frequency	2400 – 2483.5 MHz
Max transmission power (Zigbee)	9.9 dBm
Max detection distance	22 mm
Operating temperature	-10 to +50 °C
Operating humidity	0 to 95 % RH, non-condensing
Material	Plastic
Main functions	Opening/closing detection, Zigbee communication, compatible with Aqara hub and HomeKit
Maintenance and cleaning	Clean with a dry cloth; do not use abrasive products
Safety	Do not swallow battery; keep out of reach of children; do not use outdoors
Spare parts	Replacement CR1632 battery
Repairability	Battery replaceable; other repairs by a certified professional
Warranty	See manufacturer's terms
General information	Requires an Aqara hub; indoor use only; not a toy

Frequently Asked Questions - Door and Window Sensor Aqara

How to install the Aqara Door and Window Sensor?

Remove the protective film, align the sensor's marking line with the magnet, then stick the sensor on a fixed part and the magnet on the moving part. Ensure the gap between the two is less than 22 mm when the door/window is closed.

What battery does the sensor use and how to replace it?

The sensor uses a CR1632 button cell battery. To replace it, open the compartment, insert the new battery respecting polarity, and close. Caution: keep the battery out of reach of children.

Does the sensor work without a hub?

No, an Aqara hub is required for operation. It allows network connection and integration with Apple HomeKit.

How to reset the sensor?

Press and hold the reset button for 3 seconds to reset or connect to the network.

What is the communication range with the hub?

The range depends on the environment. Use the range test by briefly pressing the button: if the hub emits a voice prompt, communication is good. Avoid metal surfaces.

Is the sensor compatible with Apple HomeKit?

Yes, provided you use a HomeKit-compatible Aqara Hub. Visit www.aqara.com for details.

What to do if connection fails when adding in the app?

Move the sensor closer to the hub and try again. Ensure the Aqara Home app is up to date and the hub is properly installed.

Can the sensor be used outdoors?

No, the sensor is intended for indoor use only. Do not expose it to moisture or weather.

How to test the effective range of the sensor?

Place the sensor in the desired location, then press the reset button once. If the hub emits a voice prompt, the range is sufficient.

What to do if the button cell battery is ingested?

Seek medical attention immediately. Button cell batteries can cause severe internal burns within hours. Keep new and used batteries out of reach of children.

USER MANUAL Door and Window Sensor Aqara

Door and Window Sensor

Door and Window Sensor Quick Start Guide

Product Introduction

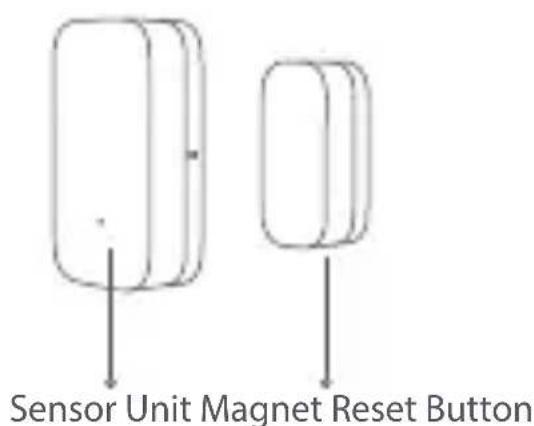

Aqara Door and Window Sensor detects the open and close state of doors or windows through the distance between the sensor unit and the magnet. It consumes low energy. No tools required, and simply peel and stick.

* A hub is required.
* Aqara Hub is required to enable Aqara Door and Window Sensor to work with HomeKit technology. See www.aqara.com for more details.
* This product is for indoor use only.

Long Press for 3s: Reset/Connect to Network

Single Press: Effective Range Test

Quick Setup

1. Before activating the accessory, please make sure you have the Aqara Home app downloaded and Aqara hub installed.
2. Please open the app, tap "Home" and then tap "+" in the top right corner to enter "Add Device (Accessory)" page. Select "Door and Window Sensor", and add it according to instructions.

* If the connection fails, please move the accessory closer to the Hub and try again.

Installation

Effective Range Test: Single press the reset button on the accessory at your desired position. If the Hub makes voice prompts, it indicates that the accessory can communicate effectively with the Hub.

* Avoid metal surface to maximize signal strength.

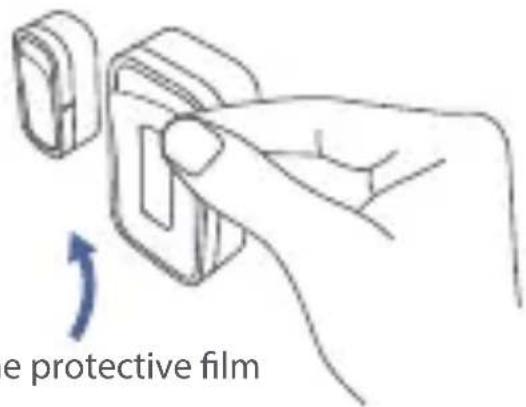

① Remove the protective film.

Remove the protective film

② During installation, try to align the marker line of the sensor unit and the magnet.

Try to align the marker line

③ Stick to doors or windows (It is recommended to install the sensor unit on the unmovable surface, the magnet on the movable surface, and make sure the installation gap is less than 22 mm when doors or windows are closed).

Installation gap less than 22 mm

* Keep the surface clean and dry.

Specifications

Model: MCCGQ11LM

Dimensions: 41 × 22 × 11 mm ( 1.61 × 0.87 × 0.43 in.)

Wireless Protocol: Zigbee

Battery: CR1632

Maximum Detection Distance: 22 mm (0.87 in.)

Operating Temperature: -10° - +50°C ( 14° - 122°F )

Operating Humidity: 0 – 95% RH, no condensation

Maximum Transmit Power (Zigbee): 9.99 dBm

Working Frequency: 2400 MHz – 2483.5 MHz

Online Customer Service: www.aqara.com/support

Email: [e-mail]

Manufacturer: Lumi United Technology Co., Ltd.

Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential District, Nanshan District, Shenzhen, China.

Warnings

1. This product is NOT a toy. Please keep children away from this product.
2. This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
3. Beware of moisture, do NOT spill water or other liquids onto the product.
4. Do NOT place this product near a heat source. Do NOT place it in an enclosure unless there is normal ventilation. Do NOT attempt to repair this product by yourself. All
5. repairs should be performed by an authorized professional. This product is only suitable for improving the entertainment, convenience of your home life and
6. reminding you about the device status. It should NOT be used as security equipment for home, building, warehouse or any other places. If a user violates the product use instructions, the manufacturer will NOT be liable for any

risks and property losses.

FCC ID: 2AKIT-MCCGQ11LM

Federal Communications Commission (FCC) compliance statement:

1. This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

RF Exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC: 22635-MCCGQ11LM

IC NOTICE TO CANADIAN USERS

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference

that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with RSS-247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Risk of explosion if the battery is replaced by an incorrect

type.

Dispose of used batteries according to the instructions.

Do not ingest battery, Chemical Burn Hazard.

This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

1. The equipment is only suitable for mounting at heights ≤ 2 m
2. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion

Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas

CE

Hereby, [Lumi United Technology Co., Ltd.] declares that the radio equipment type [Door and Window Sensor, MCCGQ11LM] is in compliance with Directive

2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aqa-ra.com/DoC/

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the

government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
