Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir | техvíków тротпотоїσεων.

Safety, performance, and dependability have been given top priority in the design of your cordless brush cutter and line trimmer and brush saw.

INTENDED USE

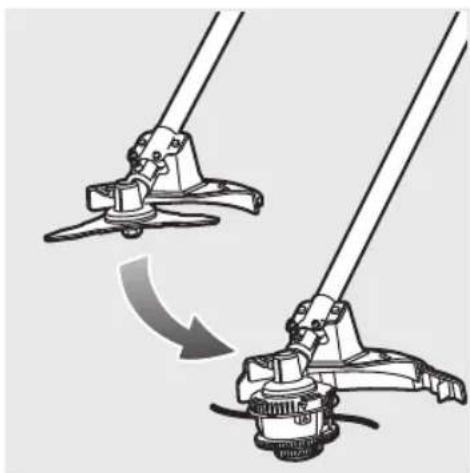

The cordless brush cutter and line trimmer and brush saw has three modes:

• line trimmer - uses the line trimmer head, which is intended for cutting grass and vegetation

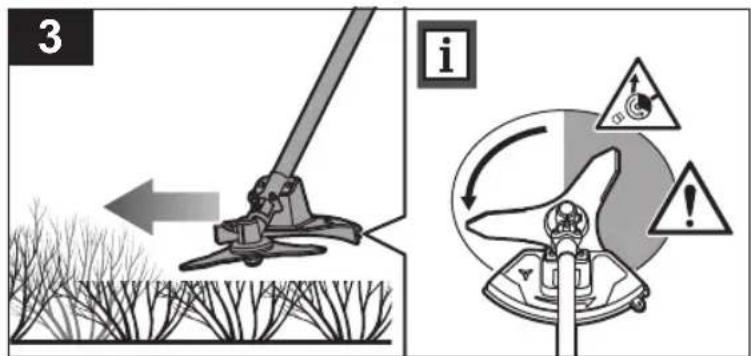

• brush cutter - uses the TRI-ARC blade, which is intended for cutting bushes
• brush saw - uses the saw blade, which is intended for cutting stumps and branches

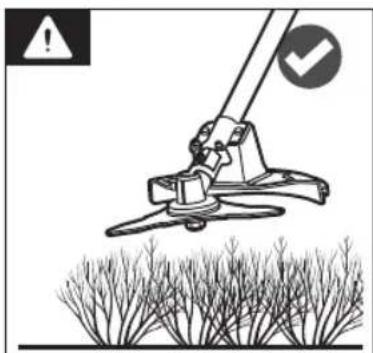

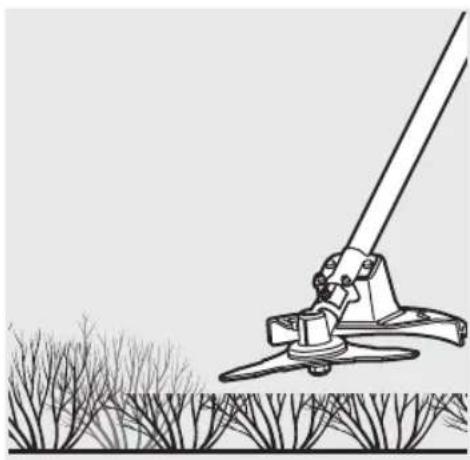

The cutting plane should be approximately parallel to the ground surface.

The product is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

The product is intended only for use outdoors in a well-ventilated area. For safety reasons, the product must be adequately controlled by a two-handed operation.

Do not use the product for any other purposes.

GENERAL PRODUCT SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instruction for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock

■ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dus extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

BRUSH CUTTER AND LINE TRIMMER AND BRUSH SAW SAFETY WARNINGS

• Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation.

■ Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
■ Before using the machine, always visually inspect to see that the cutter or blade and the cutter or blade assembly are not damaged. Damaged parts increase the risk of injury.

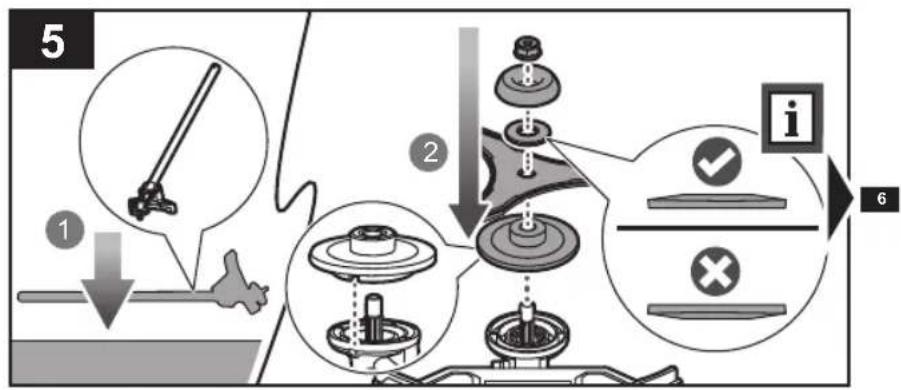

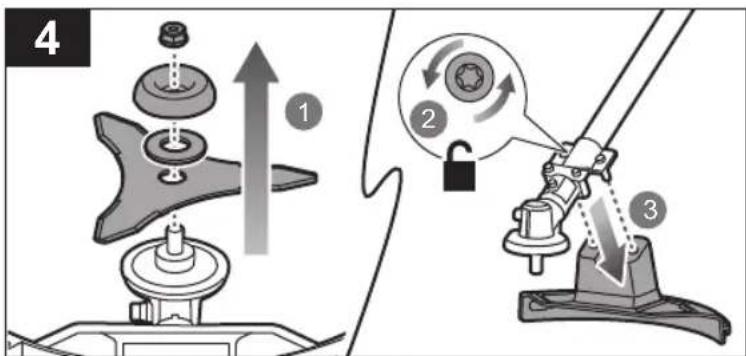

■ Follow instructions for changing accessories. Improperly tightened blade securing nuts or bolts may either damage the blade or result in it becoming detached.
■ The rated rotational speed of the blade must be at least equal to the maximum rotational speed marked on the machine. Blades running faster than their rated rotational speed can break and fly apart.

■ Wear eye, ear, head and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.
■ While operating the machine, always wear safety footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with a moving cutter, line or blade.
■ While operating the machine, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.

- Keep bystanders away while operating the machine. Thrown debris can result in serious personal injury.

■ Always use two hands when operating the machine. Holding the machine with both hands will avoid loss of control.

- Hold the machine by the insulated gripping surfaces only, because the cutting line or blade may contact hidden wiring. Cutting line or blades contacting a "live" wire may make exposed metal parts of the machine "live" and could give the operator an electric shock.

■ Always keep proper footing and operate the machine only when standing on the ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.

- Do not operate the machine on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

- When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

- Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything. A moment of inattention while operating the machine may result in injury to yourself or others.

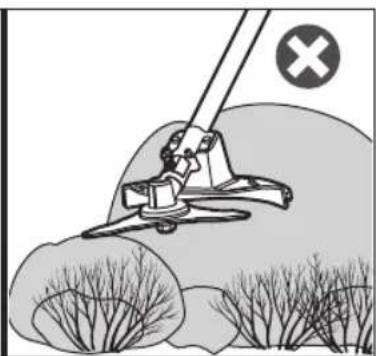

- Do not operate the machine above waist height. This helps prevent unintended cutter or blade contact and enables better control of the machine in unexpected situations.

- When cutting brush or saplings that are under tension, be alert for spring back. When the tension in the wood fibres is released, the brush or sapling may strike the operator and/or throw the machine out of control.

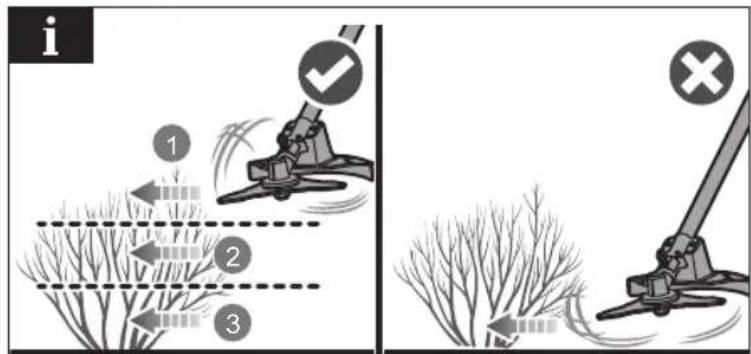

■ Use extreme caution when cutting brush and saplings. The slender material may catch the blade and be whipped toward you or pull you off balance.

• Maintain control of the machine and do not touch cutters, lines or blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
• Carry the machine with the machine switched off and away from your body. Proper handling of the machine will reduce the likelihood of accidental contact with a moving cutter, line or blade.
• When transporting or storing the machine, always fit the cover on metal blades. Proper handling of the machine will reduce the likelihood of accidental contact with the blade.
  ■ Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.
  ■ When clearing jammed material or servicing the machine, make sure the switch is off and the battery pack is removed. Unexpected starting of the machine while clearing jammed material or servicing may result in serious personal injury.

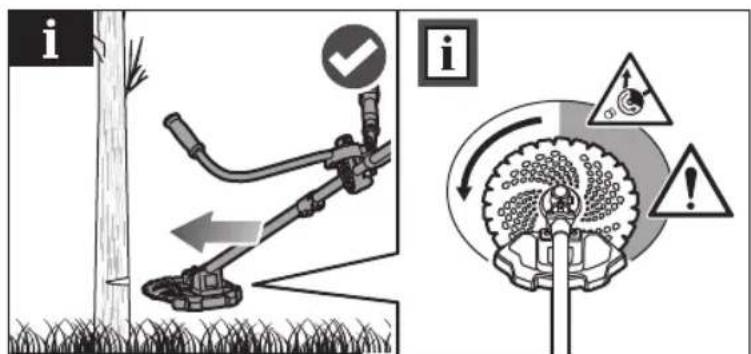

BLADE THRUST CAUSES AND RELATED WARNINGS

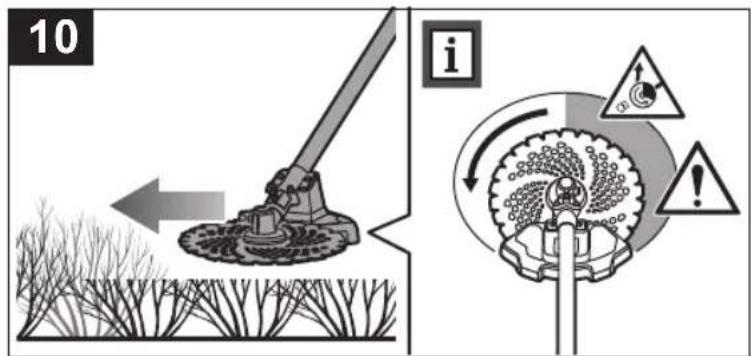

Blade thrust is a sudden sideways, forward or backward motion of the machine, which may occur when the blade jams or catches on an object such as a sapling or a tree stump. It can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine.

Blade thrust and its related hazards can be avoided by taking proper precautions as given below.

- Maintain a firm grip with both hands on the machine and position your arms to resist blade thrust. Position your body to the left side of the machine. Blade thrust can increase the risk of injury due to the machine moving unexpectedly. Blade thrust can be controlled by the operator if proper precautions are taken.

If the blade binds, or when interrupting a cut for any reason, switch the machine off and hold the machine motionless in the material until the blade comes to a complete stop. While the blade is binding, never attempt to remove the machine from the material or pull the machine backward while the blade is in motion, otherwise blade thrust may occur. Investigate and take corrective actions to eliminate the cause of blade binding.

- Do not use blunt or damaged blades. Blunt or damaged blades increase the risk of jamming or catching on an object, resulting in blade thrust.

■ Always maintain good visibility of the material being cut. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.

If you are approached by another person while operating the machine, switch the machine off. There is an increased risk of injury to other persons being struck by the moving blade in the event of blade thrust.

ADDITIONAL SAFETY WARNINGS

■ Before use and after any impact, check that there are no damaged parts on the product. A defective switch or any part that is damaged or worn should be properly repaired or replaced by an authorised service centre.

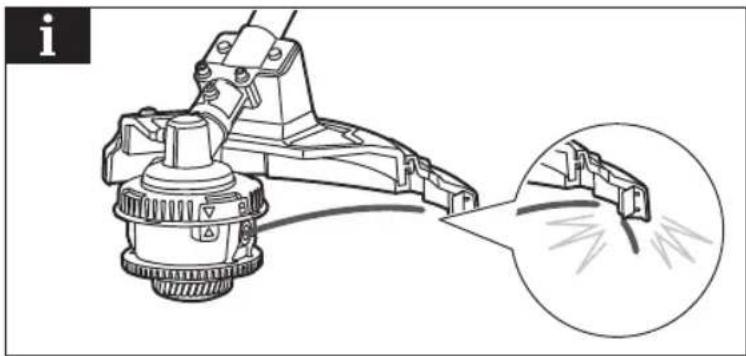

■ The small blade fitted to the safety guard is designed to trim the newly extended line to the correct length for safe and optimum performance. The blade is very sharp. Do not touch the blade, particularly when cleaning the product.

• Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment.
  ■ Make sure that the cutting attachment is properly installed and securely fastened.
  ■ Never operate the product unless all guards, deflectors, and handles are properly and securely attached.

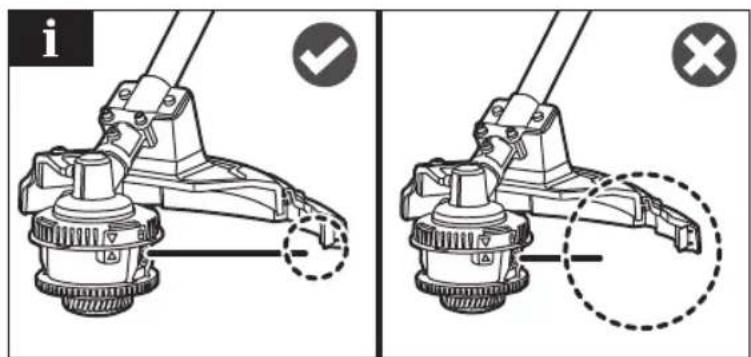

  ■ Ensure that the line cut-off blade in the safety guard is properly positioned and secured before each use.
• Keep the head attachment below waist level.
• Immediately turn off the product and remove the battery pack in the event of an accident or a breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.
  ■ To reduce the risk of injury associated with contacting moving parts, always turn off the product, remove the battery pack, and allow both to cool down. Make sure that all moving parts have come to a complete stop:

- before servicing

• before clearing a blockage

• before checking, cleaning, and working on the product

• before changing accessories

• after striking a foreign object

• whenever leaving the product unattended

• whenever performing maintenance

• whenever the product starts to vibrate abnormally

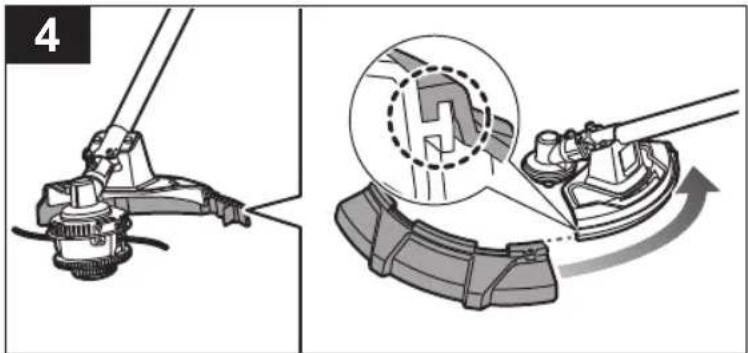

■ Ensure that all guards and handles are properly fitted and are in good condition.
■ Hold the product by designated handles, and restrict working time and exposure.

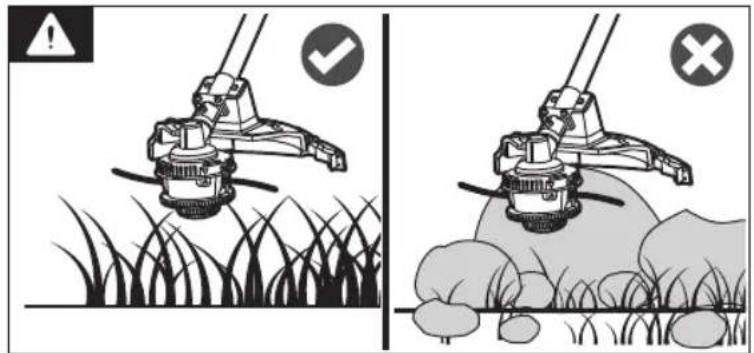

■ Beware of objects thrown by the cutting means. Remove debris like small stones, gravel, and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means.

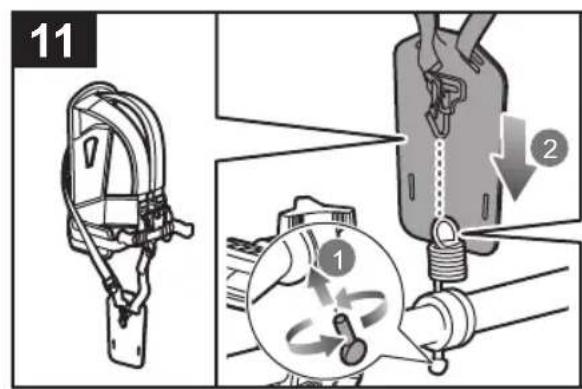

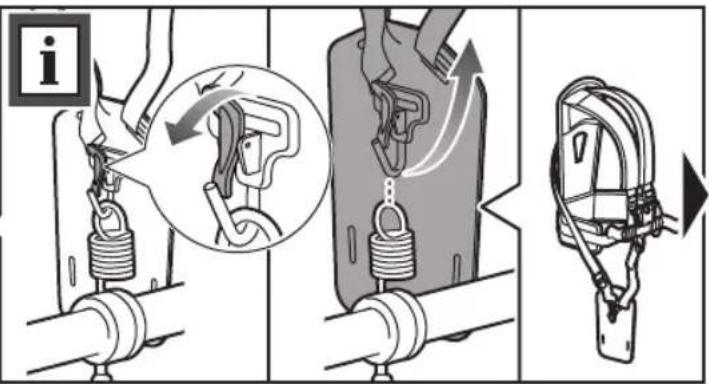

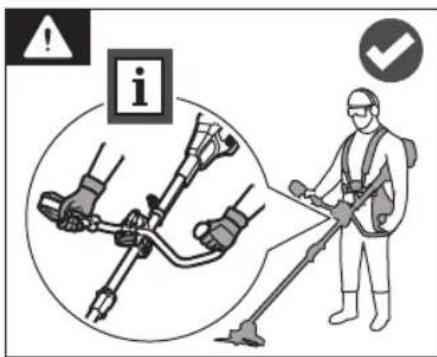

The product is fitted with a harness. Use the harness while operating the product. Carefully adjust the harness to fit comfortably and help support the weight of the product at your right side. Identify the quick-release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in case of an emergency. Never wear additional clothing over the harness or otherwise that restrict access to the quick-release mechanism.

■ Do not wear multiple belt or shoulder harnesses.
■ Always ensure that ventilation openings are kept clear of debris.
■ Operate the product only in temperatures between 0^ C and 40^ C.
■ Store the product in a location where the ambient temperature is between 0°C and 40°C.

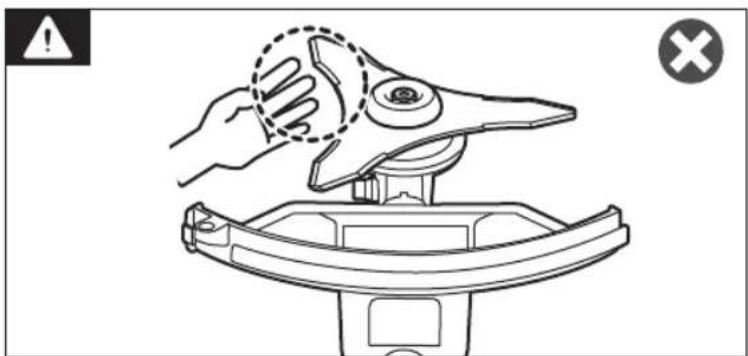

■ Use heavy-duty gloves while installing or removing blades, they have sharp edges.

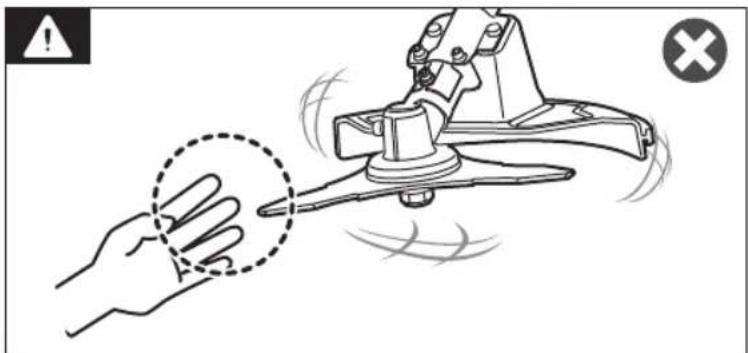

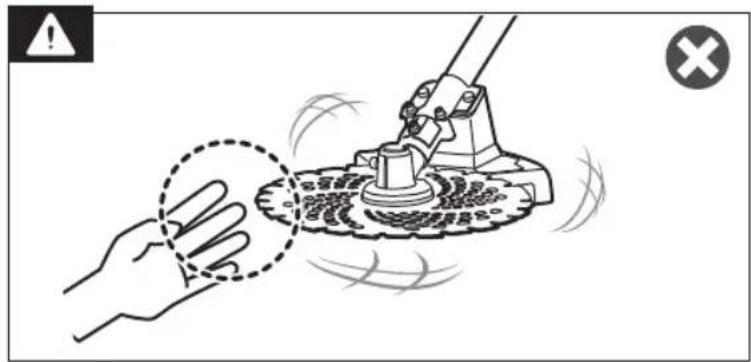

- Do not attempt to touch or stop the blade when it is rotating.
- Replace any blade that has been damaged. Always make sure that the blade is installed correctly and securely fastened before each use.
- Use only the manufacturer's replacement blade. Do not use any other cutting attachment.

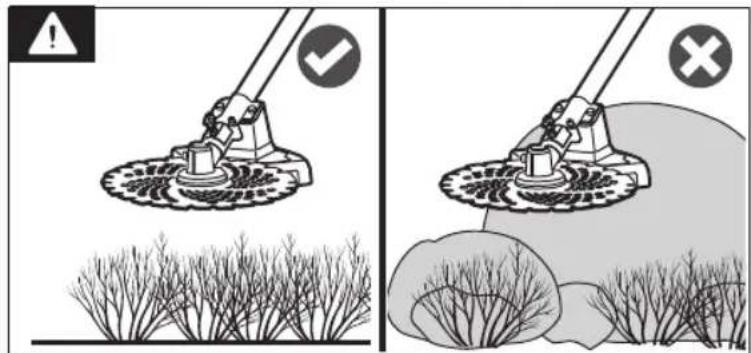

■ Never cut any material over 13 mm diameter with the TRI-ARC blade.

■ Never cut any material over 40 mm diameter with the saw blade. Beware of falling branches when using the saw blade.

■ Cover the blade with the blade cover before storing the product, or during transportation. Always remove the blade protector before using the product. If not removed, the blade protector could become a thrown object as the blade begins to turn.

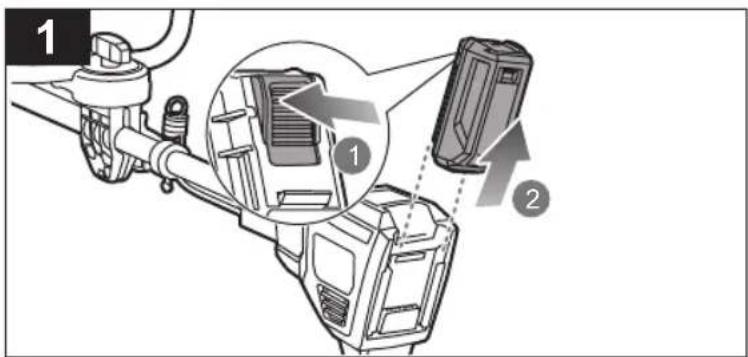

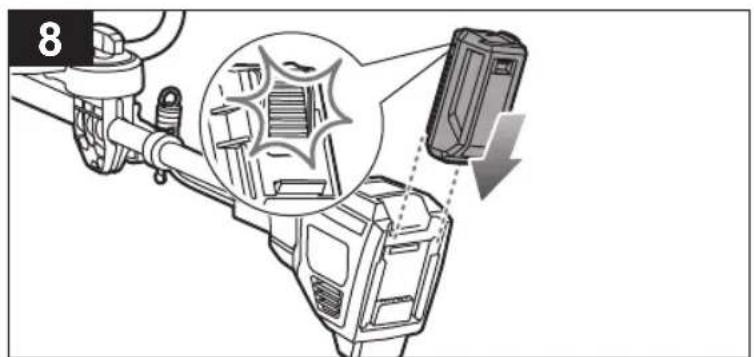

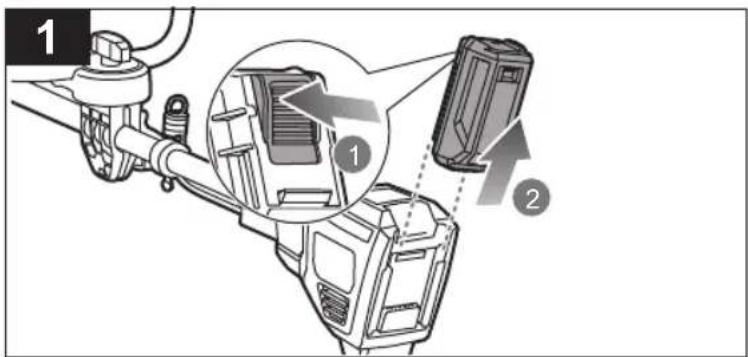

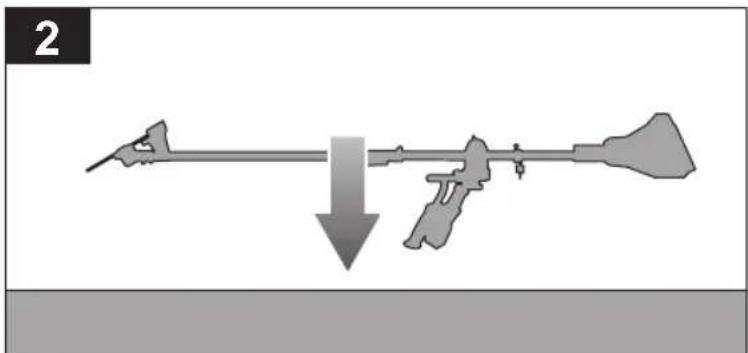

- When installing or changing the battery pack, lay the product on the ground with blade facing upwards to prevent the blade from touching the ground and extend the blade life.

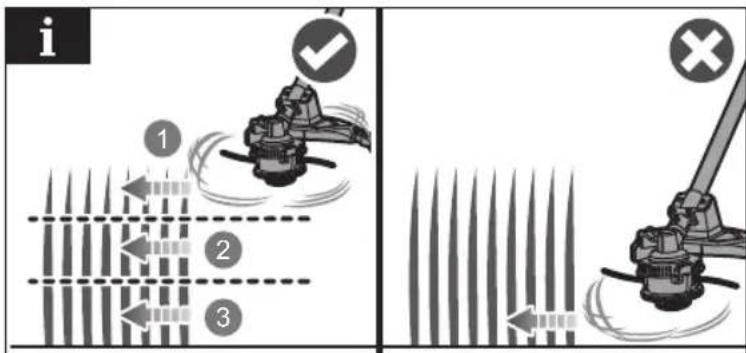

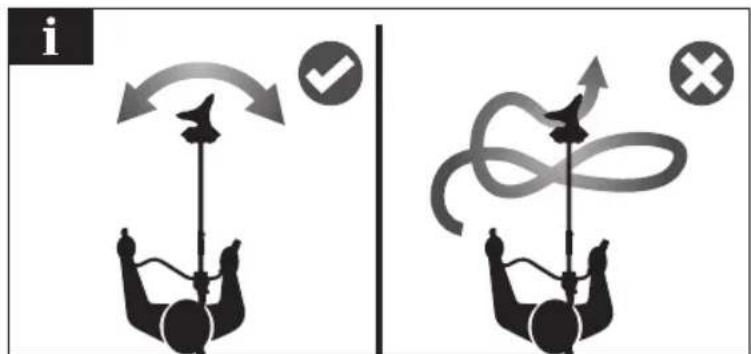

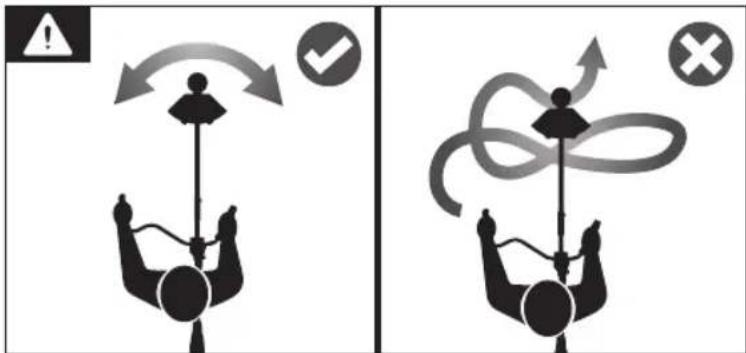

■ For cutting ease and safety, approach the weeds being cut from the right to the left. In the event that an unexpected object or woody stock is encountered, this practice could minimise the blade thrust reaction. Both hands must be used at all times to control the product.

■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

- Charge the battery pack in a location where the ambient temperature is between 10°C and 38°C.

■ Store the battery pack in a location where the ambient temperature is between 0°C and 20°C.

■ Use the battery pack in a location where the ambient temperature is between 0°C and 40°C.

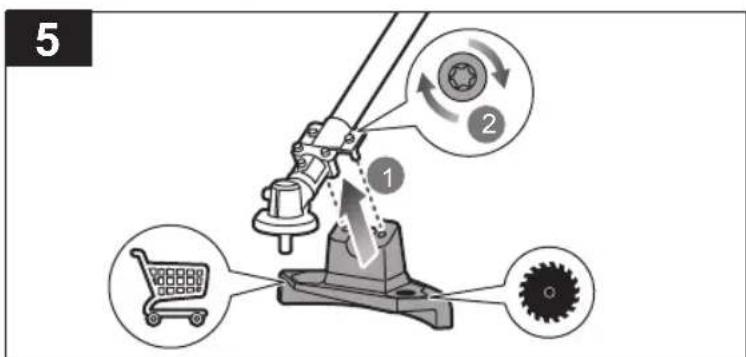

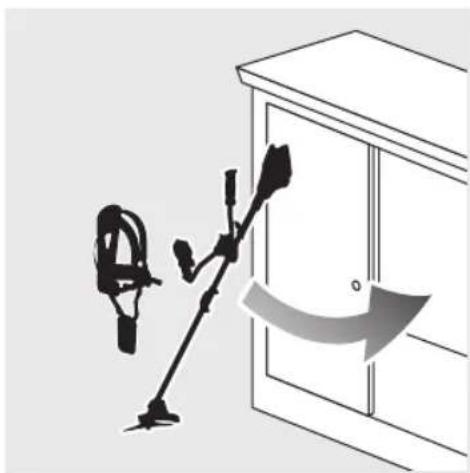

TRANSPORTATION AND STORAGE

■ Turn off the product, remove the battery pack, and allow both to cool down before storing or transporting.

■ Remove all foreign materials from the product.

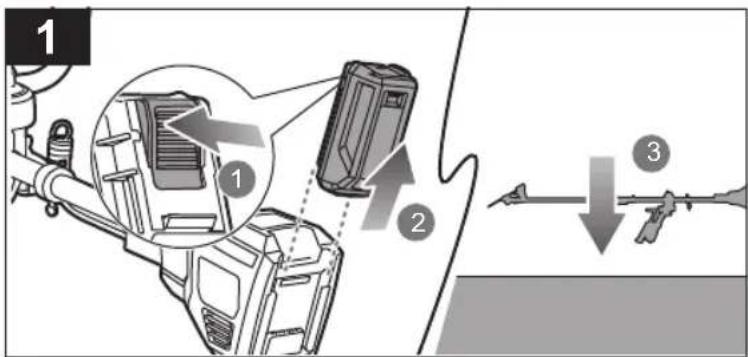

- Do not store or transport the product with the battery pack fitted. Remove the battery pack, and secure it separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.

■ For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

■ Transport the battery pack in accordance with local and national provisions and regulations.

■ Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

- Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.

■ Turn off the product and remove the battery back before conducting any maintenance or cleaning work.

■ You may make adjustments or repairs described in this manual. For other repairs, contact an authorised service centre.

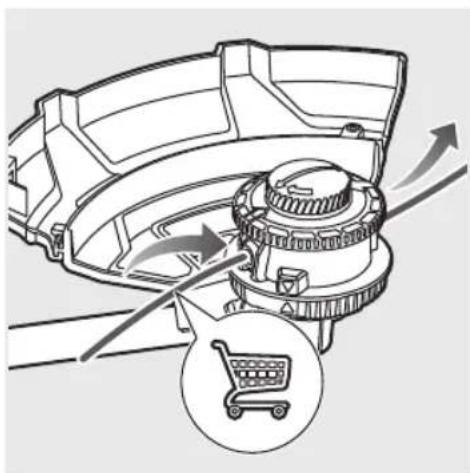

■ For the replacement line, use only a nylon filament line of the diameter described in the specifications table of this manual.

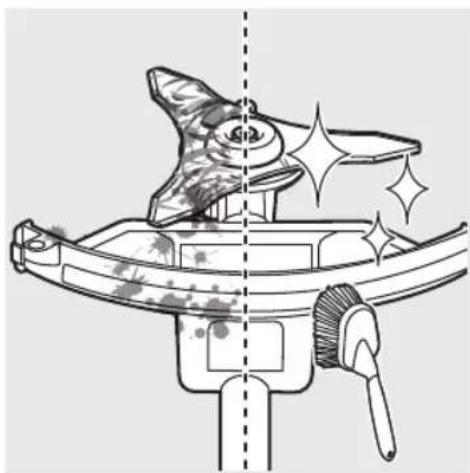

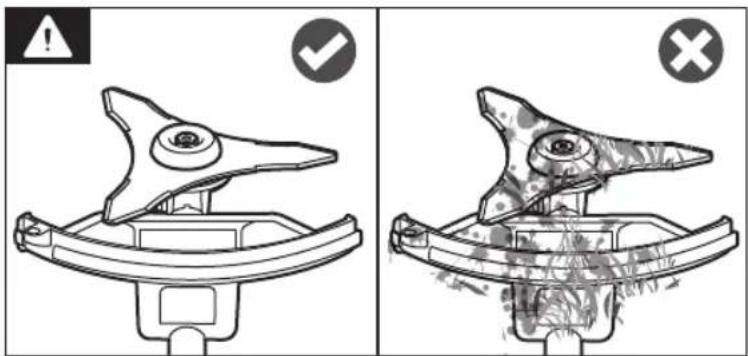

■ After each use, clean the product with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

- Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

KNOW YOUR PRODUCT

See page 149.

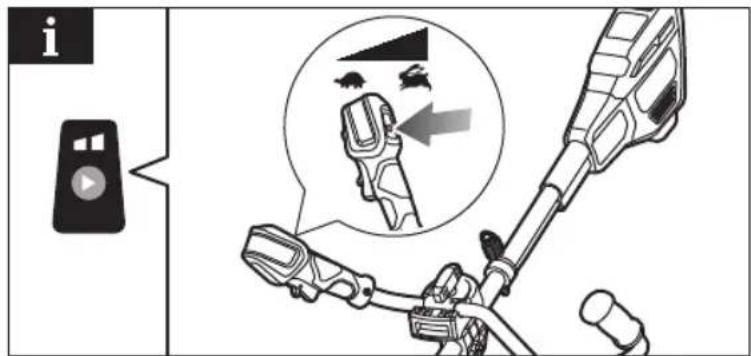

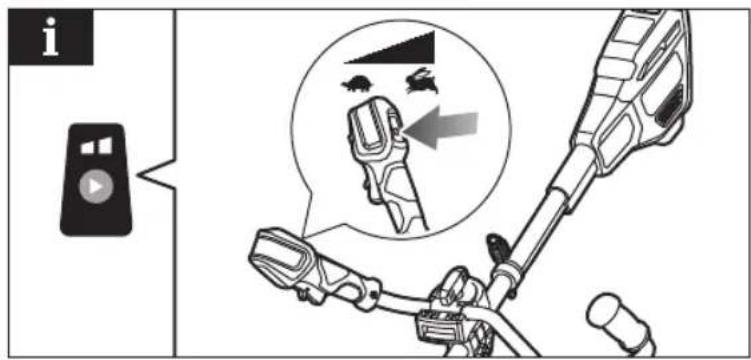

1. Speed selector

2. Bike handle

3. On/Off trigger

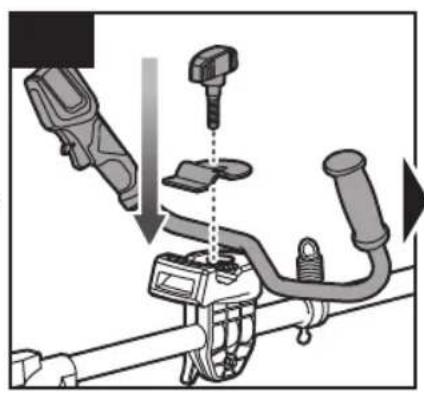

4. Bike handle clamp knob

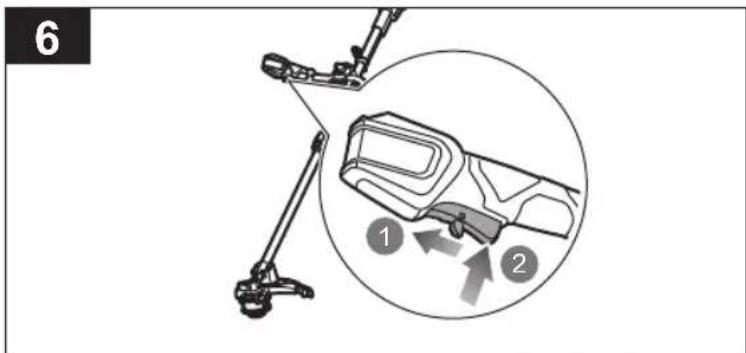

5. Harness hanger

6. Bike handle clamp

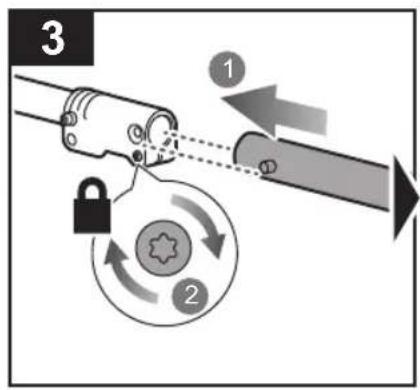

7. Coupler

8. Lower drive shaft

9. Bump knob

10. Cutting line

11. Safety guard

12. Cut-off blade

13. TRI-ARC blade

14. Blade protector

15. Flange washer

16. Construction washer

17. Spring washer

18. Nut

19. Harness

20. Lock pin

21. Operator's manual

22. Combination wrench

23. Blade guard

24. Saw blade guard

25. Saw blade

26. Blade cover

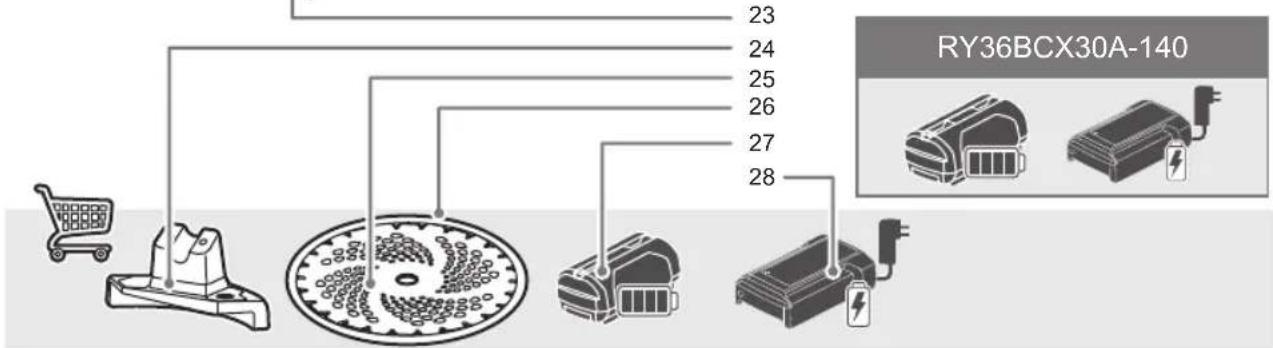

27. Battery pack

28. Charger

SYMBOLS ON THE PRODUCT

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye and hearing protection.

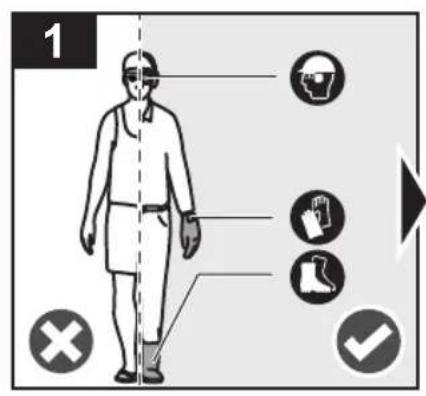

Wear protective gloves.

Wear non-slip safety footwear when using the product.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Keep hands away from the cut-off blade.

Remove the battery pack before starting any work on the product.

Beware of blade thrust.

Do not expose the product to rain or damp conditions.

Guaranteed sound power level for brushcutter

Guaranteed sound power level for line trimmer

Guaranteed sound power level for brush saw

European Conformity Mark

British Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

SYMBOLS IN THIS MANUAL

Note

Warning

Parts or accessories sold separately

SYMBOLES APPLIQUÉS SUR LE PRODUIT

Alerte de sécurité

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 149.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

ALGEMENE PRODUCTVEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING!

Lees

alle

SYMBOLER PÅ PRODUKTET

Sikkerheds Varsel

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

KJENN PRODUKTET DITT

Se side 149.

SYMBOLER PÅ PRODUKTET

Sikkerhetsalarm

SYMBOLER I DENNE MANUALLEN

Merk

Advarsel

SUSIPAŽINKITE SU JRENGINIU

Žr. 149 psl.

SEADME ÜLDISED OHUTUSJUHISED

DODATNA VARNOSTNA OPOZORILA

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 149.

Exploded view diagram of a vehicle suspension system with numbered components and an inset image showing a device.

23 24 25 26 27 28 RY36BCX30A-140

1 × ✓

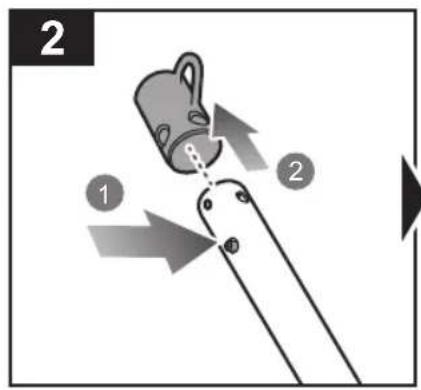

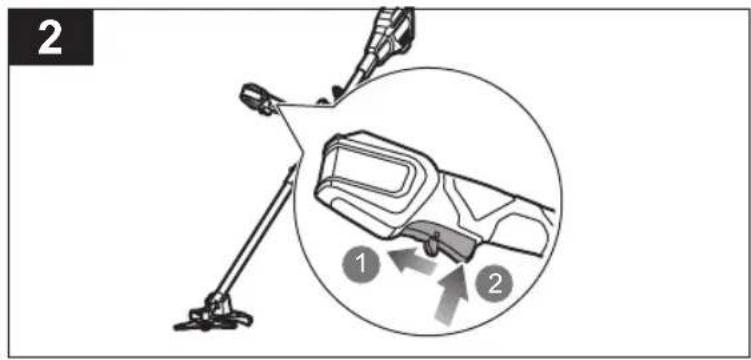

2 1 2

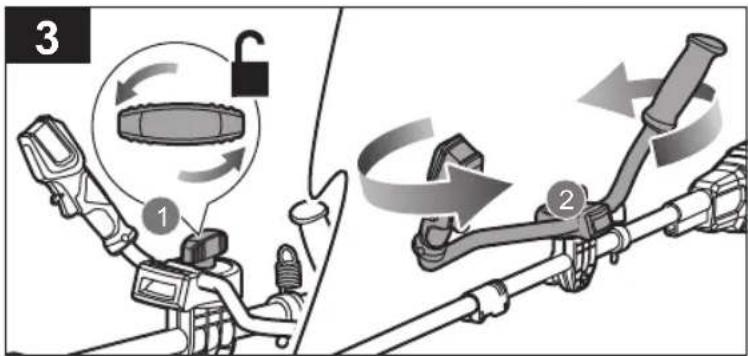

3 1 2

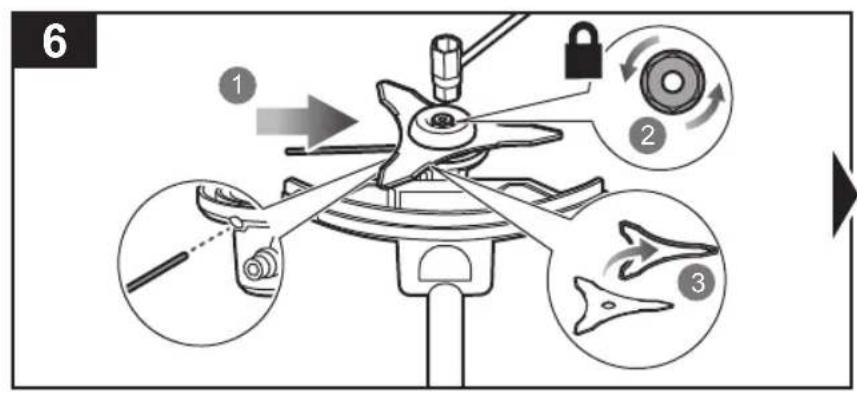

6 1 2 3

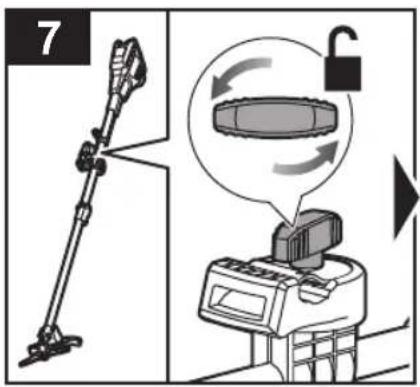

7

11 1 2

Diagram illustrating three steps of a car climbing device: lifting, adjusting the lock mechanism, and adjusting the weight.

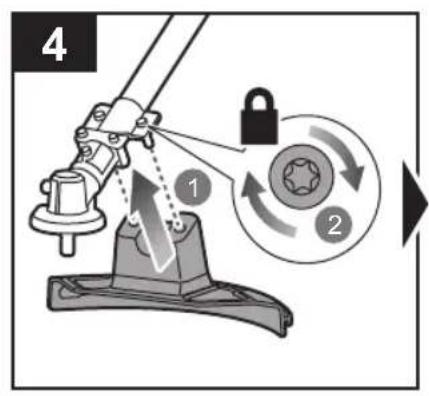

4 1 2

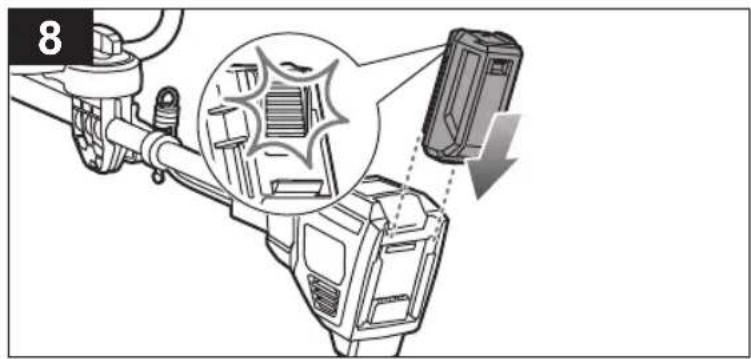

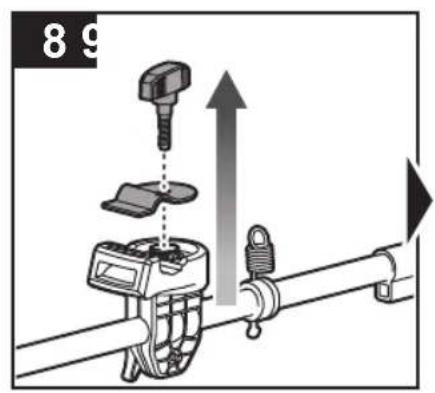

8 9

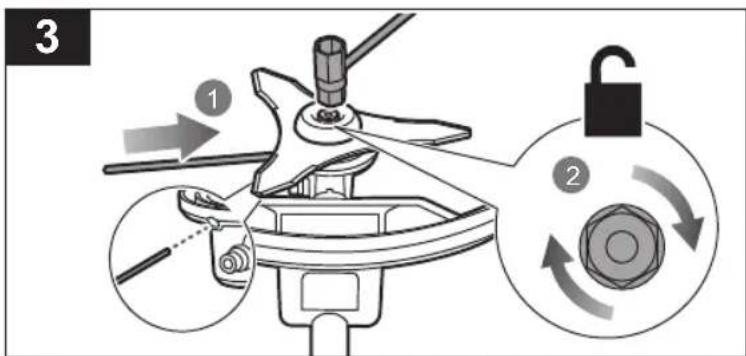

Mechanical assembly diagram showing a tool interacting with a device, no text or symbols present

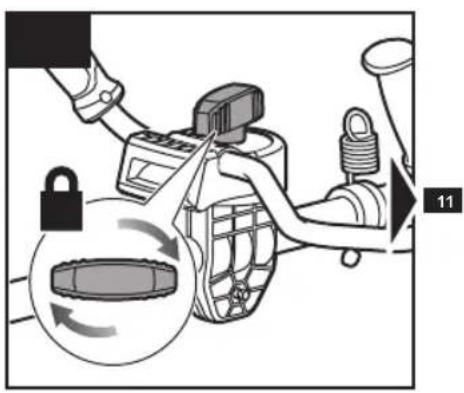

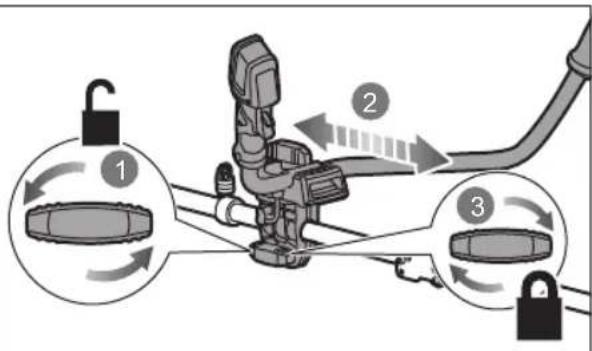

Diagram illustrating vehicle lock mechanism with labeled components and directional arrows

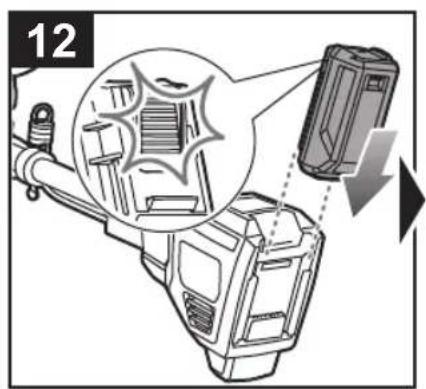

12

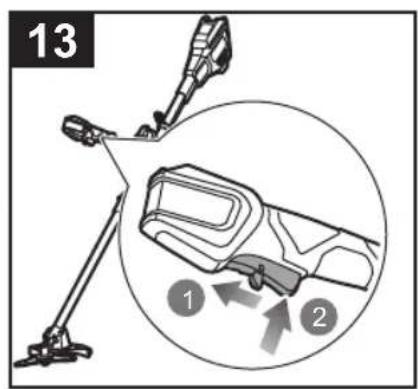

13 1 2

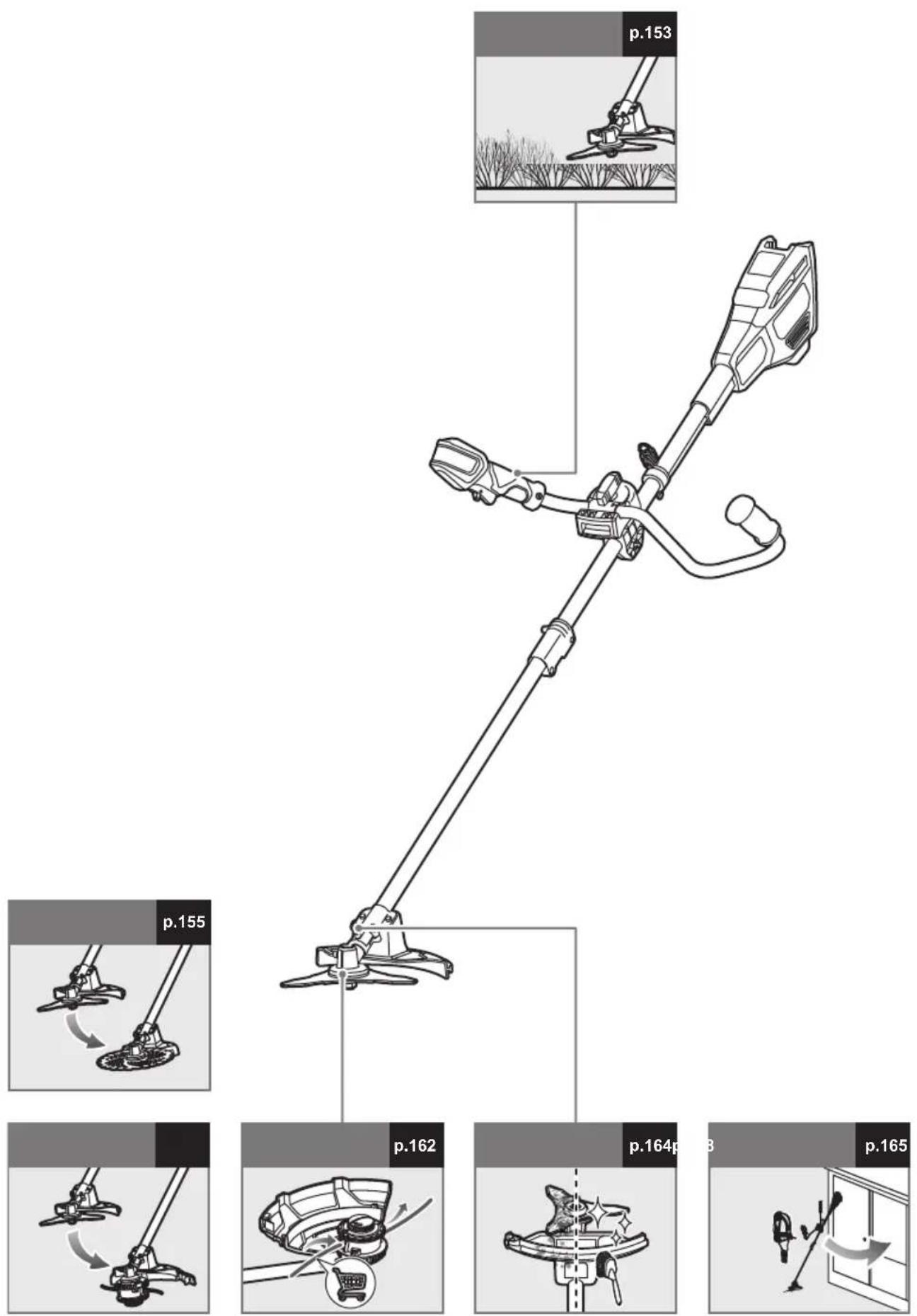

p.153 p.155 p.162 p.164p 8 p.165

Line drawing of a manual pole attachment to grass, no text or symbols present

Safety warning illustration showing a worker disinfecting equipment with warning symbols and safety icons

Illustration of a hand using a tool to interact with a device, no text or symbols present

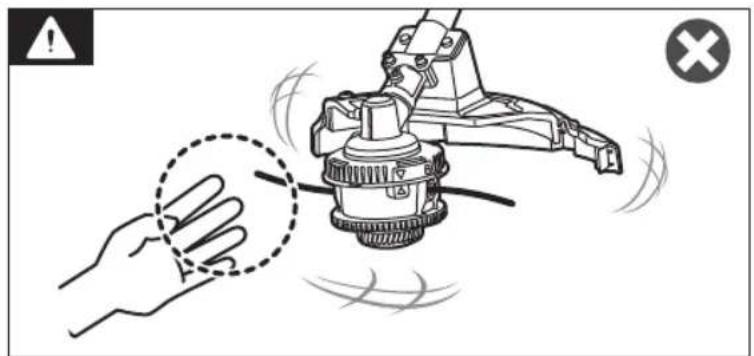

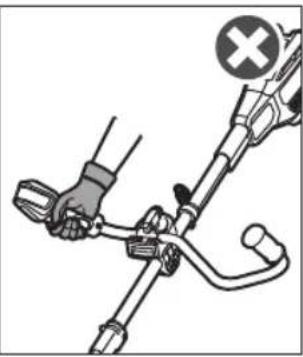

Safety warning illustration showing hand contact with a tool, indicating no hazard or failure

Illustration of a manual lever lifting a tree with grass at the base, no text or symbols present

Illustration of a mechanical device with a cross symbol and surrounding vegetation (no text or labels)

Simple line drawing of a mechanical linkage or lever device (no text or symbols)

Diagram illustrating vehicle seatbelting and lock mechanism with numbered steps and directional arrows

1

2 1 2

Diagram illustrating a device's internal components and a magnified view of the device's internal structure, with labeled parts and an arrow indicating detail.

3 i

i 1 2 3

i

Illustration of two hand mallets with a curved arrow indicating rotation or movement (no text or symbols)

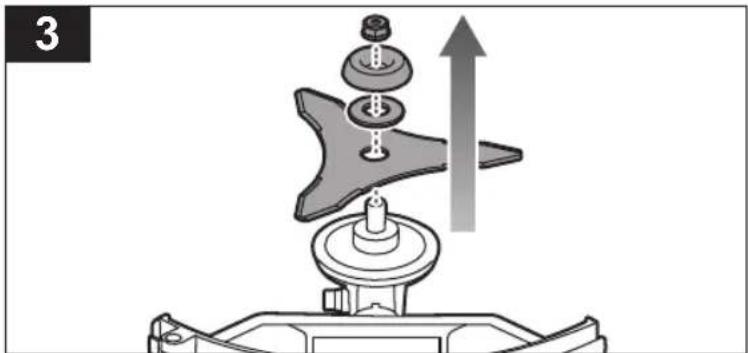

Diagram showing a mechanical assembly with labeled parts and a magnified inset highlighting a component with internal structure.

Diagram of a firearm with a downward arrow indicating compression or disassembly (no text or symbols)

3 1 2

4 1 2 3

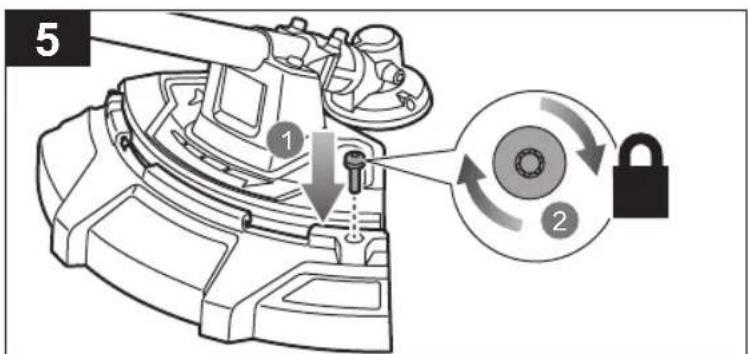

5 1 2

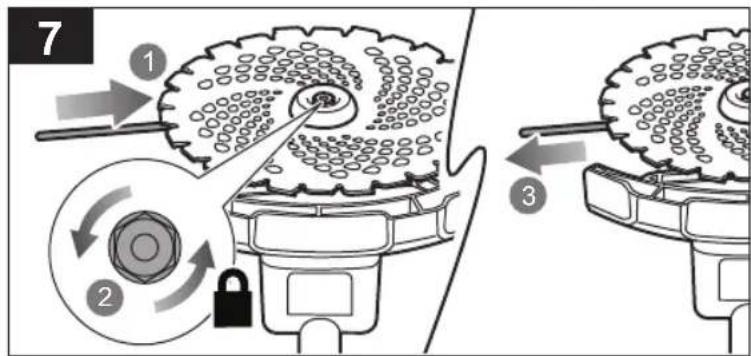

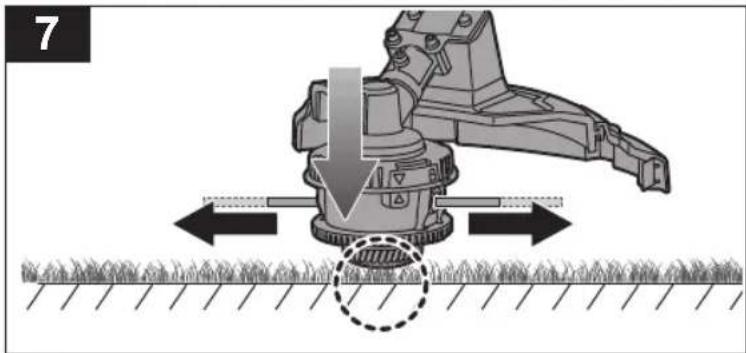

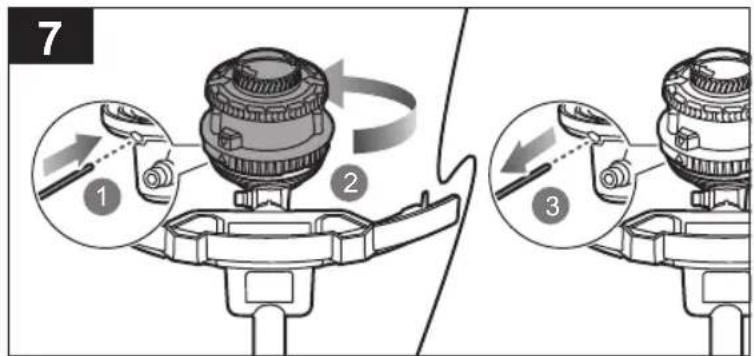

7 1 2 3

Safety warning illustration showing hand cleaning a mop with a hand gesture and warning symbol

8

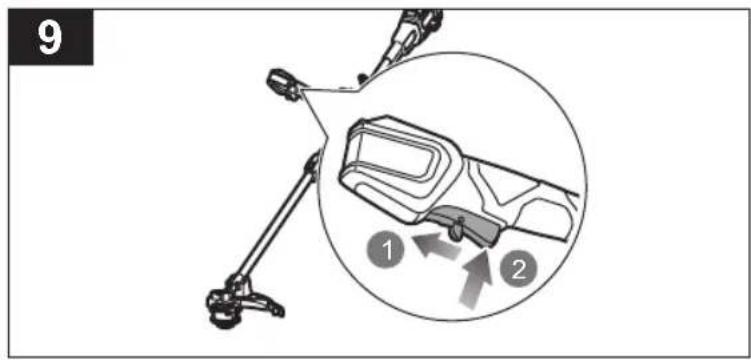

9 1 2

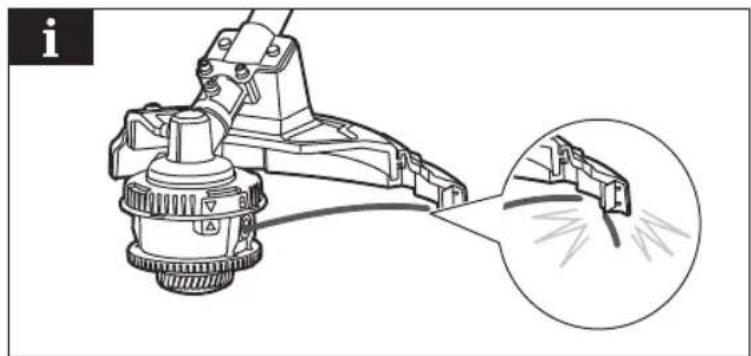

i

Safety warning illustration showing a hand operating a bucket cover with a checkmark and cross symbol indicating failure or rejection.

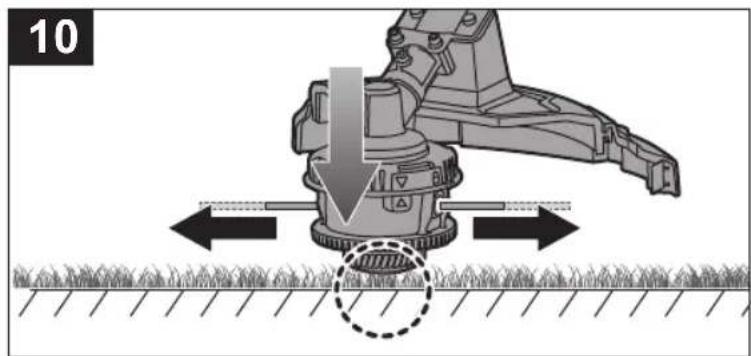

10 i

Diagram illustrating correct and incorrect actions for lifting a person's leg, with directional arrows and checkmark symbols

i i

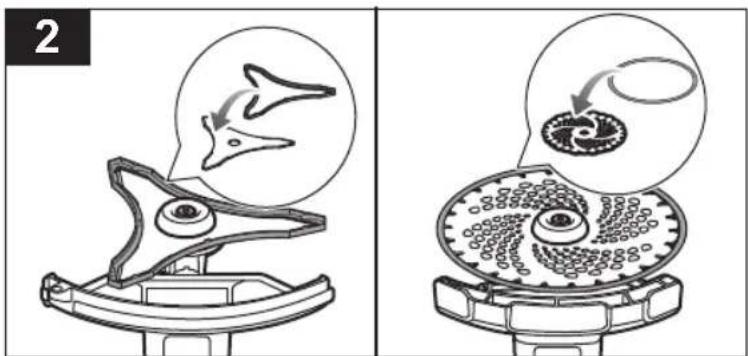

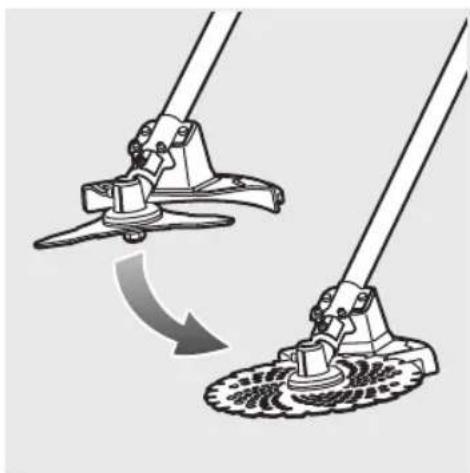

Diagram showing two mechanical clamping setups with a curved arrow indicating rotation (no text or symbols present)

Diagram illustrating a device assembly process with labeled steps and directional arrows indicating movement or force.

2 1 2

3

Mechanical assembly diagram showing a tool interacting with a component, with an inset close-up highlighting a specific part (no text or symbols present)

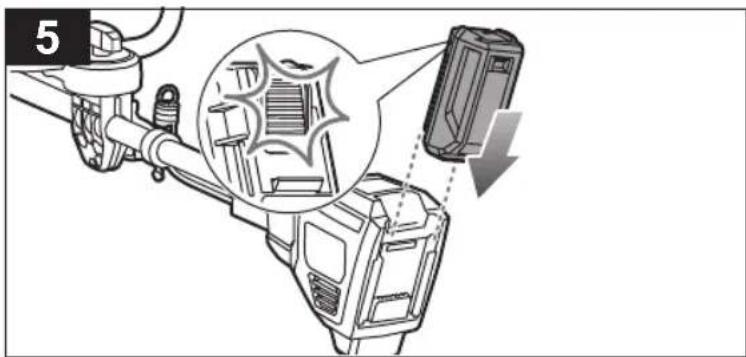

5 1 2

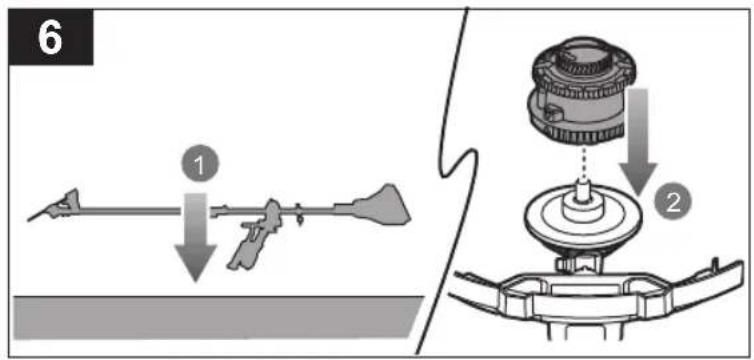

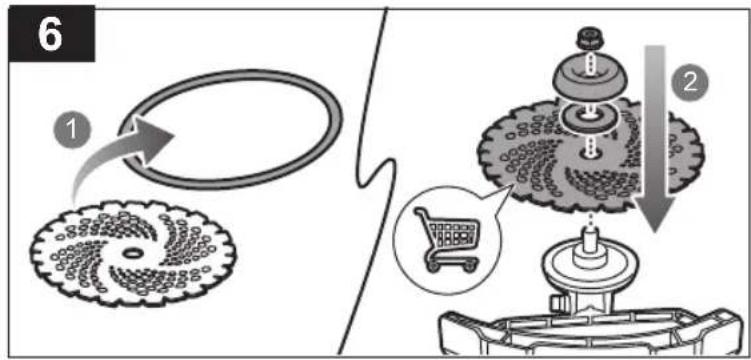

6 1 2

7 1 2 3

Safety warning illustration showing a manual sprinkler spraying grass on a hill with check and cross symbols indicating failure or rejection.

Safety warning illustration showing hand gesture and mechanical device with warning symbol

8

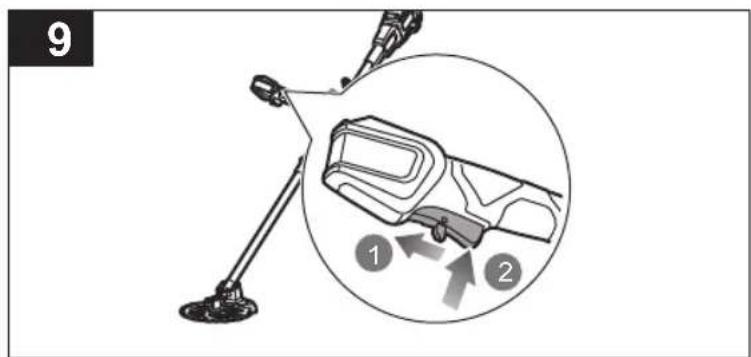

9 1 2

Diagram illustrating a device's internal components with an inset showing a close-up of a device's cable and cable assembly.

10

Technical illustration of a spray gun assembly with a magnified inset showing the tip and base components (no text or symbols)

Technical diagram showing mechanical assembly with check and cross icons indicating selection or repair points

Illustration of a mechanical sprayer with motion arrows and grass background (no text or symbols)

i 1 2 3

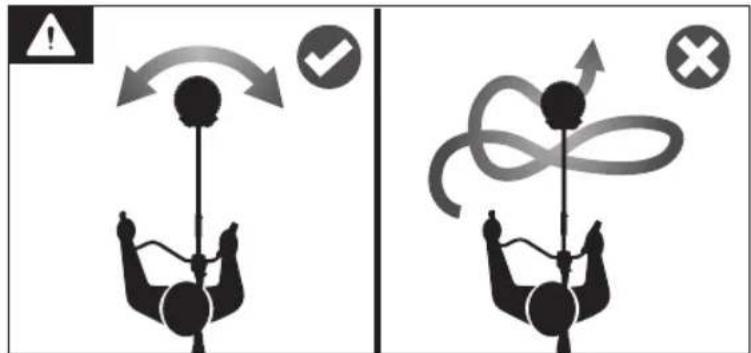

Safety warning diagram showing correct and incorrect actions for handling a person's hand signals, with symbols indicating error and rejection.

Diagram of a mechanical device with arrows indicating motion, showing a shopping cart icon (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement or force.

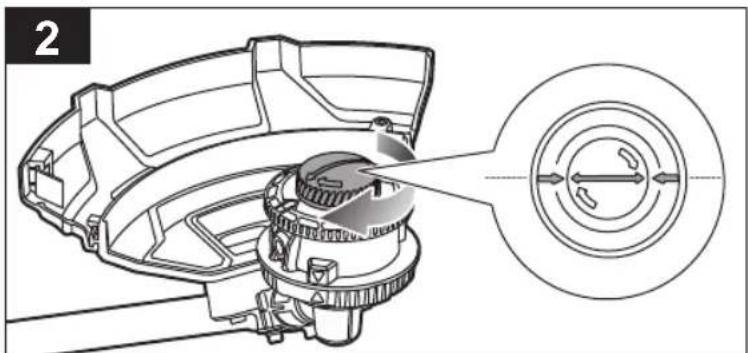

2

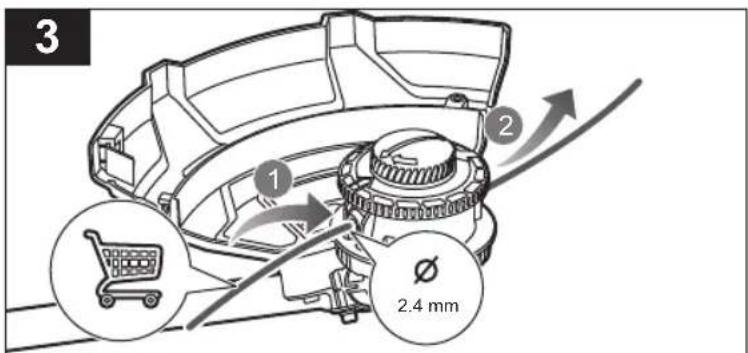

3 1 2 2.4 mm

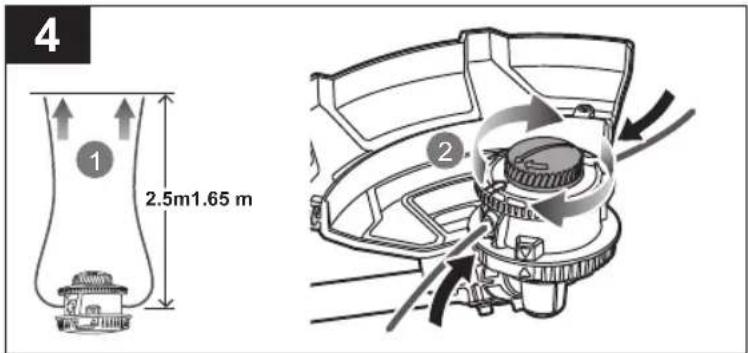

4 1 2.5m1.65 m 2

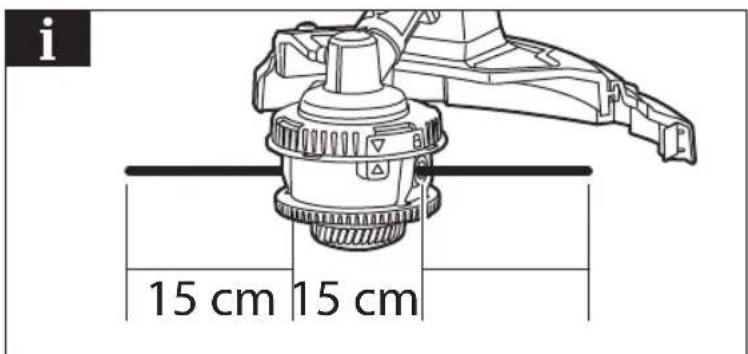

i 15 cm 15 cm

5

6 1 2

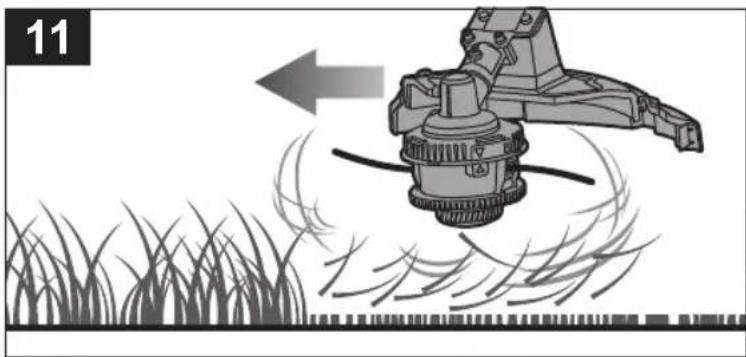

Mechanical diagram showing a lever pressing down on grass, with arrows indicating motion direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing a detail (no text or symbols)

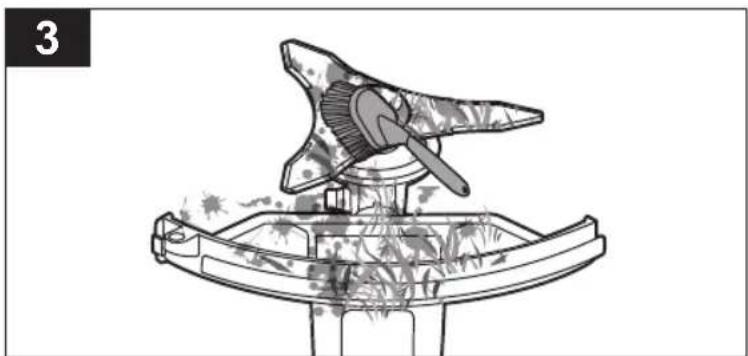

Diagram of a cleaning or cleaning device with a brush and fan blade, showing no text or symbols

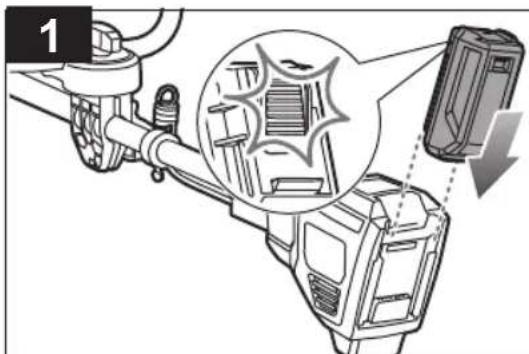

Diagram showing a vehicle's front-mounted battery assembly with labeled components and directional arrows indicating motion or movement.

Diagram of a lever mechanism with a downward arrow indicating compression or force (no text or symbols present)

Illustration of a hand using a tool to clean a mechanical component, with warning symbols and a cross mark (no text or labels)

Illustration of a mechanical device with a camouflaged component mounted on a curved base (no text or symbols)

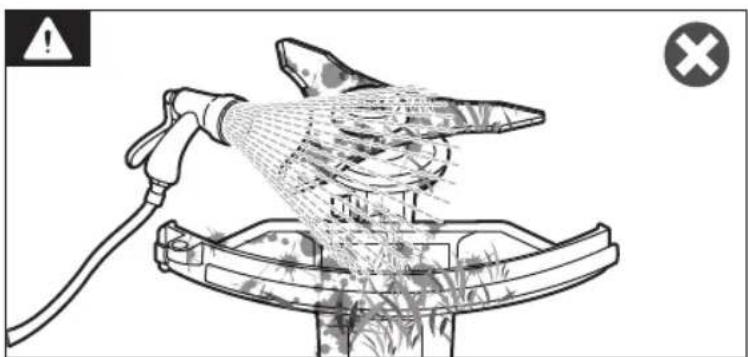

Diagram of a spray gun spraying water onto a mechanical device with warning symbol (no text or labels)

Diagram showing a hand holding a metal detector next to a door, with an arrow indicating rotation (no text or symbols present)

Diagram showing a vehicle's internal components with numbered labels and magnified views highlighting structural differences.

Diagram showing two mechanical components with warning symbols: one with a crosshair symbol and warning sign, the other with a crosshair symbol and warning sign.

2

Diagram illustrating vehicle steering and lock mechanism with labeled steps 1 and 2

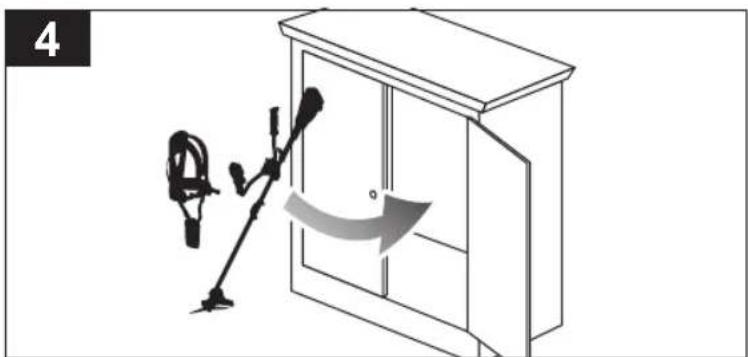

Diagram showing a device mounted on a cabinet with an arrow indicating motion (no text or symbols)

English Français Deutsch Español Italiano Nederlands Português

Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Caracteristicas del producto	Caratteristiche del prodotto	Productgegevens Caracteristicas do aparelho
Cordless brush cutter and line trimmer and brush saw according to grass trimmer standards	Coupe-bordures/débroussailleuse et scie à débroussailler sans fil selon les exigences du coupe-herbe	Akku-Freischneider, -Rasentrimmer und Freischneider mit Sägeblatt entsprechen den Normen für Rasentrimmer	Cortamalezas, cortasetos y sierra de talar inalámbrico en función de los estándares del cortacésped	Tagliabordi, decespugliatore e sega a spazzola senza fili in base ai requisiti per tosaerba	Elekirische bosmaai er en kantenmaai er en motorzaag overeenkomstig normen voor grasmaaiers
Model Modèle Modell Modelo Modello Model Modelo
Voltage	Tension	Spannung	Tensión	Voltaggio	Spanning
Maximum speed of shaft	Vitesse maximale de l'arbre	Maximale Geschwindigkeit Schaff	Velocidad máxima del eje	Massima velocità dell'albero	Maximale asrotatiesnelheid
Brushcutter	Débroussailleuse	Freischneider	Desbrozadora	Decespugliatore	Bosmaai er
Weight	Poids	Gewicht	Peso	Peso	Gewicht
No-load speed	Vitesse à vide	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading
Blade diameter	Diamètre de la lame	Durchmesser Messer	Diâmetro del disco	Diametro lama	Diameter mes
Vibration level (in accordance with IEC 62841-4-4)	Niveau de vibration (selon IEC 62841-4-4)	Vibrationsgrad (gemäß IEC 62841-4-4)	Nivel de vibración (de acuerdo con IEC 62841-4-4)	Livello vibrazioni (in accordo con la direttiva IEC 62841-4-4)	Trillingsniveau (in overeenstemming met IEC 62841-4-4)
Left handle	Poignée gauche	Linker Handgriff	Empuñadura izquierda	Manico sinistro	Linkerhandvat
Right handle	Poignée droite	Rechter Handgriff	Empuñadura derecha	Impugnatura destra	Rechter handvat
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid
Noise emission level (in accordance with IEC 62841-4-4)	Niveau d'émission sonore (selon IEC 62841-4-4)	Schallenergiepegel (gemäß IEC 62841-4-4)	Nivel de emisión de ruido (de acuerdo con IEC 62841-4-4)	Livello di emissione rumore (in accordo con la direttiva IEC 62841-4-4)	Geluidsemissieniveau (in overeenstemming met IEC 62841-4-4)
A-weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora pesato A alla posizione dell'operatore	A-gewogen geluidsdrukniveau op de plaats van de bediener
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid
L_WA + KL	_WA + KL	_WA + KL	_WA + KL	_WA + KL	_WA + KL
Line trimmer	Coupe-bordure	Rasentrimmer	Recortadora	Tagliaerba a filo	Kantenmaai er
Weight	Poids	Gewicht	Peso	Peso	Gewicht
No-load speed	Vitesse à vide	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading
Cutting capacity	Capacité de coupe Schmittbreite Durchmesser		Capacidad de corte	Capacità di taglio	Snijcapaciteit
Cutting line diameter	Diamètre du Fil de Coupe	Schneidfaden-Durchmesser	Cortar el diámetro de la línea	Diametro línea di taglio	Maailijndiameter
Vibration level (in accordance with IEC 62841-4-4)	Niveau de vibration (selon IEC 62841-4-4)	Vibrationsgrad (gemäß IEC 62841-4-4)	Nivel de vibración (de acuerdo con IEC 62841-4-4)	Livello vibrazioni (in accordo con la diretiva IEC 62841-4-4)	Trillingsniveau (in overeenstemming met IEC 62841-4-4)
Left handle	Poignée gauche	Linker Handgriff	Empuñadura izquierda	Manico sinistro	Linkerhandvat
Right handle	Poignée droite	Rechter Handgriff	Empuñadura derecha.	Impugnatura destra	Rechter handvat
Uncertainty	Incertitude	Unsicherheit	Incertidumbre	Incertezza	Onzekerheid
Noise emission level (in accordance with IEC 62841-4-4)	Niveau d'émission sonore (selon IEC 62841-4-4)	Schallenergiepegel (gemäß IEG 62841-4-4)	Nivel de emisión de ruido (de acuerdo con IEC 62841-4-4)	Livello di emissione rumore (in accordo con la diretiva IEC 62841-4-4)	Geluidsemissieniveau (in overeenstemming met IEC 62841-4-4)

Dansk Svenska Suomi Norsk Русский Polski

Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne
Ledningsfri buskrydder og kantrimmer og busksav i henhold til standarderne for græstrimmere	Sladdlös röjtrimmer, strängtrimmer och röjság enligt standarder för grästrimming	Ruohotrimmeristandardien vaatimusten mukainen langaton pensasleikkuri, simatrimmeri ja raivaussaha	Kabelfri buskkutter og kantklipper og buskesag i henhold til standarder for gresstrimmere	Беспроводный кусторез, лесочный триммер и кусторезная пила и требования к триммерам для травы	Bezprzewodowa przycinarka do zywopłatu, podkaszarka żylkowa i piła do zarośli — wymagania takie jak w przypadku przycinarki do trawy
Model	Modell	Malli	Modell	Модель	Model	RY36BCX30A
Spænding	Spänning	Jännite	Spenning	Напряжение	Napiecie	36 V d.c.
Maksimal hastighed af akslen	Maximal axelhastighet	Akselin maksiminopeus	Maksimal akselhastighet	Максимальная частота вращения вала	Prędkość maksymalna wału	6 000 / min
Hækkeklipper	Röjság	Raivaussaha	Ryddesag	Кусторез	Przycinarka do krzewów
Vægt	Vikt	Paino	Vekt	Вес	Masa	4,7 kg
Tomgangshastighed	Hastighet utan belastning	Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	5 800 / min
Klingediameter	Bladdiameter	Terän halkaisija	Bladdiameter	Диаметр полотна	Średnica tarczy	300 mm
Vibrationsniveau (iht. IEC 62841-4-4)	Vibrationsnivå (enligt IEC 62841-4-4)	Tärinätaso (standardin IEC 62841-4-4 mukaisesti)	Vibrasjonsnivå (iht. IEC 62841-4-4)	Уровень вибрации (в соответствии с IEC 62841-4-4)	Poziom wibracji (zgodnie z normą IEC 62841-4-4)
Venstre håndtag	Vänster handtag	Vasen kahva	Venstre håndtak	Левая рукоятка	Lewy uchwyt	1,72 m/s^2
Højre håndtag	Höger handtag	Oikea kahva	Høyre håndtak	Правая ручка	Prawy uchwyt	3,04 m/s^2
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	1,5 m/s^2
Stojemissionsniveau (iht. IEC 62841-4-4)	Bullerutsläppsnivå (enligt IEC 62841-4-4)	Melulaso (standardin IEC 62841-4-4 mukaisesti)	Stoyutslipsnivå (iht. IEC 62841-4-4)	Уровень шума (в соответствии с IEC 62841-4-4)	Poziom emisji hałasu (zgodnie z normą IEC 62841-4-4)
A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivå vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	A-vektet lydtrykk ved operatørposisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ważonego ciśnienia akustycznego w pozycji operatora	L_FA = 83,40 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	3,0 dB
A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	A-painotettu äänenteho	A-vektet lydeffektnivå	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	L_WA = 93,68 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	0,83 dB
L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	95 dB
Linetrimmer	Strängtrimmer	Siimatrimmeri	Snortrimmer	Лесочный триммер	Podkaszarka żylkowa
Vægt	Vikt	Paino	Vekt	Вес	Masa	4,8 kg
Tomgangshastighed	Hastighet utan belastning	Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	5 600 / min
Skærekapacitet	Trimmingskapacitet	Leikkauskapasiteetti	Klippekapasitet	Сокращение вместимости	Szerokość cięcia	400 mm
Klippetrádsdiameter	Klipptrádens diameter	Leikkuusiiman halkaisija	Diameter på klippesnoren	Диаметр режущей струны	Średnica żytki tnącej	2,4 mm
Vibrationsniveau (iht. IEC 62841-4-4)	Vibrationsnivå (enligt IEC 62841-4-4)	Tärinätaso (standardin IEC 62841-4-4 mukaisesti)	Vibrasjonsnivå (iht. IEC 62841-4- 4)	Уровень вибрации (в соответствии с IEC 62841-4-4)	Poziom wibracji (zgodnie z normą IEC 62841-4-4)
Venstre håndtag	Vänster handtag	Vasen kahva	Venstre håndtak	Левая рукоятка	Lewy uchwyt
Højre håndtag	Höger handtag	Oikea kahva	Høyre håndtak	Правая ручка	Prawy uchwyt	1,55 m/s^2
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	1,5 m/s^2
Stojemissionsniveau (iht. IEC 62841-4-4)	Bullerutsläppsniva (enligt IEC 62841-4-4)	Melulaso (standardin IEC 62841-4-4 mukaisesti)	Stoyutslipsniva (iht. IEC 62841-4-4)	Уровень шума (в соответствии с IEC 62841-4-4)	Poziom emisji hałasu (zgodnie z normą IEC 62841-4-4)

English Français Deutsch Español Italiano Nederlands Português
Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto	Productgegevens Características do aparelho
A-weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora pesato A alla posizione dell'operatore	A-gewogen geluidsdrukniveau op de plaats van de bediener	Nivel de pressão sonora ponderado A na posição do operador
Uncertainty Incertitude	Unsicherheit Incertidumbre	Incertezza Onzekerheid	Incerteza
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty Incertitude	Unsicherheit Incertidumbre	Incertezza Onzekerheid	Incerteza
L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K
Brush saw	Scie à débroussailler	Sägeblatt	Sierra de talar	Sega a spazzola	Motorzaag	Serra de sebes
Weight	Poids	Gewicht	Peso	Peso	Gewicht	Peso
No-load speed	Vitesse à vide	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading	Velocidade sem carga
Saw blade diameter	Diamètre de la lame de scie	Durchmesser Sägeblatt	Diámetro del disco de sierra	Diametro lama troncatrice	Diameter zaagblad Diâmetro da lâmina da serra
Vibration level (in accordance with IEC 62841-4-4)	Niveau de vibration (selon IEC 62841-4-4)	Vibrationsgrad (gemäß IEC 62841-4-4)	Nivel de vibración (de acuerdo con IEC 62841-4-4)	Livello vibrazioni (in accordo con la direttiva IEC 62841-4-4)	Trillingsniveau (in overeenstemming met IEC 62841-4-4)	Nivel de vibração (em conformidade com IEC 62841-4-4)
Left handle	Poignée gauche	Linker Handgriff	Empuñadura izquierda	Manico sinistro	Linkerhandvat Pega esquerda
Right handle	Poignée droite	Rechter Handgriff	Empuñadura derecha	Impugnatura destra	Rechter handvat	Pega direita
Uncertainty Incertitude	Unsicherheit Incertidumbre	Incertezza Onzekerheid	Incerteza
Noise emission level (in accordance with IEC 62841-4-4)	Niveau d'émission sonore (selon IEC 62841-4-4)	Schallenergiepegel (gemäß IEC 62841-4-4)	Nivel de emisión de ruido (de acuerdo con IEC 62841-4-4)	Livello di emissione rumore (in accordo con la direttiva IEC 62841-4-4)	Geluidsemissieniveau (in overeenstemming met IEC 62841-4-4)	Nivel de emissão de ruído (em conformidade com IEC 62841-4-4)
A-weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora pesato A alla posizione dell'operatore	A-gewogen geluidsdrukniveau op da plaats van de bediener	Nivel de pressão sonora ponderado A na posição do operador
Uncertainty Incertitude	Unsicherheit Incertidumbre	Incertezza Onzekerheid	Incerteza
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty Incertitude	Unsicherheit Incertidumbre	Incertezza Onzekerheid	Incerteza
L_WA + K	L_WA + K	L_WA + K )	\( L_WA + K	L_WA + K	L_WA + K	L_WA + K

English	Français	Deutsch	Español	Italiano	Nederlands	Português	Dansk
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en oplader	Bateria e carregador	Batteri og oplader
Model	Modèle	Modell	Modelo	Modello	Model	Modelo	Model
Battery pack	Bloc de batterie	Akkupack	Batería	Batteria	Accu	Bateria	Batteri
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Oplader	Carregador	Oplader
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de bateria compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias compatíveis	Kompatible batterier
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader	Carregador compatível	Kompatibel oplader

Replacement part(s)	Pièces de rechange	Ersatzteile Piezas de repuesto		Parti di ricambio	Vervangonderdelen	Peças de substituição	Reservedele
Complete spool replacement	Remplacement de la bobine complète	Komplette Ersatzspule	Sustitución de bobina completa	Sostituzione bobina completa	Volledige vervanging van spoel	Substituição da bobina completa	Komplet udskiftningsspole
30 cm TRI-ARC blade	Lame TRI-ARC 30 cm	30cm-TRI-ARC-Messer	Cuchilla TRI-ARC de 30 cm	Lama TRI-ARC 30 cm	30 cm TRI-ARC mes	Lâmina TRI-ARC de 30 cm	30 cm TRI-ARC-klinge
Saw blade	Disque de sciage	Sägeblatt	Disco de sierra	Lama da sega	Zaagmes	Lâmina de serra	Savklinge
Saw blade guard	Protection de la lame	Sägeblatt-Schutzvorrichtung	Protección del disco de sierra	Protezione della lama a sega	Beschermkap voor zaagblad	Guarda da lâmina de serra	Savklingeafskærmning

Dansk Svenska Suomi Norsk Русский Polski
Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne
A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivå vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	A-vektet lydtrykk ved operatørposisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ważonego ciśnienia akustycznego w pozycji operatora	L_PA = 81,90 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	3,0 dB
A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	A-painotettu äänenteho	A-vektet lydeffektnivå	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	L_WA = 93,31 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	1,40 dB
L_WA + K Busksav	L_WA + K Röjság	L_WA + K Raivaussaha	L_WA + K Ryddesag	L_WA + K Кусторезная пила	L_WA + K Piła do zarośli	95 dB
Vægt	Vikt	Paino	Vekt	Вес	Masa	5,0 kg
Tomgangshastighed	Hastighet utan belastning	Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	5 800 / min
Savklingediameter	Sågbladets diameter	Sahanterän halkaisija	Sagbladdiameter	Диаметр пильного полотна	Średnica tarczy tnącej	254 mm
Vibrationsniveau (iht. IEC 62841-4-4)	Vibrationsnivå (enligt IEC 62841-4-4)	Tärinätaso (standardin IEC 62841-4-4 mukaisesti)	Vibrasjonsnivå (iht. IEC 62841-4-4)	Уровень вибрации (в соответствии с IEC 62841-4-4)	Poziom wibracji (zgodnie z normą IEC 62841-4-4)
Venstre håndtag	Vänster handtag	Vasen kahva	Venstre håndtak	Левая рукоятка	Lewy uchwyt	3,22 m/s^2
Højre håndtag	Höger handtag	Oikea kahva	Høyre håndtak	Правая ручка	Prawy uchwyt	3,90 m/s^2
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	1,5 m/s^2
Stojemissionsniveau (iht. IEC 62841-4-4)	Bullerutsläppsnivå (enligt IEC 62841-4-4)	Melutaso (standardin IEC 62841-4-4 mukaisesti)	Støyutslipsnivå (iht. IEC 62841-4-4)	Уровень шума (в соответствии с IEC 62841-4-4)	Poziom emisji hałasu (zgodnie z normą IEC 62841-4-4)
A-vægtet lydtryksniveau ved operatörens position	A-viktad ljudtrycksnivå vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	A-vektet lydtrykk ved operatørposisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ważonego ciśنienia akustycznego w pozycji operatora	L_PA = 84,30 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	3,0 dB
A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	A-painotettu äänenteho	A-vektet lydeffektnivåe	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	L_WA = 94,72 dB(A)
Usikkerhed	Osäkerhet	Epätarkkuus	Usikkerhet	Погрешность	Niepewność pomiaru	2,35 dB
L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	L_WA + K	98 dB

Svenska	Suomi	Norsk	Русский	Polski
Batteri ochbatteriladdare	Akku ja laturi	Batteri og lader	Аккумуляторнаябатарея и зарядноеустройство	Akumulator irladowarka
Modell	Malli	Modell	Модель	Model	RY36BCX30A-140	RY36BCX30A-0
Batteri	Akku	Batteri	Аккумулятор	Akumulator	RY36B40B	-
Batteriladdare	Laturi	Lader	Зарядное устройство	Ladowarka	RY36C17A	-
Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимаяаккумуляторнаябатарея	Pasujace akumulatory	RY36.., BPL36..
Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядноеустройство	Zgodna ladowarka	BCL36.., RY36..

Utbytesdelar	Varaosat	Erstatningsdeler	Запасные части	Części zamienne
Reservdelspole, komplett	Koko kelan vaihto Fullsterdig	spoleutskiftning	Сменная катушка в сборе	Kompletna szpula zamienna	RAC169
TRI-ARC-blad, 30 cm	30 cm TRI-ARC-terä	30 cm TRI-ARC-blad	Нож TRI-ARC, 30 cm	Nóż TRI-ARC 30 cm	RAC165
Sågblad	Sahanterä	Sagblad	Пильное полотно	Tarcza do pilarki	RAC167
Sågbladsskydd	Sahanteränsuojus	Sagbladbeskyttelse	Защитный кожух пильного полотна	Osłona tarczy tnącej	RAC168

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék muszaki adatai	Specificatiile produsului	Produkta specifikacijas	Gaminio technines savybes	Toote tehnilised andmed	Specifikacije proizvoda
Akumulátorový křovinořez, výžinač a profezávač podle norem na výžinače trávy	Akkumulátoros sövény-, szegélyvágó és bozótvágó fűrész a fűkasza előírásainak megfelelően	Dispozitiv multifuncțional - motocoasă pentru arboret, trimmer de tuns marginile gazonului și fierăstrău pentru arbuști - fără fir, conform cu cerințele stabilite pentru mașinile de tuns iarba.	Akumulatora krůmgriezis, auklas trimmeris un růmu trimmeris atbilstoši zăles trimmera standartiem	Akumuliatoriné krůmapjové ir vielné žoliapjové bei rankiné krůmapjové atitinka žoliapjovérens taikomus standartus	Juhtmeta võsalõikur ja jõhvtrimmer ning võsasaag vastavad murutrimmeri nõuetele	Akumulatorski rezač grmlja i pila za grmlje u skladu s normama za trimere za travu
Model Tipus Model Modelis Modelis Mudel Model
Elektrické napetí	Feszültseg	Tensiune	Spriegums	Itampa	Pinge	Napon
Maximální otáčky hřidele	Tengely maximális sebessége	Víteză maximă ax Maksımălais ass ätrums	Maksimalus veleno sukimosi greitis	Maksimalne võlli kiirus	Maksimalna brzina osovine
Křovinořez	Bozótvágó Motocoasă pentru arboret		Krůmgriezis	Krůmapjové	Võsalõikur	Rezač za grmlje
Hmotnost	Súly	Greutate	Svars	Svoris	Kaal	Težina
Rychlost naprázdno	Üresjáratı fordulatszám	Víteză fără sarcină	Tukšgaitas átrums	Greitis be apkrovimo	Tühikäigukiirus	Brzina bez opterećenja
Průměr kotouče	Vágótárcsa átmérője	Diametru disc	Asmens diametrs	Peilio skersmuo	Ketta lăbimõõt	Promjer lista
Úroveň vibrací (v souladu s IEC 62841-4-4)	Vibrációs szint (az IEC 62841-4-4 szerint)	Nivel de vibrație (în conformitate cu IEC 62841-4-4)	Vibrácijas līmenis (saskaņa ar IEC 62841-4-4)	Vibracijos lygis (pagal IEC 62841-4-4 standartą)	Vibratsioonitase (vastavalt standardile IEC 62841-4-4)	Razina vibracija (u skladu s IEC 62841-4-4)
Levá rukojet'	Bal fogantýu	Mâner stânga	Kreisais rokturis	Kairès pusés rankena	Vasak käepide	Lijeva ručka
Pravá rukojet'	Jobb fogantýu	Mâner dreapta	Labās puses rokturis	Dešinioji rankena	Parempoolne käepide	Desna ručka
Nejistota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
Hladina emise hluku (v souladu s IEC 62841-4-4)	Hangkibocsátási szint (az IEC 62841-4-4 szerint)	Nivel emisie zgomot (în conformitate cu IEC 62841-4-4)	Trokšnu emisijas līmenis (saskaņa ar IEC 62841-4-4)	Skleidžiamo triukšmo lygis (pagal IEC 62841-4-4 standartą)	Helivõimsuse tase (vastavalt standardile IEC 62841-4-4)	Razina emisija buke (u skladu s IEC 62841-4-4)
Hladina akustického tlaku vážená funkcí A v poloze obsluhy	A-súlyozott hangnyomásszint a kezelő helyén	Valoare A nivel presiune zgomot la pozitja operatorului	A–novértējuma skanças spiediena līmenis operatora darba vietă	A dažninės charakteristikos garso slégio lygis operatoriaus vietoje	A-kaalutud helirõhu tase operaatori töökohal	A-ponderirana razina zvučnog tlaka u položaju operatera
Nejistota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
Hladina akustického výkonu vážená funkcí A	A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderată A	A-līmena skanças jaudas līmenis	A-svertinis akustinis lygis	A-kaalutud helivõimsuse tase	Ponderirana razina zvučne snage
Nejistota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
L_WA + KL	w_WA + KL	w_WA + KL	w_WA + KL	w_WA + KL	w_WA + KL	w_WA + K
Strunovy výžinač	Szegélynyíró	Trimer pentru tuns gazonul	Auklas trimmeris	Vieliné žoliapjové	Jõhvtrimmer	Trimer s reznom niti
Hmotnost	Súly	Greutate	Svars	Svoris	Kaal	Težina
Rychlost naprázdno	Üresjáratı fordulatszám	Vítezá fără sarcină	Tukšgaitas átrums	Greitis be apkrovimo	Tühikäigukiirus	Brzina bez opterećenja
Řezací kapacita	Vágási teljesítmény	Lungimea de tăiere	Griešanas dzilums	Pjovimo talpa	Lõikevõimsus	Kapacitet rezanja
Průměr záběru	Vágószál átmérő	Diametru fir de tăiere	Griežėjvada diametrs	Pjovimo linijos diametras	Trimmerijõhvi lăbimõõt	Promjer flaksa
Úroveň vibrací (v souladu s IEC 62841-4-4)	Vibrációs szint (az IEC 62841-4-4 szerint)	Nivel de vibrație (în conformitate cu IEC 62841-4-4)	Vibrácijas līmenis (saskaņa ar IEC 52841-4-4)	Vibracijos lygis (pagal IEC 62841-4-4 standartą)	Vibratsioonitase (vastavalt standardile IEC 62841-4-4)	Razina vibracija (u skladu s IEC 62841-4-4)
Levá rukojet'		Mâner stânga	Kreisais rokturis	Kairès pusés rankena	Vasak käepide	Lijeva ručka
Pravá rukojet'	Jobb fogantýu	Mâner dreapta	Labās puses rokturis	Dešinioji rankena	Parempoolne käepide	Desna ručka
Nejjstota	Bizonytalanság	Incertitudine	Nenoteiktība	Nepastovumas	Määramatus	Neodređenost
Hladina emise hluku (v souladu s IEC 62841-4-4)	Hangkibocsátási szint (az IEC 62841-4-4 szerint)	Nivel emisie zgomot (în conformitate cu IEC 62841-4-4)	Trokšnu emisijas līmenis (saskaņa ar IEC 62841-4-4)	Skleidžiamo triukšmo lygis (pagal IEC 62841-4-4 standartą)	Helivõimsuse tase (vastavalt standardile IEC 62841-4-4)	Razina emisija buke (u skladu s IEC 62841-4-4)

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless brushcutter and line trimmer and brush saw

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product

mentioned below fulfills all the relevant provisions of the following European Directives,

European Regulations and harmonised standards ^4

Brushcutter:

Measured sound power level.... 93.68 dB(A)

Guaranteed sound power level.... 95 dB(A)

Line trimmer:

Measured sound power level.... 93.31 dB(A)

Guaranteed sound power level.... 96 dB(A)

Brush saw:

Measured sound power level.... 94.72 dB(A)

Guaranteed sound power level.... 98 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC.

Notified body

Authorised to compile the technical file: ^6

FR DÉCLARATION CE DE CONFORMITÉ

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2 RY36BCX30A

\$ 48656501000001 - 48656501999999

^1 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 62841-1:2015, EN ISO 12100:2010, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN 62233:2008

^5 No. 0197 – TÜV Rheinland LGA Products GmbH Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Vice President, Quality – Asia

^6 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless brushcutter and line trimmer and brush saw

Brand: RYOBI

Model number: RY36BCX30A

Serial number range: 48656501000001 - 48656501999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597

(as amended), S.I. 2016/1091 (as amended), S.I. 2001/1701 (as amended), S.I.

2012/3032 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015+A11:2022, BS EN ISO 12100:2010,

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021

Brushcutter:

Measured sound power level: 93.68 dB(A)

Guaranteed sound power level: 95 dB(A)

Line trimmer:

Measured sound power level: 93.31 dB(A)

Guaranteed sound power level: 96 dB(A)

Brush saw:

Measured sound power level: 94.72 dB(A)

Guaranteed sound power level: 98 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 9 (as amended)

Approved body:

No. 0197 - TÜV Rheinland LGA Products GmbH

Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Vice President, Quality – Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

TRI-ARC is a trade mark of Techtronic Outdoor Products Technology Limited.

TRI-ARC je žig tvrtke Techtronic Outdoor Products Technology Limited.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961479091-02
