USER MANUAL GT9 Pardini

CAL.9 MOD. GT9 CAT. 10678 MADE IN ITALY CAL.9 MOD. GT45 CAT. 10682 MADE IN ITALY PARDINI

MANUALE DI ISTRUZIONI - USER MANUAL - MANUEL D'INSTRUCTIONS BEDIENUNGSANLEITUNG - MANUAL D'INSTRUCIÓNES

Fig. 5

Technical line drawing of a handgun with numbered parts for identification

Illustration of hands holding a mechanical tool with arrows indicating motion or movement (no text or symbols)

Fig.1

Line drawing of two hands holding a handgun, no text or symbols present

Fig.2

Line drawing of hands holding a cylindrical object with a pointed tip, showing mechanical assembly (no text or symbols)

Fig.3

Line drawing of two hands holding a tool, no text or symbols present

Fig.4

DATI TECNICI - TECHNICAL DATA - FICHE TECHNIQUE - DATOS TÈCNICOS
MODELLO

model - modele - modell - modelo	GT9 - PC9	PC40	GT45	GT9 1 - GT9 1 TITAN	GT45 II	GT9 1 INOX	GT40	GT9 INOX
CALIBROcaliber - calibre - kaliber - calibre	9	40 S&W	45 ACP	9 INI	45 ACP	9	40 S&W	9
CARICATORE BIFILAREChargeur - Doppelreihises magazin - Cargador	17	13	13	17	13	17	18	17
ALTEZZAheight - hauter - höhe - alto	135mm.	135mm.	135mm.	135mm.	135mm.	135mm.	135mm.	135mm.
LARGHEZZAwidth - largeur - breite - ancho	44mm.	44mm.	44mm.	44mm.	44mm.	44mm.	44mm.	44mm.
LUNGHEZZAoveral lenght - longueur - gesamtlänge - largo	225mm.	225mm.	228mm.	250mm.	250mm.	250mm.	223mm.	225mm.
PESO TOTALEtotal weight - poids - gesamtgewicht - peso total	1.070 gr.	1.050 gr.	1.020 gr.	1.145 gr.	1.095 gr.	1.550 gr.	1.380 gr. INOX1.100 gr. ERGAL	1.510gr.
LUNGHEZZA CANNabarrel lenght - longueur du canonlauflänge - longitud del cañon	127mm.	127mm.	127mm.	152,5mm.	152,5mm.	152,5mm.	127mm.	127mm.
LUNGHEZZA LINEA DI MIRAsight radius - longueur de ligne de mirevisierlänge - distancia entre miras	176mm.	176mm.	179mm.	201mm.	204mm.	201mm.	170mm.	176mm.
CHIUSURAClosing System - Obturation - Verschluss - Anchura	GEOMETRICA A CORTO RINCULO DI CANNA - GEOMETRICAL SHORT RECOILGÉOMÉTRIQUE À COURT RECUL DU CANON - VERRIEGELTER MASSEVERSHLUB - GEOMETRICO A CORTA DISTANCIA DEL CANÓ
SCATTOLrigger Mechanism - Détente - Auslösung Abzug - Altura	SINGOLA AZIONE - SINGLE ACTION - SIMPLE ACTIONEINZELAUSLŐSUNG / EINSTELLBARER SINGLE - ACTION - ABZUG - ACCION ÚNICA
SICURASafety Catch - Sureté - Sicherung - Peso	BLOCCO DEL MECCANISMO DI SCATTO - TRIGGER MECHANISM - BLOCAGE DU MÉCANISME DE DÉCLENCHEMENTBLOCKIERUNG DES AUSLŐSEMECHANISMUS - BLOQUEO DEL MECANISMO DEL RESORTE

Con riserva di modifiche tecniche - technical changes reserved - modifications techniques réservées - Technische Änderungen vorbehalten - Se reservan modificaciones técnicas

ATTENTION! Safety procedures for handling firearms

ALWAYS Handle firearms as if loaded.

ALWAYS engage the safety catch after loading.

ALWAYS wear eye and ear protection.

ALWAYS keep your firearm clean.

ALWAYS check that the chamber is clear when unloading.

ALWAYS store your firearm and ammunition safely away from children.

NEVER point your firearm at anything other than the target.

NEVER handle a firearm if you drink alcohol or take drugs.

READ this manual and be SURE you are fully competent in the handling of your firearm.

Technical data

LOCKING SYSTEM: Modified Browning. Short action recoiling barrel, steel frame insert with barrel locking ramp. Frame: CNC milled one piece construction. Ergonomic characteristics: 115 degree grip angle, high grip (6,2 mm below slide rails) for straight back recolling.

SLIDE: CNC milled with large ejection port for improved case clearing.

SIGHTS: Interchangeable front sights and micrometer adjustable rear sight sitting flush with the slide.

TRIGGER: Single action trigger with adjustable sear engagement, trigger pull weight and take-up and overtravel adjustments.

SAFETY: Ambidextrous thumb safety that locks both sear and slide.

To shot: ATTENTION!

Never place your finger on the trigger until ready to shoot!

1. Lock the slide to the rear with the slide catch lever.
2. Insert a full magazine and verify it is locked in place.
3. Grasp the slide between the thumb and forefinger and pull back slightly, disengaging the slide catch lever. Release so that it will go forward, chambering the first round.
4. The pistol is now ready to fire. If you do not intend to fire immediately, engage the thumb safety by pushing it up.

Trigger adjustments

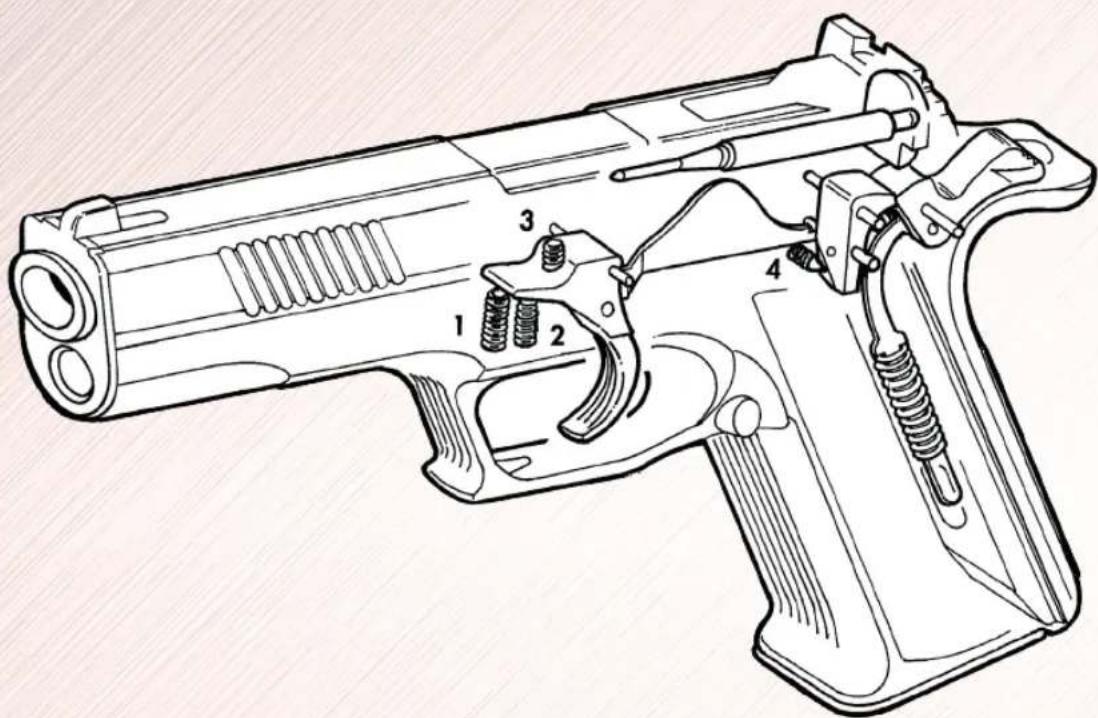

1. Duplex screw "1" controls the 2nd stage of the trigger pull. Turning the outer body clockwise increases the LENGTH of the 2nd stage. (If turned counterclockwise far enough, the 2nd stage disappears.) Turning the inner screw clockwise increases the WEIGHT of the 2nd stage.
2. Screw "2" acts as a trigger stop or overtravel adjustment. Turning it clockwise reduces the over travel. Too far in, and the sear cannot be released.
3. Screw "3" and "4" should only be adjusted by qualified technicians to avoid damage to the pistol or unsafe operation! Screw 3 adjusts the trigger pull length and screw 4 regulates the sear engagement.

UNLOADING THE PISTOL

1. Depress the magazine release catch and remove the magazine.
2. Pull back the slide to eject any chambered cartridge.
3. Visually verify that there are no rounds left in the chamber or the magazine well before closing the slide.

Dismantling

1. Make sure the pistol is unloaded (see above).
2. Take off the magazine
3. Hold the pistol as shown in Figure 1. Use your left index finger to push in the end of the take-down lever until it slightly moves away from the frame. Then, with your left thumb, rotate the take-down lever down 90 degrees.

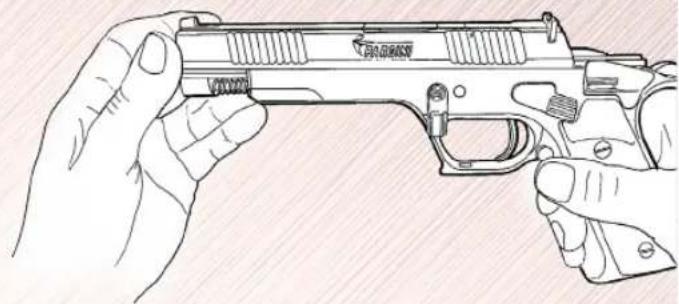

4. Slide off the whole top assembly from the frame as shown in figure 2.

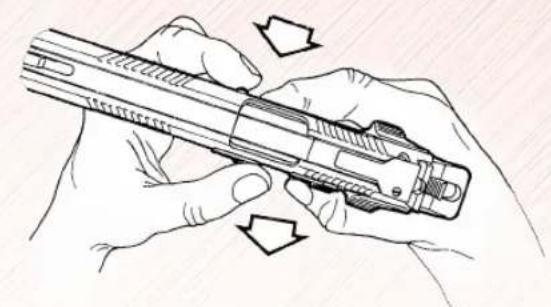

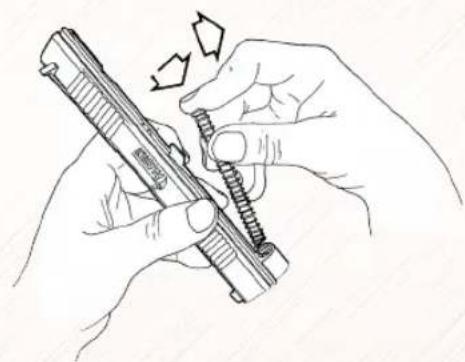

5. Caution! The recoil spring is compressed! Holding the slide in your left hand, push in the recoil spring guide rod/spring assembly toward the muzzle. Lift up and slowly release the spring tension as shown in Figure 3.
6. For models fitted with a compensator, loosen the locking screws, remove the securing pin and work it off the barrel.

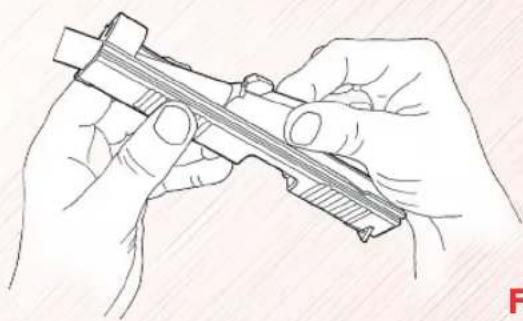

7. Remove the barrel from the slide as shown in Figure 4.
8. Reassemble in reverse order. Before returning the take-down lever to its locked position, push the top assembly slightly to the rear of its normal closed position.

CLEANING AND LUBRICATION

Use first a properly sized brass brush on the chamber and bore and then clean the bore with a patch - insure that all lead is removed to insure top accuracy and function. Lubricate the slide/frame guides with a simple lubricant with no additive. Do NOT use solvent or oils on the trigger mechanism. At least every 2.500 rounds disassemble and thoroughly clean the magazines.

Exploded view diagram of a firearm with numbered parts for identification
