USER MANUAL C18DSL HiKOKI

Cordless Circular Saw

Technical line drawing of a mechanical assembly with no visible text or symbols

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power to (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

CIRCULAR SAW SAFETY WARNINGS

Cutting procedures

a) ⚠️ DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing.

If both hands are holding the saw, they cannot be cut by the blade.

b) Do not reach underneath the workpiece.

The guard cannot protect you from the blade below the workpiece.

c) Adjust the cutting depth to the thickness of the workpiece.

Less than a full tooth of the blade teeth should be visible below the workpiece.

d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform.

It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring.

Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.

f) When ripping always use a rip fence or straight edge guide.

This improves the accuracy of cut and reduces the chance of blade binding.

g) Always use blades with correct size and shape (diamond versus round) of arbour holes.

Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

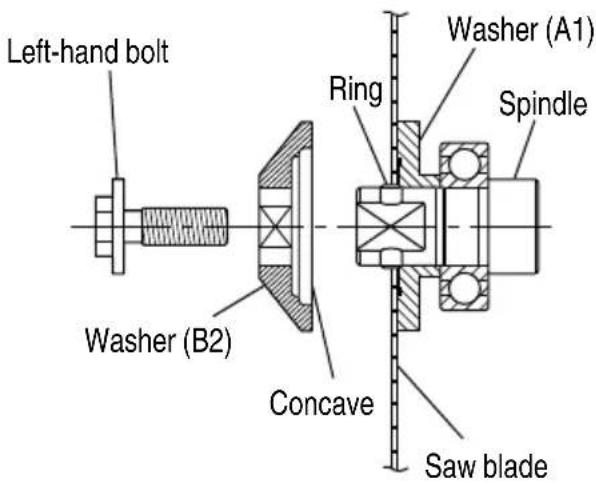

h) Never use damaged or incorrect blade washers or bolt.

The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Kickback causes and related warnings

- kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;

- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.

Position your body to either side of the bl but not in line with the blade.

Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

b) When blade is binding, or when interrupt cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.

Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.

Investigate and take corrective actions to eliminate the cause of blade binding.

c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.

If saw blade is binding, it may walk up or kick from the workpiece as the saw is restarted.

d) Support large panels to minimise the risk of blade pinching and kickback.

Large panels tend to sag under their own weight.

Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

e) Do not use dull or damaged blades.

Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.

f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut.

If blade adjustment shifts while cutting, it may cause binding and kickback.

g) Use extra caution when sawing into existing walls or other blind areas.

The protruding blade may cut objects that can cause kickback.

Lower guard function

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.

If saw is accidentally dropped, lower guard may be bent.

Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.

b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.

Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

c) Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts".

Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released.

For all other sawing, the lower guard should operate automatically.

d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path.

Be aware of the time it takes for the blade to stop after switch is released.

SPECIFIC SAFETY RULES

1. NEVER hold piece being cut in your hands or across your leg. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

2. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will also make exposed metal parts of the tool "live" and shock the operator.

3. When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance for blade binding.

4. Always use blades with correct size and shape (diamond vs. round) arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

5. Never use damaged or incorrect blade washers or bolts. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

6. Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

7. Never touch moving parts. Never place your hands, fingers or other body parts near the tool's moving parts.

8. Never operate without all guards in place.

Never operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. Never use a power tool for applications other than those specified.

Never use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Definitions for symbols.

V..... volts

== ....direct current

n°..... no load speed

---/min .... revolutions or reciprocation per minute

1. Keep all screws, bolts and covers tightly in place. Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

2. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. Never use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

1. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dried thoroughly.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE CORDLESS CIRCULAR SAW

WARNING

Death or serious bodily injury could result from improper or unsafe use of the cordless c saw. To avoid these risks, follow these basic safety instructions:

1. Wear ear plugs when using the tool for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

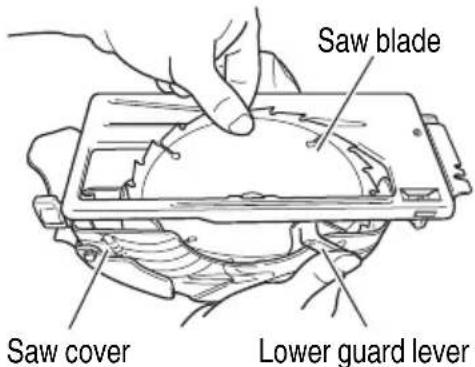

2. Never wedge or tie lower guard open. Check operation of lower guard before each use. Do not use if lower guard does not close briskly over saw blade.

CAUTION

If saw is dropped, safety cover may be bent restricting full return.

1. For this mode, the saw blades should be 165 mm.
2. Never place hands or other body parts near the saw blade during operation. Hold the circular saw by its handle only.
3. Because the cordless circular saw operates by battery power, be aware of the fact that it can begin to operate at any time.

4. Wear eye and ear protection at all times.

5. When working at elevated locations, clear the area of other people and aware of conditions below you.

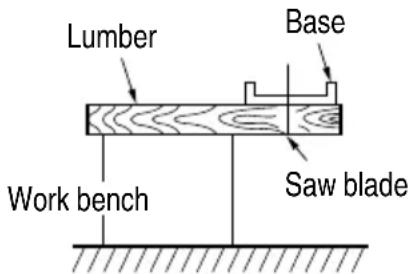

6. It is important to support the work properly and to hold the saw fi rmly to prevent loss of control which could cause personal injury.

7. Guard against kickback: Kickback occurs when the saw stalls rapidly and is driven back towards the operator. Release switch immediately if blade binds or saw stalls.

8. Keep blades sharp.
   • Support the panel near the cut.

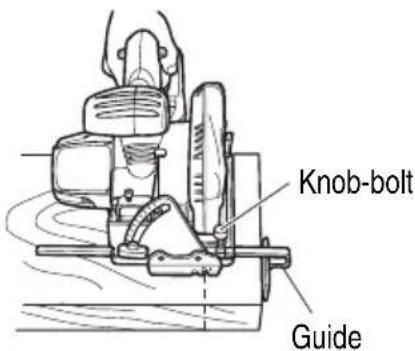

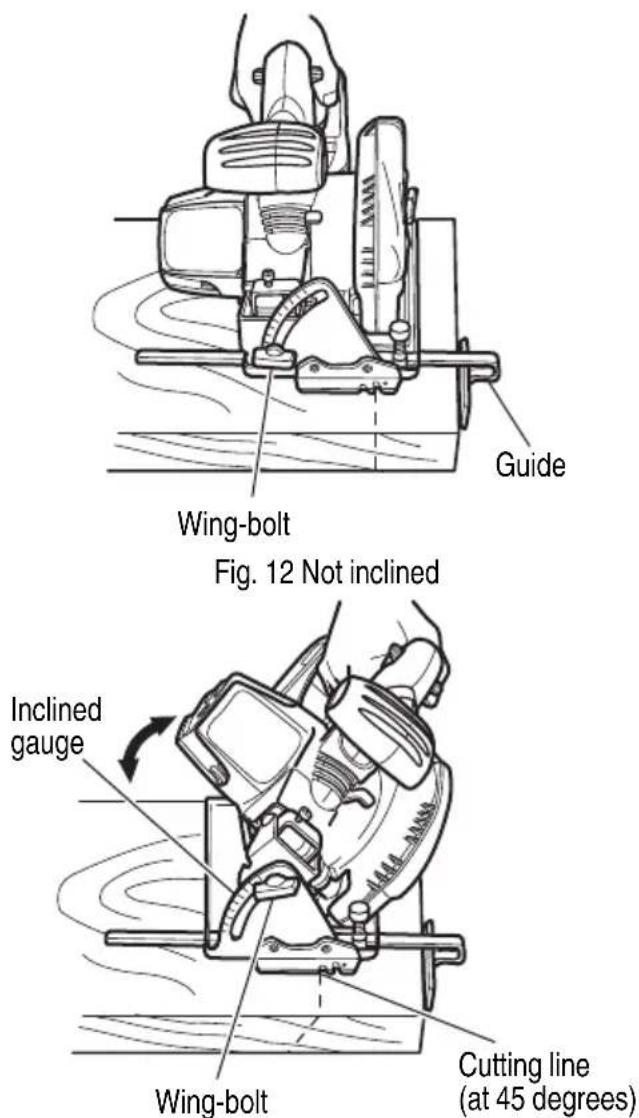

9. Use guide when ripping.
10. Don't force tool.
11. Stay alert exercise control

12. Don't remove saw from work during a cut while the blade is moving.

13. In operating, keep hold main body firmly.

14. Keep the light ON during cutting operation only. If it is lit ON in other cases, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from a larimproper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YRSL/UC18YFSL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge metabo HPT rechargeable battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.
4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
5. To reduce risk of damage to electric plug and c/pull by plug when disconnecting battery charger.
6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for a rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)25 (7.5) 50 (15) 100 (30) 150 (45)
0 2 18 18 18 16
2 3 18 18 16 14
3 4 18 18 16 14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing rating by the voltage rating-for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.

2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

5. This battery charger might be attached to metabo HPT battery operated tools as a standard accessory. In this case, please confirm instruction Manual of the metabo HPT battery operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YRSL/UC18YFSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

CAUTION

USE ONLY metabo HPT BATTERY TYPE BSL18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.
12. NEVER expose the battery or battery charger to rain or wet conditions.
13. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
14. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
15. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
   In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
6. Do not use the battery for a purpose other than those specified.

7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fire immediately when leakage or foul odor are detected.

10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.
   If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation

3. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

○ Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

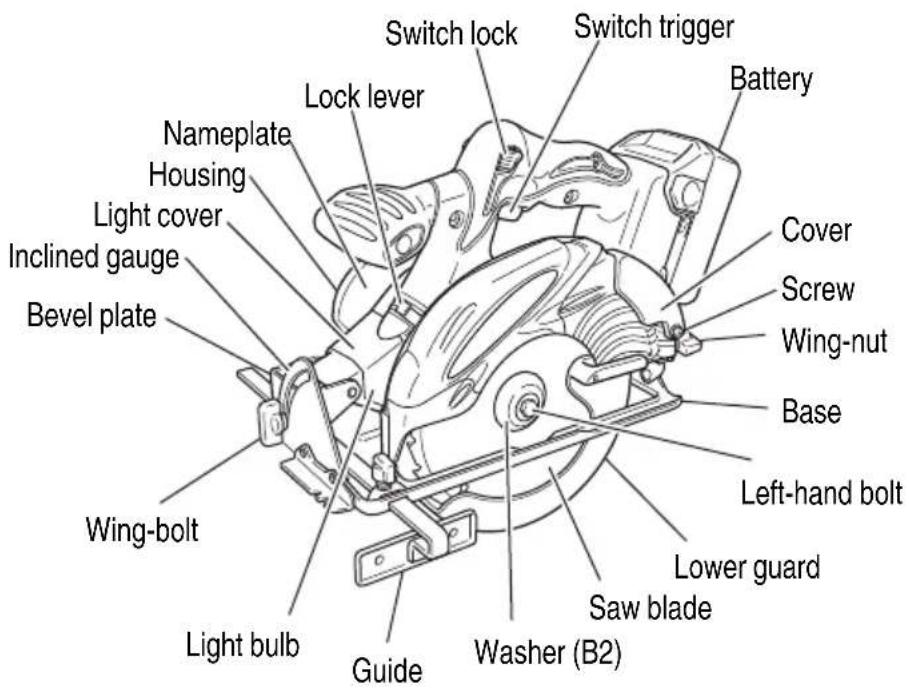

NAME OF PARTS

1. Cordless Circular Saw (C18DSL)

Switch lock Switch trigger Battery Lock lever Nameplate Housing Light cover Inclined gauge Bevel plate Wing-bolt Light bulb Guide Washer (B2) Lower guard Saw blade Left-hand bolt Base Wing-nut Screw Cover

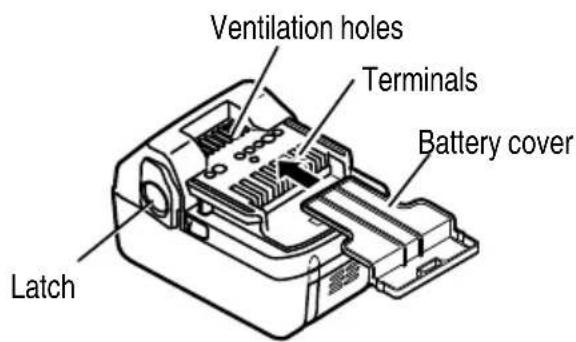

○ Battery (BSL1830)

Ventilation holes Terminals Battery cover Latch

Fig. 1

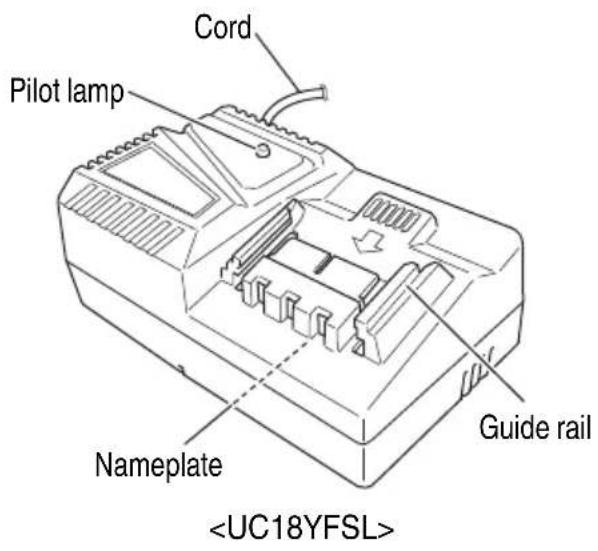

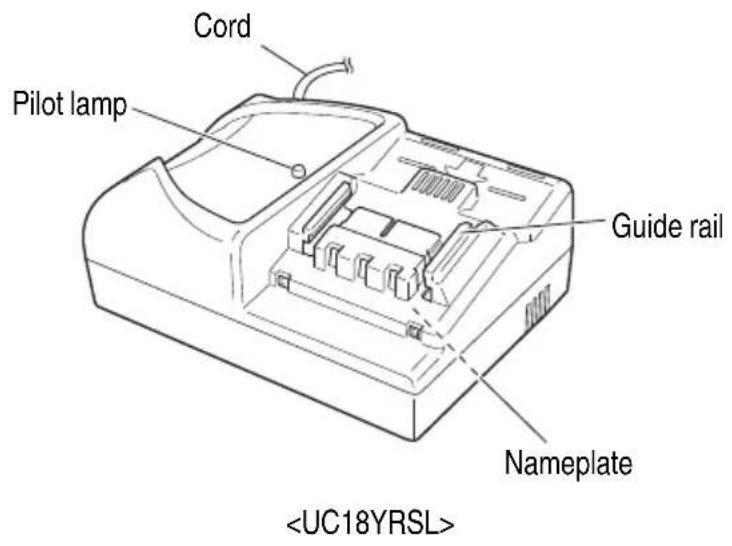

1. Battery Charger


Cord Pilot lamp Guide rail Nameplate

Cord Pilot lamp Guide rail Nameplate

Fig. 2

SPECIFICATIONS

1. Cordless Circular Saw (C18DSL)

Motor DC motor
No-load speed 3,400/min
Max. Cutting Depth 2-1/4" (57 mm)
Blade Size 6-1/2" (165 mm) D × 5/8" (15.9 mm) H × 1/16" (1.6 mm) T
Battery	Model BSL1830
	Type Lithium – ion battery
	Voltage DC 18 V
	Capacity 3 Ah
Light Bulb 12 V, 5 W
Weight 7.1 lbs. (3.2 kg)

1. Battery Charger

Model UC18YRSL	UC18YFSL
Input power source	Single phase: AC120V 60Hz
Charging time(At a temperature of 68°F (20°C))	Approx. 45 min.
Charging voltage DC 14.4V 18V
Charging current	DC 3.5A
Weight	1.3 lbs. (0.6 kg)	1.1 lbs. (0.5 kg)

NOTE: The charging time may vary according to ambient temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○ Cutting various types of wood.

REMOVAL AND INSTALLATION METHOD OF BATTERY

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Fig. 3).

CAUTION

Never short-circuit the battery.

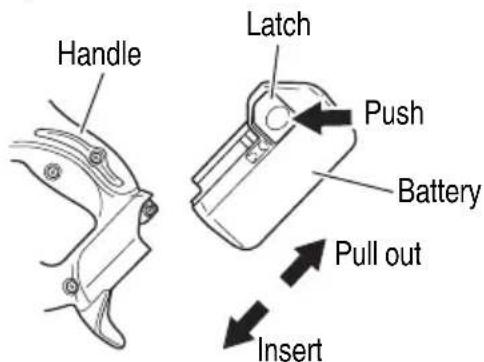

2. Battery installation

Insert the battery while observing its polarities (see Fig. 3).

Handle Latch Push Battery Pull out Insert

Fig. 3

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. Have it repaired immediately.

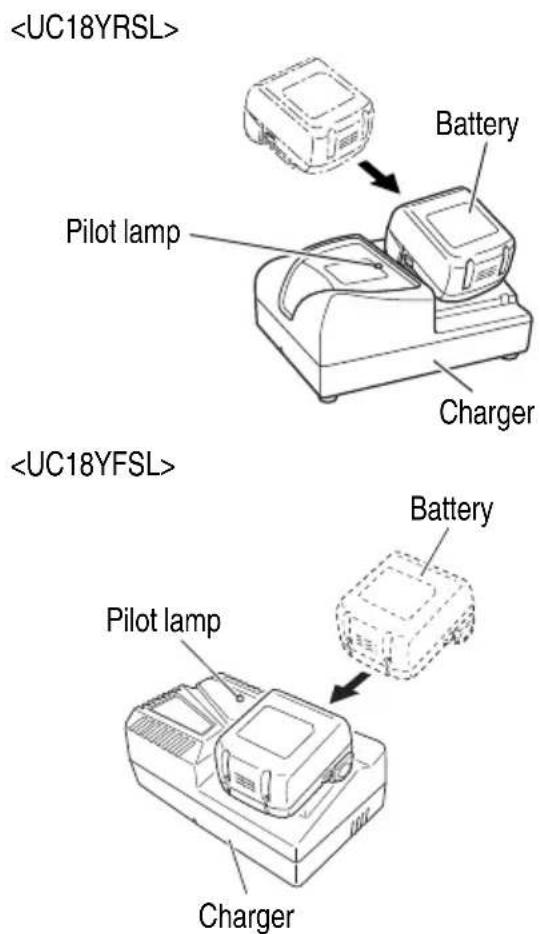

2. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 4.

Pilot lamp Battery Charger Pilot lamp Battery Charger

Fig. 4

3. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2)

NOTE

If the pilot lamp flikers in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.

Table 2

Indications of the pilot lamp
The pilot lamp lights or blinks.	Before charging	Blinks(red)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights(red)	Lights continuously
	Charging complete	Blinks(red)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers(red)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
	Overheat standby	Lights(green)	Lights continuously	Battery overheated. Unable to charge (Charging will commence when battery cools).
		Blinks(red)	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3 Recharging ranges of batteries

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL1830	32°F-104°F(0°C-40°C)

(3) Regarding recharging time

Table 4 Charging time (At 68°F (20°C))

Battery\Charger	UC18YRSL / UC18YFSL
BSL1830 Approx.	45 min.

NOTE

The charging time may vary according to temperature and power source voltage.

1. Disconnect battery charger from the receptacle.

CAUTION

- Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is rechraged when it is warm due to battery use or exposure to sunlight, the pilot lamp may light in green.

The battery will not be recharged. In such a case, let the battery cool before charging.

- When the pilot lamp fl ikers rapidly in red (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

1. Check the work area environment

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

1. Check if saw blade is tightened

While the saw blade is tightened securely for immediate use when it is assembled at the factory, be sure to check it out again for caution's sake. A bolt can be tightened when it is turned clockwise. Use the provided box wrench to check it out.

For further details, refer to the item of [MOUNTING AND DISMOUNTING THE SAW BLADE] on Page 16.

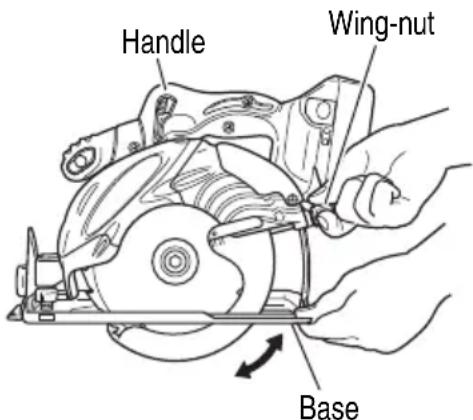

1. Check if wing nut is tightened

If the wing nut to adjust cutting depth (Fig. 6) is loose, injury can result. Make sure that securely.

1. Check performance of lower guard

WARNING

Make absolutely sure that the lower guard is not fixed. Also, check and see if it can move smoothly. If the saw blade is kept exposed, injury can result.

The lower guard (refer to Fig. 1) serves to protect your body from coming into contact with the saw blade. Make absolutely certain that the cover smoothly performs to cover the saw blade. If the lower guard should not move smoothly, never use it without repairing it.

In such a case, get in touch with the store where you bought the circular saw or the metabo HPT AUTHORIZED SERVICE CENTER for necessary repair.

1. Check battery insertion

WARNING

If the battery is inserted while the power switch is in the ON position, the power tool will start operating immediately, inviting serious accident.

CAUTION

Until the battery locks in place with a little click, if not, it may accidentally fall out of the tool causing injury to you or someone around you.

1. Check for proper operation of the brake

This circular saw features an electric brake that functions when the switch is released. Before using the circular saw, ensure that the electric brake functions properly. If it does not, bring the tool to a metabo HPT AUTHORIZED SERVICE CENTER.

1. Prepare a wooden work bench (Fig. 5)

Since the saw blade will extend beyond the lower surface of the lumber, place the lumber on a work bench when cutting. If a square block is utilized as a work bench, select level ground to ensure properly stabilized. An unstable work bench will result in hazardous operation.

Lumber Base Saw blade Work bench

Fig. 5

CAUTION

To avoid possible accident, always ensure that the portion of lumber remaining after cutting is securely anchored or held in position.

ADJUSTING THE SAW PRIOR TO USE

1. Adjusting the cutting depth (Fig. 6)

WARNING

If the wing-nut is loose, injury can result. Tighten it securely after adjustment.

To adjust cutting depth, loosen the Win while holding the base with one hand, move the main body up and down to obtain the prescribed cutting depth.

After adjusting to the prescribed cutting depth, tighten the Wing-nut securely.

Handle Wing-nut Base

Fig. 6

2. Adjusting the angle of inclination

WARNING

If the wing-nut is loose, injury can result. Tighten it securely after adjustment.

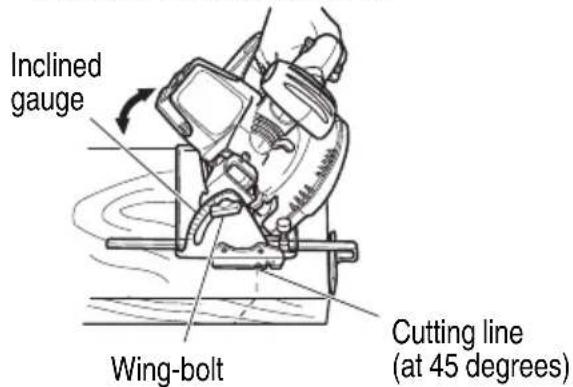

As shown in Fig. 7 by loosening the wing-bolt on the inclined gauge, the saw blade may be inclined to a maximum angle of 50^ in relation to the base. Always insure that the wing-bolt is thoroughly tightened after making the desired adjustment.

Inclined gauge Wing-bolt Cutting line (at 45 degrees)

Fig. 7

NOTE

Values of the inclined gauge provided on the base merely serve as a rough guideline. For cutting operation at an inclined posture, use the circular saw after adjusting the angle between the base and the saw blade with a protractor, etc.

3. Regulating the guide (Fig. 8)

The cutting position can be regulated by moving the guide to the left or right after loosening its knob-bolt. The guide may be mounted on either the right or left side of the tool.

Knob-bolt Guide

Fig. 8

OPERATION

WARNING

● Never touch the moving parts.
● Never operate the circular saw with the saw blade turned upward or to the side.
- Do not fi x and secure the switch lock. Besides, keep your finger off the switch trigger when the circular saw is being carried around. Otherwise, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.
- Keep the light ON during cutting operation only. If it is lit ON in other cases, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.
● Do not use any abrasive wheels.
● Use only blade diameter specified on the product nameplate.

CAUTION

• Don't remove circular saw from workpiece during a cut while the saw blade is moving.
  ● Pull out the battery after completing operation.

NOTE

Take care not to lock the motor. If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

1. Operation of switch (Switch trigger and light switch)
   For safe operation of the machine, a "switch lock" is provided on the side of a handle.
   If the "switch lock" is pulled in a state where it is pressed in the direction of the arrow mark, the main switch can be turned ON.
   (1) Switch lock is used as the "light switch". If the "switch lock (light switch)" is pulled in a state, the light is turned ON.
   (2) After the switch is turned ON, even when you release your hand from the switch lock, the body continues running and the light continues being turned ON as long as you keep on pulling the switch trigger.
   (3) If you release the switch trigger, you can turn OFF the switch and the "switch lock" returns to the original position automatically and the light turns OFF too.

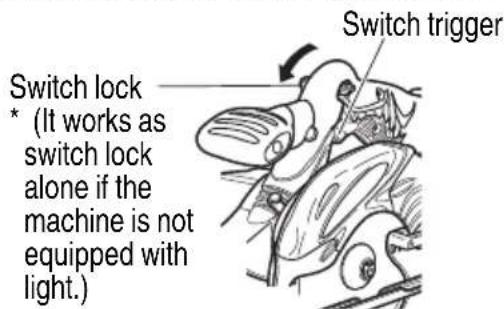

Switch trigger Switch lock * (It works as switch lock alone if the machine is not equipped with light.)

Fig. 9

2. About Remaining Battery Indicator

When pressing the remaining battery indicator switch, the remaining battery indicator lamp lights and the battery remaining power can be checked. (Fig. 10) When releasing your finger from the remaining battery indicator switch, the remaining battery indicator lamp goes off. The Table 5 shows the state of remaining battery indicator lamp and the battery remaining power.

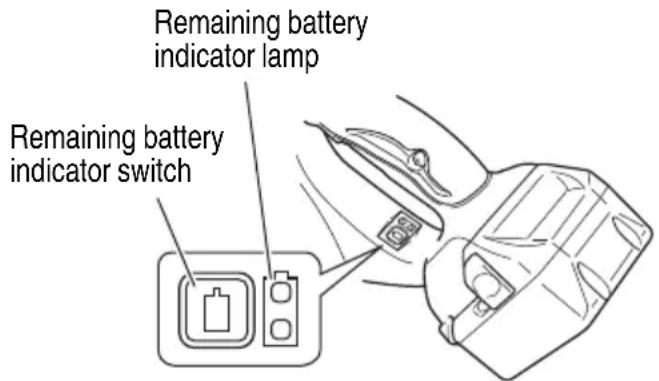

Remaining battery indicator lamp Remaining battery indicator switch

Fig. 10

Table 5

State of lamp	Battery Remaining Power
(808C)	The battery remaining power is enough.
(AHBA)	The battery remaining power is a half.
(2WBA)	The battery remaining power is nearly empty.Re-charge the battery soonest possible.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

○ Do not give a strong shock to the switch panel or break it. It may lead to a trouble.
To save the battery power consumption, the remaining battery indicator lamp lights while pressing the remaining battery indicator switch.
3. Working performance per single charge (Reference data)
○ Cutting capability differs according to the condition of lumber, type of saw blade, ambient temperature, battery characteristics, etc.

Wood Capacity
2 × 8 (Spruce-Pine-Fir) 75 cuts
Concreteform plywood(1/2" (12 mm) t)	133 ft (40 m)

To improve working efficiency per single charge,

○ Minimize operation (no-load operation) other than cutting;
○ Avoid any unreasonably forced pressure to the motor during cutting operation by twisting or pressing the circular saw forcibly;
○ Avoid any use of dull saw blade.
4. Cutting procedures

CAUTION

● Recheck that the saw blade is securely clamped.
- Confi rm that the wing-nut for adjusting the slot depth, the wing-bolt for adjusting the angle of inclination.

(1) Place the base on the material, then align the premarked line and the saw blade with the notch at the front of the base (Fig. 11).
(2) When the base is not inclined, use the large notch (Fig. 11, Fig. 12).

If the base is inclined (45 degrees), use the small notch (Fig. 11, Fig. 13).

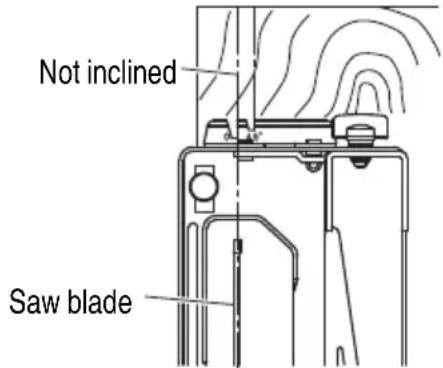

Not inclined Saw blade

Fig. 11

Guide Wing-bolt Fig. 12 Not inclined Inclined gauge Wing-bolt Cutting line (at 45 degrees)

Fig. 13

NOTE

When using the saw at the inclination of 45 degrees, use both the marks of on the bevel plate and [45] on the inclined gauge of the base (Fig. 14).

What's more, if it is absolutely essential to use the saw at a precise angle, make adjustment using a protractor, etc.

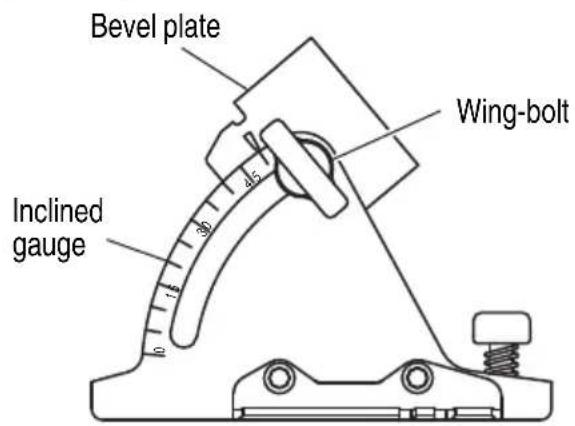

Bevel plate Wing-bolt Inclined gauge

Fig. 14

(3) Ensure that the switch is turned to the ON p before the saw blade comes in contact with the lumber. The switch is turned ON when the trigger is squeezed; and OFF when the trigger is released. Moving the saw straight at a constant speed will produce optimum cutting.

CAUTION

● Before starting to saw, ensure that the saw blade has reached full speed revolution.
● Should the saw blade be stopped or made an abnormal noise during operation, turn off the switch immediately.
- When fi nished with a job, pull out the battery from the main body.
● Twisting and forcibly pressing the saw during cutting can result in unreasonable pressure on the motor, so try to go straight quietly.
- In the situation where the circular saw is continuously operated while replacing the battery with stocked spare batteries one after another, the motor tends to overheat. Therefore, whenever the housing becomes hot, give the saw a break for a while.
● Avoid cutting operation in a state where the base bottom is afloat from the material being cut. Otherwise, the motor can get locked.

MOUNTING AND DISMOUNTING THE SAW BLADE

CAUTION

To avoid serious accident, ensure the switch is in the OFF position, and pull out the battery.

1. Dismounting the saw blade

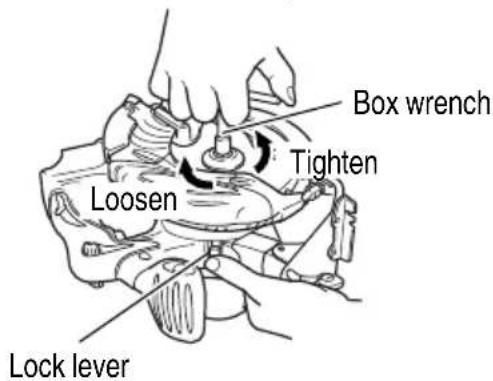

   (1) Set the cutting volume at maximum, and place the Circular Saw as shown in Fig. 15.

Box wrench Tighten Loosen Lock lever

Fig. 15

(2) Depress the lock lever, lock the spindle, and remove the left-hand bolt and washer (B2) with the box wrench.

(3) While holding the lower guard lever to keep the lower guard fully retracted into the saw cover, remove the saw blade (Fig. 16).

Saw blade Saw cover Lower guard lever

Fig. 16

1. Mounting the Saw Blade (Fig. 17)

WARNING

If the left-hand bolt is worked using other tools than the provided box wrench, excessive tightening and insufficient tightening may take place, resulting in injury.

Take procedures here that detaching procedures.

Left-hand bolt Washer (B2) Concave Ring Washer (A1) Spindle Saw blade

Fig. 17

NOTE

● Thoroughly remove any sawdust which has accumulated on the spindle, bolt and washers.
● To assure proper rotation direction of the saw blade, the arrow direction on the saw blade must coincide with the arrow direction on the saw cover.
● Using the fingers, tighten the left-hand bolt retaining the saw blade as much as possible. Then depress the lock lever, lock the spindle, and thoroughly tighten the left-hand bolt.

CAUTION

After mounting the saw blade, reconfirm that the lock lever is firmly secured in the prescribed position.

REPLACING LIGHT BULB

WARNING

● Make absolutely sure that the battery is removed from the main body before replacing the light bulb.
- Immediately after the light is turned OFF, the bulb retains high temperature. Make sure to cool down the light bulb thoroughly before replacing it so as to prevent burns.

CAUTION

When replacing the light bulb, check the shape of base as well as the rating (12 V, 5 W), and then carry out perfect mounting. Otherwise, the light bulb can come off and/or cause overheat.

1. Detaching light bulb

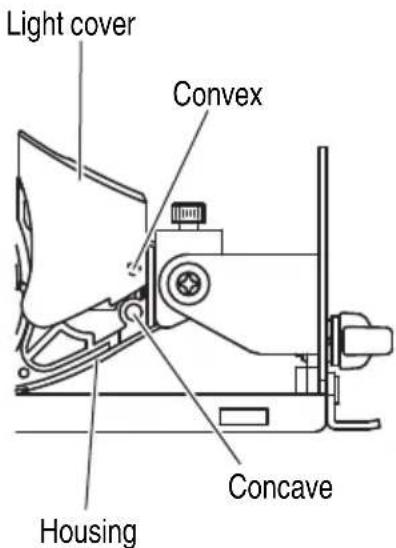

(1) Remove the convex part of the light cover from the a concave part of the housing, and then pull out the light cover in the arrow-marked direction as shown in Fig. 18.

Light cover Convex Housing Concave

Fig. 18

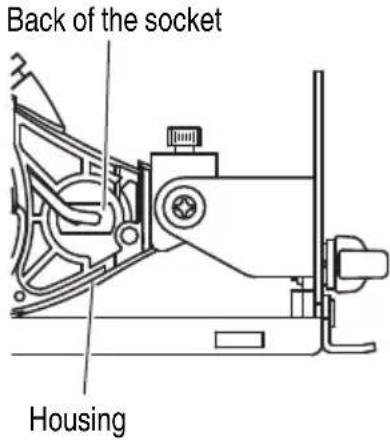

(2) Push the back of the socket, and remove the socket and the light bulb together from the housing (Fig. 19).

Back of the socket Housing

Fig. 19

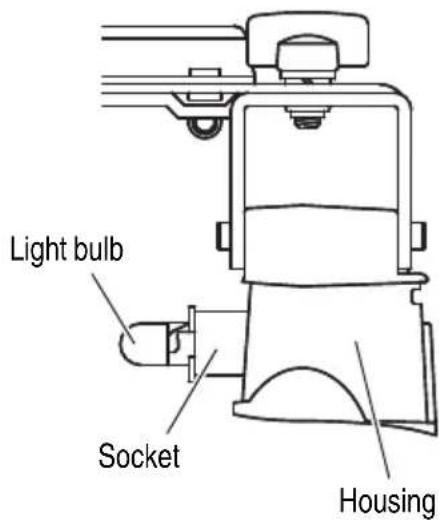

(3) Remove the light bulb from the socket (Fig. 20).

Light bulb Socket Housing

Fig. 20

1. Attaching light bulb

Take procedures here that are contrary to the detaching procedures.

NOTE

• When attaching the light bulb to the socket, insert the light bulb until it lightly bumps against the socket.
• When attaching the socket to the housing, align the socket with the hole of housing while watching the back of the socket shown in Fig. 20, and insert the socket until it lightly bumps against the housing.

MAINTENANCE AND INSPECTION

CAUTION

Pull out battery before doing any inspection or maintenance.

1. Inspecting the saw blade

Since use of a dull saw blade will degrade efficiency and cause possible motor malfunction, sharpen or replace the saw blade as soon as abrasion is noted.

CAUTION

If a dull saw blade is used, reactive force is increased during cutting operation. Avoid the use of the dull saw blade without repair.

1. Check the mounting screws

Loose mounting screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION

Using this power tool with loosen, screws is extremely dangerous.

1. Performance checkup and maintenance of lower guard

Keep the lower guard in good shape for smooth performance at all times. Be sure to make repair in case of any malfunction.

1. Adjusting the base and saw blade to maintain perpendicularity

The angle between the base and the saw blade has been adjusted to 90^ , however should this perpendicularity be lost for some reason, adjust in the following manner.

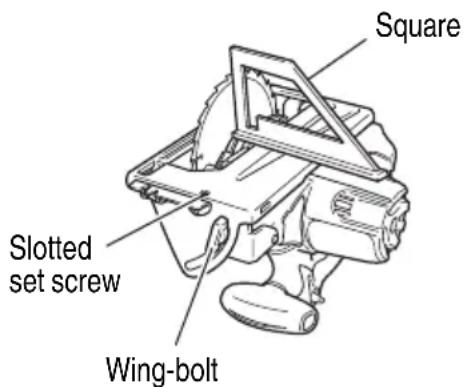

(1) Turn the base face up (Fig. 21) and loosen the wing-bolt.

Square Slotted set screw Wing-bolt

Fig. 21

(2) Apply a square to the base and the saw blade and, turning the slotted set screw with a slotted-head screwdriver, shift the position of the base to produce the desired right angle.

1. Check for dust

Dust may be removed with a clean rag or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

pr Maketsure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only genuine replacement parts must be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the metabo HPT cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

ACCESSORIES

WARNING

ALWAYS use Only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

C18DSL(1LSCK)
	1 Saw Blade (mounted on tool) ............1
	External Diam. Hole Diam. Code No.
	6-1/2" (165 mm)	5/8" (15.9 mm) 32	4293
	2 Box Wrench (Code No.940543) ............1
	3 Guide (Code No.302756) ............1
	4 Battery (BSL1830) ............1
	5 Battery Charger (UC18YRSL or UC18YFSL) ............1
	6 Plastic Case (Code No. 330274) ............1
C18DSL(NN)
	1 Saw Blade (mounted on tool) ............1
	External Diam. Hole Diam. Code No.
	6-1/2" (165 mm)	5/8" (15.9 mm) 32	4293
	2 Box Wrench (Code No.940543) ............1
	3 Guide (Code No.302756) ............1

OPTIONAL ACCESSORIES.....sold separately

1. Battery (BSL1830)

Line drawing of a mechanical device housing with internal components (no text or symbols)

1. Saw Blade Use ... Cutting various types of wood.

External Diam.	Hole Diam.	No. of teeth	Code No.
6-1/2"(165 mm)	5/8"(15.9 mm)	24 Pieces 32	4293
		40 Pieces 31	17451

NOTE

Specifications are subject to change without any obligation on the part of the metabo HPT.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Line drawing of a mechanical device with internal components (no text or symbols)

BELL MAMA Guía

Technical line drawing of a mechanical device labeled 'Carcasa' (no other text or symbols)

Fig. 19

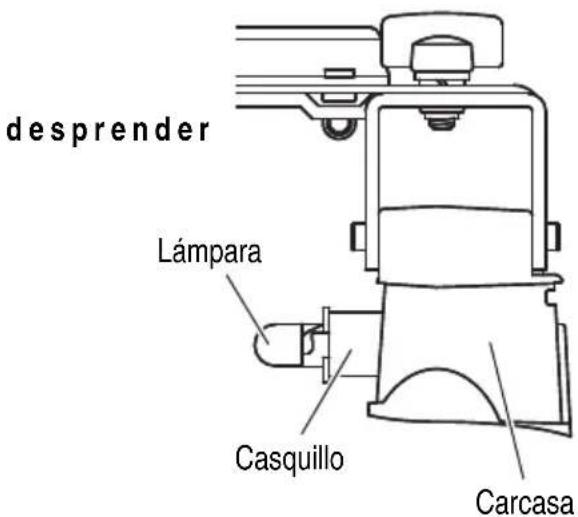

(3) Extraiga la lámpara del casquillo (Fig. 20).

desprender Lámpara Casquillo Carcasa

Fig. 20

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave,

Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10,

Mississauga, ON, L4V 1T6

812

Code No. C99174765 G

Printed in China
