Product Type	ATX Motherboard
Processor Socket	LGA 1700 (Intel 12th Gen Core)
Chipset	Intel Z690
RAM Memory	4 x DDR4 DIMM, max. 128 GB, dual channel, up to 5000+ MHz (OC)
Expansion Slots	3 x PCIe x16 (Gen5, Gen4, Gen3) + 2 x PCIe Gen3 x1
Storage	4 x M.2 (Gen4 x4, one with SATA) + 4 x SATA 6 Gb/s, RAID 0/1/5/10
Networking	Realtek 2.5 Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2
Audio	Realtek ALC897, 8-channel HD
USB Ports (Rear)	1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 2.0
USB Ports (Internal)	2 x USB 3.2 Gen1, 1 x USB 2.0, 1 x USB 3.2 Gen2x2 Type-C (front panel)
Video Output	HDMI 2.1 (4K 60 Hz)
Power Supply	ATX 24-pin + CPU 8+4-pin
Form Factor	ATX (305 x 244 mm)
Operating System	Windows 11 / 10 (64-bit)
Control Software	NZXT CAM (monitoring, RGB, fans)
RGB Lighting	2 x NZXT RGB, 1 x 5V ARGB, 1 x 12V RGB
Special Features	BIOS Flashback, diagnostic LED display, TPM, CMOS clear
Security	SPI TPM header, electrostatic discharge protection (recommendation)
Warranty and Support	Contact: [e-mail], support.nzxt.com

Frequently Asked Questions - N5 Z690 NZXT

What type of processor is compatible with the NZXT N5 Z690 motherboard?

The NZXT N5 Z690 motherboard is compatible with Intel 12th Gen Core i9, i7, and i5 processors using the LGA 1700 socket. It supports Intel Hybrid and Turbo Boost Max 3.0 technologies.

Does the motherboard support DDR5 memory?

No, the N5 Z690 only supports DDR4 memory in dual channel. The DIMM slots can accommodate up to 128 GB of DDR4 with overclocking up to 5000+ MHz.

How to update the BIOS without a processor?

Use the BIOS Flashback function. Download the latest BIOS from the NZXT website, rename it to "creative.rom", place it on a USB drive formatted as FAT32, plug it into the dedicated USB port (marked "BIOS") on the rear I/O, then press the BIOS Flashback button for 3 seconds. The LED will blink and then turn off when finished.

What USB ports are available on the rear?

The rear offers: 1 USB 3.2 Gen2x2 Type-C port, 1 USB 3.2 Gen2 port, 4 USB 3.2 Gen1 ports, and 2 USB 2.0 ports. One of the USB 3.2 Gen1 ports supports BIOS Flashback.

How to control RGB lighting and fans?

Install the NZXT CAM software (available at nzxt.com/camapp). It allows you to manage fans (CPU_FAN, AIO_PUMP, SYS_FAN) and lighting via the NZXT RGB, 5V ARGB, and 12V RGB headers.

Does the motherboard support Wi-Fi and Bluetooth?

Yes, it includes a dual-band Wi-Fi 6E (802.11ax) and Bluetooth 5.2 wireless card. Antennas are provided and attach to the SMA connectors on the rear.

What types of M.2 storage are supported?

The motherboard has 4 M.2 slots: three support PCIe Gen4 x4 mode (one also SATA), and one supports PCIe Gen4 x4. All accept NVMe SSDs as boot drives. Sizes 2242, 2260, 2280, and 22110 (depending on the slot) are compatible.

How to configure multiple graphics cards?

Install the cards in the PCIEX16_1 and PCIEX16_2 slots. The motherboard supports AMD CrossFireX (2-way). Ensure your power supply is sufficient and connect the PCIe power connectors.

What to do if the motherboard does not start?

Check the diagnostic LED indicators (CPU, RAM, VGA, Boot) near the socket. If any LED stays on, the corresponding component is faulty. Refer to the manual for exact locations.

Where to find drivers and NZXT CAM software?

Download drivers from the NZXT website (www.nzxt.com) and NZXT CAM software from nzxt.com/camapp. For any issues, contact [e-mail] with a description and your proof of purchase.

USER MANUAL N5 Z690 NZXT

Technical line drawing of a computer motherboard with visible CPU socket, RAM slots, and heatsink (no text or labels)

TABLE DES MATIERES

VERSION 1.3

1. PREFACE 02

2. TÉLÉCHARGEMENT DE NZXT CAM 41

3. INFORMATIONS SUR LE PRODUIT 03

4. ANNEXE A-1

5. COMPOSANTS ET PORTS..09/10/11

1. PREFACE

N5 Z690 INTEL ATX MOTHERBOARD

2. INFORMATIONS SUR LE PRODUIT

N5 Z690 INTEL ATX MOTHERBOARD

Technical line drawing of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or labels)

C. Vis M.2

×3

B. Câbles SATA

90^× 2,180^× 2

D. Antenne sans fil

×2

2.2 CARACTÉRISTIQUES

N5 Z690 INTEL ATX MOTHERBOARD

3.5 Slots DIMM....19

3.10 Antenne 27

3. COMPOSANTS ET PORTS

N5 Z690 INTEL ATX MOTHERBOARD

Isometric line drawing of a computer motherboard with CPU socket and motherboard (no text or symbols)

Simple diagram with a rectangle and two small circles, no text or symbols present

NO. PORT NAME DESCRIPTION

Simple geometric diagram with a square and two small circles, no text or symbols present

NO. PORT NAME DESCRIPTION

Simple diagram with a rectangular frame and a small rectangular element, no text or symbols present.

34

NO. PORT NAME DESCRIPTION

Technical diagram of a mechanical component with no visible text or symbols

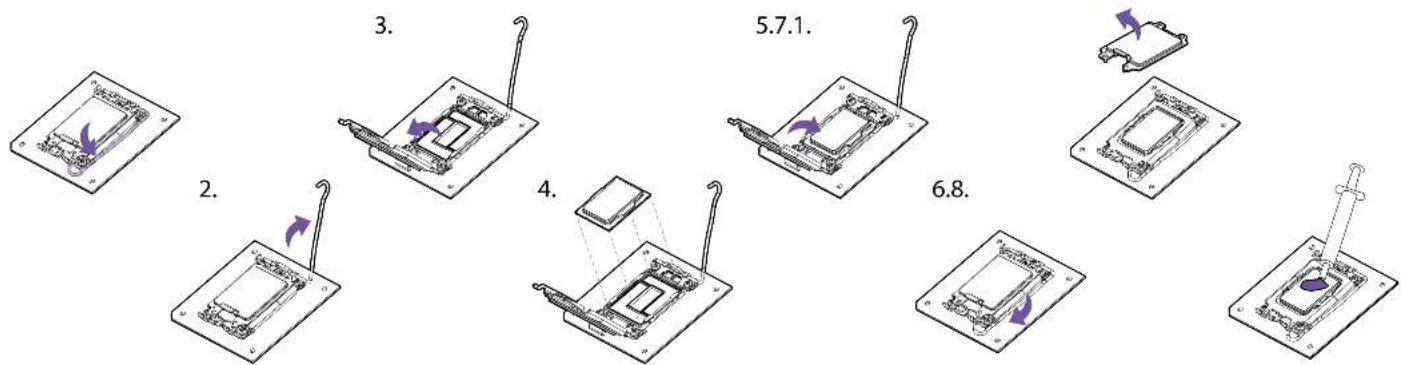


Top-down schematic of a computer monitor layout with no visible text or symbols

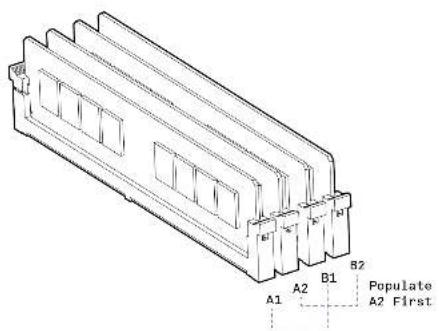

A1 A2 B1 B2 Populate A2 First

Diagram of a computer RAM module with an arrow indicating rotation, showing no text or symbols.

2.3.1

Isometric line drawing of a rectangular electronic component with multiple slots (no text or symbols)

Top-down schematic of a computer motherboard layout showing CPU socket, RAM slots, and drive bays (no text or labels)

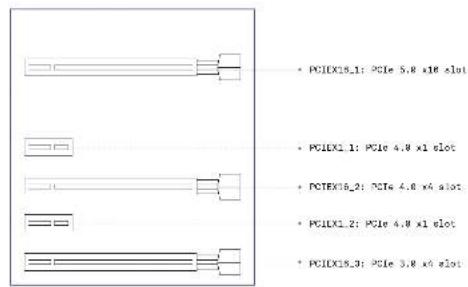

PC11X18_1: PCIe 5.8 x16 slot PC11X1_1: PCIe 4.8 x1 slot PC11X18_2: PCIe 4.8 x4 slot PC11X1_2: PCIe 4.8 x1 slot PC11X18_3: PCIe 3.8 x6 slot

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Isometric line drawing of a rectangular device with multiple internal compartments (no text or symbols)

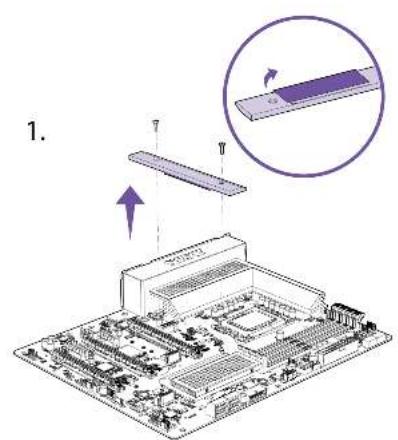

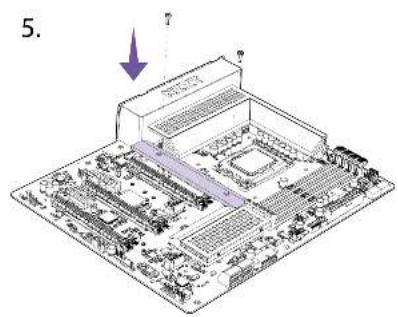

3.8 SLOTS M.2

N5 Z690 INTEL ATX MOTHERBOARD

Diagram of a computer motherboard showing slots, connectors, and a central processor (no text or labels)

Simple diagram with a square containing four labeled points and a circular symbol with a plus sign (no text or labels)

1.

2. 3. 4.

5.

Architectural floor plan showing room layouts and structural elements (no text or labels)

3.10 ANTENNE

N5 Z690 INTEL ATX MOTHERBOARD

Diagram of a computer motherboard with a mouse pointer indicating a component (no text or symbols present)

Illustration of a mechanical device with a purple arrow pointing to its side (no text or symbols present)

3.11 CONNECTEURS D'ALIMENTATION

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and memory connections (no text or labels)

-22V DC -22V DC -22V DC -22V DC GND GND GND GND -22V DC -22V DC GND GND

24-pin ATX_POWER814-pin ATX_12V

Top-down schematic of a computer motherboard layout with no visible text or labels

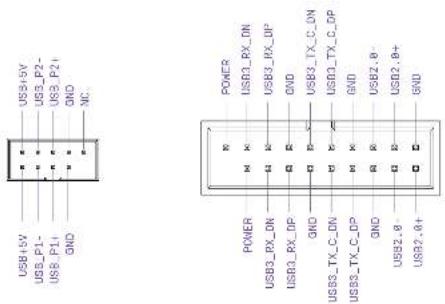

USB 2.0 USB 3.2 Gen 1 USB 3.2 Gen 2x2 Type-C

USB3+5V USB3_P2- USB3_P21 OND NC... USB3+5V USB3_P1- USB3_P1+ POWER USB3_RX_DN USB3_RX_DP USB3_RX_DP GND USB3_TX_C_DN USB3_TX_C_DP GND USB2_8- USB2_8+ GND USB2_8- USB2_8+

VRUS TX1+ TX2- GND RX2- RX2- VRS CC1 UNASSIGNED UNASSIGNED CC2 D+ D- GND RX2- RX2- VRS TX2- TX7+ VRS CC

3.13 CONNECTEUR AUDIO POUR PANNEAU AVANT

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and memory layout (no text or labels)

FRONT L SENSE_SEND FRONT R HIC R HIC L SENSE_RETURN SENSE_RETURN PRESERCEM GND

3.14 CONNECTEUR PANNEAU AVANT

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard showing CPU socket, RAM slots, and ventilation ducts (no text or labels)

100V POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LT POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTD POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LTC POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT POWER_LT

3.15 CONNECTEURS DE VENTILATEUR

N5 Z690 INTEL ATX MOTHERBOARD

Diagram of a computer motherboard layout with labeled components and numbered callouts

PZM SPEED SIGNA. +12V OXD

3.16 CONNECTEURS RGB DE NZXT

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard layout with no visible text or labels

3.17 CONNECTEUR RGB ADRESSABLE DE 5V

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard layout showing CPU socket, RAM slots, and memory card (no text or labels)

3.18 CONNECTEUR RGB DE 12V

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard layout showing CPU socket, RAM slots, and memory card (no text or labels)

3.19 CONNECTEUR SPI TPM

N5 Z690 INTEL ATX MOTHERBOARD

Pure technical diagram of a computer motherboard layout without any text, numbers, or symbols

SPI_D02 SPI_C59 SPI_MISO HISINS# GAD SPI_TM_C59 SPI_D03 SPI_PNS CJK SPI_NOSI RSTI TPM_PISO

3.20 CONNECTEUR D'EFFACEMENT CMOS

N5 Z690 INTEL ATX MOTHERBOARD

Top-down schematic of a computer motherboard layout with CPU socket, RAM slots, and indicator lights (no text or labels)

Clear CMOS Jumper

SHORT OPEN

3.20 CONNECTEUR D'EFFACEMENT CMOS

N5 Z690 INTEL ATX MOTHERBOARD

Afficheur LED

Top-down schematic of a computer motherboard layout with no visible text or symbols

3.21 BATTERIE CMOS

N5 Z690 INTEL ATX MOTHERBOARD

Isometric technical diagram of a computer motherboard showing two views with CPU socket and drive slots (no text or labels)

Download and install NZXT CAM from nzxt.com/camapp.

Descargue e instale NZXT CAM en nzxt.com/camapp.

5.1 NZXT Global Warranty Policy....A-2

5.4 Battery Information A-13

A-8

5.5 WEEE Statement A-145.2 Supp

5.3 Regulatory Notices....A-11

5.6 Revision History......A-18

5.1 NZXT GLOBAL WARRANTY POLICY

N5 Z690 INTEL ATX MOTHERBOARD

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS

Computer Cases 2 Years

Temperature Meters 2 Years

Fans 2 Years

Lighting 2 Years

Accessories 2 Years

Kraken M Coolers 3 Years

Headset/Headphone

Headset/Headphone Storage

Mixer

Motherboards

Gold Power Supply

Bronze Power Supply

Kraken X/Z Coolers

Mini ITX Case with PSU, AIO, and Riser Card

3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.

REFURBISHED NZXT PRODUCT

All NZXT Certified Refurbished Products

WARRANTY LENGTH FOR PARTS

1 Years

5.1 NZXT GLOBAL WARRANTY POLICY

N5 Z690 INTEL ATX MOTHERBOARD

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  • normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

5.1 NZXT GLOBAL WARRANTY POLICY

N5 Z690 INTEL ATX MOTHERBOARD

V. LIMITATIONS OF IMPLIED WARRANTYEST

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

• If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
• The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

5.1 NZXT GLOBAL WARRANTY POLICY

N5 Z690 INTEL ATX MOTHERBOARD

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

5.1 NZXT GLOBAL WARRANTY POLICY

N5 Z690 INTEL ATX MOTHERBOARD

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA

NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany [phone] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시러면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.comとnzxt.com/warrantyにアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

5.2 SUPPORT AND SERVICE

N5 Z690 INTEL ATX MOTHERBOARD

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com

SOPORTE Y SERVICIO

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and the receiver
- Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

DECLARATION OF CONFORMITY

I. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS:

• This device may not cause harmful interference
- This device must accept any interference received, including interference that may cause undesired operation.

II. THIS DEVICE IS IN CONFORMITY WITH THE FOLLOWING EC/EMC DIRECTIVES:

EN 55022	Limits and methods of measurement of radio disturbance characteristics of information technology equipment
EN 61000-3-2 Disturbance in supply systems caused
EN 61000-3-3	Disturbance in supply systems caused by household appliances and similar electrical equipment “Voltage fluctuations”
EN 55024	Information technology equipment-immunity characteristics - Limits and methods of measurement
EN 60950	Safety for information technology equipment including electrical business Equipment

III. CE CONFORMITY

NZXT Inc, declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

IV. CANADIAN DEPARTMENT OF COMMUNICATIONS

Includes a KCC (Korean Communications Commission) certification number: KCC-R-R-ZXT-N5Z69XT.

R-R-ZXT-N5Z69XT

5.4 BATTERY INFORMATION

N5 Z690 INTEL ATX MOTHERBOARD

EUROPEAN UNION

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

TAIWAN

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

CALIFORNIA, USA

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate

CAUTION

- There is a risk of explosion, if battery is incorrectly replaced. Replace with the same or equivalent type recommended by the manufacturer.

5.5 WEEE (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT) STATEMENT

N5 Z690 INTEL ATX MOTHERBOARD

ENGLISH

To protect the global environment and as an environmentalist, NZXT must remind you that...

Under the European ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2012/19/EU, effective February 14, 2014, products of "electrical and electronic equipment" cannot be discarded as municipal wastes, and manufacturers of covered electronics must take back such products at the end of their useful life. NZXT will comply with the product take back requirements at the end-of-life of NZXT products that are sold within the EU. You can return these products to local collection points.

ESPAÑOL
