PCIe 4.0 x16 Riser Cable - Motherboard NZXT - Free user manual and instructions

Product Type	PCIe 4.0 x16 Riser Cable
Brand	NZXT
Model	PCIe 4.0 x16 Riser Cable
Category	Motherboard Accessories
Interface	PCI Express 4.0 x16
Dimensions (approx.)	Length: 300 mm (11.8 in), Width: 24 mm (0.94 in), Height: 120 mm (4.7 in) including connectors
Weight (approx.)	100 g (0.22 lb)
Power Delivery	Supports up to 75W through PCIe slot (standard)
Main Functions	Extends PCIe slot for vertical GPU mounting; supports PCIe 4.0 bandwidth for high-speed data transfer
Compatibility	PCIe 4.0 and backward compatible with PCIe 3.0/2.0/1.0; works with most ATX cases with vertical mount slots
Color	Black
Connector Type	Male to Female PCIe x16
Cable Shielding	EMI shielding for signal integrity
Installation	Plug and play; no drivers required
Maintenance	Keep connectors dry and free of dust; clean with dry cloth if needed
Safety Warnings	Do not bend cable sharply; avoid static discharge during installation; ensure secure connection
Spare Parts / Repairability	Not user-serviceable; replace entire cable if damaged
General Information	Designed for high-performance PC builds; tested for PCIe 4.0 signal quality

Frequently Asked Questions - PCIe 4.0 x16 Riser Cable NZXT

What is the NZXT PCIe 4.0 x16 Riser Cable used for?

It is used to extend the PCIe slot, typically for mounting a graphics card vertically in a PC case, maintaining PCIe 4.0 performance.

Is this riser cable compatible with PCIe 3.0?

Yes, it is backward compatible with PCIe 3.0, 2.0, and 1.0 devices.

What is the maximum length of the cable?

The cable length is approximately 300 mm (11.8 inches).

Does the cable require any drivers?

No, it is a plug-and-play device; no drivers are needed.

Can I use this riser cable with any PC case?

It works with cases that have a vertical GPU mount slot or can be used with a mounting bracket.

Will it support the full bandwidth of a PCIe 4.0 graphics card?

Yes, the cable is tested for PCIe 4.0 x16 speeds, providing full bandwidth for modern GPUs.

How do I clean the riser cable?

Use a dry cloth to wipe the connectors and cable. Avoid liquids or compressed air near connectors.

Is it safe to bend the cable?

Avoid sharp bends as they can damage internal wiring and degrade signal quality.

What should I do if the cable stops working?

Check connections and reseat the cable. If issues persist, replace the cable as it is not user-repairable.

Does the cable support power delivery to the GPU?

It delivers up to 75W through the PCIe slot, typical for PCIe slots. High-power GPUs still need separate power cables.

USER MANUAL PCIe 4.0 x16 Riser Cable NZXT

Technical line drawing of a mechanical assembly with mounting flanges and a central rod (no text or symbols)

PCIE 4.0X16 RISER CABLE

FLEXIBLE RISER CABLE

TABLE OF CONTENTS

VERSION 1.0

1. COMPONENTS LIST 02

2. INSTALLATION 04

3. HARDWARE INTRODUCTION...03

4. APPENDIX ...... A-1

1. COMPONENTS LIST

PCIE 4.0X16 RISER CABLE

A. 200 mm PCIe Gen 4 x16 Riser Cable

×1

Pure technical line drawing of a curved, ribbed component without any text or symbols

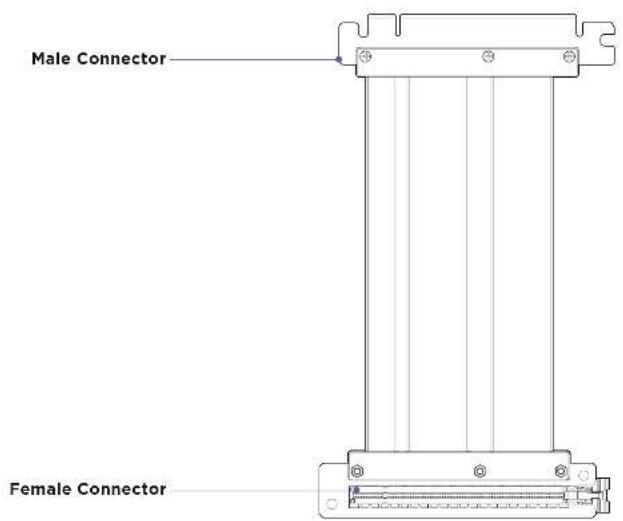

2. HARDWARE INTRODUCTION

PCIE 4.0X16 RISER CABLE

3. INSTALLATION

PCIE 4.0X16 RISER CABLE

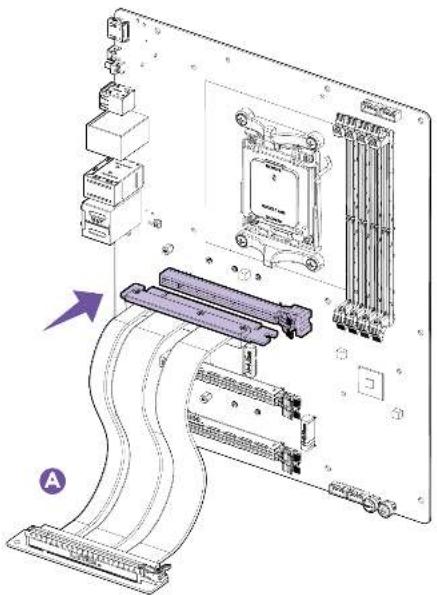

STEP 1

Insert the PCIe Riser Cable male connector into the chosen motherboard PCIe slot.

Technical diagram of an electronic device showing internal components and a curved cable structure (no text or symbols)

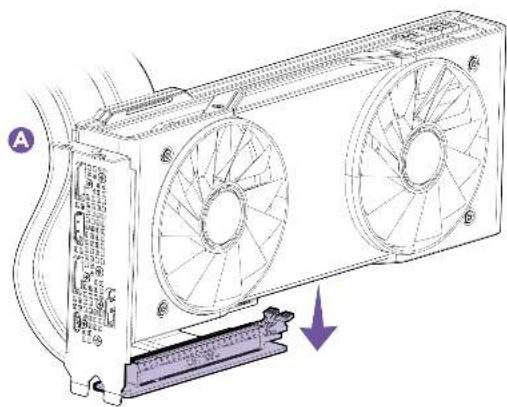

STEP 2

Insert the GPU into the riser cable female connector.

Technical line drawing of a computer drive chassis with two fans and a connector (no text or symbols)

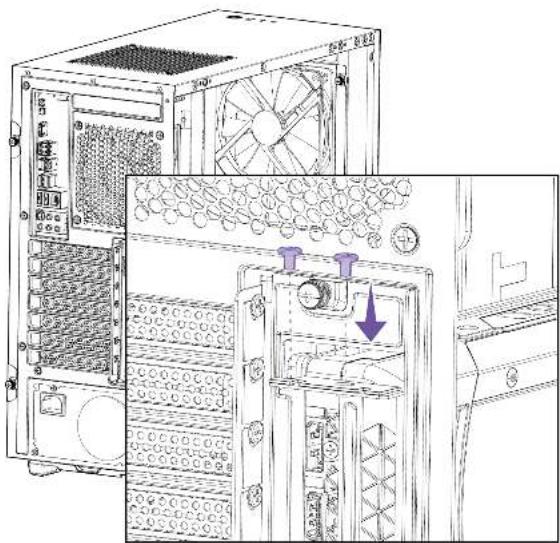

STEP 3

Secure the GPU to the case GPU slots.

Technical line drawing of a computer tower case with ventilation fans and internal components (no text or symbols)

INSTALLATION

PCIE 4.0X16 RISER CABLE

NOTE

* For a PCIe Gen 4 GPU, please make sure the Riser Cable is connected to the motherboard's PCIe Gen 4 slot and that the BIOS settings are set to Auto Mode.

4. APPENDIX

PCIE 4.0X16 RISER CABLE

4.1 SUPPORT A-2

4.4 Revision History....A-13

4.2 NZXT Global Warranty Policy....A-3

4.3 Support and Service....A-9

4.1 SUPPORT

PCIE 4.0X16 RISER CABLE

If you have an issue and you need further help to resolve, please contact us via email at: [e-mail]
