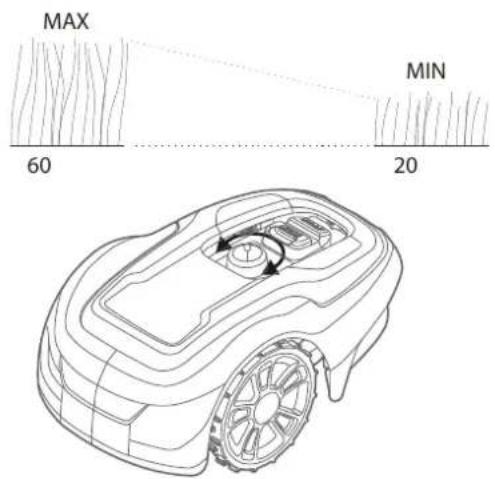

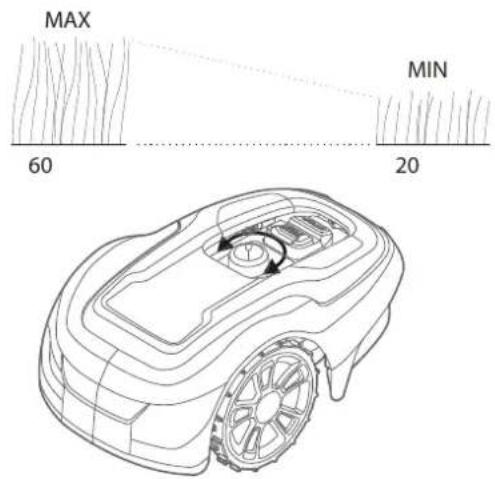

Adjusting Cutting Height 18

Lifting and Carrying the Mower....19

Pairing Mobile App to Mower....19

Maintenance....20

Removing the Body from Chassis 20

Cleaning....20

Replacing Blades....21

Maintaining the Battery....21

Replacing the Battery 22

Winter Storage Mower 23

Winter storage Charging Station 23

Troubleshooting....24

Indicator LEDs on Mower 24

Symptoms....25

Breaks in Boundary Wire and Guide Wire....25

Technical Data....26

Environmental Protection....28

Warranty Terms....29

CE Declaration of Conformity....30

As a complement to this operator manual, more information is available on the website: www.greenworkstools.eu

EXPLANATION OF SYMBOLS ON THE MOWER

This is a dangerous power tool. Use care when operating and follow all safety instructions and warnings.

Read the operator manual carefully before operating the mower.

Remove the safety key before working on or lifting the mower.

Hazard of thrown objects during operation.

Keep a safe distance from the mower when operating and keep people, especially children, pets and bystanders away from the area where mower is being operated.

Do not ride on the mower.

Class III appliance

READING THE OPERATOR MANUAL

The following symbols are important for reading and understanding the operating instructions.

Wear protective gloves

The following system is used in the operator manual to make it easier to understand:

• WARNING! Warning texts alert users and consumers to the existence and nature of hazards so that they can prevent injury by appropriate conduct during use of the product.
• CAUTION: Caution texts alert users and consumers to the existence and nature of product risks so that they can prevent damaging the product by appropriate conduct during use of the product.
  NOTE: Notes inform users and consumers about additional information about product use.
  • Text written in bold italics refers to another section in the operator manual.
  • Text written in bold refers to settings on the mower.

IMPORTANT

READ CAREFULLY BEFORE USE! KEEP FOR FUTURE REFERENCE!

Training

WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

• Read the instructions carefully. Be familiar with the controls and the proper use of the machine.
• Never allow people unfamiliar with these instructions or children to use the machine. Local regulations may restrict the age of the operator.
  • The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• Ensure the correct installation of boundary and guide wires as instructed.
• Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
• Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

General

• Never operate the machine with defective guards, or without safety devices, for example the body, in place.
• Do not put hands or feet near or under rotating parts.
• Never pick up or carry an machine while the motor is running.
• Remove (or Operate) the disabling device from the machine
• before clearing a blockage;
• before checking, cleaning or working on the machine.
• Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

Maintenance and storage

• Keep all nuts, bolts, and screws tight to be sure the machine is in safe working condition.
• Replace worn or damaged parts for safety.
  • Ensure that only replacement cutting means of the right type are used.
• Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
• In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes, etc.
  Servicing of the machine should be according to manufacturers' instructions.

WARNING! This appliance contains batteries that are only replaceable by a skilled persons.

WARNING! For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

OPERATIONAL SAFETY

This operator manual contains all of the basic information concerning the safe operation and maintenance of the mower.

Carefully read all the safety precautions and instructions in this operator manual before operating the mower. Save this operator manual for future reference. Follow manufacturer instructions regarding installation, operation, maintenance, and repair.

This mower is designed to mow grass in open and level areas. Use only equipment recommended by the manufacturer. All other types of use are incorrect.

This mower conforms to CE safety standards and directives concerning electromagnetic compatibility, machines, and low voltage.

The mower is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The mower must only be operated, maintained, and repaired by persons that fully understand its special characteristics and safety regulations.

Start the mower in accordance with the instructions. When the safety key is in the Enabled position, keep your hands and feet away from the rotating blades.

Never put your hands and feet under the mower.

Do not modify the original design of the mower. All modifications void the guarantee.

Switch off mower using the STOP button on the mower when persons, especially children, or pets are in the cutting area. It is recommended that the mower be programmed for use during hours when the area is free from persons or pets.

Remove objects from the operating area such as branches, toys, stones, tools that can damage the blades. The mower can fasten on objects in the operating area and help may be required to remove the object before the mower can continue mowing.

Never lift up the mower or carry it with the safety key inserted.

Always switch off the mower using the STOP button when the mower is not in use. The mower can only start when the safety key is inserted and the START button is pressed.

Do not use the mower with a defective blade disc or body.

Do not let persons who do not know how the mower works and behaves use it.

Do not put anything on top of the mower or its charging station.

Always wear protective gloves when working with the mower's blades.

Product Unboxing

EN

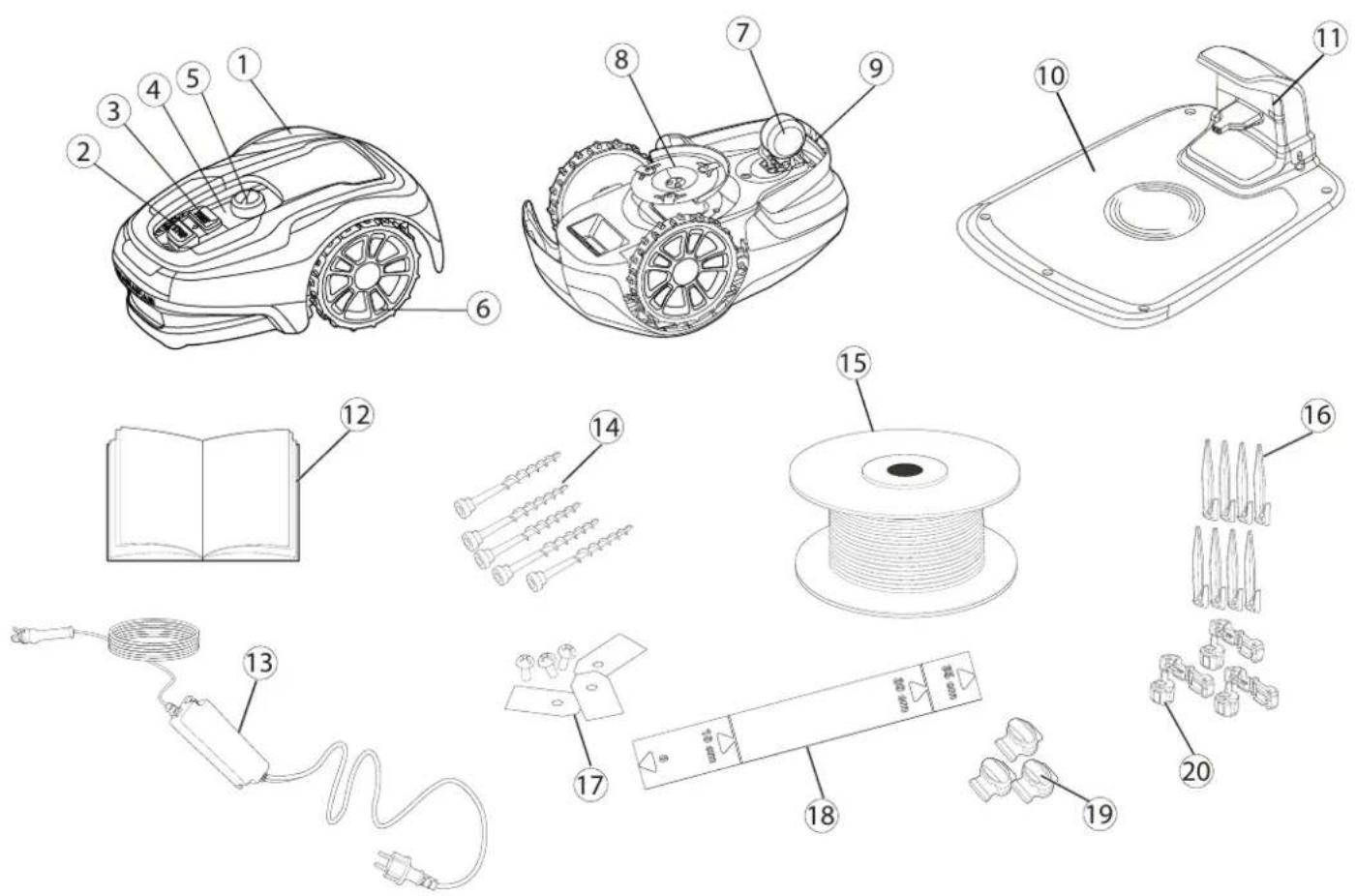

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1 Removable cover
2 Stop button
3 Start button
4 LED indicators
5 Cutting height adjustment
6 Front wheels
7 Rear wheels
8 Blade disc
9 Carrying handle
10 Charging station

11 LED for operation check
12 Operator manual and quick guide
13 Power supply*
14 Screws for securing charging station (x5)
15 Loop wire for boundary and guide wire
16 Wire pegs
17 Extra blades and screws (x3)
18 Ruler (break off carton top)
19 Splice and guide wire connectors
20 Loop wire connectors

* The appearance of the power supply may differ depending on market.

Unbox the mower and installation materials. Make certain that all parts shown in Figure 1 are included and undamaged. Contact your retailer if any items are missing or damaged.

Keep the Quick Guide in a safe place since it contains the unique pairing code for your mower.

Read the entire section before beginning installation. Installation affects mower capability.

Plan the installation carefully.

The following are the main tasks within the installation:

• Planning layout and preparation
  • Installing and connecting the charging station
  • Connecting the power supply
  • Initial charging of the battery
  • Installing the boundary wire
  • Installing the guide wire
  • Calibrating and initial start up

PLANNING LAYOUT AND PREPARATION

Ensure that the following conditions exist in the operating area where the mower will be used:

• The grass is shorter than 10 cm.
• There are no stones, loose pieces of wood, wire, live mains cables, and other foreign objects.
• The operating area is even and has no ditches, grooves, and steep slopes greater than 30%.

The following tools are required for installation, but not included:

• Hammer/rubber mallet to drive the pegs into the ground
• Combination pliers to cut the boundary wire
• Polygrip to press the couplers together
• Hex key, 6 mm for securing the charging station to ground

INSTALLING AND CONNECTING THE CHARGING STATION

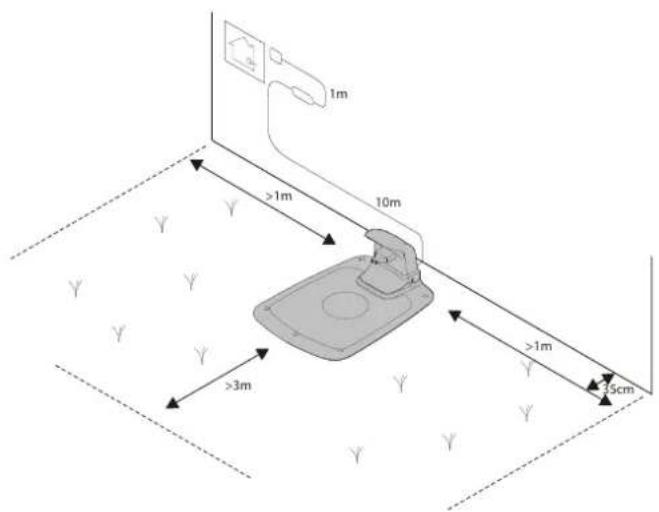

1m >1m 10m >3m >1m 35cm

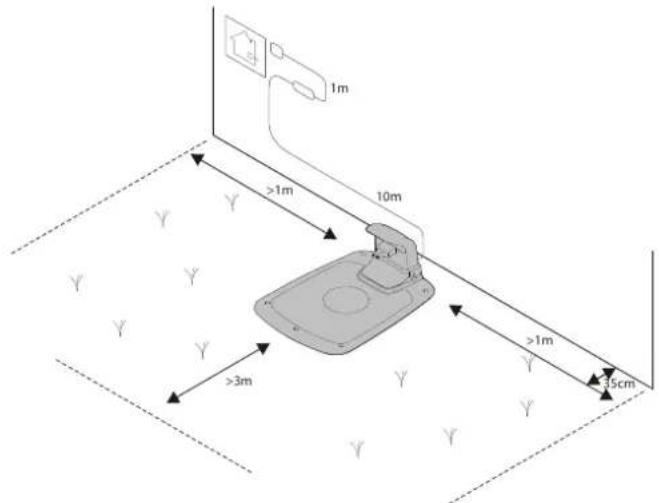

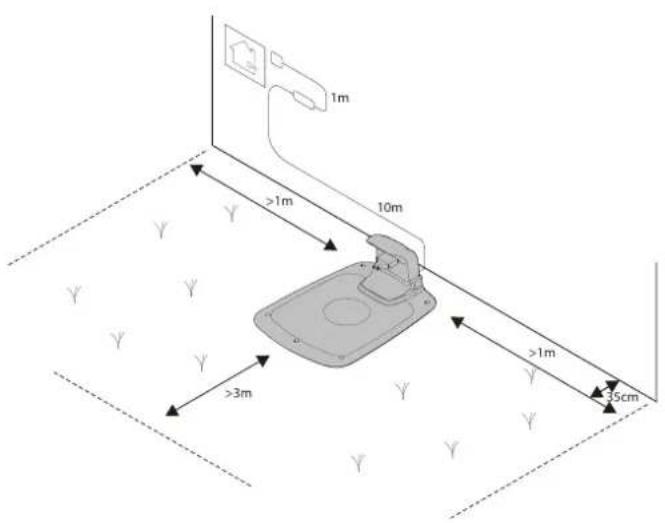

Position for the charging station as follows:

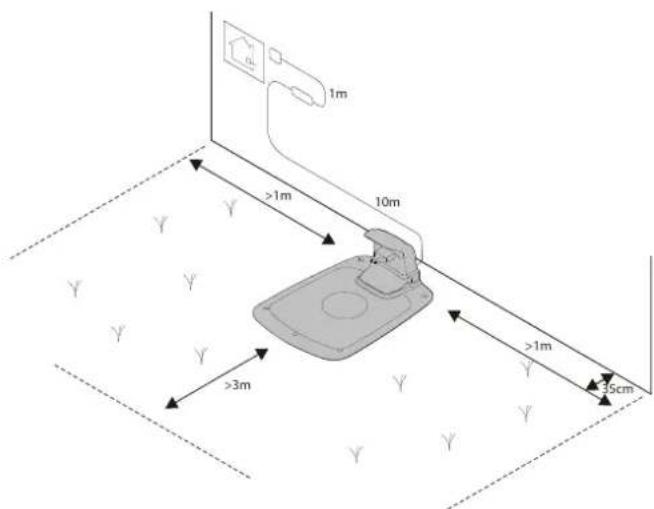

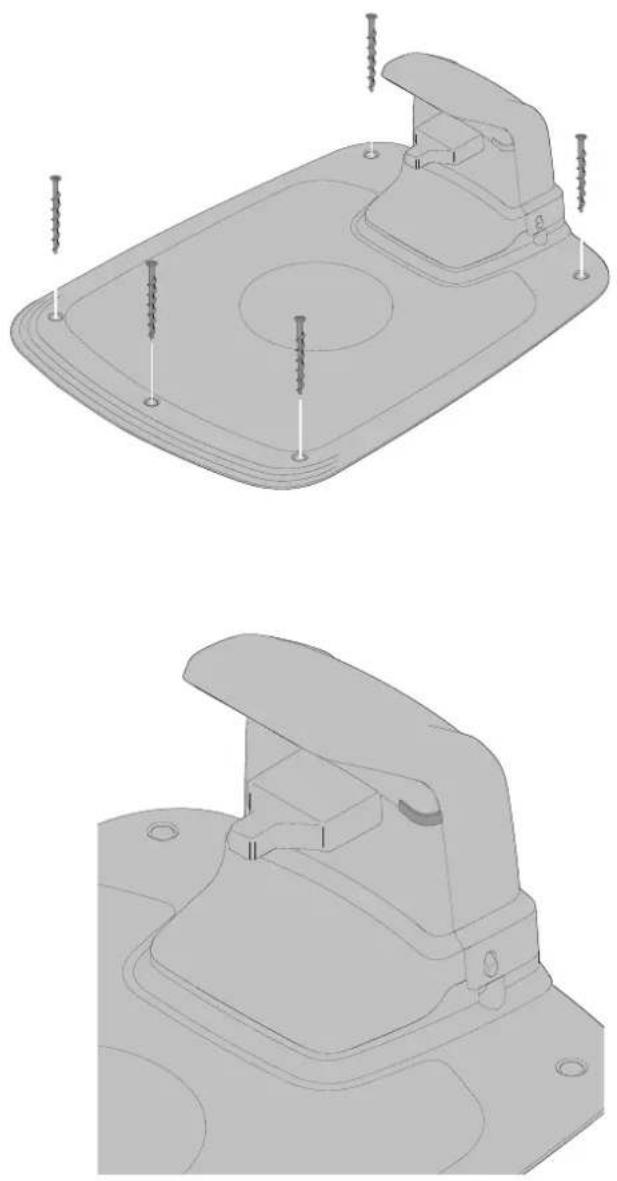

• In a level spot out of direct sunlight (The front end of the charging station must not be 5 cm higher or lower than the back end.)
  • Within reach of a wall socket (The low voltage cable is 10 m long.)

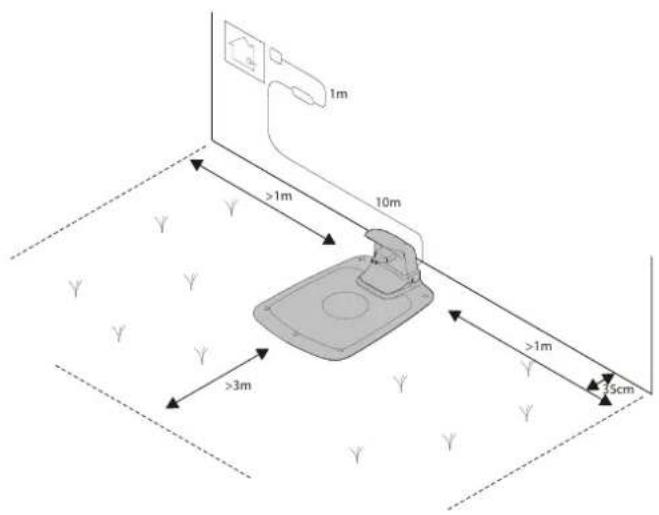

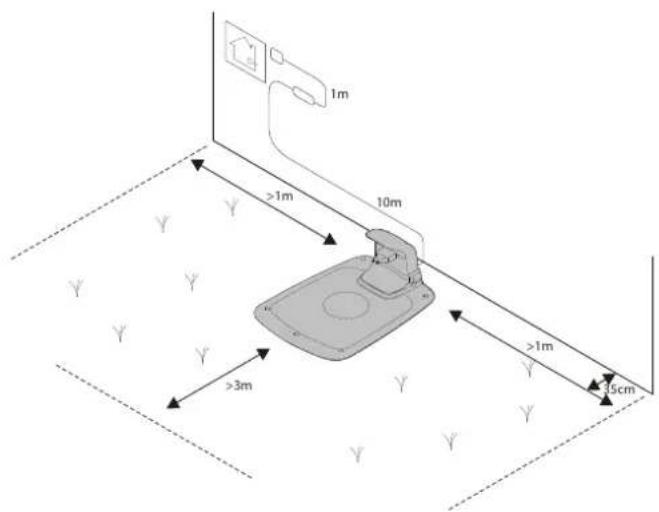

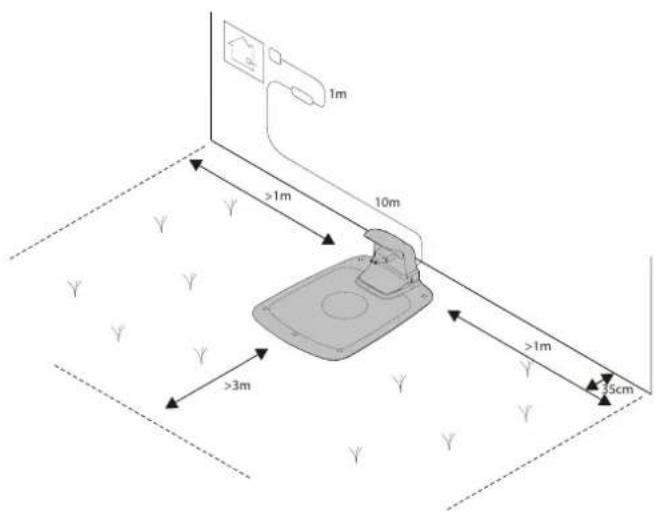

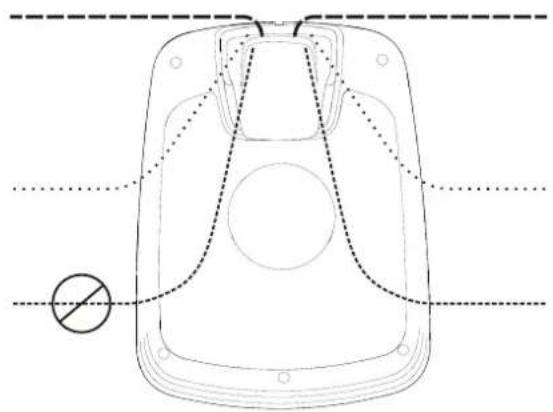

• With at least 3 m in front of it and 1 m to each side (Do not position in confined spaces in the operating area.)

Top-down line drawing of a car interior with no text or symbols

The entire charging station must be inside the operating area as shown in the figure.

CONNECTING THE POWER SUPPLY

Connect the power supply in a cool, dry environment; out of direct sunlight.

If the power supply is connected to an electrical socket outdoors, it must be approved for outdoor use.

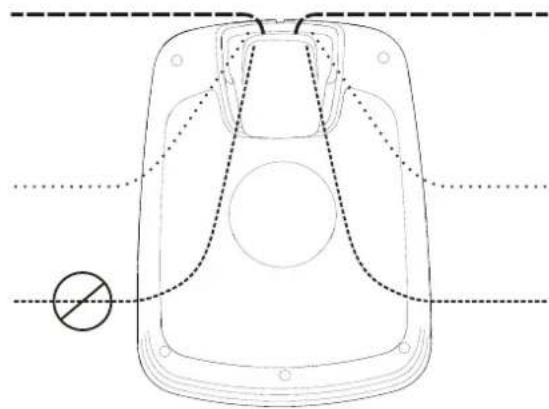

The low voltage cable can cross the operating area if it is stapled down or buried.

CAUTION: Do not cut, splice, or alter the low voltage cable. Altering the low voltage cable will void the product guarantee.

Diagram of a vehicle's rearview and side profile with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a downward force or insertion (no text or symbols present)

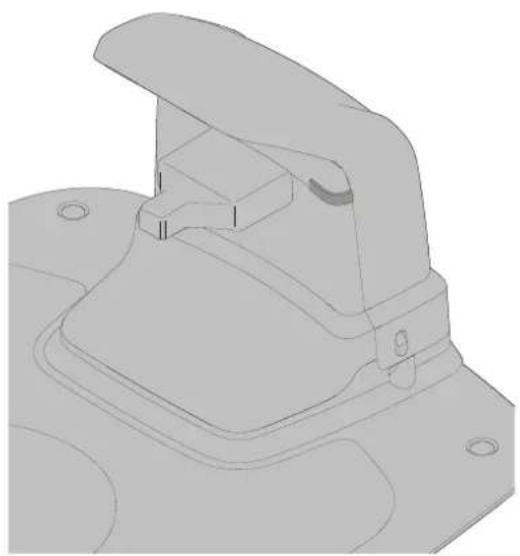

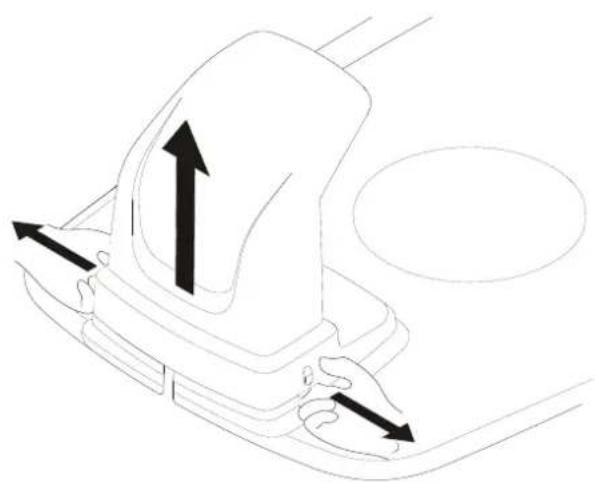

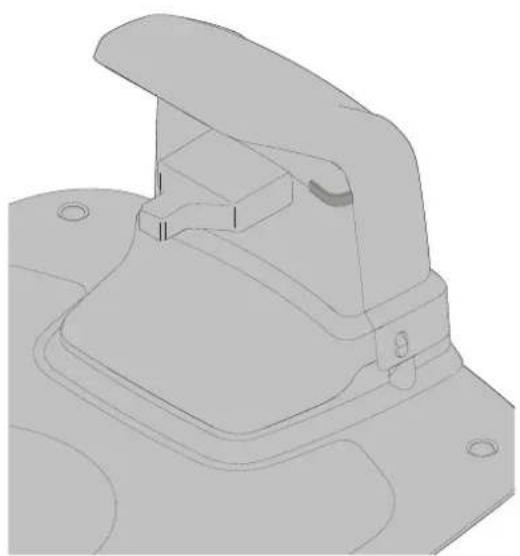

Remove the protective cover on the charging station by pressing in the tabs on each side of the base and lifting away the cover.

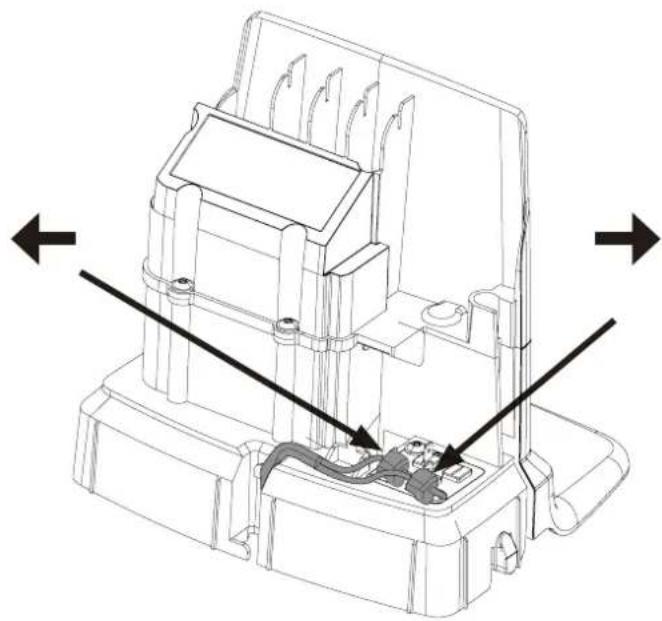

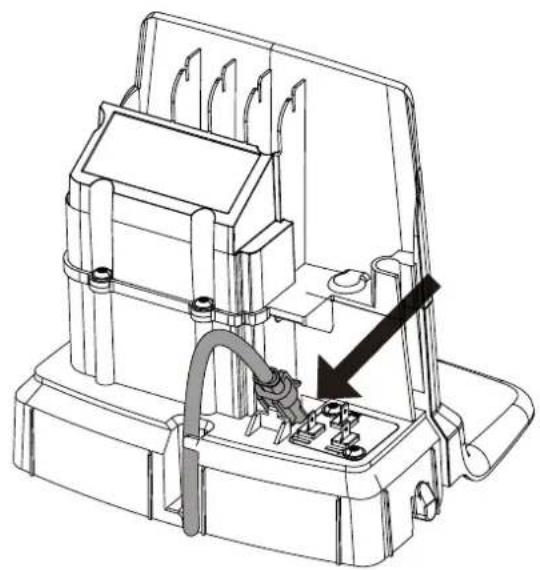

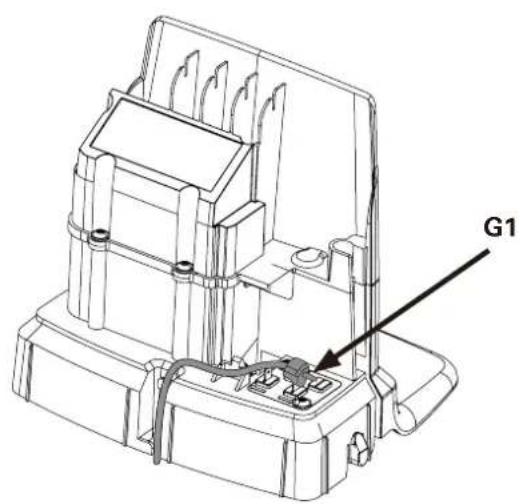

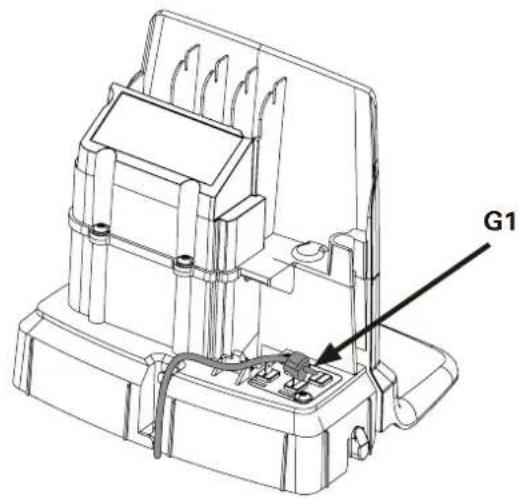

Connect the low voltage cable to the charging station.

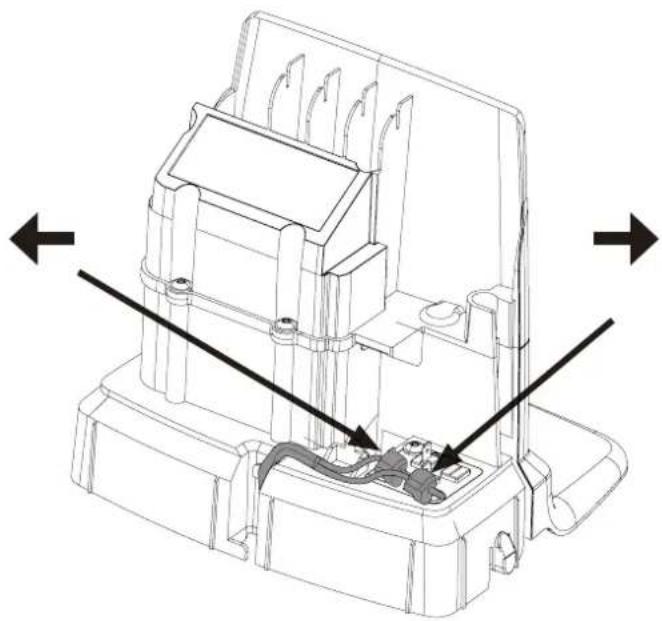

Thread the low voltage cable behind the tabs to hold it in place in the charging station.

Connect the power supply power cable to a 220-240 V wall socket.

INITIAL CHARGING OF THE BATTERY

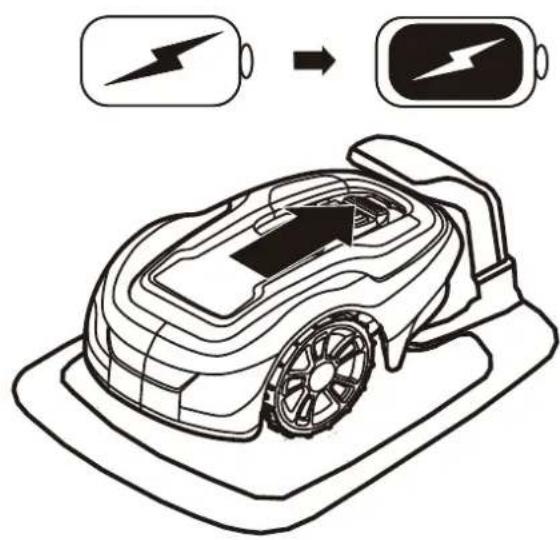

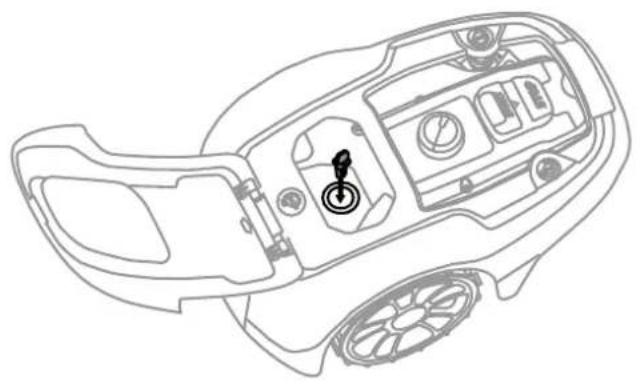

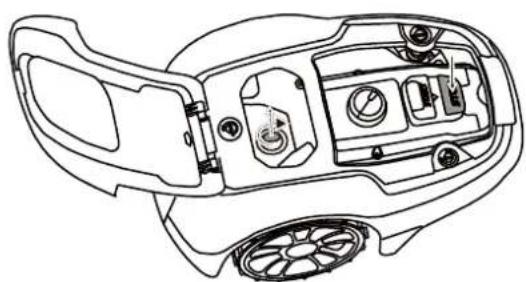

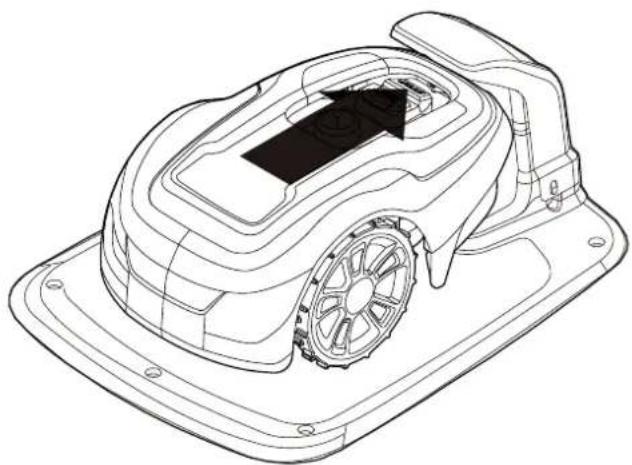

Insert the safety key into the mower and turn to the ON" ( | ) position.

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or labels)

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a lawn mower component with mounting base (no text or symbols)

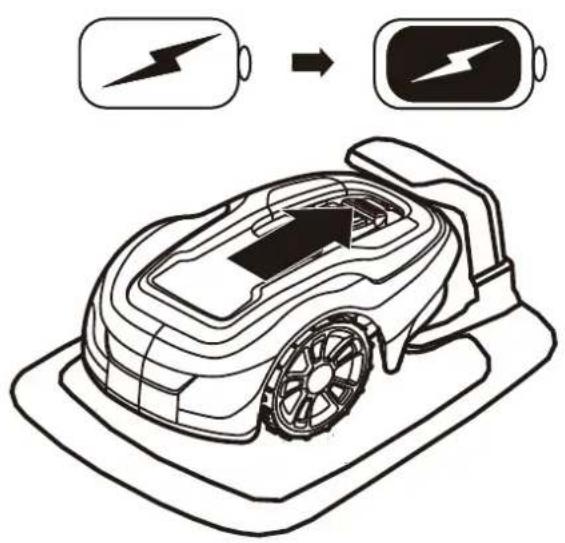

Place the mower into the charging station while the boundary and guide wires are being laid.

The mower cannot be used before the installation is complete.

INSTALLING THE BOUNDARY WIRE

When installing the boundary wire there are a number of situations to consider as described in the table below.

Table 1. Handling Deviations and Obstacles in the Operating Area

VARIATION WITHIN OPERATING AREA BOUNDARY WIRE PLANNING
Fixed obstacles level with lawn that the mower can traverse (paving stone paths or similar)	Lay the boundary wire under the paving stones or in the joint between the paving stones.Never run the mower over gravel, mulch, or similar material that can damage the blades.
Fixed obstacles ± 1 cm high Lay the boundary wire 10 cm from the obstacle.
Fixed obstacles 1—5 cm high (small ditches, flower beds, or low kerbstones)	Lay the boundary wire 30 cm from the obstacle.
Fixed obstacles 5 cm or higher (fences or walls) Lay the boundary wire 35 cm from the obstacle.
Fixed obstacles taller than 15 cm that can withstand a collision (trees or shrubs)	No measures required; the mower will turn around when it collides with this type of obstacle.
Fixed obstacles that slope slightly such as stones or large trees with raised roots	Lay the boundary wire 30 cm from or remove obstacle.
Fixed obstacles that cannot withstand a collision Lay the boundary wire 30 cm from and around the obstacle and then return it back along the same route.
Long and narrow passages and areas narrower than 1.5 m Install a guide wire.
Borders on a slope, road, precipice, or water Supplement the boundary wire with a physical barrier at least 15 cm high.
Slope up to 30% within operating area No measures required; the mower can operate up to a 30% as long as the slope is not at the boundary of the operating area.
Slope less than 15% at operating area edge Lay boundary wire as normal.
Slope greater than 15% at operating area edge Do not lay boundary wire unless a fixed obstacle (fence or wall) exists to prevent the mower from leaving the operating area.When a part of the operating area outer edge slopes more than 15%; lay the boundary wire 20 cm in on the flat ground before the beginning of the slope.

NOTE: Slope gradient is defined in percentage units (\%). The slope as a percentage unit is calculated as the difference in elevation in centimetres for every metre. If, for example, the difference in elevation is 10cm , the slope gradient is 10% .

Installation

EN

Diagram showing a rural water feature layout with houses, a circular water tank, and directional arrows indicating flow or movement.

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

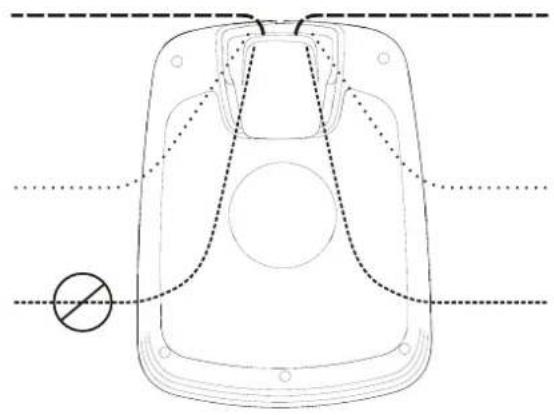

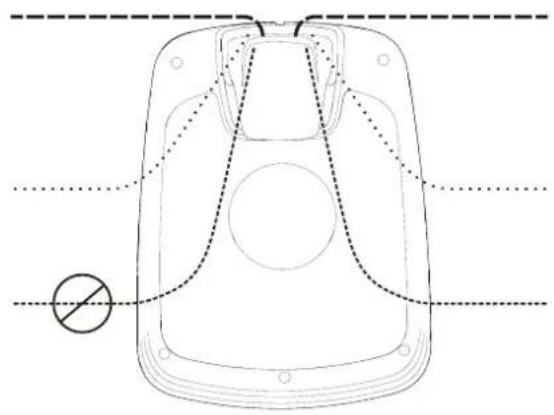

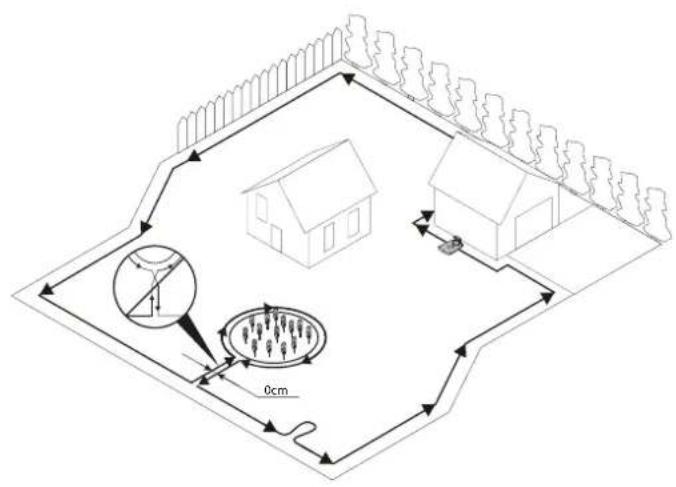

Temporarily secure the end of the loop wire to a peg or other object at the charging station.

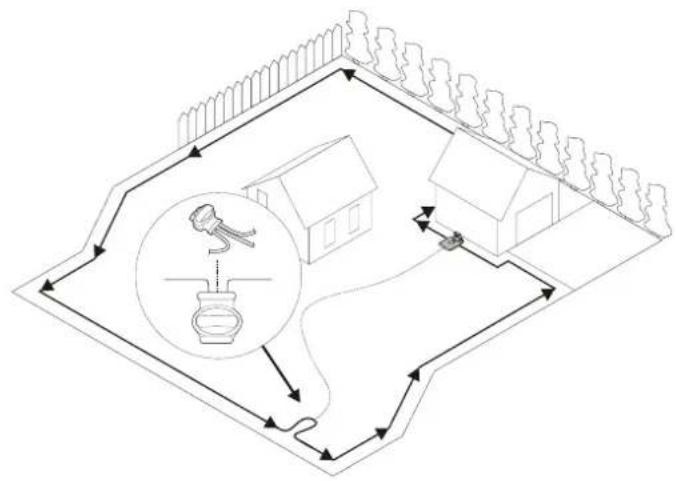

Lay out the loop wire in a counter-clockwise direction alone the planned boundary of the operating area taking into consideration the rules in Table 1 until you return to the charging station.

If you are going to install a guide wire, create an eyelet with about 20 cm of extra boundary wire at the point where the guide wire will later be connected.

See Installing a Guide Wire on page 15 for more information.

If the boundary wire is too short, use provided splice and guide wire connectors to splice additional boundary wire as follows:

1 Insert both ends of the boundary wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.
2 Squeeze down the button on top of the splice and guide wire connector fully using a polygrip until you hear a click.

Lay down the loop wire reel at the charging station.

Go back around the boundary of the operating area and secure the boundary wire either using pegs or buried in the ground. Pegs are recommended since this allows for adjustment during the first few weeks of operation.

When securing the boundary wire with pegs:

• Cut the grass very low with a standard lawnmower or a trimmer where the wire is to be laid.
• Lay the boundary wire on the ground and secure with pegs close together.
• Push or hammer the pegs into the ground.

Do not push the pegs so far into the ground so that they strain the boundary wire.

When burying the boundary wire:

- Bury the boundary wire 1—20 cm into the ground.

Line drawings of three different types of pliers or tools, no text or symbols present

When the boundary wire is completely laid out and secured, install end loop wire connectors as follows:

1 Open the loop wire connector and place the wire in the loop wire connector grip.
2 Press the loop wire connectors together using a polygrip until you hear a click.

Cut off any surplus boundary wire 1-2 cm above each connector.

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

Connect the boundary wire to the charging station as follows:

1 Remove the protective cover on the charging station and thread the wire behind the tabs into the channel at the rear of the charging station.
2 Press the connector onto the metal pins on the charging station (marked with left and right arrows).

NOTE: Make sure the boundary wire to the right of the charging station is connected to the arrow pointing right and the same for the left side.

INSTALLING A GUIDE WIRE

The mower uses the optional guide wire to find its way back to the charging station, but also find hard-to reach areas of the operating area. For example, the guide wire is laid between the charging station and a remote part of the working area or through a narrow passage.

For narrow passages (less than 3 m) or to shorten search times, a guide wire is recommended.

Plan the location of the guide wire before laying out the boundary wire.

Use the same cable roll for both the boundary wire and the guide wire.

The guide wire, like the boundary wire, must be secured to the ground with pegs or buried.

When installing the guide wire on a steep slope, lay the wire at an angle to the slope so it is easier for the mower to follow the guide wire on the slope.

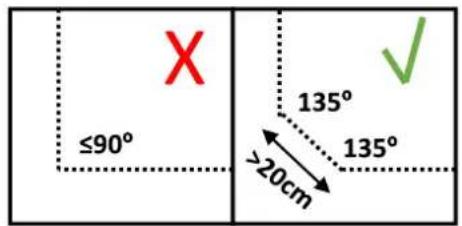

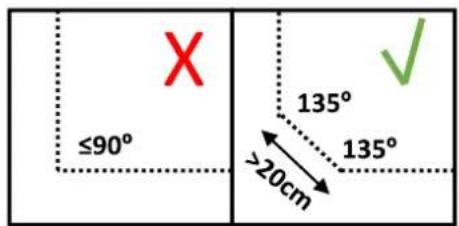

≤90° 135° >20cm 135° ✓

Do not lay the guide wire at sharp angles or the mower will have difficulty following it.

1m >1m 10m >1m >3m 15cm

Do not lay the guide wire closer than 30 cm from the boundary wire.

Do not lay the guide wire across the boundary wire.

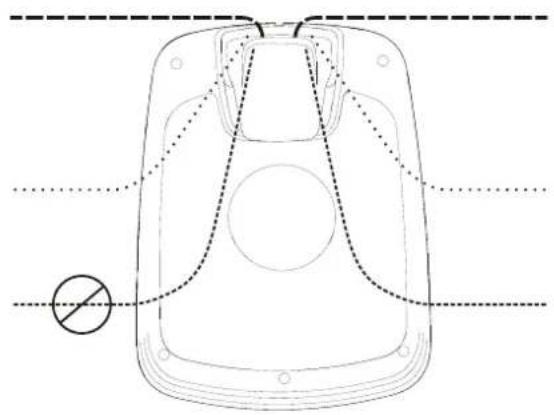

Lay the guide wire straight under the charging plate in the track intended for this and then at least 2 m straight out from the front edge of the plate.

Leave as much space as possible to the left of the guide wire (as seen when facing the charging station).

Run the guide wire to the loop on the boundary wire where the guide wire is to be connected.

Cut the boundary wire using the combination pliers.

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

G1

Insert both ends of the boundary wire as well as the end of the guide wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.

Squeeze down the button on top of the splice and guide wire connector fully using a polygrip until you hear a click.

Secure the splice and the boundary and guide wires either using pegs or by burying.

Connect the guide wire to the charging station as follows:

1 Remove the protective cover on the charging station and thread the guide wire behind the tabs into the channel leading to the terminals.

2 Connect the guide wire to the contact pin on the charging station that is labelled G1.

CALIBRATING AND INITIAL START UP

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Secure the charging station to the ground using the five supplied fixing screws using a 6 mm hex key.

NOTE: Do not make new holes in the charging station base plate. Only the existing holes may be used to secure the base plate to the ground.

NOTE: Do not step or walk on the charging station base plate.

Check the LED indicator on the charging station:

- LED indicator lights up continuously green, if the output voltage of the power supply is available and the boundary wire is not interrupted.

The LED indicator does not light up when the output voltage of the power supply is not available.

If the indicator LED does not show a solid or green light, see Indicator LEDs on the Charging Station on page 24 for troubleshooting.

Pair the mower with Mobile App as instructed in Pairing Mobile App to Mower on page 19.

STARTING AND STOPPING THE MOWER

StartStop ① ② a b

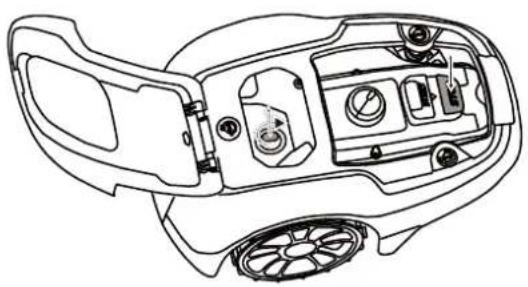

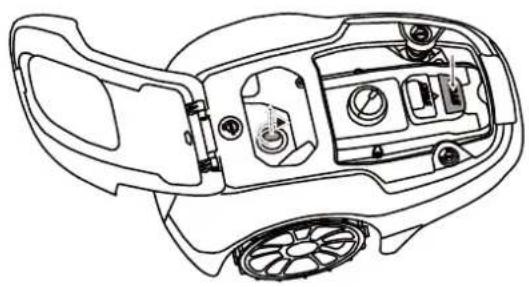

SWITCHING OFF THE MOWER

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

ADJUSTING CUTTING HEIGHT

MAX 60 MIN 20

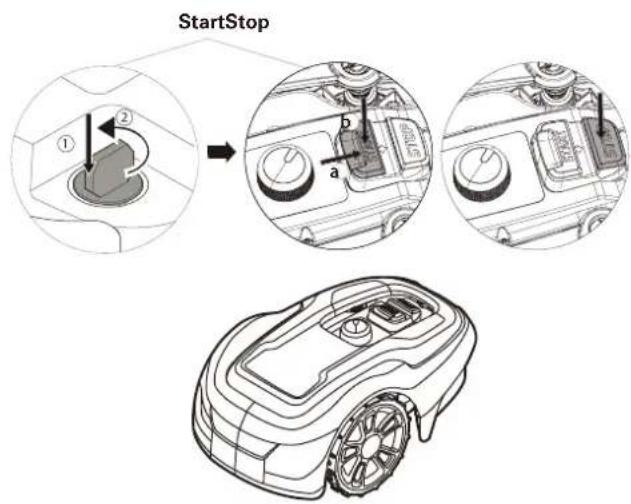

To start the mower:

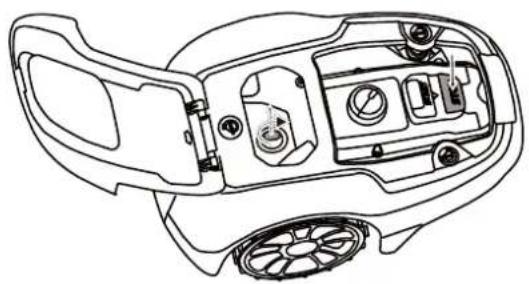

1 Insert the safety key and rotate counter clockwise to position "1".

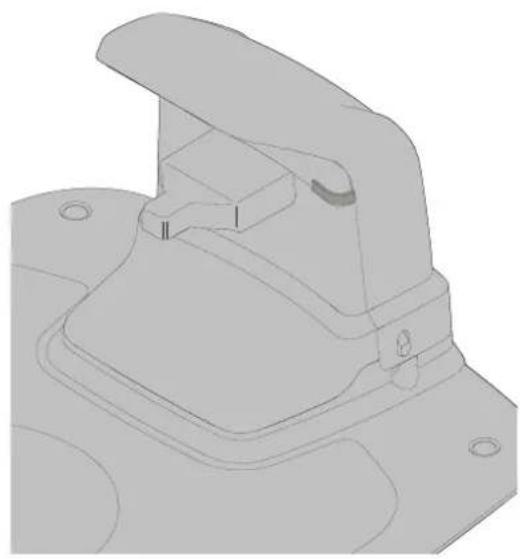

2 Slide the START button latch backwards.
3 Press down the START button.

To stop the mower:

Press the STOP button on the mower.

Press the STOP button on the mower and remove the safety key.

WARNING! Always remove the safety key when performing maintenance or if the mower must be moved.

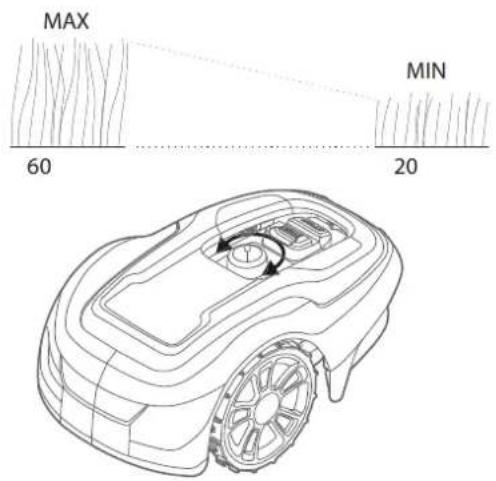

For the first few weeks of mowing, set the cutting height to 60 mm to avoid cutting the boundary wire and guide wire. Lower the setting one step each week thereafter until the desired cutting height is reached.

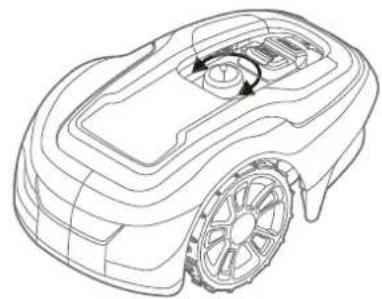

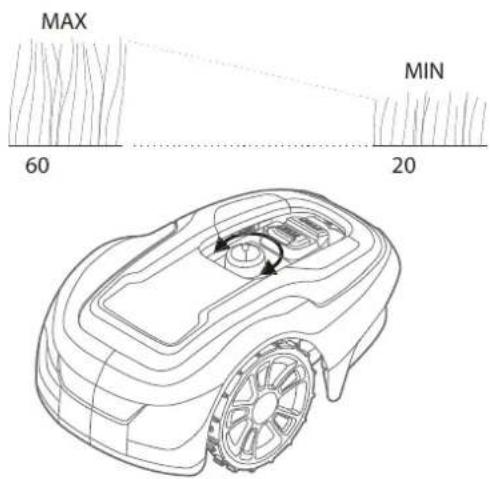

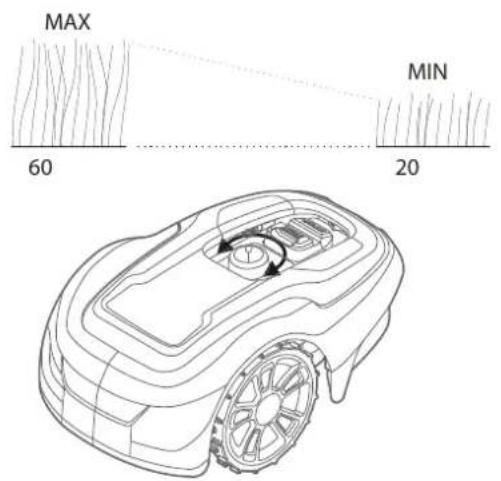

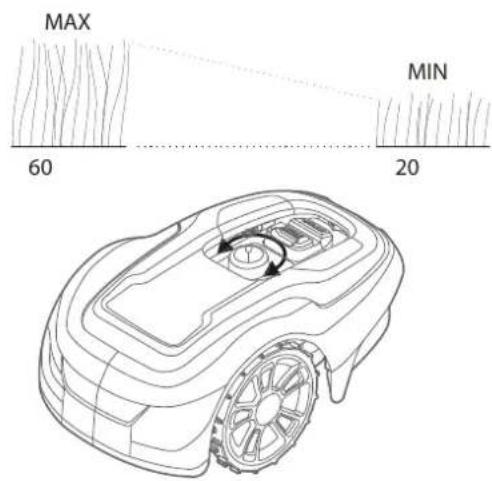

Turn the cutting height adjustment knob to the required setting. The selected setting is the marking on the body that aligns with the arrow on the knob.

Turn clockwise to increase the cutting height.

Turn anti-clockwise to decrease the cutting height.

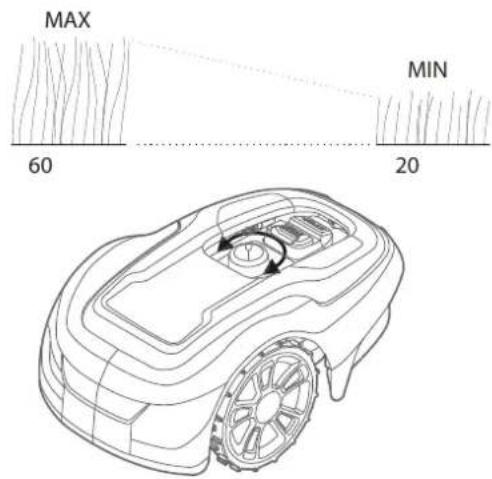

The cutting height for the mower can be adjusted between 20 mm and 60 mm.

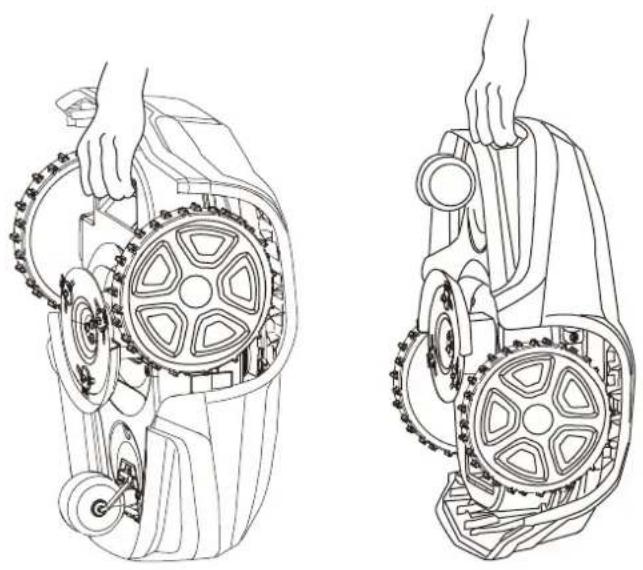

LIFTING AND CARRYING THE MOWER

Technical line drawings of a robotic device with two views: top shows hand holding chains, bottom shows hands operating a cart (no text or symbols)

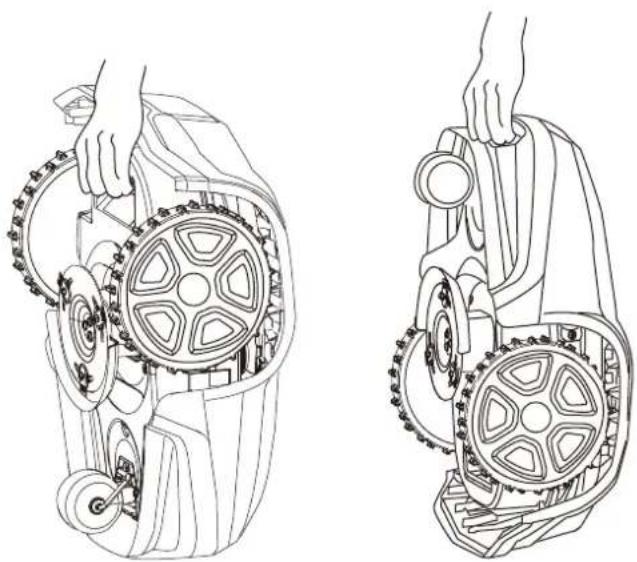

Press the STOP button and remove the safety key before lifting. Always lift the mower using the carrying handle.

PAIRING MOBILE APP TO MOWER

Download Greenworks tools App from App Store/Google Play and follow the on-screen instructions for how to pair the mower. Have the unique pairing code (found on the quick guide manual) and the mower at hand.

WARNING! Wear protective gloves when handling or working near the sharp blades.

WARNING! Before working on the mower itself, remove the safety key.

WARNING! Before working on the charging station or power supply, remove the plug from the mains.

• Periodically visually inspect the mower and replace worn or damaged parts for safety.
• Inspect that the blades rotate freely
- Keep all nuts, bolts, and screws tight to be sure that the mower is in safe working condition.
- The normal operating life of the blades is 2 to 6 weeks when used at maximum area capacity and longer for smaller areas.

CAUTION: Dull blades result in the grass being cut poorly; requiring more energy and shorter time between battery loadings.

- Clean the mower regularly for best function.

REMOVING THE BODY FROM CHASSIS

Technical diagram of a car interior with labeled components and directional arrows indicating rotation or adjustment.

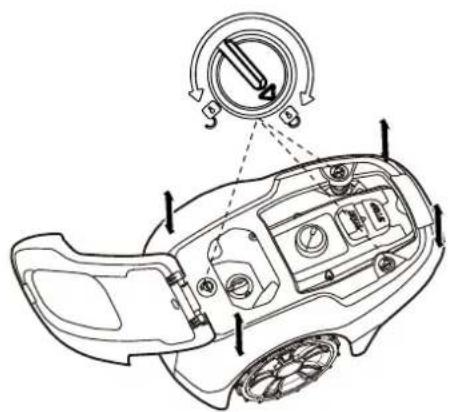

Rotate the knob to the unlock position and lift firmly at one of the corners of the body and repeat for all four corners, until the body pops loose from the chassis.

Replace the body by aligning the body onto the chassis and press down firmly until you hear the click. Rotate the knob to the lock position. Check that the body is firmly attached to the chassis.

CLEANING

Technical line drawings of a car's internal components, showing front and side views (no text or symbols)

WARNING! Press the STOP button and remove the safety key before cleaning.

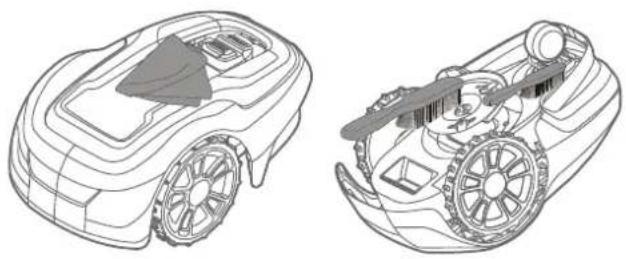

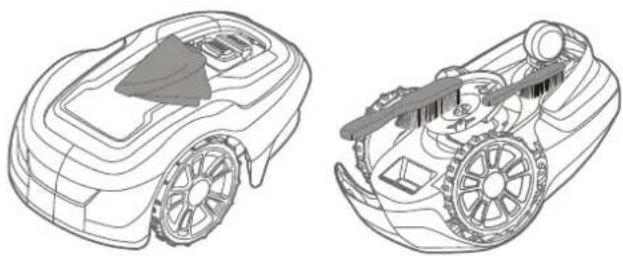

Clean the exterior of the mower thoroughly using a soft brush, damp cloth, and low pressure water hose, if necessary. Remove the body from the chassis.

Turn the mower on its side and clean the blade area and wheels with a stiff brush or scraper to remove compacted grass clippings.

REPLACING BLADES

Technical diagram of a mechanical assembly with labeled parts and tool icons, including checkmark and cross symbols.

WARNING! Press the STOP button and remove the safety key before replacing blades and wear protective gloves.

WARNING! Use only GLOBE'S blade: 333092355

CAUTION: Use only original replacement parts.

Replace all three blades and screws as a set at the same time.

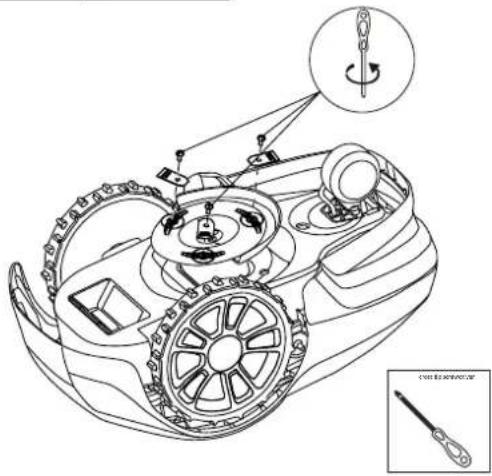

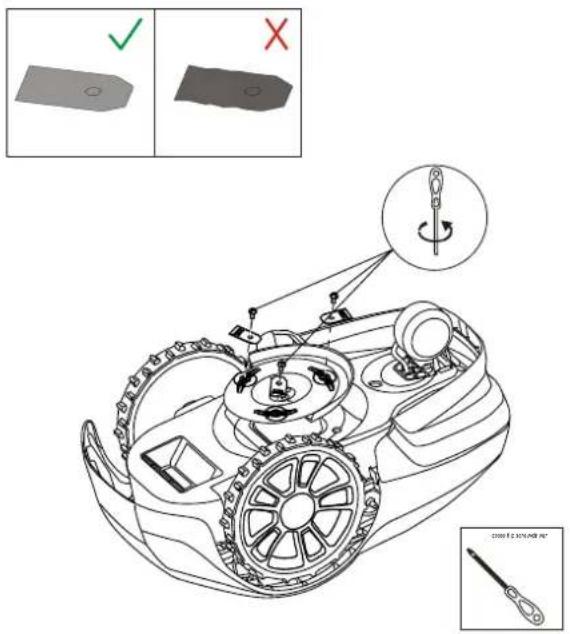

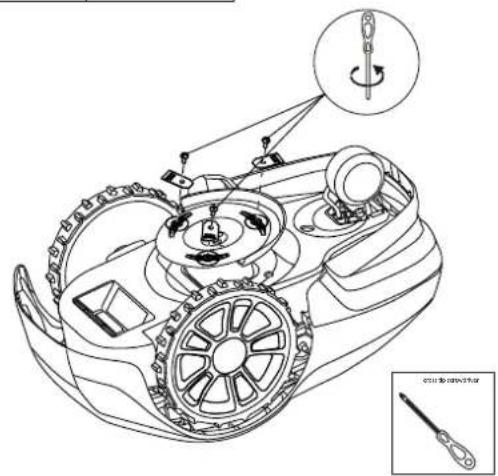

Turn the mower upside down.

Loosen the screws using a straight slot or cross tip screwdriver.

Remove the blades and the screws.

Screw in the new blades using new screws.

Check that the blades pivot freely

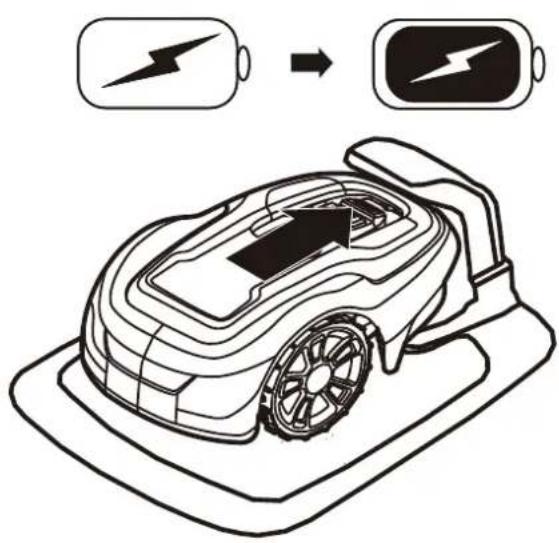

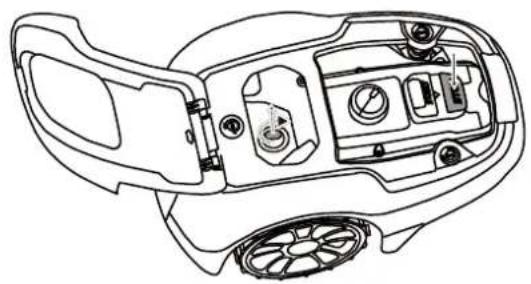

MAINTAINING THE BATTERY

Diagram showing a car with battery charging process, illustrating battery charging and battery discharging steps

WARNING! In the event of electrolyte leakage, flush with water/neutralizing agent and seek medical care if electrolyte comes in contact with the eyes.

Only charge the battery in the original charging station. Incorrect use may result in electric shock, overheating, or leakage of corrosive liquid from the battery.

The battery is maintenance-free, but has a limited service life of 2 to 4 years depending on the length of the season and how many hours a day the mower is used.

WINTER STORAGE MOWER

Always clean the mower before winter storage.

Charge the battery fully before winter storage.

CAUTION: If the battery is not fully charged, it can be damaged and in certain cases be rendered useless.

Inspect the condition of wear items; that the blades are sharp and that blades and front wheels turn freely. Correct any deficiencies.

Store the mower in a dry, frost-free environment standing on all four wheels.

WINTER STORAGE CHARGING STATION

When possible, disconnect the boundary wire and guide wire from the charging station and store the charging station and power supply indoors.

Leave the boundary wire and the guide wire in the ground, but protect the ends of the wires from dampness by connecting them to an original coupler or putting them in a container with grease.

If it is not possible to store the charging station indoors, the charging station must remain connected to the mains, the boundary wire, and the guide wires.

AFTER WINTER STORAGE

Inspect the mower and charging station contact and charging strips for corrosion, burning, or filth. If the charging or contact strips require cleaning, clean using fine grade emery cloth.

This section also presents some symptoms that can guide you if the mower does not work as expected.

INDICATOR LEDS ON MOWER

1 2 3 4

LED STATUS	MEANING ACTION
1. Operating (Green)	Flashing	Recovery mode	Place the robot in charging station with a mobile with the GreenGuide App close to the mower for software update of mower. This can take up to 1 hour until the green LED to stop flashing. If LED doesn't stop flash then restart the robot outside the CS and try again.
	On Mower in operation mode (charging, parked in Charging station, paused, mowing or searching)
	Off Mower stopped with Stop button on mower, safety key in Disabled position, mower in error state or mower waiting for PIN code.
2. Connectivity (Blue)	Flashing	Mower not ready for Bluetooth connection	If mower stopped with error the mower need to be restarted with the Start button to allow Bluetooth connection again
	On Mower ready for Bluetooth connection with Mobile App
	Off Mower not in “Power on mode”
3. Security (Yellow)	Flashing	PIN code authorization required	... via Mobile App.
	Off No pin required	No action required
4. Error (Red)	Flashing	Mower stopped with error	Check the reason for the error and then restart by pressing the Start button on the mower.

INDICATOR LEDS ON CHARGING STATION

LED STATUS MEANING ACTION
Green On Boundary wire and Charging station OK No action required.
Blue Flashing Boundary wire broken or not connected Check and repair boundary wire.
Red	Flashing	Electronic fault in charging station or power supply Unit	Please contact your dealer

SYMPTOMS

If your mower does not work as expected, follow the troubleshooting guide below.

SYMPTOMS CAUSE ACTION
Mower has difficulty docking with charging station	The charging station is on a slope. Place the charging station on a surface that is entirely level. SeeInstalling and connecting the Charging Stationon page 9.
	The boundary wire is not laid correctly in relation to the charging station.	Check that the charging station and boundary wire has been correctly installed. SeeInstalling and connecting the Charging Stationon page 9.
Uneven mowing results	The mower works too few hours per day.	Increase the operation time. See the Scheduling function in the Mobile App.
	The shape of the working area requires manual settings to be made for the mower to find its way to all remote areas.	Adjust lawn coverage to steer the mower to one or more remote areas. SeeSettingsfunction in the Mobile App.
	The shape of the working area requires manual settings to be made for the mower to find its way to all remote areas.	Try limiting the operating area or extending the operation time. See the Scheduling function in the Mobile App.
	The blades are dull. Replace all the blades and screws so that the rotating parts are balanced. SeeReplacing bladeson page 21.
	Grass collects on the blade disc or around the motor shaft.	Check that the blade disc rotates easily. If not, remove grass and foreign objects. SeeMaintenanceon page 20.
The mower mows for shorter periods than usual between charges	Grass or other foreign object are blocking the blade disc.	Remove grass and foreign objects. SeeMaintenanceon page 20.
	The battery is worn out. Contact a service workshop to replace the battery.
Mowing and charging times shorter than usual	The battery is worn out. Contact a service workshop to replace the battery.

BREAKS IN BOUNDARY WIRE AND GUIDE WIRE

Breaks in the boundary wire and guide wire (if installed) are usually the result of unintentional physical damage.

Inspect the entire boundary wire from the charging station and back.

Inspect the guide wire (if installed) from the charging station to the splice into the boundary wire.

Inspect that all the couplings have been properly squeezed to make connections.

	Optimow 4 Optimow 5 Optimow 7
Dimensions:
Height 25 cm 25 cm 25 cm
Length 57 cm 57 cm 57 cm
Width 36 cm 36 cm 36 cm
Weight 7.2 kg 7.2 kg 7.2 kg
Electrical system:
Battery, Special Lithium-Ion battery 20 V / 2.0 Ah, Part No.T0100110-00		20 V / 2.0 Ah, Part No.T0100110-00	20 V / 2.0 Ah, Part No.T0100110-00
Power supply 220-240 V/32 VDC 220-240 V/32 VDC 220-240 V/32 VDC
Low voltage cable length	10 m	10 m	10 m
Mean energy consumption at maximum use	5 kWh/month for a working area of 400 m^2	6 kWh/month for a working area of 500 m^2	9 kWh/month for a working area of 700 m^2
Charge current	1.3 A DC	1.3 A DC	1.3 A DC
Average charging time	150 minutes	120 minutes	70 minutes
Average cutting time	60 minutes	60 minutes	60 minutes
Noise emissions: *)
Measured sound power noise level **)	58 dB (A)	58 dB (A)	58 dB (A)
Guaranteed sound power noise level	61 dB (A)	61 dB (A)	61 dB (A)
Sound pressure noise level ***)	47 dB (A)	47 dB (A)	47 dB (A)
Mowing:
Cutting system	Three pivoted cutting blades	Three pivoted cutting blades	Three pivoted cutting blades
Average power consumption during cutting	25 W ± 20%	25 W ± 20%	25 W ± 20%
Cutting height	2-6 cm	2-6 cm	2-6 cm
Cutting width	17 cm	17 cm	17 cm
Narrowest possible passage	60 cm 60 cm 60 cm
Maximum angle for cutting area	30%	30%	30%
Maximum angle for boundary wire	15%	15%	15%
Maximum length boundary wire	800 m	800 m	800 m
Maximum working capacity	450 m^2	550 m^2	750 m^2
Recommended area capacity	0 - 350 m^2	200 - 450 m^2	300 - 650 m^2
IP classification:
Mower	IPX5	IPX5	IPX5
Charging station	IPX2	IPX2	IPX2
Power supply IP67	IP67	IP67

The noise emission declarations conforms to EN 50636-2-107
** uncertainty KWA, 3 dB (A)
***) uncertainties KPA, 3 dB (A)

RADIO FREQUENCY DATA SHEET
	Bluetooth (NINA-B112)	Short Range Devices (SRD)(Boundary Wire)
Frequency Bands 2400.0-2483.5 MHz 0~148.5KHz
Power Class 0 dBm NA

Environmental Protection

EN

According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

The symbol on the mower or its packaging indicates that this product cannot be treated as domestic waste. It should instead be left at a suitable recycling centre to recycle its electronic components and batteries.

The batteries are enclosed in the chassis.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product.

For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Separate collection of used machine and packaging let you recycle materials and use them again. Use of the recycled materials helps prevent environmental pollution and decreases the requirements for raw materials.

Batteries

At the end of their useful life, discard batteries with a precaution for our environment. The battery contains material that is dangerous to you and the environment. You must remove and discard these materials separately at a equipment that accepts lithium-ion batteries.

GLOBGRO AB, Globe Group Europe guarantees this product's functionality for a period of three years (from date of purchase), except for the battery that has two years warranty period. The guarantee covers serious faults relating to materials or manufacturing faults. Within the guarantee period, we will replace the product or repair it at no charge if the following terms are met:

• The mower and the charging station may only be used in compliance with the instructions in this operator manual.
• Users or non-authorized third parties must not attempt to repair the product.

Examples of faults which are not included in the guarantee:

• Damage caused by lightning.
• Damage caused by improper battery storage or battery handling.
• Damage caused by using a battery that is not a original battery.
• Damage to the loop wire.

• Damage caused by not using original spare parts and accessories, such as blades and installation material.

The blades are seen as disposable and are not covered by the guarantee.

If a fault occurs with your mower, please contact the dealer for further instructions. Have your receipt and product serial number to hand for quicker assistance.

(Only applicable to European versions)

Name and address of manufacturer:

Manufacturer: GLOBGRO AB, Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Name and address of the person authorized to compile the technical file:

Name: Peter Söderström

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Herewith we declare that the product:

Category: Robotic Lawnmower

Serial number: See product rating label.

Serial No See product rating label.

- Is in conformity with the provisions of the following other directives:

2014/30/EU

2014/53/EU

2006/42/EC

2011/65/EU & (EU) 2015/863

2014/35/EU

- The following (parts/classes of) European harmonized standards have been used:

EN 60335-1, EN 50636-2-107, EN 60335-2-29, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 EN 61558-1, EN 61558-2-16, EN 62311, EN 303447, EN 300328, EN 301489-1, EN 301489-3, Draft EN 301489-17

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Quality Director

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

Exploded diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Technical line drawing of a vehicle head with no visible text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection point (no text or symbols present)

Diagram showing a rural settlement with houses, a circular water feature marked '0cm', and an inset image of a person using a tool.

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 3cm

Three-step diagram showing cable fastening and mounting process (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

3D CAD model of a mechanical component with no visible text or symbols

StartStop ① ② a b

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

Technical line drawings of a mechanical device with hands operating it, showing two views (top and side) without any text or symbols.

Technical diagram of a car interior with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of a car showing front and side views (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and checkmark indicators

Diagram showing battery charging process with battery icon and motor, illustrating charging mechanism

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Qualitätsleiter

Malmö, 22. 09. 2020

Ted Qu

Reading the operator manual....4

Operational safety....6

Product Unboxing....7

Installation 8

Planning Layout and Preparation....8

Installing and Connecting the Charging Station 9

Position for the charging station as follows:....9

Connecting the Power Supply....10

Initial Charging of the Battery....11

Installing the Boundary Wire 12

Installing a Guide Wire 15

Calibrating and Initial Start Up....17

Operation....18

Starting and Stopping the Mower 18

Switching Off the Mower.... 18

Adjusting Cutting Height 18

Lifting and Carrying the Mower....19

Pairing Mobile App to Mower.... 19

Maintenance....20

Removing the Body from Chassis....20

Cleaning 20

Replacing Blades 21

Maintaining the Battery....21

Replacing the Battery 22

Winter Storage Mower 23

Winter storage Charging Station....24

Troubleshooting 25

Indicator LEDs on Mower 26

Symptoms 27

Breaks in Boundary Wire and Guide Wire 25

Technical Data....26

Environmental Protection 27

Warranty Terms....29

CE Declaration of Conformity 30

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled 'ES' in the top right corner.

1m >1m 10m >3m >1m 35cm

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air intake, and control panel (no text or labels)

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a lawn mower component with mounting base and fan blade (no text or symbols)

Diagram showing a rural settlement with houses, a circular water feature, and directional arrows indicating layout or movement.

Three-step diagram showing cable fastening process: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 15cm

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

AJUSTE DE LA ALTURA DE CORTE

MAX MIN 60 20

Technical line drawings of a mechanical device with hands operating the wheel rim (no text or symbols present)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

Technical line drawings of a car showing front and side views (no text or symbols)

Two labeled gray shapes with checkmark and X marks, likely indicating selection or confirmation steps.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing a screwdriver.

Diagram showing a robotic car with battery and battery icon, illustrating charging process

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Director de calidad

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

ES

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle's rear view showing engine, dashboard, and seat components with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical contactor component with a black arrow indicating a connection point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or labels)

Diagram showing battery charging process with lightning bolt symbol and battery icon, indicating charging sequence

Technical line drawing of a lawn mower component with mounting base (no text or symbols)

Diagram showing a rural water feature layout with houses, a circular well, and directional arrows indicating flow or movement.

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Installazione

IT

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 35cm

Three-step diagram showing cable installation steps: wire connection, connector pinning, and cable attachment (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

SPEGNIMENTO DEL TOSAERBA.

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

Technical line drawing of a mechanical device with two views: top shows hand holding chains, bottom shows hands operating a gear mechanism (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating motion or flow.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and checkmark indicators

Diagram showing battery charging process with battery icon and charging button, illustrating electric vehicle charging setup

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Direttore Qualità

Malmö, 22. 09. 2020

Ted Qu

IT

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle or car interior with dashed and dotted lines indicating lane boundaries (no text or symbols)

Line drawing of a car interior component with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and right arrow indicating charging direction

Technical line drawing of a lawn mower component with visible blade and mounting base (no text or symbols)

Diagram showing a rural water feature layout with houses, a circular well, and directional arrows indicating flow or movement.

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

≤90° 135° >20cm 135° ✓

1m >1m 10m >1m >3m 35cm

Three-step diagram showing cable installation steps: straight, curved, and flat (no text or symbols)

FR

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop FR ① ② a b

MISE HORS TENSION DE LA TONDEUSE

Technical line drawing of a car interior showing dashboard, air vent, and fan base (no text or symbols)

AJUSTEMENT DE HAUTEUR DE COUPE

MAX 60 MIN 20

Technical line drawings of a mechanical device with hands operating the gears and wheels (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

Technical line drawings of a car and its internal components (no text or symbols)

Two labeled image boxes with checkmark and cross symbols, one gray with a question mark and one gray with a circle.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing a screwdriver tool.

Line drawing of an electric scooter with battery icon and charging button symbol (no text or labels)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Directeur Qualité

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down line drawing of a vehicle interior with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical contactor component with a black arrow indicating a connection point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or symbols)

Diagram showing a mechanical device with battery and lightning bolt symbols, illustrating the process of battery charging.

Diagram showing a rural settlement with houses, a circular water feature, and directional arrows indicating layout or movement.

Three-step diagram showing cable installation steps: wire connection, cable clamp, and cable attachment (no text or symbols)

Line drawings of three different types of pliers or connectors, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 5cm

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

PT

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop PT

DESLIGAR O CORTA-RELVA

Technical line drawing of a car interior showing dashboard, air vent, and fan base (no text or symbols)

AJUSTAR A ALTURA DE CORTE

MAX 60 MIN 20

Technical line drawings of a robotic device showing two views: top view with hands operating a gear mechanism, bottom view with hands holding a motor (no text or symbols present)

REMOVER O CORPO DO CHASSIS

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

LIMPEZA

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two gray shapes with checkmark and X marks, one green and one red, side by side.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver tool.

Diagram showing a car with battery charging process, illustrating battery charging and battery discharging steps

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Exploded view diagram of a robotic vacuum cleaner with numbered parts and a label 'NL' in the corner.

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle or container with no visible text, numbers, or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a cable and plug, showing internal structure without any text or symbols.

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or labels)

Diagram showing battery charging process with lightning bolt symbol and battery icon, illustrating charging mechanism

Diagram showing a rural settlement with houses, a circular water feature, and directional arrows indicating layout or movement.

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Three technical line drawings of pliers and connectors (no text or symbols)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

1m >1m 10m >3m >1m 15cm

Three-step diagram showing cable fastening techniques: straight cord, mechanical clamp, and plug (no text or symbols)

NL

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

DE GRASMAAIER UITSCHAKELEN

Line drawing of a car interior showing dashboard, air vent, and fan (no text or symbols)

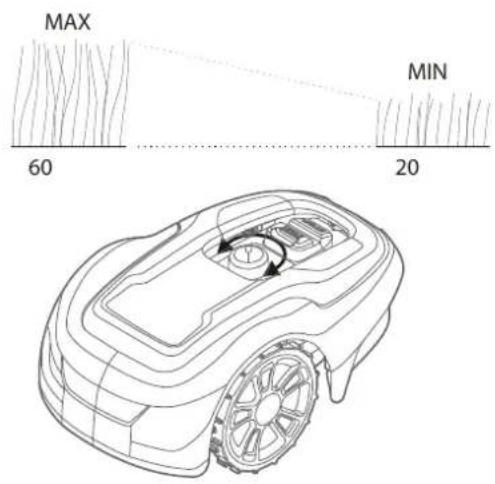

DE MAAIHOOGTE AANPASSEN

MAX 60 MIN 20

De grasmaaier starten:

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding a cart (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

Technical line drawings of two car body assemblies, one showing front and side views (no text or symbols)

Technical diagram of a mechanical device with labeled parts and tool icons, including checkmark and cross symbols.

Diagram showing a car with battery charging process, illustrating battery charging and battery discharging steps

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols, showing internal components and dashed lines indicating alignment (no text or labels)

Diagram of a car's side panel showing directional arrows and a blank oval (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air intake, and control panel (no text or labels)

Diagram showing battery charging process with lightning bolt symbol and battery icon, illustrating charging mechanism

Diagram illustrating a rural water feature layout with labeled components and scale indicator

RU

Three-step diagram showing cable fastening process: connector, clamp, and plug (no text or symbols)

Line drawings of three different types of pliers or connectors, shown in separate views (no text or symbols present)

Technical line drawing of a mechanical component with internal wiring and mounting holes (no text or symbols)

1m >1m 10m >1m >3m 3cm

Three-step diagram showing cable installation steps: straight, flexible, and flat (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

3D CAD model of a mechanical clamp or bracket component (no text or symbols visible)

StartStop ① ② a b

Technical line drawing of a car interior showing dashboard, air vent, and fan base (no text or symbols)

Technical line drawing of a robotic lawn mower system with hands operating the wheel rim (no text or labels)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of a car showing front and side views (no text or symbols)

Two labeled image panels showing a gray tag with a green checkmark and a red X mark, likely indicating selection or confirmation.

Technical line drawing of a mechanical assembly with gears and a tool, no text or symbols present

Line drawing of an electric scooter with battery icon and charging button symbol (no text or labels)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Тэд Ку Хайчао (Ted Qu Haichao)

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >1m >3m 35cm

Technical line drawing of a vehicle interior frame with no text or symbols

Diagram of a car interior showing directional arrows and a blank oval area (no text or symbols)

Technical line drawing of an electrical connector with a black arrow indicating a connection point (no text or symbols present)

Diagram illustrating a rural water treatment or irrigation system with labeled components and directional arrows

Three-step diagram showing cable installation steps: wire connection, cable clamp, and cable attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >1m >3m 35cm

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols visible)

StartStop ① ② a b

FI

RUOHONLEIKKURIN VIRRAN POISKYTKENTÄ

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

LEIKKUUKORKEUDEN SÄÄTÄMINEN

MAX 60 MIN 20

Technical line drawings of a mechanical device with two views: top shows hand holding chains, bottom shows hands operating a motor (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

Technical line drawings of a car showing front and side views (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts and tool icons, including checkmark and cross symbols.

Line drawing of an electric scooter with battery icon and charging button symbol (no text or labels)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Laatujohtaja

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no visible text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Anslut lågspänningskabeln till laddstationen.

Top-down line drawing of a car interior with dashboard, air filters, and control panel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

SV

Technical line drawing of a lawn mower component with mounting base and central hub (no text or symbols)

Diagram illustrating a rural water treatment or irrigation system with labeled components and directional arrows

Three-step diagram showing cable fastening process: connector, clamp, and cable attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 35cm

Three-step diagram showing cable fastening or mounting process with a clip and plug (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

SV

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

STÄNGA AV KLIPPAREN

Technical line drawing of a car interior showing dashboard, air vent, and fan arrangement (no text or symbols)

JUSTERA KLIPPHÖJDEN

MAX 60 MIN 20

LYFTA OCH BÄRA KLIPPAREN

Technical line drawings of a robotic device with two views: top shows hand holding gear, bottom shows hand adjusting the wheel (no text or symbols)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of two car body parts, one showing internal components and the other a mechanical assembly (no text or symbols)

Underhåll

BYTA UT KNIVARNA

Two labeled shapes with checkmark and X marks, one gray and one black with circles

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing screwdriver mechanism.

Line drawing of an electric scooter with battery icon and charging button symbol (no text or labels)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Kvalitetschef

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with dashed and dotted lines indicating alignment or positioning (no text or symbols)

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Technical diagram showing the installation of an electric vehicle's powertrain, battery, and motor components with labeled parts.

Diagram illustrating a rural settlement with houses, a circular water feature marked '0cm', and directional arrows indicating layout or movement.

Three-step diagram showing a cable clamp or connector being inserted into a socket, with one pin highlighted (no text or symbols present)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° X 135° 135° >20cm

1m >1m 10m >1m >3m 5cm

Three-step diagram showing cable installation steps: straight, flexible, and flat (no text or symbols)

G1

3D CAD model of a mechanical assembly with screws and a central component (no text or symbols)

3D CAD model of a mechanical clamp or bracket component (no text or symbols visible)

StartStop ① ② a b

SLÅ AV GRESSKLIPPEREN

NO

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

REGULERE KLIPPEH∅YDEN

MAX 60 MIN 20

Slik starter du gressklilpperen:

Technical line drawings of a mechanical device with two views: top shows hand holding gear, bottom shows hand holding wheel (no text or symbols)

Trykk på STOPP-knappen på gressklipperen og ta ut sikkerhetsnøkkelen før du løfter gressklipperen.

Løft alltid gressklipperen i selve håndtaket.

PARING AV MOBILAPPEN MED GRESSKLIPPEREN

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of a car showing front and side views (no text or symbols)

Technical diagram of a mechanical device with labeled parts and checkmark indicators for inspection and repair actions.

VEDLIKEHOLD AV BATTERIET

Diagram showing a car with battery charging process, illustrating battery charging and battery discharging steps

ADVARSEL! Hvis det skulle oppstå elektrolyttlekkasje, må du skylle med vann/nøytraliserende middel og kontakte lege hvis væsken kommer i kontakt med øynene.

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Kvalitetsdirektør

Malmö, 22. 09. 2020

Ted Qu

Exploded diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Placering af ladestation:

Technical line drawing of a vehicle interior with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical contactor component with a black arrow indicating a connection point (no text or symbols present)

Technical diagram showing a car interior with battery and charging symbol, alongside its exploded view of the internal components.

Diagram showing a rural water feature layout with houses, a circular well, and directional arrows indicating flow or movement.

Three-step diagram showing cable fastening process: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

1m >1m 10m >3m >1m 5cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

G1

3D CAD model of a mechanical component with screws and a central circular feature (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

FRAKOBLING AF PLÆNEKLIPPEREN

Technical line drawing of a car interior showing dashboard, steering wheel, and control panel (no text or labels)

JUSTERING AF KLIPPEH∅JDE

MAX 60 MIN 20

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hands holding a wheel assembly (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

DA

RENG∅RING

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

UDSKIFTNING AF KNIVE

Technical diagram of a mechanical assembly with labeled parts and checkmark indicators

Diagram showing a robotic lawn mower with battery icons and an arrow indicating motion, likely illustrating battery charging or charging process.

INDIKATOR-LED'ER PÅ LADESTATION

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Kvalitetsdirektør

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols

Diagram of a car's side profile showing airflow direction with arrows (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Technical diagram showing a car interior with battery and charging symbol, alongside its exploded view of the internal components.

Diagram illustrating a rural water feature layout with labeled components and scale indicator

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 3cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

G1

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

StartStop ① ② a b

WYŁĄCZANIE KOSIARKI

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or symbols)

PL

REGULACJA WYSOKOŚCI KOSZENIA

MAX 60 MIN 20

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hands operating a motor (no text or symbols)

Technical line drawing of a car interior with dashboard and air vent (no text or symbols)

Technical line drawings of a car showing front and side views (no text or symbols)

Two labeled image boxes with checkmark and cross symbols, one green checkmark and one red X

Technical line drawing of a mechanical device with gear and adjustment knob (no text or symbols)

Diagram showing a car with battery charging process, illustrating battery charging and battery discharging steps

Producent: GLOBGRO AB, Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

The following system is used in the operator manual to make it easier to understand:

Exploded diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Technical diagram showing a car interior with battery and charging symbol, alongside its exploded view of the internal components.

Diagram illustrating a rural irrigation system with labeled components and water flow indicators

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 3cm

INSTALACE VODICÍHO DRÁTU

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

G1

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

StartStop ① ② a b

VYPNUTÍ SEKAČKY

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or symbols)

CS

NASTAVENÍ DÉLKY SEKÁNÍ

MAX 60 MIN 20

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hand holding a wheel assembly (no text or symbols)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two labeled diagrammatic shapes with checkmark and X marks, one green checkmark and one gray X-shape.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing tool positioning.

Line drawing of an electric scooter with battery icon and charging button symbol (no text or labels)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ředitel kvality

Ted Qu Haichao

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Technical diagram showing a car interior with battery and charging button, and its 3D rendering of the internal components.

Diagram illustrating a rural water feature layout with labeled components and scale indicator

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >1m >3m 3cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

G1

StartStop ① ② a b

VYPNUTIE KOSAČKY

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

NASTAVENIE VÝŠKY KOSENIA

MAX 60 MIN 20

Zapnutie kosačky:

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hands operating a motor (no text or symbols)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of two car body parts, one showing front and side views with no text or symbols

Two labeled gray shapes with checkmark and cross symbols, likely indicating selection or confirmation steps.

Technical line drawing of a mechanical assembly with gears and a screwdriver (no text or symbols)

VAROVANIE! Stlačte tlačidlo STOP a pred výmenou čepelí vyberte bezpečnostný klúč a nasadte si ochranné rukavice.

VAROVANIE! Používajte iba čepel' GLOBE: 333092355

Diagram showing battery charging process with battery icon and charging button, illustrating electric vehicle charging mode

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Riaditel' pre kvalitu

Malmö, 22. 09. 2020

Ted Qu

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1 Snemljiv pokrov
2 Gumb Stop (Ustavi)
3 Gumb Start (Zagon)
4 Indikatorske lučke LED
5 Prilagajanje višine košnje
6 Zadnji kolesi
7 Sprednji kolesi
8 Rezalni disk
9 Pokrov predala za baterijo
10 Nosilni ročaj
11 Varnostni ključ
12 Polnilna postaja

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle or car interior with no visible text, numbers, or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection or insertion point (no text or symbols present)

Technical diagram showing the installation of an electric vehicle's battery and motor, with labeled components and battery symbol.

Diagram illustrating a rural water feature layout with labeled components and scale indicator

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

SL

1m >1m 10m >3m >1m 35cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

StartStop ① ② a b

IZKLOP KOSILNICE

Line drawing of a car interior showing dashboard, air vent, and fan arrangement (no text or symbols)

PRILAGODITEV VIŠINE KOŠNJE

MAX 60 MIN 20

Za zagon kosilnice:

1 Vstavite varnostni ključ in ga obrnite v nasprotni smeri urnega kazalca v položaj »1«.
2 Zapah gumba START (ZAGON) potisnite nazaj.
3 Pritisnite gumb START (ZAGON).

Technical line drawing of a mechanical device with two views: top shows hand holding chains, bottom shows hands holding a cart (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of a car's front and side views, showing internal components like wheelbase and dashboard (no text or symbols)

Two labeled shapes with check and cross symbols: one gray with a green checkmark, the other gray with a red X.

Technical diagram of a mechanical assembly with labeled parts and tool icons, including a screwdriver and a circular component.

OPOZORILO! Preden zamenjate rezila, pritisnite gumb STOP (USTAVI) in odstranite varnostni ključ, pri tem pa nosite zaščitne rokavice.

OPOZORILO! Uporabite le rezila GLOBE: 333092355

POZOR: Uporabite le originalne nadomestne dele.

Odstranite rezila in vijake.

Privijte nova rezila z novimi vijaki.

Preverite, ali se rezila nemoteno vrtijo.

VZDRŽEVANJE BATERIJE

Line drawing of an electric lawn mower with battery icon and arrow indicating charging direction (no text or symbols)

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

SL

Ted Qu Haichao

Direktor za preverjanje kakovosti

Malmö, 22. 09. 2020

Ted Qu

Sljedeće stranice sadrže važne sigurnosne upute i upute za rukovanje.

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1 Obavijest na skidljivom poklopcu
2 Gumb za zaustavljanje
3 Gumb za pokretanje
4 LED indikatori
5 Podešavanje visine košnje
6 Stražnji kotači
7 Prednji kotači
8 Disk za noževe
9 Poklopac akumulatora
10 Drška za prenošenje
11 Sigurnosni ključ
12 Stanica za punjenje

13 LED za provjeru rada
14 Priručnik za rukovatelja i brzi vodič
15 Izvor napajanja*
16 Vijci za pričvršćivanje stanice za punjenje (x5)
17 Niskonaponski kabel
18 Žica za petlje za graničnu žicu i žicu vodilicu
19 Kolčići za žicu
20 Dodatni noževi i vijci (x3)
21 Ravnalo (dio koji se otkida s vrha kartonske kutije)
22 Spojnice upletke i žice vodilice
23 Spojnice za žicu za petlje

HR

Ugradnja

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols, showing internal components and dashed lines indicating alignment or measurement (no text or labels present)

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Skinite zaštitni poklopac na stanici za punjenje pritiskom na krilca na svakoj strani podnožja i podizanjem poklopca.

Technical line drawing of an electrical component with a curved pipe and arrow indicating a connection or insertion (no text or symbols present)

Technical diagram showing a car interior with battery and charging button, and its 3D rendering of the internal components.

Umetnite sigurnosni ključ u kosilicu i okrenite ga u položaj „ON” ( | ).

Diagram illustrating electric shock wave installation with labeled components and dimensions

Privremeno pričvrstite kraj žice za petlju na kolčić ili neki drugi predmet na stanici za punjenje.

Line drawings of three different types of pliers or tools, no text or symbols present

Kad položite svu graničnu žicu i pričvrstite je, montirajte spojnice za žicu za završne petlje na sljedeći način:

1 Otvorite spojnicu za žicu za petlje i stavite žicu u ležište unutar spojnice za žicu za završne petlje.
2 Stisnite spojnice za žicu za završne petlje zajedno papagajkama dok ne čujete klik.

Odrežite sav višak granične žice od 1 do 2 cm iznad svake spojnice.

Ugradnja

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

Spojite graničnu žicu na stanicu za punjenje na sljedeći način:

≤90° 135° >20cm 135° ✓

1m >1m 10m >1m >3m 3cm

Three-step diagram showing cable fastening and mounting bracket assembly (no text or symbols)

G1

Utaknite oba kraja granične žice kao i kraj žice vodilice u spojnicu za upletke i žicu vodilicu. Provjerite jesu li žice do kraja umetnute u spojnicu za upletke i žicu vodilicu tako da se krajevi vide kroz spojnicu za upletke i žicu vodilicu.

Stisnite prema dolje gumb na vrhu spojnice za upletke i žicu vodilicu papagajkama dok ne čujete klik.

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

Pričvrstite stanicu za punjenje za tlo s pet vijaka isporučenih uz uređaj imbus ključem od 6 mm.

StartStop ① ② a b

ISKLJUČIVANJE KOSILICE

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

PODEŠAVANJE VISINE REZANJA

HR

MAX 60 MIN 20

Pokretanje rada kosilice:

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hands holding a wheel assembly (no text or symbols)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Okrenite gumb u položaj za otključavanje i žvrsto podignite na jednom od kutova kučišta i ponovite za sva četiri kuta, tako da se kučište odvoji od šasije.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two side-by-side icons showing a gray tag with a green checkmark and a red X, likely indicating selection or confirmation.

Technical line drawing of a mechanical device with gear and screwdriver components (no text or symbols)

Diagram showing battery charging process with battery icon and charging button, illustrating electric vehicle charging setup

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Direktor kvalitete

Malmö, 22. 09. 2020

Ted Qu

HR

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down schematic of a vehicle head with no text or symbols, showing internal components and dashed lines indicating alignment or measurement (no text or symbols present)

The low voltage cable can cross the operating area if it is stapled down or buried.

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical contactor or relay component with a black arrow indicating a connection point (no text or symbols present)

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon, indicating charging to form a second charge.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram illustrating a rural water feature layout with labeled components and scale indicator

Three-step diagram showing a cable clamp holding a plug, with one being inserted and the other holding a plug (no text or symbols present)

Three technical line drawings of pliers and connectors, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >3m >1m 35cm

Three-step diagram showing cable fastening or mounting process with a hook and plug (no text or symbols)

G1

StartStop ① ② a b

A FÜNYÍRÓ KIKAPCSOLÁSA

Top-down line drawing of a car interior showing dashboard, air vent, and fan (no text or symbols)

Technical line drawings of a mechanical device with two views: top shows hand holding chains, bottom shows hands operating a cart (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating motion or movement.

Technical line drawings of a car's front and side views, showing internal components (no text or symbols)

Two labeled gray shapes with checkmark and cross symbols, likely indicating selection or confirmation steps.

Technical line drawing of a mechanical assembly with gears and a screwdriver (no text or symbols)

Diagram showing battery charging process with battery icon and charging button, illustrating electric vehicle charging setup

CE Declaration of Conformity

Connecting the Power Supply....10

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down line drawing of a car interior with no text or symbols

Diagram of a car interior showing directional arrows indicating movement or force (no text or symbols)

Technical line drawing of an electrical component with a black arrow indicating a connection point (no text or symbols present)

Technical diagram showing a car interior with battery and charging button, and its 3D rendering of the internal components.

Diagram illustrating a rural irrigation system with labeled components and water flow indicators, including a 0cm scale indicator.

Line drawings of three different types of pliers or tools, no text or symbols present

Technical line drawing of an electrical component with internal wiring and mounting brackets (no text or symbols)

≤90° 135° >20cm 135° ✓

1m >1m 10m >1m >3m 35cm

Three-step diagram showing cable installation steps: wire connection, clamp placement, and plug attachment (no text or symbols)

G1

Technical line drawings of a mechanical component with screws and mounting holes (no text or symbols)

StartStop ① ② a b

OPRIREA ROBOTULUI

Line drawing of a car interior showing dashboard, air vent, and fan components (no text or symbols)

REGLAREA ÎNĂLTIMII DE TĂIERE CUTTING HEIGHT

MAX 60 MIN 20

Pentru a porni robotul de tuns iarba:

Technical line drawing of a mechanical device with two views: top shows hand holding a gear, bottom shows hands holding a wheel assembly (no text or symbols)

Technical diagram of a car dashboard with labeled components and directional arrows indicating rotation or adjustment.

Technical line drawings of two car body parts, one showing front and side views with no text or symbols

Two labeled shapes with checkmark and cross symbols, one gray and one black with circles

Technical diagram of a mechanical assembly with labeled parts and tool icons, including a magnified inset showing a screwdriver.

Line drawing of an electric scooter with battery icon and arrow indicating charging direction (no text or symbols)

Fabricant: GLOBGRO AB, Globe Group Europe

Adresa: Riggaregatan 53, 211 13 Malmö, Sweden

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Ted Qu Haichao

Exploded view diagram of a robotic vacuum cleaner with numbered parts and labeled components

1m >1m 10m >3m >1m 35cm

Top-down line drawing of a car interior with no text or symbols

Diagram of a car's seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Technical line drawing of an electrical component with a curved pipe and mounting holes (no text or symbols)

Top-down line drawing of a car interior showing dashboard, air vent, and control panel (no text or symbols)

Diagram showing battery charging process with lightning bolt symbol and battery icon

Technical line drawing of a lawn mower component with mounting base (no text or symbols)

Line drawings of three different types of pliers or connectors, shown in separate views (no text or symbols present)

Technical line drawing of an electrical component with internal wiring and mounting holes (no text or symbols)

1m >1m 10m >3m >1m 35cm

Three-step diagram showing cable installation steps: straight, flexible, and flat (no text or symbols)

G1

3D CAD model of a mechanical device with screw fasteners and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

StartStop ① ② a b

ИЗКЛЮЧВАНЕ НА КОСАЧКАТА

Technical line drawing of a car interior showing dashboard, air vent, and fan components (no text or labels)

РЕГУЛИРАНЕ НА ВИСОЧИНАТА НА РЯЗАНЕ

MAX MIN 60 20

Line drawing of a robotic lawn mower with visible wheel and blade (no text or symbols)

Technical line drawings of a robotic device with two views: top shows hand holding gear, bottom shows hand holding wheel (no text or symbols)

Technical diagram of a car interior with labeled components and directional arrows indicating flow or movement.

Technical line drawings of a car showing front and side views (no text or symbols)

Two labeled shapes with checkmark and cross symbols, one gray and one black with circles

Technical diagram of a mechanical assembly with labeled parts and a close-up view of a screwdriver tool.

Diagram showing battery charging process with battery icon and charging button, illustrating battery charging mechanism

Separate collection of used machine and packaging let you recycle materials and use them again. Use of the recycled materials helps prevent environmental pollution and decreases the requirements for raw materials.

Batteries

At the end of their useful life, discard batteries with a precaution for our environment. The battery contains material that is dangerous to you and the environment. You must remove and discard these materials separately at a equipment that accepts lithium-ion batteries.

Гаранционни условия

IEC 62321-7-2, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-8, IEC 62321-3-1

Тед Чу Хайчао
