| Product type | Jigsaw (sabre saw) |
| Brand | HiKOKI (formerly Hitachi) |
| Model | CR13VST |
| Power | 120 V, 60 Hz, 11 A (mains) |
| Motor | Series-wound single-phase motor |
| No-load speed | 0 – 2,800 strokes/min (variable) |

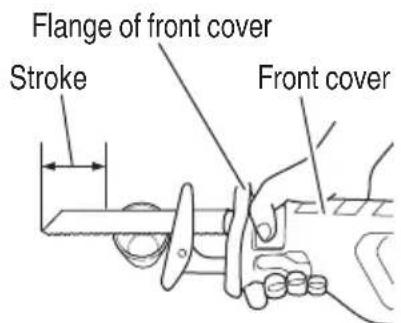

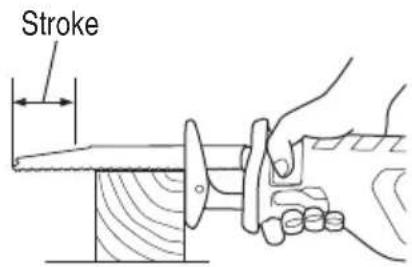

| Stroke | 29 mm (1-1/8") |
| Cutting capacity (mild steel) | Pipe ext. dia. 130 mm (5") |
| Cutting capacity (PVC) | Pipe ext. dia. 130 mm (5") |
| Cutting capacity (wood) | 120 mm (4-3/4") |
| Weight (without cord) | 3.6 kg (7.9 lbs) |
| Double insulation | Yes (symbol ☐) |

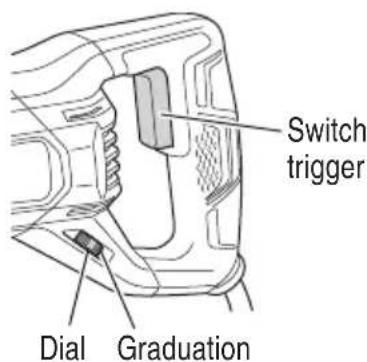

| Speed control | Electronic trigger + dial (1-6) |

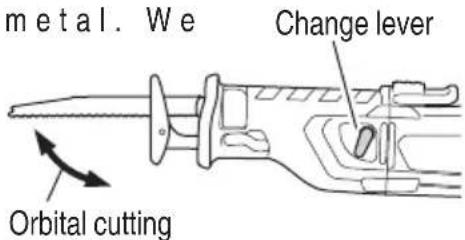

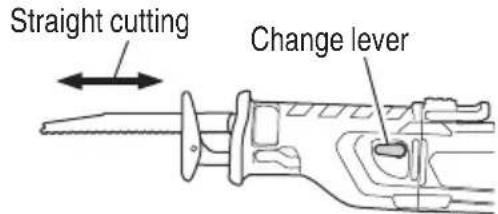

| Orbital cutting | Yes, selectable (straight or pendulum) |

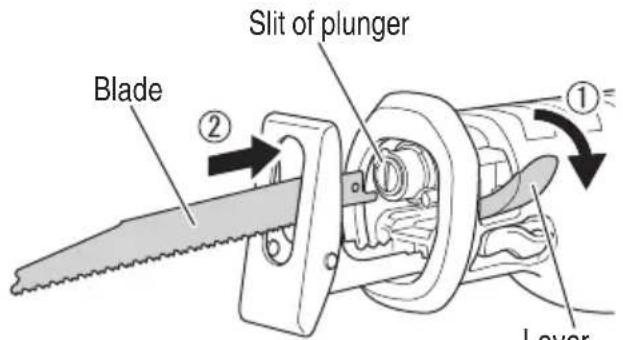

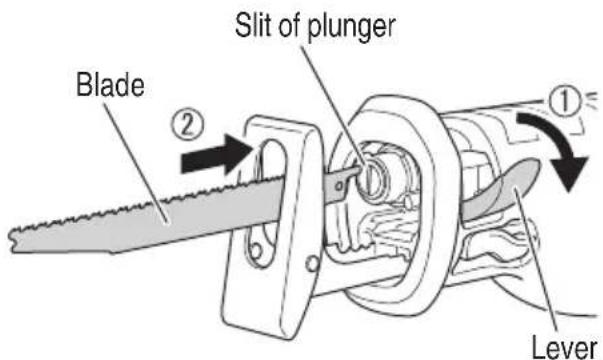

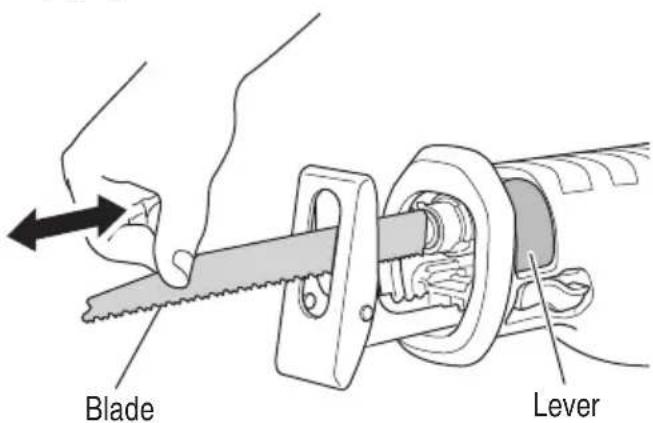

| Blade change | Tool-less, quick-release lever |

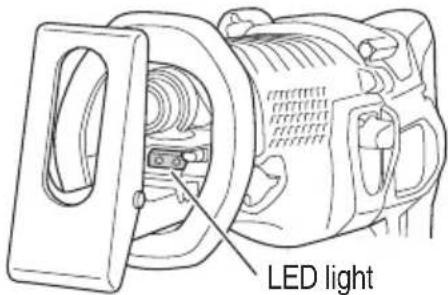

| LED light | Indicator light (turns on with trigger) |

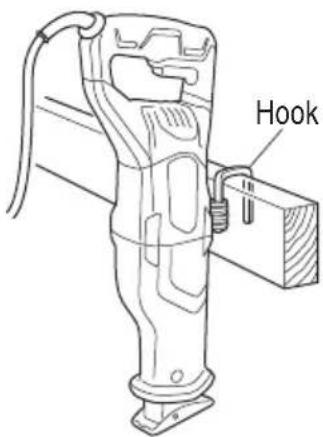

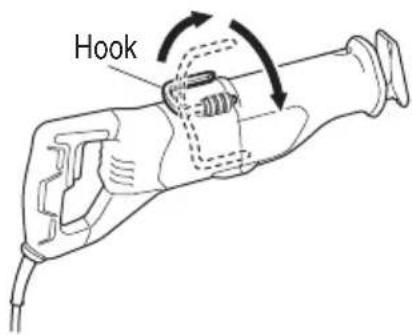

| Hanging hook | Yes, for beam/pipe up to 40 mm |

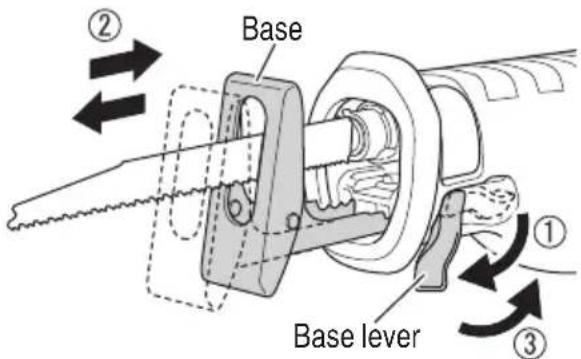

| Base adjustment | 5 positions (rotary lever) |
| Included accessories | Wood blade (1), carrying case |

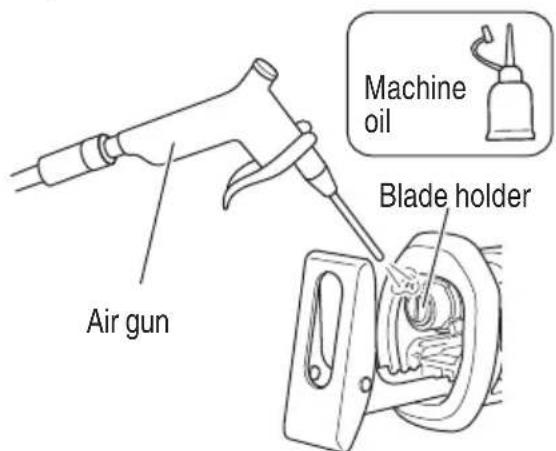

| Maintenance | Regular cleaning of vents and blade support; periodic lubrication |
| Repairability | HiKOKI genuine parts; service by authorized dealer |
Frequently Asked Questions - CR13VST HiKOKI
User questions about CR13VST HiKOKI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual CR13VST - HiKOKI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CR13VST by HiKOKI.
USER MANUAL CR13VST HiKOKI
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI
AVERTISSEMENT
IMPORTANT SAFETY INFORMATION ....3
MEANINGS OF SIGNAL WORDS ....3
SAFETY 3
GENERAL POWER TOOL SAFETY WARNINGS ....3
SPECIFIC SAFETY RULES ....5
DOUBLE INSULATION FOR SAFER OPERATION....6
USE OF EXTENSION CORD 6
FUNCTIONAL DESCRIPTION ......7
NAME OF PARTS 7
SPECIFICATIONS 7
ASSEMBLY AND OPERATION 8
APPLICATIONS 8
IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.
NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.
CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
SPECIFIC SAFETY RULES
- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Use clamps or another practical way to secure and support the workpiece to a stable platform.
Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
- ALWAYS wear ear protectors when using the tool for extended periods.
Prolonged exposure to high intensity noise can cause hearing loss.
- NEVER touch moving parts.
NEVER place your hands, fingers or other body parts near the tool's moving parts.
- NEVER operate without all guards in place.
NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.
- Use right tool.
Don't force small tool or attachment to do the job of a heavy-duty tool.
Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.
- Handle tool correctly.
Operate the tool according to the instructions provided herein. Do not drop or throw the tool.
Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
- Keep all screws, bolts and covers tightly in place.
Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
- Do not use power tools if the plastic housing or handle is cracked.
Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.
- Blades and accessories must be securely mounted to the tool.
Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.
- Keep motor air vent clean.
The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.
- NEVER leave tool running unattended. Turn power off.
Don't leave tool until it comes to a complete stop.
- Carefully handle power tools.
Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.
- Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.
Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.
- ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.
-
ALWAYS wear a mask or respirator to protect yourself from dust or potentially harmful particles generated during operation.
-
ALWAYS firmly grip the handle while operating.
-
NEVER touch the blade with bare hands after operation.
-
When working at elevated locations, clear the area of all other people and be aware of conditions below you.
-
Never use a power tool for applications other than those specified.
Never use a power tool for applications other than those specified in the Instruction Manual.
- Operate power tools at the rated voltage.
Operate the power tool at voltages specified on its nameplate.
If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.
- Never use a tool which is defective or operating abnormally.
If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
- ALWAYS be careful with buried object such as an underground wiring.
Touching these active wiring or electric cable with this tool, you may receive an electric shock.
Confirm if there are any buried object such as electric cable within the wall, floor or ceiling where you are going to operate here after.
24. Definitions for symbols used on this tool
Operate the power tool at voltages specified on its nameplate.
V.....volts
Hz ...... hertz
A......amperes
no ...... no load speed
W......watt
回......Class II Construction
---/min ......revolutions or reciprocation per minute
\~......Alternating current
WARNING - To reduce the risk of injury, user must read instruction manual.
To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. "Double insulation" means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol "☐" or the words "Double insulation" appear on the power tool or on the nameplate.
Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.
To keep the double insulation system effective, follow these precautions:
○ Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.
○ Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.
USE OF EXTENSION CORD
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.
MINIMUM GAGE FOR CORD SETS
| Total Length of Cord in Feet (Meter) | ||
| 0 – 25 26 – 50 51 – 100 101 – 150(0 – 7.6) (7.9 – 15.2) (15.5 – 30.5) (30.8 – 45.7) | ||
| Ampere rating AWG | ||
| More than | Not more than | |
| 0 – 6 18 16 16 14 | ||
| 6 – 10 18 16 14 12 | ||
| 10 – 12 16 16 14 12 | ||
| 12 – 16 14 12 | Not recommended | |
WARNING
Avoid electrical shock hazard. Never use this tool with a damaged or frayed electrical cord or extension cord.
Inspect all electrical cords regularly. Never use in or near water or in any environment where electric shock is possible.
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO OTHER USERS
AND
OWNERS OF THIS TOOL!
FUNCTIONAL DESCRIPTION
NOTE
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

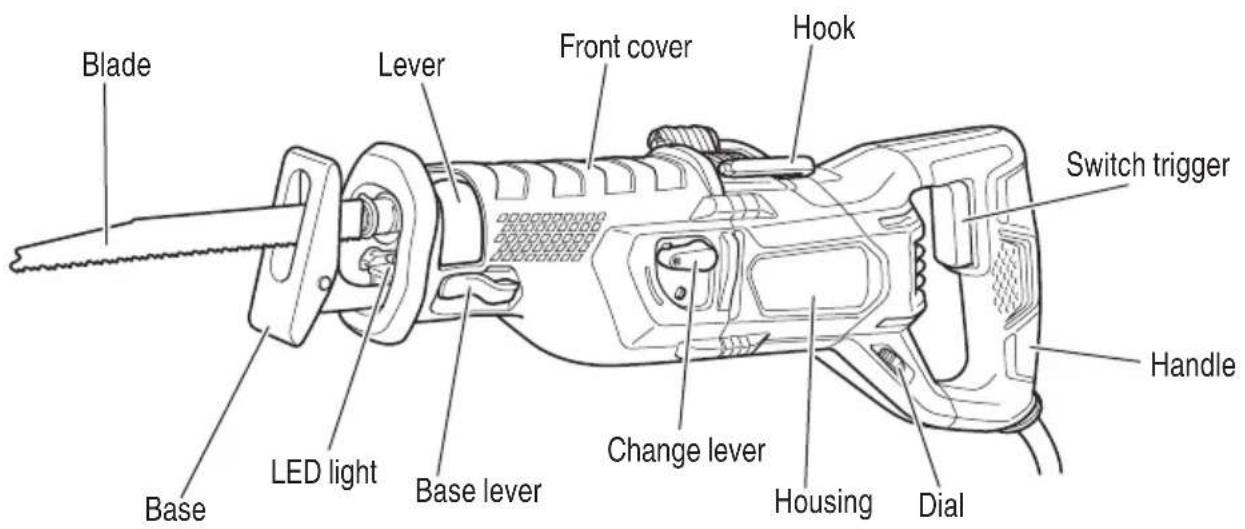

NAME OF PARTS
SPECIFICATIONS
| Motor Single-Phase, Series Commutator Motor. | |
| Power Source Single-Phase, 120 V AC | 60 Hz |
| Current 11 A | |
| Capacity Mild Steel Pipe: O.D. 5" (130 mm)Vinyl Chloride Pipe: O.D. 5" (130 mm)Wood: 4-3/4" (120 mm) | |
| No-load speed | 0 – 2,800 /min |
| Stroke | 1-1/8" (29 mm) |
| Weight (without cord) | 7.9 lbs. (3.6 kg) |
ASSEMBLY AND OPERATION
APPLICATIONS
○ Cutting metal and stainless steel pipe.
○ Cutting various lumber.
○ Cutting mild steel, aluminum and copper plate.
○ Cutting synthetic resins, such as phenol resin and vinyl chloride.
PRIOR TO OPERATION
- Power source
Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate. - Power switch
Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury. - Extension cord
When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
WARNING
Damaged cord must be replaced or repaired.
- Check the receptacle
If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.
If such a fautly receptacle is used, it may cause overheating, resulting in a serious hazard. - Confirming condition of the environment: Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.
- Mounting the blade
This unit employs a detachable mechanism that enables mounting and removal of saw blades without the use of a wrench or other tools.
(1) Turn off the switch and disconnect the plug from the receptacle.
(2) Pivot the lever to open the blade clamp.
(3) Insert the saw blade all the way into the small slit of the plunger tip with the lever pivoting. You can mount this blade either in the upward or downward direction. (Fig. 2, Fig. 3)
CAUTION
Be sure to switch power OFF and disconnect the plug from the receptacle when changing blades.
(3) When you release the lever, the spring force will return the lever to the correct position automatically.
(4) Pull the back of the saw blade two or three times by hand and check that the blade is securely mounted. (Fig. 4)
CAUTION
When pulling the saw blade, be absolutely sure to pull it from the back. Pulling other parts of the blade will result in an injury.
7. Dismounting the blade
CAUTION
Never touch the saw blade immediately after use. The blade is hot and can easily burn your skin.
(1) Turn off the switch and disconnect the plug from the receptacle.
(2) After pivoting the lever, point the blade downward. The blade fall out on its own. If the blade fails to fall out, pull it out by hand.

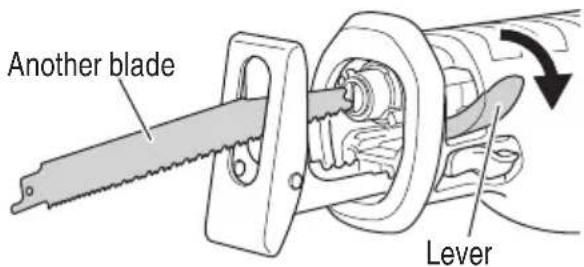

WHEN THE BLADE IS BROKEN
Even when the saw blade is broken and remains inside the small slit of the plunger, it should fall out when the lever is pivoted and the blade is pointed downward. If the blade fails to fall out on its own, take it out by using the procedures described below.
(1) If a part of the broken saw blade is sticking out of the small slit of the plunger, pull out the protruding part and take the blade out.
(2) If the broken saw blade is hidden inside the small slit, hook the broken blade using a tip of another saw blade and take it out. (Fig. 5)
MAINTENANCE AND INSPECTION OF SAW BLADE MOUNT
(1) After use, blow away sawdust, earth, sand, moisture, etc., with air or brush them away with a brush, etc., to ensure that the blade mount can function smoothly.
(2) As shown in Fig. 6, carry out lubrication around the blade holder on a periodic basis by use of cutting fluid, etc.
NOTE
Continued use of the tool without cleaning the area where the saw blade is attached can result in sawdust and chip buildup which may adversely affect the movement of the lever. Should this be the case, pivot the lever and clean around the plunger and lever by wiping or blowing away the buildup.
CAUTION
Do not use any saw blade with a worn-out blade hole. Otherwise, the saw blade can come off, resulting in personal injury. (Fig. 7)
8. Adjusting the base
To maximize blade life, the base slides in or out to allow the stroke length to be adjusted for better efficiency.
(1) Turn off the switch and disconnect the plug from the receptacle.
(2) Pivot the base lever clockwise; and slide the base to the desired position. There are five positions that the base can be adjusted to.
(3) Pivot the base lever counterclockwise to secure the base. (Fig. 8)
(4) Make sure that the base is not interfering with the blade
WARNING
To avoid injury and damage, do not operate the saw without the base in place. The plunger may strike against the workpiece and damage the reciprocating mechanism.
9. Adjusting the blade reciprocating speed
This unit has a built-in electronic control circuit that makes it possible to adjust the variable speed of the saw blade either both by pulling a switching trigger or turning a dial. (Fig. 9)
(1) If you pull the trigger further in, the speed of the blade accelerates. Begin cutting at a low speed to ensure the accuracy of your target cut position. Once you've obtained a sufficient cutting depth, increase the cutting speed.
(2) On the dial scale, "6" is the maximum speed and "1" the minimum. The high speed is generally suitable for soft materials such as wood, and the low speed is suitable for hard materials s recommend that you use the following as a rough guide in selecting the suitable speed for the materials you are cutting.
| Example of materials to be cut | Recommended dial scale |
| Mild steel pipes / cast-iron tubes / L-shaped angle steel | 2 – 5 |
| Wood / wood with nails driven in 6 | |
| Stainless steel 1 – 3 | |
| Aluminum / brass / copper 2 – 5 | |
| Plaster board 5 – 6 | |
| Plastic / fi ber board 1 – 3 |
CAUTION
When cutting at low speed (scale of 1 – 2), never cut a wooden board more than 25/64" (10 mm) thick or a mild steel plate more than 5/64" (2 mm) thick. The load on the motor can result in overheating and damage.
Although this unit employs a powerful motor, prolonged use at a low speed will increase the load unduly and may lead to overheating. Properly adjust the saw blade to allow steady, smooth cutting operation, avoiding any unreasonable use such as sudden stops during cutting operation.
10. Adjusting the orbital cutting operation
Two cutting systems can be selected with this unit.
The first is straight cutting, in which the saw blade is moved linearly, and the second is the orbital cutting, in which the blade moves up and down, as well as back and forth. (Fig. 10, Fig. 11)
(1) Straight cutting
You can perform straight cutting by setting the change lever widthwise. Straight cutting should normally be performed when cutting hard materials such as metal, etc. (Fig. 9)
(2) Orbital cutting
You can perform orbital cutting by setting the change lever lengthways.
Orbital cutting should normally be performed when cutting soft materials such as wood, etc.
Orbital cutting is efficient since the saw blade forcibly bites into the material. (Fig. 10)
CAUTION
○ Even for soft materials, you should perform straight cutting if you wish to make curved or clean cuts.
○ Dust and dirt accumulated on the change lever section can degrade the function of the change lever. Periodically clean the change lever section.
When performing orbital cutting, use a saw with straight blade. If a saw with curved blade is used, the saw blade may be broken or the unit may be damaged.
OPERATION
WARNING
Never touch the moving parts.
CAUTION
○ Avoid carrying it plugged to the outlet with your fi nger on the switch. A sudden startup can result in an unexpected injury.
○ Be careful not to let sawdust, earth, moisture, etc., enter the inside of the machine through the plunger section during operation. If sawdust and the like accumulate in the plunger section, always clean it before use.

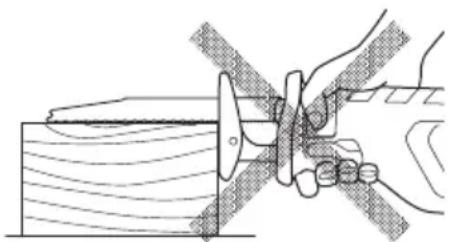

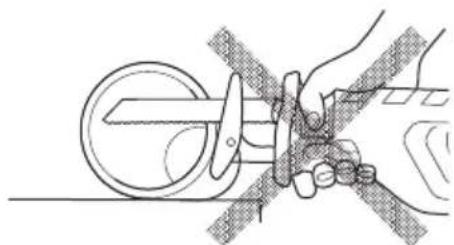

○ Do not remove the front cover (refer to Fig. 1). Hold firmly the front cover by hand to operate.
But, do not extend your hand or fi nger beyond the fl ange (see Fig.12) of front cover to avoid an injury.
During use, press the base against the material while cutting.
Vibration can damage the saw blade if the base is not pressed firmly against the workpiece.
Furthermore, a tip of the saw blade can sometimes contact the inner wall of the pipe, damaging the saw blade.
○ Select a saw blade of the most appropriate length. Ideally, the length protruding from the base of the saw blade after subtracting the stroke should be larger than the ma Fig. 12 and Fig. 13)


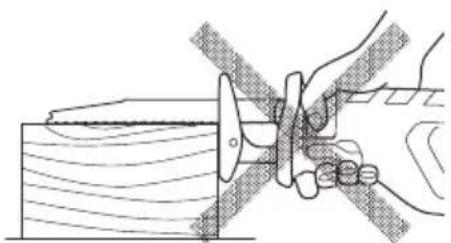

If you cut a large pipe, large block of wood, etc., that exceeds the cutting capacity of a blade; there is a risk that the blade may contact with the inner wall of the pipe, wood, etc., resulting in damage. (Fig. 14, Fig. 15)
To maximize cutting efficiency for the materials you are using and working conditions, adjust the speed of the saw blade and the switching to orbital cutting.
- Don't remove the tool from workpiece during a cut while the saw blade is moving.
- Trigger switch
This tool is equipped with a variable speed controlled trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The blade plunger stroke rate can be adjusted from the minimum to maximum nameplate stroke rate by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed.
When the trigger switch is turned on, an LED lamp lights. This lamp goes out when the trigger switch is released.
CAUTION
Do not look directly into the light from the LED lamp. Continuous and direct exposure to the light from the LED lamp can injure your eyes.
- Cutting metallic materials
CAUTION
○ Press the base firmly against the workpiece.
Never apply any unreasonable force to the saw blade when cutting. Doing so can easily break the blade.

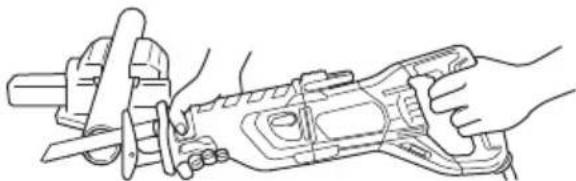

(1) Fasten a workpiece firmly before operation. (Fig.17)
(2) When cutting metallic materials, use proper machine oil (turbine oil, etc.). When not using liquid machine oil, apply grease over the workpiece.
CAUTION
The service life of the saw blade will be drastically shortened if you don't use machine oil.
(3) Use the dial to adjust the speed of the saw blade to suit your working conditions and materials.
(4) You can cut smoothly if you set the change lever position to straight cutting (Fig. 10).
- Cutting lumber

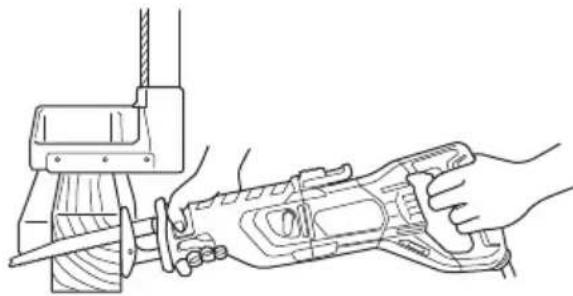

(1) When cutting lumber, make sure that the workpiece is fastened firmly before beginning. (Fig. 18)
(2) You can cut efficiently if the speed of the saw blade is set to dial scale "6".
(3) You can cut efficiently if the change lever position is set to orbital cutting (Fig. 11). Alternatively, you can cut cleanly if the change lever position is set to straight cutting (Fig. 10).
CAUTION
Never apply any unreasonable force to the saw blade when cutting. Also remember to press the base against the lumber firmly.
- Sawing curved lines
We recommend that you use the BIMETAL blade mentioned in Page 16 for the saw blade since it is tough and hardly breaks.
CAUTION
Delay the feed speed when cutting the material into small circular arcs. An unreasonably fast feed may break the blade.

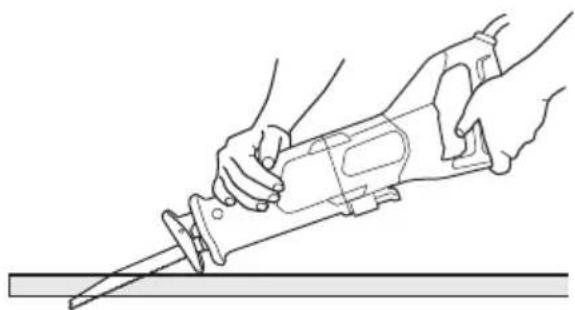

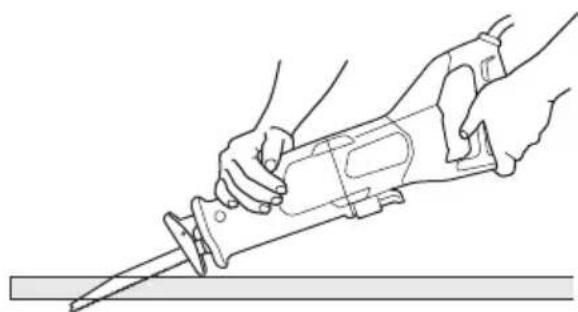

- Plunge cutting
With this tool, you can perform plunge cutting on plywood panels and thin board materials. You can carry out plunge cutting quite easily with the saw blade installed in reverse as illustrated in Fig. 20, Fig. 22, and Fig. 24. Use the saw blade that is as short and
thick as possible. We recommend for this purpose that you use BI-METAL Blade No. 132 mentioned in Page 16. Be sure to use caution during the cutting operation and observe the following procedures.

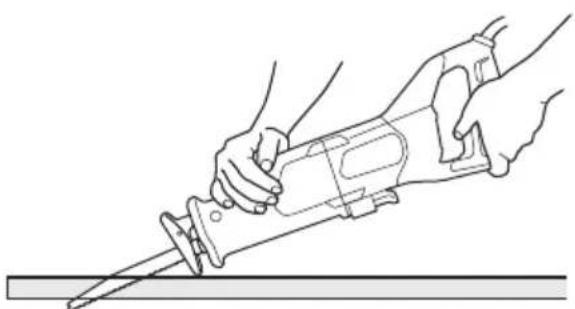

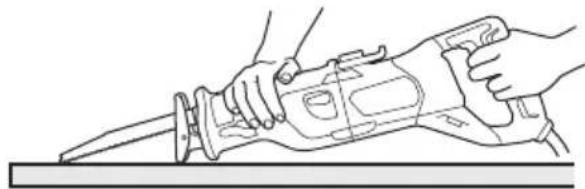

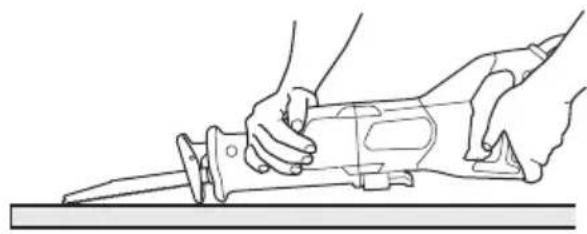

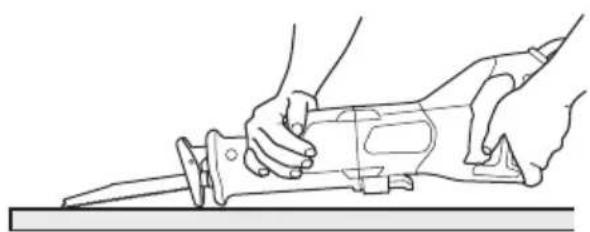

(1) Press the lower part (or the upper part) of the base against the material. Pull the switch trigger while keeping the tip of the saw blade apart from the material. (Fig. 19, Fig. 20)


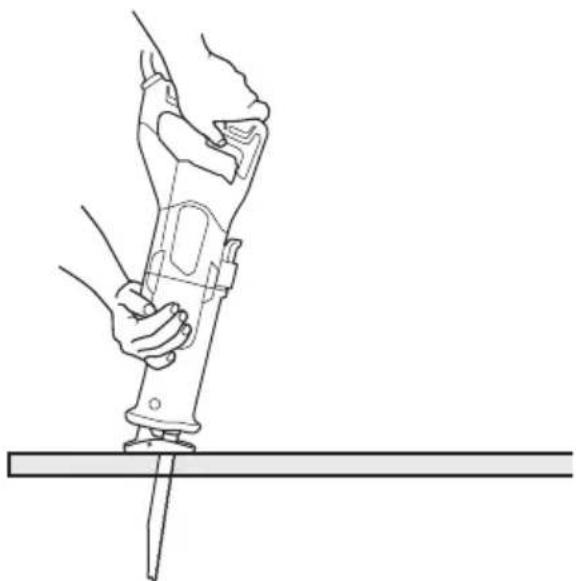

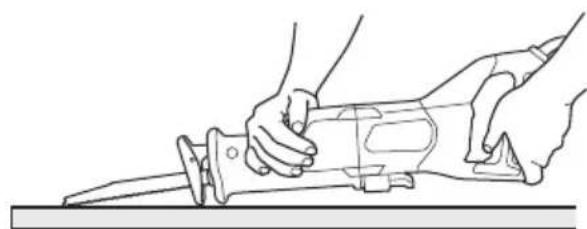

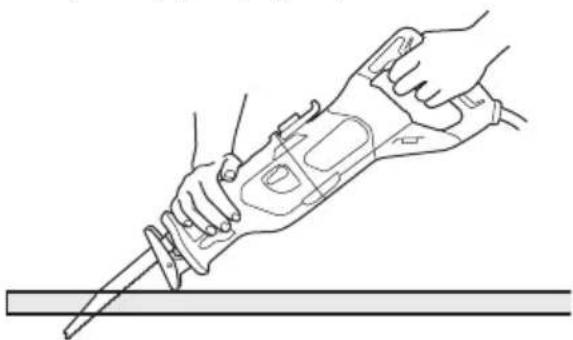

(2) Raise the handle slowly and cut in with the saw blade little by little. (Fig. 21, Fig. 22)


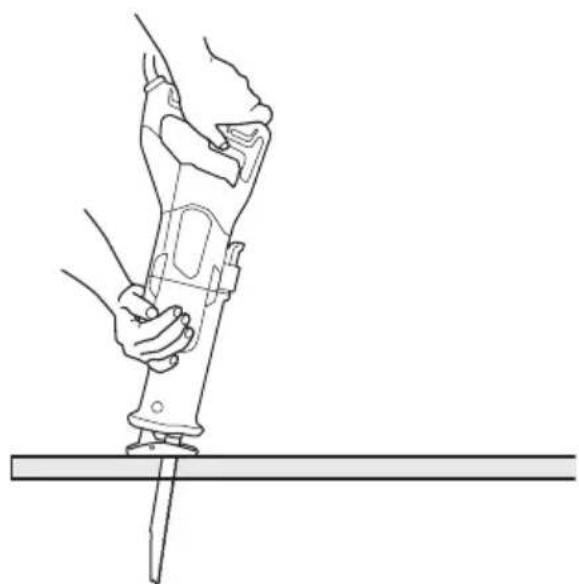

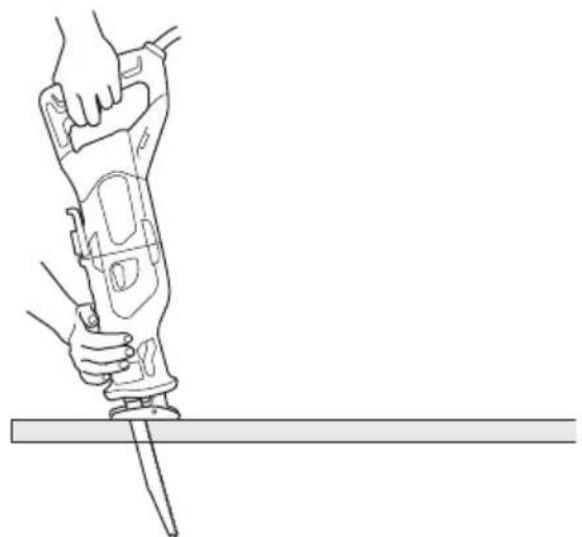

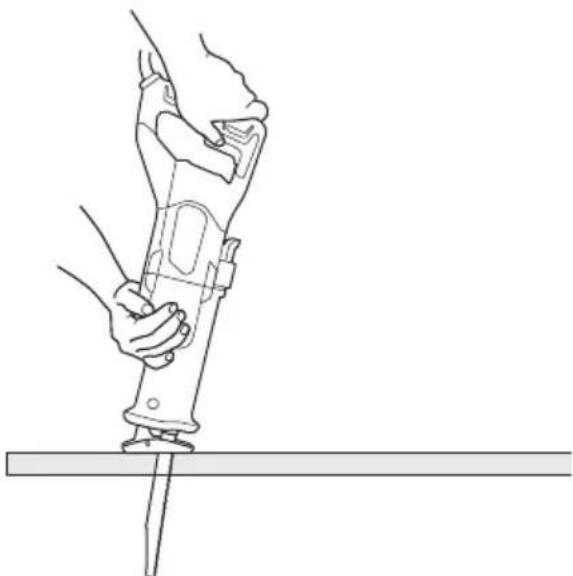

(3) Hold the body firmly until the saw blade completely cuts into the material. (Fig. 23, Fig. 24)
CAUTION
○ Avoid plunge cutting for metallic materials. This can easily damage the blade.
Never pull the switch trigger while the tip of the saw blade is pressed against the material. If you do so, the blade can easily be damaged when it collides with the material.
○ Make absolutely sure that you cut slowly while holding the body firmly. If you apply any unreasonable force to the saw blade during the cutting operation, the blade can easily be damaged.
- How to use the Hook
The hook can be used to hang up the unit on the beam or pipe that the width 40 mm Max. temporarily during operations (Fig. 25, Fig. 26).
CAUTION
The hook should never be used to hang the unit on your person.
When using the hook, check to make sure that the main unit will not slip and fall, or become unstable by the wind, etc.
Never hang the unit from your belt or trousers as this could cause accidents.
MAINTENANCE AND INSPECTION
WARNING
Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.
- Inspecting the blade
Continued use of a dull or damaged blade will result in reduced cutting efficiency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.
CAUTION
If a dull saw blade is used, reactive force is increased during cutting operation. Avoid the use of the dull saw blade without repair.
- Check the Screws
Loose screws are dangerous. Regularly inspect them and make sure they are tight.
CAUTION
Using this power tool with loosened screw advancements.
extremely dangerous.
- Maintenance of the motor
The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
- Inspecting the carbon brushes
For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a Hitachi Authorized Service Center.
- Check for Dust
Dust may be removed with a soft cloth or a cloth dampened with soapy water.
Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.
- Lubrication
The bearings in this tool have been sufficiently lubricated with quality lubricating oil, taking into account the expected life of this tool under normal operating conditions. As a result, no further lubrication is necessary.
- Service and repairs
All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.
- Service parts list (Page 49)
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts may be changed without prior notice.
ACCESSORIES
WARNING
ALWAYS use Only authorized HITACHI replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
NOTE: Accessories are subject to change without any obligation on the part of the HITACHI.
STANDARD ACCESSORIES
(1) Blade for wood .... 1
(2) Case (Code No. 372700)....1
OPTIONAL ACCESSORIES.....sold separately
| TYPE LENGTH | WIDTH TPI MATERIAL CODE NO. | BLADES /POUCH | ||||
| WOOD CUTTING | 6" (152 mm) 3/4" (18 mm) 6 HCS 725300 5 | |||||
| 9" (228 mm) 3/4" (18 mm) 5 HCS 725301 5 | ||||||
| 12" (305 mm) 3/4" (18 mm) 6 HCS 725302 5 | ||||||
| WOOD CUTTINGNAIL-EMBEDED | 6" (152 mm) 3/4" (18 mm) 6 BI-METAL 725310 5 | |||||
| 6" (152 mm) 3/4" (18 mm) 6 BI-METAL 725311 5 | ||||||
| 6" (152 mm) 5/8" (16 mm) 6 BI-METAL 725312 5 | ||||||
| 7 7/8" (200 mm) 3/4" (18 mm) 8 BI-METAL 5 | ※371902 3 | |||||
| 9" (228 mm) 3/4" (18 mm) 6 BI-METAL 725313 5 | ||||||
| 12" (305 mm) 3/4" (18 mm) 6 BI-METAL 725314 5 | ||||||
| METAL CUTTING | 6" (152 mm) 3/4" (18 mm) 10 BI-METAL 725320 5 | |||||
| 9" (228 mm) 3/4" (18 mm) 10 BI-METAL 725321 5 | ||||||
| 6" (152 mm) 3/4" (18 mm) 14 BI-METAL 725322 5 | ||||||
| 9" (228 mm) 3/4" (18 mm) 14 BI-METAL 725323 5 | ||||||
| 6" (152 mm) 3/4" (18 mm) 18 BI-METAL 725324 5 | ||||||
| 9" (228 mm) 3/4" (18 mm) 18 BI-METAL 725326 5 | ||||||
| 6" (152 mm) 3/4" (18 mm) 24 BI-METAL 725325 5 | ||||||
| 9" (228 mm) 3/4" (18 mm) 24 BI-METAL 725327 5 | ||||||
| ALL PURPOS | 6" (152 mm) 3/4" (18 mm) 10//14 BI-METAL 725330 5 | |||||
| 9" (228 mm) 3/4" (18 mm) 10//14 BI-METAL 725331 5 | ||||||
| 12" (305 mm) 3/4" (18 mm) 10//14 BI-METAL 725332 5 | ||||||
| CARBIDE GRIT | 9" (228 mm) 3/4" (18 mm) GRIT — 725340 3 | |||||
| DEMOLITION | 9" (228 mm) 7/8" (22 mm) 6 BI-METAL 725350 3 | |||||
| 9" (228 mm) 7/8" (22 mm) 9 BI-METAL 725351 3 | ||||||
| NEW WOOD | 6" (152 mm) 3/4" (18 mm) PROG. BI-METAL 725360 5 | |||||
| NEW METAL | 6" (152 mm) 3/4" (18 mm) PROG. BI-METAL 725361 5 | |||||
| NEW ALL PURPOSE | 8" (203 mm) 3/4" (18 mm) PROG. BI-METAL 725362 5 | |||||
PROG.: NEW PROGRESSIVE TOOTH HCS: HIGHSPEED CARBON STEEL
※: CURVED BLADE
NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.
INFORMATIONS IMPORTANTES DE SÉCURITÉ
PRECAUTION
PRECAUCIÓN
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
● Lead from lead-based paints,
● Crystalline silica from bricks and cement and other masonry products, and
● Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work was approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
AVERTISSEMENT:
Minato-ku, Tokyo 108-6020, Japan
Distributed by
Koki Holdings America Ltd.
1111 Broadway Ave,
Braselton, Georgia, 30517
Koki Holdings America Ltd. Canadian Branch
3405 American Drive, Units 9-10,
Mississauga, ON, L4V 1T6
806
Code No. C99244961
O
Printed in China
