USER MANUAL 18050 KORONA

Induction Milk Foamer

Nederlands

Gebruiksaanwijzing

Exterior view of a Korona brand water heater with control buttons and power button (no text or symbols on the device itself)

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Labeled diagram of a Korona coffee maker with numbered parts for identification

Close-up of a black appliance's power button with control knob (no visible text or symbols)

Close-up of a black cylindrical device with a power button and screw holes (no visible text or symbols)

Close-up of a black industrial blender with a power button and control knob (no visible text or symbols)

Close-up of a black cylindrical device with a power button and switch, no visible text or symbols.

Two views of a black KORONA portable rice cooker, one with a metallic lid and the other showing its internal structure (no text or symbols visible)

Vor Erstgebrauch

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for frothing and heating milk. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

- Manufacturer takes no responsibility for any damage caused by incorrect use.

- Incorrect or improper use can damage the appliance and cause injuries to the user.

- Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• The appliance is only intended for frothing and heating up milk. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the appliance near any inflammable objects.
• Never exceed the maximum filling level (400ml heating milk, 190 ml frothing milk) to avoid any milk from spilling from the mug. Danger of serious burns!

• Never open the lid during operation.

• Always remove the mug from the power base when filling it with milk.

- To prevent the appliance from boiling dry, make sure the milk level is never below the minimum filling (100 ml).

- The automatic switch-off function will automatically switch off the appliance as soon as the heating up / frothing process is finished.

- Your inductions milk frother also features a boil-dry cut-out, which will switch off the appliance, should it accidentally be operated without milk. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your milk frother is ready for use again.

• Only use the appliance with the base provided.
- Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle of the appliance.
- Do not move the appliance during operation.
- Let the appliance completely cool down before cleaning.

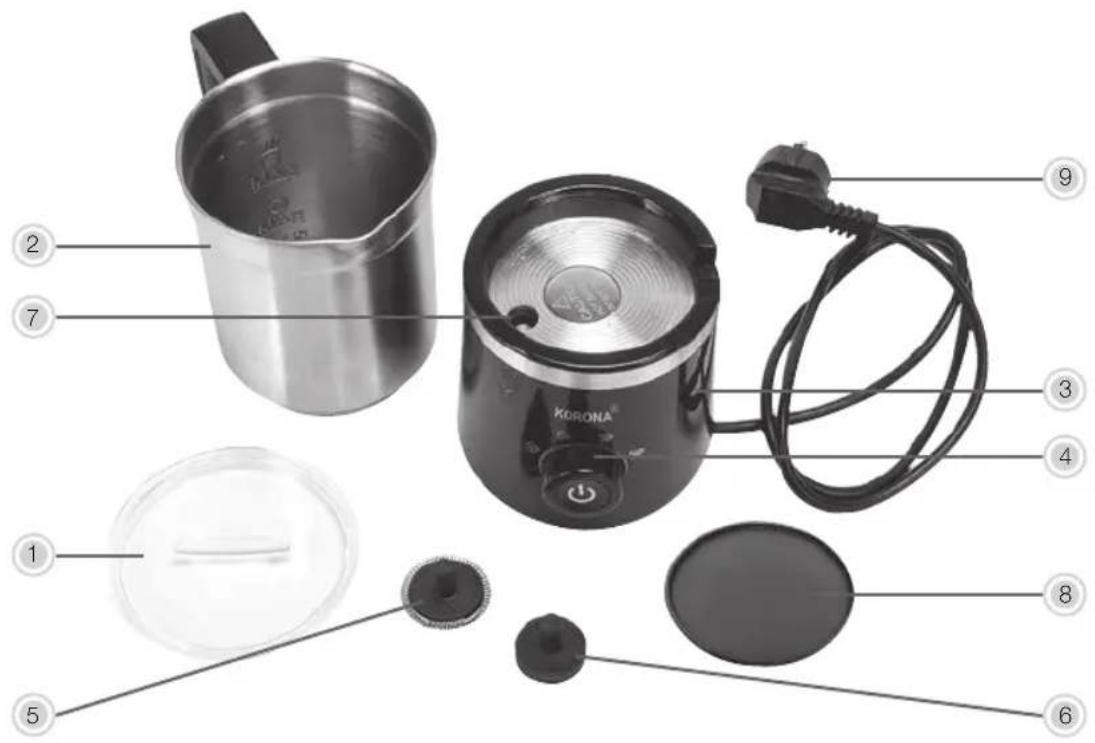

Product Description

Labeled diagram of a Korona coffee maker with numbered parts for identification

1. Lid
2. Milk mug with handle
3. Motor Base
4. On/Off button / Programme dial switch
5. Frothing attachment
6. Stirring attachment
7. Safety Switch
8. Insulation mat for milk cup
9. Power cord and plug

On/Off button / Programme dial switch

Close-up of a black appliance's power button with control knob (no visible text or symbols)

Cold froth (use frothing attachment)

Close-up of a black cylindrical device with a power button and control knob (no visible text or symbols)

Hot froth (use frothing attachment)

Close-up of a black cylindrical appliance with a power button and control knob (no visible text or symbols)

Hot with less froth (use stirring attachment)

Close-up of a black cylindrical device with a power button and switch, no visible text or symbols.

Hot milk only (use stirring attachment)

Safety Switch

Safety Switch: This appliance has an integrated safety switch and can only be switched on when the use of the mug is properly inserted into the cut out of the motor base.

Two black-and-white photos of a KORONA rice cooker, one with a circular lid and arrow indicator, the other showing its side view (no text or symbols visible)

Before First Use

• Remove all packaging material and check whether the appliance is undamaged.
• Fully unwind the power cord.
• Clean the appliance as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.

Do not use the appliance if it shows any signs of damage!

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid on.

Maximum and Minimum Filling Level

Never exceed the maximum or go under the minimum filling level.

- For heating milk only - Max. 400 ml

• For frothing milk - Max. 190 ml

• For heating / frothing - Min. 100 ml

When only filling up to the minimum level, make sure that the protrusion of the frothing/stirring attachment is covered with milk.

Operation

Never open the appliance lid (1) during operation – hot milk could evaporate – Danger of serious

burns!

Note:

• Milk is a natural product, therefore the chosen milk may influence the result of the milk foam.
• The higher the fat content of the milk the better the foaming result.
• Never consume milk that has been standing in the mug for an extended period of time, always use fresh, cold milk.
• Never leave the appliance unattended during use.

Frothing / Heating up milk

1. Place the milk frother on top of an even and heat resistant surface.
2. Remove the mug (2) from the motor base (3).
3. Depending on the programme you wish to choose, insert the frothing (5) or stirring (6) attachment into the mug (2).
4. Fill in some cold milk, observing the minimum / maximum filling level inside the mug (2).
5. Close the mug (2) by inserting the lid (1).
6. Place the mug (2) properly into the motor base (3), in order for the safety switch (7) to be pushed down.
7. Connect (9) the appliance to a properly installed wall socket.

Make sure your local voltage matches the technical data of the appliance.

1. Choose the desired programme by turning the dial switch (4) onto the respective symbol.
2. Press the on/off button (4) to start the frothing / heating up process.
3. Once the frothing / heating up process is finished, the appliance shuts off automatically.
4. Remove the milk mug (2) and place it onto the insulation mat (8) to avoid damage to the respective surface.

You can always switch off the appliance by pressing the on/off button.

The temperature of accessible surfaces may be high during operation. Therefore, do not the appliance during and/or immediately after operation. Especially, the milk mug and the plate inside the motor base.

Always disconnect the appliance from the mains if you are not using it!

Dry-boil cut-out

The appliance is equipped with a boil-dry cut-out, which will switch off the appliance automatically, should it accidentally be operated without liquid or by not observing the minimum filling level. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your appliance is ready for use again.

Cleaning and Care

Due to hygienic reasons clean your appliance after each use, and remove any milk residues.

Before cleaning, always switch off the appliance and disconnect it from the mains and let

it completely cool down.

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

All detachable parts can be cleaned in warm water using some dishwashing detergent. Rinse them afterwards and dry them thoroughly.

The milk mug can also be cleaned in the dishwasher.

After cleaning, reassemble the appliance and store it in a clean and dry place and keep it away from children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Induction Milk Foamer 18050 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 550 - 650 W

Capacity: Max 400 ml

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
