USER MANUAL DSC-OPT-RCA-001 Cablexpert

DSC-OPT-RCA-001

DIGITAL TO ANALOG AUDIO

CONVERTER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Features

  • Allows using digital audio devices with analogue audio receivers or amplifiers
  • Converts a digital Coaxial or Toslink audio signal to analogue stereo audio (L/R)
    • Standard RCA (cinch) audio output connectors
    • Electromagnetic noise-free transmission
    • 5 V DC power supply included

Specifications

  • Input audio formats: sampling rate at 32, 44.1, 48 and 96 KHz, 24-bit S/PDIF incoming bit stream on left and right channels
  • Input: 1 x RCA (Coaxial); 1 x Toslink
    • Output: 2 x RCA audio (L/R)
    • Power supply: 5 V DC up to 2 A
    • Power consumption: 0.5 W max
    • Operating temperature: 0 - 70 °C
  • Dimensions: 51 × 41 × 26 mm
  • Net weight: 78 g

Cablexpert DSC-OPT-RCA-001 - Specifications - 1

Cablexpert DSC-OPT-RCA-001 - Specifications - 2

Cablexpert DSC-OPT-RCA-001 - Specifications - 3

Cablexpert DSC-OPT-RCA-001 - Specifications - 4

Cablexpert DSC-OPT-RCA-001 - Specifications - 5

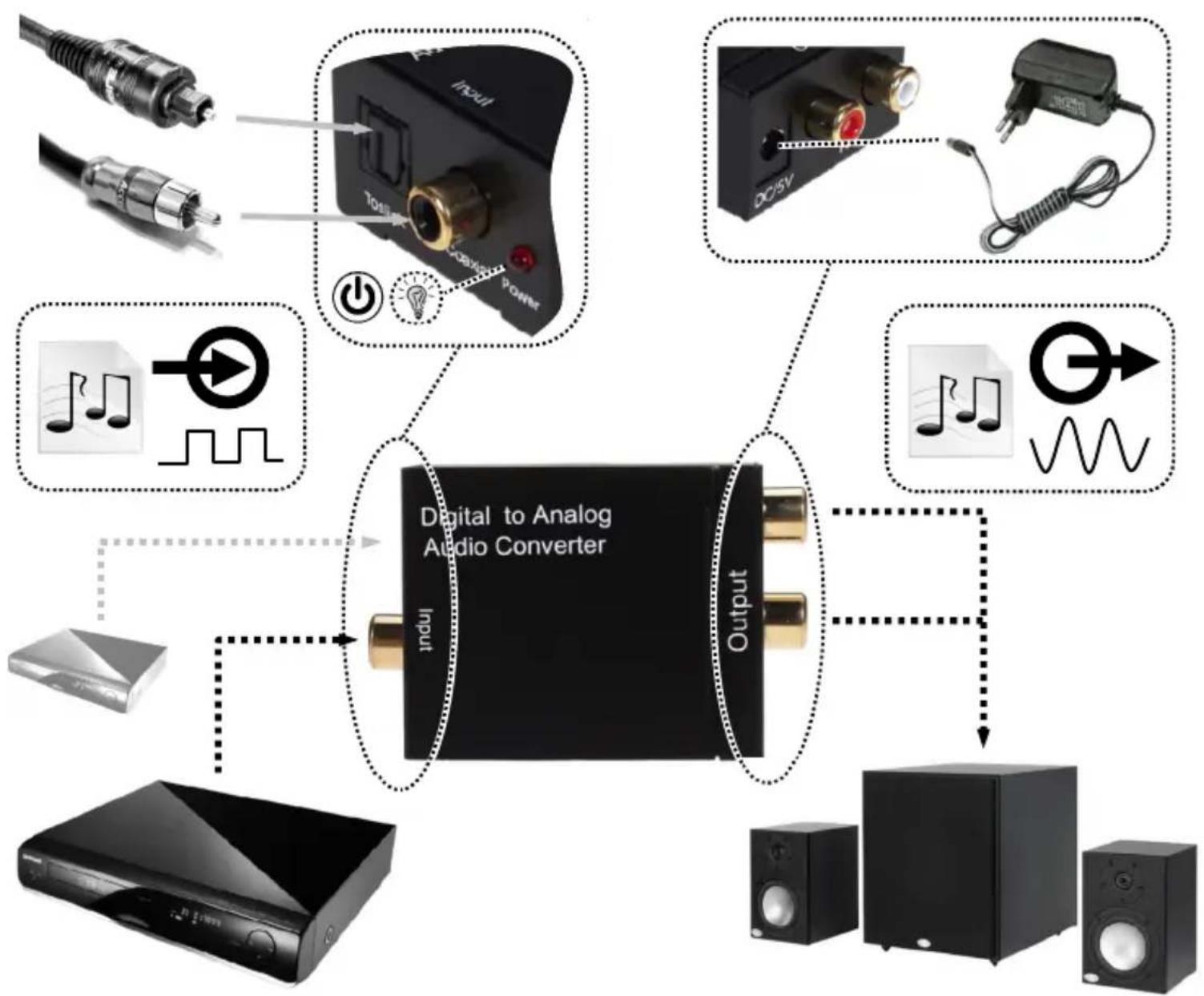


All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Safety warning sign showing sun and illness with crossed-out lines

Simple line drawing of a hand using a tool to cut a screwdriver into a screw (no text or symbols)

Simple line drawing of a container with a hand holding papers and a flag, crossed by a diagonal line (no text or symbols)

Waste disposal:

Cablexpert DSC-OPT-RCA-001 - Waste disposal: - 1

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

GARANTIE VOORWAARDENCONDITIONS DE GARANTIE
