Product type	Audio/video converter
Brand	Cablexpert
Model	DSC-HDMI-CVBS-001
Main function	HDMI to CVBS (composite) conversion with stereo audio
Video input	HDMI female (type A)
Video output	CVBS (RCA female, yellow)
Audio output	Stereo RCA (L/R, white/red)
Supported HDMI input resolution	480i/p, 576i/p, 720p, 1080i/p
CVBS output standard	PAL / NTSC (automatic)
Power supply	5 V DC via micro-USB port or power adapter (not included)
Power consumption	About 2 W
Dimensions (L x W x H)	About 70 x 55 x 20 mm
Weight	About 50 g
Housing material	ABS plastic
HDCP compatibility	Yes (HDCP 1.4 compliant)
Operating temperature	0 °C to 40 °C
Certifications	CE, RoHS
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use solvents.

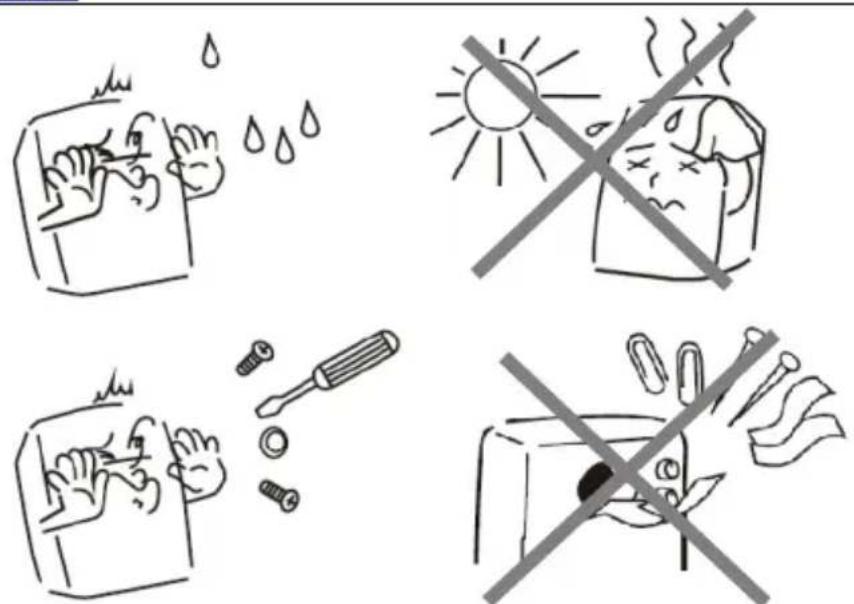

Safety	Do not expose to moisture, do not open the housing.
Warranty	2 years

Frequently Asked Questions - DSC-HDMI-CVBS-001 Cablexpert

How to connect the DSC-HDMI-CVBS-001 converter?

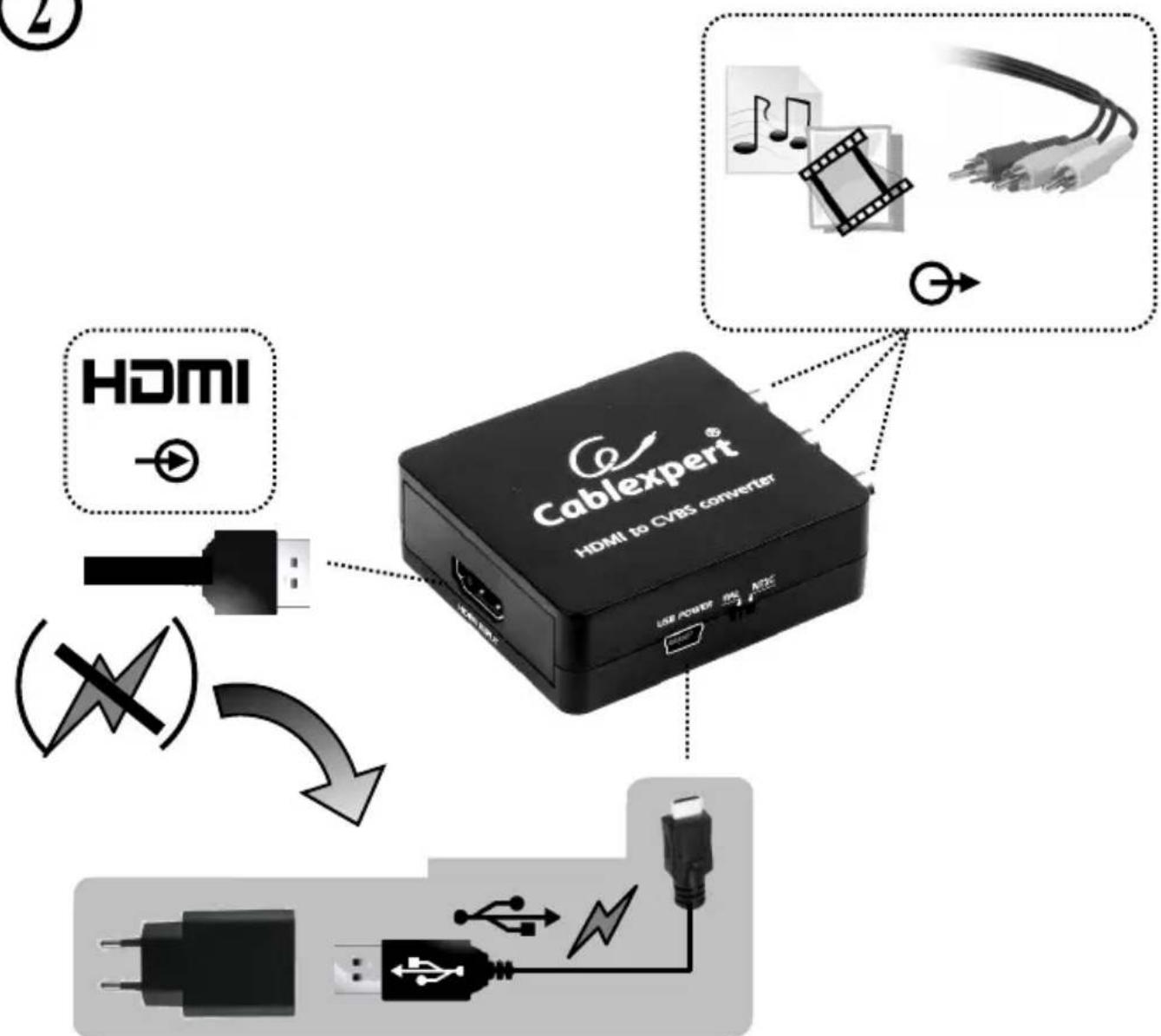

Connect an HDMI source (Blu-ray player, console, etc.) to the HDMI input of the converter. Connect the CVBS output (yellow RCA) to the composite input of your TV or monitor, and the RCA audio outputs (white/red) to your audio system. Power the converter via the micro-USB port (5 V). Turn on the source and select the corresponding input on your display.

What cables are needed to use this device?

You will need an HDMI cable to connect your source to the converter, a composite RCA cable (male-to-male) for video, and a stereo RCA audio cable (L/R) for sound. A micro-USB cable is required for power (you can use a smartphone charger).

Does the converter work with HDCP-protected sources?

Yes, the DSC-HDMI-CVBS-001 supports HDCP 1.4. Therefore, it can process signals from Blu-ray players, game consoles, and other protected devices. However, since the CVBS output is analog, it is not HDCP-protected.

Can I use this converter to connect an old VCR to a modern TV?

No, this converter is unidirectional: it converts HDMI (digital) signal to CVBS (analog). To connect a VCR (CVBS output) to an HDMI TV, you need a reverse converter (CVBS to HDMI).

How to choose between PAL and NTSC?

The converter automatically detects the format of the HDMI input signal and converts to PAL or NTSC according to the source. If your display requires a specific format, check the settings on your HDMI source (e.g., set the player to NTSC for use in the United States).

Does the audio output work with computer speakers?

Yes, the stereo RCA audio output can be connected to powered speakers, a soundbar, or an amplifier via an RCA to 3.5mm adapter if needed. Make sure the volume of the HDMI source is set to an adequate level.

What to do if the image does not appear on the CVBS output?

First check the power (converter LED on). Make sure the HDMI source is sending a signal (test directly on an HDMI display). Try another CVBS cable. Ensure your display is set to the composite input (often AV or EXT). If nothing works, power cycle the device.

What is the maximum resolution of the CVBS output?

The CVBS output resolution is limited to the analog standard: about 480i (NTSC) or 576i (PAL). The image quality will therefore be lower than that of the HDMI source (720p/1080p). The converter downscales the resolution.

Does this converter require an external power supply?

Yes, the converter does not draw power from the HDMI connection. It must be connected via the micro-USB port (5 V) to a power adapter (not included) or to a USB port on a TV or computer. The required current is about 500 mA.

How to clean and maintain the converter?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the housing. Do not use chemicals, alcohol, or damp cloths. Avoid exposing the device to dust, moisture, or extreme temperatures.

USER MANUAL DSC-HDMI-CVBS-001 Cablexpert

DSC-HDMI-CVBS-001

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

РУКОВОДСТВО

ПОЛЬЗОВАТЕЛЯ

КЕРІВНИЦТВО КОРИСТУВАЧА

INSTRUKCJA OBSŁUGI

HDMI to CVBS (+ stereo audio) Converter HDMI auf CVBS Adapter

Features

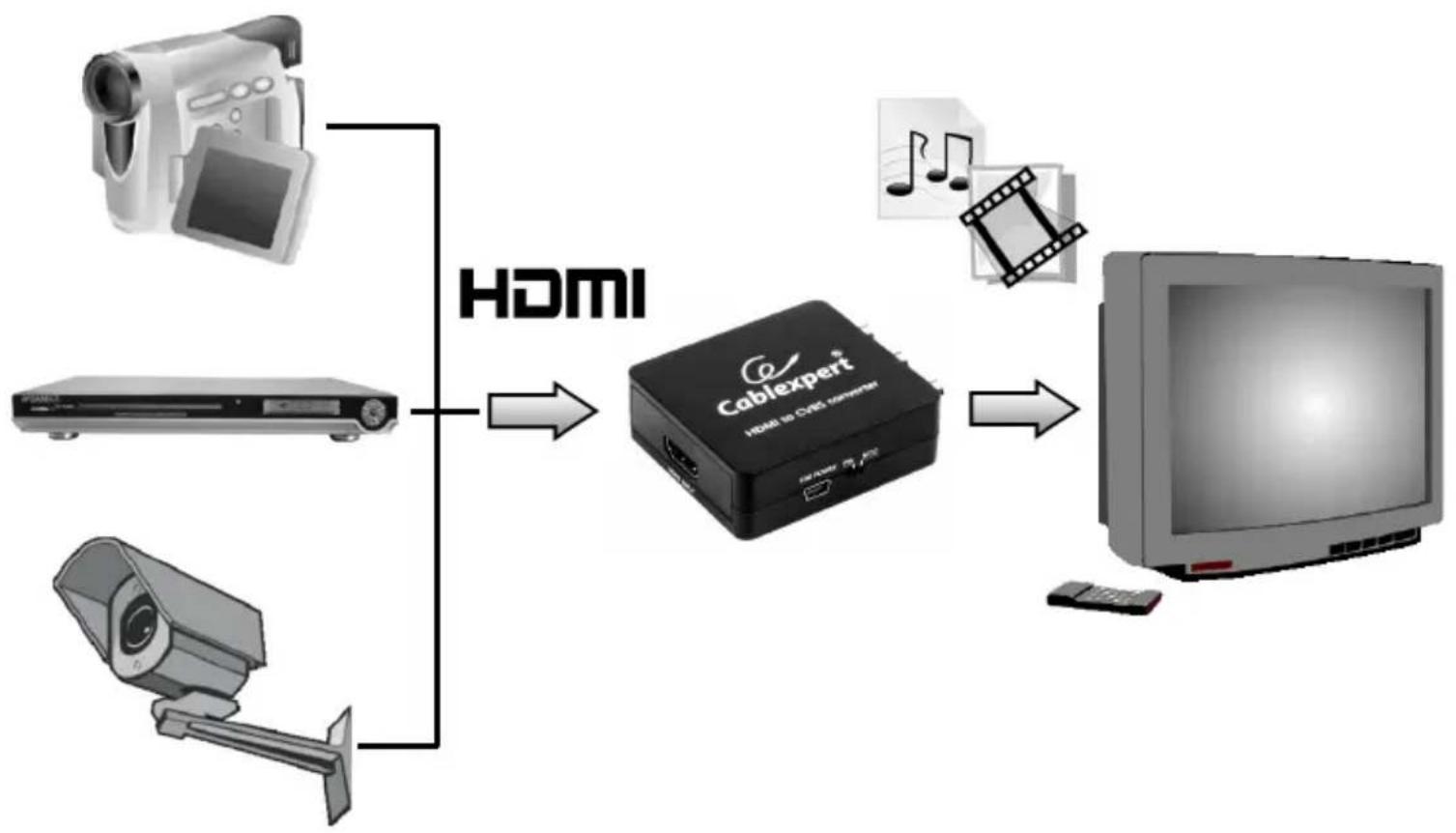

• Allows using new HDMI devices with old TV's
• Converts digital HDMI input to analog composite video and audio (L/R)

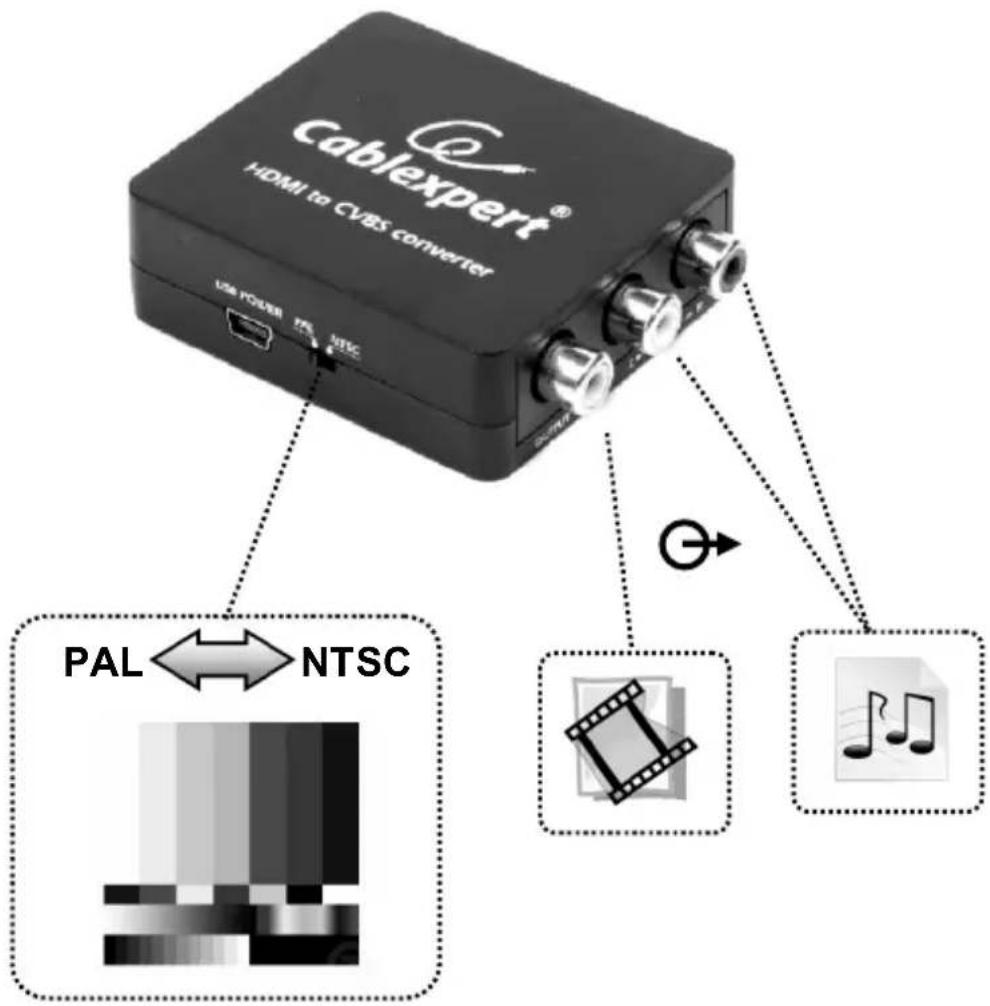

• Selection switch for output video standard (PAL/NTSC)

Specifications

• Output: 1x Composite video, 2x audio (L/R)
- Input: 1x HDMI
- Input HDMI resolutions: 480p (60 Hz), 576p (50 Hz), 720p (50/60 Hz), 1080i (50/60 Hz), 1080p (50/60 Hz)
• Power supply, 5 V DC up to 1 A(optional)
• Dimensions: 60x54x20 mm
- Net weight: 100 g

All brands and logos are registered trademarks of their respective owners

①

②

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2014/30/EU), RoHS (2011/65/EU). überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących LVD(2006/95/EC), EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

GARANTIE VOORWAARDEN	CONDITIONS DE GARANTIE
Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.	Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil.Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation.Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit.Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie.Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..).Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie.Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir.Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V.Wittevrouwen 56, 1358CD Almere, The Netherlands www.gembird.nl/service [e-mail]: 0900-GEMBIRD(€ 0,25 p/m binnen Nederland, exclusief mobiele telefoonkosten)	Gembird Europe B.V.Wittevrouwen 561358CD Almere, The Netherlands www.gembird.nl/[e-mail][phone]Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / minPrix d'appel depuis telephone mobile / autre pays - selon operateur

ГАРАНТИЙНЫЙ ТАЛОН
