Product Type HDMI to VGA Converter
Brand Cablexpert
Model DSC-HDMI-VGA-001
Input 1 x HDMI (female)
Video Output 1 x VGA (female)
Audio Output 1 x 3.5 mm stereo jack
Maximum Resolution 1920 x 1080 at 60 Hz
HDMI Compatibility HDMI v1.3
Output Resolution Same as input resolution
Power Supply 5 V DC, up to 1 A (via USB cable, adapter not included)
Dimensions (L x W x H) 66 x 55 x 20 mm
Net Weight 40 g
Material Plastic
Color Black
Warranty 24 months
Package Contents Converter, user manual
Functions Conversion of HDMI digital signal to analog VGA with stereo audio
Usage Connect the HDMI source, connect the VGA cable and optional audio
Maintenance Clean with a dry, soft cloth

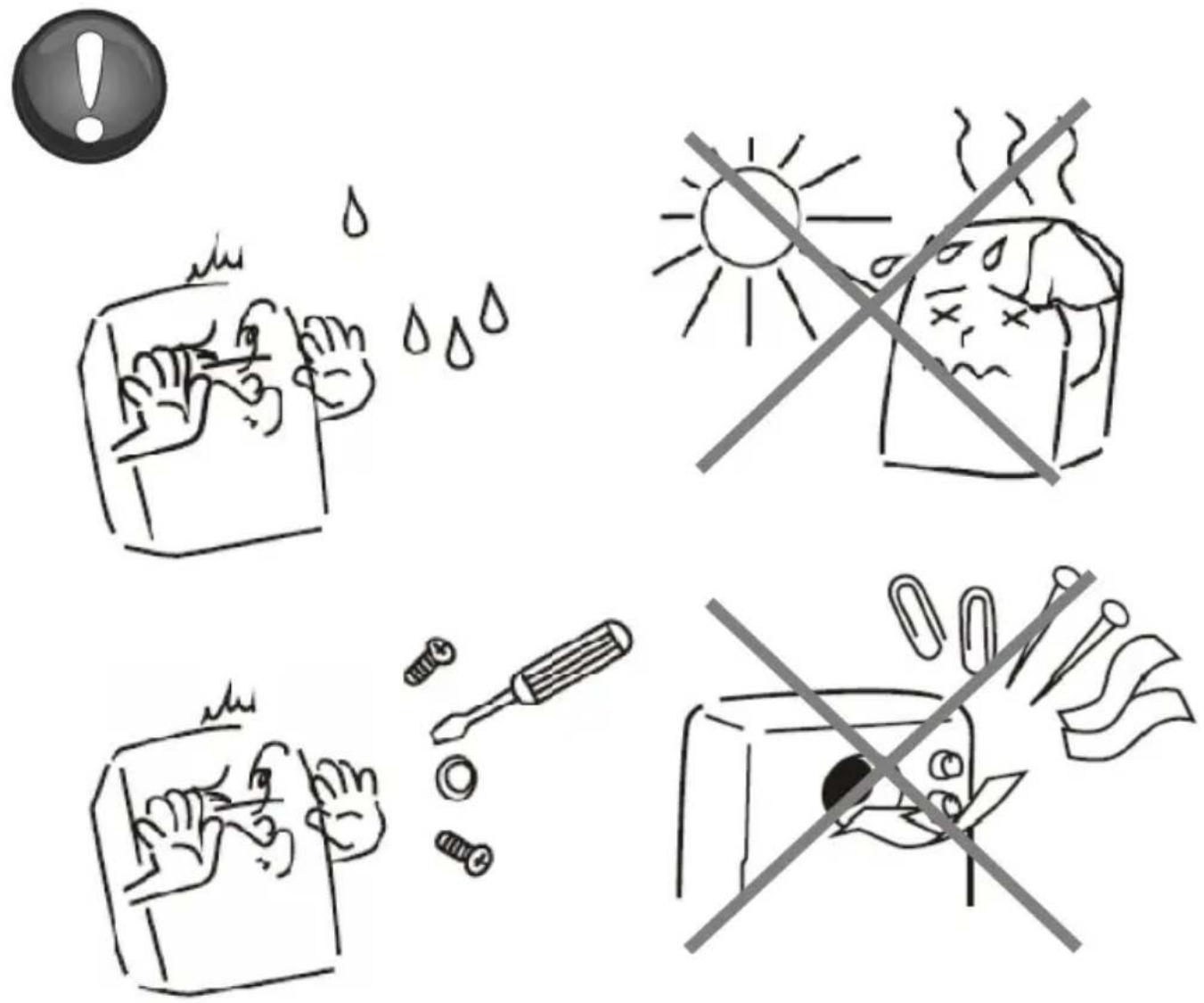

Safety Do not expose to moisture or extreme temperatures

Frequently Asked Questions - DSC-HDMI-VGA-001 Cablexpert

How to connect the DSC-HDMI-VGA-001 converter?
Plug the HDMI source (computer, console) into the HDMI input of the converter, then connect a VGA cable between the VGA output and the monitor. For audio, connect a speaker or headphones to the 3.5 mm stereo jack.
Does the converter require external power?
Yes, it must be powered with 5 V DC via a USB cable (not included). Plug the USB cable into a USB port (computer or power adapter) to power the device.
What is the maximum supported resolution?
The converter supports resolutions up to 1920 x 1080 at 60 Hz (Full HD). It is compatible with HDMI v1.3.
Can I get audio through the converter?
Yes, the converter has a 3.5 mm stereo audio output. Connect your headphones or speakers to get the sound from the HDMI source.
Is the converter compatible with all HDMI devices?
It works with most HDMI sources: computers, game consoles, Blu-ray players, etc. However, it does not convert protected HDCP signals, so some content may not display.
What to do if the image does not display correctly?
Check that the USB power is connected and the HDMI source is on. Make sure the VGA monitor is set to the correct input. The output resolution is the same as the input resolution.
What is the warranty period?
The warranty is 24 months from the date of purchase. Keep your receipt for any claims.
What does the DSC-HDMI-VGA-001 package contain?
The package contains the converter itself and the user manual. The USB power cable and HDMI/VGA cables are not included.
Can I use long VGA cables with this converter?
Yes, but signal quality may degrade with very long cables (over 5 meters). Use good quality cables to avoid interference.
How to maintain the converter?
Clean it with a soft, dry cloth. Avoid moisture, extreme temperatures, and do not disassemble the device.

User questions about DSC-HDMI-VGA-001 Cablexpert

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Audio/video converter in PDF format for free! Find your manual DSC-HDMI-VGA-001 - Cablexpert and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DSC-HDMI-VGA-001 by Cablexpert.

USER MANUAL DSC-HDMI-VGA-001 Cablexpert

DSC-HDMI-VGA-001 HDMI TO VGA CONVERTER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Features

  • Compact HDMI to VGA converter
  • Converts digital HDMI input into analog VGA and 3.5 mm audio output
  • Up to 1920x1080@60Hz high bandwidth support, HDMI v.1.3 compliant
    • Output video resolution remains the same as input video resolution

Specifications

• Output: 1 x VGA, 1 x 3.5 mm stereo audio connector
- Input: 1 x HDMI
• Supports resolutions up to 1080p (without extensions)
• Power supply: 5 V DC up to 1 A (optional)
• Dimensions: 66 mm x 55 mm x 20 mm
- Net weight: 40 g

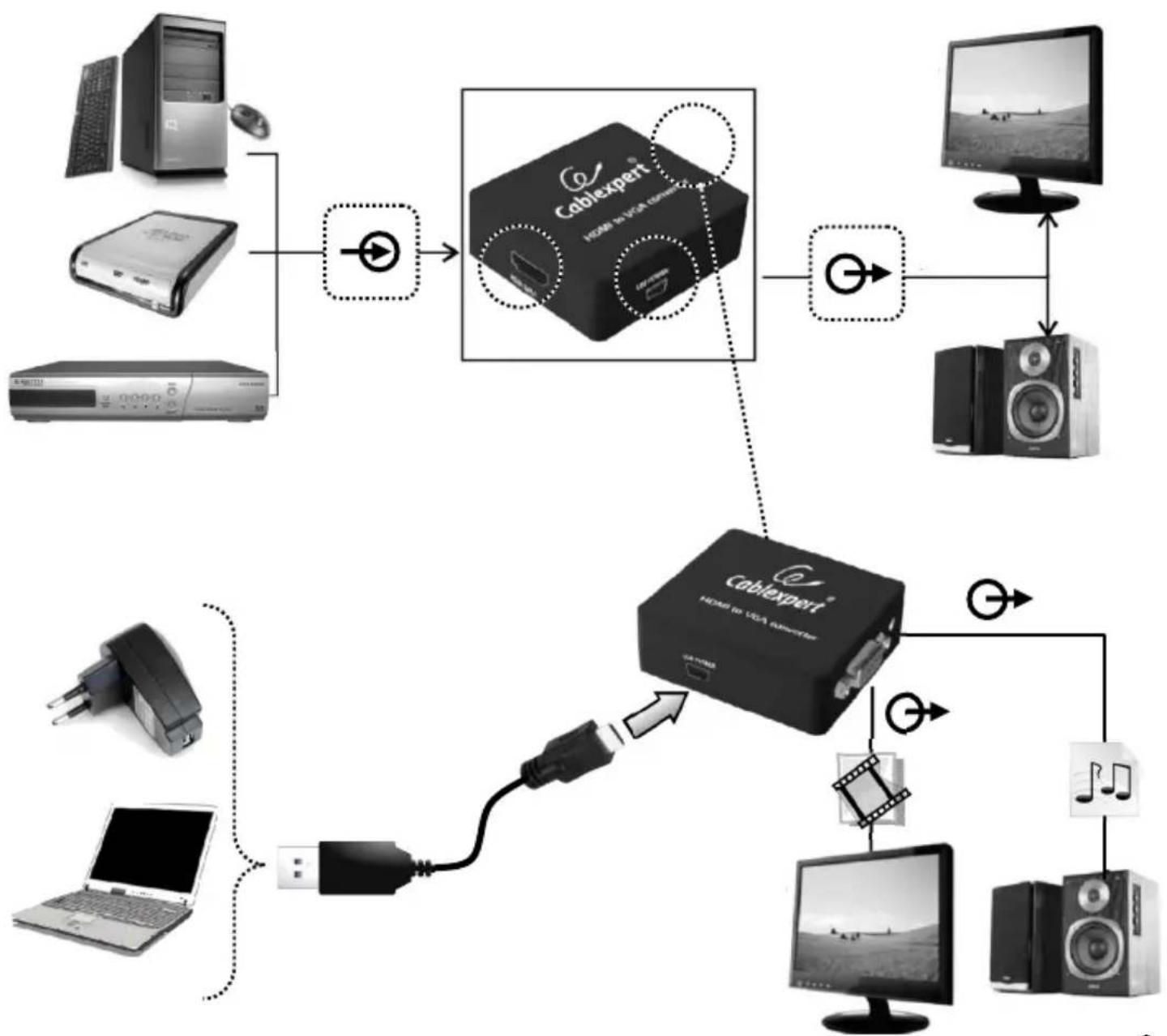


All brands and logos are registered trademarks of their respective owners

Cablexpert DSC-HDMI-VGA-001 - Specifications - 2

All brands and logos are registered trademarks of their respective owners

Declaration of Conformity

We,

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: +31-(0)36-5211588. Fax: +31-(0)36-5347835

declare under our own responsibility that the product :

Model :

DSC-HDMI-VGA-001

Product description:

DSC-HDMI-VGA-001 HDMI to VGA converter

to which this declaration refers conforms with the relevant standards :

European directive(s):

EMC(2004/108/EC)

European standards:

EMC: EN 55022:2010;EN 55024:2010

Authorized signature

All brands and logos are registered trademarks of their respective owners

GARANTIE VOORWAARDENCONDITIONS DE GARANTIE
De garantietermijn bedraagt 24 maanden en gaat in op de aankoopdatum van het product door de eindgebruiker. Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.Garantie est de 24 mois a partir de la date d'achat de l'utilisateur final.Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil.Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation.Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit.Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie.Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..).Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie.Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir.Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V.Wittevrouwen 56, 1358CD AlmereThe Netherlandswww.gembird.nl/supportsupport@gmb.nlTel. +31-36-5211588€ 0,15 p/m binnen NederlandExclusief mobiele telefoonkostenGembird Europe B.V.Wittevrouwen 561358CD Almere, The Netherlandswww.gembird.nl/supportsupport@gmb.nlTel. +31-36-5211588Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / minPrix d'appel depuis telephone mobile / autre pays - selon operateur

ГАРАНТИЙНЫЙ ТАЛОН
