USER MANUAL CMS 803DC Q TANNOY

Close-up of two white ceramic speakers with black centers and metallic outer casing (no text or symbols visible)

CMS 3.0 Series

CMS803DC BM/PI/Q / CMS803 PI BACKCAN

8" Full Range Ceiling Loudspeaker with Dual Concentric Driver

CMS603DC BM/PI / CMS603ICT BM/PI/LS / CMS603 PI BACKCAN

6" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver

CMS503DC BM/PI/LP / CMS503ICT BM/PI/LP / CMS503 PI BACKCAN

5" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver

CMS403DCE / CMS403ICTE

4" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver and adjustable "eyeball" design

2 CMS 3.0 Series Quick Start Cyclic 3

EN

Safety Instruction

1. Read these instructions.

2. Keep these instructions.

3. Need all warnings.

4. Followal instructions.

5. Do not use this apparatus near water.

6. Clean dry with dry bulb.

7. Do not think any ventilation openings install in accordance with the manufacturer's instructions.

8. In actiatal transversal system

as radiators, heat registers, stores, or other apparatus

(including amplifiers) that produce heat

1. Use only attachments/accessories specified

by the manufacturer.

ES

1. Use only with

the cart, stand, tripod,

obtects of 1962 specified to the maculatus of

with the sum

DE

When a game is required

PT

combination to assist injury from tis-sex

1. Correct disposal of this

product: This symbol indicates that

this product must not be disposed

2020年1月7日

(2019)5III and your national

law. This product should be taken

to a collection center licensed for

the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

1. Do not install in a confined space, such as a

book case or similar unit.

1. Do not place naked flame sources, such as lighted

candles, on the apparatus.

unipede, separia of interest

fabricante o suministrado

junto con

The following table is presented in the following table:

The following table is a duplicate of the previous table:

generalment available at 15, Equipments

Landshits abfillan as antecomp

A. Sina todas as instructes

m = 311

A

区

X

uncharikh, 2012; 57, 61, 63

Associate are appreciative élimite et élimite.

m = 311

PT

IT

4 CVS 3.0 Series Quick Start Guide 5

HL Belangrijke

houseprice 3.04 mag upgrades 2) product market

Thank you for purchasing this Tannoy Ceiling Monitor System product. Designed for both speech and music program material, the Tannoy CMS range provides exceptional sonic quality and long-term reliability in all ceiling mount applications. The CNS 3.0 DC series features new 16 ohm Dual Concentric drivers for improved performance and prolonged service life.

Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

All CMS loudspeakers are shipped in pairs and provided with the following accessories as standard: C-ring, tile-bridge kit, cut-out template and paint mask. A plaster (mud) ring is available as an optional accessory.

Safety Notices

Some regional construction codes require the use of a secondary method of securing loudspeakers in the ceiling to provide security of a backup support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. For PI models, the secondary support line should be attached from the back of the driver chassis to a source point on the ceiling. Please consult the relevant construction codes in your region.

When using a power driver to install the product, it is essential to use the correct torque level settings to avoid over-tightening and damage to the ceiling material or clamps. Recommended torque setting: 1.5 Nm

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

The CMS 603 ICT LS is UL-1480, category UUMW, for use with non-DC supervised systems.

Electrical Safety Notice: To comply with the standard IL-1480, metal-clad flexible conduit (5K) is required for connection to the terminal block for proper earth grounding.

In order to comply with UL regulations, the PI backcan must always be used with the CMS PI models.

SHE

In addition, the number of numbers in the number of numbers is 1.25308 (1983). It corresponds to the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers

Product Feature Identification

IMPORTANT NOTE: Drawings for each loudspeaker below are generic and apply to the loudspeaker types specified. Some variations will be apparent in some models, but differences are not critical for installation purposes except as noted.

Blind Mount

The blind-mount models are supplied with a pre-fitted backcan. Above applies to all models as well any others that do NOT have a "PI" suffix.

Pre-install

Two technical illustrations of mechanical components, one showing a circular housing and the other a 3D architectural model (no text or symbols visible)

A pre-install (PI) unit is shown without the optional pre-install backcan.

Pre-install backcan

Two 3D renderings of cylindrical electronic components with internal cavities and mounting holes (no text or symbols visible)

Optional pre-install (PI) backcan for PI models.

NOTE: The CMS 603DC / ICT PI and CMS 803DC models have the transformer pre-attached to the inside of the backcan. The CMS 503DC / ICT PI has the transformer pre-attached to the loudspeaker assembly.

8 CVS 3.0 Series Quick Start Cuke 9

Accessories

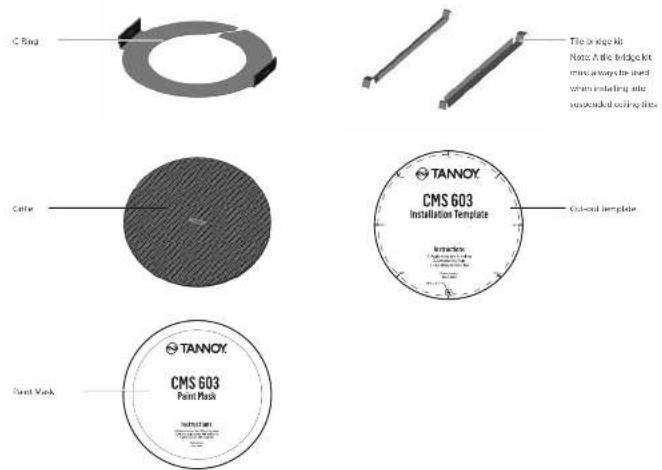

Standard Accessories

Optional Accessories

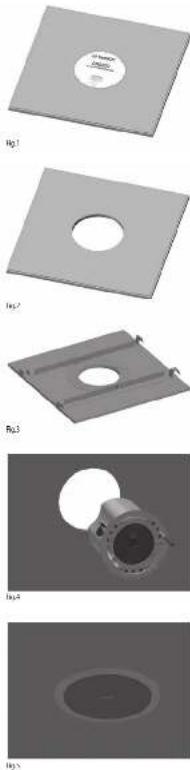

Installation Guide for Suspended Ceilings

1. Remove the ceiling tile from its frame and place it on a flat surface. Position the cutout template (self adhesive backed) on the tile. (Fig.1)
2. Cut out the hole in the ceiling tie using a pad saw following the broken line indicated on the template (Fig.2)
3. Place the C-Ring and tile-bridge on top of the ceiling panel, aligning the C-Ring over the hole, and screw the C-Ring to the tile bridge using the fixings provided. (Fig. 3)

4. Go to the 'Wiring and Setting Up' chapter.

5. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (NOTE: Screws have a Poziziv head; use of a Poziziv driver is recommended). If using a power driver, Tannoy recommends a torque setting of 1.3 Km. (Fig.4) DO NOT OVERTIGHTEN!

6. Attach the nylon safety to the hooks on the front taffle before attaching the gille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.5). (With the CMS 403DCelCTe, the gille is already fitted to the product.)

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step 5, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

10 CMS 3.0 Series

Installation Guide for Sheetrock (Plasterboard) Ceilings

1. Position the cutout template (self adhesive backed) on the ceiling. (Fig.1)
2. Cut out the hole in the ceiling using a pad saw following the broken line indicated on the template then slide the C-ring into the ceiling, aligning it over the cut-out hole. (Fig.2)
3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.
4. Slide the speaker assembly through the holo. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. [NOTE: Screws have a PazDriv head; use of a PazDriv driver is recommended]. If using a power driver, Tamnoy recommends a torque setting of 1.5 Nm. (Fig.3) DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front table before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). (With the CVS-403DCe/ICTe, the grille is already fitted to the product.)

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step-1, stivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

Fig.1

[5]

19.1

184

Installation Guide for Optional Plaster Ring

Quick Star Guide 11

EN

An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly constructed, non-suspended ceilings.

1. Nail or screw the plaster ring to the joints. (Fig. 1)
2. Lay the speaker wiring to where the speaker will be fitted and complete the plastering work on the ceiling. (Fig.2)
3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.
4. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fox") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (Note: Screws have a PoziDriv head; use of a PoziDriv driver is recommended). If using a power driver, Tamney recommends a torque setting of 1.5 Km. (Fig.3)
   DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). With the CMS 4030Ce/CTe, the grille is already fitted to the product.)

Hg

Fig.2

B(3

FLL4

NOTE ON INSTALLATION OF CMS 403DCE/ICTe:

Before tightening the screws in step 4, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

12 CVS 3.0 Series Quick Start Juice 13

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

An optional pre-install backcan is available for all pre-install (PI) models. The backcan is designed for pre-installation in newly constructed, non-suspended ceilings. NOTE: The CMS 603DC/CT and CMS RHDC models have the transformer pre-attached to the inside of the backcan; the CMS 503DC/CT models have the transformer pre-attached to the loudspeaker assembly.

1. Attach the backcan to a safe and secure fixing point. This can be done in a number of ways. METHOD 1: Fix the backcan to a secure fixing point by using suitable fixings with the 4 fixing holes provided on the PI backcan. (Fig.1)

METHOD 2: Secure the backcan to a safe and secure fixing point using suitable fixings with the flexible straps that are attached to the P1 backcan. (Fig.2)

METHOD 3:

a. Attach the PI backcan to the optional pre-mount ring (plaster ring) using the fixings provided with the pre-mount ring. (Fig.3)

b. Next, secure the wings of the pre-mount ring to a safe and secure fixing point by using suitable fixings. (Fig.4)

Please turn over

1

F42

131

F44

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

1. Attach the conduit to the installed backcan. This can be done in two ways:

METHOD 1: You can use the clamp at the back of the pre-install backcan. The product will accept a squeeze connector with a thread size of up to 22 mm. To remove the cable clamp, simply uncrew the threaded washer (under the wiring cover) which holds the cable clamp in place and replace it with a conduit squeeze connector. (Fig.5)

METHOD 2: You can use any of the three knock-out points at the sides of the PI backcan (19 mm, 22 mm or 28 mm diameter). (Fig.6)

1. If conduit is not chosen as the wiring method, run an approved speaker cable to the installed can. Terminate in the top mounted cable clamp or with an approved cable connector in one of the three knock-out points at the sides of the PI backcar.

2. Cut hole in the proper location in the ceiling using a pad saw. Place the pre-install backcan over the hole. (Fig.7)

1. Go to the 'Wiring and Setting Up' chapter, then return to point 6 below.

2. Side the speaker assembly through the note. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. NOTE: Screws have a PostDrive head; use of a PostDrive driver is recommended). If using a power driver, Tammy recommends a torque setting of 1.5 Nm. (Fig. 8) DO NOT OVERTIGHTEN!

3. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position. (Fig.9)

18月
Fig.5

Wiring and Setting Up

1. Open the wiring cover (if applicable) and locate the Euro-type connector plug and socket at the back of the speaker. [Fig.1]

2. For connection to an amplifier, use Pins 1 and 2 (Fig.2):

• Fin 1 is positive

- Pin 2 is negative

For connection to additional speakers in a distributed line, Pins 3 and 4 are in parallel where: • Pin 3 is negative

- Pin 4 is positive

1. Close the wiring cover and tighten both screws on the cable clamp (if applicable).

2. Use the rotary switch on the front of the unit to select low impedance (Lo2) mode or high impedance (70 V or 100 V) for distributed applications.

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.

CMS 403DC/e/ICTe and CMS 503DC/ICT models (all variants) use a 30 W transformer. In distributed line applications, the transformer can be tapped at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for 70 V line systems. [Fig.3]

CMS 603DC/CT and CMS 803DC models (all variants) use a 60 W transformer. In distributed line applications, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tap for 70 V line systems. (Fig.4)

Quick Star Guide

Fig.1

1027

(b).

Fig.1

Painting

If desired, the grille and baffle panel may be painted to match the surrounding décor.

Painting the baffle:

- Carefully mask off the driver assembly using the paint mask provided to ensure that the paint does not come into contact with the cone and roll surround.

- Apply several thin coats of paint – this will provide a better finish than one overly thick coat.

Painting the grille:

• Carefully remove the acoustically transparent grille cloth from the reverse side of the grille.
• Paint the grille and then replace the grille cloth - several thin coats of paint will provide a better finish than one overly thick coat.
• Re-bond the grille cloth to the grille over the entire area using a light spray-adhesive to avoid audible resonances.
