14 SAT SUB and SAT 3

Thank you for purchasing this TANNOY loudspeaker. This product range is ideal for both background and foreground music in bars, restaurants and shops. It has simple plug and play deployment, with no external processing required. The SAT 3 satellite speakers connect to the SAT SUB subwoofer

Features

SAT SUB

• Slimline 6.5 ^st subwoofer • Integrated crossover and terminals for 2 or 4 satellite speakers • Loop-through connection terminals
• 80 Watts average, 120 Watts program - 32 Hz - 260 Hz (-10dB) bandwidth - Built-in transformer for 70/100 V operation
  • Wall mountable • Matte black or white finish with steel grille

SAT 3

• Discrete surface mount loudspeaker for background and foreground music - Lightweight 2.5" full-range driver
• 15 Watts average, 25 Watts program • 200 Hz - 20 kHz (-10dB) bandwidth • Wide constant directivity dispersion for optimum coverage
• Semi matt black or white finish fits unobtrusively into any environment - Pan/tilt wall and ceiling mount included

SAT SUB 4 PACK

- Packaged Satellite-Subwoofer Loudspeaker System for Commercial Applications - Contains four discrete SAT 3 satellite speakers plus one SAT SUB subwoofer loudspeaker system

Unpacking

Every TANNOY product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to them for inspection.

Safety Notices

Some regional construction codes require the use of a secondary method of securing loudspeakers to provide the security of a backup support. A secondary support line should be attached from the secondary safety screw provided on the rear of the subwoofer, to a strong source point on the wall.

Before installing the loudspeaker, please consult the relevant construction codes in your region.

When using a power driver to install the product it is essential to use the correct torque level settings to avoid over tightening and damage to the wall material.

TANNOY will not be held responsible for any damages caused by the improper installation of these loudspeakers.

Product Feature Identification

SAT 3

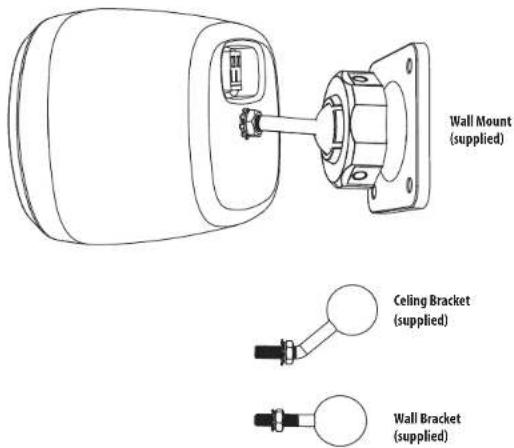

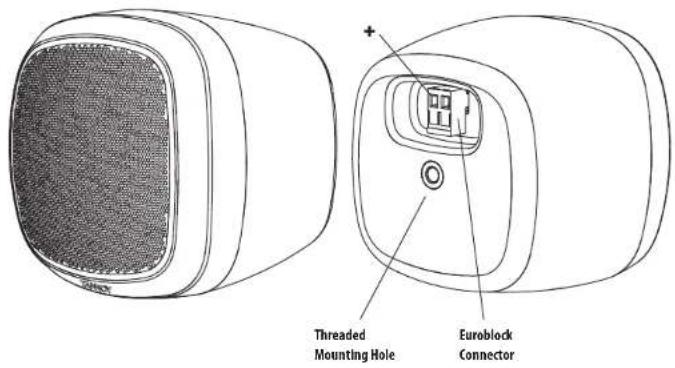

Threaded Mounting Hole Euroblock Connector

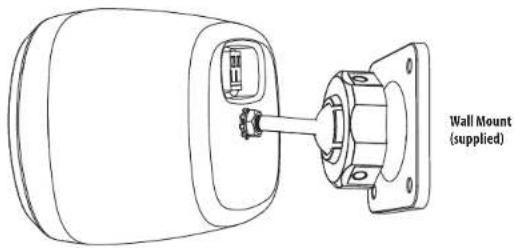

Wall Mount (supplied) Ceiling Bracket (supplied) Wall Bracket (supplied)

Product Feature Identification SAT SUB

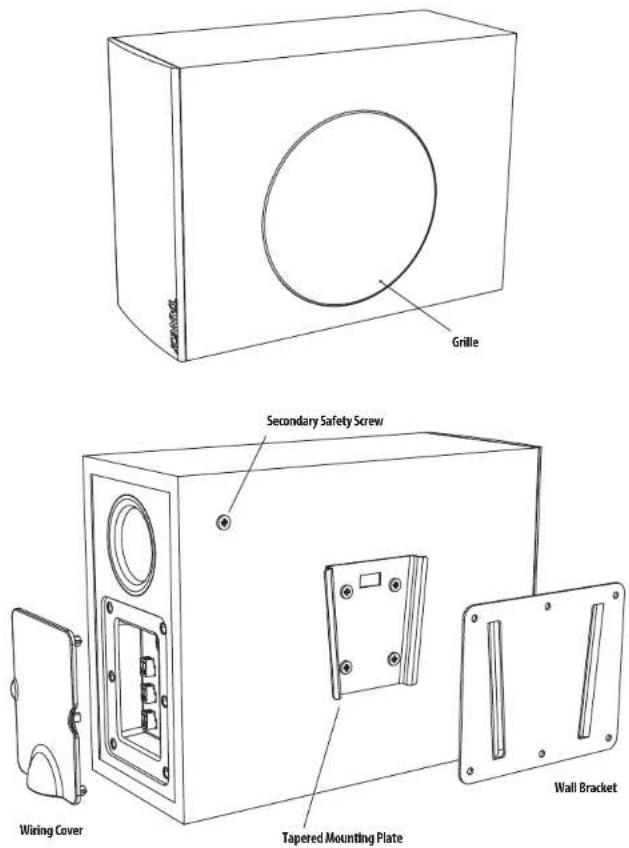

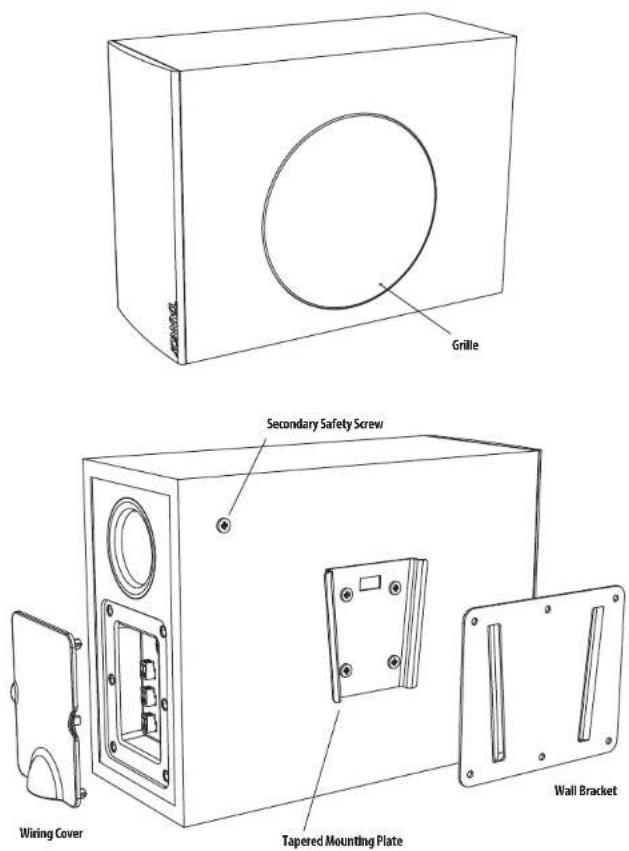

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

Wiring and Setting Up

EN

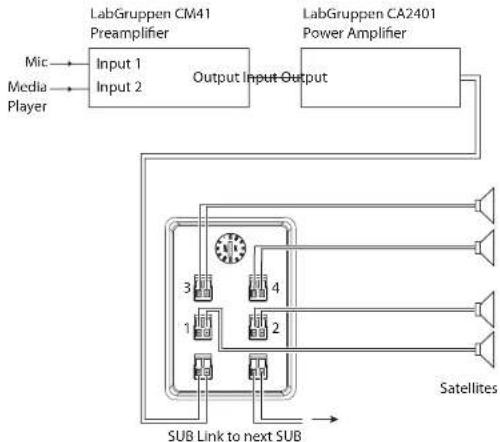

Typical Hookup Diagrams

1. Input Sources such as a paging microphone and media player can be connected to a preamplifier such as the LabGruppen CM41. Its line-level output connects to a power amplifier such as the LabGruppen CA2401.
2. The speaker level output of the power amplifier connects to the Input connector on the SAT SUB subwoofer. See the next page for details of the connections.
3. The SAT 3 satellite speakers connect to the outputs on the SAT SUB subwoofer terminal plate.


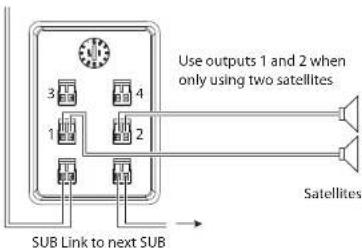

1. If only 2 satellites are used, then only connect them to outputs 1 and 2 as shown.

Use outputs 1 and 2 when only using two satellites Sub Link to next SUB Satellites

1. The link output can be used to connect to the input of another subwoofer.

Terminal Connections

1. WARNING: To avoid potential damage to your amplifier or loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. Before switching the amplifier ON, double check that all connections are secure and that the polarity is correct, and check that the Tap Selector switch on the subwoofer is set correctly to match your power amplifier.

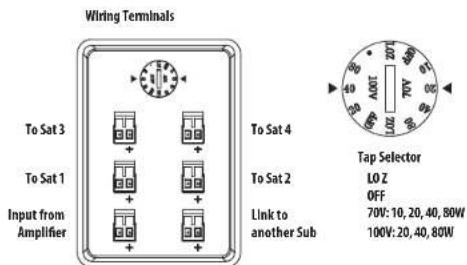

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 L0 Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

1. The speaker wires are attached to the screw terminals of Euroblock connectors, and not to the subwoofer and satellite loudspeakers.
2. The mounting brackets of the subwoofer and satellite speakers can be preinstalled and the Euroblock connectors wired up, and the subwoofer and satellite speakers added at a later stage.
3. The two screw terminals of the Euroblock connectors are marked positive (+) and negative (-).
4. Strip off approximately 8 mm (1/4") of the outer protective layer of one conductor and twist its inner cores together to prevent shorting from stray wires. Insert the core into the screw terminal of the Euroblock connector, while ensuring that correct polarity is maintained. Repeat this for both speaker wires. Gently pull on the wires to verify they are making a secure connection.

Pure electrical circuit lines without any symbols

SAT SUB Subwoofer Installation

1. WARNING: To avoid potential damage to your amplifier or loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. The procedure below describes the installation of the SAT SUB subwoofer into a typical stud wall with drywall/plasterboard.
3. Locate a suitable mounting position for the SAT SUB subwoofer within the room, that is practical and will give good audio performance. You can try connecting and operating the system with the SAT SUB located in various room positions to find the best performance.
4. Use a stud-finder to locate a suitable nearby stud and mark this position. WARNING: Make sure that there are no power lines, other cables, or plumbing such as water, sewer, gas lines in the chosen location.
5. The SAT SUB mounting bracket should be mounted to a stud. The screws must be long enough to enter into the wood and make a secure and safe mounting position. Make sure that the center top and center bottom mounting holes are used to attach to the stud. Check that the plate is level (and the right way up).
6. For the other mounting holes not over a stud, suitable screws and wall plugs must be used to make a secure and safe mounting position. All mounting holes must be used. Consult the relevant construction codes in your region.

Wall Stud • All 6 mounting holes are used • Center the mounting plate over the stud • Wall plugs are used when not over the stud

Wall Mounting Plate Centered on Stud

1. If the mounting bracket is to be mounted to drywall (not over a stud), or on a solid masonry wall, then suitable screws and wall plugs must be used to make a secure and safe mounting position. Consult the relevant construction codes in your region.
2. Run the speaker wire from your amplifier to this location, leaving enough slack to allow for the connection. Follow the information on the previous pages to connect the speaker wires from your power amplifier to the Euroblock connector.
3. If it will be some time before the SAT SUB subwoofer is installed, cover the mounting bracket and any wiring to prevent any dust, moisture, or paint from entering.

4. The SAT SUB subwoofer is provided with an attachment point for a secondary safety cable. This will reduce the chance of the SAT SUB from coming off the wall during an earthquake. Connect up your safety cable to the SAT SUB before mounting it to the wall.

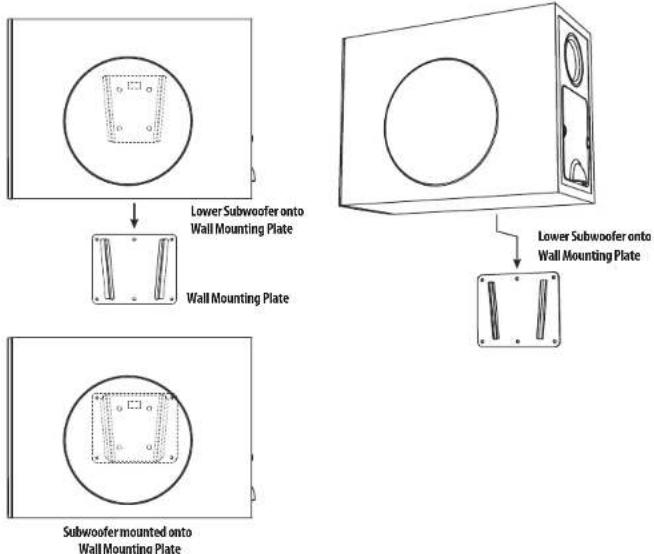

5. When ready, carefully align the mounting bracket attached to the SAT SUB subwoofer with the mounting plate on the wall, and lower into position.

Lower Subwoofer onto Wall Mounting Plate Wall Mounting Plate Lower Subwoofer onto Wall Mounting Plate Subwoofer mounted onto Wall Mounting Plate

1. Open the cover to the wiring terminals, and connect the Euroblock connector from the power amplifier. If the SAT 3 satellites are installed, connect their Euroblock connectors as well.

SAT SUB Floor Installation

1. Four self-adhesive rubber feet are provided in case the SAT SUB subwoofer is to be used in a standing position, and not mounted to a wall. Press each foot securely in each corner of the bottom, using the supplied paper positioning template as a guide. Make sure the surface is clean and dry before pressing the feet in place.

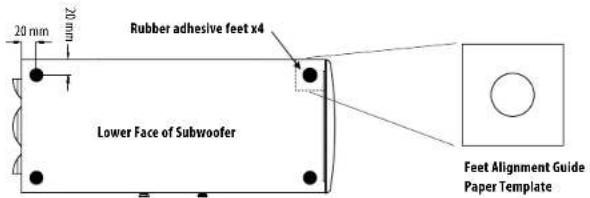

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

SAT 3 Satellite Installation

1. WARNING: To avoid potential damage to your amplifier or loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. The procedure below describes the installation of the SAT 3 satellite into a typical wall or ceiling with drywall/plasterboard.
3. Locate a suitable mounting position for the SAT 3 satellite within the room, that is practical and will give good audio coverage and performance.
4. Use a stud-finder to locate a suitable nearby stud or ceiling joist and mark this position. WARNING: Make sure that there are no power lines, other cables, or plumbing such as water, sewer, gas lines in the chosen location.
5. The SAT 3 mounting bracket should be mounted to a wall stud or ceiling joist. The screws must be long enough to enter into the wood and make a secure and safe mounting position. Make sure that at least two mounting holes are used to attach to the stud. Check that the mounting bracket is level.
6. For the other mounting holes not over a stud, suitable screws and wall plugs must be used to make a secure and safe mounting position. All mounting holes must be used. Consult the relevant construction codes in your region.
7. If the mounting bracket is to be mounted to drywall (not over a stud or joist), or on a solid masonry wall, then suitable screws and wall plugs must be used to make a secure and safe mounting position. Consult the relevant construction codes in your region.
8. Run the speaker wire from your SAT SUB subwoofer to this location, leaving enough slack to allow for the connection. Follow the information on the previous pages to connect the speaker wires to the SAT 3 Euroblock connector.
9. If it will be some time before the SAT 3 satellite is installed, cover the mounting bracket and any wiring to prevent any dust, moisture, or paint from entering.
10. If the SAT 3 is being mounted to a wall, attach the straight mounting arm to the rear threaded hole, and tighten with a wrench. For ceiling mounting, use the bent mounting arm instead.

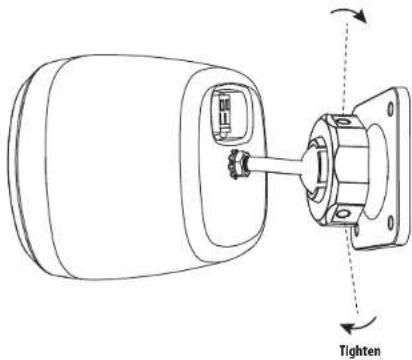

11. When the bracket is securely mounted to the wall or ceiling, undo the large nut and press the ball end of the mounting arm into the bracket. Press the arm firmly in place, and tighten the nut to secure the SAT 3 at the desired angle.

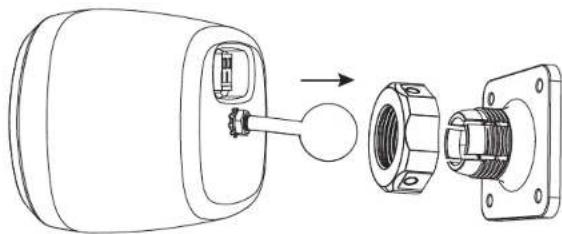

Technical line drawing of a mechanical component with exploded view showing internal parts (no text or symbols)

24 25 Quick Start Guide SAT SUB and SAT 3

1. Tighten the nut securely by using a small screwdriver or bar in any of the three holes in the circumference of the nut. (The hole diameter is 4.7 mm [0.185 inches].)

Technical line drawing of a mechanical assembly with labeled parts, showing a tightening mechanism (no text or symbols present)

System Testing

1. Check the wiring from the power amplifier to the SAT SUB subwoofer.
2. Check the wiring from the SAT SUB subwoofer to the SAT 3 satellites.
3. Check that the SAT SUB subwoofer Tap Selector is set correctly for your power amplifier and your system design.
4. Turn on the preamplifier first, and turn down the system volume.
5. Turn on the power amplifier.
6. Play your source material and adjust the volume slowly to the desired level.
7. Check that each loudspeaker is playing correctly.
8. In general use, turn on the preamplifier first, before the power amplifier, and when shutting down, turn off the power amplifier first, before the preamplifier. This will reduce the chance of turn-on and turn-off "thumps" being heard in your system.

Introducción

Use outputs 1 and 2 when only using two satellites 3 4 1 2 Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

• All 6 mounting holes are used
• Center the mounting plate over the stud
- Wall plugs are used when not over the stud

Lower Subwoofer onto Wall Mounting Plate Wall Mounting Plate

Lower Subwoofer onto Wall Mounting Plate

Diagram showing a square inscribed in a circle with labeled vertices and internal dashed lines, likely illustrating a geometric or mathematical concept.

Subwoofer mounted onto Wall Mounting Plate

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Technical line drawing of a mechanical assembly showing a component being inserted into a housing (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled 'Tighten' component (no text or symbols beyond label)

Prueba del sistema

Threaded Mounting Hole Euroblock Connector FR

Wall Mount (supplied) Ceiling Bracket (supplied) Wall Bracket (supplied)

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

Use outputs 1 and 2 when only using two satellites 3 4 1 2 Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

Wall Stud • All 6 mounting holes are used • Center the mounting plate over the stud • Wall plugs are used when not over the stud

Wall Mounting Plate Centered on Stud

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Installation du satellite SAT 3

Technical line drawing of a mechanical device showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Test du système

44 SAT SUB and SAT 3

Quick Start Guide

Use outputs 1 and 2 when only using two satellites 3 4 1 2 Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

Installation des SAT SUB Subwoofers

• All 6 mounting holes are used
- Center the mounting plate over the stud
- Wall plugs are used when not over the stud

Lower Subwoofer onto Wall Mounting Plate Wall Mounting Plate Subwoofer mounted onto Wall Mounting Plate

Lower Subwoofer onto Wall Mounting Plate

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

SAT 3 Satelliteninstallation

Technical line drawing of a mechanical assembly showing a housing, internal components, and a bolted joint (no text or symbols)

Technical line drawing of a mechanical assembly with labeled 'Tighten' component (no text or symbols beyond label)

Systemtests

Threaded Mounting Hole Euroblock Connector PT

Wall Mount (supplied) Ceiling Bracket (supplied) Wall Bracket (supplied)

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

Use outputs 1 and 2 when only using two satellites Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Technical line drawing of a mechanical device showing internal components and assembly (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Teste de Sistema

62 SAT SUB and SAT 3

Quick Start Guide

63

Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

IT

Use outputs 1 and 2 when only using two satellites 3 4 1 2 Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

• All 6 mounting holes are used
• Center the mounting plate over the stud
- Wall plugs are used when not over the stud

Lower Subwoofer onto Wall Mounting Plate Wall Mounting Plate

Lower Subwoofer onto Wall Mounting Plate

Diagram showing a square inscribed in a circle with labeled vertices and internal dashed lines, likely illustrating a geometric or mathematical concept.

Subwoofer mounted onto Wall Mounting Plate

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Technical line drawing of a mechanical assembly showing a component being inserted into a housing (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled 'Tighten' component (no text or symbols beyond label)

Test di sistema

Threaded Mounting Hole Euroblock Connector

Wall Mount (supplied) Ceiling Bracket (supplied) Wall Bracket (supplied)

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

Sub Link to next SUB Use outputs 1 and 2 when only using two satellites Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

- All 6 mounting holes are used

• Center the mounting plate over the stud

- Wall plugs are used when not over the stud

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Satellietinstallatie SAT 3

Technical line drawing of a mechanical assembly showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols)

Systeemtesten

Use outputs 1 and 2 when only using two satellites 3 4 1 2 Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 To Sat 2 Link to another Sub Tap Selector LOZ OFF 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

SAT SUB-subwooferinstallation

• All 6 mounting holes are used
• Center the mounting plate over the stud
- Wall plugs are used when not over the stud

SAT SUB Golvinstallation

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

SAT 3 satellitinstallation

Technical line drawing of a mechanical assembly showing a component with a valve and housing (no text or symbols)

Technical line drawing of a mechanical assembly with labeled 'Tighten' component (no text or symbols beyond label)

Systemtestning

Threaded Mounting Hole Euroblock Connector

Wall Mount (supplied)

Celing Bracket (supplied)

Wall Bracket (supplied)

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

Use outputs 1 and 2 when only using two satellites Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

• All 6 mounting holes are used
• Center the mounting plate over the stud
- Wall plugs are used when not over the stud

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

Technical line drawing of a mechanical assembly showing internal components and a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts, showing a tightening mechanism (no text or symbols present)

Testowanie systemu

100 SAT SUB and SAT 3

Quick Start Guide 101

配線とセットアップ

典型的な接続図

Use outputs 1 and 2 when only using two satellites Sub Link to next SUB Satellites

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Pure electrical circuit lines without any symbols

102 SAT SUB and SAT 3

Quick Start Guide 103

Lower Subwoofer onto Wall Mounting Plate Wall Mounting Plate

Lower Subwoofer onto Wall Mounting Plate

Diagram showing a square inscribed in a circle with labeled dimensions and internal dashed lines, likely illustrating a geometric or mathematical concept.

Subwoofer mounted onto Wall Mounting Plate

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

104 SAT SUB and SAT 3

Quick Start Guide 105

SAT 3 衛星の設置

Technical line drawing of a mechanical assembly showing internal components and a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts, showing a fastener and tightening mechanism (no text or symbols present)

システムテスト

106 107 Quick Start Guide SAT SUB and SAT 3

介绍

Threaded Mounting Hole Euroblock Connector

Wall Mount (supplied) Ceiling Bracket (supplied) Wall Bracket (supplied)

108 109 Quick Start Guide SAT SUB and SAT 3

产品特征识别

SAT SUB

Grille Secondary Safety Screw Wiring Cover Tapered Mounting Plate Wall Bracket

接线和设置

典型的连接图

Sub Link to next SUB Use outputs 1 and 2 when only using two satellites Satellites

110 111 Quick Start Guide SAT SUB and SAT 3

终端连接

Wiring Terminals To Sat 3 To Sat 1 Input from Amplifier To Sat 4 Tap Selector To Sat 2 LO Z OFF Link to another Sub 70V: 10, 20, 40, 80W 100V: 20, 40, 80W

Wall Stud All 6 mounting holes are used Center the mounting plate over the stud Wall plugs are used when not over the stud Wall Mounting Plate Centered on Stud

112 113 Quick Start Guide SAT SUB and SAT 3

20 mm 20 mm Rubber adhesive feet x4 Lower Face of Subwoofer Feet Alignment Guide Paper Template

SAT 3 卫星安装

Technical line drawing of a mechanical assembly showing internal components (no text or symbols)

114 115 Quick Start Guide SAT SUB and SAT 3

Technical line drawing of a mechanical assembly with no visible text or symbols

系统测试

SAT 3 with Ceiling Bracket

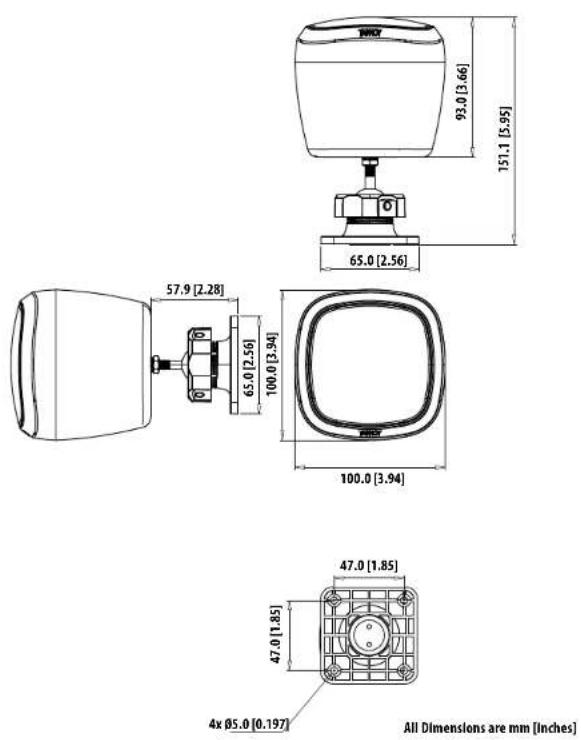

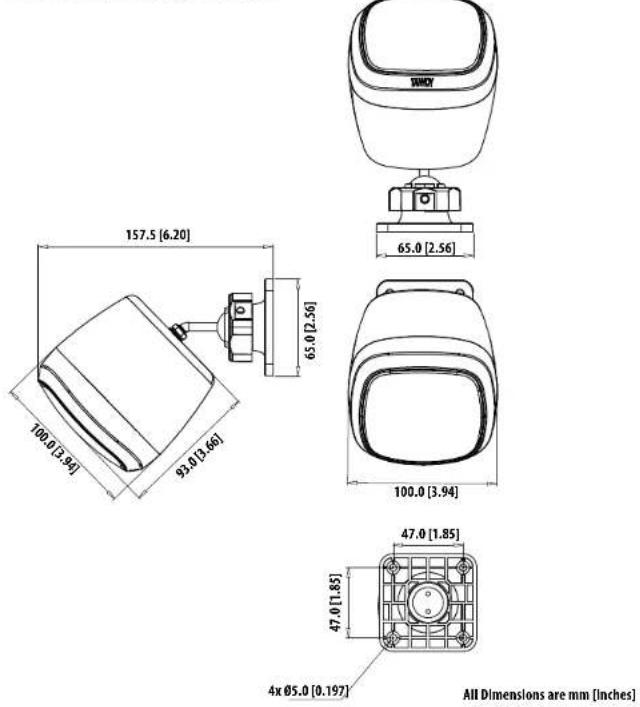

157.5 [6.20] 65.0 [2.56] 100.0 [3.94] 93.0 [3.66] 100.0 [3.94] 47.0 [1.85] 47.0 [1.85] 4x Ø5.0 [0.197] All Dimensions are mm [Inches]

116 117 Quick Start Guide SAT SUB and SAT 3

Dimensions

SAT 3 with Wall Bracket

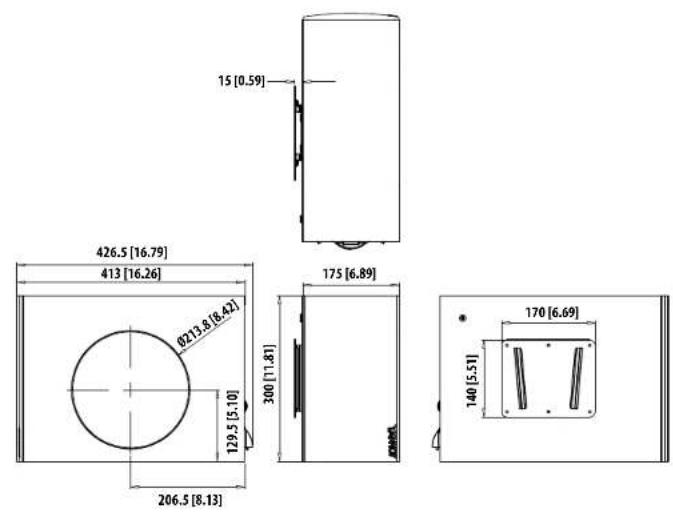

Dimensions

SAT SUB

All Dimensions are mm [inches]

118 SAT SUB and SAT 3

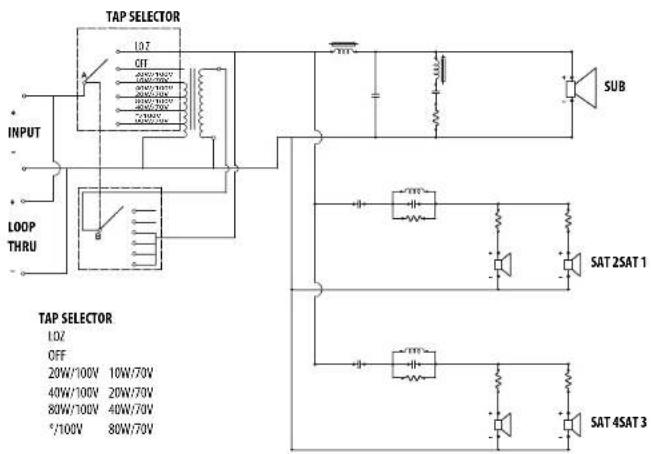

EN Block Diagram

TAP SELECTOR 107 OUT 40W/100V 40W/100V 40W/100V 40W/100V 40W/100V SUB INPUT LOOP THRU TAP SELECTOR LOZ OFF 20W/100V 10W/70V 40W/100V 20W/70V 80W/100V 40W/70V */100V 80W/70V SAT 2SAT 1 SAT 4SAT 3

Quick Start Guide 119

Specifications

EN

	SAT 3	SAT SUB
Performance
Frequency response (-10 dB)	200 Hz -20 kHz	32 Hz - 260Hz
Sensitivity 1 W/ 1m	83 dB	93 dB
Power handling
Average	15 W	80 W
Programme	25 W	120 W
Recommended amplifier power	25 W @ 16 Ω	120 W @ 8 Ω
Nominal Impedance	16 Ω	8 Ω
Maximum SPL @1 m	100 dB	116 dB
Transformer taps	NA	100V; 20, 40, 80, 8 LoZ, 70V; 10, 20, 40, 80, 8 LoZ
Crossover point	NA	200 Hz
Coverage angle @ 1 kHz	265" horizontal, 265" vertical
Transducers
Diameter/material/type	63.5mm (2.5") Paper	1 x 165 mm (6.5") Paper
Physical
Enclosure material	ABS	MDF
Grille material	Steel	Steel
Connectors	Phoenix Contact terminal block	Phoenix Contact terminal block x 6
Dimensions (HxWxD)	100 x 100 x 93 mm(speaker only,no bracket included)	175 x 413 x 300 mm(speaker only, no bracket included)
Net weight	1.16 kg (2.6 lbs)(bracket included)	10.7 kg 23.5 lbs)(bracket included)
Included accessories	Ceiling mount bracket,wall mount bracket	wall mount bracket,4x rubber feet, and paper positioning template

120 121 Quick Start Guide SAT SUB and SAT 3

Other important information Other important information

Important information As

ortantes

Informations importantes

1. Register online.

Please register your new Music Tribe equipment right after you purchase it by visiting musictribe.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.

1. Malfunction. Should your Music Tribe Authorized Reseller not be located in your vicinity, you may contact the Music Tribe Authorized Fulfiller for your country listed under "Support" at musictribe.com. Should your country not be listed, please check if your problem can be dealt with by our "Online Support" which may also be found under "Support" at musictribe.com. Alternatively, please submit an online warranty claim at musictribe.com BEFORE returning the product.

1. Registro online.

122 123 Quick Start Guide SAT SUB and SAT 3

Other important information

124 125 Quick Start Guide SAT SUB and SAT 3

CE

Hereby, Music Tribe declares that this product is in compliance

with Directive 2011/65/EU and Amendment 2015/863/EU,

Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and

Directive 1907/2006/EC, and this passive product is not applicable

to EMC Directive 2014/30/EU, LV Directive 2014/35/EU.

Full text of EU DoC is available at https://community.musictribe.com/

EU Representative: Music Tribe Brands DK A/S

Address: Gammel Strand 44, DK-1202 København K, Denmark

UK Representative: Music Tribe Brands UK Ltd.

Address: 6 Lloyds Avenue, Unit 4CL London EC3N 3AX, United Kingdom

EN
