Brand	Tannoy
Model	PCI 6DC IW
Product Type	In-wall Speaker
Category	Speaker
Design	Dual Concentric
Mounting	Recessed in wall, with frame and clamping tabs
Grille	Perforated metal, magnetic attachment, paintable
Power	Passive (requires external amplifier)
Connectivity	Screw terminals, 12-18 AWG cable recommended
HF Adjustment	3-position switch (0 dB, attenuation), except QCI 6DC IW
Baffle Material	AEM (Advanced Engineering Material) quick-mount
Maintenance	Clean with a dry cloth
Operating Temperature	Tropical or moderate climate, max 45°C
Repairability	No user-serviceable parts; intervention by qualified professional
Optional Accessories	Back can IW, PMK pre-mount kit
Safety	Do not expose to moisture, do not open enclosure, disconnect before maintenance
Warranty	Music Tribe limited warranty (see website)
Disposal	Do not dispose with household waste, follow WEEE directive

Frequently Asked Questions - PCI 6DC IW TANNOY

What are the cut-out dimensions for the Tannoy PCI 6DC IW speaker?

The paper cut-out template provided with the speaker serves as a guide. The exact dimensions are not specified in the manual, but the speaker is designed to fit an opening in drywall, typically on 2"x4" studs spaced 16" apart. Use the template to mark and cut carefully.

How to install the speaker frame in the wall?

After cutting the opening, remove the speaker assembly from the frame by loosening the screws. Adjust the mounting tabs to the folded position, insert the frame into the opening, then rotate the tabs to the clamping position to secure the frame. Use an assistant to hold the frame during installation.

How to connect the speaker cables?

Ensure the amplifier is off. Strip about 8 mm of each conductor and connect the positive wire to the positive terminal (+) and the negative wire to the negative terminal (-) on the frame. Tighten the terminal screws. Use 12 to 18 AWG cable.

How to check speaker phase after installation?

Turn on the amplifier at low volume and listen. If the sound seems hollow or lacks bass, the phase is likely reversed. Turn off the amplifier and reverse the wire connections on one speaker to correct.

Can I paint the speaker grille?

Yes, the perforated metal grille can be painted. It is strongly recommended to use spray paint to avoid clogging the holes. If using a brush, apply several thin coats rather than one thick coat.

How to remove the speaker grille?

Insert an unfolded paperclip or stiff wire through two holes near a corner and pull gently. The grille is held by magnets; remove it by pulling progressively at each corner to avoid deforming the mesh.

What to do if the speaker buzzes or rattles?

A buzz or rattle may be caused by debris or cables vibrating against the cone. Ensure all cables are secured inside the wall and no foreign objects are in contact with the speaker. Also check the connections.

What is the purpose of the HF switch on the speaker?

The HF (high frequency) switch offers three positions: 0 dB (flat), and two attenuation positions. It allows adjustment of the treble response according to room acoustics or speaker placement. (Not available on the QCI 6DC IW model.)

Can I use this speaker outdoors?

No, the Tannoy PCI 6DC IW is designed for indoor use. It must not be exposed to rain, moisture, or temperatures above 45°C. Install it in a dry location protected from splashes.

Where can I find the full manual or get a translation?

The full manual is available as a PDF on notice-facile.com. You can request a translation into another language by providing your email address on the product page.

USER MANUAL PCI 6DC IW TANNOY

Premium 5" Dual Concentric In-Wall Loudspeaker for Installation Applications

PCI 6DC IW

Premium 6" Dual Concentric In-Wall Loudspeaker for Installation Applications

QCI 6DC IW

High-performance 6" Dual Concentric In-Wall Loudspeaker for Installation Applications

EN Important Safety Instructions
Instructions
Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. The only high quality professional speaker cables with ^15 TS or twist locking plugs pre installed. All other installation or modification should be performed only by qualified personnel.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure—voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.
Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.
Caution To reduce the risk of fire or electric shocks, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as wares, shall be placed on the apparatus.
Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.
1. Read these instructions.
2. Keep these instructions
3. Herdall warnings.
4. Follow-all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiates, heat registers, slivers, or other apparatus including amplifiers! that produce heat.

1. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding proing. The wide blade or the third proing are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

2. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

3. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug in damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MANG socket outlet with a protective earthing connection.

4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain nearly operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEE Directive (2012/19/EU) and

should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment. EEL, the misunderstanding of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEL, at the same time your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your households waste collection service. 18. Do not install in a confined space, such as a book case or similar unit.

1. Do not place naked flame sources, such as lighted candles, on the apparatus.

2. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

3. This apparatus may be used in tropical and moderate climates up to 45°C.

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Vidas, Klark Teknik, Lab Suggers, Lake, Tanney, Turbosound, TC Electronic, TC Helicon, Behringes, Sugera, Osterheim, Auratone, Aston Microphones and Coledudio are trademarks or registered trademarks of Music in The Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at musictribe.com/warranty.

BESCHRÄNKTE GARANTIE

Thank you for purchasing this Tamney Dual Concentric in Wall Loudspeaker for Installation Applications. Tamney speaker systems are monitor quality speaker systems based on the company's expertise in the manufacture of premium quality cabinet loudspeakers and studio monitors. Exclusive drive unit designs and wide-bandwidth technology ensure that these loudspeakers deliver the performance that is essential for applications such as multi-room distributed audio installations, home theatre systems and discrete audio systems, as well as in the many other applications where space is at a premium but ultimate sound quality is still paramount. The speaker construction is based around a rigid moulded ABS cable with excellent structural integrity: this, when combined with the secure polycarbonate clamp mounting system (patient applied for: 0161892.9), ensures a performance-enhancing rigid acoustic coupling with the wall surface, and an Immunity stable platform for the drivers to deliver optimum performance. Complementing any style of decor, the perforated metal grille and low profile mounting frame can be paltered to blend in seamlessly with the domestic environment. The result is a system offering audioplike quality sound with minimal invasion of the living space.

Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

Safety Notices

Tammy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

ES

Introducción

Product Feature Identification

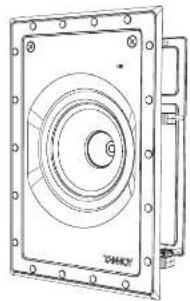

PCI 6DC IW

Technical line drawing of a mechanical component with concentric circular features and mounting holes (no text or symbols)

QCI 6DC IW

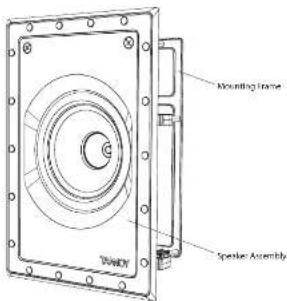

Mounting Frame Speaker Assembly TOMOY

PCI 5DC IW

Technical line drawing of a square mechanical component with concentric circles and mounting holes (no text or symbols)

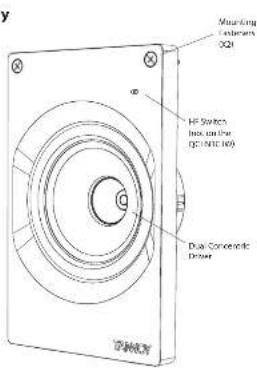

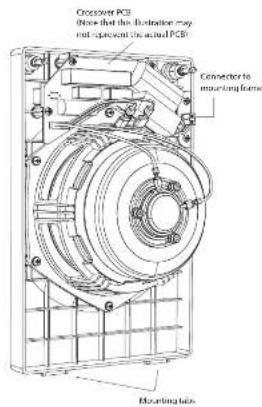

Speaker Assembly

Mounting Capacitors Q21 HF Switch laser on the (60/100/100) Dual Conromatic Driver

Crossover PCI Now that the Elevation may not represent the actual PCI Connector to mounting frame Mounting钮

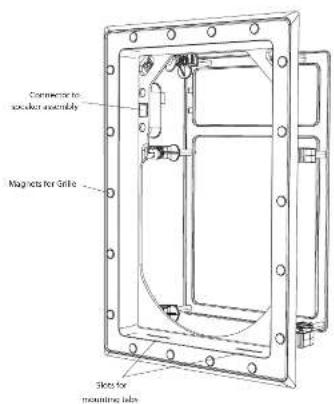

Mounting Frame

Connector to speaker assembly Magnets for Slide Skis for mounting tube

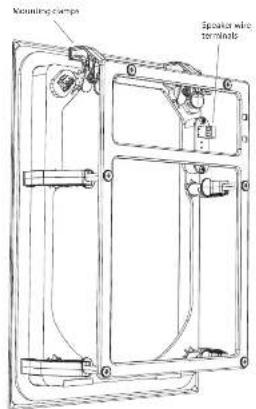

Mounting clips Speaker wire terminals

Product Feature Identification

Grilles
PCI SDC IW

PCI 6DC IW and QCI 6DC IW

Paint Masks
PCI 5DC IW

PCI 6DC IW and QCI 6DC IW

Cutout Templates

Optional PMK Pre-Mount Kit
PCI 5DC IW uses the PMK 5 IW
PCI 6DC IW and QCI 6DC IW uses the PMK 6 IW (shown below)

Frame Mounting Brackets

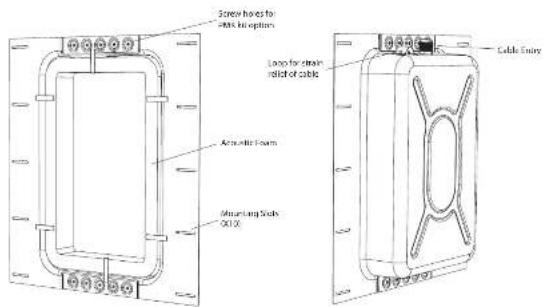

Optional Back can
for PCI 5DC IW, PCI 6DC IW, and QCI 6DC IW

Screen heads to Milk in options Loop for clean infill of cable Aromatic Foam Mounting Steel OUTX Cable Entry

Installation Guide

PCI 5DC IW, PCI 6DC IW, and QCI 6DC IW Installation

WARNING: This procedure requires the use of an assistant, and the use of personal protection equipment, such as safety glasses and gloves.

WARNING: To avoid potential damage to your loudspeaker, ensure that the power amplifier is switched OFF prior to connecting or disconnecting any cables.

WARNING: Make sure that there are no power lines, other cables, or plumbing such as water, sewer, gas lines in the chosen location.

The Back can IN is an optional back can for the PCI 5DC IV, PCI 6DC IV, and the PCI 6DC IV in Wall loudspeakers. The PMR pre-mount kits are also optional, and they can be used with or without the Back can IN. Installation details are shown in the quick start guide that comes with these items.

The procedure below describes the installation of the PCI 6DC IV into a typical 2" x 4" stud wall with 16" centers, with drywall/plasterboard already installed.

The details are the same for the PCI 5DC IV and the OCI 6DC IV in Wall loudspeakers.

Cutout Templates

The PCI 5DC IV, PCI 6DC IV and QCI 6DC PW loudspeakers are provided with paper cutout templates as a guide to cutting the drywall.

Procedure

Follow the procedure steps below in the order in which they are presented. Read all the instructions before starting.

1. Locate a suitable mounting position for the loudspeaker, using a stud-finder. WARNING. Make sure that there are no power lines, other cables, or plumbing such as water, sewer, gas lines in the chosen cutout location. Also make sure that the location is far enough from the wall studs so that all the clamping mechanisms can operate without interference.

2. Use the supplied cutout templates (Fig. 1) in the desired location and carefully cut out a hole in the drywall using a suitable handtool. Remove any dust and debris from the hole (Fig. 2).

3. Run speaker wire to this location (Fig. 3). Leave enough slack to make the connections when that time comes. Tie down the speaker cable to prevent it moving and rattling in operation. Make sure that the speaker cable does not come into contact with nails or screws that might damage the electrical insulation.

Fig. 1. Cutout Templates

Simple diagram with a central gray rectangle and a small heart symbol, no text or labels present

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

Installing the Frame into the Wall

With the drywall aperture cut, and the speaker wiring run to this location, as shown in the previous pages, the loudspeaker frame can now be installed.

The following illustrations show the PCI GDC IV, but the details are the same for the PCI SDC IV and the QCI GDC IV loudspeakers.

1. The loudspeaker baffle assembly is shipped inside the frame, and it should be removed as follows: Undo the two screws less than half a turn and then tilt the assembly out of the frame (Fig. 4). Store it in a safe dry place until it is ready to be installed.

2. Adjust all of the mounting clamps of the frame so they are in the stowed position (Fig. 5 and 6). They are adjusted by pulling on the spring-loaded metal tab, and then moving the clamps along their mounting posts and rotating them to the side. This will allow the frame to fix into the drywall aperture.

Note: The PCI SDC IV frame has four mounting clamps, and the PCI 6DC IV and OCI 6DC IV have six as shown.

Wiring the Frame

WARNING: To avoid potential damage to your loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.

WARNING: Before switching the amplifier ON, double check that all connections are secure and that the polarity is correct.

(Note that the speaker wire connections are made to the screw terminals of the frame.)

We recommend the use of insulated speaker wiring of between 12 and 18 AWG.

1. Carefully pull out the speaker cables and strip off approximately 8 mm (35°) of the outer protective layer from each conductor.

2. Locate the screw-terminal connector on the back of the frame (Fig. 7). The polarity of the connections is marked as shown in the illustration.

3. With the help of an assistant, hold the frame close to the wall aperture .

4. The positive wire from your amplifier should connect to the positive terminal. The negative wire from your amplifier should connect to negative terminal. Tighten the screw terminals to secure the wires.

S. Make sure that the speaker cable is secured to the frame, so it will not move and touch the speaker cone when it is installed.

1/2 Tum TM400 TM400

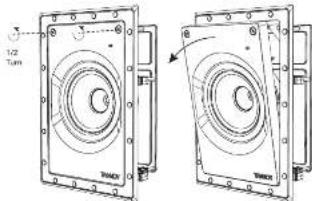

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Installation

With the speaker wiring connected to the frame, and the mounting clamps stowed, the frame can now be installed into the wall.
1. Carefully press the frame into the wall aperture, making sure not to trap or pinch the speaker wiring (Fig. 8).
2. Reach Inside the frame, and rotate the mounting clamps to the "Clamping" position, where they can exert a clamping force to the rear of the aperture (Fig. 9 and 10). Press the frame in and tighten each clamp, so the frame is secured in position (Fig. 11).
3. Check that the speaker wires are secured to the frame or inside the wall aperture, so they do not rattle in operation or touch the speaker cone.

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Painting

1. A paint mask is supplied to protect the loudspeaker frame from paint, dust, and debris. It allows you to paint and finish the wall after the installation of the frame.
2. Press the paint mask into the frame, where it will be kept in place by magnets (Fig. 12). This is left in place while the wall and frame surround is painted, and until the loudspeaker is ready to be installed.
3. It is strongly recommended that the metal perforated grille of the loudspeaker is sprayed, as this will avoid clogging of the holes. If painting with a brush is the only option, then several thin coats of paint will provide a superior finish to that achieved by one applied too thickly.

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

Installing the Loudspeaker Assembly

1. When the wall and frame have been painted, remove the paint mask from the frame. Keep it in a safe place in case you need it again for repainting.
2. Hold the loudspeaker assembly at an angle and fit the two protuding tabs on its bottom edge, into the two corresponding slots in the frame (Fig. 13).
3. Tilt the loudspeaker assembly up and press the two fasteners inwards until they click into position, securing it into the frame.
4. The loudspeaker is automatically connected to the speaker wiring when it is installed into the frame.
5. Removal of the loudspeaker assembly is done by turning the two fasteners less than half a turn, then tilting the assembly out of the frame, and disconnecting the wire.

Fig. 13. Installing the Loudspeaker Assembly into the Frame

System Testing

1. Switch on the amplifier with the volume control at its lowest setting. Select a suitable signal source and slowly turn up the volume to a low level. Check that the loudspeaker is working correctly and is in phase - if not, switch off the amplifier and recheck the connections.
2. The HF switch has three positions, with 0 dB being flat. Adjust as necessary to suit the room position and acoustic conditions (Fig. 14). (Not available on OCI 6DC IV).
3. Listen carefully to ensure that there are no buzzes or rattles caused by detrieis or cables during installation.

HF Switch 0 dts +1 dts +1.5 dB
Fig. 14. HF Switch Positions

Grille Installation

1. Press the grille into the frame, where it will be held in place by magnets (Fig. 15).
2. To remove the grille, loop an opened paper dip or similar length of firm wire, through two holes near a corner and pull gently. The grille is intended to be a tight fit, so insert the wire at each corner in turn, pulling carefully to avoid distortion of the mesh.

Fig. 15. Installing the Grille

Guía de instalación

Pure diagram of a door with a circular symbol on the wall, no text or labels present

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

25

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols visible)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Instalación

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Cuadro

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

27

Fig. 13. Installing the Loudspeaker Assembly into the Frame

HF Switch 1.5 dB

Fig. 14. HF Switch Positions

Fig. 15. Installing the Grille

Pure diagram of a door with a small circular symbol on the left panel, no text or labels present.

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Installation

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Peinture

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

Fig. 13. Installing the Loudspeaker Assembly into the Frame

HF Switch 1.5 dB

Fig. 14. HF Switch Positions

Fig. 15. Installing the Grille

Installation Guide

Simple diagram with a central gray rectangle and a small circular symbol, surrounded by vertical lines (no text or labels)

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols visible)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Installation

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 11. Frame securely clamped to the Wall

Fig. 12. Adding the Paint Mask to the Frame

Malerei

Fig. 13. Installing the Loudspeaker Assembly into the Frame

Quick Star Guide

HF Switch 1.5 dB

Fig. 14. HF Switch Positions

Fig. 15. Installing the Grille

Guia de instalação

Pure diagram of a door frame with no text, numbers, or symbols

Fig. 2. Drywall Cutout centered between Wall Stucks

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

37

Instalando a moldura na parede

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fiação da estrutura

Fig. 7. Connecting Speaker Wires to the Frame

Instalação

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Pintura

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

39

Fig. 13. Installing the Loudspeaker Assembly into the Frame

HF Switch 0.41 +1.43 +1.5 dB WHEY

Fig. 14. HF Switch Positions

PT

Fig. 15. Installing the Grille

Pure diagram of a door with a small icon inside, no text or symbols present

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Camps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Installazione

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely damped to the Wall

Pittura

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

43

Fig. 13. Installing the Loudspeaker Assembly into the Frame

HF Switch 1.5 dB

Fig. 14. HF Switch Positions

Pure architectural or mechanical diagram with vertical supports and a central gray rectangle (no text or symbols)

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

45

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Camps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Installatie

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Schilderen

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

Fig. 13. Installing the Loudspeaker Assembly into the Frame

Systeemtesten

Pure diagram of a door frame with a small icon inside, no text or symbols present

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

49

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Clamps moved to the Stowed Position

Anslutning av ramen

Fig. 7. Connecting Speaker Wires to the Frame

Installation

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely damped to the Wall

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

Fig. 13. Installing the Loudspeaker Assembly into the Frame

Systemtestning

Simple diagram with a central gray rectangle and a small hand icon, surrounded by vertical lines (no text or symbols)

Fig. 2. Drywall Cutout centered between Wall Studs

Fig. 3. Drywall Cutout with Speaker Cable

Quick Star Guide

53

Fig. 4. Removing the Loudspeaker Assembly from the Frame

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 5. Adjusting the Mounting Camps

Technical line drawing of a mechanical assembly or workshop (no text or symbols present)

Fig. 6 Mounting Clamps moved to the Stowed Position

Fig. 7. Connecting Speaker Wires to the Frame

Instalacja

Technical line drawing of a mechanical assembly with mounting flanges and internal components (no text or symbols)

Fig. 8. Installing the Frame into the Wall

Fig. 9. Adjusting the Mounting Clamps from the Stowed Position

Fig. 10. Mounting Clamps moved to the Clamping Position

Fig. 11. Frame securely clamped to the Wall

Obraz

Fig. 12. Adding the Paint Mask to the Frame

Quick Star Guide

55

Fig. 13. Installing the Loudspeaker Assembly into the Frame

HF Switch 1.5 dB

Fig. 14. HF Switch Positions

Fig. 15. Installing the Grille

EN

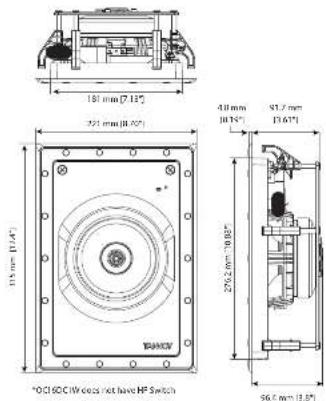

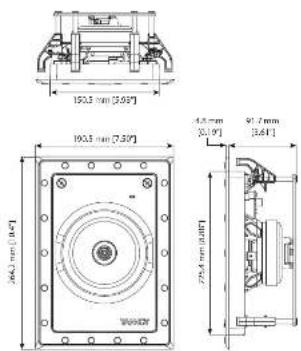

Dimensions Specifications

PCI 5DC IW

PCI 6DC IW and QCI 6DC IW

Performance
Frequency response (-1.3 dB), 50 Hz, 20 kHz, 50 Hz, 20 kHz, 50 Hz, 20 kHz
Frequency response (-10 dB), 35 Hz, -20 kHz, 70 Hz, -20 kHz, 30 Hz, -20 kHz
Sensitivity (V) vs time (s) dB
Directivity factor (Q) 4.2 averaged 1 kHz to 10 kHz 4.8 averaged 1 kHz to 10 kHz
Directivity index (Q) 6.2 averaged 1 kHz to 10 kHz 5.8 averaged 1 kHz to 10 kHz
Power handling (IEC)
Average 50 kV	150 W
Programme	120 W	140 W
Peak	240 W	280 W
Recommended amplifier power	180 W x 8.0	210 W x 6.0
Nominal impedance (I a Z)	8.0
Rated maximum SPL t1 m, Ia Zr 105 dB	107 dB
Average	103 dB	104 dB
Peak	105 dB	110 dB
Crossover point	1.6 dB
Coverage angles
300 Hz	180° horizontal, 160° vertical	180° horizontal, 160° vertical
1 kHz	150° horizontal, 154° vertical	140° horizontal, 164° vertical
2 kHz	131° horizontal, 143° vertical	119° horizontal, 134° vertical
4 kHz	107° horizontal, 89° vertical	92° horizontal, 87° vertical
Transducers
Low frequency diameter/material/type	128 mm [5"]	165.5 mm [4"]
High frequency diameter/material/type	25.4 mm [0.8"]	25.4 mm [4"]
Physical
Back can	Option 1: BACK CAN/W; Steel, powder coating
Baffle	Reflex loaded UL94 V-0 rated ABS
Grille	Steel, with weather resistant coating
Safety features	—
Clamping design	Security toggle clamp
Connections	Phoenix Contact terminal block
Dimensions (inches)	261 x 191 x 100 mm (10.4 x 7.5x 4.2")	313 x 221 x 106 mm (32.4 x 8.7 x 6.1")
Beated dimensions	Square: 264 x 190.5 mm (16.4 x 7.5")	Square: 376 x 221 mm (12.4 x 8.3")
Mounting depth	91.7 mm (3.6")	91.7 mm (3.6")
Hole cutout dimensions	248 x 175 mm (9.8 x 6.8")	259 x 203 mm (11.8x8")
Net weight	1.2 kg (3.7 lbs) 2.8 kg (5.6 lbs) 2.9 kg (6.4 lbs)
Packed quantity	1
Included accessories	Grille, paint mask, cutout template
Optional accessories	Option 1: BACK CAN/WOption 2: PMK 5 W	Option 1: BACK CAN/WOption 2: PMK 6 W

EN

Other important information

Important information

1. Register online. Please register your new Music Tribe equipment right after you purchase it by visiting musictribe.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.
2. Malfunction. Should your Music Tribe Author and Reseller not be located in your vicinity, you may contact the Music Tribe Authorized Fulfill for your country listed under "Support" at musicitibe.com. Should your country not be listed, please check if your problem can be dealt with by our "Online Support" which may also be found under "Support" at musicitibe.com. Alternatively, please submit an online warranty claim at musicitibe.com BEFORE returning the product.
3. Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Fuzzy fuses must be replaced with fuses of the same type and rating without exception.

Herby, Music Tribe declares that this product is in compliance with Directive

2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation

519/2012 REACH SAHC and Directive 1907/2001/E/C, and the pairwise product is not applicable to EAC Directive 2014/2011/11/2016/2014/15/18.

Full text of EU DoC is available at https://community.music.nbc.com/

EU Representative: Music Tribe Brands OK A/S

Address: In Spring Obers Gate 17, DK - 8200 Aarhus N, Denmark

EN
