13301719 - Barbecue Char-Broil - Free user manual and instructions

Product type	Charcoal barbecue
Brand	Char-Broil
Model	13301719
Usage	Outdoor only
Cooking methods	Direct and indirect
Heat source	Charcoal or wood
Cooking surface	Steel cooking grate
Charcoal grate	Included
Adjustable vents	On lid and ash pan
Assembly required	Yes, tools: Phillips screwdriver and two adjustable wrenches
Warranty	90-day limited (extendable upon registration)
Cleaning	Rinse with water, air dry, remove ashes
Exterior maintenance	Repaint with high-temperature black paint
Safety	Do not use indoors, risk of carbon monoxide, hot surfaces
Spare parts	Available, list and diagram in manual (lid, bowl, ash pan, grates, legs)
Product registration	Recommended online for warranty extension and special offers

Frequently Asked Questions - 13301719 Char-Broil

How to assemble the Char-Broil 13301719 barbecue ?

Follow the steps in the manual: attach the vent damper to the lid, then the handle. Attach the legs to the bowl, install the leg support, then the ash pan with its vent. Place the charcoal grate and the cooking grate. Use a Phillips screwdriver and two adjustable wrenches. Do not overtighten the vent screws to ensure proper ventilation.

How to safely light the charcoal?

Stack 10 briquettes in a pyramid on the charcoal grate. If using liquid lighter, saturate the briquettes and let soak for 5 minutes. Light in several places with the lid open. Never add liquid lighter to hot briquettes. Wait until 80% of briquettes are gray (12-15 minutes) before cooking.

What is the difference between direct and indirect cooking?

Direct cooking places briquettes in a single layer under the food, ideal for quick-cooking items (hamburgers, steaks). Indirect cooking piles briquettes on one or both sides, leaving an empty space for slow, even cooking, perfect for large roasts. Use a water drip pan in the empty space for added moisture.

What are important safety instructions?

Never use the barbecue indoors risk of carbon monoxide. Keep children and pets away. Surfaces become hot: wear gloves. Do not move the appliance while lit. Use only approved liquid lighter, never gasoline. Read all instructions in the manual.

How to clean and maintain my barbecue?

Let the charcoal burn out completely. Clean out ashes after each use (they absorb moisture and cause corrosion). Rinse the interior with plenty of water and air dry. For the exterior, apply high-temperature black paint if needed. Never paint the interior. Use a bristle-free brush for the cooking grate.

How to control cooking temperature?

To lower the temperature, spread out the briquettes or partially close the vents. To increase heat, tighten the briquettes or open the vents. Use an adjustable charcoal grate if available. For flare-ups, spray water with a squirt bottle. The 5-second method (palm 4 inches above briquettes) estimates the temperature.

Can I use wood chips to flavor food?

Yes, add chips or chunks of hardwood (hickory, mesquite, apple) directly onto the briquettes. Use well-dried wood to avoid bitterness. Fruit woods give a mild flavor, hickory medium, mesquite strong. Experiment to find your favorite aroma.

What does the limited warranty cover?

The 90-day warranty (extendable upon registration) covers manufacturing and material defects for the original purchaser. It does not cover cosmetic damage, normal wear, rust, commercial use, or shipping costs. Keep your proof of purchase. For claims, contact customer service.

Where can I find spare parts?

The parts list is in the manual (lid, handle, bowl, ash pan, grates, etc.). To order, contact Char-Broil customer service or visit their website. Use model number 13301719 to identify exact parts.

How to register my product for extended warranty?

Register your product online at www.charbroil.com/register within 10 days of purchase. You will need the receipt, model number, and serial number (on product label). This extends the warranty from the purchase date. You will also receive special offers.

USER MANUAL 13301719 Char-Broil

Line drawing of a Char-Broil grill with lid and base (no text or symbols on body)

Product Guide Model 13301719

Tools needed for assembly:

Phillips Screwdriver Adjustable Wrench (Tools not provided)

IMPORTANT: Fill out the product record information below.

Date Purchased

If you have questions or need assistance during assembly, please call 1-800-241-7548.

To insure your satisfaction and for follow-up service, register your appliance online at www.charbroil.com/register

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, vehicles, or tents.

WARNING

Failure to follow all manufacturer's instructions could result in serious personal injury and/or property damage.

ADVERTENCIA

PELIGRO DE MONÓXIDO DE CARBONO

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

CAUTION

Some parts may contain sharp edges! Wear protective gloves if necessary.

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

ADVERTENCIA

Registration Card 36

This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

Follow all warnings and instructions when using the appliance.

Safety Symbols

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

WARNING

FAILURE TO READ AND FOLLOW INSTRUCTIONS FOR LIGHTING CHARCOAL MAY RESULT IN SERIOUS PERSONAL INJURY AND OR PROPERTY DAMAGE.

WARNING

Most surfaces on this unit are hot when in use. Use extreme caution. Keep others away from unit Always wear protective clothing to prevent injury.

Keep children and pets away.

Do not move this unit during operation.

Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states, the use of charcoal starter is prohibited by law. In this case, paraffin-based starter cubes can be substituted for charcoal starter. Never use charcoal starter fluid with an electric starter.

WARNING

CALIFORNIA PROPOSITION 65

1. Combustible by-products produced when using this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.

Wash your hands after handling this product.

WARNING

All surfaces can be hot during use. Use protection as required to prevent burning.

Do not use this unit on or near combustible surfaces or structures such as wood decks, dry leaves or grass, vinyl or wood siding, etc.

SEE OWNERS MANUAL FOR IMPORTANT SAFETY INFORMATION.

CAUTION

For residential use only. Do not use for commercial cooking.

GRILLING

Charcoal is recommended, however, wood or a combination of both may be used as the fuel source for grilling with the fuel source placed and ignited on the charcoal grate. Do not build too large of a fire. We recommend starting a fire with no more than 10 briquettes and adding more as needed during cooking. After allowing the fire to burn down, place the cooking grate on the unit. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and/or property damage.

GRILL MAINTENANCE

Frequency of clean up is determined by how often the grill is used. Make sure coals are completely extinguished before cleaning inside of the unit. Thoroughly rinse with water and allow to air dry before using again. Wipe out the interior of the unit with a cloth or paper towels.

When finished cooking, and the unit has adequately cooled, clean out all remaining ashes. Ashes collect moisture, which can lead to premature rusting and decay. Also, occasional touch up of the exterior paint will be required. Black, high-temperature spray paint is recommended. NEVER PAINT THE INTERIOR OF THE UNIT.

Cooking Surface: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

COOKING TIPS

Building Your Fire

1.) Stack charcoal briquettes or wood into a pyramid-shaped pile on top of the charcoal grate. We recommend using 10 briquettes to start your fire, adding more as needed.
2.) If using lighter fluid, saturate the charcoal briquettes with lighter fluid and let it soak in for approximately 5 minutes. If using a chimney starter, electric starter, or other type of fire starter, light your fire according to the manufacturer's instructions.
3.) After allowing the lighter fluid to properly soak in, light the pile of briquettes in several locations to ensure an even burn. Always light the fire with the grill lid open. Leave lid open until briquettes are fully lit. Failure to do this could trap fumes from charcoal lighter fluid in grill and may result in a flash fire when lid is opened.
4.) Never add charcoal lighter fluid to hot or warm coals as flashbacks may occur causing injury.
5.) You are ready to begin cooking when the pile of briquettes ashes over and produces a red glow (approximately 12 - 15 minutes).
6.) Depending on your cooking method, either leave the briquettes in a pile or spread evenly across the charcoal grate using a long-handled poker.

*Always use caution when handling hot coals to prevent injury.

Know When Your Fire is Ready

Successful charcoal grilling depends on a good fire. The general rule for knowing when your coals are ready for grilling is to make sure that 80 percent or more of the coals are ashy gray. If you have less than that, the coals are not ready, and if all of them are glowing red hot, the fire is probably too hot. Here are a few steps you can take to adjust the temperature of your fire:

• If it is too hot, spread the coals out a bit more, which makes the fire less intense.
• Partially close the vents in the grill, which reduces the amount of oxygen that feeds the fire.
• Use the indirect grilling method, with coals to either side of the charcoal grate and the food over the other side rather than directly over the coals.

- In the event of a severe flare-up, spray the flames with water from a squirt bottle. Be careful, spraying with water tends to blow ashes around and make a mess.

- Add briquettes 2 or 3 at a time to increase the burn time. Allow 10 minutes for coals to ash over before adding more.

THE HEAT OF THE COALS
seconds you canhold the palm ofyour hand 4 inchesabove the coals temperature range (F°) visual cues
HOT COALS 2 400 to 450 barely covered withMODERATELY HOT TO HOT COALS 3MODERATELY HOT COALS 4 325 to 375 significant coating ofMODERATELY COOL COALS 5 300 to 325 thick coating of gray	gray ash; deep red glow375 to 450 thin coating of grayash; deep red glowgray ash; red glowash; dull red glow

Direct and Indirect Grilling

Direct Grilling - For most grilling, the ignited coals are spread in a single layer under the food. This is called direct grilling and is appropriate for relatively quick-cooking items such as hamburgers, steaks and most seafood. The single layer of coals emits even, steady heat, whether the grill lid is open or closed, and represents the way most people grill. For more control, pile some of the coals on one side of the grill where they will emit intense heat. You can move the food around on the grill, setting it over the very hot coals when you want to sear it or when a thick piece needs to cook a little more quickly. You can also use the dampers to control the temperature in your grill.

Indirect Grilling - For items that take longer to cook, you will want to use indirect grilling. This method is for long, slow cooking in a covered grill. For indirect cooking, the coals are piled on one side of the grill, or divided and piled on two sides. This leaves an empty space next to the coals or between them. Food cooked over indirect heat is often started over direct heat and then moved to the cooler (empty) part of the grill for even, slow cooking. To make the heat as even as possible, construct two piles of coals. (Remember to keep a spray bottle filled with water on hand to extinguish any flare-ups.) Once you get used to the indirect method, you may prefer to use it for more grilling tasks. Although it may take a little longer, it is an excellent cooking method and a sure way to prevent the food from burning and to promote even cooking.

Grilling with Wood Chips/Wood Chunks

For a more robust smoke flavor while using charcoal briquettes or lump charcoal, try adding wood chips or several wood chunks to the fire. Wood chunks are available in a variety of natural flavors, and can be used alone or in addition to charcoal. As a general rule, any hardwood that bears a fruit or nut is suitable for cooking. However, different woods have very different tastes. Experiment with different woods to determine your personal favorite, and always use well-seasoned wood. Green or fresh-cut wood can turn food black, and tastes bitter.

Our Recommendations:

Chicken - Alder, Apple, Hickory, Mesquite, Sassafras, Grapevines

Beef - Hickory, Mesquite, Oak, Grapevines

Pork - Fruitwoods, Hickory, Oak, Sassafras

Lamb - Fruitwoods, Mesquite

Veal - Fruitwoods, Grapevines

Seafood - Alder, Mesquite, Sassafras, Grapevines

Vegetables – Mesquite

USDA Recommended

Internal Cooking Temperatures

Ground MeatBeef, Pork, Veal, Lamb....160°FTurkey, Chicken....165°FFresh Beef, Veal, LambMedium Rare....145°F(let stand 3 minutes before cutting)Medium....160°FWell Done....170°FPoultryChicken & Turkey, whole....165°FPoultry Parts....165°FDuck & Goose....165°FFresh PorkMedium Rare....145°F(let stand 3 minutes before cutting)Medium....160°FWell Done....170°F

LIMITED WARRANTY

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE

All Parts	90 days from date of purchase*	PERFORATION, MANUFACTURING, AND MATERIAL DEFECTS ONLY

*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the right to substitute like or similar parts that are equally functional.

Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set forth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should

write to:

Consumer Relations

P. O. Box 1240

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.

WS_1 Rev04

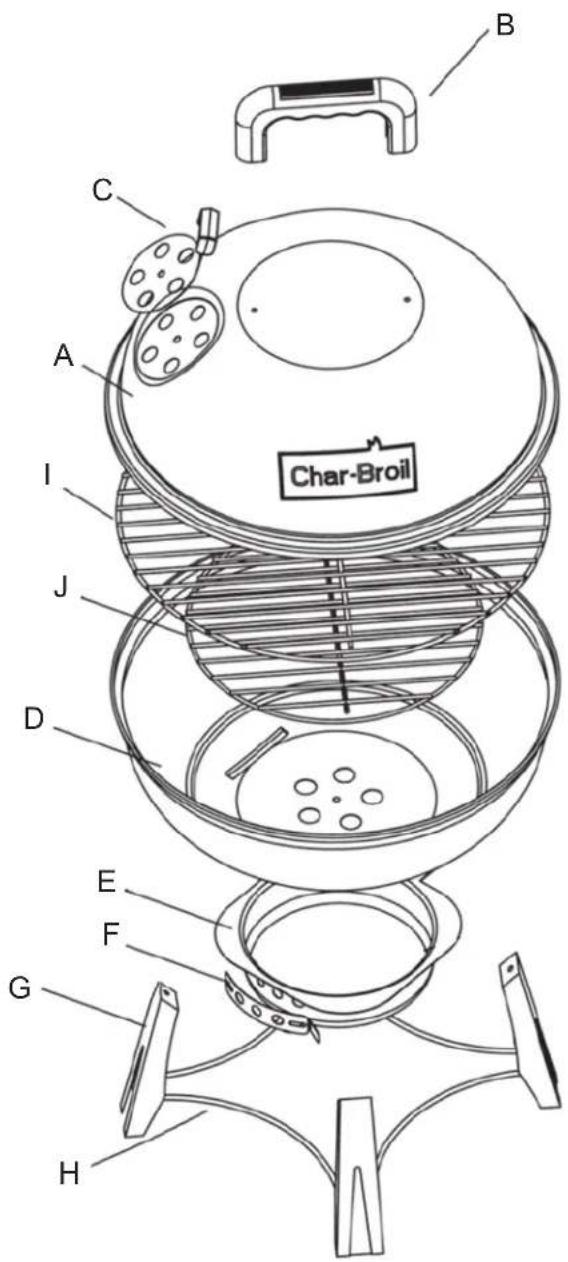

PARTS LIST / DIAGRAM

Key Qty Description
A 1	TOP LID
B 1	LID HANDLE
C 1	DAMPER F/ LID
D 1	FIREBOWL
E 1	ASH CATCHER
F 1	DAMPER F/ ASH CATCHER
G 4	LEG
H	1	LEG SUPPORT
I	1	COOKING GRATE
J	1	CHARCOAL GRID

NOT Pictured

...	1	HARDWARE PACK
...	1	ASSEMBLY MANUAL, ENGLISH,SPANISH, FRENCH

Char-Broil A B C I J D E F G H

HARDWARE LIST

SCREW M6 X 12 - 2 PIECES

SCREW M5 X 8 - 5 PIECES

SCREW M4 X 10 - 2 PIECES

LOCK WASHER M5 - 1 PIECE

FLAT WASHER M6 - 2 PIECE

FLAT WASHER M5 - 5 PIECE

NUT M5 - 1 PIECE

NUT M4 - 2 PIECES

ASSEMBLY

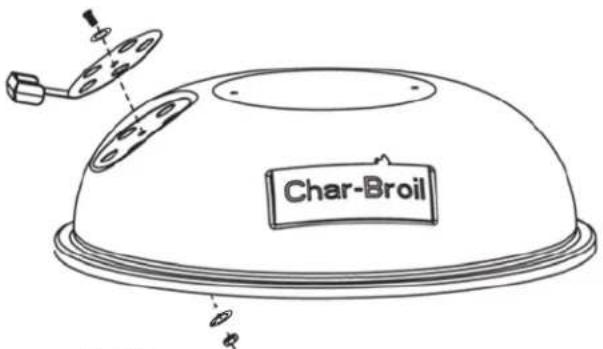

1 Align the center hole in the Lid Air Vent with the hole in the lid. Insert one M5 x 8 screw with M5 flat washer through center hole and then install M5 lock washer and M5 nut. Be careful not to over tighten nut to allow proper vent operation.

Char-Broil

Washer Head Screw M5 x 8 - 1 piece

Medium Nut M5 - 1 piece

Lock Washer M5 - 1 piece

Flat Washer M5 - 1 piece

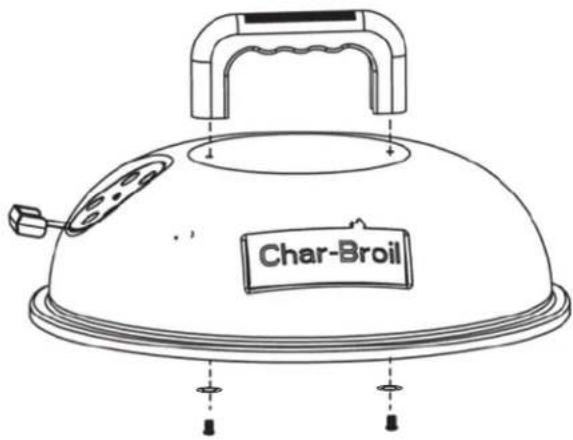

2 Align the holes in the Lid handle with the holes in the lid. Insert 2 M6 x 12 screws, 2 M6 flat washers and tighten.

Char-Broil

Screw M6 x 12 - 2 pieces

Flat Washer M6 - 2 piece

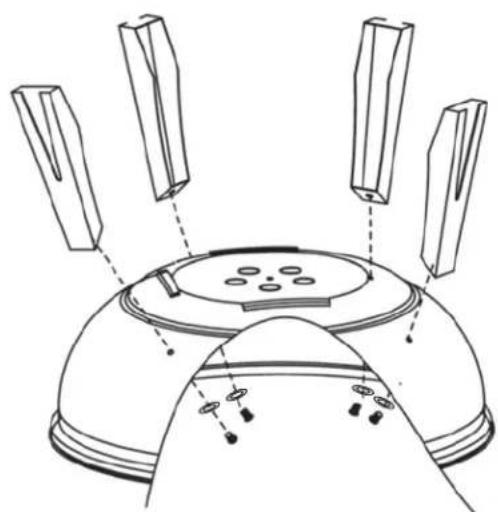

3 Insert the M5 x 8 screws with M5 flat washers through the inside of the bowl and into the leg.

NOTE: Do not completely tighten the screws at this time.

Diagram of a device with four blades and a central hub, no text or symbols present

Washer Head Screw M5 x 8 - 4 pieces

Flat Washer M5 - 4 piece

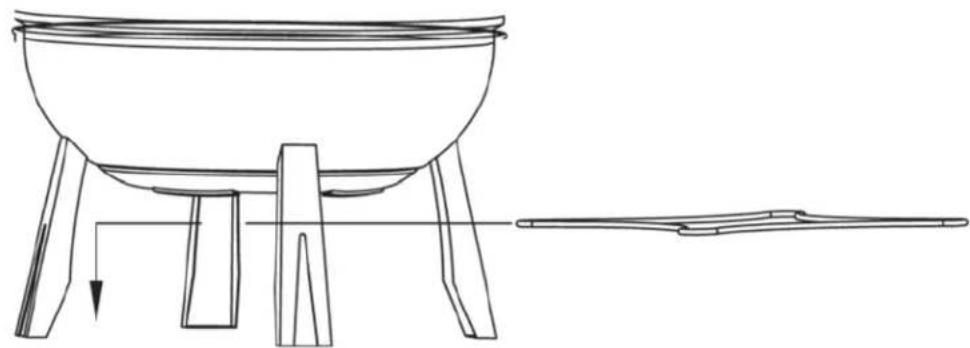

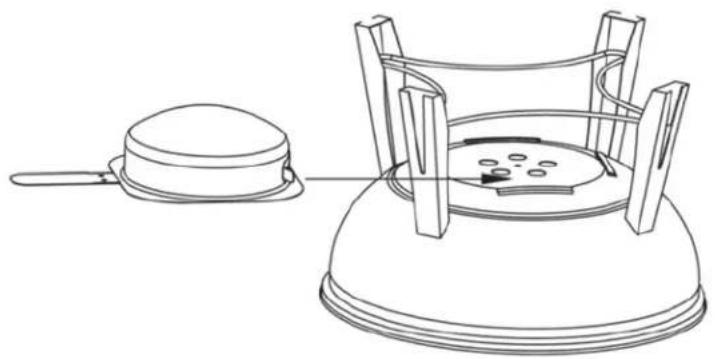

4 Place the leg support into the leg hooks to hold the wire leg support. Tighten the screws from step 3.

Line drawing of a traditional fire cauldron with tripod base and tripod support, showing structural components (no text or symbols)

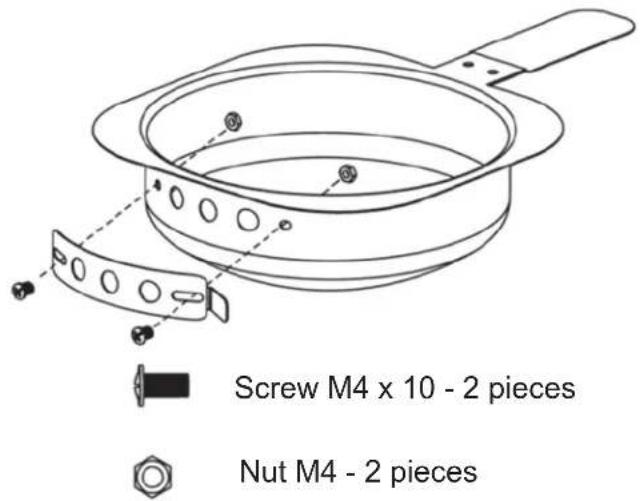

5 Align the holes in the air vent with holes in the ash catcher. Insert two M4 x 10 screws through the air vent ash catcher and ash catcher. Tighten two M4 nuts onto the screws. Be careful not to over tighten nuts to allow for proper vent operation.

Screw M4 x 10 - 2 pieces Nut M4 - 2 pieces

6 Insert the ash catcher into the bottom bowl.

Line drawing of a cooking pan with a lid and side legs, showing a tray with food inside (no text or symbols)

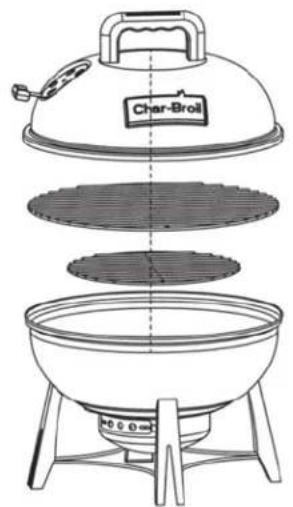

7 Place the charcoal grid onto the lower rim of the bowl. Place the cooking grid onto the upper rim of the bowl. Place the lid onto the bowl.

Line drawing of a Char-Broll grill with layered contents (no text or symbols)

THANK YOU FOR YOUR RECENT PURCHASE FROM

Char-Broil® Grilling's Juicy Little Secret™

Assorted outdoor cleaning and cooking supplies including a Char-Broil kit, grills, gloves, and spray bottles (no visible text or symbols)

CHECK OUT THESE GREAT FEATURES ON OUR WEBSITE

• Valuable product information
  • Inspiring grilling accessories
• Reliable customer support
  • Delicious recipes and tips from chefs
  • Exciting events and promotions
  • And much more!

REGISTER YOUR PRODUCT TO RECEIVE A

SPECIAL OFFER

CHARBROIL.COM/REGISTER

ÍNDICE

Char-Broil A B C I J D E F G H

Char-Broil

Char-Broil

Technical line drawing of a mechanical component with multiple blades and a central hub (no text or symbols)

Line drawing of a traditional fire cauldron with a handle and post, showing no text or symbols

Line drawing of a cooking pan with a handle and lid, showing internal components (no text or symbols)

Line drawing of a cooking pan with a lid and a side dish, no text or symbols present

Line drawing of a Char-Broil grill with its open lid and internal grating (no text or symbols)

GRACIAS POR SU RECIENTE COMPRA EN

Char-Broil® Grilling's Juicy Little Secret™

Assorted outdoor grating and cleaning products including Char-Broil, Char-Grill, and furrow (no visible text or symbols)

Char-Broil A B C I J D E F G H

LISTE DES PIÈCES DE QUINCAILL

VIS M6 X 12 - 2 PIÈCES

VIS M5 X 8 - 5 PIÈCES

VIS M4 X 10 - 2 PIÈCES

Char-Broil

Char-Broil

Technical line drawing of a mechanical component with multiple blades and a central hub (no text or symbols)

Line drawing of a traditional fire cauldron with a handle and base, showing structural components (no text or symbols)

5

Line drawing of a cooking pan with a lid and side legs, showing a tray with food inside (no text or symbols)

7

Line drawing of a Char-Broil grill with its open lid and internal grating (no text or symbols)

NOUS VOUS REMÉRCIONS DE VOTRE RÉCENT ACHAT D'UN PRODUIT DE

CharBroil®

Grilling's Juicy Little Secret™

Assorted hair care products including Char-Broil, Charble, and Handels with no visible text or symbols

VISITEZ NOTRE SITE WEB POUR PROFITER DES FABULEUX AVANTAGES SUIVANTS

Please register your product online at:

www.charbroil.com/register

(If you register online, you do not need to send in this registration card.)

10 Which product are you registering?

Char-Broil Warranty Registration

P.O. Box 1240

Columbus, GA 31902-1240
