USER MANUAL CATR124BK NEDIS

FM Audio Transmitter

for playing music through your car radio

CATR124BK

Line drawing of a handheld device with a circular dial and connected tubing (no text or symbols)

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 13
NL Snelstartgids 17
IT Guida rapida all'avvio 22
ES Guía de inicio rápido 27
PT Guia de iniciação rápida 31
SV Snabbstartsguide 36
FI Pika-aloitusopas 40
NO Hurtigguide 44
DA Vejledning til hurtig start 48
HU Gyors beüzemelési útmutató 52
PL Przewodnik Szybki start 57
EL Οδηγός γρήγορης εκκίνησης 61
SK Rýchly návod 66
CS Rychlý návod 70
RO Ghid rapid de inițiere

A 1 2 3 4 5 6 7 8 9 10

B

FM Audio Transmitter CATR124BK

For more information see the extended manual online: ned.is/catr124bk

Intended use

The Nedis CATR124BK is a FM Transmitter that transmits Bluetooth ^® audio signal over a selected FM frequency that can be received by any FM car radio.

The product has a separated microphone for making hands-free calls and the integrated USB charging port can be used to charge any device.

The product is exclusively intended for use in a vehicle with an auxiliary power outlet.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product FM Audio Transmitter
Article number CATR124BK
FM transmitting frequency 87.6 - 107.9 MHz
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Maximum transmit power 4 dBm
Bluetooth® profiles A2DP, AVRCP, HFP
Pro microphone with noise cancelling Yes
Voice control Siri, Google Assistant
Hands-free calling Yes
LED display 0.8 inch
USB charging output 5.0 V / 3.0 A
USB output 5.0 V / 1.0 A

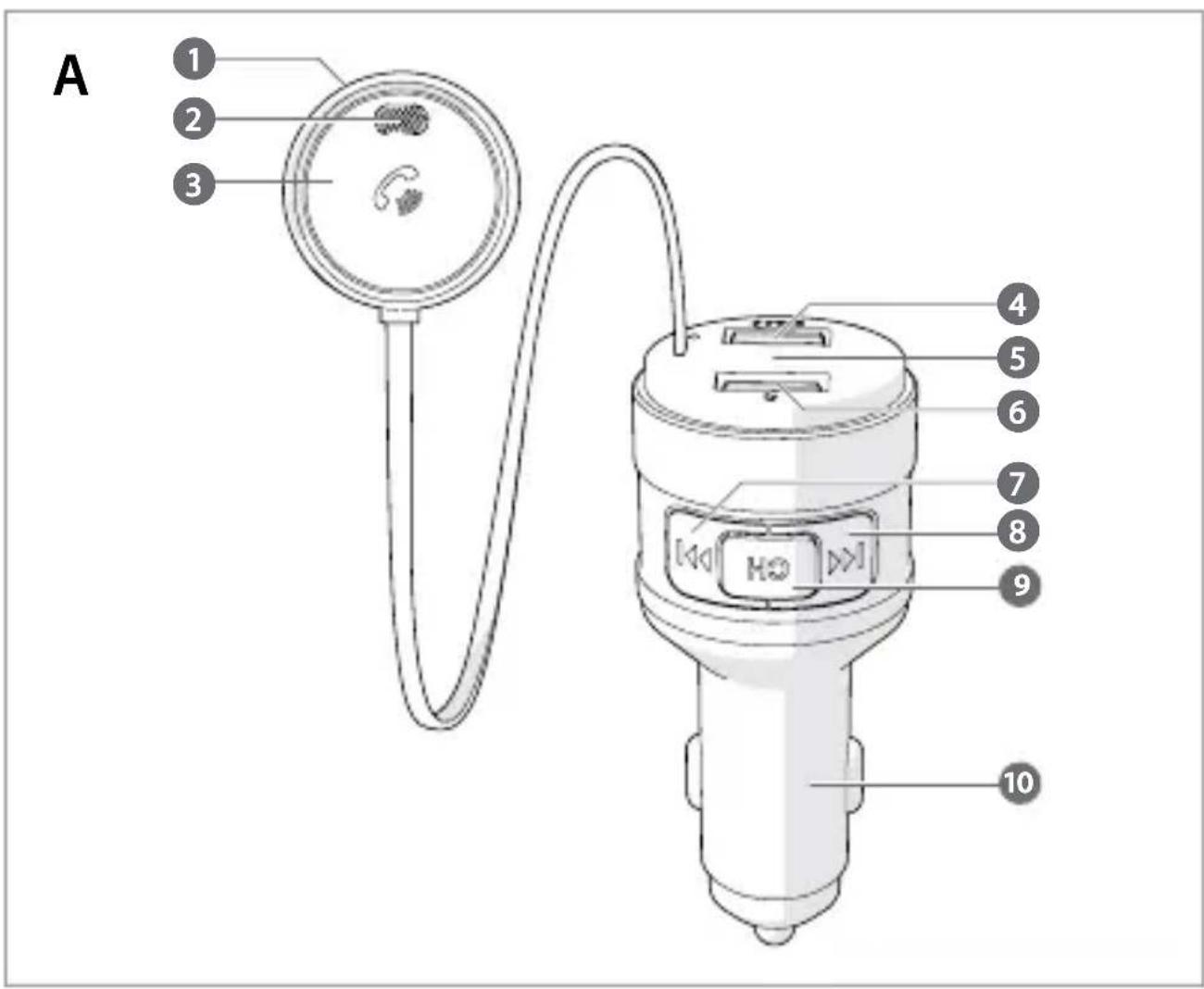

Main parts (image A)

1 'Hook and loop' sticker
2 Pro microphone with noise cancelling
3 Call button
4 USB charging port (3.0 A)
5 LED display

6 USB music port (1.0 A)
7 Next button
8 Previous button
9 Frequency button
10 Auxiliary power plug

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not place the product near heat sources, this can damage the product.
• Do not expose the product to very hot or very cold temperatures or drastic changes in temperature or humidity.
• Do not immerse the product in water for cleaning.
• Be careful when using the product while driving. Always focus your attention on the road.

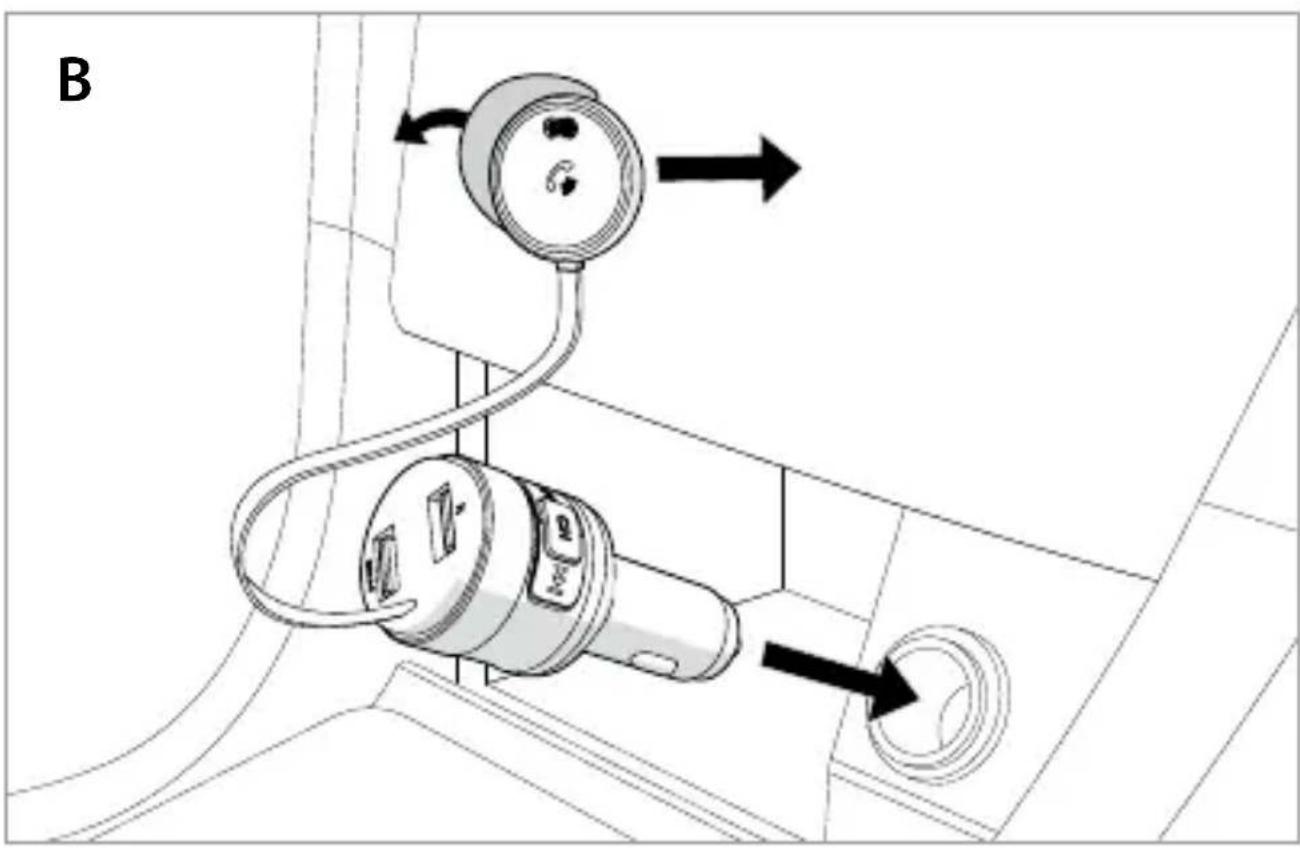

Installing the product (image B)

1. Plug the auxiliary power plug A 10 into an auxiliary power outlet.
   The LED display A 5 shows the voltage of the battery of the car first and shows "BT" to indicate Bluetooth pairing mode is active second.

2. Attach the pro microphone with noise cancelling A 2 to your car dashboard. Use A 1.

Pair with Bluetooth

1. Enable Bluetooth on the device you want to pair.
2. Select "CATR124BK" from the list of available Bluetooth devices on your device.
3. If asked, enter the pairing code '0000'.

If the product has already been paired with another device, make sure that device is switched off or Bluetooth is disabled.

When the product has lost connection to the Bluetooth source, it will automatically reconnect when back in range and switched on.

Connect to FM radio

1. Tune your car radio to an unused FM frequency.
2. Press and hold the frequency button A 9 for 2 seconds until A 5 shows the FM frequency.
3. Use the next button A 7 and the previous button A 8 to tune the product to the same frequency as your car radio.
   Select a frequency that is not occupied by a radio station to avoid signal disturbance.

Playing music

To stream music from the product to the FM radio, choose one of the following options:

• Play music directly from the mobile device that is connected to the product via Bluetooth.
• Insert a USB flash drive that contains audio files into the USB music port (1.0 A) A 6.

Music from your USB flash drive plays automatically.

Controlling the music

1. Press the call button A 3 to play or pause music.
2. Press A 7 to skip to the next song.
3. Press A 8 to go back to the previous song.
4. Press and hold A 7 to increase the volume.
5. Press and hold A 8 to decrease the volume.

If you receive a call while playing music, the product automatically switches to the phone call.

Activating voice assistant

- Press and hold A 3 for 3 seconds to activate the voice assistant on your mobile phone (Siri or Google Assistant).

Making phone calls

Noise cancelling activates automatically, during a phone call.

1. To answer an incoming call, press A 3.
2. During a call, press and hold A 3 for 2 seconds to switch to private mode.
3. To end a call, press A 3.
4. To quickly redial the last called number, double press A 3.

Charging your devices

1. Connect your device with a USB cable (not included) to the USB charging port (3.0 A) A 4 or A 6 to charge the device.

See the manual of your device to check if your device supports 3.0 A charging. The product automatically starts charging when you switch on the car engine.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product CATR124BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/CATR124BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
