USER MANUAL CATR121BK NEDIS

FM Audio Transmitter

for playing music through your car radio

CATR121BK

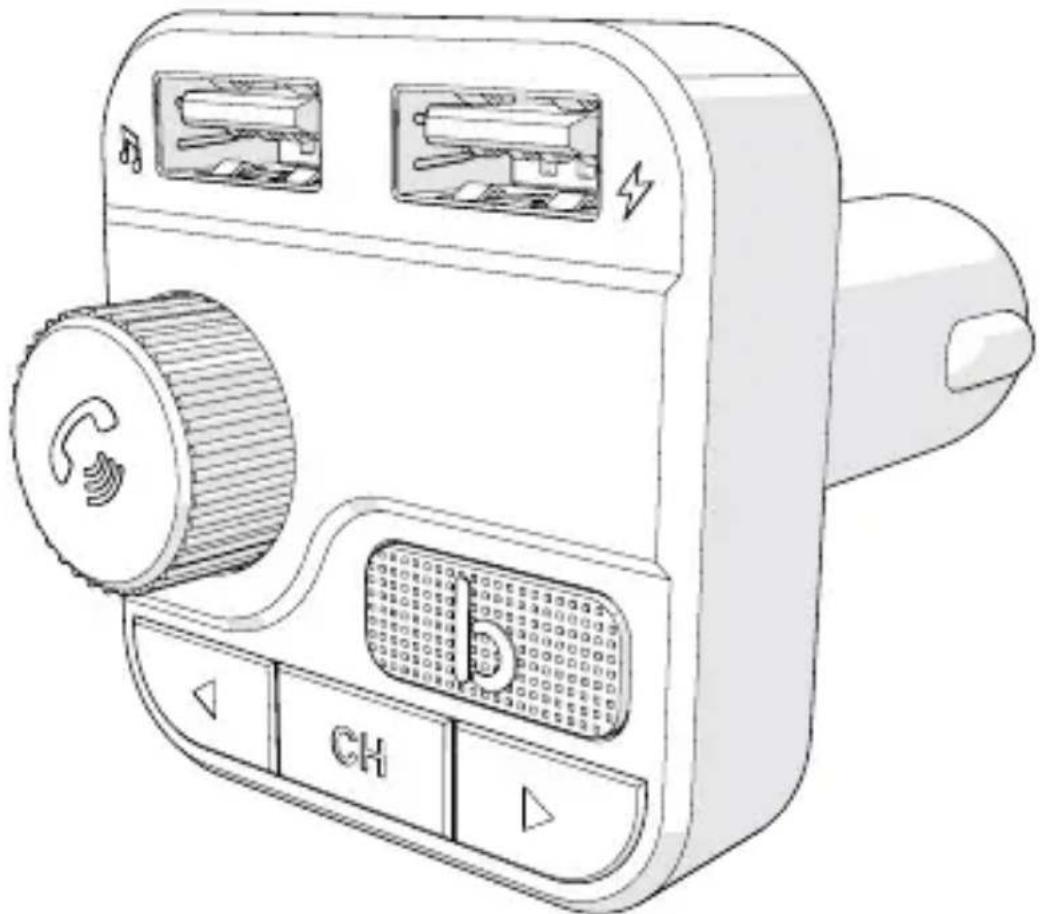

Line drawing of a handheld device with control panel and two labeled buttons (no text or symbols)

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 13
NL Snelstartgids 18
IT Guida rapida all'avvio 22
ES Guía de inicio rápido 27
PT Guia de iniciação rápida 32
SV Snabbstartsguide 36
FI Pika-aloitusopas 41
NO Hurtigguide 45
DA Vejledning til hurtig start 49
HU Gyors beüzemelési útmutató 54
PL Przewodnik Szybki start 59
EL Οδηγός γρήγορης εκκίνησης 64
SK Rýchly návod 69
CS Rychlý návod 74
RO Ghid rapid de inițiere

A 1 2 3 4 5 6 7 8 9 10 11 CH

B

FM Audio Transmitter CATR121BK

For more information see the extended manual online: ned.is/catr121bk

Intended use

The Nedis CATR121BK is a FM Transmitter that transmits Bluetooth® audio signal over a selected FM frequency that can be received by any FM car radio.

The product is intended for making hands-free calls and the integrated USB charging port can be used to charge any device.

The product is not intended for professional use.

The product is exclusively intended for use in a vehicle with an auxiliary power outlet.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product FM Audio Transmitter
Article number CATR121BK
FM transmitting frequency 87.6 - 107.9 MHz
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Maximum transmit power 4 dBm
Bluetooth® profiles A2DP, AVRCP, HFP
Bass boost Yes
Voice assistant activation Yes
Hands-free calling Yes
LED display 0.8 inch
USB charging output 5.0 V / 2.4 A
USB music output	5.0 V / 1.0 A
MicroSD card slot Up to 32 GB
File format support MP3, WMA, FLAC

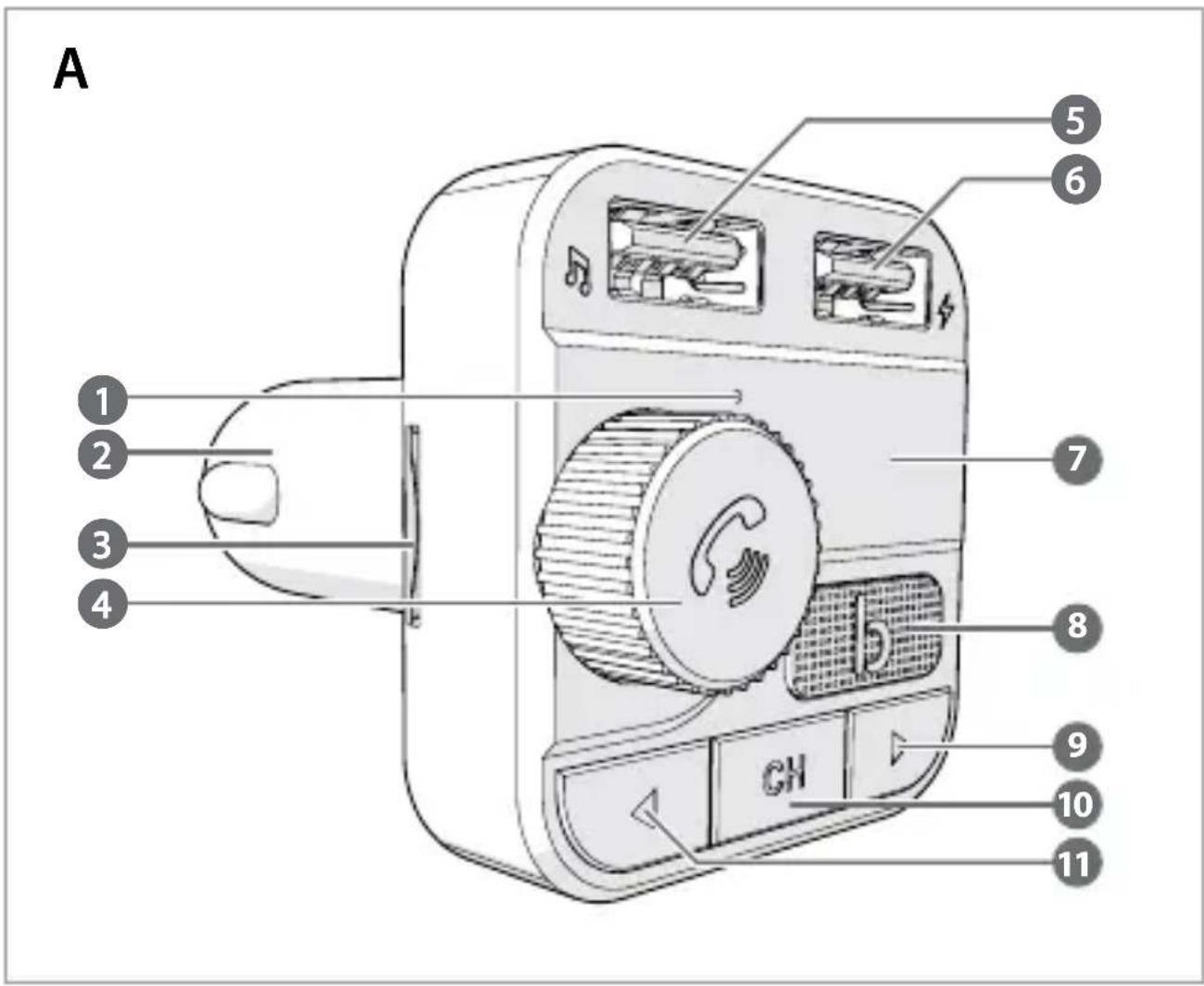

Main parts (image A)

1 Microphone
2 Auxiliary power plug
3 MicroSD card slot
4 Call button
5 USB music port (1.0 A)
6 USB charging port (2.4 A)

7 LED display
8 Bass boost button
9 Next button
10 Frequency button
11 Previous button

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not place the product near heat sources, this can damage the product.
• Do not expose the product to very hot or very cold temperatures or drastic changes in temperature or humidity.
• Do not immerse the product in water for cleaning.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Be careful when using the product while driving. Always focus your attention on the road.

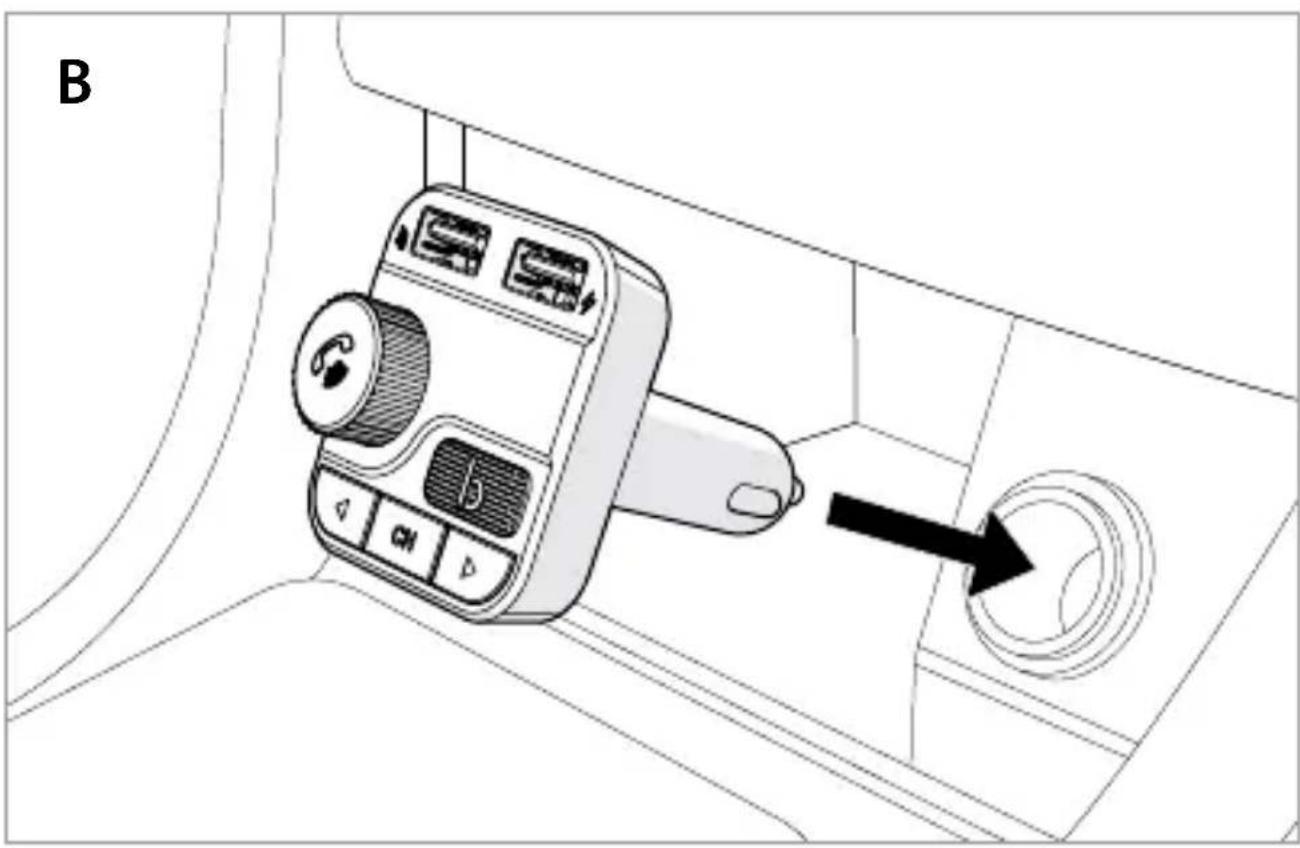

Installing the product (image B)

- Plug the auxiliary power plug A ② into an auxiliary power outlet.

The LED display A7 shows the voltage of the battery of the car first and shows "BT" to indicate Bluetooth pairing mode is active second.

If the car battery voltage is lower than 12 V, the display will flash. The product can still work well, but the car may have trouble starting the engine at a voltage lower than 11.8 V. The product will not function at a voltage lower than 8 V. Fully charge the car battery before using the product again.

Pair with Bluetooth

1. Enable Bluetooth on the device you want to pair.
2. Select "CATR121BK" from the list of available Bluetooth devices on your device.
3. If asked, enter the pairing code '0000'.

If the product has already been paired with another device, make sure that device is switched off or Bluetooth is disabled.

When the product has lost connection to the Bluetooth source, it will automatically reconnect when back in range and switched on.

Connect to FM radio

1. Tune your car radio to an unused FM frequency.
2. Press the frequency button A 10 until A 7 shows the FM frequency.
3. Rotate the call button A 4 to tune the product to the same frequency as your car radio.

Select a frequency that is not occupied by a radio station to avoid signal disturbance.

Playing music

To stream music from the product to the FM radio, choose one of the following options:

• Play music directly from the mobile device that is connected to the product via Bluetooth.
• Insert a microSD card (not included) into the microSD card slot A 3.
• Insert a USB flash drive that contains audio files into the USB music port (1.0 A) A 5.

Music from the MicroSD card or USB flash drive plays automatically.

Controlling the music

1. Press A 4 to play or pause music.
2. Press the next button A 9 to skip to the next song.
3. Press the previous button A 11 to go back to the previous song.
4. Turn A 4 clockwise to increase the volume.
5. Turn A 4 counterclockwise to decrease the volume.
6. Press the bass boost button A 8 to activate or deactivate the bass booster. If you receive a call while playing music, the product automatically switches to the phone call.

Activating voice assistant

- Press and hold A 4 for 3 seconds to activate the voice assistant on your mobile phone (Siri or Google Assistant).

Making phone calls

• To answer an incoming call, press A 4.
- During a call, press and hold A 4 for 3 seconds to switch to private mode.
• To end a call, press A 4.
• To ignore a call, press and hold A 4 for 3 seconds.
• To quickly redial the last called number, double press A 4.

Charging your devices

- Connect your device with a USB cable (not included) to the USB charging port (2.4 A) A 6 or A 5 to charge the device.

The product automatically starts charging when you switch on the car engine.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product CATR121BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/CATR121BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
