USER MANUAL CATR122BK NEDIS

FM Audio Transmitter

for playing music through your car radio

CATR122BK

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 12
NL Snelstartgids 16
IT Guida rapida all'avvio 20
(ES) Guía de inizio=rápido 24
(PT) Guia de iniciação 28
(SV) Snabbstartsguide 33
（FI）Pika-aloitusopas 37
NO Hurtigguide 41
DA Vejledning til hurtig start 45
HU Gyors beüzemelési utmutató 49
（PL）Przewodnik Szybki start 53
EL O8nyoc ypnyopnc EKKivnonc 57
SK Rychly námod 61
CS Rychly námod 65
RO Ghid rapid de initiere

A

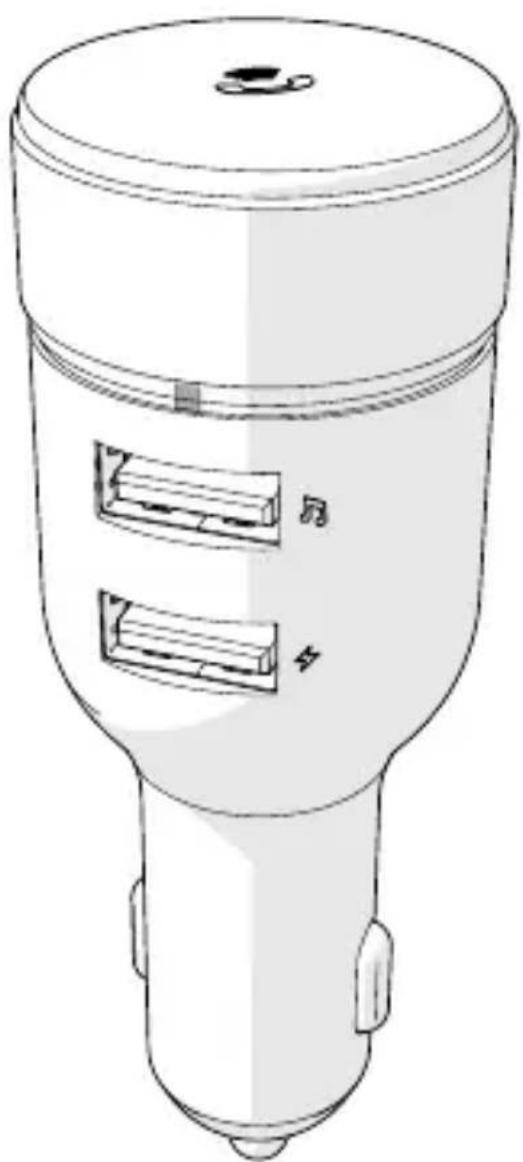

FM Audio Transmitter CATR122BK

For more information see the extended manual online:ned.is/catr122bk

Intended use

The Nedis CATR122BK is a FM Transmitter that transmits Bluetooth® audio signal over a selected FM frequency that can be received by any FM car radio.

The product is intended for making hands-free calls and the integrated USB charging port can be used to charge any device.

The product is not intended for professional use.

The product is exclusively intended for use in a vehicle with an auxiliary power outlet.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product FM Audio Transmitter
Article number CATR122BK
FM transmitting frequency 87.6 - 107.9 MHz
Bluetooth® version 4.2
Bluetooth® frequency range 2402 - 2480 MHz
Maximum transmit power 4 dBm
Bluetooth® profiles A2DP, AVRCP, HFP
Hands-free calling Yes
Rotation wheel Yes
USB charging output 5.0 V / 2.4 A
USB music output 5.0 V / 1.0 A

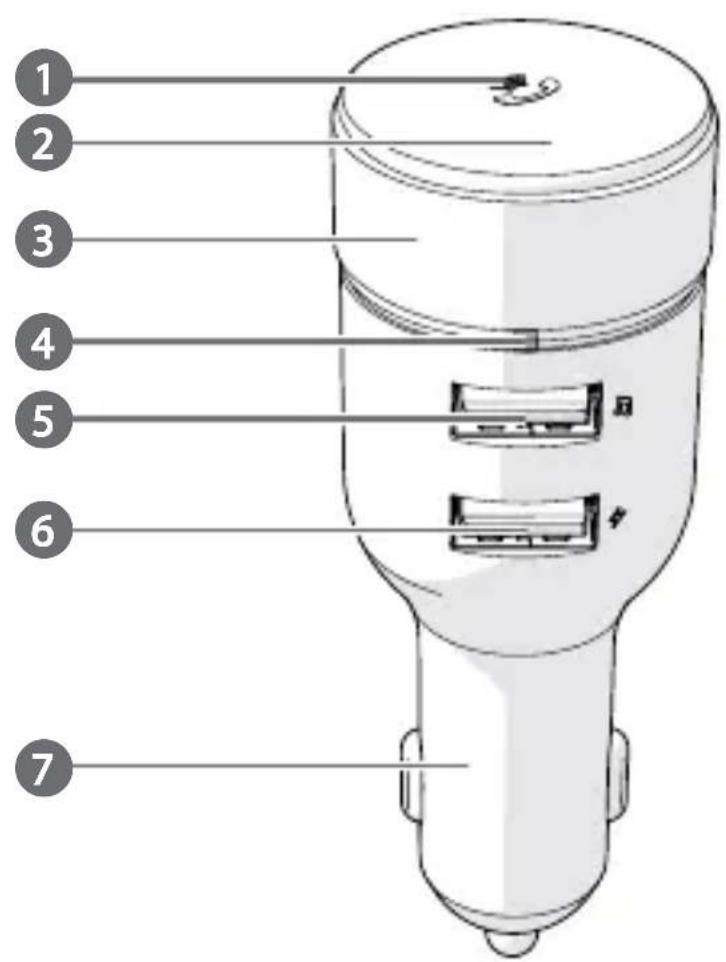

Main parts (image A)

1 Call / Play / Pause button
2 LED display
3 Rotation wheel
4 Microphone

5 USB music port (1.0 A)
USB charging port (2.4 A)
7 Auxiliary power plug

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not place the product near heat sources, this can damage the product.
• Do not expose the product to very hot or very cold temperatures or drastic changes in temperature or humidity.
• Do not immerse the product in water for cleaning.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Be careful when using the product while driving. Always focus your attention on the road.

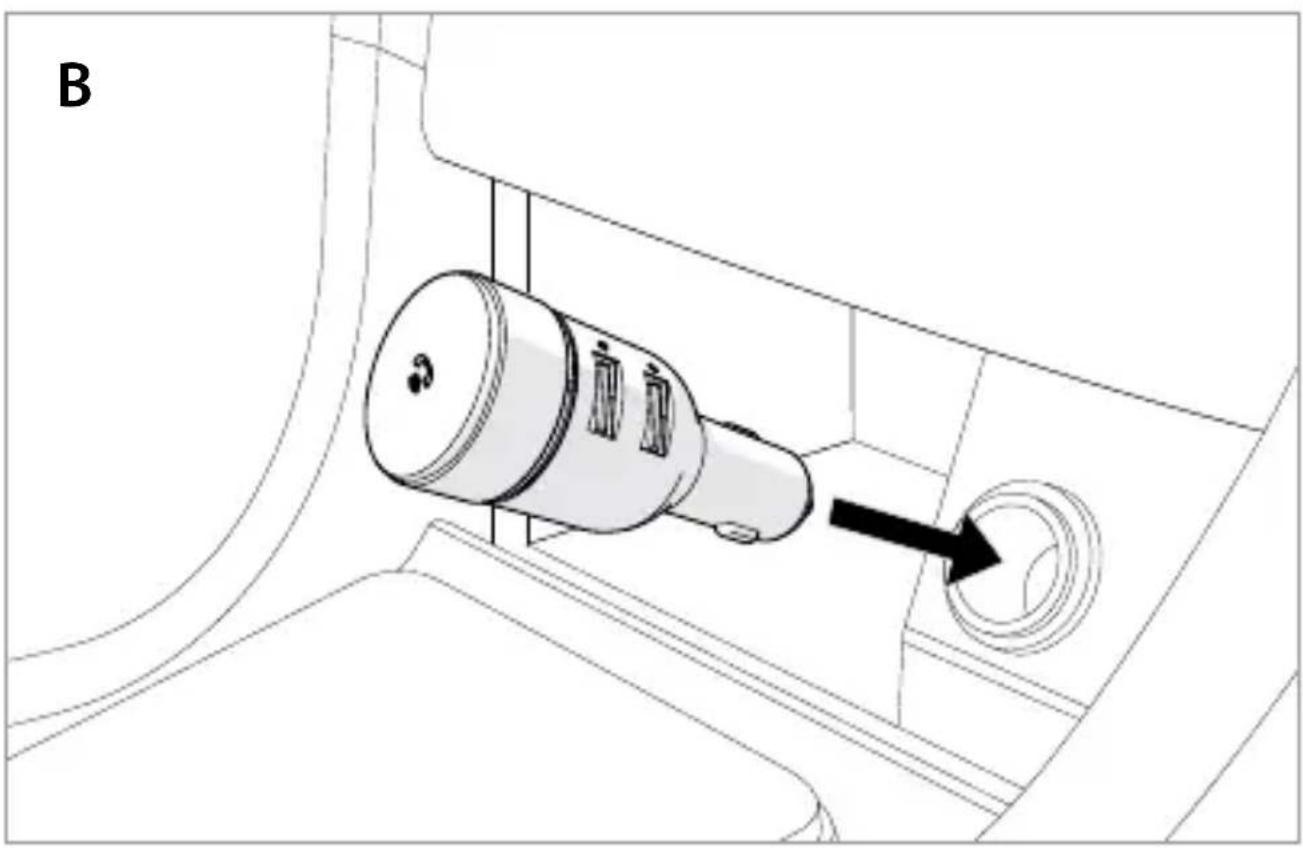

Installing the product (image B)

• Plug the auxiliary power plug A ⑦ into an auxiliary power outlet.

The LED display A2 shows the voltage of the battery of the car first and shows "BT" to indicate Bluetooth pairing mode is active second.

If the car battery voltage is lower than 12V , the display will flash. The product can still work well, but the car may have trouble starting the engine at a voltage lower than 11.8V . The product will not function at a voltage lower than 8V . Fully charge the car battery before using the product again.

Pair with Bluetooth

1. Enable Bluetooth on the device you want to pair.
2. Select "CATR122BK" from the list of available Bluetooth devices on your device.
3. If asked, enter the pairing code '0000'.

If the product has already been paired with another device, make sure that device is switched off or Bluetooth is disabled.

When the product has lost connection to the Bluetooth source, it will automatically reconnect when back in range and switched on.

Connect to FM radio

1. Tune your car radio to an unused FM frequency.
2. Press and hold the call / play / pause button A 1 for 2 seconds until A 2 shows the FM frequency.
3. Rotate the rotation wheel A clockwise or counterclockwise to tune the product to the same frequency as your car radio.

Select a frequency that is not occupied by a radio station to avoid signal disturbance.

Playing music

To stream music from the product to the FM radio, choose one of the following options:

• Play music directly from the mobile device that is connected to the product via Bluetooth.
• Insert a USB flash drive that contains audio files into the USB music port (0.5 A) A 5.

Music from your USB flash drive plays automatically.

Controlling the music

1. Press A to play or pause music.
2. Turn A clockwise to skip the next song.

A2 shows "dn".

1. Turn A 3 counterclockwise to go back to the previous song.
   A2 shows "up".

If you receive a call while playing music, the product automatically switches to the phone call.

Making phone calls

To answer an incoming call, press A 1.
- During a call, press and hold A 1 for 3 seconds to switch to private mode.
To end a call, press A 1.
To ignore a call, press and hold A 1 for 3 seconds.
To quickly redial the last called number, double press A 1.

Charging your devices

• Connect your device with a USB cable (not included) to the USB charging port (2.4 A) A 6 or A 5 to charge the device.

The product automatically starts charging when you switch on the car engine.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product CATR122BK from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/CATR122BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
