USER MANUAL Performance PRO Line Char-Broil

Line drawing of a portable gas stove with control panel and wheels (no text or symbols)

GB	Operating Instructions	3	Assembly Instructions	107
CH, FR	Mode d'emploi	9	Instructions d'assemblage	107
LU, AT, CH, DE	Betriebsanweisungen	15	Montageanweisungen	107
CH, IT	Istruzioni per l'uso	21	Istruzioni per il montaggio	107
LU, BE, NL	Gebruiksinstructies	27	Montage-instructies	107
SE	Användning	32	Montering	107
FI	Käyttöohjeet	37	Kokoamisohjeet	107
ES	Instrucciones de funcionamiento	42	Instrucciones de armado	107
PT	Instuções para Operação	47	Instruções para Montagen	107
DK	Brugsanvisning	52	Monteringsvejledning	107
NO	Instruksjoner for bruk	57	Imontering	107
SK	Návod na používanie	62	Návod na montáž	107
IS	Notkunarleðbeiningar	67	Smalamálsskipana	107
CZ	Návod k obsluze	72	Montážní návod	107
IL	,הכלהה	77	הכלהה	107
RO	Instrucțiuni de utilizare	82	Instrucțiuni de asamblare	107
GR	Οδηγίες λειτουργίας	87	Οδηγίες συναρμολόγησης	107
HU	Használati utasítások	92	Szerelési útmutató	107
BG	Инструкции за работа	97	Инструкции за сглобяване	107
SI	Navodila za uporabo	102	Navodila za montažo	107

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

Questions:

If you have questions during assembly or use of this appliance contact your local dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.
2. A gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION

• Read and follow all safety statements, assembly instructions and use and care directions before attempting to assemble and cook.
• Some parts may contain sharp edges. Wearing protective gloves is recommended.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Barbecues are well ventilated for safety reasons.
• Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turn knobs and gas cylinder off.
• If appliance has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop. Follow instructions on general appliance cleaning and cleaning the burner assembly to prevent grease fires. The best way to prevent grease fires is regular cleaning of the appliance.
• Do not leave barbecue unattended while preheating or burning off food residue on HI. If barbecue has not been regularly cleaned, a grease fire can occur that may damage the product.

WARNING

For Safe Use of Your Appliance and to Avoid Serious Injury:

- USE OUTDOORS ONLY. NEVER USE INDOORS.

Read the instructions before using the appliance.

Always follow these instructions.

• Do not move the appliance during use.
• Accessible parts may be very hot. Keep young children away. Do not let children operate or play near appliance.
• Turn off the gas supply at the cylinder after use.
• This appliance must be kept away from flammable materials during use.
• Do not block holes in sides or back of appliance.
• Check burner flames regularly.
• Do not block venturi openings on burner.
• Use appliance only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas appliance.
• DO NOT cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

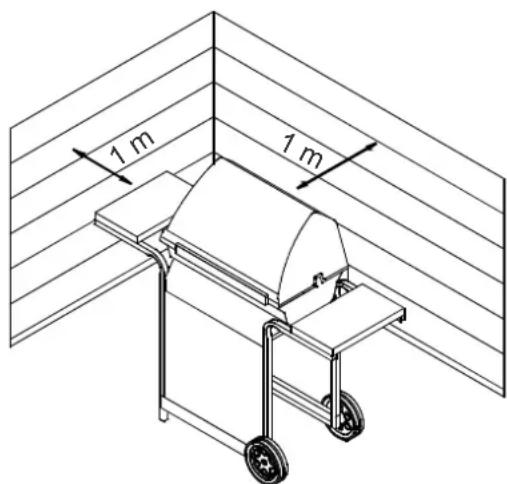

  • Use appliance at least 1m from any wall or surface.
• Maintain 3m clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

1 m 1 m

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed appliance is hazardous.
• Always turn off gas at cylinder and disconnect regulator before moving gas cylinder from specified operating position.
• Never operate appliance with gas cylinder out of correct position specified.
• Do not modify the appliance. Any modifications is strictly prohibited. Sealed parts are not to be manipulated by the user. Do not disassemble injectors.

Safety Tips

• Before opening gas cylinder valve, check the regulator for tightness.
• When appliance is not in use, turn off all control knobs and gas.
• Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components.
• Maximum load for hot plate, if equipped, and side shelf is 4.5 Kg. Cooking vessel minimum dia 200mm and maximum dia. 260 mm. NOTE: Your barbecue may NOT be equipped with a Hot plate!

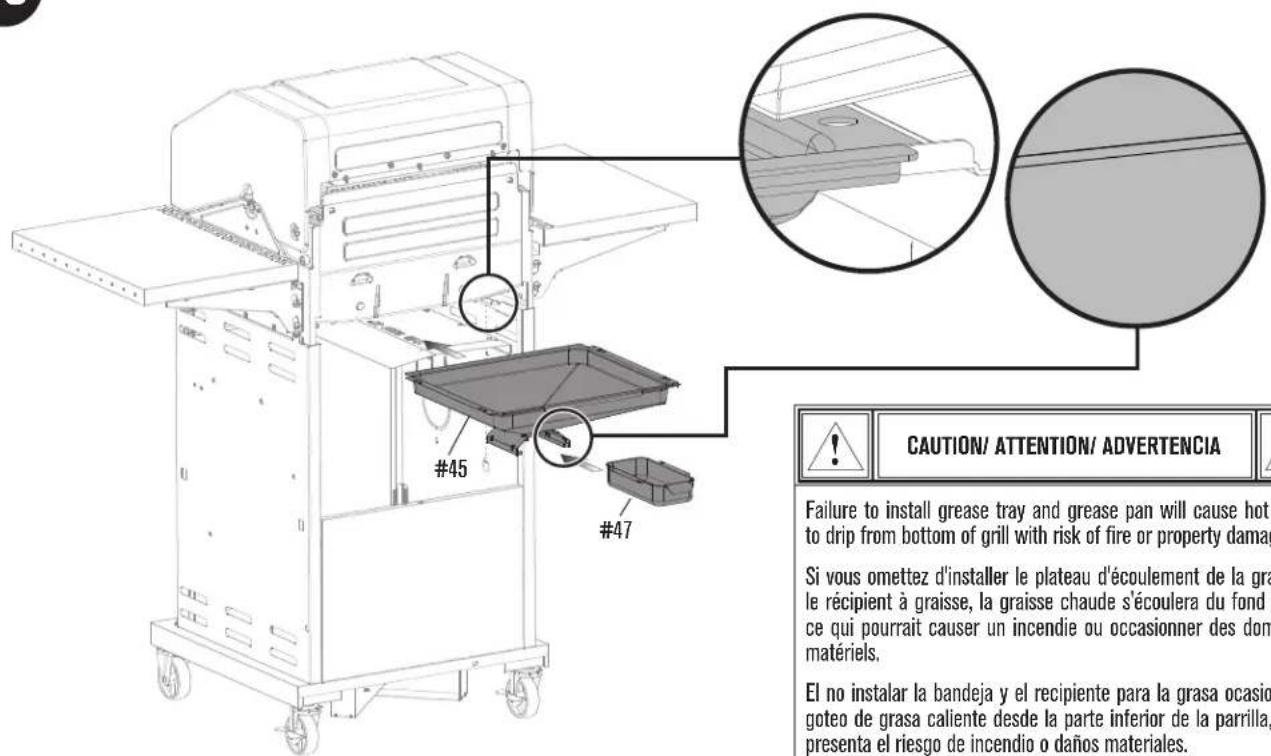

• The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled.
• Be very careful when you open the lid, since hot steam may escape.
• Be very careful when children, the elderly, or pets are nearby.
• If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test.
• Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• DO NOT disconnect or change gas container within 3m of an open flame or other ignition source.

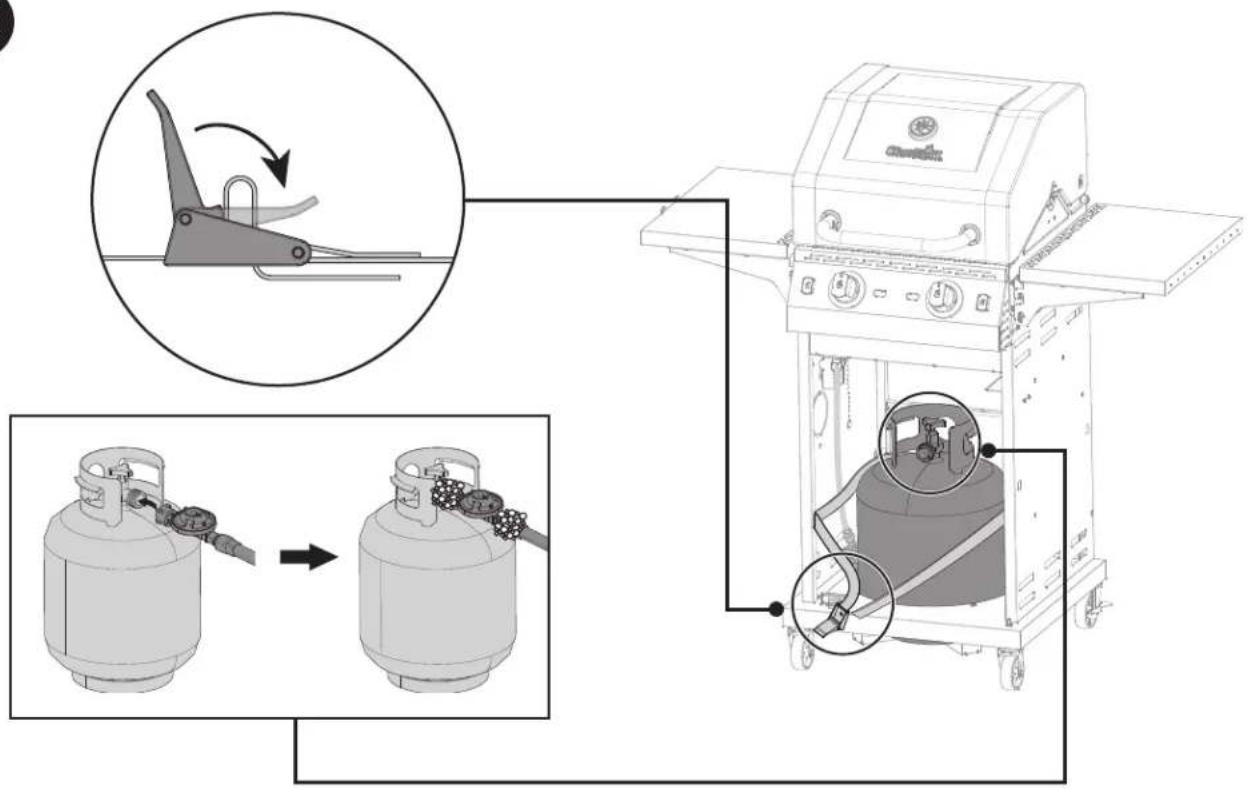

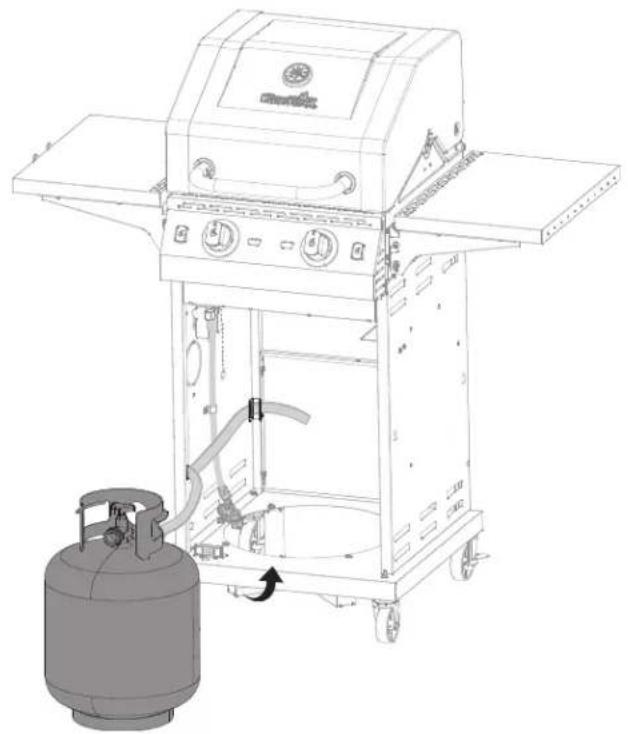

Cylinder Placement

Cylinders placed in the appliance shall have a maximum diameter of 340mm and maximum height, including regulator, of 580mm. Larger cylinders are to be placed under side shelf or behind the barbecue only. Cylinders placed on the ground shall not be placed under the hot plate.

Regulator Requirements

A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

Hose Requirements

Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m.

Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Replace damaged hoses before using appliance. Replace hose as required by national requirements.

Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn burner knob to 🔊 HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
6. Repeat steps 4 and 5 to light other main burners.

WARNING

• Turn controls and gas cylinder off when not in use.
• Make sure that when connected hose does not touch any warm surfaces.

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls ○ off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

Match-Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.

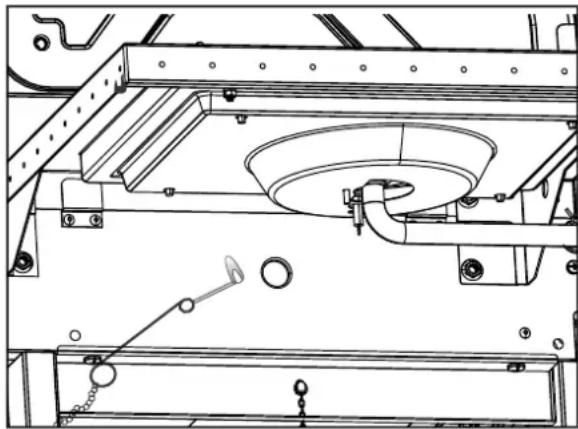

4. Place match into match holder (hanging from side panel of barbecue). Light match; then light burner by placing match through the match light hole on side of barbecue. Immediately push in and turn burner knob to the 🔊 HIGH position. Be sure burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the 🔊HIGH position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Sear Burner Ignitor Lighting

Do not lean over barbecue while lighting.

1. Turn gas burner control valves to OFF.
   2.Open lid during lighting or re-lighting.
2. Turn ON gas at LP cylinder.
3. Turn Sear Burner knob to the HIGH position, push and hold ELECTRONIC IGNITOR button.
4. If Sear Burner does NOT light within 5 seconds, turn knob to OFF, wait 5 minutes, then repeat lighting procedure.

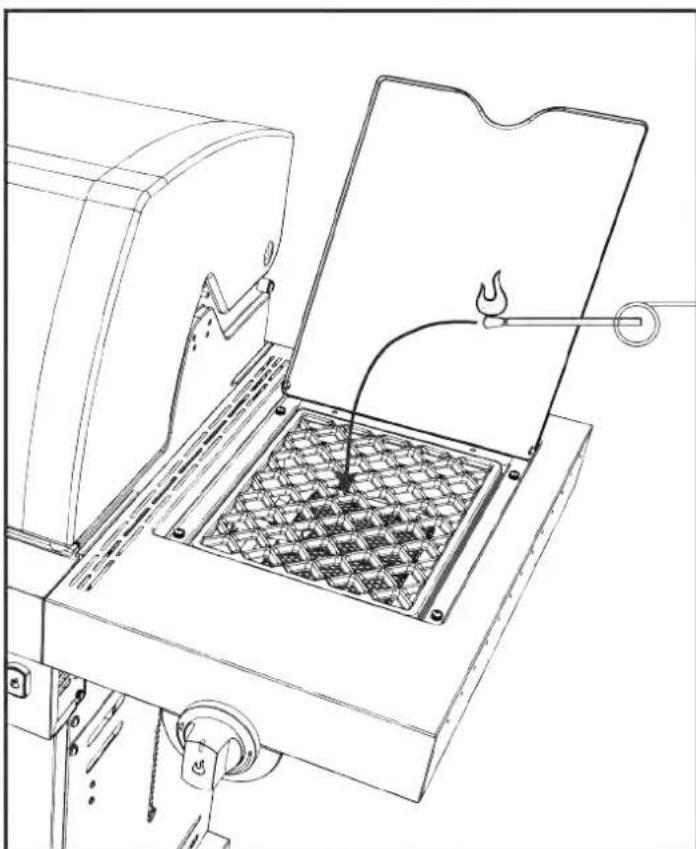

Sear Burner Match Lighting

Do not lean over barbecue while lighting.

1. Turn gas burner control valves to OFF.
   2.Open lid during lighting or re-lighting.
2. Turn ON gas at LP cylinder.
3. Place lit match near burner. Immediately turn Sear Burner knob to the HIGH position. Be sure the burner lights and stays lit.

Technical line drawing of a mechanical device with a grating and heating element (no text or symbols)

.. UTION

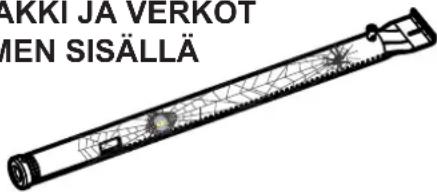

SPIDER ALERT!

SPIDER AND WEBS INSIDE BURNER

Diagram of a cylindrical device with internal grid structure and mounting points (no text or symbols)

If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create "flashback" problems by building nests and laying eggs in the barbeque's venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

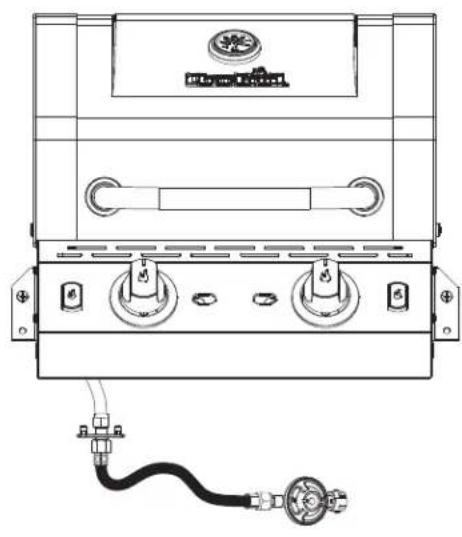

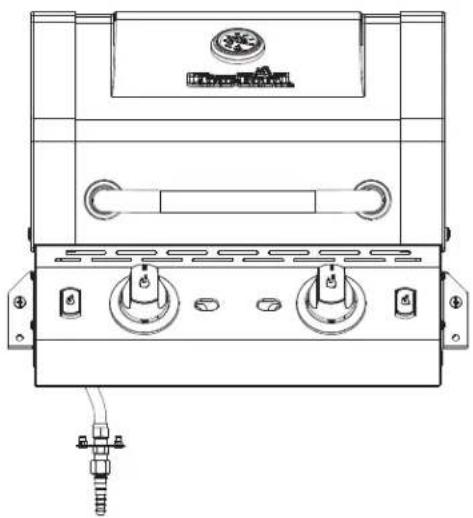

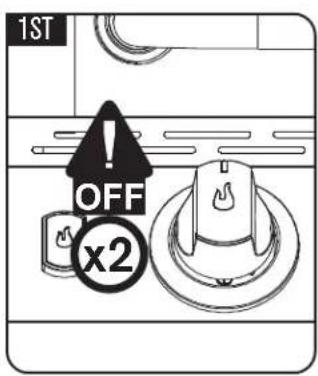

Leak Testing Valves, Hose and Regulator

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

1. Turn all appliance control knobs to O.
2. Be sure regulator is tightly connected to gas cylinder.
3. Turn on Gas. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.

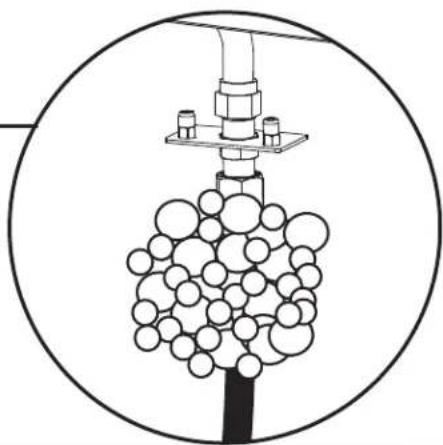

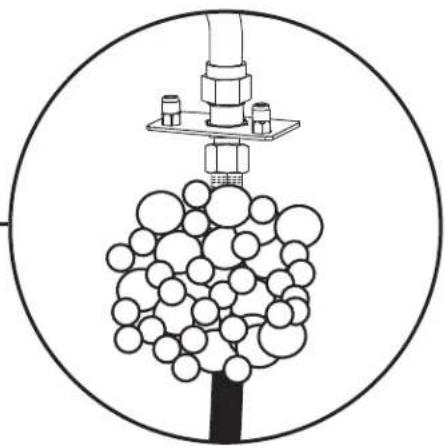

4. Brush soapy solution (mixture of half soap and half water) onto hose connections.
5. If growing bubbles appear, there is a leak. Turn off gas at cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.
6. Always turn off gas at cylinder after performing leak test.

IF APPLIANCE FAILS TO LIGHT

• Make sure gas is turned on at cylinder.
• Make sure there is gas in the cylinder.
• Does the ignitor make a sparking noise?
If yes check for spark at burner. If no spark check for damaged or loose wires.
- If wires are OK check for cracked or broken electrode, replace if needed.
- If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed.
• If needed replace wires.

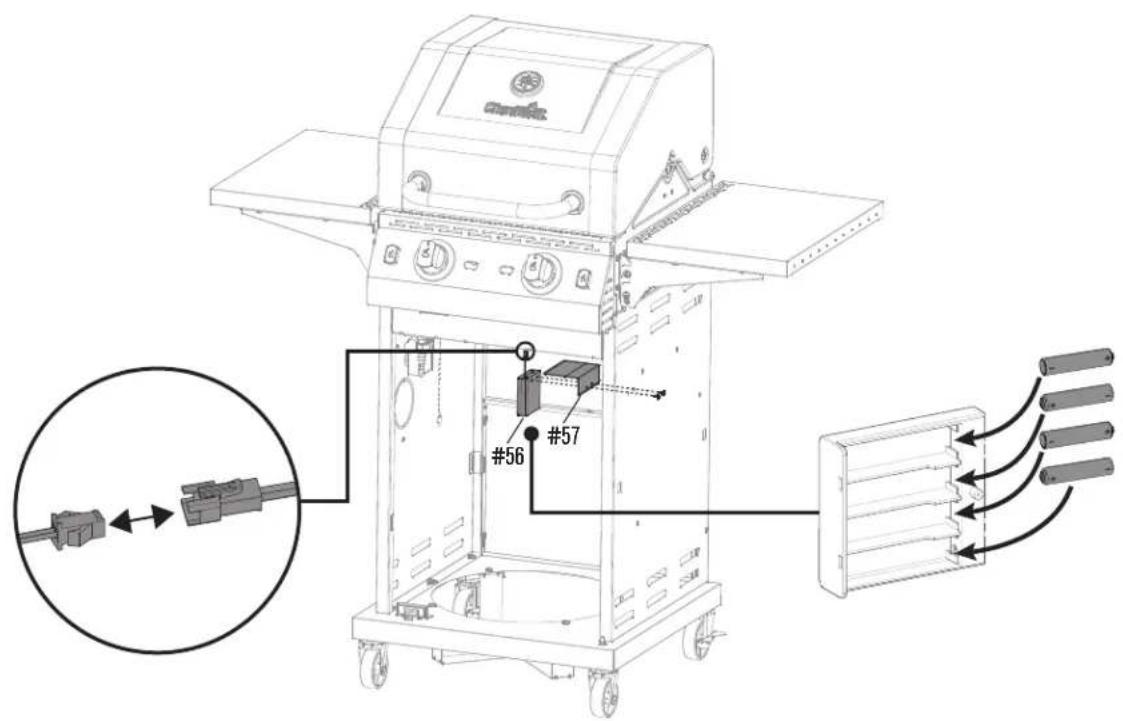

• If no sound check battery.
• Make sure battery is installed correctly.
- Check for loose wire connection at module and switch.
• If ignitor continues to not work then use match.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting barbecue.

1. Turn gas off at control knobs and LP cylinder.

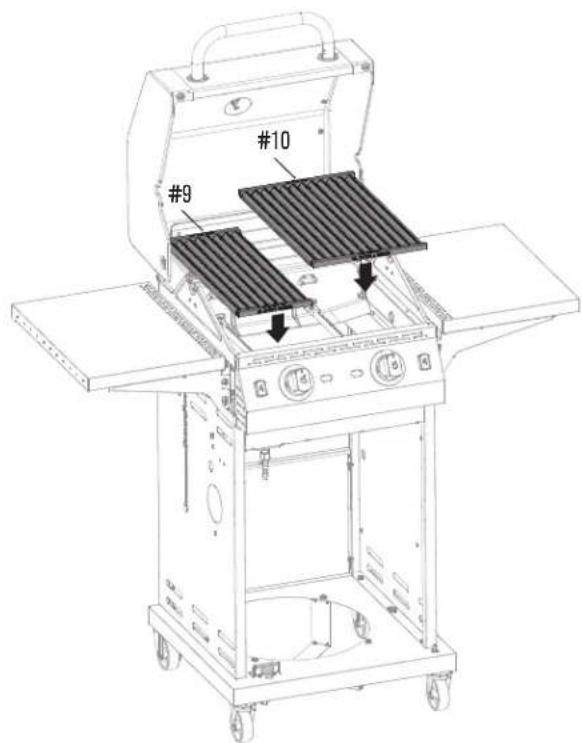

2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

1. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.

A. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

B. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
C. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.
2. Clean any blocked ports with a stiff wire such as an open paper clip.
3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

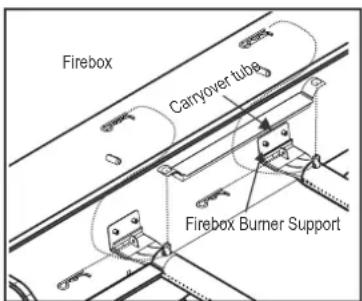

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

es must reengage is at right.

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.
4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on barbecue, perform a "Leak Test" and "Burner Flame Check".

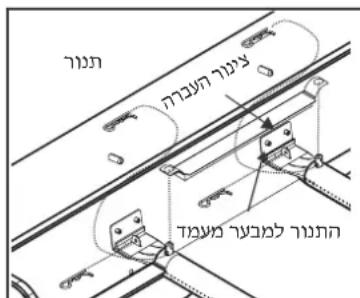

Firebox Carryover tube Firebox Burner Support

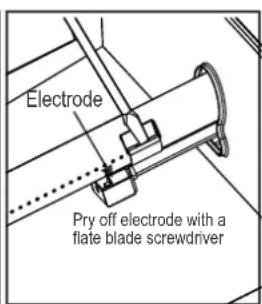

Electrode Pry off electrode with a flate blade screwdriver

Storing Your Appliance

Clean cooking grates.

Store in dry location.

When gas cylinder is connected to appliance, store outdoors in a well-ventilated space and out of reach of children.

Cover appliance if stored outdoors.

Store appliance indoors ONLY if gas cylinder is turned off and disconnected, removed from appliance and stored outdoors.

When removing appliance from storage check for burner obstructions.

General Appliance Cleaning

Periodic cleaning of this grill is necessary, as grill fires can occur when grease and food debris collect in the bottom of the grill. After each use, remove any remaining food particles from the cooking grate and inside of the grill using a Char-Broil Cool-Clean Brush. Afterwards you could spray Char-Broil Grate Cleaner generously onto the grate, allow it work for 10 minutes and wipe off with a wet cloth or brush. Perform grill cleaning after the grill has cooled down.

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas barbecues are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry. Do not use abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution, glass cleaner or Char-Broil Grate Cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or cleaner and warm soapy water or Char-Broil Grill Cleaner. Wipe dry with a soft nonabrasive cloth.
• Cooking surfaces: Ensure no loose bristles remain on cooking surfaces prior to grilling. While grill is hot, it is only recommended to clean cooking surfaces using the Char-Broil Hot-Clean Replacement head (on the Char-Broil Cool-Clean Premium Brush).

Clean Premium CLEAN Setting

Your grill is equipped with an innovative CLEAN setting that allows for hassle-free grill cleaning. The high heat generated from the burners will turn all remaining food debris to ash. Follow these steps:

• After you are done grilling, adjust all main burners to CLEAN setting and remain for approximately 12 – 15 minutes
• After approximately 12 – 15 minutes, adjust all main burners to OFF setting and allow grill to cool
• Once the grill is cool, use a Char-Broil Cool-Clean Brush to remove any remaining debris and dispose of the ash
• To get extra-shiny results, use the Char-Broil Grate Cleaner as a last step. Spray generously onto the grate, allow it work for 10 minutes and wipe off with a wet cloth or brush.

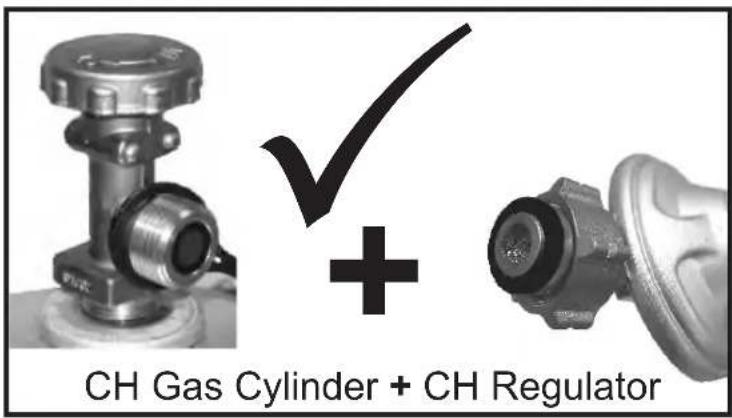

CH Gas Cylinder + CH Regulator

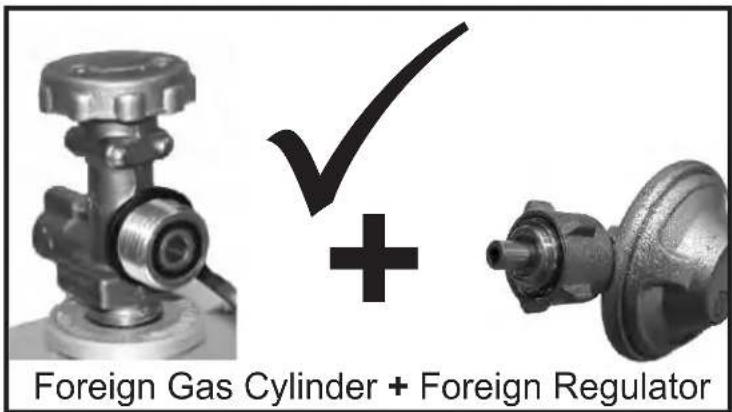

Foreign Gas Cylinder + Foreign Regulator

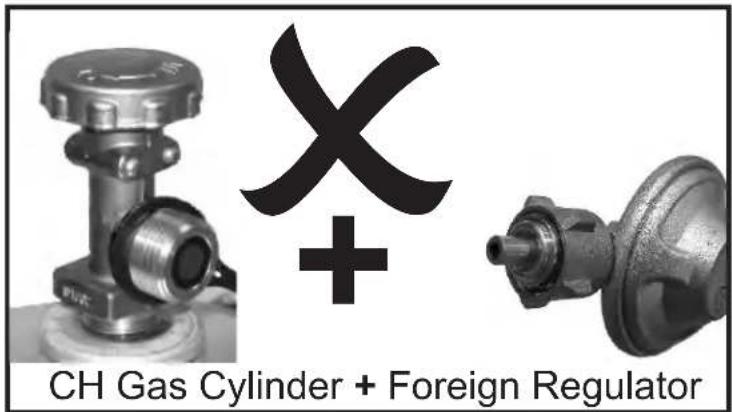

CH Gas Cylinder + Foreign Regulator

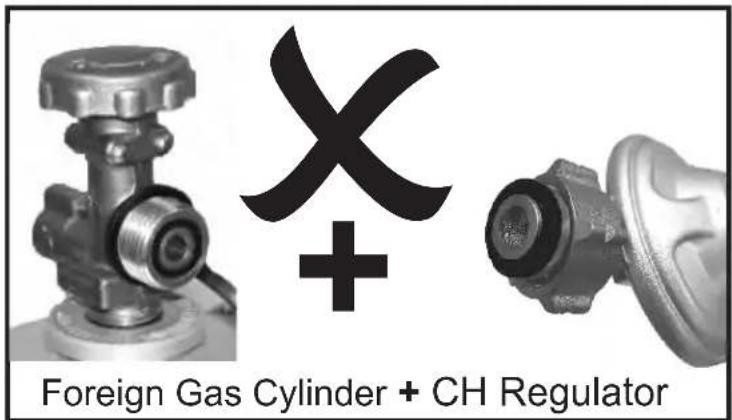

Foreign Gas Cylinder + CH Regulator

A regulator must be used with this appliance. Use only the gas regulator supplied with your barbeque. If a regulator is not supplied then use only a regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

For Switzerland Only

There is a danger of fire and explosion with gas appliances which are equipped with foreign pressure regulators and are not compatible with the gas tanks and gas regulators available in Switzerland

Due to the different sealing systems, it is impossible to properly seal the regulator to the gas tank. Gas will escape here and can be ignited by flame or sparks. A life-threatening explosion, and/or property damage can result. Swiss and German tanks and regulators cannot be intermixed.

For safety reason, please check your grill regulator and gas tank connection and make sure it follows in one of the allowed cases shown in the pictures.

Perform a leak check each time you connect your grill to the gas tank.

TECHNICAL DATACHAR-BROIL, LLC
Appliance Name	Gas Barbeque/Gas Grill
Total Nominal Heat Input	6.16 kW (448 g/h)			6.16 kW (448 g/h)
Gas Category	I3+(28-30/37)		I3B/P(30)	I3B/P(50)
Model No.	468504222, 468504222DK			468172222
Gas Type	Butane	Propane	Butane, Propane or their mixtures	Butane, Propane or their mixtures
Gas Pressure	28-30 mbar	37 mbar	30 mbar	50 mbar
Injector Size (Dia. mm)	Barbecue: 0,85 x 2 pcs		Barbecue: 0,85 x 2 pcs	Barbecue: 0,75 x 2 pcs
Sear BurnerInjector Size (Dia. mm)
Destination Countries	GB, FR, BE, ES, IT, PT, CZ, SK, CH, CY, GR, IE, LT, LU, LV, SI		DK, NO, NL, SE, FI, IS, CZ, IT, SK, BG, CY, EE, HR, HU, LT, LU, LV, MT, RO, SI, TR	AT, DE, CH, LU, SK

Stainless steel

There are many different types (alloys) of materials that are regarded as stainless steel.

A common trait of these different types is that they may corrode (oxidize), depending on the conditions they are subjected to.

This applies to your new barbecue as well.

To ensure your barbecue retains its looks and functionality for many years, please follow the advice below.

1) If the barbecue has become wet or damp, make sure to wipe it dry using a cloth in order to prevent surface corrosion.
2) Stainless steel can rust under certain conditions. This can be caused by environmental conditions such as chlorine or salt water, or improper cleaning tools such as wire or steel wool. It can also discolor due to heat, chemicals, or grease build-up.
3) To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
4) Grease the internal parts of the barbecue and the grids with cooking oil.

Please note:

To avoid scratching the surface and providing a basis for rust, never use steel wool or similar when cleaning stainless steel.

When cleaning, work in the same direction the stainless steel was brushed in – 'with the grain'.

Cleaning with abrasives may leave scratches.

Storing the barbecue near a coast, swimming pool or spa will cause the barbecue to corrode (oxidize).

Cover your barbecue for rust protection.

INSTALLATEUR/ASSEMBLEUR :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and heating elements (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and internal components (no text or symbols)

Diagram of a cylindrical device with internal grid structure and mounting points (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and internal components (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Close-up of two metallic pipe fittings with a checkmark and plus sign, no visible text or symbols

Two metallic mechanical components with a checkmark and plus sign, no visible text or symbols

WAARSCHUWING

WAARSCHUWING

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove or oven with a gridded base and heating element (no text or symbols)

Lektest Kleppen, Slang en Regelaar

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

Firebox Carryover tube Firebox Burner Support

Electrode Pry off electrode with a flate blade screwdriver

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove with a gridded base and heating element (no text or symbols)

IAKTTA FÖRSIKTIGHET

WARNING FÖR SPINDLAR!

SPINDLAR OCH

SPINDELNÄT

I BRÄNNAREN

NAREN

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove or oven with a gridded grid base and heating element (no text or symbols)

VAROITUS

HÄMÄHÄKKIHÄLYTYS!

HÄMÄHÄKKI JA VERKOT POLTTIMEN SISÄLLÄ

AKKI JA VERKOT MEN SISÄLLÄ

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove with a gridded metal grate and heating element (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove or oven with a gridded metal grate and heating element (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and heating element (no text or symbols)

Lækagetestning af ventiler, slange og regulator

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Krav for regulatorer

Technical line drawing of a mechanical assembly with no visible text or symbols

Brenner Sårende Tennbelysning

Ikke len deg over grillen mens du tenner.

Technical line drawing of a portable stove with a gridded base and heating element (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove or oven with a gridded metal grate (no text or symbols)

Skúška tesnosti ventilov, hadice a ovládača

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Særandi Brennari kveikjuljós

Technical line drawing of a portable stove or oven with a gridded metal grate and heating element (no text or symbols)

VARÚD

VIDVÖRUN UM KÖNGULÄR!

KÖNGULÆR OG VEFIR INNAN Í BRENNURUM

Technical line drawing of a cylindrical device with internal components and no visible text or symbols

Firebox Carryover tube Firebox Bumer Support

Electrode Pry off electrode with a flate blade screwdriver

Geymsla á grillinu

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and heating element (no text or symbols)

Diagram of a cylindrical device with internal grid structure and labeled 'MORAKU' in the top-left corner (no other text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

תְקַרָה בְּשָׁ

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Technical line drawing of a mechanical device with a grid-patterned base and heating element (no text or symbols)

תַלְרָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִיָהִי

•

• Values for in

•

"הכלהה" "הכלהה" "הכלהה" "הכלהה" "הכלהה" "הכלהה" "הכלהה" "הכלהה" "הכchia

."בְרָהוּר

Aprinderea grăsimilor

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove with heat exchanger and grid-patterned base (no text or symbols)

ATENTIE

ATENTIE LA PĂIANJENI!

PĂIANJENI SI PÂNZE

ÎN INTERIORUL ARZĂTORULUI

ORUL ARZATORULUI

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove with heat exchanger and cooling unit (no text or symbols)

ΠΡΟΣΟΧΗ

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and heating element (no text or symbols)

FIGYELEM

PÓK FIGYELMEZTETÉS!

PÓKOK ÉS PÓKHÁLÓK AZ ÉGŐFEJ BELSEJÉBEN

S POKHALUK AZ BELSEJÉBEN

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a grid-patterned base and tool, no visible text or symbols

ВНИМАНИЕ

ПРЕДУПРЕЖДЕНИЕ ЗА ПАЯЦИ!

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a portable stove with a gridded sink and heating element (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Če se žar težko prižge ali je plamen šibek, preverite in očistite venturije in gorilnike.

#52 #11 #12 #9 #10 #7 #3 #6 #5 #15 #16 #15 #17 #1 #2 #27 #29 #28 #47 #27 #28 #29 #26 #50 #14 #19 #18 #25 #26 #13 #45 #46 #54 #25 #23 #24 #22 - for 46817222 &468504222DK #20 #57 #21 #53 #33 #34 #55 #32 #51 #49 #48 #39 #40 #41 #44 #37 #38 #36 #35 #30 #31 #43

PARTS LIST FOR 468504222, 468504222D, 468172222

Key Qty Description
1	1	TOP LID
2	1	HANDLE, TOP LID
3	1	LOGO PLATE
4	2	RUBBER BUMPER, F/ TOP LID
5	1	TEMPERATURE GAUGE
6	1	BEZEL, F/ TEMP GAUGE
7	1	HARDWARE F/ TOP LID ASSEMBLY
8	1	WARMING RACK
9	1	EMITTER, F/ COOKING GRATE, 120
10	1	EMITTER, F/ COOKING GRATE, 180
11	1	COOKING GRATE, 120
12	1	COOKING GRATE, 180
13	1	FIREBOX
14	2	LID STOP, FIREBOX
15	2	MAIN BURNER
16	1	ELECTRODE, F/ MAIN BURNER
17	1	ELECTRODE SET, F/ MAIN BURNER, 500MM WIRE
18	2	BURNER BRACE
19	1	CARRYOVER TUBE
20	1	MAIN CONTROL PANEL
21	1	IGNITER SWITCH MODULE
22	1	VALVE ASSEMBLY
23	2	CONTROL KNOB
24	2	BEZEL F/ CONTROL KNOB
25	2	SIDE SHELF BRACKET, RB/LF
26	2	SIDE SHELF BRACKET, LB/RF
27	2	SIDE SHELF
28	2	SHELF SUPPORT, RB/LF
29	2	SHELF SUPPORT, LB/RF
30	1	CART SIDE PANEL, LEFT
31	1	CART SIDE PANEL, RIGHT
32	1	FRONT DOOR BRACE

Key Qty Description
33	2	MAGNET ASSEMBLY
34	1	DOOR PIN, SPRING
35	1	DOOR, NO HANDLE
36	1	HANDLE, F/ DOOR
37	1	BOTTOM SHELF
38	2	TANK SUPPORT
39	1	DOOR PIN, FIXED
40	1	REAR CART PANEL
41	1	HEAT SHIELD, F/ TANK
42	2	CASTER, LOCKING
43	2	CASTER, FIXED
44	1	MATCH HOLDER
45	1	GREASE TRAY
46	2	GREASE TRAY BRACKET
47	1	GREASE PAN
48	1	ELECTRONIC IGNITION MODULE
49	1	CAP, F/ ELECTRONIC IGNITION MODULE
50	2	TOOL HOLDER
51	1	TANK STRAP
52	1	GRIDDLE, 180
53	1	LIGHT SWITCH F/ BEZEL
54	1	WIRE ASSEMBLY F/ BEZEL LED
55	1	BOTTLE OPENER
56	1	BATTERY BOX
57	1	SHIELD, F/ BATTERY BOX
NOT Pictured
... 1 PRODUCT GUIDE, EUROPE
... 1 HARDWARE PACK
... 1 CASTER PIN
... 1 EMITTER CLEANING TOOL
... 1 REGULATOR HOSE CLIP (IF REQUIRED)

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

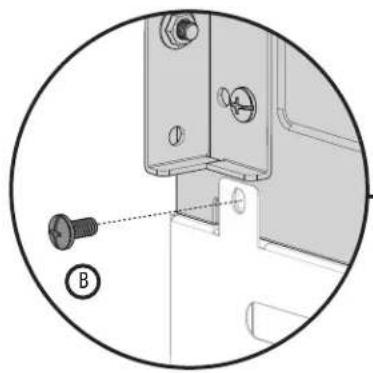

ASSEMBLY

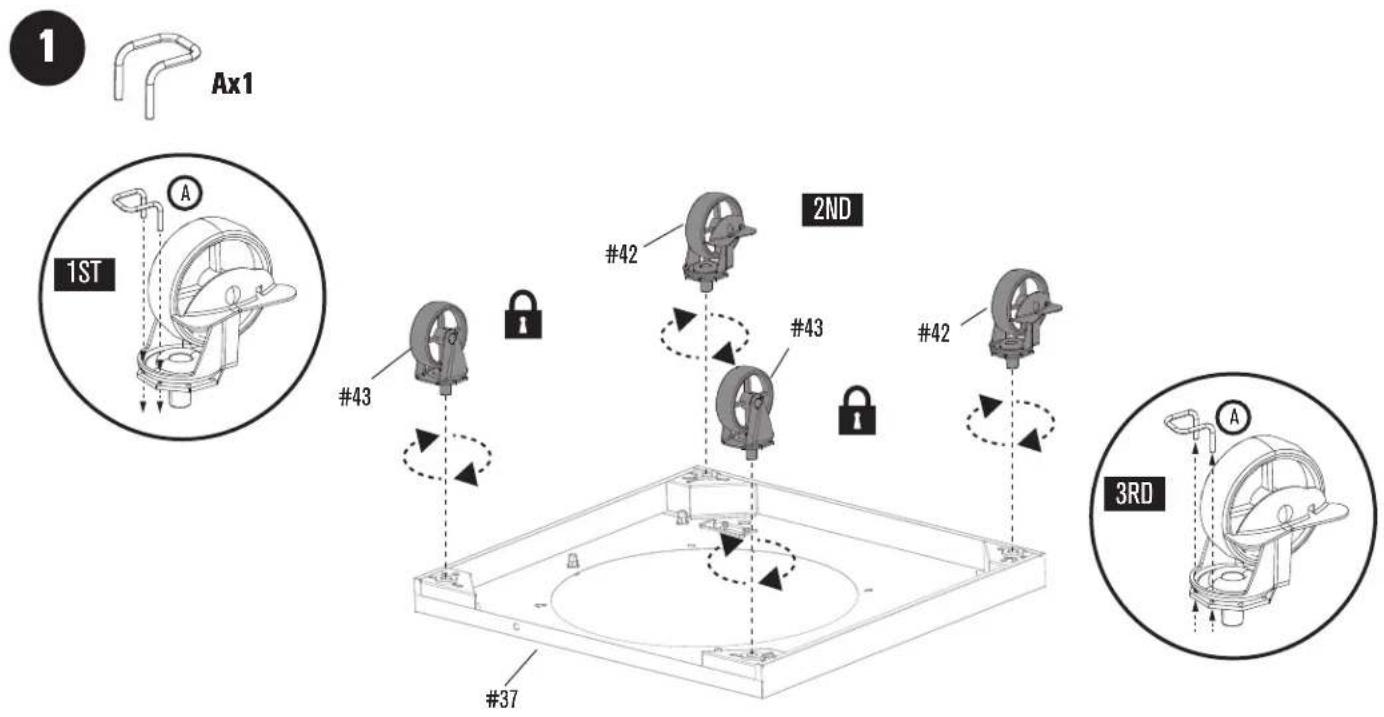

1 Ax1 1ST A #43 #42 2ND #43 #42 3RD #37

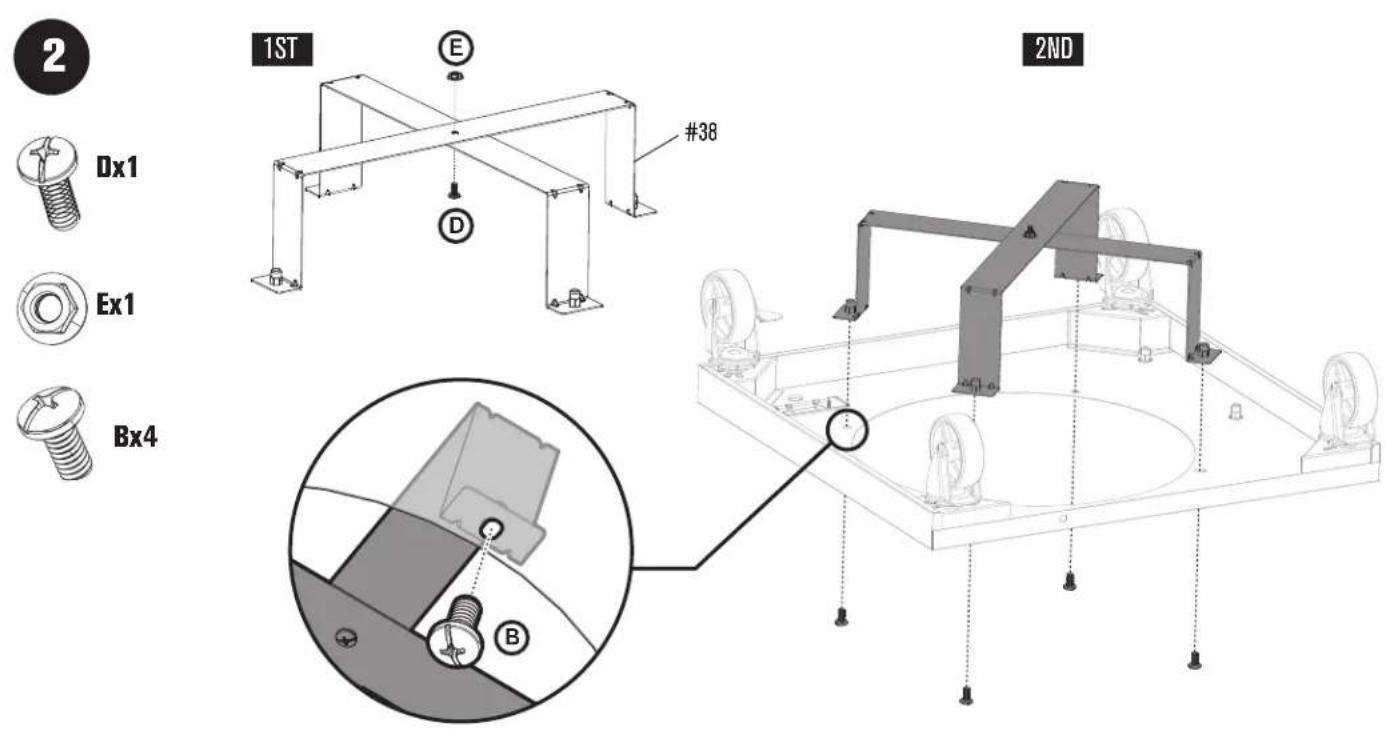

2 1ST E #38 2ND Dx1 Ex1 Bx4

Char-Broil.

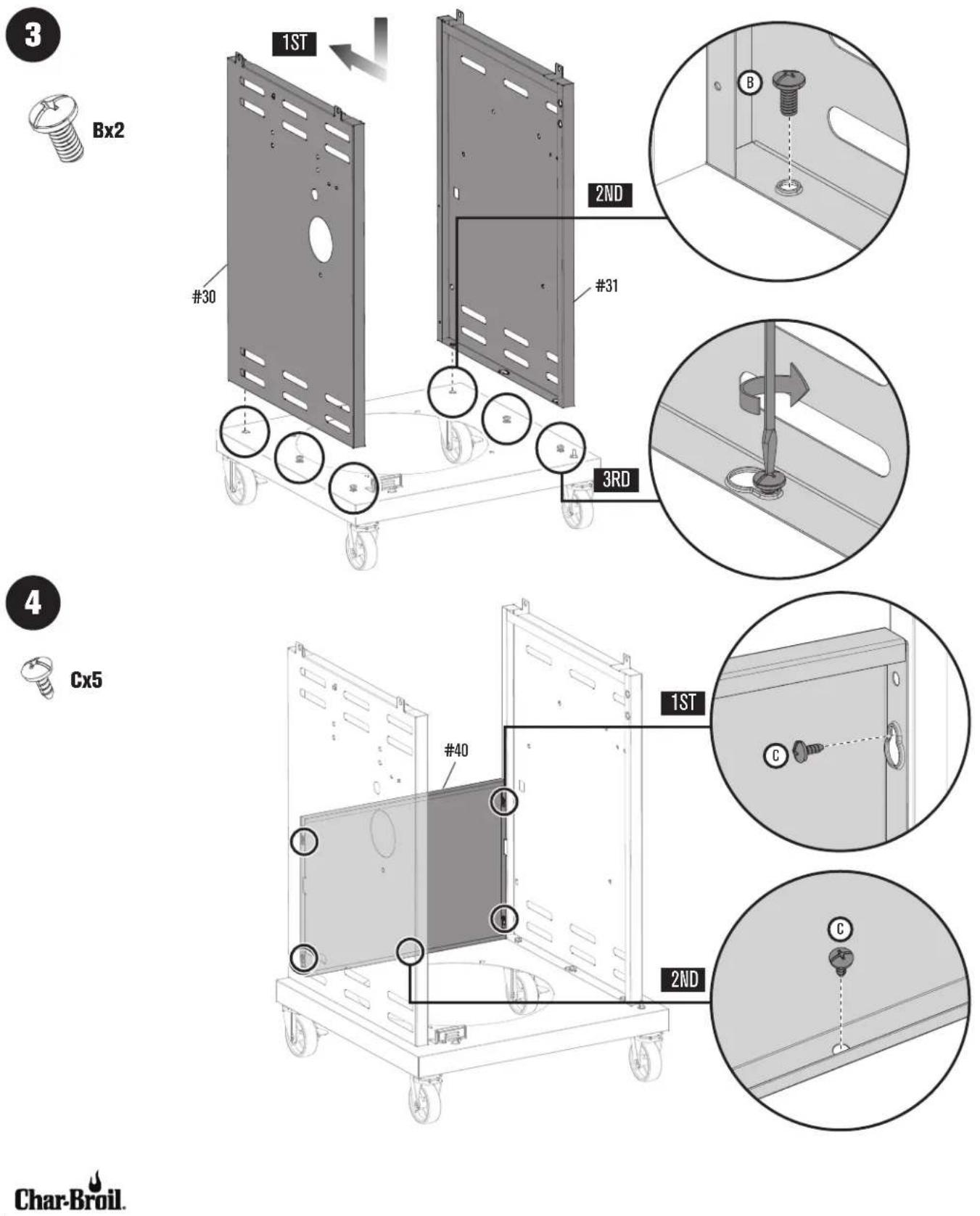

ASSEMBLY

5

Bx4

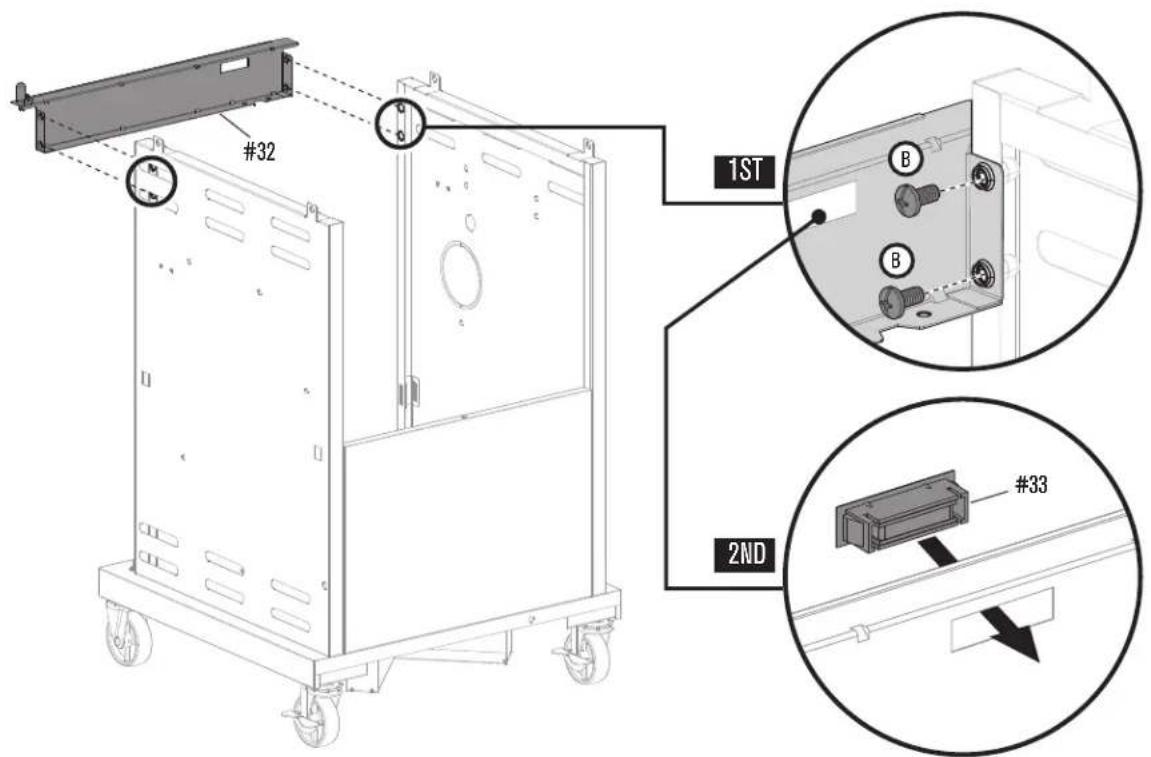

#32 1ST B B 2ND #33

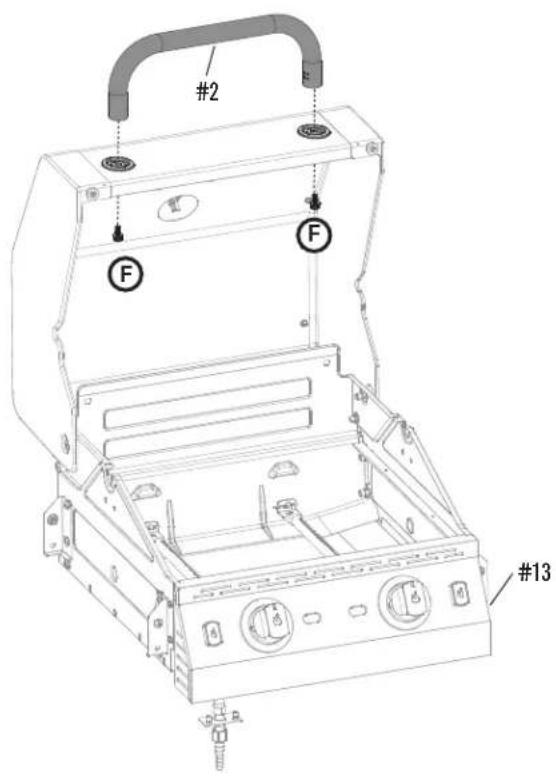

6

Fx2

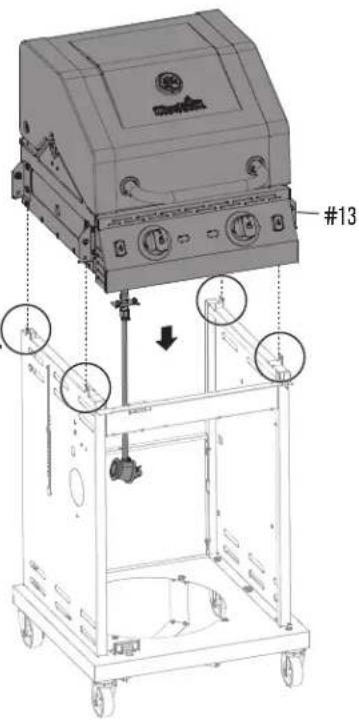

#2 F F #13

Char-Broil.

LEAK CHECK FOR 468504222 & 468504222DK

7

X1

2ND 1ST TIGHTEN SECURELY!

TIGHTEN SECURELY!
KIRISTÄ HUOLELLISESTI!
PEVN! UTÁHNITE!
FASTSPÆ ND KORREKT!
DRAAI STEVIG AAN!
DRA ÅT ORDENTLIGT!
FEST GODT!
HERTU VANDLEGA
SERREZ FERMEMENT
SICHER BEFESTIGEN!
SERRARE SALDAMENTE
APRIETE FIRMEMENTE
BEZPENE ZATIAHIN! U
תְקּרָה בַת
AFTENGDU TANKINNS
EKFOETSDISURAN P!
ЗАДАЧИ СЕКРЕТНО!
BIZTONSÁGÁVAL!
ATENIE SECURAL!
ΑΣΦΑΛΕΙΑΣ ΑΣΦΑΛΕΙΑΣ!

LEAK CHECK FOR 468504222 & 468504222DK

Technical line drawing of a device front panel with buttons and ports (no text or symbols)

1ST 2 OFF x2

Diagram of a gas cylinder with a valve and connector (no text or symbols)

Disconnect the tank after this check!

Line drawing of a Gasoline gas engine connected to a gas cylinder (no text or symbols present)

Diagram of a mechanical device with spherical components and a central shaft, enclosed in a circle (no text or symbols)

Char-Broil.

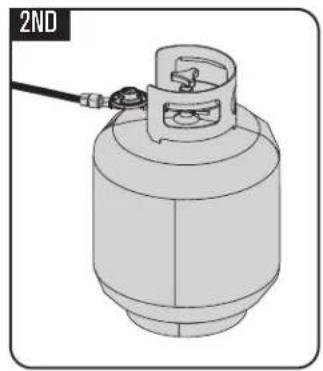

LEAK CHECK FOR 468172222

Technical line drawing of a device front panel with two switches and a coiled cable (no text or symbols)

1ST OFF x2

Technical line drawing of a cylindrical mechanical component with a cable and connector (no text or symbols)

Disconnect the tank after this check!

Line drawing of a Gasoline gas stove connected to a cylindrical gas cylinder (no text or symbols present)

Diagram of a mechanical assembly with a central rod and multiple spherical components, enclosed in a circle (no text or labels)

Char-Broil.

ASSEMBLY

Bx4

Mechanical assembly diagram showing a bolt inserted into a bracket (no text or symbols)

#13

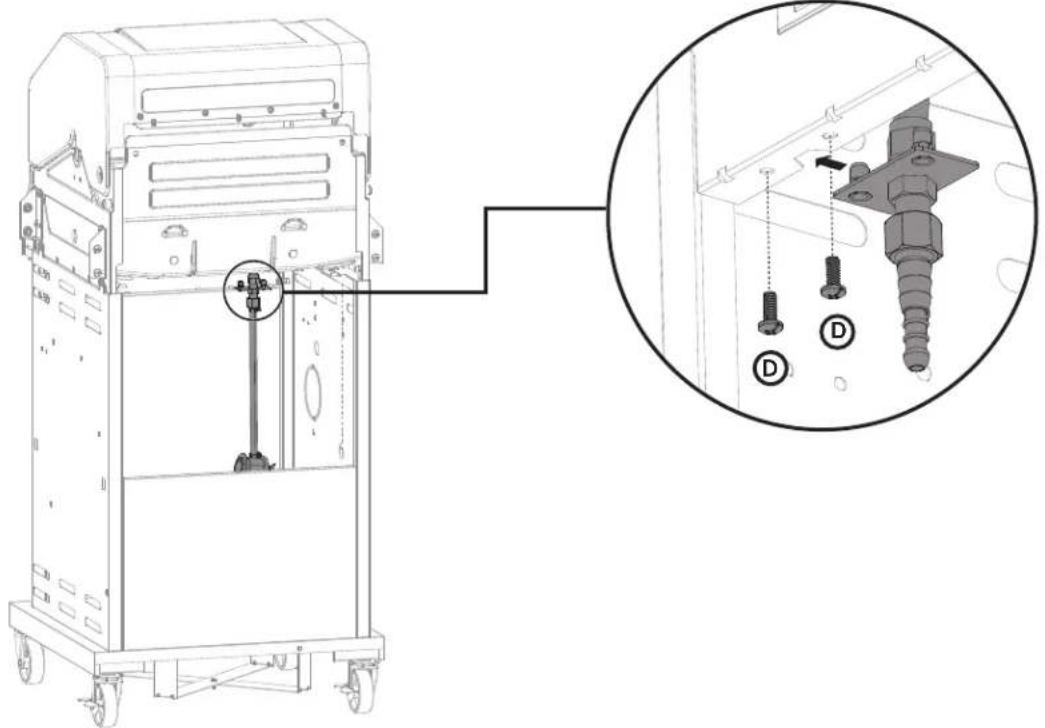

Dx2

Technical diagram of a device with labeled parts and an inset showing assembly details for a mechanical component.

Char-Broil.

10

Bx2

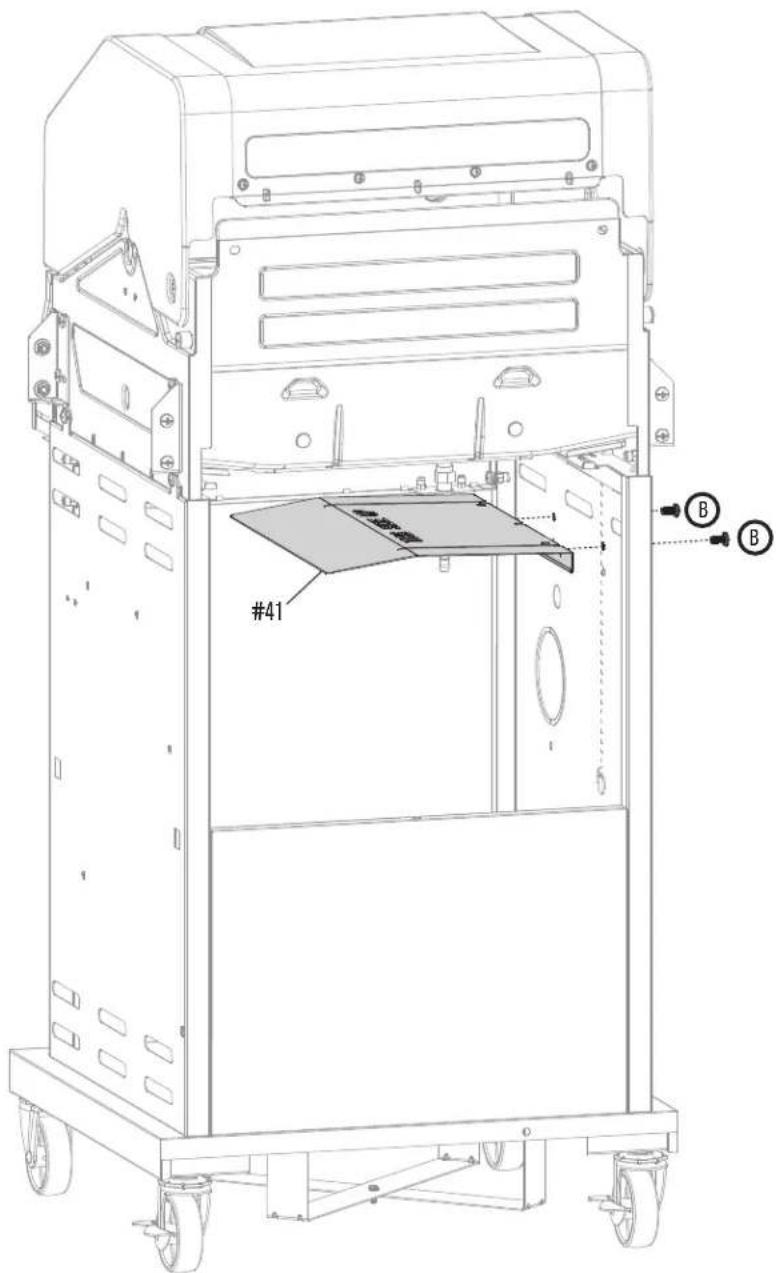

#41 B B

Char-Broil.

ASSEMBLY

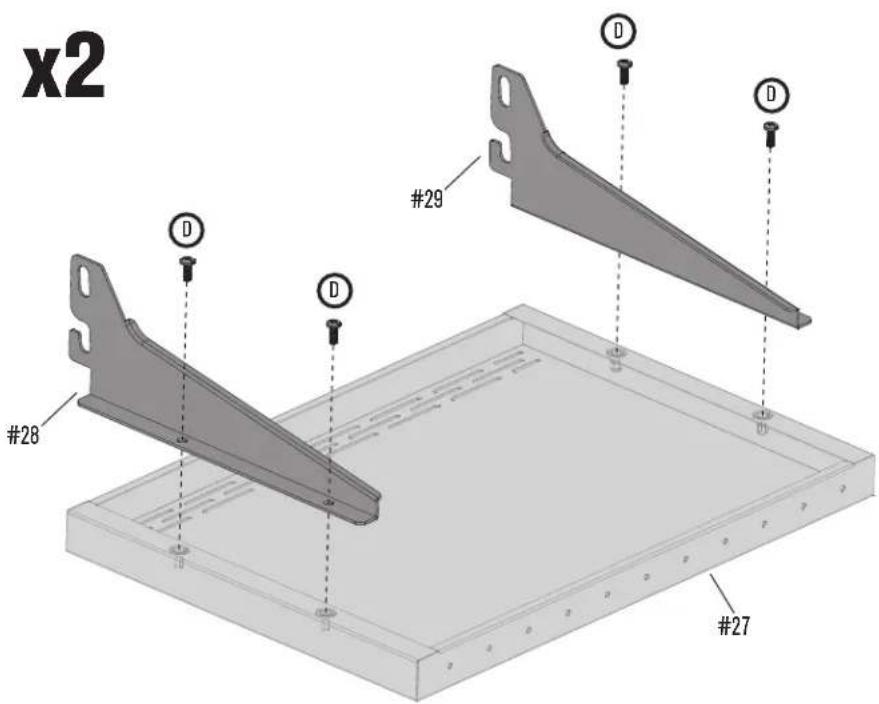

11

Dx8

x2 #28 D D #29 D #27

12

Gx4

Hx4

x2

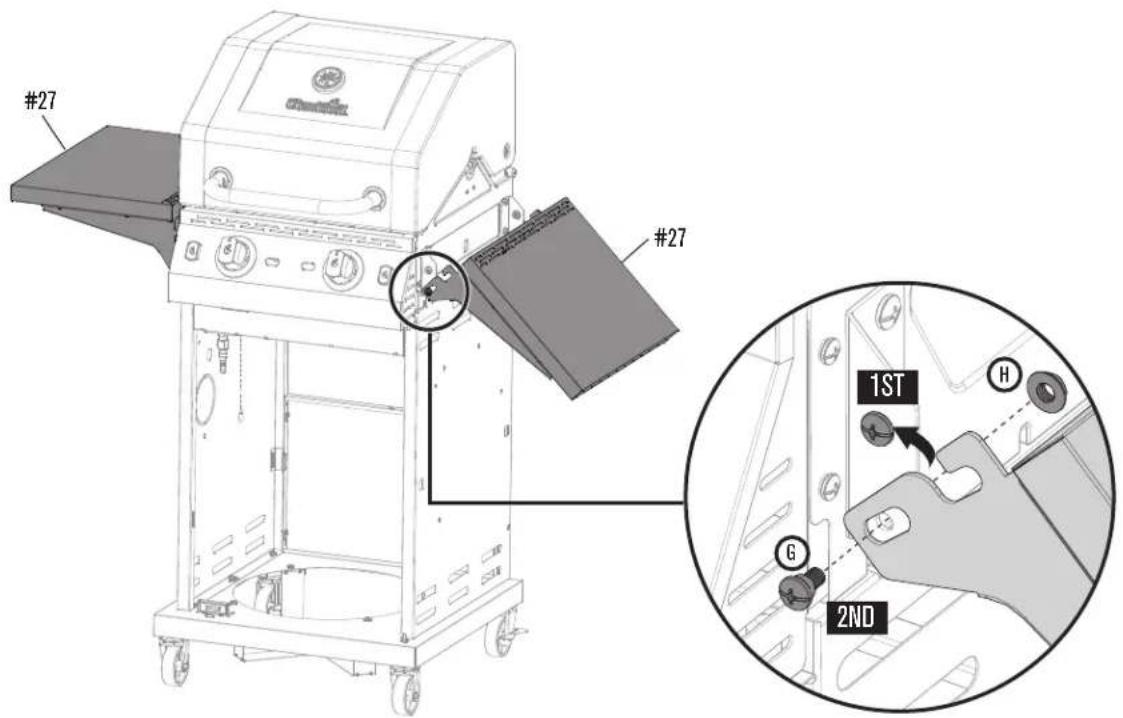

#27 #27 1ST H G 2ND

Char-Broil.

13

#9 #10

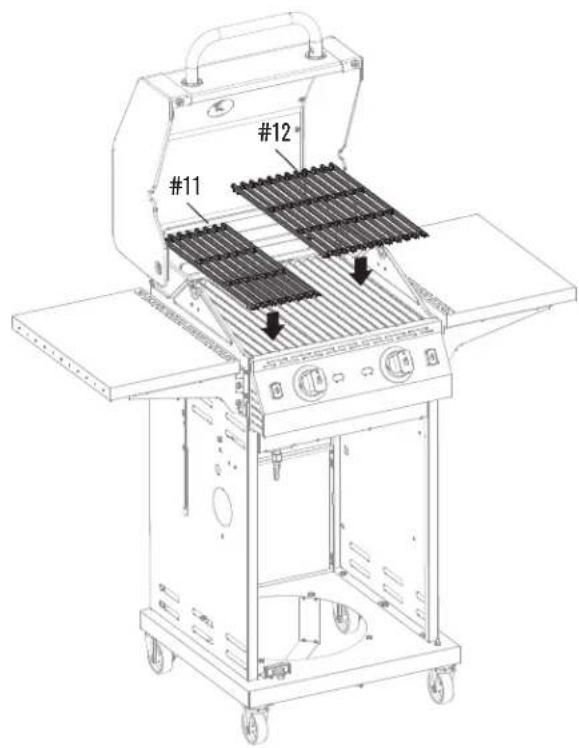

14

#11 #12

or #11 #52

Char-Broil.

GB Inspect your infrared grate before each use to ensure that the openings are not covered with debris. See the Grilling Guide for detailed cleaning instructions.

1ST #48 #49 2ND 3RD Large-2 Small-2 #48 #48 #49

Char-Broil.

16-1

Technical diagram of a gas stove with labeled components and wiring connections

17

Dx2

Jx2

Kx2

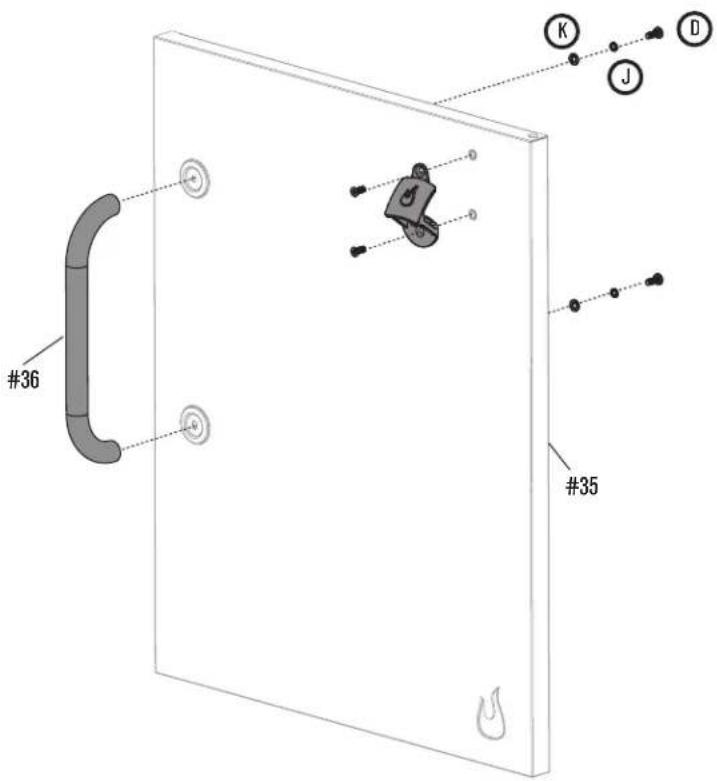

#36 #35 K D J

Char-Broil.

ASSEMBLY

18

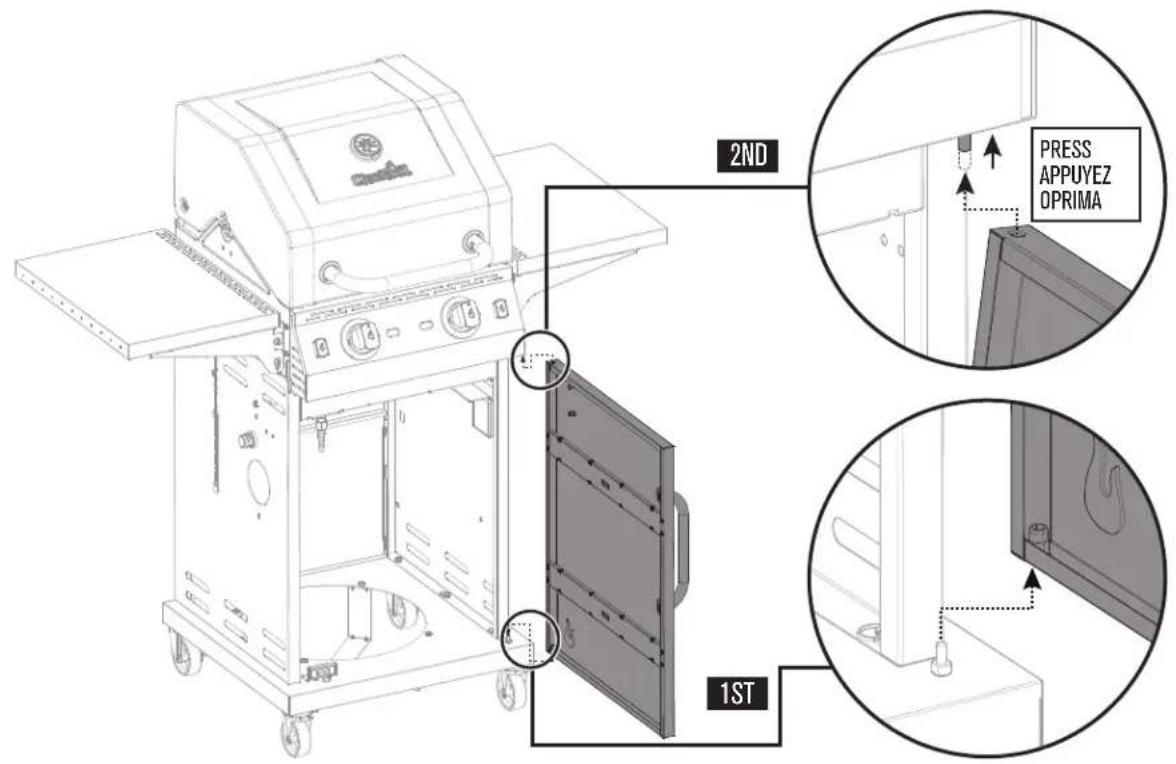

2ND PRESS APPUYEZ OPRIMA 1ST

19

#45 #47 CAUTION/ ATTENTION/ ADVERTENCIA Failure to install grease tray and grease pan will cause hot to drip from bottom of grill with risk of fire or property damage. Si vous omettez d'installer le plateau d'écoulement de la gra- le récipient à graisse, la graisse chaude s'écoulera du fond ce qui pourrait causer un incendie ou occasionner des dom- matériels. El no instalar la bandeja y el recipiente para la grasa ocasio goto de grasa caliente desde la parte inferior de la parrilla, presenta el riesgo de incendio o daños materiales.

Char-Broil.

CAUTION/ ATTENTION/ ADVERTENCIA

Failure to install grease tray and grease pan will cause hot grease to drip from bottom of grill with risk of fire or property damage.

Line drawing of a portable gas stove with wheels and control panel (no text or symbols)

ASSEMBLY

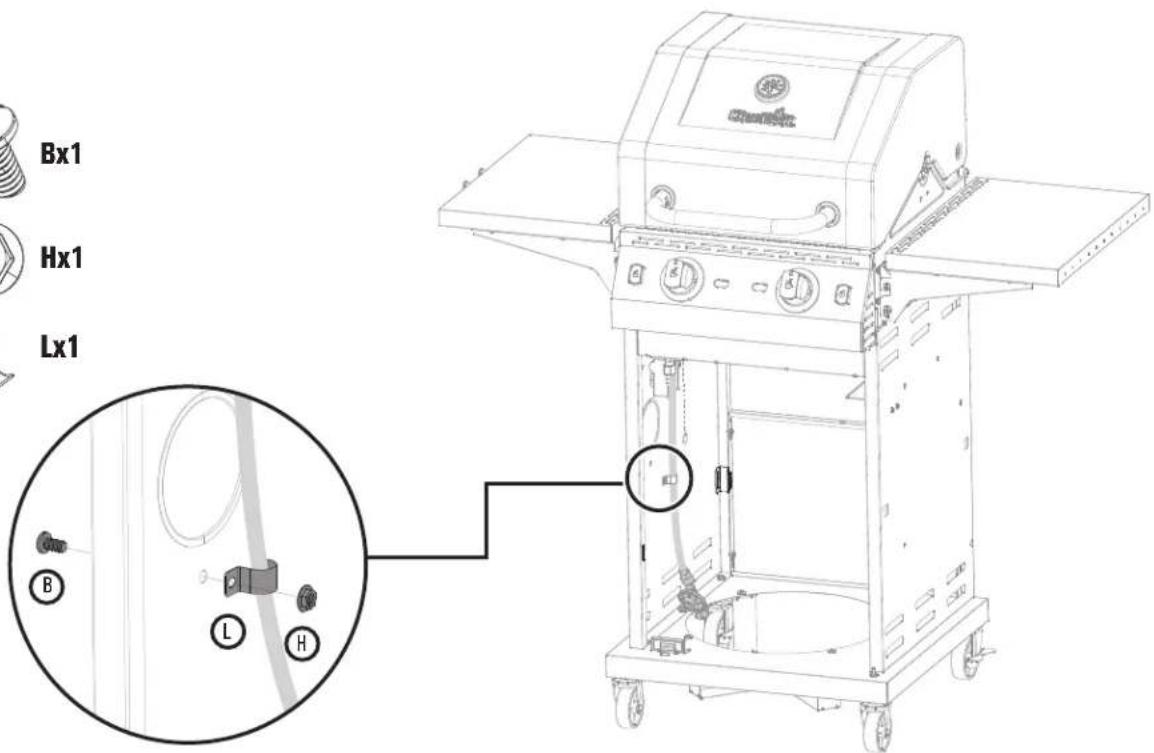

22

Bx1 Hx1 Lx1 B L H

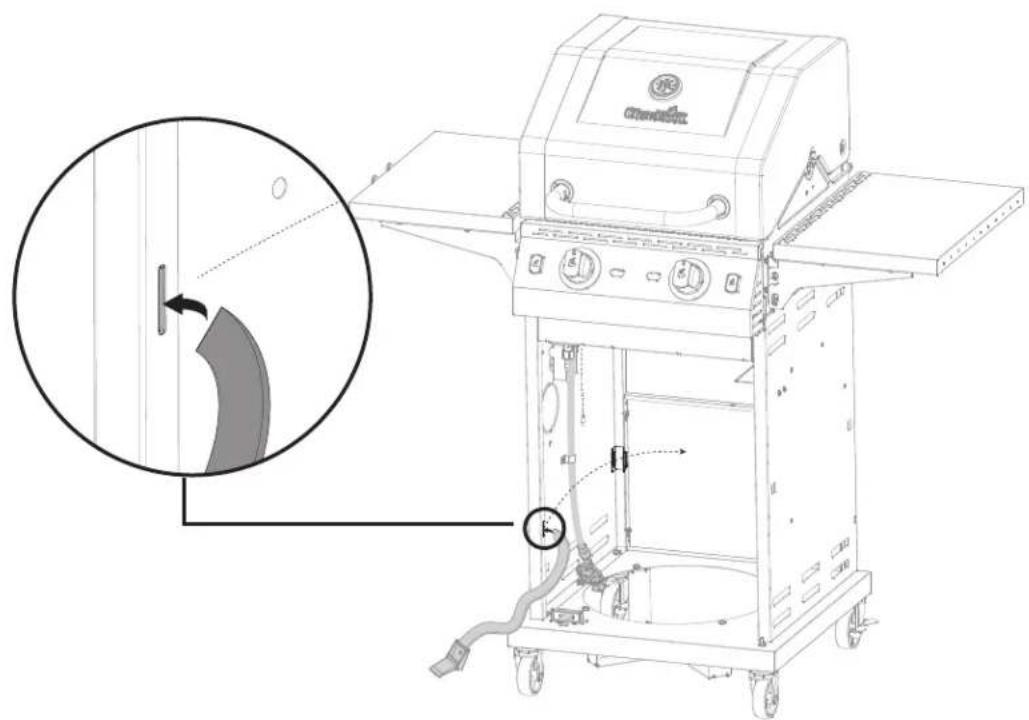

23

Technical diagram of a gas stove with labeled components and an inset showing a close-up view of the door panel.

Char-Broil.

24

Line drawing of a gas stove with a gas cylinder and valve, no text or symbols present

25

Diagram illustrating the process of fuel gas generation and cooling system, showing valve insertion and gas cylinder assembly.

Char-Broil.

Char-Broil Europe GmbH of Paul-Dessau-Straße 8 Quartier O – 4.OG D-22761 Hamburg, (Char-Broil) warrants to the PURCHASER of this Char-Broil product that it will be free of defects in material and workmanship from the date of purchase as follows:

	Gas Grills
Burners	5 years
Cooking Grates/Emitters	2 years
All Other Parts (EURO minimum)	2 years

Char-Broil or the seller of the product may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE.

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

This Warranty includes the right of repair or replacement of the product or parts of the product that prove defective under normal use and service. Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. . Char-Broil will return the product or parts of the product to the purchaser, freight or postage prepaid. If Char-Broil elects to repair the product or such defective parts of the product and this repair fails, you are entitled, pursuant to your statutory legal rights, to reduce the purchase price or to withdraw from the contract and receive a refund.

This Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual. Exceptions may apply, so please contact Char-Broil or your seller in case you have any questions on whether this Warranty applies to your specific case or not.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Warranty, and are not normally covered by your statutory legal rights.

Char-Broil is not liable for any unforeseeable losses (i.e. loss or damage that neither you nor Char-Broil or the seller contemplated at the time of purchase), or any damage caused by you, save for that Char-Broil's liability for fraud or death or personal injury caused by its negligence is not limited.

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.

This Warranty applies only to products sold at retail to individuals (as opposed to businesses) within the European Union.

This Warranty does not affect any of your statutory legal rights under the applicable consumer laws of your resident country.

For warranty service, contact Char-Broil at [e-mail].

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.
