USER MANUAL PSDS3YGXSS GE

Safety Instructions .....2-4

Operating Instructions

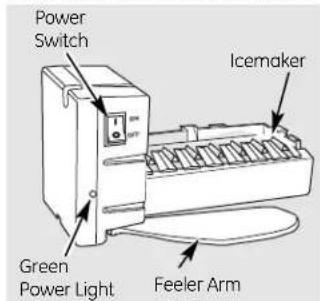

Automatic Icemaker .....14

Care and Cleaning .....16, 17

ClimateKeeper2 ^TM ....6

Crispers and Pans 13

CustomCool™ 7,8

Ice and Water Dispenser .....15-16

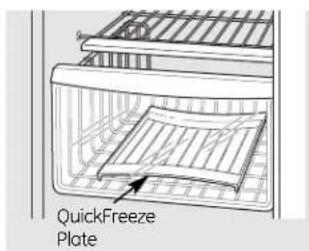

QuickFreeze™ 9

Quick Ice....15

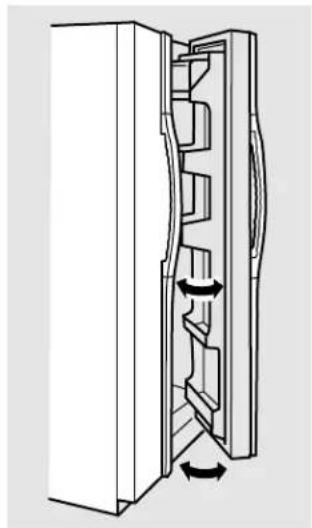

Refrigerator Doors 12

Replacing the Light Bulbs .....18

Set Features....6

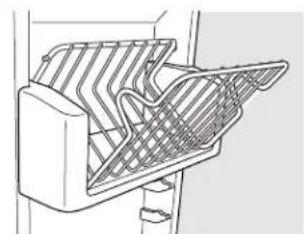

Shelves and Bins .....10, 11

Temperature Controls ....5

TurboCool™ 6

Water Filter....9

Installation Instructions

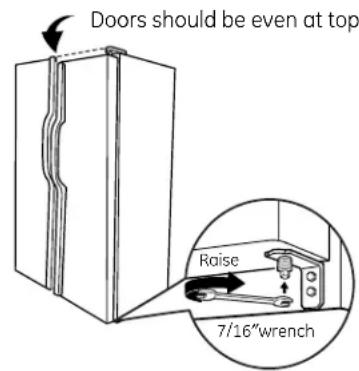

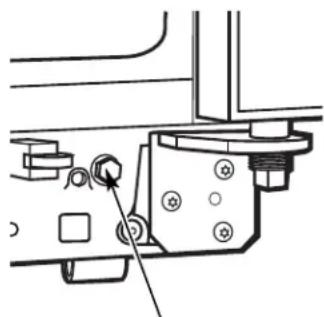

Installing the Refrigerator .....28-31

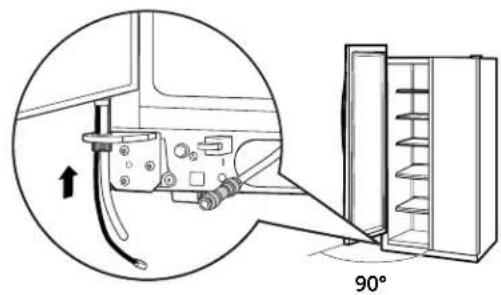

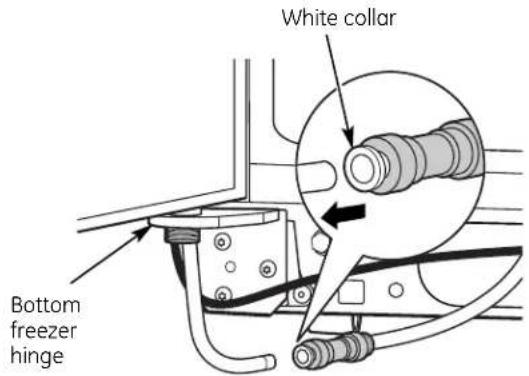

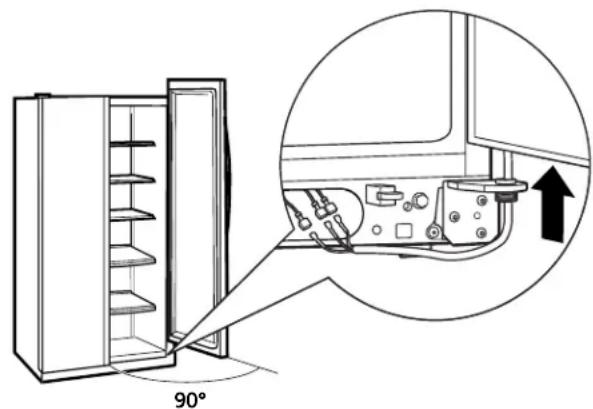

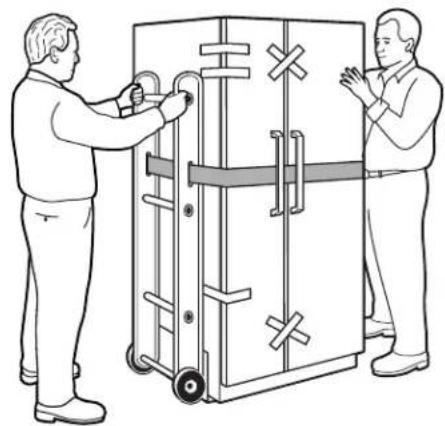

Moving the Refrigerator .....24-27

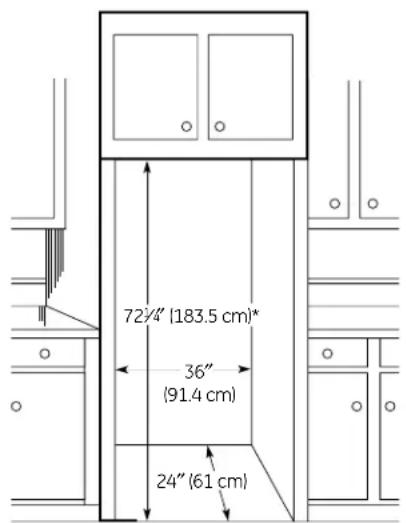

Preparing to Install

the Refrigerator....23

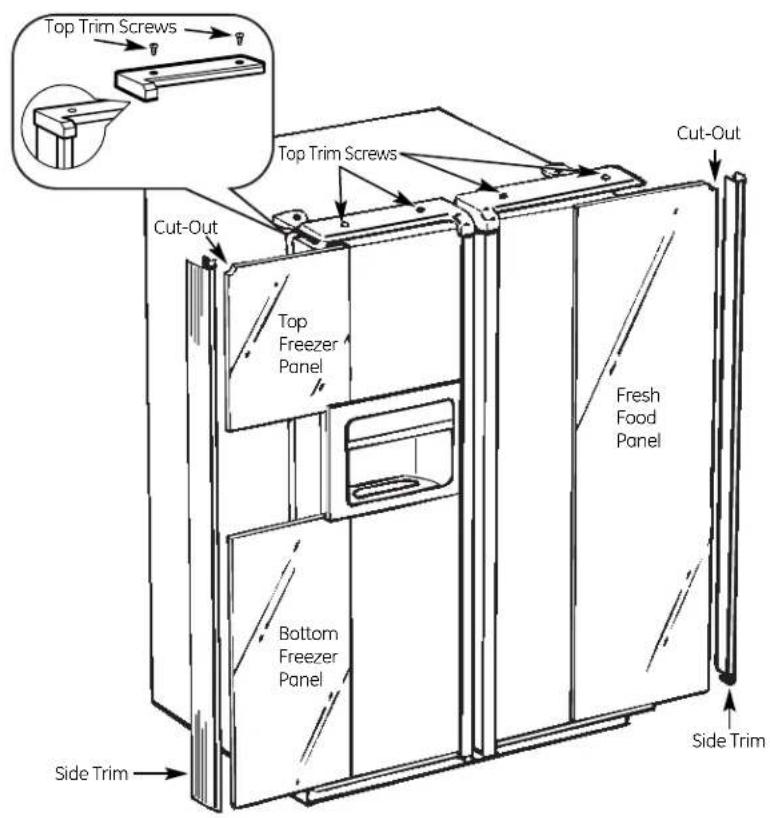

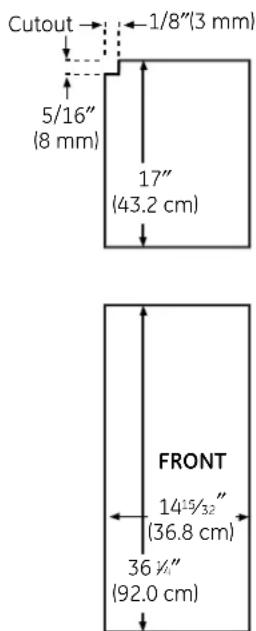

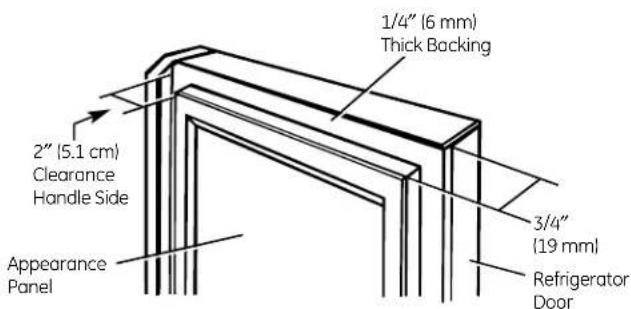

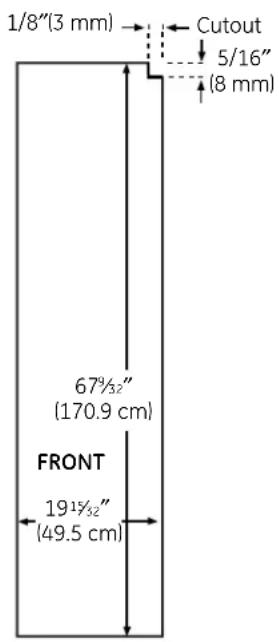

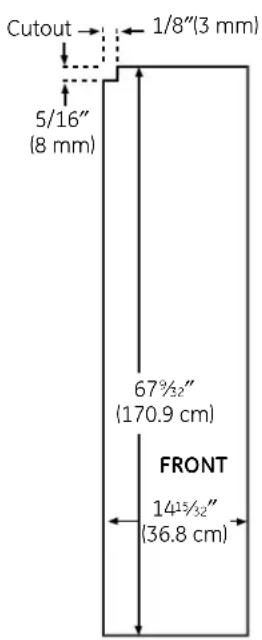

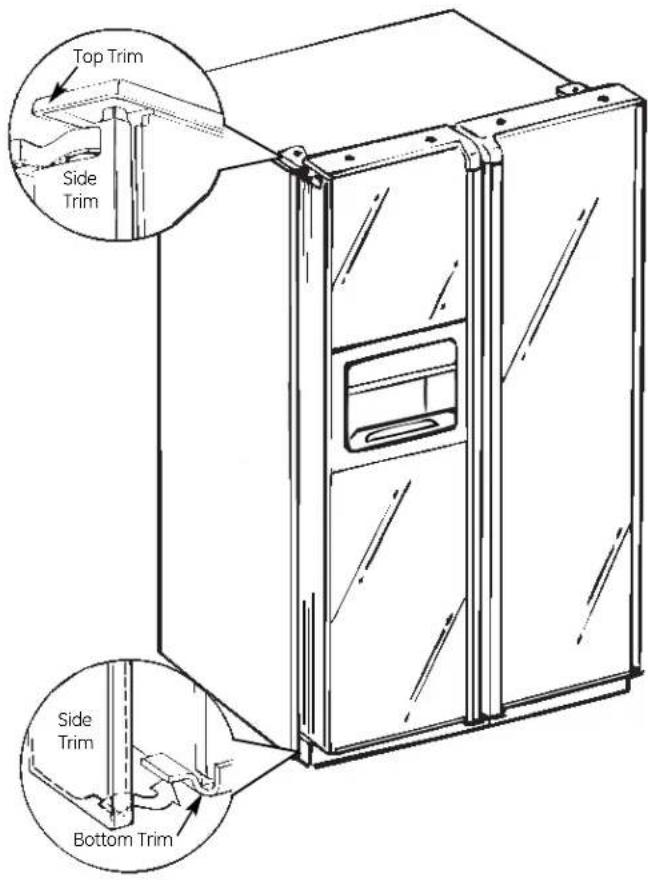

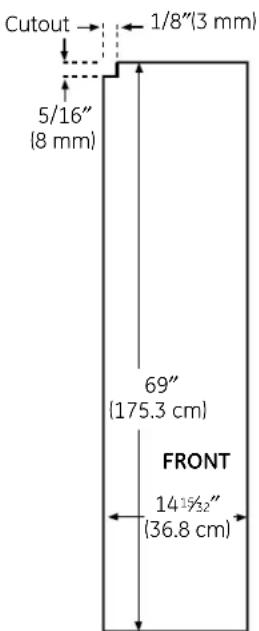

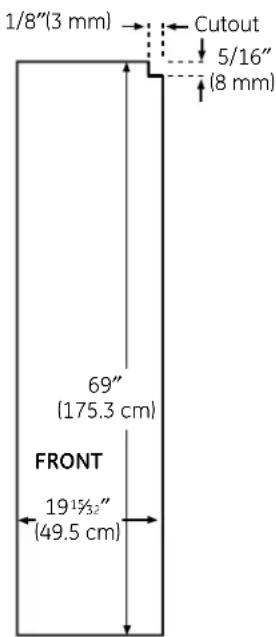

Trim Kits and Panels .....19-22

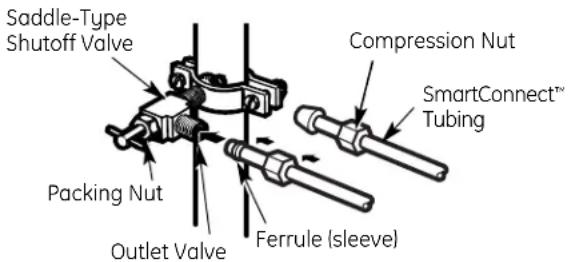

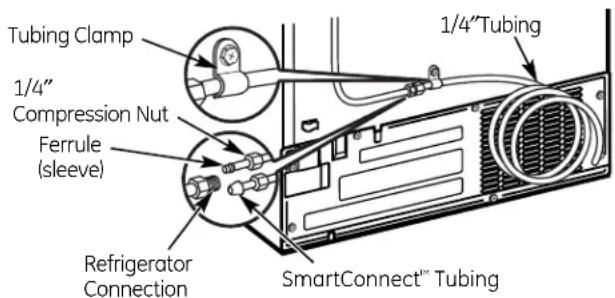

Water Line Installation .....32-34

Troubleshooting Tips .....36-38

Normal Operating Sounds .....35

Consumer Support

Consumer Support......Back Cover

Performance Data Sheet .....41

Product Registration .....43, 44

State of California Water

Treatment Device Certificate .....42

Warranty (Canadian) 39

Warranty (U.S.) 40

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label inside the refrigerator compartment at the top on the right side.

Owner's Manual and Installation

Models 23, 25 and 26

Profile Côte à Côte

Réfrigérateurs

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

Use this appliance only for its intended purpose as described in this Owner's Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
Do not allow children to climb, stand or hang on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the icemaker. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

• Keep fingers out of the "pinch point" areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
  ■ Unplug the refrigerator before cleaning and making repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

Non-LCD models: Setting either or both controls to 0 (off) does not remove power to the light circuit.
LCD models: Turning the cooling system off does not remove power to the light circuit.
- Do not refreeze frozen foods which have thawed completely.
■ Always clean the CustomCool ™ Tray after thawing food.

▲ DANGER! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous...even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

Take off the doors.
Leave the shelves in place so that children may not easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Not all features are on all models. Your controls will look like one of the following:

Line drawing of an open refrigerator with shelves and a door handle (no text or symbols)

Non-LCD models

LCD models

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

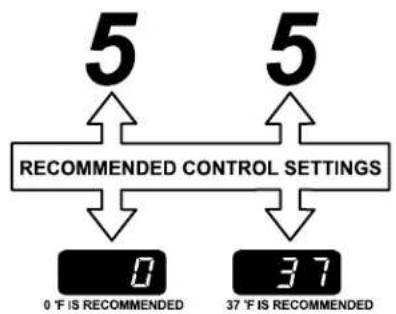

The temperature controls are preset in the factory at 37^ F ( 3^ C) for the refrigerator compartment and 0^ F (-18°C) for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

Refrigerator temperatures can be adjusted between 34°F and 46°F (1°C to 8°C), and the freezer temperatures can be adjusted between -6°F and +8°F (-21°C to -13°C).

To change the Refrigerator temperature:

LCD Models:

Access By: Home > Refrigerator

Activate By: Using the arrows to select the desired temperature. You must press ENTER to set the new temperature.

To change the Freezer temperature:

Access By: Home > Freezer

Activate By: Using the arrows to select the desired temperature. You must press ENTER to set the new temperature.

Once the desired temperature has been set, the display will return to the HOME screen and show the set temperatures underneath the actual temperature display for several seconds. Several adjustments may be required. Each time you adjust the controls, allow 24 hours for the refrigerator to reach the temperature you have set.

Non-LCD Models:

To change the temperature, press and release the FREEZER TEMP/FRIDGE TEMP pad. The SET light will come on and the display will show the set temperature. To change the temperature, tap either the vor pad until the desired temperature is displayed.

Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust the controls, allow 24 hours for the refrigerator to reach the temperature you have set.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Performance Air Flow System

The Performance Air-Flow System is designed to maximize temperature control in the refrigerator and freezer compartments. This unique special feature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the louvers on these components will

Turning the cooling system off:

LCD models: Turning the cooling system OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

LCD Models:

Access By: Home > Options > Information and Settings > Cooling System Off

To turn the cooling system back on, press the touch screen and press the ON button.

Activate By: Pressing ENTER.

Non-LCD Models:

Press and release the FREEZER TEMP/FRIDGE TEMP pad. Press ▲ to set freezer temperature to 5. The display will show OFF. To turn the unit back on, press the FREEZER TEMP/FRIDGE TEMP pad. Press √ to set the freezer and refrigerator temperatures to the preset points of 0°F (-18°C) for the freezer and 37°F (3°C) for the refrigerator.

When the unit is turned back on, it will take up to 24 hours to stabilize.

not affect performance. Although the Air Tower and the Air Tunnel can be removed, doing so will affect temperature performance. (For removal instructions, on-line, contact us at ge.com or call 800.GE.CARES. In Canada, contact us at geappliances.ca or call 1.800.561.3344.)

About Set Features.

This pad is used to select the following features: TurboCool, Quick Ice, Door Alarm and Water Filter.

Pressing SET FEATURES repeatedly will cycle through all of the available features and then

exit the mode. If no key is pressed, the mode will exit and return to displaying features currently set.

About TurboCool. ^TM

LCD Models Only

How it Works

TurboCool™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period.

Once activated, the compressor will turn on immediately and the fans will cycle on and off at high speed as needed for eight hours. The compressor will continue to run until the refrigerator compartment cools to approximately 34^ F ( 1^ C), then it will cycle on and off to maintain this setting. After 8 hours, or if TurboCool is pressed again, the refrigerator compartment will return to the original setting.

How to Use

LCD Models:

Access By: Home > Options > Refrigerator Options > TurboCool

Activate By: Pressing ON.

Deactivate By: Pressing OFF.

Non-LCD Models:

Press SET FEATURES. The refrigerator temperature display will show TurboCool and/or TC. Press ON/OFF.

After TurboCool is complete, the refrigerator compartment will return to the original setting.

NOTES:

The refrigerator temperature cannot be changed during TurboCool.

The freezer temperature is not affected during TurboCool.

When opening the refrigerator door during TurboCool, the fans will continue to run if they have cycled on.

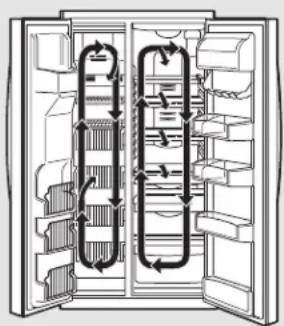

About ClimateKeeper2. ^™ (on some models)

How it Works

The ClimateKeeper2™ is the industry's most advanced refrigeration system, delivering optimum temperature and humidity performance to keep food garden fresh longer and reduce freezer burn, while maintaining E star-level efficiency.

The ClimateKeeper2 system features two evaporators—one for the refrigerator and one for the freezer.

This provides two separate cooling systems, and separates the airflow between the fresh food and freezer compartments during normal cooling operations.*

This ensures that the humidity levels in the fresh food compartment are significantly higher than in a conventional system, ^** allowing fresh produce and other unsealed foods to retain their moisture content and freshness longer. Moisture sensitive foods such as fresh fruit, salads, rice, etc., can now be stored on open shelves without excessive moisture loss. Due to the higher humidity in

the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment. This is normal and may come and go as different food loads and environmental conditions change. Wipe dry with a paper towel if desired.

The separate airflow system minimizes the mixing of air between the two compartments, which reduces fresh food odor transfer to improve the taste of ice.

The ClimateKeeper2 system also reduces the number of defrosting cycles in the freezer evaporator, thereby reducing freezer burn.

*Freezer air is used in the CustomCool feature.

**Testing shows a higher level of humidity in the Fresh Food section in ClimateKeeper2 refrigerators versus conventional units.

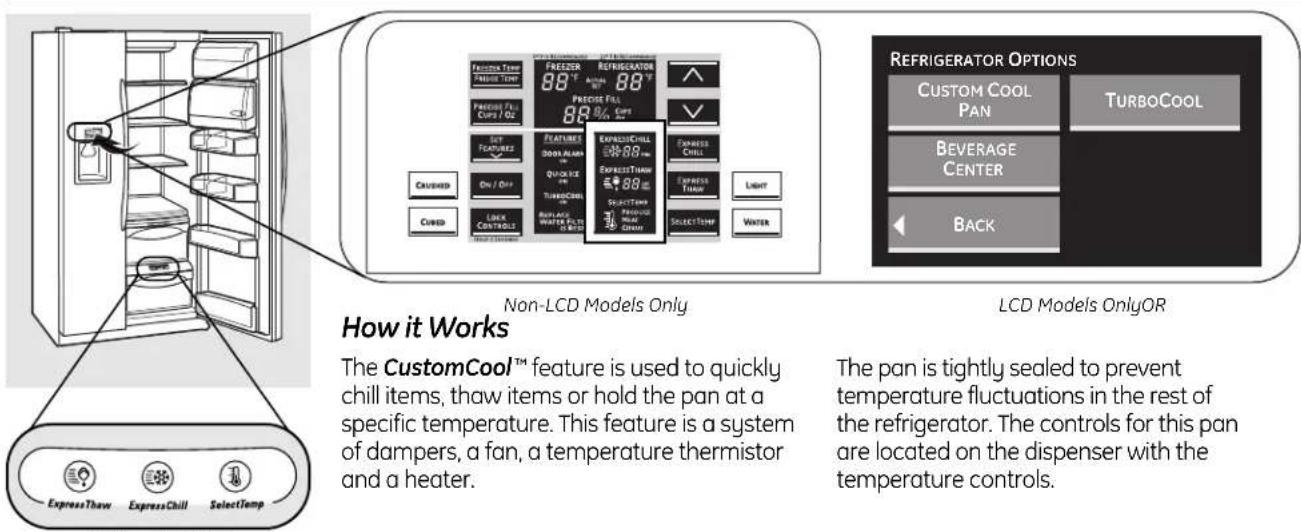

About CustomCool. ^™ (on some models) ge.com

LCD Models Only

How it Works

The CustomCool™ feature is used to quickly chill items, thaw items or hold the pan at a specific temperature. This feature is a system of dampers, a fan, a temperature thermistor and a heater.

The pan is tightly sealed to prevent temperature fluctuations in the rest of the refrigerator. The controls for this pan are located on the dispenser with the temperature controls.

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

ExpressThaw™

How to Use

Empty the pan. Place the Chill/Thaw tray in the pan. Place the items on the tray and close the pan completely.
2 LCD Models:

Access by: Home > Options > Refrigerator Options > CustomCool Pan

Non-LCD Models:

Select the ExpressThaw™, ExpressChill™ or SelectTemp™ pad. The display and SET light will come on. Tap the pad until the light appears next to the desired setting. Use the following chart to determine the best setting to use.

ExpressChill can be set to 15, 30 or 45 minutes. The default is 15 minutes.
■ To stop a feature before it is finished:

For LCD Models:

Go into that feature's menu and press the OFF button.

For Non-LCD Models:

Tap that feature's pad until no options are selected and the display is off.

During ExpressThaw and ExpressChill, the display on the controls will count down the time in the cycle (on some models).
After the ExpressThaw cycle is complete, the pan will reset to the MEAT setting (32°F [0°C]) to help preserve thawed items until they are used.
The displayed actual temperature of the CustomCool pan may vary slightly from the SET temperature based on usage and operating environment.

NOTE: For food safety reasons, it is recommended that foods be wrapped in plastic wrap when using ExpressThaw. This will help contain meat juices and improve thawing performance.

Line drawing of a multi-cylinder storage unit with cylindrical tanks, no text or symbols present

ExpressChill ^TH

Technical line drawing of a mechanical component with no visible text or symbols

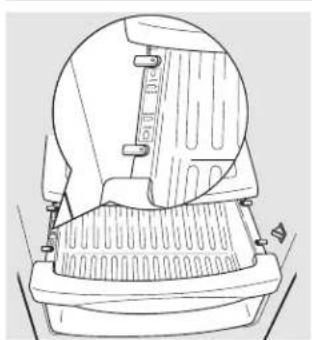

How to Remove and Replace the Drawer

To remove:

7 Pull the drawer out to the stop position.
2 Rotate all four swing locks to the unlock position.
3 Lift the front of the drawer up and out.

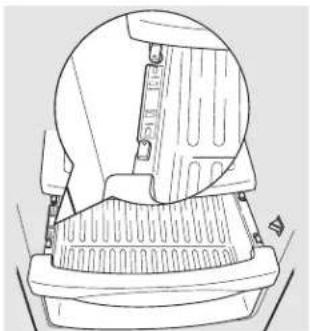

To replace:

1 Make sure all four swing locks are in the unlock position.
2 Place the sides of the drawer into the drawer supports, making sure the swing locks fit on the drawer slots.

3 Lock all four swing locks by rotating them to the lock position.

Technical line drawing of a mechanical component with no visible text or symbols

About CustomCool. ^™ (on some models)

CustomCool™ Chart

NOTE: Results may vary depending on packaging, starting temperature and other food traits.

ExpressThaw ^™

0.5 Lb. (4 hours)

Hamburger Patties (0.5 lb)

■ Individually Wrapped Filet Mignon (0.5 lb)

1.0 Lb. (6 hours)

Chicken Breasts (1.0 lb)

Ground Beef (1.0 lb)

Steak (1.0 lb)

2.0 Lbs. (10 hours)

Chicken Breasts (2.0 lbs)

■ Ground Beef (2.0 lbs)

Steak (2.0 lbs)

3.0 Lbs. (12 hours)

Chicken Breasts (3.0 lbs)

■ Ground Beef (3.0 lbs)

Steak (3.0 lbs)

ExpressChill™

15 Minutes

■ 1 Beverage Can (12 oz)
2 Small Juice Boxes (6–8 oz each)

30 Minutes

2 to 6 Beverage Cans (12 oz each)
2 Plastic 20 oz Bottles of Beverage
4 to 6 Small Juice Boxes (6–8 oz each)
3 Foil Juice Packets
Wine (750 ml bottle)

45 Minutes

2 Liter of Beverage
1/2 Gallon of Juice
Gelatin-1 package

SelectTemp ^TM

Citrus Setting (43°F [6°C])

Oranges, Lemons, Limes, Pineapple, Cantaloupe

Beans, Cucumbers, Tomatoes, Peppers, Eggplant, Squash

Produce Setting (35°F [2°C])

Strawberries, Raspberries, Kiwifruit, Pears, Cherries, Blackberries, Grapes, Plums, Nectarines, Apples

Asparagus, Broccoli, Corn, Mushrooms, Spinach, Cauliflower, Kale, Green Onion, Beets, Onions

Meat Setting (32°F [0°C])

Raw Meat, Fish and Poultry

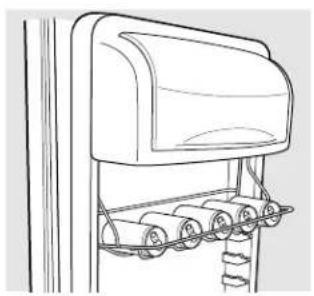

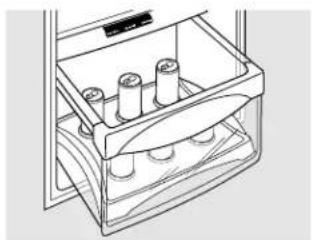

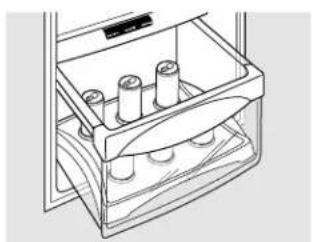

How to Use the Beverage Center (LCD models only)

Some CustomCool models feature a beverage center. It is designed to store beverages at colder temperatures. Select this feature if you like to keep extra-chilled refreshments on hand.

Access by: Home > Options > Refrigerator Options > Beverage Center

Activate by: Pressing ON.

Deactivate by: Pressing OFF.

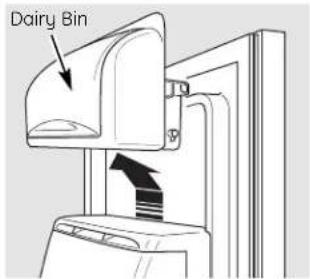

Dairy Bin

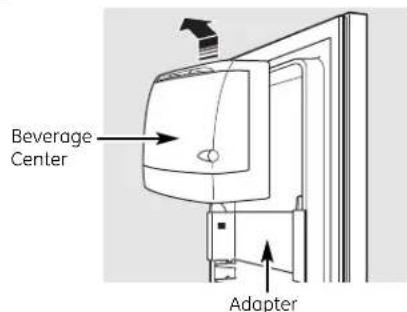

How to Remove and Replace the Beverage Center (LCD models only)

To remove:

7 Remove dairy bin first. Holding the bottom of the dairy bin, lift the front straight up, then lift up and out.
2 Holding left and right side of beverage center, lift straight up and out.
3 Leave adapter in place.

To replace:

1 Engage backside of beverage center in molded supports on adapter. Then push down on the sides of the beverage center. The beverage center will lock into place.

2 Replace dairy bin.

Beverage Center Adapter

QuickFreeze Plate

The QuickFreeze plate is only to be used with the QuickFreeze feature. Use QuickFreeze to freeze items faster to enhance food preservation.

How to Use

Place food (wrapped in plastic wrap) on QuickFreeze plate. Turn the feature on via the LCD controls.

Some LCD Models Only:

Access By: Home > Options > Freezer Options > QuickFreeze

Activate By: Using the arrows to select the time and pressing Enter.

Deactivate By: Pressing OFF.

NOTE: While the QuickFreeze feature is enabled, the actual freezer temperature may drop as low as -3^ ( -19^ ). This is normal.

About the water filter.

Simple line drawing of a cylindrical object with a narrow neck and cap (no text or symbols)

Water Filter Cartridge

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

Cartridge Holder

When to Replace the Filter

LCD Models:

A pop-up screen will appear on the LCD screen to remind you to replace the water filter. You can check the status of the water filter manually.

Access By: Home > Options > Dispenser Options > Reset Water Filter

Non-LCD Models:

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.

Place the top of the cartridge up inside the cartridge holder and slowly turn it to the right.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

Removing the Filter Cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.

Installing the Filter Cartridge

There is an adapter attached to the top of the new filter cartridge.

The adapter must be removed before installing the cartridge. To remove the adapter, turn it to the left about 1/4 turn.

2 Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.

3 Line up the arrow on the cartridge and the cartridge holder. Place the top of the new cartridge up inside the holder. Do not push it up into the holder.

4 Slowly turn it to the right until the filter cartridge stops. DO NOT OVERTIGHTEN. As you turn the cartridge, it will automatically raise itself into position. The cartridge will rotate about 1/2 turn.

5 Run water from the dispenser for 5 minutes to clear the system and prevent sputtering.

6 LCD Models: Press FILTER REPLACED button to confirm replacement.

Non-LCD Models:

Press the SET FEATURES pad until REPLACE WATER FILTER is lit. Press and hold the ON/OFF pad for 3 seconds. WATER FILTER IS RESET will show in the window.

NOTE: A newly installed water filter cartridge may cause water to spurt from the dispenser.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

Replacement Filters:

To order additional filter cartridges in the United States, visit our Website, ge.com, or call GE Parts and Accessories, 800.626.2002.

MSWF

Suggested Retail \36.95-\41.95 USD

Customers in Canada should consult the yellow pages for the nearest Mabe Service Center.

About the shelves and bins.

Not all features are on all models.

Snugger

Refrigerator bin

Technical line drawing of a mechanical component or bracket (no text or symbols)

Freezer tilt-out bin

Refrigerator Door Bins and Freezer Door Tilt-Out Bins

Bins

The larger refrigerator door bins and freezer tilt-out door bins are adjustable.

To remove: Lift the front of the bin straight up, then lift up and out.

To replace or relocate: Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. Bin will lock in place.

The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs.

Top Freezer Bins

Do not block

Top freezer bin

CAUTION:

Be careful when placing items in the top bin. Make sure that items do not block or fall into the ice chute.

Do not block

Top freezer bin (on some models)

CAUTION:

Part must be in place as shown for proper ice dispensing. Food cannot be stored in this location.

Illustration of a document with a black arrow pointing to it, no visible text or symbols

Press tab and pull shelf forward to remove

Abstract line drawing with curved arrows and a partial view of a document (no text or symbols)

Slide-Out Spillproof Shelf

The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.

To remove:

Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out.

To replace or relocate:

Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place.

Make sure you push the shelves all the way back in before you close the door.

Illustration of stacked documents with a black arrow pointing to one document (no text or symbols present)

QuickSpace™ Shelf

This shelf splits in half and slides under itself for storage of tall items on the shelf below.

This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves.

On some models, this shelf cannot be used in the lowest position.

Not all features are on all models.

3D wireframe diagram of a rectangular container with internal structure (no text or symbols)

Freezer Baskets

To remove, push the basket all the way to the back of the freezer. Lift up until the back pins are disengaged. Lift the entire basket up and pull out.

Make sure you push the baskets all the way back in before you close the door.

Technical line drawing of a metal rack with a black clip and vertical supports (no text or symbols)

Slide-Out Freezer Shelves

To remove, slide out to the stop position, lift the front past the stop position and slide out.

Make sure you push the shelves all the way back in before you close the door.

Diagram showing two labeled components (1 and 2) of a mechanical device with arrows indicating direction or movement.

Fixed Freezer Shelves

There are two types of fixed freezer shelves.

NOTE FOR DISPENSER MODELS: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.

To remove this type of shelf:

1 Lift the shelf up at the left side.
2 Bring the shelf out.

Diagram showing a mechanical or structural system with labeled components and directional arrows, likely illustrating a motion or force system.

To remove this type of shelf:

1 Lift up the left side of the shelf and slide it left into the center of the shelf supports.
2 Rotate the right side of the shelf up and out of the shelf supports.

Line drawing of a mechanical device with rollers and a curved housing (no text or symbols)

Door Wine/Beverage Rack (on some models)

This rack holds up to 5 cans, one bottle of wine or one 2-liter bottle of soda.

The rack hangs from the sides of the dairy bin.

To remove:

⑦ Empty the wine/beverage rack.
2 Holding the bottom of the dairy bin, lift the front straight up, then lift up and out.
3 To detach the rack from the dairy bin, pull the rack's side wires out of the holes on each side of the dairy bin.

To replace:

1 Reattach the rack to the sides of the bin.
2 Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. The bin will lock into place.

Line drawing of a mailbox with ladder and support structure, no text or symbols present

About the refrigerator doors.

Technical line drawing of a refrigerator door mechanism showing internal compartments and directional arrows (no text or symbols)

When the door is only partially open, it will automatically close.
Beyond this stop the door will stay open.

Refrigerator Doors

The refrigerator doors may feel different than the ones you are used to. The special door opening/closing feature makes sure the doors close all the way and are securely sealed.

When opening and closing the door, you will notice a stop position. If the door is opened past this stop point, the door will remain open to allow you to load and unload food more easily. When the door is only partially open, it will automatically close.

The resistance you feel at the stop position will be reduced as the door is loaded with food.

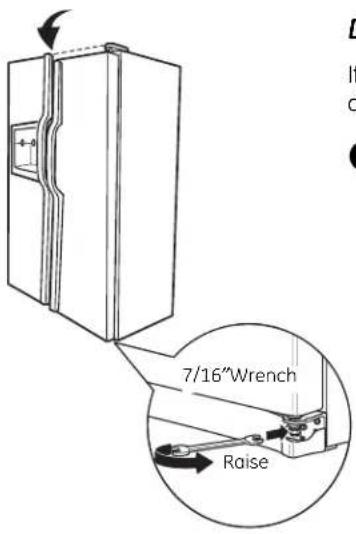

7/16"Wrench Raise

Door Alignment

If doors are uneven, adjust the refrigerator door.

Using a 7/16" wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)

2 After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

About the crispers and pans. ge.com

Not all features are on all models.

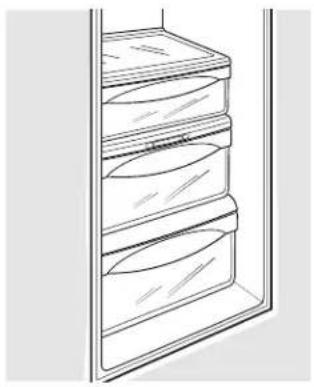

Line drawing of a refrigerator with three shelves (no text or symbols)

Fruit and Vegetable Crispers

Excess water that may accumulate in the bottom of the drawers should be wiped dry.

On some models, the bottom drawer has full extension slides that allow full access to the drawer.

HI

Adjustable Humidity Crispers

Slide the control all the way to the HI setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the LO setting to provide lower humidity levels recommended for most fruits.

COLD COLBE

Convertible Deli Pan

The convertible deli pan has its own cold air duct to allow a stream of cold air from the freezer compartment or fresh food compartment to flow to the pan.

The variable temperature control regulates the air flow from the Climate Keeper Air Tower.

Set the control to the coldest setting to store fresh meats.

Set the control to cold to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.

About crisper removal.

Not all features are on all models.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

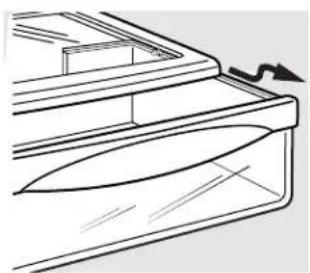

Crisper Removal

Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the stop location.

If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out.

About the automatic icemaker.

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

On dispenser models, to access ice or reach the power switch:

Line drawing of a hand inserting a card into a cabinet (no text or symbols)

1 Lift the bin, then pull it forward until the bin stops.

Line drawing of a hand holding a card inside a door (no text or symbols)

2 Lower the bin to access ice or reach the power switch.

NOTE: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.

Automatic Icemaker

The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position.

When the refrigerator has been connected to the water supply, set the power switch to the I(on) position.

The icemaker will fill with water when it cools to 15^ F ( -10^ C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.

You will hear a buzzing sound each time the icemaker fills with water.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

Special note about dispenser models:

■ Dispenser models have a tilt-out ice bin. The bin can be tilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door.

To restore your ice level from an empty bucket stage, the following steps are recommended:

12 hours after the first batch of ice has fallen into the bin, dispense 3 to 4 cubes.

2 After an additional 6 hours, dispense 3 to 4 cubes again.

These steps will restore your ice level in the shortest amount of time.

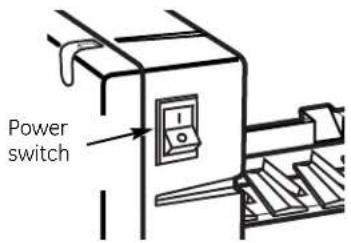

Power Switch Icemaker Green Power Light Feeler Arm

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

Line drawing of a hand inserting a card into a wall-mounted device (no text or symbols)

1 Lift the bin, then pull it forward until the bin stops.

Line drawing of a hand holding a rectangular object with a small inset showing a slot (no text or symbols)

2 Lift and pull forward again to remove the bin.

Removing Ice Bin (dispenser models)

CAUTION: The ice bin is heavy when full.

Set the power switch to the O (off) position before removing the bin.

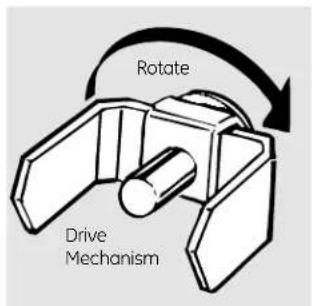

When replacing the bin, be sure to press it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the bin back again.

Rotate Drive Mechanism

Dispenser Models only

About the ice and water dispenser. (on some models) ge.com

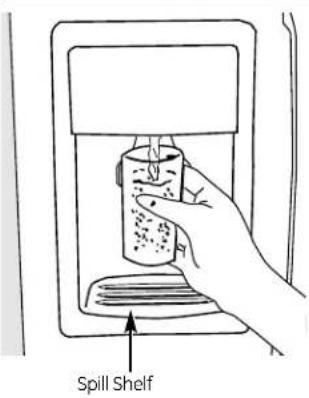

Spill Shelf

To Use the Dispenser

Select CUBED, CRUSHED or WATER.

Press the glass gently against the top of the dispenser cradle.

The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.

Locking the Dispenser

Press the LOCK or LOCK CONTROLS pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.

Dispenser Light

The LIGHT pad turns the night light in the dispenser on and off. The light also comes on

when the dispenser cradle is pressed. On some models, if this light burns out, it should be replaced with a 6 watt 12V maximum bulb.

Door Alarm

Use Door Alarm to sound if either door is open for more than 3 minutes. The alarm will stop once the door is closed. For LCD models, a popup screen will appear. The alarm can be silenced by touching the LCD screen.

LCD Models:

Access By: Home > Options > Information and Settings > Settings > Door Alarm

Access By: Pressing ON.

Deactivate By: Pressing OFF.

Non-LCD Models:

Press the SET FEATURES pad once and DOOR ALARM will blink. Press ON/OFF and the door alarm will be set and the icon will turn solid. Press ON/OFF again to turn the alarm off.

Quick Ice

When you need to speed up ice production, use the Quick Ice feature. While this feature is turned on, the freezer fan runs continuously for 48 hours, or until the feature is turned OFF. During this period, ice production will increase up to 40%. Models with the integrated ice feature system require at FIRST USE at least half an 8 oz. glass of ice to be dispensed every 6 to 12 hours. This will help the icemaker fill the bucket properly so that dispensing is better.

How to Use

LCD Models:

Access by: Home > Options > Freezer Options > Quick Ice

Activate by: Pressing ON.

Deactivate by: Pressing OFF.

Non-LCD Models:

Press the SET FEATURES pad twice and QUICK ICE will blink. Press ON/OFF to turn the feature on, then again to turn it off.

Precise Fill (on some models)

This water dispenser is equipped with a feature called "precise fill." This feature allows you to choose a precise amount of water (cups or ounces) that you would like dispensed. Pints and Liters are also available for LCD models.

LCD Models

Access By: Home > Options > Dispenser Options > Precise Fill > Set Amount

Activate By: Using the arrow buttons to select the desired amount. Press MORE UNITS to select between CUPS, OUNCES, PINTS or LITERS.

Non-LCD Models

Press the PRECISE FILL CUPS/OZ pad. The WATER pad will light and the CRUSHED and CUBED ice pads will turn off. The last unit used will be displayed.

2 Press the PRECISE FILL pad again to toggle between cups and ounces.

If you selected OUNCES, press the ▲ or ▼ pad to select the number of ounces you would like to have dispensed between 2–99 ounces. The default is 8 ounces.

If you selected CUPS, press the ▲ or ▼ pad to select the amount you would like to have dispensed. They are displayed as 1/4, 1/3, 1/2, 2/3 and 3/4, with the highest amount being 16 3/4 cups. The default is 1 cup.

3 Press the cup against the cradle and water will begin dispensing. It will automatically stop when the amount set has been dispensed. The display will show the amount of water dispensed, beep, then reset after 5 seconds.

NOTE: Do not leave the dispenser unattended when water is being dispensed.

4 If you would like to stop dispensing water before the specified amount has been dispensed, just remove the cup from the cradle. The display will show the amount that has been dispensed for 5 seconds. If the cup switch is pressed again within that time, the dispenser will continue up to the set amount. If not, the display will return to the set amount.

About the ice and water dispenser. (on some models)

Important Facts About Your Dispenser

Do not add ice from trays or bags to the storage drawer. It may not crush or dispense well.
Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.
■ Beverages and foods should not be quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.
To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.

Some crushed ice may be dispensed even though you selected CUBED. This happens occasionally when a few cubes accidentally get directed to the crusher.
■ After crushed ice is dispensed, some water may drip from the chute.
Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.

Care and cleaning of the refrigerator.

Simple line drawing of a three-tiered oval object with a central hole (no text or symbols)

Dispenser drip area.

Cleaning the Outside

The dispenser drip area, beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.

The dispenser cradle. Before cleaning, lock the dispenser by pressing and holding the LOCK or LOCK CONTROLS pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. Rinse thoroughly and wipe dry.

The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.

The stainless steel panels and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best.

Do not use appliance wax or polish on the stainless steel.

Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments.

Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

Use of any cleaning solution other than that which is recommended, especially

those that contain petroleum distillates, can crack or damage the interior of the refrigerator.

Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

The chill/thaw tray is dishwasher safe.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don't roll over the power cord or icemaker supply line.

Preparing for Vacation

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.

Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding.

Preparing to Move

Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during moving.

Replacing the light bulbs.

Setting the controls to OFF does not remove power to the light circuit.

Not all features are on all models.

Your light shield will look like one of the following:

Tabs OR

Pocket

Refrigerator Compartment—Upper Light

1 Unplug the refrigerator.
2 The bulbs are located at the top of the compartment, inside the light shield. On some models, a screw at the front of the light shield will have to be removed. On other models, the screw is located in the pocket located at the back of the light shield.
3 To remove the light shield, on some models, press in on the tabs on the sides of the shield and slide forward and out. On other models, just slide the shield forward and out.

After replacing the bulb with an appliance bulb of the same or lower wattage, replace the light shield and screws (on some models). When replacing the light shield, make sure that the tabs at the back of the shield fit into the slots at the back of the light shield housing.

5 Plug the refrigerator back in.

Simple line drawing of a mechanical setup with arrows indicating motion (no text or symbols)

Refrigerator Compartment—Lower Light

This light is located above the top drawer.

1 Unplug the refrigerator.
2 Remove the convertible meat drawer control knob by pulling straight out.
3 Lift the light shield up and pull it out.

4 After replacing the bulb with an appliance bulb of the same or lower wattage, replace the shield and the knob.
5 Plug the refrigerator back in.

Line drawing of a car seat with roof rack and side arm (no text or symbols)

Freezer Compartment

1 Unplug the refrigerator.
2 Remove the shelf just above the light shield. (The shelf will be easier to remove if it is emptied first.) On some models, a screw at the top of the light shield will need to be removed.
3 To remove the light shield, press in on the sides, and lift up and out.

4 Replace the bulb with an appliance bulb of the same or lower wattage, and reinstall the light shield. When reinstalling the light shield, make sure the top tabs snap securely into place. Replace the screw (on some models).
5 Reinstall the shelf and plug the refrigerator back in.

Dispenser (on some models)

① Unplug the refrigerator.
2 The bulb is located on the dispenser under the control panel. Remove the light bulb by turning it counterclockwise.

3 Replace the bulb with a bulb of the same size and wattage.
4 Plug the refrigerator back in.

LED Lighting Display

Refrigerator Compartment (LCD models only)

There is an LED lighting display in the top of the refrigerator compartment in LCD models. If this assembly needs to be replaced, call GE Service at 1.800.432.2737 in the United States or 1.800.561.3344 in Canada.

Trim kits and decorator panels.

For CustomStyle™ models

Read these instructions completely and carefully.

Before You Begin

Some models are equipped with trim kits that allow you to install door panels. You can order pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories, 800.626.2002, or you can add wood panels to match your kitchen cabinets.

Panels less than 1/4" (6 mm) thick

When installing wood panels less than 1/4" (6 mm) thick, you need to create a filler panel, such as 1/8" cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut decorator panels, pre-cut filler panels are included in the kit. The combined thickness of the decorator or wood panel and the filler panel should be 1/4" (6 mm).

Panels 1/4" thick or less

1/4" max

3/4" (19 mm) or Raised Panel

A raised panel design screwed or glued to a 1/4" (6 mm) thick backing, or a 3/4" (19 mm) routed board can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2" (5.1 cm) from the handle side for fingertip clearance.

Panels thicker than 1/4" (6 mm), up to 3/4" (19 mm) max, will require that the outer 5/16" (8 mm) of panel perimeter be no thicker than 1/4" (6 mm).

Weight limitations for custom panels:

Fresh Food 38 lbs. (17 kg) max.

Freezer Door 28 lbs. (13 kg) max.

Panels thicker than 1/4" (6 mm)

5/16" |8 mm| 1/4" |6 mm| max 3/4" |19 mm|

1/4" (6 mm) Thick Backing 2" (5.1 cm) Clearance Handle Side Appearance Panel 3/4" (19 mm) Refrigerator Door

Trim kits and decorator panels.

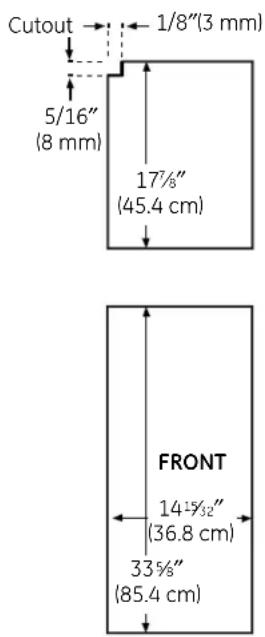

23' Dimensions for Custom Wood Panels

The areas at the top of the panels need to be cut out of the panels.

Freezer Panel Without Dispenser

Cutout 1/8"(3 mm) 5/16" (8 mm) 67½" (170.9 cm) FRONT 14½" (36.8 cm)

Freezer Panel With Dispenser Fresh Food Panel

Cutout 1/8"(3 mm) 5/16" (8 mm) 17½" (45.4 cm) FRONT 14½" (36.8 cm) 33½" (85.4 cm)

1/8"(3 mm) Cutout 5/16" (8 mm) 67½" (170.9 cm) FRONT 19½" (49.5 cm)

25' CustomStyle™ Dimensions for Custom Wood Panels

The areas at the top of the panels need to be cut out of the panels.

Freezer Panel Without Dispenser

Cutout 1/8"(3 mm) 5/16" (8 mm) 69" (175.3 cm) FRONT 14½"₂" (36.8 cm)

Freezer Panel With Dispenser Fresh Food Panel

Cutout 1/8"(3 mm) 5/16" (8 mm) 17" (43.2 cm) FRONT 14½/32" (36.8 cm) 36 ½" (92.0 cm)

1/8"(3 mm) Cutout 5/16" (8 mm) 69" (175.3 cm) FRONT 19½"₂" (49.5 cm)

Read these instructions completely and carefully.

① Insert the Freezer Panel and Fresh Food Panel.

Carefully push the freezer panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Repeat for fresh food panel.

If your model has a dispenser, this step only applies to the fresh food panel and top freezer panel.

2 Insert the Bottom Freezer Panel (on dispenser models).

Carefully push the panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel.

3 Attach the Top Trim on the Freezer and Fresh Food Doors.

The Top Trim can be found inside the refrigerator compartment.

door. Hand tighten only. Make sure that the top of each panel fits snugly behind the lip of the Top Trim.

With a T-20 Torxdriver, attach the Top Trim, using two screws on each Top Trim piece, to the top of each

Top Trim Screws Top Trim Screws Cut-Out Cut-Out Top Freezer Panel Fresh Food Panel Bottom Freezer Panel Side Trim Side Trim

Inserting the door panels.

4 Install the Side Trim.

These pieces are tucked inside the refrigerator door handle.

Do not remove the protective film on the outside of the Side Trim until the Side Trim is installed.

Fit the bottom of the Side Trim under the Bottom Trim as illustrated.

Hold the Side Trim against the front face of the decorator panels and fit the Side Trim under the Top Trim. Make sure the magnetically attached Side Trim is fitted correctly and that you are satisfied with the appearance of all the parts.

Top Trim Side Trim Side Trim Bottom Trim

Installation Instructions

Refrigerator

Models 23, 25 & 26

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com In Canada, call 1.800.561.3344 or Visit our Website at: geappliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Refrigerator Installation 30 minutes Water Line Installation 30 minutes
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

If the refrigerator has already been installed, remove the base grille (see Step 2 in Moving the Refrigerator), then skip to Step 5 in Installing the Refrigerator.

PREPARATION

WATER SUPPLY TO THE ICEMAKER

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our Website at ge.com (in Canada at geappliances.ca) or from Parts and Accessories, 800.626.2002 (in Canada 1.888.261.3055).

TOOLS YOU WILL NEED

3/8" and 5/16" Socket

1/2" and 7/16" Wrench

Line drawing of a screwdriver with a magnified inset showing the tip (no text or symbols)

Phillips Head Screwdriver

Plastic Putty Knife

MOVING THE REFRIGERATOR

① LOADING THE RERIGERATOR ONTO A HAND TRUCK

Leave all tape and door pads on doors until the refrigerator is in its final location.

To move the refrigerator, use a padded hand truck. Center the refrigerator on the hand truck and secure the strap around the refrigerator. DO NOT OVERTIGHTEN THE STRAP.

Two men standing beside a large industrial machine with control panels and no visible text or symbols

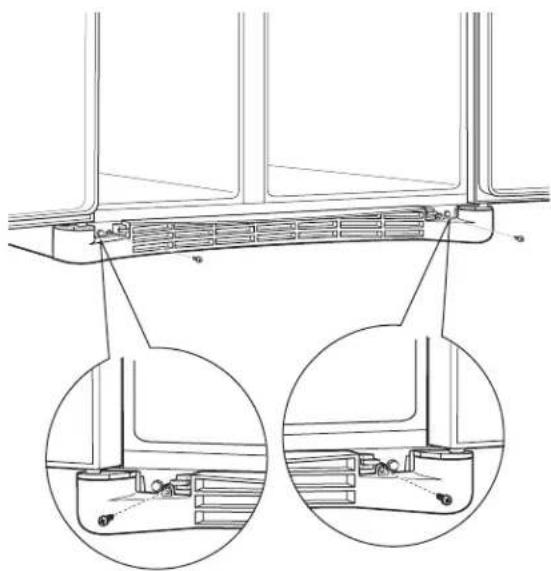

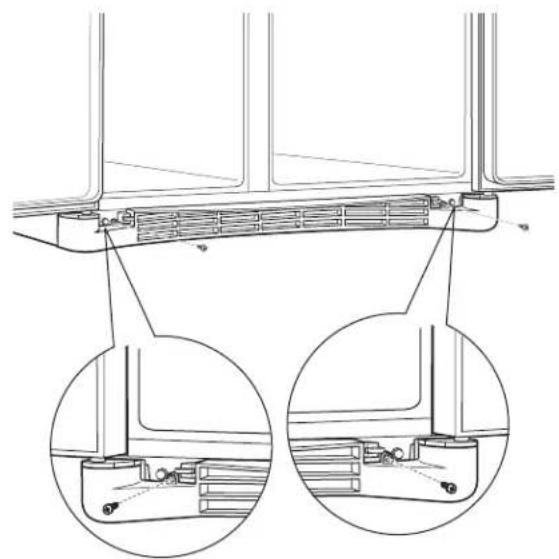

② REMOVE THE BASE GRILLE

Remove the grille by removing the two Phillips head screws.

Technical line drawing of a structural component with two circular insets showing internal components (no text or symbols)

If the refrigerator must go through any entrance that is less than 38"wide, the doors must be removed. Proceed to Step 3.

DO NOT remove the handles.

If all entrances are more than 38" wide, skip to Installing the Refrigerator.

③ DISCONNECT THE WATER COUPLING (on some models)

If the refrigerator has a water dispenser, there is a water line from the cabinet into the bottom hinge on the freezer door that must be disconnected.

To disconnect, push in on the white collar of the coupling and pull out the tubing.

White collar Bottom freezer hinge

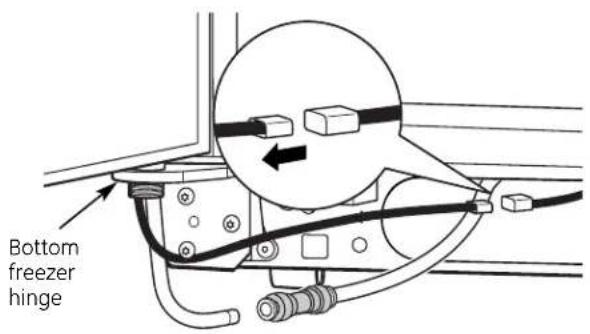

4 DISCONNECT THE POWER COUPLING (on some models)

If the refrigerator has a water dispenser, there is a power line (harness) from the cabinet into the bottom hinge on the freezer door that must be disconnected.

To disconnect, pull apart at the coupling.

Bottom freezer hinge

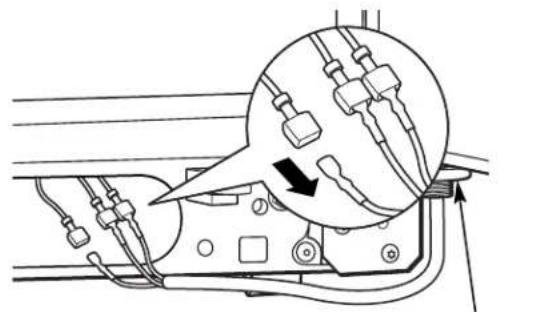

5 DISCONNECT THE ELECTRICAL CONNECTORS (on some models)

If the refrigerator has a refreshment center, there are electrical connectors (harnesses) from the cabinet into the bottom hinge on the refrigerator door that must be disconnected.

To disconnect, pull apart each connector.

Technical diagram showing electrical connections with a magnified inset highlighting internal components (no text or labels)

Bottom refrigerator hinge

⑥ CLOSE THE FREEZER AND REFRIGERATOR DOORS

Line drawing of a two-decker cabinet (no text or symbols)

7 REMOVE THE FREEZER DOOR

A Remove the freezer door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife.

Diagram of a hand using a tool to lift a metal component (no text or symbols present)

B Remove the two 5/16" or 1/8" hex head screws, then lift the hinge straight up to free the hinge pin.

5/16" or 1/8" hex head

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

C Open the freezer door to 90.°

Line drawing of a double-door refrigerator with shelves on the door (no text or symbols)

90^

MOVING THE REFRIGERATOR (CONT.)

⑦ REMOVE THE FREEZER DOOR (cont.)

D As one person slowly lifts the freezer door up and off the bottom hinge, the second person should carefully guide the water line and power line (harness) through the bottom hinge.

Diagram showing a mechanical device with an arrow pointing to a 90-degree angle of installation, likely illustrating a mechanical or electrical setup.

E Set the door on a non-scratching surface with the inside up.

8 REMOVE THE REFRIGERATOR DOOR

A Remove the refrigerator door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife.

Diagram of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

8 REMOVE THE REFRIGERATOR DOOR (cont.)

B Remove the two 5/16" or 1/8" hex head screws, then lift the hinge straight up to free the hinge pin.

5/16" or 1/8" hex head

C Open the refrigerator door to 90.°

Line drawing of a refrigerator with shelves and door, labeled 90° (no text or symbols on the diagram itself)

⑧ REMOVE THE REFRIGERATOR DOOR (cont.)

D Lift the refrigerator door up and off the bottom hinge.

If the refrigerator has a refreshment center, one person should slowly lift the door up and off the bottom hinge and the second person should carefully guide the electrical lines (harnesses) through the bottom hinge.

90°

Refreshment Center Models Only

E Set the door on a non-scratching surface with the inside up.

9 REPLACING THE DOORS

To replace the doors, simply reverse steps 3 through 8.

However, please note the following:

• When lowering the doors onto the bottom hinges, make sure the second person carefully guides the tube and harnesses through the holes in the hinges.
• When connecting the water line, make sure you insert the tubing all the way to the mark.

Mark

- Do not pinch the tubing and harnesses when placing the doors on the bottom hinges.

- When connecting the power line and the electrical lines (refreshment center models only), be sure that the connectors are seated together fully.

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature will go above 100^ (37°C) because it will not perform properly.
  • Install it on a floor strong enough to support it fully loaded.

CLEARANCES

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections:

	23'/25' CustomStyleTM	23' (33" wide), 25', 26'
Sides	1/8" (4 mm)	1/8" (4 mm)
Top	1" (25 mm)	1" (25 mm)
Back	1/2" (13 mm)	1" (25 mm)

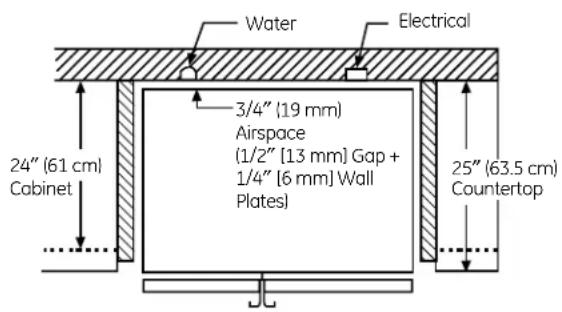

DIMENSIONS AND SPECIFICATIONS

Water Electrical 24" (61 cm) Cabinet 3/4" (19 mm) Airspace (1/2" [13 mm] Gap + 1/4" [6 mm] Wall Plates) 25" (63.5 cm) Countertop

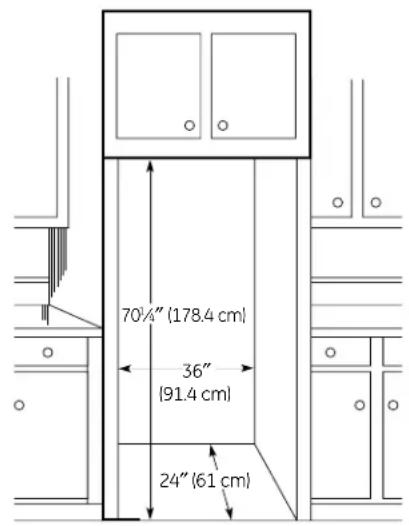

DIMENSIONS AND SPECIFICATIONS (for 23' CustomStyle™ models)

70¼" (178.4 cm) 36" (91.4 cm) 24" (61 cm)

DIMENSIONS AND SPECIFICATIONS (for 25' CustomStyle™ models)

72¼" (183.5 cm)* 36" (91.4 cm) 24" (61 cm)

*72 ^1/4 " (183.5 cm) required for full adjustment of mobility wheels. If cabinets installed above refrigerator have doors that are flush to the top of the opening for the refrigerator, then an additional 1/8" may be required to provide clearance for cabinet doors to open freely.

① CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE (icemaker and dispenser models)

A cold water supply is required for automatic icemaker and dispenser operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator's water valve. Install it in the water line near the refrigerator. If using GE SmartConnect™ Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

A If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.

If you are using the GE SmartConnect™ tubing, the nuts are already assembled to the tubing.

B If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.

If you are using GE SmartConnect™ tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.

C Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

Tubing Clamp 1/4" Compression Nut Ferrule (sleeve) Refrigerator Connection 1/4" Tubing SmartConnect™ Tubing

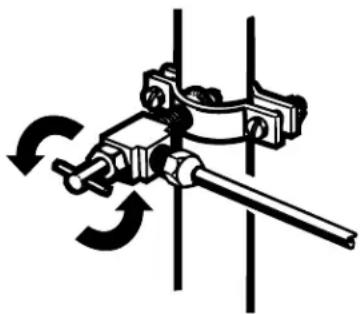

② TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

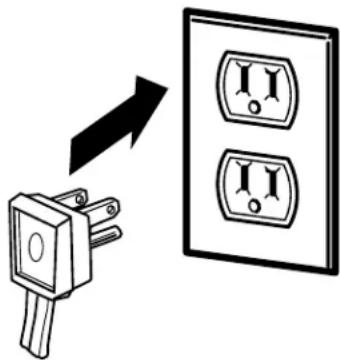

3 PLUG IN THE REFRIGERATOR

Before plugging in the refrigerator, make sure the icemaker power switch is set to the O (off) position.

Diagram showing a plug-in socket connected to a wall-mounted electrical socket with two internal switches, illustrating the circuit connection.

See the grounding information attached to the power cord.

INSTALLING THE REFRIGERATOR (CONT.)

4 PUT THE REFRIGERATOR IN PLACE

Move the refrigerator to its final location.

The refrigerator can be leveled by adjusting the rollers located near the bottom hinges.

Rollers Raise

Rollers have three purposes:

• Rollers adjust so the door closes easily when opened about halfway. (Raise the front about 5/8"[16 mm] from the floor.)
• Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.
• Rollers allow you to move the refrigerator away from the wall for cleaning.

To adjust the rollers on 23' (33" wide), 25' and 26' models:

- Turn the roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use a 3/8"hex socket or wrench, or an adjustable wrench.

Technical line drawing of a mechanical assembly with no visible text or symbols

Roller adjusting screw

5 LEVEL THE REFRIGERATOR (cont.)

To adjust the rollers on 23'/25' CustomStyle™ models:

Turn the front roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use a 3/

Pure mechanical assembly diagram without any text, numbers, or symbols

Roller adjusting screws

hex wrench with extension, or an adjustable wrench.

These models also have rear adjustable rollers so you can align the refrigerator with your kitchen cabinets. Use a 3/8"hex wrench with extension to turn the screws for the rear rollers—clockwise to raise the refrigerator, counterclockwise to lower it.

6 LEVEL THE DOORS

Adjust the refrigerator door to make the doors even at the top.

To align:

A Using a 7/16" wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it.

NOTE:

A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.

B After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

Doors should be even at top Raise 7/16" wrench

⑦ REPLACE THE BASE GRILLE

Replace the grille by installing the two Phillips head screws.

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

9 START THE ICEMAKER

Set the icemaker power switch to the I (on) position. The icemaker will not begin to operate until it reaches its operating temperature of 15^ F ( -9^ C) or below. It will then begin operation automatically. It will take 2–3 days to fill the ice bin.

Power switch

NOTE:

In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

8 SET THE CONTROLS

Set the controls to the recommended setting.

INSTALLING THE WATER LINE (ICEMAKER & DISPENSER MODELS)

BEFORE YOU BEGIN

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect™ Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer's recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator's filter bypass plug. Using the refrigerator's water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered.

All installations must be in accordance with local plumbing code requirements.

WHAT YOU WILL NEED

• Copper or GE SmartConnect™ Refrigerator

Tubing kit, 1/4" outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

GE SmartConnect™ Refrigerator Tubing Kits are available in the following lengths:

6'(1.8 m) - WX08X10006

15'(4.6 m) - WX08X10015

25'(7.6 m) - WX08X10025

WHAT YOU WILL NEED (CONT.)

NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002 (in Canada 1.888.261.3055).
• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

- Power drill.

- 1/2" or adjustable wrench.

- Straight and Phillips blade screwdriver.

- Two 1/4"outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve. OR

- If you are using a GE SmartConnect™ Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect™ Refrigerator tubing.

- Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32" at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

Install the shutoff valve on the nearest frequently used drinking water line.

① SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water.

2 CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Simple line drawing of a curved object with an arrow pointing to it (no text or symbols)

3 DRILL THE HOLE FOR THE VALVE

Drill a 1/4"hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe.

Take care not to allow water to drain into the drill.

Failure to drill a 1/4"hole may result in reduced ice production or smaller cubes.

Simple line drawing of a tool interacting with a curved object (no text or symbols)

INSTALLING THE WATER LINE (CONT.)

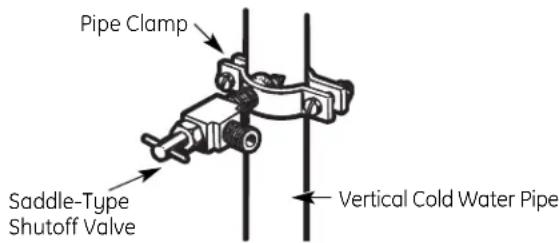

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp Saddle-Type Shutoff Valve Vertical Cold Water Pipe

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

Pipe Clamp Clamp Screw Washer Inlet End

6 ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

7 CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a GE SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

Saddle-Type Shutoff Valve Packing Nut Outlet Valve Compression Nut SmartConnect™ Tubing Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8 FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing.

Simple line drawing of a flower with a curved arrow, no text or symbols present

To complete the installation of the refrigerator, go back to Step 1 in Installing the Refrigerator.

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These sounds are normal.

HUMMM... WHOOSH...

The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.
■ Sometimes the refrigerator runs for an extended period, especially when the doors are opened frequently. This means that the Frost Guard™ feature is working to prevent freezer burn and improve food preservation.
■ You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

■ You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.
■ If either door is open for over 3 minutes, you may hear the fans come on in order to cool the light bulbs.
■ The fans change speeds in order to provide optimal cooling and energy savings.
■ You may hear the fans running after selecting QuickFreeze™ or one of the CustomCool™ settings.

CLICKS, POPS, CRACKS and CHIRPS

■ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.
■ Electronic dampers click open and closed to provide optimal cooling and energy savings.
■ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).
■ The electronic control board may cause a clicking sound when relays activate to control refrigerator components.
■ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.
■ On models with an icemaker, after an icemaking cycle, you may hear the ice cubes dropping into the ice bucket.

WATER SOUNDS

■ The flow of refrigerant through the freezer cooling coils may make a gurgling noise like boiling water.
■ Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.
■ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.
■ Closing the door may cause a gurgling sound due to pressure equalization.

For additional information on normal icemaker and dispenser operating sounds, see the About the automatic icemaker and About the ice and water dispenser sections.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not operate	Refrigerator in defrost cycle.	·Wait about 30 minutes for defrost cycle to end.
	Either or both controls set to OFF.	·Set the controls to a temperature setting.
	Refrigerator is unplugged. ·Push the plug completely into the outlet.
	The fuse is blown/circuit ·Replace fuse or reset the breaker. breaker is tripped.
	The refrigerator is in ·Unplug the refrigerator and plug it back in. showroom mode.
Vibration or rattling (slight vibration is normal)	Rollers need adjusting.	·See Rollers.
Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.)	Normal when refrigerator is first plugged in.	·Wait 24 hours for the refrigerator to completely cool down.
	Often occurs when large amounts of food are placed in refrigerator.	·This is normal.
	Door left open.	·Check to see if package is holding door open.
	Hot weather or frequent door openings.	·This is normal.
	Temperature controls set at the coldest setting.	·See About the controls.
Refrigerator or freezer compartment too warm	Temperature control not set cold enough.	·See About the controls.
	Warm weather or frequent door openings.	·Set the temperature control one step colder. See About the controls.
	Door left open.	·Check to see if package is holding door open.
Frost or ice crystals on frozen food (frost within package is normal)	Door left open.	·Check to see if package is holding door open.
	Too frequent or too long door openings.
Divider between refrigerator and freezer compartments feels warm	Automatic energy saver system circulates warm liquid around front edge of freezer compartment.	·This helps prevent condensation on the outside.
Automatic icemaker does not work	Icemaker power switch is in the off position.	·Set the power switch to the on position.
	Water supply turned off or not connected.	·See Installing the water line.
	Freezer compartment too warm.	·Wait 24 hours for the refrigerator to completely cool down.
	Piled up cubes in the storage bin cause the icemaker to shut off.	·Level cubes by hand.
	Ice cubes stuck in icemaker. (Green power light on icemaker blinking).	·Turn off the icemaker, remove cubes and turn the icemaker back on.
Problem Possible Causes	What To Do
Frequent "buzzing" sound	Icemaker power switch is in the I (on) position, but the water supply to the refrigerator has not been connected.	Set the power switch to the O (off) position. Keeping it in the I (on) position will damage the water valve.
Ice cubes have odor/taste	Ice storage bin needs cleaning.	Empty and wash bin. Discard old cubes.
	Food transmitting odor/taste • Wrap foods well. to ice cubes.
	Interior of refrigerator • See Care and cleaning. needs cleaning.
Small or hollow cubes	Water filter clogged.	Replace filter cartridge with new cartridge or with plug.
Slow ice cube freezing	Door left open.	Check to see if package is holding door open.
	Temperature control not set cold enough.	See About the controls.
Cube dispenser does not work	Icemaker turned off or water supply turned off.	Turn on icemaker or water supply.
	An item is blocking or has fallen into the ice chute inside the top door bin of the freezer.	Remove any item that might be blocking, or has fallen into the chute.
	Ice cubes are frozen to icemaker feeler arm.	Remove cubes.
	Irregular ice clumps in storage container.	Break up with fingertip pressure and discard remaining clumps.Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form.
	Dispenser is LOCKED.	Press and hold the LOCK or LOCK CONTROLS pad for 3 seconds.
Water has poor taste/odor	Water dispenser has not been used for a long time.	Dispense water until all water in system is replenished.
Water in first glass is warm	Normal when refrigerator is first installed.	Wait 24 hours for the refrigerator to completely cool down.
	Water dispenser has not been used for a long time.	Dispense water until all water in system is replenished.
	Water system has been drained.	Allow several hours for replenished supply to chill.
Water dispenser does not work	Water supply line turned off or not connected.	See Installing the water line.
	Water filter clogged. • Replace filter cartridge or remove filter and install plug.
	Air may be trapped in the water system.	Press the dispenser arm for at least two minutes.
	Dispenser is LOCKED.	Press and hold the LOCK or LOCK CONTROLS pad for 3 seconds.
Water spurting from dispenser	Newly-installed filter cartridge.	Run water from the dispenser for 3 minutes (about one and a half gallons).
Water is not dispensed but icemaker is working	Water in reservoir is frozen.	Call for service.
	Refrigerator control setting is too cold.	Set to a warmer setting.
No water or ice cube production	Supply line or shutoff valve is clogged.	Call a plumber.
	Water filter clogged. • Replace filter cartridge or remove filter and install plug.
	Dispenser is LOCKED.	Press and hold the LOCK or LOCK CONTROLS pad for 3 seconds.
CUBED ice was selected but CRUSHED ice was dispensed	Last setting was CRUSHED.	A few cubes were left in the crusher from the previous setting. This is normal.

Before you call for service...

Problem Possible Causes What To Do
Orange glow in the freezer	Defrost heater is on. • This is normal.
Refrigerator has odor	Foods transmitting odor to refrigerator.	• Foods with strong odors should be tightly wrapped.• Keep an open box of baking soda in the refrigerator; replace every three months.
	Interior needs cleaning. • See Care and cleaning.
Door not closing properly sticking or folding	Door gasket on hinge side over.	• Apply petroleum jelly to the face of the gasket.
	A door bin is hitting a shelf • Move the door bin up one position. inside the refrigerator.
Moisture forms on outside of refrigerator	Not unusual during periods of high humidity.	• Wipe surface dry.
Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened)	Too frequent or too long door openings.	• This is normal for the beverage center.
	Due to the higher humidity in the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment.	• This is normal and may come and go as different food loads and environmental conditions change. Wipe dry with a paper towel if desired.
Interior light does not work	No power at outlet.	• Replace fuse or reset the breaker.
	Light bulb burned out.	• See Replacing the light bulbs.
Water on kitchen floor or on bottom of freezer	Cubes jammed in chute.	• Poke ice through with a wooden spoon.
Hot air from bottom of refrigerator	Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures.
Refrigerator never shuts off but the temperatures are OK	Adaptive defrost keeps compressor running during door openings.	• This is normal. The refrigerator will cycle off after the door remains closed for 2 hours.
Refrigerator beeping	Door open.	• Close door.
Food isn't thawing/chilling	Packaging.	• Increase time or re-package in plastic.
	Wrong weight selected.	• Select a larger weight.
	Item with high fat content.	• Select a larger weight.
	Not using Chill/Thaw tray.	• Place items on tray and allow space in between items for better airflow.
Actual temperature not equal to Set temperature	Unit just plugged in.	• Allow 24 hours for system to stabilize.
	Door open for too long.	• Allow 24 hours for system to stabilize.
	Warm food added to refrigerator.	• Allow 24 hours for system to stabilize.
	Defrost cycle is in process.	• Allow 24 hours for system to stabilize.
SelectTemp or Beverage Center feature is not working	Refrigerator compartment temperature control is set at warmest setting.	• This is normal. In order to minimize energy usage, the SelectTemp and Beverage Center features are disabled when the refrigerator temperature control is set at the warmest setting.
	Beverage Center feature turns off after six months of continuous operation.	• Press Beverage Center pad to restart.
While QuickFreezeTM is enabled, the actual freezer temperature may drop as low as -3°F (-19°C)		• This is normal.

CUSTOMER WARRANTY

(for customers in Canada)

Your refrigerator is warranted to be free of defects in material and workmanship.

What is covered How Long	Warranted Parts Labour(From Date of Sale) Repair or Replaceat Mabe's Option
Compressor GE Profile: Ten	(10) Years GE Profile: TenGE and All Other GE and All Other GE and All OtherBrands: One (1) Year Brands: One (1) Year Brands: One (1) Year	(10) Years GE Profile: Five (5) YearsGE and All Other GE and All OtherGE and All Other
Sealed System (including evaporator, condenser tubing and refrigerant)	GE Profile: Five (5) YearsGE and All OtherBrands: One (1) Year Brands: One (1) Year Brands: One (1) Year	GE Profile: Five (5) YearsGE and All OtherGE and All Other
All Other Parts	One (1) Year	One (1) Year

TERMS AND CONDITIONS:

This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Mabe and is connected to an adequate and proper utility service.

Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty.

Service during this warranty period must be performed by an Authorized Mabe Service Agent.

Neither Mabe nor the Dealer is liable for any claims or damages resulting from failure of the Refrigerator or from service delays beyond their reasonable control.

To obtain warranty service, purchaser must present the original Bill of Sale. Components repaired or replaced are warranted through the remainder of the original warranty period only.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

This warranty is in addition to any statutory warranty.

WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.
• Damage to finish must be reported within 48 hours following the delivery of the appliance.
• Damage to finish after delivery.
• Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.
• Replacement of house fuses or resetting of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident, fire, floods or acts of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed in the owner's manual, proper setting of controls.
• Product not accessible to provide required service.
• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date.

Please have serial number and model number available when calling for service.

Mabe Service is available coast to coast. If further help is needed concerning this warranty, contact:

Manager, Consumer Relations

Mabe Canada Inc., Consumer Service

1 Factory Lane, Suite 310

Moncton, New Brunswick E1C 9M3

1.800.561.3344

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

Refrigerator Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

GE and GE PROFILE MODELS:

One Year Any part of the refrigerator which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and original purchase related service to replace the defective part.

Thirty Days (Water filter, if included) Any part of the water filter cartridge which fails due to a defect in materials or workmanship. During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water From the original filter cartridge. purchase date of the refrigerator

GE PROFILE MODELS ONLY:

Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator (GE Profile models only) and all connecting tubing) which fails due to a defect in materials or workmanship. From the date of the original purchase During this limited five-year sealed refrigerating system warranty, GE will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage caused after delivery.

Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.
■ Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above.
■ Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Performance Data Sheet

SmartWater Filtration System

MSWF Cartridge

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.*

(100% safety factors built in for unmetered usage)

Standard No. 42: Aesthetic Effects
Parameter MCL Chall	USEPA Influenge Concentration	nt Effluent % Reduction Min. Required Average Maximum Average Minimum	m Reduction
Chlorine — 2.0 mg/L +		_10%	0.06 mg/L	0.10 mg/L	97%	95.1%	≥50%
Particulate**	—	at least 10,000 particles/mL	408,333	670,000	95.5%	89.4%	≥85%

Standard No. 53: Health Effects
Parameter	USEPA MCL	Influent Challenge Concentration	Effluent		% Reduction		Max. Permissible Product Water Concentration mg/L
			Average	Maximum	Average	Minimum
Turbidity	1 NTU***	11 ± 1 NTU***	0.38 NTU	0.5 NTU	96.5%	95.4%	0.5 NTU
Cysts	99.95% Reduction	Minimum 50,000 L	< 1 #/L	4 #/L	> 99.99%	> 99.99%	99.95%
Lead at pH 6.5	0.010 mg/L	0.15 mg/L ± 10%	< 1 ppb	< 1 ppb	99.3%	99.3%	0.010 mg/L
Lead at pH 8.5	0.010 mg/L	0.15 mg/L ± 10%	3.1 ppb	9.0 ppb	98.0%	95.5%	0.010 mg/L
Mercury at pH 6.5	0.002 mg/L	0.006 mg/L ± 10%	0.34 ppb	0.7 ppb	94.0%	89.6%	0.002 mg/L
Mercury at pH 8.5	0.002 mg/L	0.006 mg/L ± 10%	0.66 ppb	1.5 ppb	88.4%	73.7%	0.002 mg/L
Lindane	0.0002 mg/L	0.002 mg/L ± 10%	< 0.02 ppb	< 0.02 ppb	> 99.0%	> 99.0%	0.0002 mg/L
Atrazine	0.003 mg/L	0.009 mg/L ± 10%	< 0.5 ppb	< 0.5 ppb	> 93.9%	> 94.3%	0.003 mg/L
2,4-D	0.070 mg/L	0.210 mg/L ± 10%	7.7 ppb	35 ppb	96.0%	82.0%	0.070 mg/L
Toxaphene	0.003 mg/L	0.015 mg/L ± 10%	< 1 ppb	< 1 ppb	> 92.9%	> 92.9%	0.003 mg/L
Benzene	0.005 mg/L	0.015 mg/L ± 10%	< 0.5 ppb	< 0.5 ppb	> 96.8%	> 97.0%	0.005 mg/L
Carbofuran	0.040 mg/L	0.080 mg/L ± 10%	< 1 ppb	< 1 ppb	> 98.7%	> 98.7%	0.04 mg/L
P- Dichlorobenzene	0.075 mg/L	0.225 mg/L ± 10%	< 0.5 ppb	< 0.5 ppb	> 99.7%	> 99.8%	0.075 mg/L
Asbestos	99% Reduction	10^7 to 10^8 fibers/L; fibers > 10μm in length	< 0.17 MF/L	< 0.17 MF/L	> 99%	> 99%	99%

* Tested using pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 68° ± 5°F (20° ± 2.5°C)
** Measurement in Particles/ml. Particles used were 0.5-1 microns
*** NTU=Nephelometric Turbidity Units

Operating Specifications

■ Capacity: certified for up to 300 gallons (1135 l); up to six months for models without a replacement filter indicator light; up to one year for models with a replacement filter indicator light
■ Pressure requirement: 20–120 psi (1.4–8.2 bar), non-shock
■ Temperature: 33–100°F (0.6–38°C)
■ Flow rate: 0.9 gpm (3.4 lpm)

General Installation/Operation/Maintenance Requirements

■ Flush new cartridge at full flow for 5 minutes to purge out trapped air.
■ Replace cartridge when flow becomes too slow.

Special Notices

■ Installation instructions, parts and service availability, and standard warranty are included with the product when shipped.
■ This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges.
■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
■ The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
■ Check for compliance with the state and local laws and regulations.
Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.

System Tested and Certified by NSF International against NSF/ANSI Standard 42 & 53 for the reduction of:

Standard No. 42: Aesthetic Effects

Chemical Unit

Taste and Odor Reduction

Chlorine Reduction

Mechanical Filtration Unit

Nominal Particulate Reduction, Class I

Standard No. 53: Health Effects

Chemical Unit

Lead, Mercury and Atrazine Reduction

Lindane, Toxaphene and 2,4-D Reduction

Benzene, Carbofuran and

P-Dichlorobenzene Reduction

Mechanical Filtration Unit

Turbidity Reduction, Cyst Reduction,

Asbestos Reduction

State of California

Department of Health Services

Water Treatment Device

Certificate Number

06 - 1834

Date Issued: December 6, 2006

Trademark/Model DesignationGE MSWFManufacturer: General Electric Company

Replacement ElementsMSWF

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity

Cysts

Turbidity

Organic Contaminants

Atrazine

Benzene

Carbofluran

Lindane

p-Dichlorobenzene

Toxaphene

2,4-D

Inorganic/Radiological Contaminants

Asbestos

Lead

Mercury

Rated Service Capacity: 300 gals

Rated Service Flow: 0.90 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years.

BUYER: SELLER:

Name Name
Address Address
City State Zip City State Zip

Signature Date Signature Date

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™-comprehensive protection on all your appliances-No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more-any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).

3

Read your Owner's Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Cut here

Consumer Product Ownership Registration

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Mr. □ Ms. □ Mrs. □ Miss □ First Name Last Name Street Address Apt. # E-mail Address* City State Zip Code Date Placed in Use Month Day Year Phone Number -

GE Consumer & Industrial

Appliances

General Electric Company

Louisville, KY 40225

ge.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA's carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.
For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy Policy" or call 800.626.2224.

Notes.

Installation instructions

Consumer SupportTroub

Line drawing of an open refrigerator with shelves and a door handle (no text or symbols)

Diagram of a refrigerator interior showing airflow patterns with no text or symbols

Line drawing of a refrigerator drawer with shelves and compartments (no text or symbols)

ExpressThaw™

Line drawing of a refrigerator drawer with three cylindrical objects on one side (no text or symbols)

ExpressChill ^TM

Utilisation

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or bracket (no text or symbols)

■ Poitrines de poulet (2,0 lbs)

Boeuf haché (2,0 lbs)

Bifteck (2,0 lbs)

■ Poitrines de poulet (3,0 lbs)

Boeuf haché (3,0 lbs)

Bifteck (3,0 lbs)

ExpressChill™

15 Minutes

Technical line drawing of a mechanical component with internal mesh structure (no text or symbols)

Illustration of a document with a paper and a ruler, showing no text or symbols

Pure diagram of a device with arrows indicating direction, no text or symbols present

Illustration of stacked documents with a black arrow pointing to one document (no text or symbols present)

Clayette QuickSpace™

Line drawing of a rectangular metal cage or rack structure with internal grid pattern (no text or symbols)

Technical line drawing of a metal rack with a handle and support bracket (no text or symbols)

Diagram showing two labeled parts (1 and 2) of a mechanical device with arrows indicating direction or movement.

Diagram showing a ladder structure with directional arrows and numbered components, likely illustrating a physics or engineering concept.

Line drawing of a mechanical device with rollers and a lid (no text or symbols)

Line drawing of a mailbox with a handbag and base mount, no text or symbols present

Diagram of a refrigerator interior showing internal compartments and directional arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with three shelves and a door (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a hand inserting a device into a cabinet (no text or symbols)

Line drawing of a hand holding a card inside a door (no text or symbols)

Line drawing of a person opening a door with a bag attached (no text or symbols)

Line drawing of a hand holding a rectangular object with a triangular symbol on the side (no text or labels)

Hand pouring liquid into a container with an arrow indicating flow (no text or symbols)

Bac de trop-plein

Taquets OU Poche

Line drawing of a kitchen sink with upward arrows indicating direction (no text or symbols)

Simple line drawing of a chair with a seat and arm, no text or symbols present

6 mm (1/4 po) max

Diagram of a screwdriver with a magnified view of the tip (no text or symbols)

Two men handling a large industrial machine with control switches and wheels (no text or symbols visible)

② ENLEVEZ LA GRILLE DE BASE

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Line drawing of a two-decker cabinet (no text or symbols)

Diagram of a hand using a tool to lift or lift a curved object, no text or symbols present

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with open doors and shelves (no text or symbols)

90°

DÉMÉNAGEMENT DU RÉFRIGÉRATEUR (SUITE)

⑦ ENLEVEZ LA PORTE DU COMPARTIMENT CONGÉLATION (suite)

Diagram of a refrigerator interior showing a 90-degree angle measurement with a close-up view of the device (no text or symbols present)

Diagram of a mechanical clamp or bracket assembly with a handle and lever (no text or symbols)

⑧ ENLEVEZ LA PORTE DU COMPARTIMENT RÉFRIGÉRATION (suite)

Technical line drawing of a mechanical clamp or bracket assembly with two screws inserted (no text or symbols)

Line drawing of a double-door refrigerator with shelves on the front and top (no text or symbols)

90°

⑧ ENLEVEZ LA PORTE DU COMPARTIMENT RÉFRIGÉRATION (suite)

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

3 BRANCHEZ LE CORDON DU RÉFRIGÉRATEUR DANS LA PRISE

Diagram showing a plug-in socket connected to two electrical outlets, with an arrow indicating direction of connection.

Mechanical assembly diagram showing components and directional arrows (no text or labels)

Vis de réglage

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

8 RÉGLEZ LES COMMANDES

Simple line drawing of a bent pipe or tube with an arrow pointing to it (no text or symbols)

3 PERCEZ UN TROU POUR LE ROBINET

Simple line drawing of a tool or component with a curved handle and threaded shaft (no text or symbols)

INSTALLATION DE LA CONDUITE D'EAU (SUITE)

4 FIXEZ LE ROBINET D'ARRÊT

Line drawing of a refrigerator with doors open and shelves stacked vertically (no text or symbols)

Diagram of a software interface with labeled buttons and icons, including 'Save', 'Delete', and 'Help'

Diagram of a refrigerator interior showing airflow paths through the door frame (no text or symbols)

Cómo funciona

Express Thaw Express Chill SelectTemp

Line drawing of a refrigerator drawer with shelves and doors (no text or symbols)

Line drawing of a refrigerator drawer with multiple cylindrical objects inside (no text or symbols)

ExpressChill ^™ (Refrigeración expresa)

Cómo usar

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Pechugas de pollo (1,0 lb)

Carne molida (1,0 lb)

Bistec (1,0 lb)

2,0 Lbs. (10 horas)

Pechugas de pollo (2,0 lbs)

Carne molida (2,0 lbs)

Bistec (2,0 lbs)

3,0 Lbs. (12 horas)

Pechugas de pollo (3,0 lbs)

Carne molida (3,0 lbs)

Bistec (3,0 lbs)

ExpressChill™

15 minutos

Diagram of a mechanical device with an arrow indicating force or movement, no visible text or symbols

Simple line drawing of a cylindrical object with a cap (no text or symbols)

Technical line drawing of a mechanical component with a meshed internal structure (no text or symbols)

Recipiente inclinable del congelador

Illustration of a stack of books with an arrow pointing to a document (no text or symbols present)

Abstract line drawing with black arrows and curved lines, no text or symbols present

Illustration of stacked documents with a black arrow pointing to one document (no text or symbols present)

Line drawing of a rectangular metal frame with vertical ribs and a flat base (no text or symbols)

Technical line drawing of a metal rack with a handle and mounting bracket (no text or symbols)

Diagram showing two labeled parts of a mechanical device with arrows indicating direction or movement.

Diagram showing a structural beam under load with directional arrows and numbered components

Line drawing of a mechanical device with rollers and a top cover (no text or symbols)

Line drawing of a mailbox with a magnified inset showing its structure (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Line drawing of a multi-tiered refrigerator shelf with no text or symbols

cold coldest

Bandeja convertible deli

Pure technical line drawing of a mechanical component or bracket with no text, numbers, or symbols

Line drawing of a person opening a door with a cabinet (no text or symbols)

Line drawing of a hand holding a card inside a door (no text or symbols)

Line drawing of a person using a computer to open a device (no text or symbols present)

Line drawing of a hand holding a rectangular object with a vertical line above, no text or symbols present

Simple line drawing of a three-tiered dome-shaped object with no text or symbols

Line drawing of a kitchen appliance with a handle and a dial indicator (no text or symbols)

Compartimento del refrigerador—Luz inferior

Simple line drawing of a table with legs and a curved seat, no text or symbols present

Compartimento del congelador

Illustration of a screwdriver with a magnified close-up showing the tip (no text or symbols)

Destornillador Phillips

Two men standing beside a large metal door with visible cracks and cross marks (no text or symbols)

② REMUEVA LA BASE DE LA PARRILLA

Technical line drawing of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Technical diagram of electrical wiring connections with a magnified inset showing cable routing (no text or labels)

Line drawing of a two-panel cabinet or rack unit (no text or symbols)

Line drawing of a hand using a tool to lift or adjust a metal object (no text or symbols)

Line drawing of a double door with shelves and top panel (no text or symbols)

90°

CÓMO MOVER EL REFRIGERADOR (CONT.)

Diagram showing a mechanical assembly with a 90-degree angle indicator (no text or symbols present)

Diagram of a mechanical clamp or clamping mechanism with a handle and lever (no text or symbols)

Line drawing of a cabinet with shelves and door, labeled 90° (no text or symbols on the diagram itself)

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

3 CONECTE EL REFRIGERADOR

Diagram showing a plug-in socket connected to a wall-mounted power socket with two internal switches, illustrating electrical circuitry.

Mechanical assembly diagram showing a component with mounting holes and a knob (no text or labels)

Mechanical assembly diagram showing components and directional arrows (no text or labels)

Technical line drawing of a structural frame with two circular insets showing internal components (no text or symbols)

Interruptor

NOTA:

Simple line drawing of a tool with a curved handle and a vertical line, no text or symbols present.

CÓMO INSTALAR LA TUBERÍA DEL AGUA (CONT.)

4 INSTALE LA VÁLVULA DE APAGADO

Simple line drawing of a flower with a curved arrow above it, no text or symbols present

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

In Canada: geappliances.ca

Schedule Service

In the U.S.: ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.888.261.3055.

Contact Us In the U.S.: ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: geappliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: ge.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: geappliances.ca
