Product Type	MPX Surveillance Camera
Brand	FLIR
Model	MPX C237BC
Resolution	Up to 2 MP (1080p)
Sensor Type	CMOS
Video Format	NTSC / PAL (selectable)
Power Supply	12 V DC
Power Consumption	~3 W
IR Distance	Up to 20 m (Smart IR)
Lens	Manual Varifocal
Viewing Angle	Variable depending on adjustment
Main Functions	WDR, HLC, BLC, DNR, Smart IR, Defog, Privacy Masking, Digital Zoom, Dead Pixel Compensation
OSD Menu	Yes, via control joystick
Day/Night Mode	Auto, External, Color, B/W with adjustable delay
Noise Reduction	2D and 3D DNR (Low/Middle/High)
Operating Temperature	-10°C to +50°C
Protection	IP67
Dimensions	Approx. 200 x 70 x 70 mm
Weight	Approx. 0.5 kg
Care and Cleaning	Clean the lens with a soft, dry cloth. Avoid solvents.
Safety	Do not expose to rain or moisture. Use a suitable power supply.
Spare Parts and Repairability	Not user serviceable. Contact FLIR support.

Frequently Asked Questions - MPX C237BC FLIR

How to reset the camera to factory settings?

To reset the camera, go to the advanced menu (ADVANCED) and select RESET. Press and hold the center of the joystick for four seconds. All OSD settings will return to their default values.

How to change the OSD menu language?

In the main menu, select LANGUAGE. Use the up/down arrows to choose the desired language (French, English, German, etc.) and confirm by pressing the center of the joystick.

How to enable automatic day/night mode?

Go to the advanced menu, then DAY&NIGHT. Set MODE to AUTO. The switch between day and night will occur automatically based on ambient brightness. You can also adjust D>N LEVEL and N>D LEVEL for thresholds.

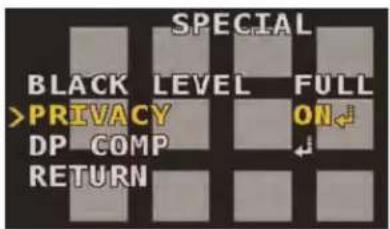

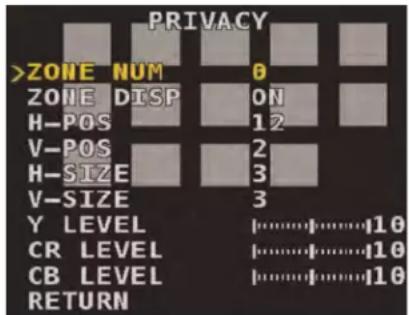

How to configure privacy masking?

In the advanced menu, go to SPECIAL > PRIVACY. Turn ON. Select ZONE NUM to choose a zone (1-15). Enable ZONE DISP, then adjust the position (H-POS, V-POS) and size (H-SIZE, V-SIZE). You can also modify the color levels Y, CR, CB.

How to enable Smart IR?

In the advanced menu, select DAY&NIGHT > SMART IR and set it to ON. You can adjust the SMART IR LVL level from 0 to 20 to optimize IR illumination based on distance.

How to manually adjust white balance?

In the advanced menu, go to WHITE BAL. Choose MANUAL. Set KELVIN to LOW, MIDDLE, or HIGH for tones. Use GAIN-R and GAIN-B (0-20) to fine-tune red and blue.

How to freeze the image?

In the advanced menu, select IMAGE > FREEZE. Set to ON to freeze the current image. To disable, set back to OFF.

How to disable digital zoom?

In the advanced menu, go to IMAGE > D-ZOOM and set the value to 1.0X. This disables digital zoom and displays the image without magnification.

How to reduce noise in the image?

In the main menu, select DNR and choose the level LOW, MIDDLE, or HIGH. A higher level reduces noise but may soften the image. You can also adjust 2D/3D noise reduction parameters in the advanced menu.

What to do if the image is blurry?

First check that the lens is clean. Then, in the advanced menu, go to LENS and select DEBLUR (if available) or adjust the focus manually on the lens. You can also enable defog (DEFOG) if blur is due to fog or dust.

USER MANUAL MPX C237BC FLIR

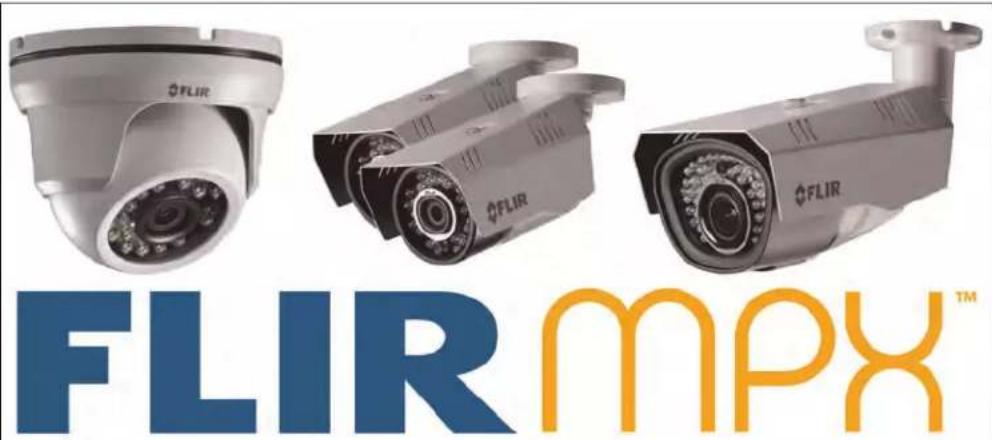

On-Screen Display Guide C23 Series MPX Cameras

On-Screen Display

Guide

C23 Series MPX

Cameras

Thank you for purchasing this product. FLIR is committed to providing our customers with a high quality, reliable security solution.

This manual refers to the following models:

C23 Series

For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at:

www.flirsecurity.com/pro

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RICK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG TO THE WIDE SLOTAND FULLY INSERT.

Table of contents

1 Using the On-Screen Display (OSD) Menu

1.1 Accessing the OSD Menu.. 1

2 Main Menu. 2

2.1 Language. 2
2.2 Video Format 2
2.3 Wide Dynamic Range (WDR) 3
2.4 High Light Compensation (HLC). 3
2.5 Back Light Compensation (BLC) 4
2.6 Digital Noise Reduction (DNR). 5
2.7 Version 6

3 Advanced Menu 7

3.1 Lens Settings 8
3.2 Exposure 9

3.2.1 Brightness 9
3.2.2 Shutter 10
3.2.3 Sens-Up. 10
3.2.4 Automatic Gain Control (AGC) 11

3.3 White Balance 11
3.4 Day & Night 12

FLIR MPX cameras have an integrated OSD menu that allows you to configure camera settings related to exposure, white balance, day / night settings and other camera image adjustments. You can also configure advanced picture correction features such as Wide Dynamic Range, Digital Noise Reduction and more.

The OSD menu appears as a text overlay on top of the camera image. In order to view the menu, you must connect the camera to a monitor.

1.1 Accessing the OSD Menu

FLIR MPX cameras feature an OSD control stick on the camera cable for easy access and configuration of menu items.

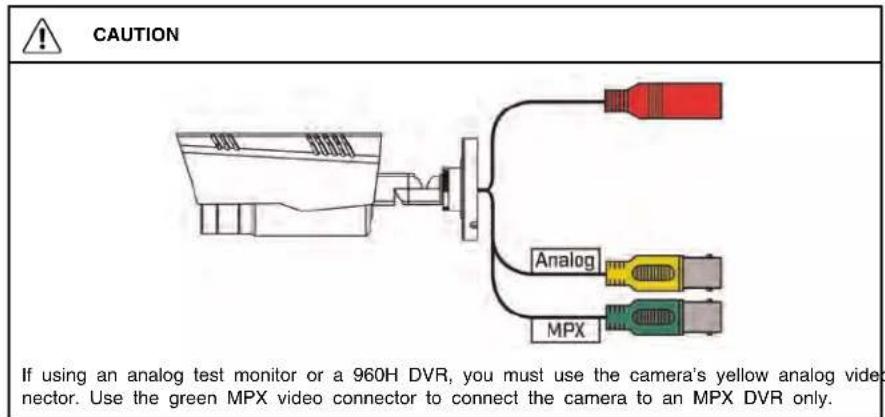

To access the OSD menu:

• Connect the camera to a power supply. See the quick start guide provided with your camera for details.
• Connect the camera to a monitor or compatible DVR.

• Push the middle of the control stick to open the OSD menu.
• Move the control stick / to move the menu cursor, then / to change the value of menu items.
• Push the middle of the control stick to confirm selection.
• Arrows beside menu items indicate a submenu. Select the setting and push the middle of the control stick to enter the submenu.
• Select RETURN and push the middle of the control stick to return to the previous menu from a submenu, or EXIT from the main menu to close the OSD menu.

2

Main Menu

The main menu lets you configure the OSD menu language and basic camera attributes, such as video format. You can set backlight compensation and digital noise reduction from the main menu.

See below for the structure of the main menu:

LANGUAGE	• English • Deutsch • Français • Espanol • Pyccknu • Polski • Italiano • Português
VIDEO FORMAT	• NTSC • PAL
BACKLIGHT	• WDR • BLC • HLC
DNR	• LOW • MIDDLE • HIGH

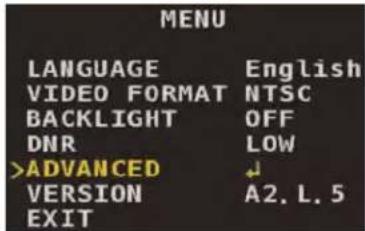

ADVANCED Enter the advanced menu.	u. See 3 Advanced Menu, page 7 for full details.
VERSION Displays the current firmware	re version of the camera.
EXIT Exits the menu.

2.1 Language

Select the language you want the OSD menu to appear in.

The following languages are supported:

• English
  French
• Spanish
  German
  Russian
  Polish
  Italian
  Portuguese

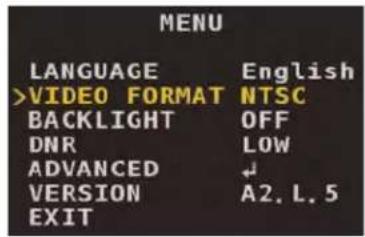

2.2 Video Format

Select the appropriate video format for your region. Select NTSC for North American installations, or PAL for European installations.

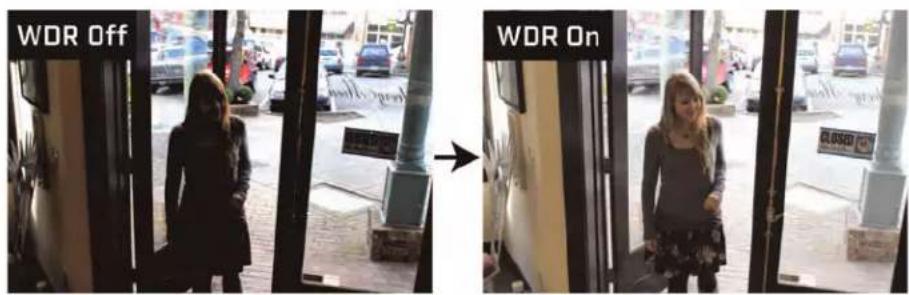

2.3 Wide Dynamic Range (WDR)

WDR fixes harsh contrast between bright and dark sections of the camera image. WDR is recommended for applications where light intensity varies throughout the day, or scenes with distinctly light and dark areas.

To configure WDR:

1. From the main menu, use the control stick to select BACKLIGHT.
2. Move the control stick / to select WDR. Push the middle of the control stick to configure WDR settings.

1. Select WEIGHT. Move the control stick / to select LOW, MIDDLE or HIGH. Higher weight means a longer shutter for dark areas of the image and shorter shutter for bright areas.

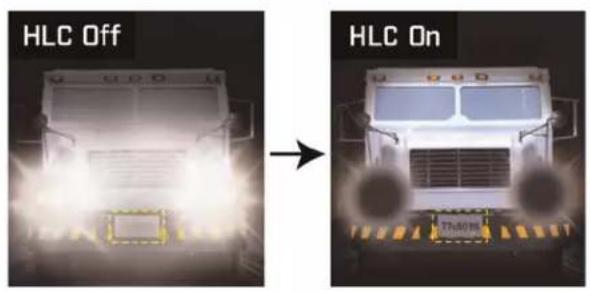

2.4 High Light Compensation (HLC)

HLC darkens extremely bright areas of the camera image to ensure clear renderings of objects in the scene. This is recommended for scenes with extremely bright areas as well as nighttime images with intense brightness (for example, to identify a vehicle with bright headlights).

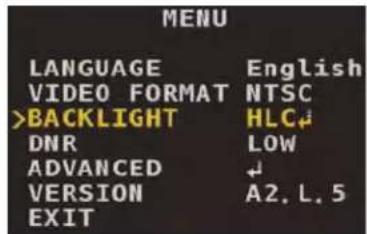

To configure HLC:

1. From the main menu, use the control stick to select BACKLIGHT.

2. Move the control stick / to select HLC. Push the middle of the control stick to configure HLC settings.

1. Select MODE, then move the control stick / to configure. Select ALL DAY to enable HLC in both day and night conditions, or select NIGHT ONLY to only enable HLC when the IR LEDs are active.
2. Select LEVEL, then move the control stick / to configure. Setting a lower level increases the black mask area, auto exposure gain, and noise level in the camera image. It is recommended to keep the HLC level at the default setting.

2.5 Back Light Compensation (BLC)

BLC tones down areas of the image with strong background lighting to create clearer, more detailed renderings of objects in the foreground. BLC is recommended for local light compensation applications, meaning that strong backlit conditions will occur in the same area of the camera image, such as a doorway.

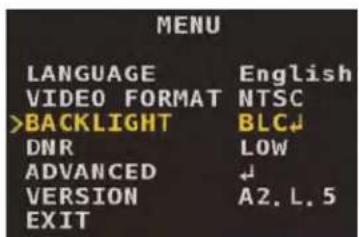

To configure BLC:

1. From the main menu, use the control stick to select BACKLIGHT.

2. Move the control stick / to select BLC. Push the middle of the control stick to configure the active BLC area.

1. Move the control stick / to configure the values for H-POS and V-POS to affect the horizontal and vertical position of the active area, then H-SIZE and V-SIZE to affect the horizontal and vertical size of the active area. The active area should cover a brightly-lit area where objects are expected to appear. For example, if the camera image shows 2 floodlights and a doorway, the active area should cover the doorway only.

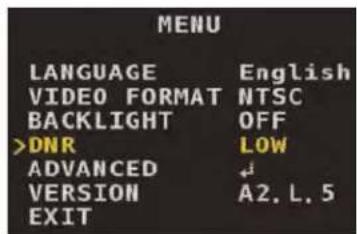

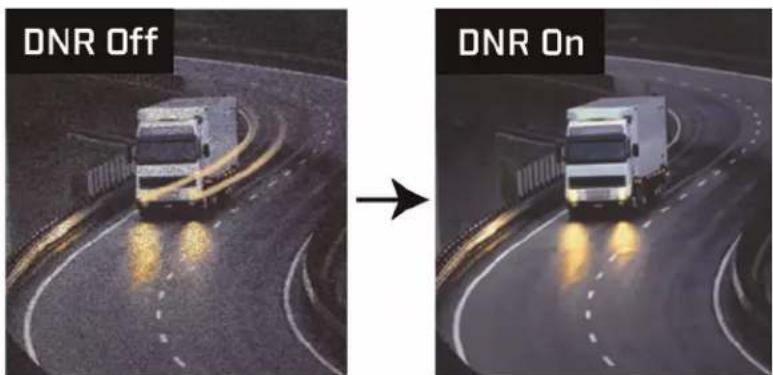

2.6 Digital Noise Reduction (DNR)

The camera features 2 types of noise reduction: 2D temporal noise reduction and 3D spatial noise reduction. DNR reduces the background noise in a low luminance environment. Removing noise from the camera image reduces your recording file size and reduces the appearance of graininess.

To configure digital noise reduction:

1. From the main menu, use the control stick to select DNR.

1. Move the control stick / to configure the level of noise reduction. Select LOW, MIDDLE or HIGH noise reduction — use a higher setting to increase low-light sensitivity and reduce the appearance of graininess in the camera image.

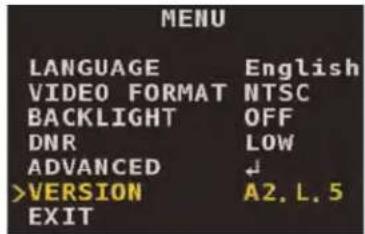

2.7 Version

This is a non-configurable field that displays the camera's firmware version. This is for service purposes only.

3

Advanced Menu

The advanced menu lets you configure the camera's more sophisticated features.

See below for the structure of the advanced menu:

LENS ELC		NORMAL DEBLUR
	ALC	INDOOR OUTDOOR DEBLUR
EXPOSURE BRIGHT	NESS	0-20
	SHUTTER AUTO
		FLICKER
		MANUAL SPEED: 1/60 -	1/60000
	SENS-UP	OFF X2 X4 X8 X16 X32
	AGC	0-20
WHITE BAL AUTO
	ATW
	PRESET
	MANUAL KELVIN		LOW MIDDLE HIGH
		R-GAIN	0-20
		B-GAIN	0-20
DAY&NIGHT MODE		AUTO EXT B&W COLOR
	DELAY 0-20
	D→N LEVEL 0-20
	N→D LEVEL 0-20
	SMART IR	ON OFF
	SMART IR LVL	0-20

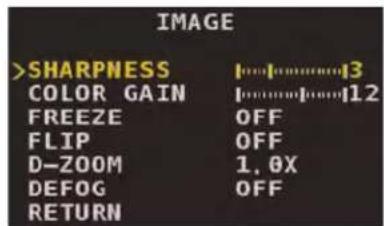

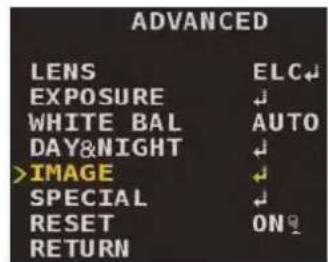

IMAGE SHARPNESS		0-20
	COLOR GAIN	0-20
	FREEZE	ONOFF
	FLIP	OFFHV-INVV-INVH-INV
	D-ZOOM 1.0X-8.0X
	DEFOG ON MODE		AUTOMANUALLEVELLOWMIDDLEHIGH
		OFF

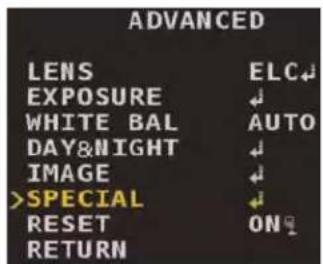

SPECIAL BLACK LEVEL		FULL
		COMP
		USER OFFSET
		PRIVACY ON ZONE NUM
				ZONE DISP
				H-POS
				V-POS
				H-SIZE
				V-SIZE
				Y LEVEL
				CR LEVEL
				CB LEVEL
				OFF

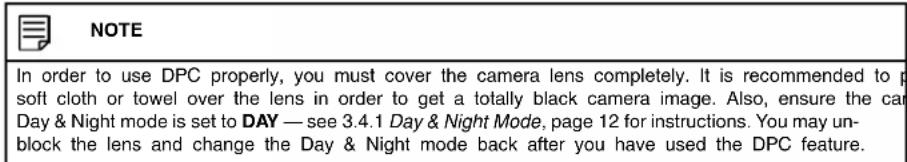

		DP COMP THRESHOLD		0-255
				DEFFECT DET
RESET

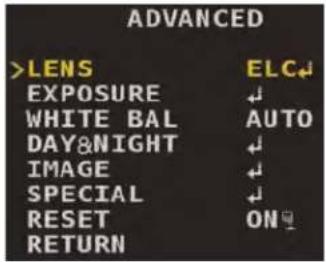

3.1 Lens Settings

Set the camera's light control method and preferences.

To configure the lens settings:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.

2. Move the control stick / to select LENS, then / to select ELC (Electronic Light Control) or ALC (Automatic Light Control). It is recommended to use ELC for fixed lens and manual varifocal camera models, or ALC for motorized lens camera models. Once you have selected, push the middle of the control stick.

1. Under MODE, move the control stick / set the camera image conditions:

If you selected ELC, select NORMAL for typical surveillance purposes, or select DEBLUR to correct a blurry camera image.
- If you selected ALC, select INDOOR for indoor conditions, OUTDOOR for outdoor conditions, or select DEBLUR to correct a blurry camera image.

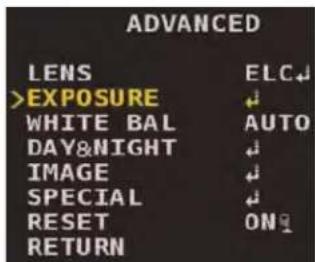

3.2 Exposure

Configure settings to determine how much light enters the camera.

3.2.1 Brightness

Set the brightness of the camera image.

To set brightness:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.

2. Move the control stick / to select EXPOSURE. Push the middle of the control stick to confirm.

3. Move the control stick / to select BRIGHTNESS, then / to configure the brightness level. Setting a higher value makes the camera image brighter.

3.2.2 Shutter

Set the shutter speed of the camera.

To set shutter speed:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select EXPOSURE. Push the middle of the control stick to confirm.
3. Move the control stick / to select SHUTTER, then / to set the shutter mode:

• Select AUTO for the camera to automatically determine the shutter speed based on lighting conditions.
• Select FLICKER to fix the camera shutter. This reduces color rolling caused by light flicker.
• Select MANUAL and push the middle of the control stick to set the shutter speed manually. Under SPEED, select a shutter speed from 1/60 - 1/60000.

3.2.3 Sens-Up

Sens-Up is a slow shutter speed setting that allows more light into the camera to improve sensitivity in low light conditions. For proper setup, configure this setting while the camera is viewing low light or nighttime conditions.

To configure Sens-Up:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.

2. Move the control stick / to select EXPOSURE. Push the middle of the control stick to confirm.

3. Move the control stick / to select SENS-UP, then / to set the slow shutter level. Select a value between X2 and X32 to activate Sens-Up, or select OFF to disable.

3.2.4 Automatic Gain Control (AGC)

AGC is a fixed gain value that affects image brightness under very low light conditions. For proper setup, configure this setting while the camera is viewing low light or nighttime conditions.

To configure AGC:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select EXPOSURE. Push the middle of the control stick to confirm.
3. Move the control stick / to select AGC, then / to set an AGC level between 0-20. Setting a higher value may create more noise in the camera image.

3.3 White Balance

Configure white balance in the camera image.

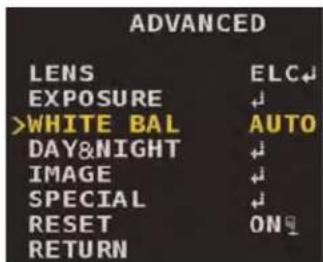

To configure white balance:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select WHITE BAL.

1. Move the control stick / to set the white balance mode:

2. Select AUTO for the camera to adjust white balance automatically.

3. Select ATW for the camera to adjust white balance automatically for various color temperatures.
4. Select PRESET to set the white balance based on a white reference object in the scene, such as a white piece of paper. Push and hold the middle of the control stick to automatically adjust the white balance. Release the control stick when the white reference object appears white.
5. Select MANUAL and push the middle of the control stick to set the white balance manually. Set KELVIN to HIGH to increase red-orange tones, LOW to increase blue tones, or MIDDLE to create a neutral image. Configure R-GAIN and B-GAIN to fine tune red gain and blue gain respectively.

NOTE

White balance may not work properly under the following conditions. In this case, use the PRESET white balance setting.

• When the color temperature of the environment surrounding the subject is outside of the supported temperature range (for example, clear sky or sunset).
• When the ambient illumination of the subject is dim.
• If the camera is directed towards a fluorescent light or is installed in a place where illumination changes dramatically, the white balance function may become unstable.

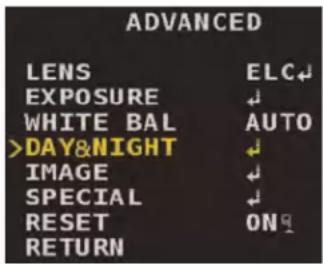

3.4 Day & Night

Set the day and night related settings for the camera.

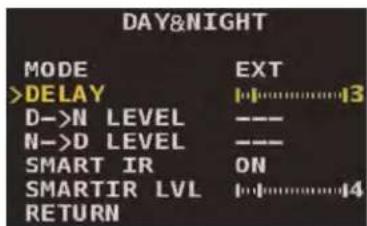

To set Day & Night mode:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.

2. Move the control stick / to select DAY&NIGHT. Push the middle of the control stick to confirm.

3. Move the control stick / to select MODE, then / to select one of the following modes:

• EXT: Day / night switch is determined by CdS light sensor. This setting is recommended for cameras that use IR LEDs.
• AUTO: Day / night switch is determined by the camera sensor based on lighting conditions. This setting is recommended for cameras without IR LEDs.
  COLOR: Camera image remains in color. No nighttime switch will occur in this mode.

• B&W: Camera image remains in black & white. No daytime switch will occur in this mode.

• Select DELAY, then move the control stick / to set the time in seconds it takes for the camera to switch between day and night modes. For example, setting a DELAY value of zero means the switch will happen instantly when the proper light level is detected.

NOTE

DELAY cannot be configured if the MODE is set to COLOR or B&W.

1. If the Day & Night MODE is set to AUTO, configure the D→N LEVEL and N→D LEVEL to configure day and night switchover levels.

2. D→N LEVEL determines the threshold for the switchover from day to night.

3. N→D LEVEL determines the threshold for the switchover from night to day.

3.4.2 Smart IR

Enabling Smart IR improves close-up recognition in low light conditions.

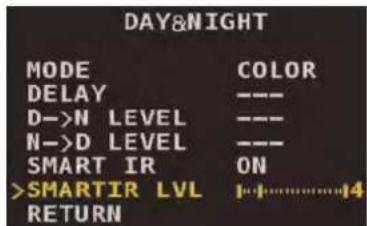

To configure Smart IR:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.

2. Move the control stick / to select DAY&NIGHT. Push the middle of the control stick to confirm.

3. Move the control stick / to select SMART IR, then / to turn Smart IR ON or OFF.

1. Select SMARTIR LVL, then move the control stick / to set the Smart IR level.

3.5 Image

Set the picture and display control settings for the camera.

3.5.1 Picture Control Settings

To configure picture control settings:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select IMAGE. Push the middle of the control stick to confirm.
3. Move the control stick / to select SHARPNESS, then / to set the sharpness level. It is recommended to use the default value for image sharpness.

1. Move the control stick / to select COLOR GAIN, then / to set the color gain level. Set a higher level for more vibrant color reproduction.

3.5.2 Freeze Image

Freeze the current camera image on screen.

To freeze the camera image:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select IMAGE. Push the middle of the control stick to confirm.
3. Move the control stick / to select FREEZE, then / to turn image freeze ON OFF.

3.5.3 Flip Image

Flip the current camera image.

To flip the camera image:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select IMAGE. Push the middle of the control stick to confirm.
3. Move the control stick / to select FLIP, then / to select a flip mode:

OFF: No flip.
H-INV: Horizontal flip.
- V-INV: Vertical flip.
- HV-INV: Horizontal + vertical flip.

3.5.4 Digital Zoom

Enable digital zoom to enlarge a portion of the camera image.

To flip the camera image:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select IMAGE. Push the middle of the control stick to confirm.
3. Move the control stick / to select D-ZOOM, then / to choose a digital zoom level between 1.0X and 8.0X.

3.5.5 Defog

Enable defog to reduce the appearance of fog, mist or dust in the camera image.

To enable defog:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select IMAGE. Push the middle of the control stick to confirm
3. Move the control stick / to select DEFOG and push the middle of the control stick to confirm

1. Select MODE, then move the control stick / to set to MANUAL or AUTO. For MANUAL mode, select LEVEL and move the control stick / to select LOW, MID-DLE or HIGH.

3.6 Special

Configure the camera's special settings.

3.6.1 Black Level

Set the black level of the camera image. To set properly, observe a black object in the camera image and adjust until it appears truly black.

To configure black level:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select SPECIAL. Push the middle of the control stick to confirm.
3. Move the control stick / to select BLACK LEVEL, then move the control stick / to select FULL, COMP, or USER.

1. If you selected USER, push the middle of the control stick to confirm. Under OFFSET, move the control stick / to set the black level.

3.6.2 Privacy Masking

Set privacy masks to block specific areas of the camera image from recordings. You can configure up to 15 different privacy masks per camera.

CAUTION

Privacy masks appear in video recordings and block areas of the camera image.

To configure privacy masks:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select SPECIAL. Push the middle of the control stick to confirm.
3. Move the control stick / to select PRIVACY, then move the control stick / to select ON. Push the middle of the control stick to confirm.

1. Select ZONE NUM, then move the control stick / to select a privacy mask ID number from 1-15. You can configure up to 15 separate privacy masks.
2. Select ZONE DISP, then move the control stick / to select ON or OFF. You must select ON to enable the currently selected privacy mask in recordings.
3. Move the control stick / to configure the H-POS and V-POS values to change the on-screen position of the currently selected privacy mask.
4. Move the control stick / to configure the H-SIZE and V-SIZE values to change the size of the currently selected privacy mask.
5. Move the control stick / to configure Y LEVEL, CR LEVEL and CB LEVEL to affect the color levels of black, red, and blue respectively. Setting different colors for different privacy masks is helpful for distinguishing multiple privacy areas — set based on personal preference.
6. Repeat steps 4-8 for each additional privacy mask you wish to configure.

3.6.3 Dead Pixel Compensation (DPC)

DPC is used to detect and compensate for the appearance of damaged pixels in the camera image.

To configure DPC:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select SPECIAL. Push the middle of the control stick to confirm.
3. Move the control stick / to select DP COMP. Push the middle of the control stick to confirm.

1. Select THRESHOLD, then move the control stick / to set the threshold for dead pixel detection.
2. Select DEFECT DET, then push and hold the middle of the control stick.

3.7 Reset to Default Settings

Resetting the camera to default settings will revert all OSD menu items to their out-of-the-box state.

Resetting to default settings cannot be reversed.

To reset to default settings:

1. From the main menu, use the control stick to select ADVANCED. Push the middle of the control stick to confirm.
2. Move the control stick / to select RESET.
3. Push and hold the middle of the control stick for 4 seconds to reset the camera to default settings.

OSD Menu Default Values

The following table shows the default values for the camera's OSD menu.

SETTING DEFAULT VALUE
LANGUAGE English
VIDEO FORMAT NTSC
BACKLIGHT OFF
DNR	LOW
ADVANCED → LENS ELC
ADVANCED → EXPOSURE → BRIGHTNESS	10
ADVANCED → EXPOSURE → SHUTTER AUTO
ADVANCED → EXPOSURE → SENS-UP X4
ADVANCED → EXPOSURE → AGC	4
ADVANCED → WHITE BAL AUTO
ADVANCED → DAY&NIGHT → MODE	EXT
ADVANCED → DAY&NIGHT → DELAY	3
ADVANCED → DAY&NIGHT → SMART IR	ON
ADVANCED → DAY&NIGHT → SMARTIR LVL	4
ADVANCED → IMAGE → SHARPNESS	3
ADVANCED → IMAGE → COLOR GAIN	12
ADVANCED → IMAGE → FREEZE	OFF
ADVANCED → IMAGE → FLIP	OFF
ADVANCED → IMAGE → D-ZOOM	1.0X
ADVANCED → IMAGE → DEFOG	OFF
ADVANCED → SPECIAL → BLACK LEVEL	FULL
ADVANCED → SPECIAL → PRIVACY	OFF
ADVANCED → SPECIAL → DP COMP → THRESHOLD	13

Website

www.flirsecurity.com/pro

Technical Support

1-866-816-5919

Customer Service

1-866-344-4674

Copyright

© 2015, FLIR Systems, Inc.

All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.

Legal disclaimer

Specifications subject to change without further notice. Camera models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to [e-mail] with any questions.

www.flirsecurity.com/pro

AVERTISSEMENT

RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVIR

AVERTISSEMENT : AFIN DE RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE. LES PIEÇES INTERNES NE PEUVENT PAS ÉTRE REPARÉES PAR L'UTILISATEUR.

SE RÉFÉRER À UN TECHNIÇEN QUALIFIÉ.

3.2.1 Brightness (Luminosite)

www.flirsecurity.com/pro

Assistance technique

1-866-816-5919

© 2015, FLIR Systems, Inc.

www.flirsecurity.com/pro

ADVERTENCIA

RIESGO DE CHOQUE

ELECTRICO

NO ABRIR

ADVERTENCIA: PARA REDUCIR EL RIESGO DE CHOQUE ELECTRICO, NO QUITAR LA TAPA. NO CONTIENE PARTES SUJETAS A MANTENIMIENTO.

EL MANTENIMIENTO O SERVICIO DEBE ESTAR A CARGO DE PERSONAL CALIFICADO.

www.flirsecurity.com/pro

Soporte Tecnico

1-866-816-5919

Servicio al cliente

1-866-344-4674

Derechos de Autor

© 2015, FLIR Systems, Inc.
