USER MANUAL Cookie Fresh LG

* Make sure the number is correct before making a call.

PRINTED WITH SOYINK

CE0168

LG

Life's Good

NEDERLANDS

FRANÇAIS

ENGLISH

Black smartphone with LG branding and directional arrows on screen (no text or symbols beyond branding)

Illustration of a smartphone showing internal components with an inset magnified view (no text or symbols)

Interior view of a smartphone showing the internal components and a close-up of the screen (no visible text or symbols)

Black mobile phone with a screen and a close-up of a small card showing internal components (no visible text or symbols)

Close-up of a black mobile phone with a close-up inset showing a key inserted into the screen (no text or symbols visible)

Mobile phone screenshot showing status bar, time, and navigation icons with date and time fields

Livesquare home screen

Black-and-white close-up of a hand holding a lily flower, no visible text or symbols

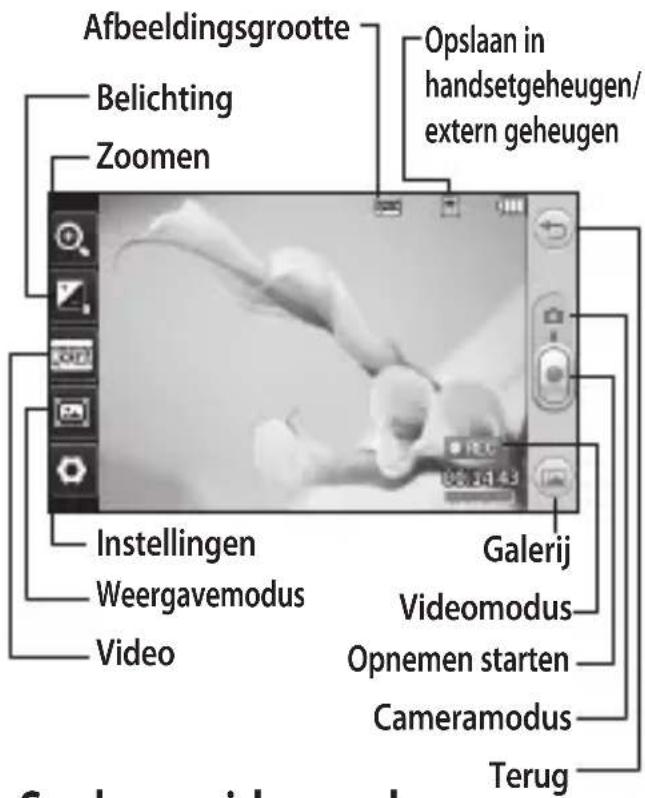

Videocamera

Close-up of a hand holding a white object with a pointed tip, no visible text or symbols

Brightness (Helderheid)

Handset reserved memory

Declaration of Conformity

LG Electronics

Suppliers Details

Name

LG Electronics Inc

Address

LG Electronics Inc. LG Twin Towers 20

Yesuido-dong, Yeongdeungpo-gu, Seoul, Korea 160-721

Product Details

Product Name

GSM 850 / E-GSM 900 / DCS 1600 / PCS 1900 Quad band Terminal Equipment

Model Name

G8290

Trade Name

LG

CE0168

Applicable Standards Details

RATTE Directive 1999/5/EC20

EN 301 489-01 V1.8.1, EN 301 489-07 V1.8.1, EN 301 489-17 V1.3.2

EN 301 511 V9.0.2

EN 50360 2001, EN62209.1 2008

EN 60950-12031

CN300126 V1.7.1

Supplementary Information

The conformity to above standards is verified by the following Nofied Body(BABT)

BABT, Forsyth House-Churchfield Road - Water-on-ThamesSurrey - KT12 2TD . United Kingdom Notified Body Identification Number : 0168

Declaration

I hereby declares under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives

LG Electronics Logistics and Services B.V. Valuezoom 15, 1327 AE Almere, The Netherlands Tel: [phone], e-mail: [e-mail]

Name

Seung Hysun, Jil' Director

Issued Date

1. Jan. 2010

8 Signature of representative

Black mobile phone with LGA branding and directional arrows indicating usage (no text or symbols on device body)

Illustration of a smartphone showing internal components with an inset close-up of a device (no text or symbols visible)

Interior view of a smartphone showing the front panel and internal components (no visible text or symbols)

Carte mémoire

Black-and-white photo of a mobile phone with a close-up inset showing a USB flash drive (no text or symbols visible)

Black-and-white illustration of a mobile phone with a close-up of its cable being inserted (no text or symbols visible)

Close-up of hands holding a white object, no visible text or symbols in the image content

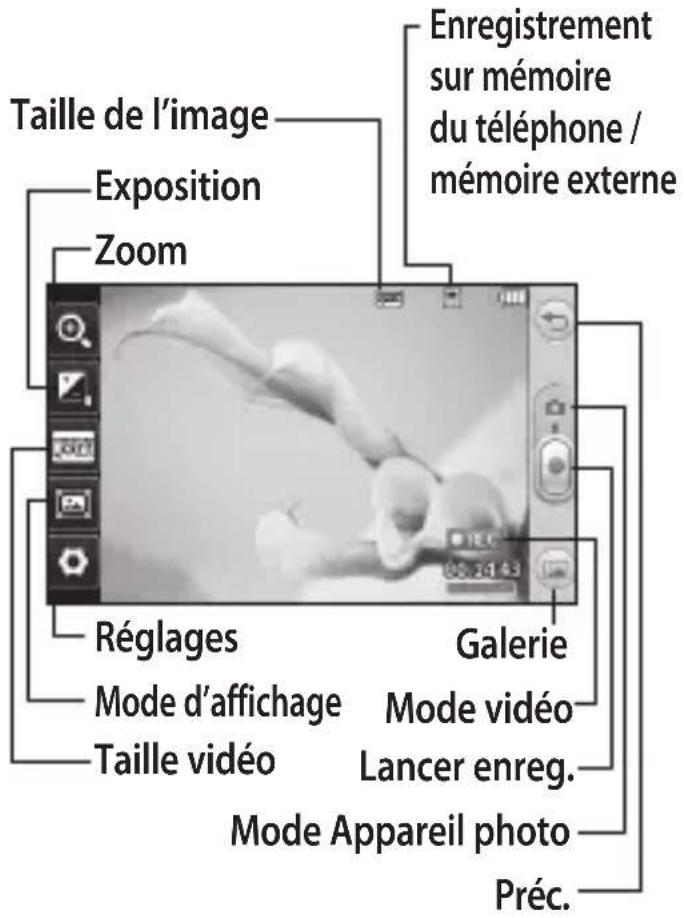

Caméra vidéo

Close-up of hands holding a small object, no visible text or symbols in the image content

LG Electronics Inc. LG Twin Towers 20. Yaguldo-zong, Yeangdeungpo-gu, Seoul, Korea 150-721

Détalie du produit

Nom du produit

GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900 Quad band Terminal Equipment

Modelle

08293

Non commercial

LO

CE0168

Détats standard applicables

RATTE Directive 1999/5/EC20

EN 301 489-01 V1.0.1, EN 301 489-07 V1.3.1, EN 301 489-17 V1.3.2

EN 301511 V9.0.2

EN 50360:2001, EN82209.1:2008

EN 60650-1:2001

EN300328 V1.7.1

SABT, Forsyth House, Churchill Road, Walton-Thames/Surrey, KT12 2TD, United Kingdom Notified Body Identification Number: 0168

Déclaration

LG Electronics Logistics and Services B.V. Volwizzom 15, 1327 AE Almere. The Netherlands Tel: +31 . 36-547 - 8640, e-mail: [e-mail]

Nory

Seung Hysun, J.1 Director

Date de publication

1. Jan. 2010

Cut out Quick Reference Guide bound to this manual along the cutout line and fold as illustrated below.

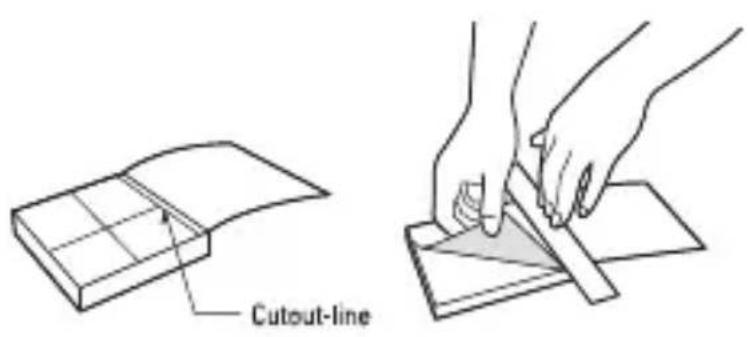

How to cut

Cut out Quick Reference Guide along the cutout line.

You can place a scale on the cutoff line and cut as illustrated below.

- Be careful not to cut yourself when using scissors.

Cutout-line

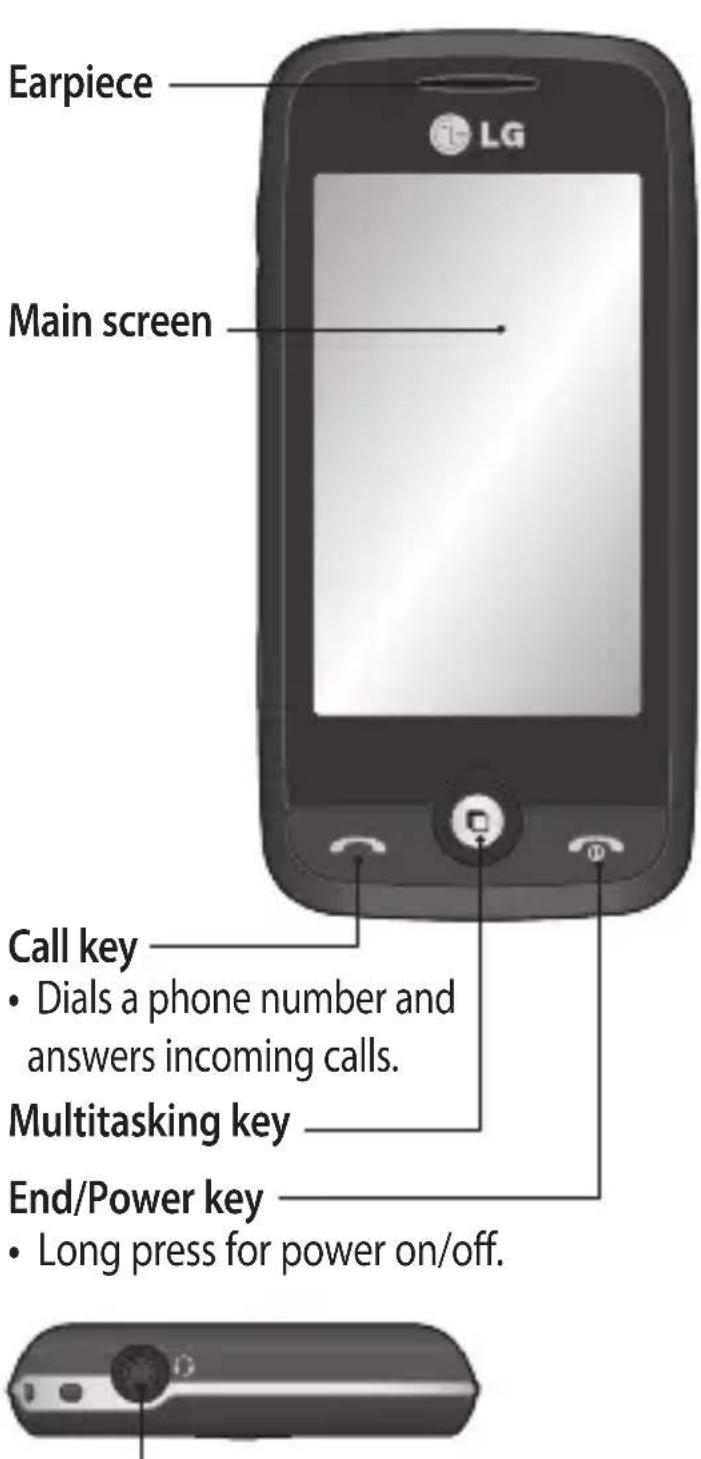

Getting to know your phone

Earpiece Main screen Call key • Dials a phone number and answers incoming calls. Multitasking key End/Power key • Long press for power on/off.

Handsfree or Stereo earphone connector

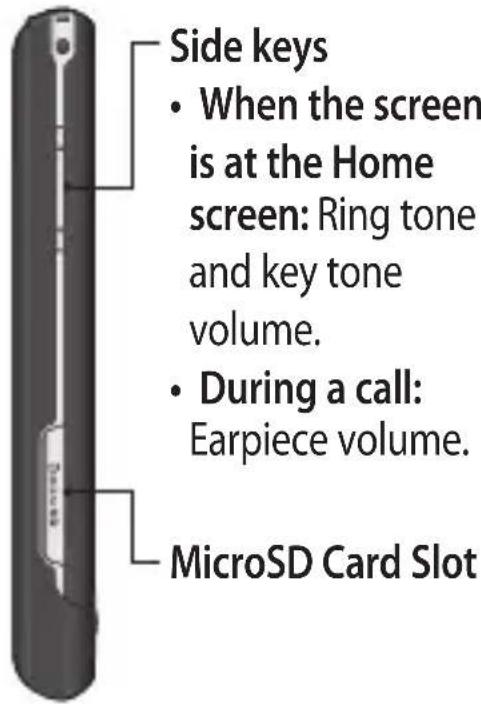

Side keys • When the screen is at the Home screen: Ring tone and key tone volume. • During a call: Earpiece volume. MicroSD Card Slot

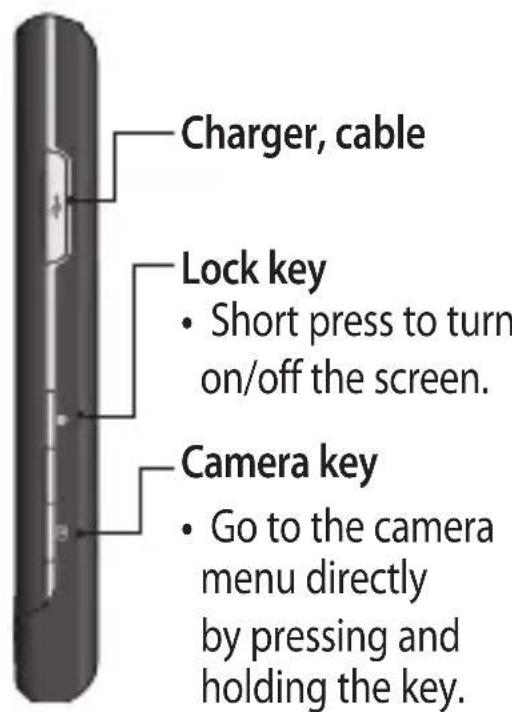

Charger, cable Lock key • Short press to turn on/off the screen. Camera key • Go to the camera menu directly by pressing and holding the key.

WARNING: Placing a heavy object on the phone or sitting on it while it is in your pocket can damage the phone's LCD and touch screen functionality.

Camera

Taking a quick photo

1 Press the 🔒ey on the right side of the phone.
2 When the camera has focused on your subject, touch the 📄 on the right-center of the screen to take a photo. You can also firmly press the 📄 on the side of the phone.

TIP! To switch to the camera mode or video mode, slide up/down the camera or video icon on the centre-right of the viewfi nder.

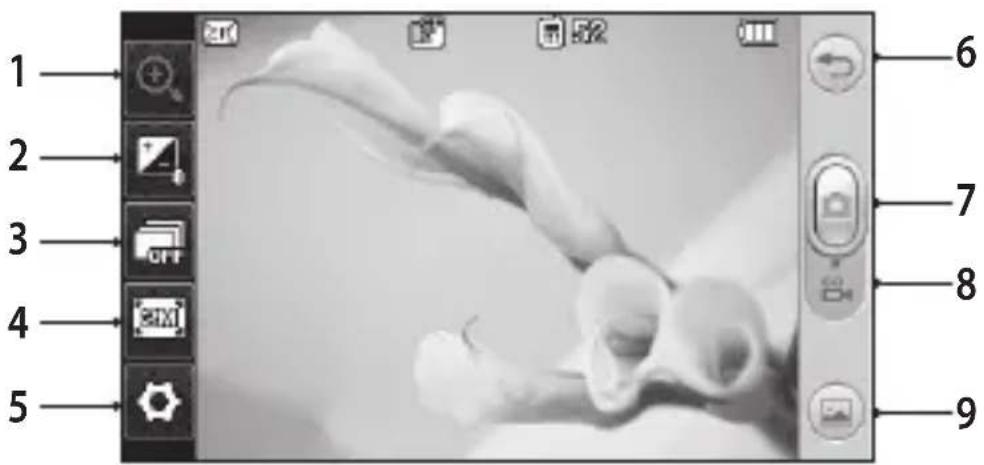

Getting to know the viewfinder

1 2 3 4 5 6 7 8 9

1. Zoom
2. Exposure
3. Continuous shot
4. Size

5. Settings

6. Back

7. Taking a photo
8. Video mode
9. Gallery

Video camera

Making a quick video

1 Press the camera key on the right side of the phone for a few seconds.
2 Holding the phone horizontally, point the lens towards the subject of the video.
3 Press the camera key on the phone once to start recording. Or touch the red dot .
4 Rec will appear at the bottom of the viewfinder with a timer at the bottom showing the length of the video.
5 To pause the video, touch and resume by selecting.
6 Touch on screen or press the a second time to stop recording.

TIP! To switch to the camera mode or video mode, slide up/down the camera or video icon on the centre-right of the viewfinder.

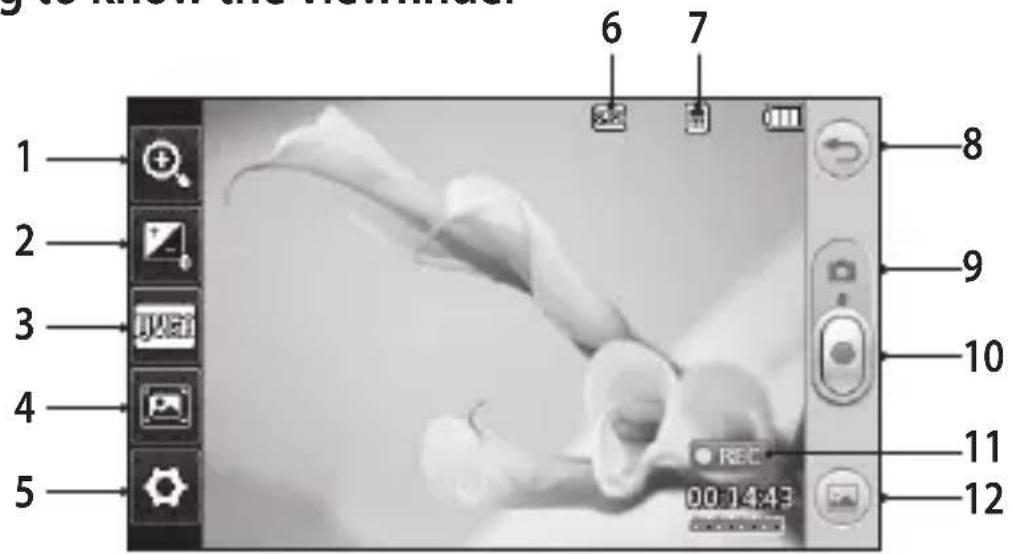

Getting to know the viewfinder

1 2 3 4 5 6 7 8 9 10 11 12 REC 00:14:43

1. Zoom
2. Exposure
3. Video size
4. View Mode
5. Settings

6. Image size

7. Saving to handset memory/external memory

8. Back
9. Camera mode
10. Start recording
11. Video mode
12. Gallery

Music

Playing a song

1 Touch Music in the ENTERTAINMENT tab.
2 Select one of the folders and the song you want to play.
3 Touch II to pause the song.
4 Touch to skip to the next song.
5 Touch to go back to the previous song.
6 Touch 📋 to return to the Music menu. You may touch more than once to return to the menu.

Creating a playlist

You can create your own playlists by choosing a selection of songs from the Playlists folder.

1 Touch Music in the ENTERTAINMENT tab.
2 Touch Playlists, then Add new playlist, enter the playlist name and touch Save.
3 The All tracks folder will show all the songs in your phone. Touch all of the songs that you would like to include in your playlist; a tick will show next to the track names.
4 Touch Done.

FM radio

Your LG GS290 has an FM radio feature so you can tune into your favourite stations to listen on the move.

You can listen to the radio without headphones. It you want to attach headphones, insert them into the headphone socket.

Searching for stations

You can tune your phone to radio stations by searching for them either manually or automatically. They will then be saved to specific channel numbers, so you don't have to keep re-tuning. You must first attach the headset to the phone as this acts as the aerial.

To auto tune:

1 Scroll and touch FM radio in the ENTERTAINMENT tab, then 📄.

2 Touch Auto scan. A confirmation message appears. Select Yes, then the stations will be automatically found and allocated to a channel in your phone.

NOTE: You can also manually tune into a station by using ◀ and ▶ displayed in the centre of the screen. If you press and hold ◀ and ▶ the stations will be automatically found.

Resetting channels

1 Scroll and touch FM radio in the ENTERTAINMENT tab, then

2 Choose Reset channel to reset the current channel or choose Reset all channels to reset all of the channels. Each channel will return to the starting 87.5Mhz frequency.

Bluetooth

Pairing with another Bluetooth device

By pairing your GS290 and another device, you can set up a passcode protected connection.

1 Check that your Bluetooth is ON and Visible. You can change your visibility in the Settings menu.
2 Touch Search.
3 Your GS290 will search for devices. When the search is completed, Refresh will appear on screen.
4 Choose the device you want to pair with and enter the passcode, then touch OK.
5 Your phone will then connect to the other device, on which you will need to enter the same passcode.
6 Your passcode protected Bluetooth connection is now ready.

Sending and receiving your files using Bluetooth

Bluetooth is a great way to send and receive fi les as no wires are needed and connection is quick and easy. You can also connect to a Bluetooth headset to make and receive calls.

Before you can start sharing fi les using Bluetooth, you will need to pair your phone with another Bluetooth device. For information on pairing devices, see Pairing with another Bluetooth device.

LIMITED WARRANTY STATEMENT

1. WHAT THIS WARRANTY COVERS:

LG offers you a limited warranty that the enclosed phone and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions:

(1) The limited warranty for the product remains in effect for a period of 24 months from the date of purchase of the product. The limited warranty for the batteries remains in effect for a period of 12 months from the date of purchase of the product. Accessories only have a 6 month warranty.
(2) The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user.
(3) This warranty is good only to the original purchaser of the product during the warranty period, but limited to certain country if specified.
(4) The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms.
(5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase.
(6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty.

2. WHAT THIS WARRANTY DOES NOT COVER:

(1) ) Defects or damages resulting from use of the product in other than its normal and customary manner.
(2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid.
(3) Breakage or damage to antennas unless caused directly by defects in material or workmanship.

(4) That the Customer Service Department at LG was not notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period.
(5) Products which have had the serial number removed or made illegible.
(6) This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use.
(7) Damage resulting from use of non-LG approved accessories.
(8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use.
(9) Products operated outside published maximum ratings.
(10) Products used or obtained in a rental program.
(11) Consumables (such as fuses).

3. CONDITIONS :

No other express warranty is applicable to this product.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

LG ELECTRONICS INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT.

Some do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from country to country.

LG Electronics Inc.
