USER MANUAL NORDMÄRKE 804.721.14 IKEA
Design and Quality IKEA of Sweden
Deutsch 10 Česky 42
Français 14 Español 46
Nederlands 18 Italiano 50
Dansk 22 Magyar 54
Íslenska 26 Polski 58
Norsk 30 Eesti 62
Suomi 34 Latviešu 66
| Lietuvių | 70 | Українська | 102 |
| Português | 74 | Srpski | 106 |
| Româna | 78 | Slovenščina | 110 |
| Slovensky | 82 | Türkçe | 114 |
| Български | 86 | 118 | |
| Hrvatski | 90 | ||
| Ελληνικα | 94 | ||
| Русский | 98 |
Charger features
- Wirelessly charges Qi-compatible devices.
- Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
• LED status indicator.
Instructions for use
- Connect the charger cable to the power adapter and plug it into the wall socket.

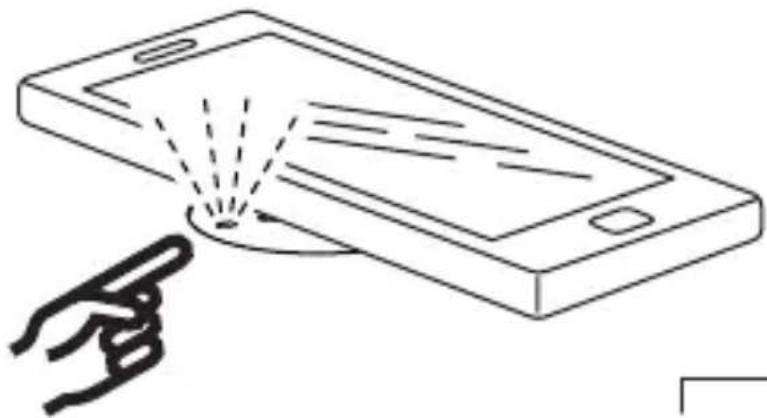

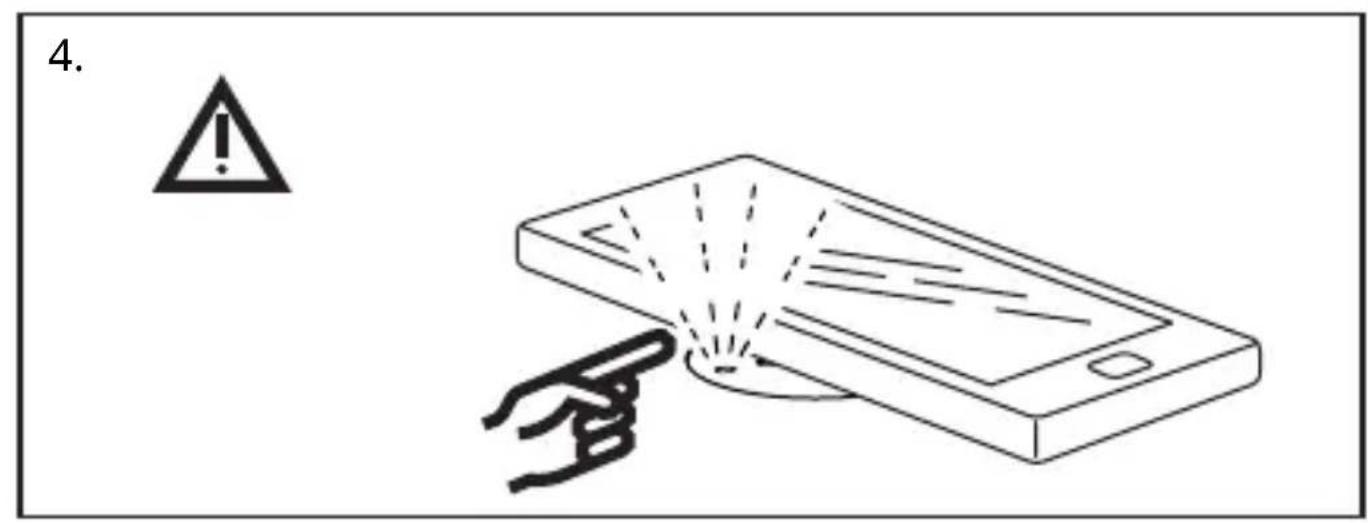

- For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

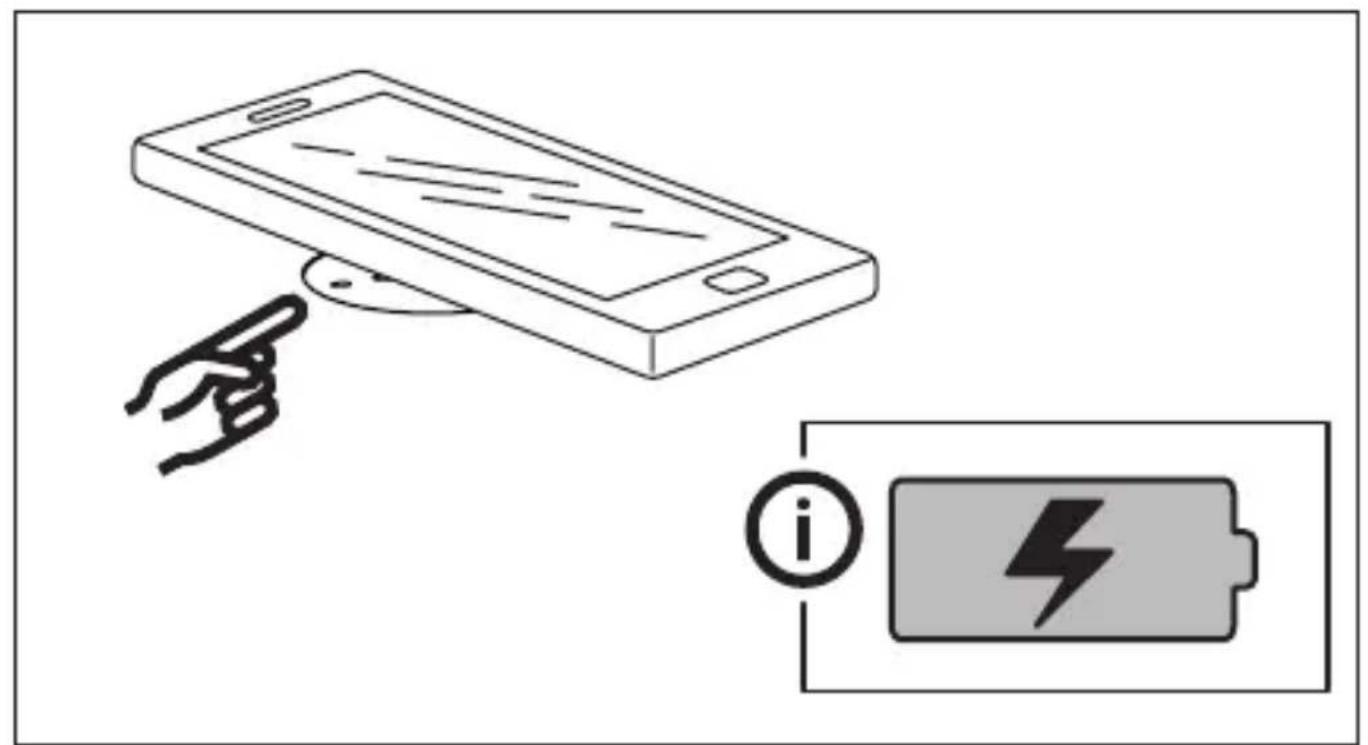

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

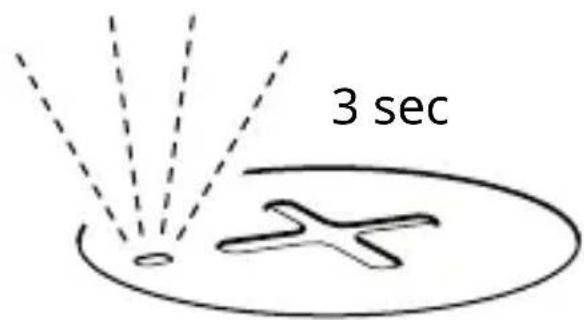

LED indicator (see illustrations):
- Power on: LED lights up for 3 seconds.
-
Charging: LED on.
-
Charging completed: LED off.
-
Error: LED flashes.
Good to know
• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
- Charger storage temperature: -20°C to 25°C.
- Charger operating temperature: 0^ to 40^ .
- Unplug the charger from the power source before cleaning and when it is not in use.
- To clean the charger, wipe with a moist cloth. Never submerge the charger in water.
Recommended precautionary measures and technical data. See the back of the charger.
Save these instructions for future use.
WARNING:
- Only charge devices that are Qi-compatible.
- The wall socket must be located near the equipment and must be easily accessible.
- Only use in dry locations.
- Children should be supervised to ensure they do not play with the product.
- If the cord is damaged the appliance shall be destroyed.
Product servicing
Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
RF EXPOSURE INFORMATION
According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.
The 'Qi' symbol is a trademark of the Wireless Power Consortium
TECHNICAL DATA
Type: E1905 NORDMÄRKE
Input: 5V DC, 2A, 10W
Indoor use only
Operating frequency: 110 - 148 kHz
Output power: -2 dBuA/m at 10m
Manufacturer: IKEA of Sweden AB
Address: Box 702, 343 81 Älmhult, SWEDEN
The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
