USER MANUAL 509220 Intellinet

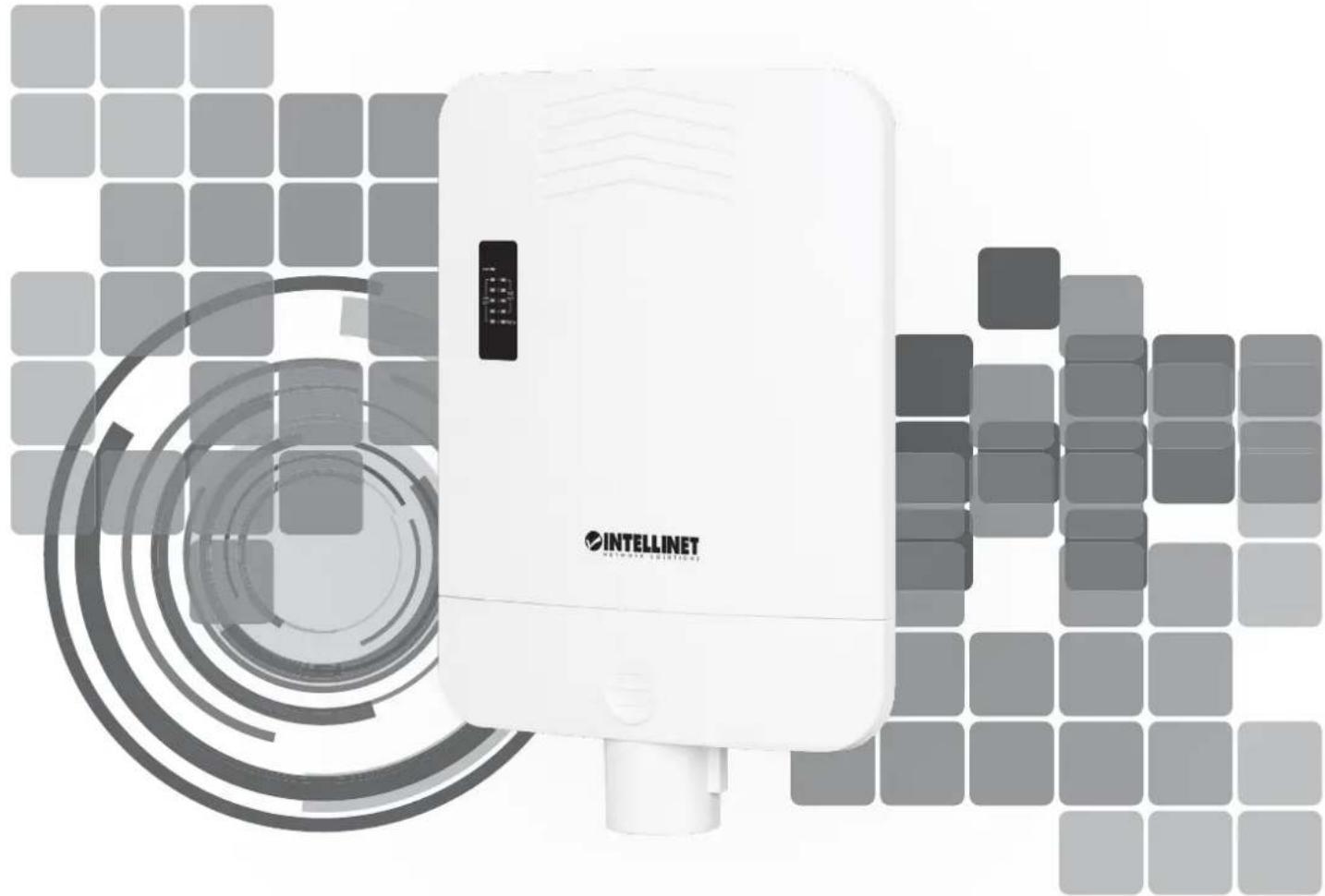

Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender Instructions

Model 509220 (IPS-05G-OD85W)

Important: Read before use. • Important: Leer antes de usar.

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/509220

This guide presents the basic steps to set up and operate this device.

Outdoor PoE-Powered 5-Port Gigabit Switch with PoE Passthrough / 4-Port PoE+ Extender features one 10/100/1000Mbps PoE-In port and four 10/100/1000Mbps PoE-Out ports. Rainproof ABS plastic shell for pole installation. Ideal for wireless and surveillance applications.

For the user manual and specifications, visit intellinet-network.com.

Register your product at register.intellinet-network.com/r/509220 or scan the QR code on the cover.

Placement

Prior to use, it is recommended that the switch be placed/positioned:

• on a surface that can support the weight of the switch (and any other items that need to be considered);
  with a minimum of 25mm (approx. 1^ ) of clearance on the top and sides for adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• within 100m (approx. 328') of network devices (RJ45) it's to be connected to.

The back side has mounting brackets, which can be used for wall- and pole-mounting

LED

LED Status	Operation
PWR	On Power is supplied to the switch
	Off No power is supplied to the switch
LINK/ACT	On A network link is established
	Flashing Data packets are being sent or received
	Off A network link is not established
PoE Out (1-4)	On Port is supplying power to a connected PoE device.
	Off Port is not supplying power to a connected PoE device.
PoE In (5)	On Power is supplied to the switch
	Off No power is supplied to the switch

Connections

• Open the bottom cover to connect the ports. Once connected, secure the cover to guarantee IP65 waterproof and dustproof protection.
• All ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc.
• Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.
• PSE (power sourcing equipment) ports (1-4) — compliant with IEEE 802.3af/at — that you can connect to PoE devices such as VoIP phones and network cameras. Any Ethernet-compatible non-PoE device can also be connected to these 4 ports.
• PD (powered device) port (5). When connected to a IEEE 802.3bt/at/af-compliant PoE injector, midspan or PoE switch, this switch will draw power from that device; the included power adapter does not need to be used. This port can also be connected to any standard Ethernet port.

Power

If using this switch as a passthrough power source for PoE devices on Ports 1, 2,3 and 4, the PD port (5) on this switch can receive up to 90 watts of power from a connected PoE injector or PoE switch — less if the connected PoE device isn't capable of sending that much power on one port. This switch (509220) will use 5 watts to power itself.

Chassis Ground Column

Located on the connection panel of the switch a grounding terminal connector is used to provide proper grounding for your switch. It should be wired to an object that provides earth ground.

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical

and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacoperator could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE/UKCA

ENGLISH : This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/509220
