USER MANUAL TPU60309 BOSCH

Register your appliance and join the Bosch family of perks: bosch-home.com/us/mybosch

Fully automatic espresso machine

800 Series

TPU6...

[en-us] Use and Care Manual Fully automatic espresso machine 2

You can find additional information and explanations online. Scan the QR code on the title page.

Table of contents

1 IMPORTANT SAFETY IN-STRUCTIONS .... 4

1.1 Safety definitions .... 4
1.2 IMPORTANT SAFEGUARDS ..... 4
1.3 General information 5
1.4 Intended use 5
1.5 Restrictive Use 5
1.6 Safety instructions .... 5
1.7 State of California Proposition 65 Warnings .... 8

2 Environmental protection and energy-saving 9

2.1 Disposal of packaging 9
2.2 Saving energy 9
3.1 Contents of package ..... 9
3.2 Installing and connecting the appliance .... 10

3 Installation and connection ..... 9

4 Familiarizing yourself with your appliance .... 10

4.1 Appliance 10
4.2 Control elements ..... 12

5 Accessories 12

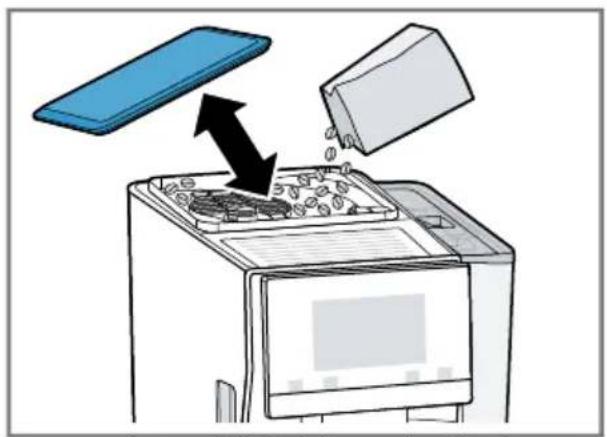

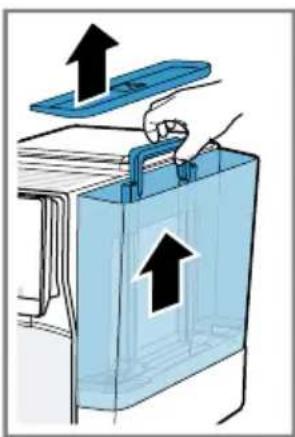

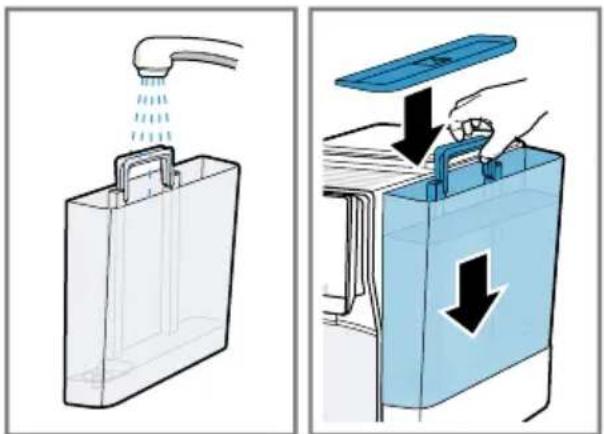

6 Before using for the first time .. 13

6.1 Preparing and cleaning the appliance .... 13
6.2 Checking the water hardness 16
6.3 Overview of water hardness levels 16
6.4 Water filter 17
6.5 Performing initial start-up ..... 17
6.6 General instructions .... 17

7 Basic Operation ...... 18

7.1 Switching the appliance on or down 18
7.2 Dispensing beverages ..... 18
7.3 "doubleShot" and "tripleShot" 19
7.4 Slow Brew and Cold Brew ..... 19
7.5 Dispensing a coffee drink with milk 19
7.6 Dispensing two cups at once 19

8 Grinder 20

8.1 Setting the grinding level ..... 20

9 Child protection 20

9.1 Activating the child lock ..... 20
9.2 Deactivating the child lock ..... 20

10 Cup warmer ^1 21

10.1 Activating and deactivating the cup warmer ^1 ..... 21

11 Favorites 21

11.1 Saving beverages from the beverage selection .... 21
11.2 Saving the beverage in the menu 21
11.3 Changing beverage settings 21
11.4 Deleting a favorite 21
11.5 Sorting favorites 21

12 Home Connect 21

12.1 Setting up Home Connect ..... 22
12.2 Home Connect settings ..... 22
12.3 Remote diagnostics .... 23
12.4 Data Protection 23

13 Basic settings 24

13.1 Changing the basic set- tings 24
13.2 Overview of the basic settings 24

14 Cleaning and maintenance ..... 25

14.1 Dishwasher-safe components 25
14.2 Cleaning agents 26
14.3 Cleaning the appliance ..... 26

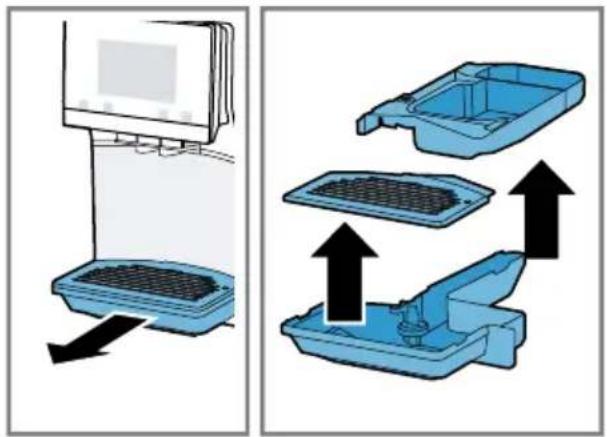

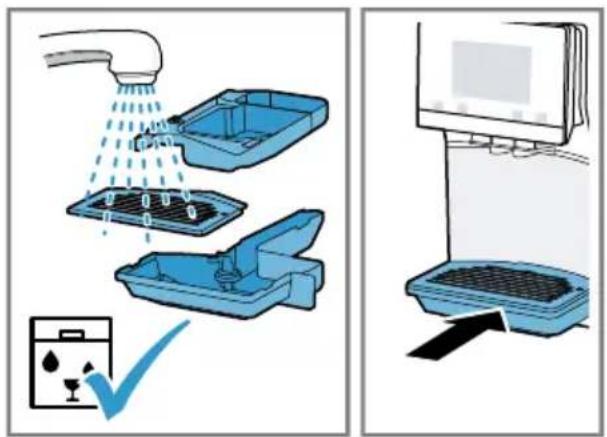

14.4 Cleaning the drip tray and coffee dregs container ..... 26
14.5 Machine care cycles 27

15 Troubleshooting 28

16 Transportation, storage and disposal 33

16.1 Activate frost protection ..... 33
16.2 Disposal of your old appli- ance 33

17 Customer Service 33

17.1 Model number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 34

18 Technical specifications ...... 34

18.1 Information regarding Free and Open Source Software .. 34

19 STATEMENT OF LIMITED PRODUCT WARRANTY ...... 35

19.1 What this warranty covers & Who it applies to 35
19.2 Obtaining warranty service ... 35
19.3 How long the warranty lasts 35
19.4 Repair/replace as your exclusive remedy 36
19.5 Out of warranty product ..... 36
19.6 Warranty exclusions 37
19.7 Product information 38

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 IMPORTANT SAFEGUARDS

WARNING

When using electrical appliances, basic safety precautions should always be followed including the following:

▶ Read all instructions.
▶ Do not touch hot surfaces. Use handles or knobs.
▶ To protect against fire, electric shock and injury to persons do not immerse cord or plugs in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
▶ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
▶ Do not use outdoors.
▶ Do not let cord hang over edge of table or counter, or touch hot surfaces.
▶ Do not place on or near a hot gas or electric burner, or in a heated oven.
▶ Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.
▶ Do not use appliance for other than intended use.
▶ Save these instructions.

1.3 General information

■ Read this manual carefully.
- Keep the manual and the product information in a safe place for future reference or for the next owner.
■ Do not connect the appliance if it has been damaged in transit.

1.4 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ To make cold-brewed drinks.
■ for normal household use and in enclosed spaces in a residential environment.
■ up to an altitude of max. 9,840 ft (3000 m) above sea level.

1.5 Restrictive Use

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not let children play with the appliance.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Children should be supervised to ensure that they do not play with the appliance.

1.6 Safety instructions

WARNING

Children may pull packaging material over their heads, or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not allow children to play with packaging material.
  Children may breathe in or swallow small parts, causing them to suffocate.
  ▶ Keep small parts away from children.
  ▶ Do not allow children to play with small parts.

WARNING

To avoid risk of injury from incorrect repairs, observe the following.

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

• Connect the appliance to a power supply with alternating current only via a correctly installed socket outlet with grounding.
  The protective conductor system of the domestic electrical installation must be properly installed.

To avoid risk of injury from a damaged appliance or power cord, observe the following.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or broken surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the breaker in the circuit breaker box.
▶ Call Customer Service. → Page 33

To avoid risk of injury from improper repairs, observe the following.

▶ Only qualified technicians or authorized service providers should perform repairs.
▶ Only genuine spare parts may be used to repair the appliance.
If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury.

An ingress of moisture may cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
▶ Liquids must not be spilled on the appliance plug connection.
▶ Use the appliance in enclosed spaces only.
▶ Never expose the appliance to intense heat or humidity.
- Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

WARNING

The appliance gets hot.

▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cupboard.

To avoid risk of injury from an extended power cord and non-approved adapters, observe the following.

▶ Do not use extension cords or multiple socket strips.
▶ Only use adapters and power cords approved by the manufacturer.
▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

WARNING

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.

- Allow hot appliance parts to cool down before touching.

WARNING

Freshly prepared beverages are very hot.

▶ Let drinks cool down if necessary.
▶ Do not let escaping liquids or steam come into contact with your skin.
A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.
▶ Do not reach under the beverage outlet when dispensing drinks.
- Keep persons, particularly children, away from the appliance.

WARNING

Improper use of the appliance may endanger the user.

▶ To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door.

The grinder rotates.

▶ Never reach into the grinder.

Improper use may cause injuries.

▶ Do not place the milk container in a microwave.

WARNING

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ Persons with electronic implants must stay at least 10 cm away from the appliance and the water tank when removed.

WARNING

During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease.

- Consult a doctor before use if you have kidney disease or follow a special potassium diet.

Soiling on the appliance may be harmful to health.

▶ To ensure hygiene, follow the cleaning instructions for the appliance.

Water from the hot water circuit can be harmful to health.

▶ Only ever use the appliance with fresh, cold, non-carbonated drinking water.

1.7 State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Environmental protection and energy-saving

2.1 Disposal of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-down to the smallest value.

√ If the appliance is not being used, it will switch itself down earlier.
→ "Basic settings", Page 24

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Contents of package

After unpacking all the parts, check for any damage in transit and for completeness of delivery.

Note: Different accessories are enclosed depending on the appliance model. The accessory is identified by a frame with a dashed line.

A Fully automatic coffee machine B Milk inlet tube C Instructions for use D Water filter insertion tool E Milk container, glass¹ F Descaling tablet G Cleaning tablet H Water hardness testing strip I Water filter

3.2 Installing and connecting the appliance

NOTICE

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

• Only use the appliance in frost-free rooms.
  ▶ If the appliance has been transported or stored below 32 °F

(0 °C), wait 3 hours at room temperature before starting it up.

▶ After plugging in, always wait approx. 5 seconds.
1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.
2. Connect the appliance with the electrical plug to a properly grounded wall outlet.

4 Familiarizing yourself with your appliance

4.1 Appliance

Here you can find an overview of the parts of your appliance.

Note: Individual details and colors may differ, depending on the appliance model.

Labeled diagram of a 16-pin appliance with numbered parts for identification

1 Touch fields

2 Cup warmer ^1

3 Aroma lid

4 Bean container

5 Rotary selector for grinding level adjustment

6	Tablet compartment
7	Lid for water tank
8	Water tank
9	Touch display
10	Cup lighting
11	Brewing chamber door

4.2 Control elements

Here is an overview of the control elements for your appliance.

Touch fields

Here is an overview of the symbols that are permanently visible on the appliance.

1	Switch the appliance on or down.
	Dispense two cups
	Open or exit the machine care cycles.
	Open or exit the settings.

Touch display

The touch display functions both as a display and a control element.

Fa- vorites

Select saved beverages with personal settings. →Page 21

12	Rating plate
13	Milk system
14	Beverage dispenser cover
15	Milk inlet tube and suction pipe
16	Drip tray

Class-sics	Select standard beverages.
coffee-World	You can choose more be-verages from theHome Connect app (wider selection).
	Cup warmer is switched on.
	Appliance is connected to Home Connect.

Note: When the appliance is switched on, you have additional operating options with relevant displays and messages, e.g. beverage settings.

∅	Set strength.
	Set capacity.
	Set coffee to milk ratio.
	Set aroma.
	Set temperature.

5 Accessories

Only use genuine accessories. These are designed especially for your appliance.

Accessories Retail Customer Service

Milk container, glass TCZ8008US 17008476

Accessories small appli- TCZ7003US 12008246ances

Cleaning tablets TCZ8001US 00312423

Accessories Retail Customer Service

Descaling tablets TCZ8002US 00312422

Care set TCZ8004US 00312421

Insulated coffee jug TCZ8007US 17008465

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

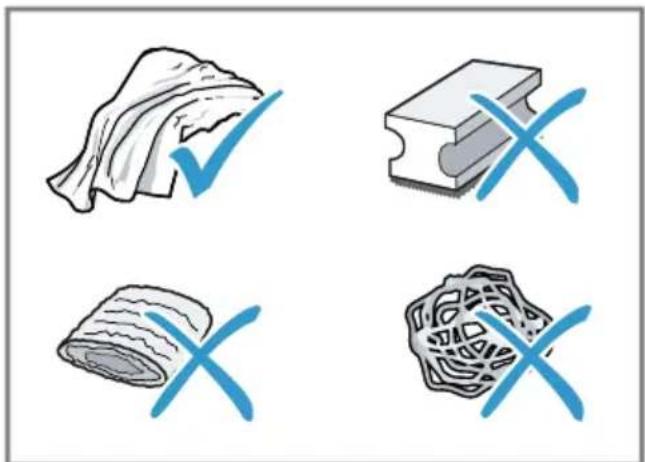

Clean the appliance and the individual parts.

NOTICE

Unsuitable beans can block up the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
• Do not use coated coffee beans.
• Do not use caramelized coffee beans.
• Do not use oily coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.

• Do not add ground coffee.

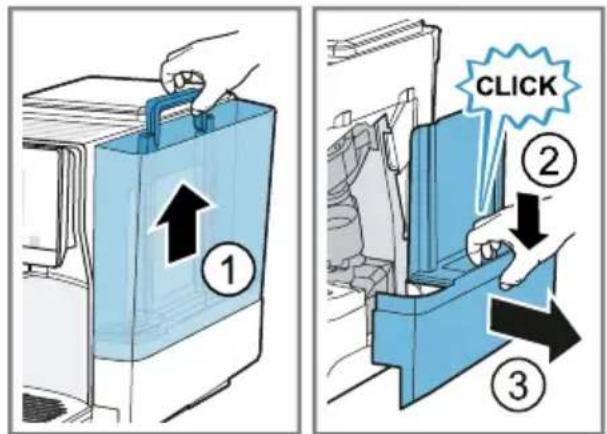

• Remove the water tank ①

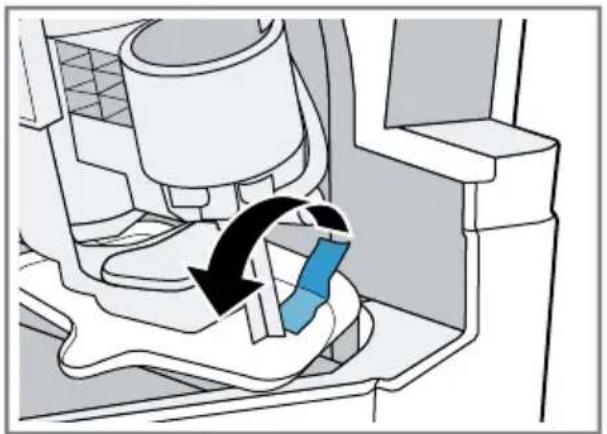

- Press the locking mechanism of the brewing chamber cover ②

and remove the brewing chamber cover ③

1. Remove the membrane.

Diagram of a car seatbelt mechanism with a blue cover and black arrow indicating rotation (no text or symbols)

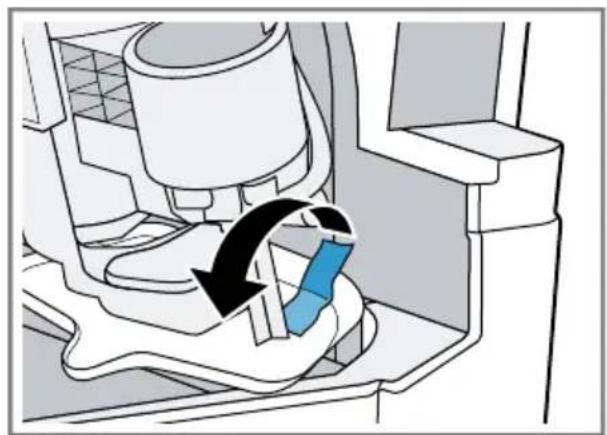

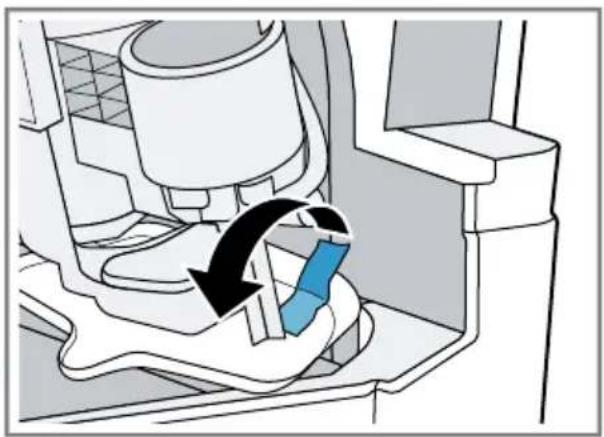

1. Insert the brewing chamber door, let it click it into place and insert the water tank.

CLICK

en-us Before using for the first time

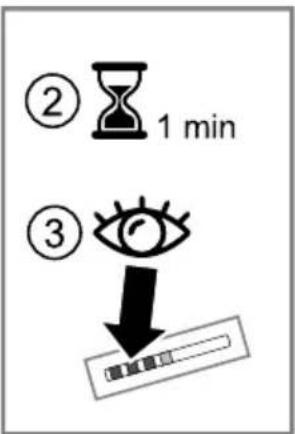

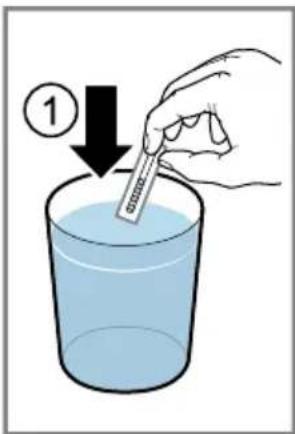

1. Briefly dip the test strip in tap water ① and leave to drain off.

▶ Wait for one minute ②
- Read the water hardness value off the test strip ③

①

② 1 min ③

1. Open the lid and take out the water tank by the handle.

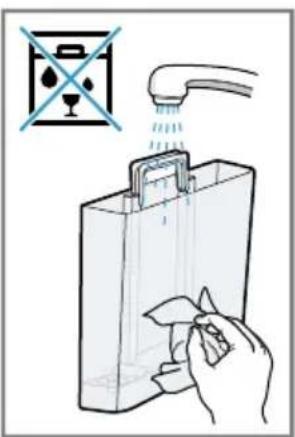

▶ Clean the water tank and lid.

Illustration of a blue briefcase with arrows indicating upward motion, no text or symbols present

Diagram showing a hand cleaning a kitchen bag with a water drop, accompanied by a crossed-out refrigerator icon.

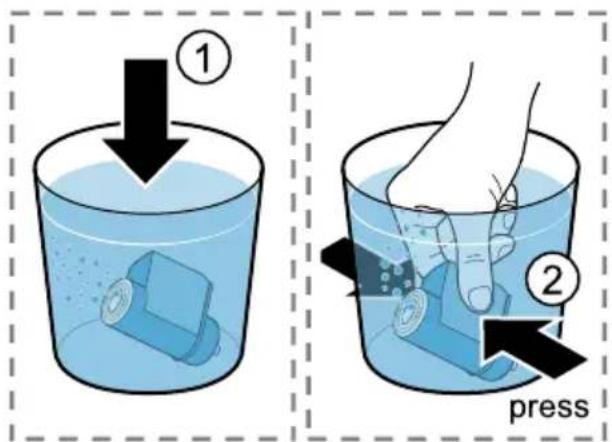

1. Immerse the water filter in a glass of water with the opening facing up and press the sides together lightly

until no more air bubbles rise to the surface.

→ "Water filter", Page 17

① press ②

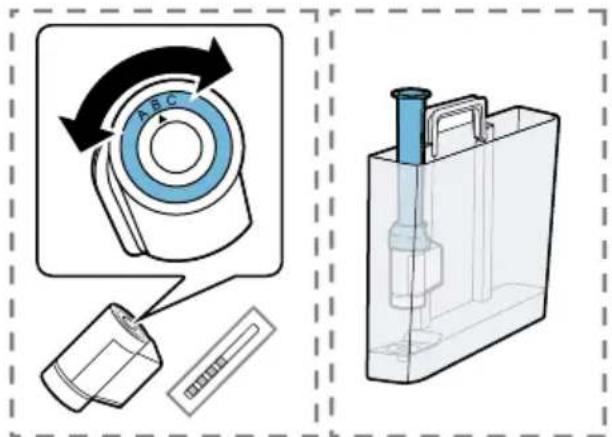

1. Set the correct water hardness value on the aroma ring of the water filter.

- Press the water filter firmly into the water tank.

Diagram illustrating a mechanical device with rotating components and a labeled container, likely illustrating a mechanical or electrical assembly.

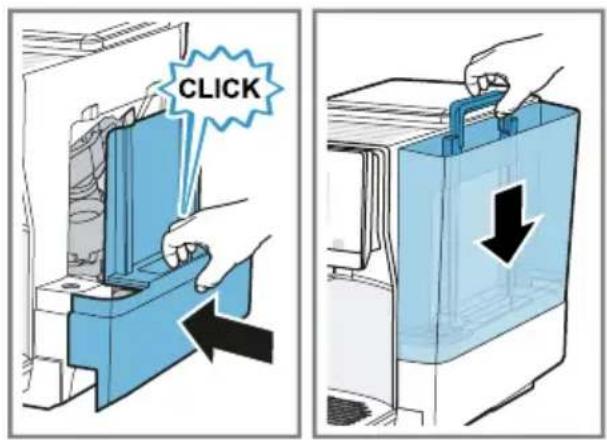

1. Fill the water tank with water up to the max marking and insert.

Diagram illustrating a water drain system with a hand pouring liquid into a first-hand box and a blue container with downward arrows indicating flow or discharge.

1. Open the aroma lid and add coffee beans.

Illustration of a microwave oven with a lid and an arrow indicating airflow or disposal (no text or symbols)

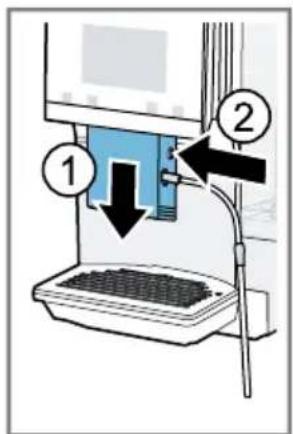

10.Push the beverage dispenser down completely.

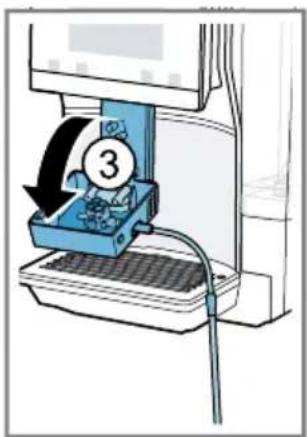

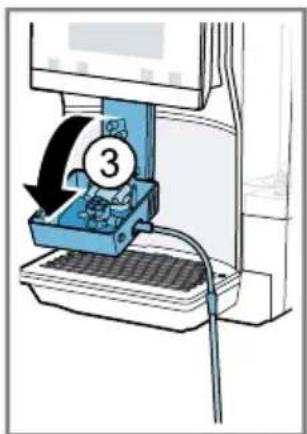

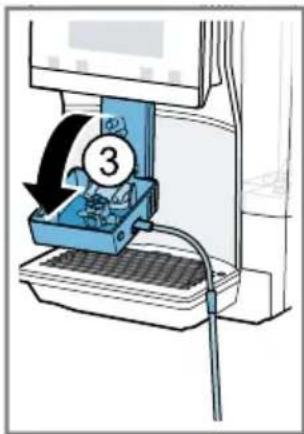

- Press the locking button on the beverage dispenser ① and remove its cover ②

Diagram showing a device with labeled parts, including a blue component and arrows indicating direction of movement or force.

Diagram showing a device with numbered component '3' and directional arrow, likely illustrating a process or system step.

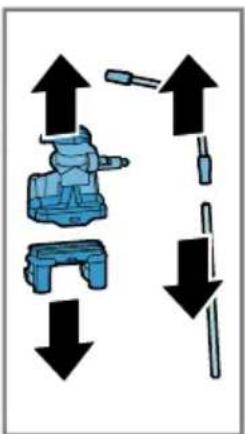

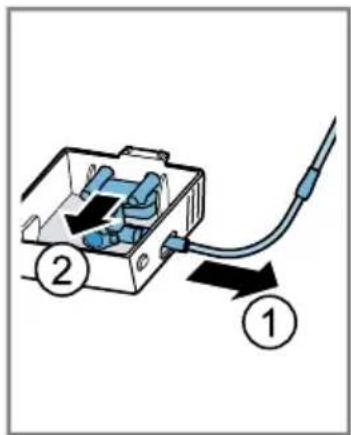

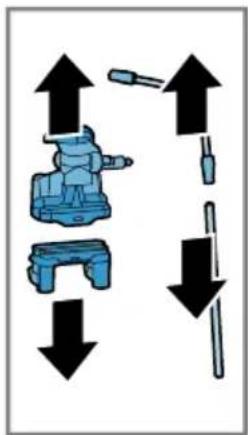

1. Remove the milk system and dismantle it into its components.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a cable or wiring connection.


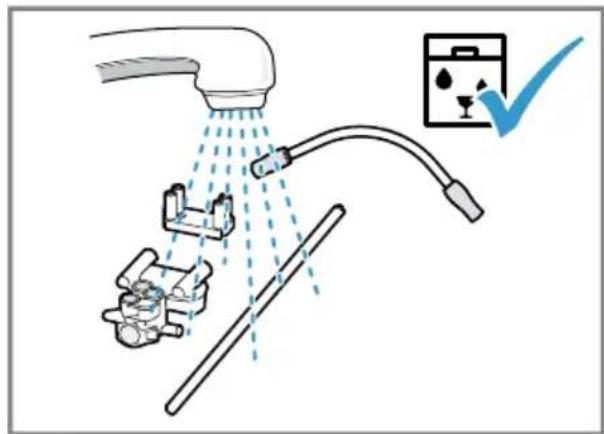

1. Clean the components with dish-washing detergent and a soft cloth.

- Rinse all components with clean water and dry.

Diagram illustrating a kitchen cleaning procedure with faucet, tool holder, and drain tube, accompanied by a health check icon.

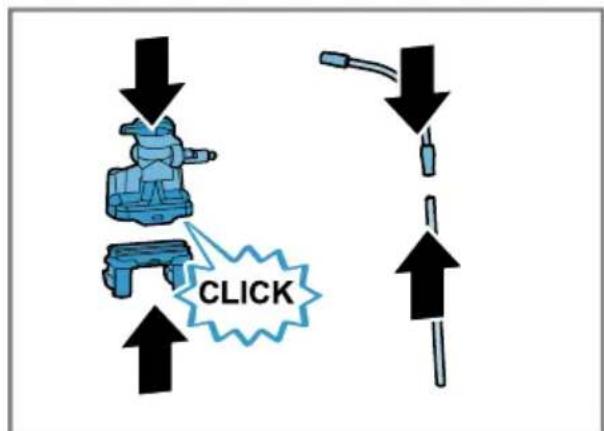

1. Assemble the components of the milk system.

CLICK

1. Insert the milk system in the cover of the beverage dispenser.

Illustration of a blue office chair with a black upward arrow inside (no text or symbols)

Diagram of a cable being inserted into an electrical component, showing a black arrow indicating direction (no text or symbols present)

en-us Before using for the first time

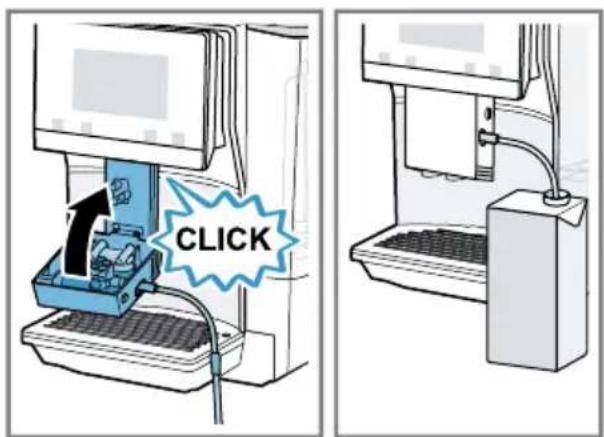

1. Hook in the cover of the beverage dispenser at the bottom and snap it in at the top.

CLICK

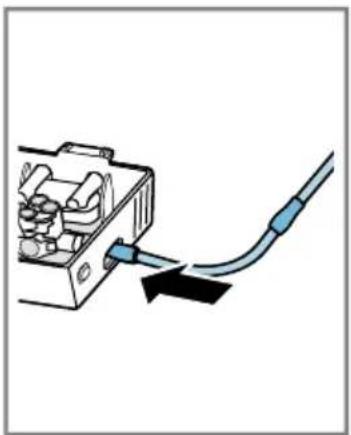

1. Connect a carton of milk to the milk inlet tube and the suction pipe.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hardness

It is important to set the right water hardness so your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap water.
2. Allow the water to drain off the test strip.
3. Read the water hardness off the test strip after 1 minute.
   → "Overview of water hardness levels", Page 16

Note: Please use the test strip even if you have a water softening system installed as they generate different water hardnesses.

Tips

• You can change the settings at any time.
  → "Basic settings", Page 24
  ■ If the water hardness is higher than 21.9 gr/gal (US), you can fill the water tank with prefiltered water to reduce limescale deposits in the water tank.

6.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Level Ring setting on INTENZA filter	Degree of German hardness in °dH	Water hardness in gr/gal (US)
1 A 1 - 7 < 7.3
2 A 8 - 14 7.3 - 14.6
3 B 15 - 21 14.6 - 21.9
4^1	C 22 - 30 > 21.9

6.4 Water filter

You can use a water filter to minimize limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the MAVEA® IN-TENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

Insert water filter

NOTICE

Possible damage to the appliance due to limescale build-up.

• Change the water filter at the correct time.
  ▶ Change the water filter after 2 months at the latest.

• Observe the display messages.

• Press

• Select "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press

2. Select "INTENZA filter".

3. Select "Replace" or "Remove" and follow the instructions on the display.

Notes

■ Dispose of spent water filters according to local regulations.
■ Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

- You should also change your water filter for sanitation reasons.

■ With a water filter you need to descale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavorful.
■ If your appliance has not been used for a long time, for example if you were on vacation, you should rinse the water filter before use by dispensing a cup of hot water.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 12

6.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for initial start-up. Initial start-up appears when switching on for the first time or after resetting to the factory settings.

1. Press Ⓐto switch the appliance on.
2. Follow the instructions on the display.
   √ The display will guide you through the cycle.

Notes

■ If you want to set up Home Connect now, follow the instructions in the Home Connect app.
- If "Demo mode" is selected, only the display screens will work. You cannot dispense a beverage or run a cycle.

6.6 General instructions

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.

■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.
→ "Setting the grinding level", Page 20
■ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment.
■ If you do not perform any actions on the appliance for a certain period, it will switch down automatically. You can change the duration in the basic settings. → Page 24

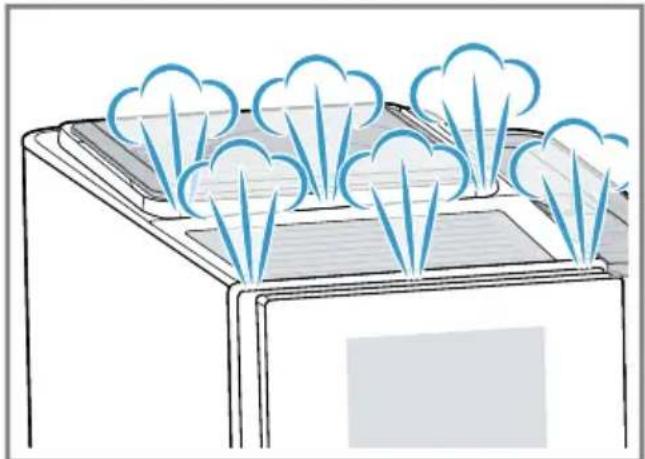

■ For technical reasons steam can escape from the appliance.

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

■ The first beverage will not yet have its full aroma if:

• You are using the appliance for the first time.
• You have run a machine care cycle.
• You have not used the appliance for a long time.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic Operation

7.1 Switching the appliance on or down

▶ Press ⏻

When the appliance switches on, the display shows the logo. When the appliance is switched on or down, it will rinse automatically. When switched down, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if it is still warm when switched on, or if no beverage was dispensed before it was switched down.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Freshly prepared beverages are very hot.

• Let drinks cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

Notes

■ With a number of settings your coffee is prepared in several steps. Wait until the process has completely finished.
■ If you are dispensing a beverage with milk, always connect a container filled with milk to the milk inlet tube and suction pipe.
■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

7.3 "doubleShot" and "tripleShot"

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible flavorful substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer the coffee brews, the more bitter substances and unpleasant flavors are released. Bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

7.4 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

7.5 Dispensing a coffee drink with milk

Learn how to prepare a latte macchiato by following this example.

WARNING

The milk system becomes very hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Requirements

■ The milk inlet tube with the suction pipe is connected to the milk system.
■ The suction pipe is immersed in milk.
1. Place a glass underneath the beverage dispenser.
2. Press "Classics".
3. Select and press the beverage symbol for latte macchiato.
4. Press "Start".

▶ To stop dispensing the beverage completely, press "Stop".

▶ To only stop the current dispensing step, press "Skip". After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.

√ The beverage is prepared and then runs into the glass.

Notes

■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.
■ Do not use creamers.

Tips

• You can also pre-heat cups before dispensing using hot water or the cup heater ^1 .
  ■ You can also use plant-based alternatives to milk, e.g. soy milk.
  ■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press
   √ The display shows the setting 📅
2. Place two cups on the left and right underneath the beverage dispenser.
3. Press "Start". The beverage is prepared in 2 steps. The beans are ground in 2 grinding operations.
   √ The beverage is brewed and runs into the cups.
4. Wait until the process is complete.

8 Grinder

Your appliance has an adjustable grinder, which you can use to customize the right coffee grind size of your coffee beans.

8.1 Setting the grinding level

Set the required grinding level while the coffee beans are being ground.

WARNING

The grinder rotates.

▶ Never reach into the grinder.

NOTICE

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.

▶ Select the grinding level step by step using the rotary selector.

Grinding level Setting

Fine grinding Turn rotary selec- level for light- roasted beans tor counterclock- wise

Grinding level Setting

Coarse grinding level for dark-roasted beans

Turn rotary selec- tor clockwise

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

9 Child protection

You can lock the appliance to protect children against scalding and burns.

9.1 Activating the child lock

Requirement: The appliance is switched on.

• Press and hold ⚙ for at least 3 seconds.
  √ The child lock is now activated.

9.2 Deactivating the child lock

▶ Press and hold ⚙for at least 3 seconds.
√ This deactivates the child lock.

10 Cup warmer ^1

You can use the cup warmer to pre-heat your cups.

10.1 Activating and deactivating the cup warmer ^1

WARNING

The cup warmer ^1 can become hot.

• Don't touch the cup warmer ^1 while hot.
• Allow the hot cup warmer ^1 to cool down before touching it.

Tip: To optimally warm the cups, place the cups with the cup base on the cup warmer ^1 .

11 Favorites

Save beverages with your personal settings as a favorite.

You can mark your favorites with a color. A favorite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press △ or start dispensing the beverage.

11.1 Saving beverages from the beverage selection

1. Select a beverage from "Classics" or "coffeeWorld".
2. Select personal beverage settings.
3. Press "Favorite".
4. Select the desired color for the beverage.
5. Press "Save".

11.2 Saving the beverage in the menu

1. Press "Favorites".

2. Press
   √ The display shows all available beverages.

3. Select the desired beverage.
4. Select personal beverage settings.
5. Press "Next".
6. Select the desired color for the beverage.
7. Press "Save".

11.3 Changing beverage settings

1. Press "Favorites".
2. Select the beverage and press briefly.
3. Change the beverage settings.
4. Press "Apply".
   √ The new settings are saved.

11.4 Deleting a favorite

1. Press "Favorites".
2. Select the beverage.
3. Press the beverage for at least 3 seconds.
4. Confirm "Delete".

11.5 Sorting favorites

1. Press "Settings".
2. Press "Personalization".
3. Press "Sort favorites".
4. Sort favorites, e.g. by name or color.

12 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The avail-

ability of the Home Connect function depends on the availability of the Home Connect services in your country. You can find information on this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi ^1 ) and to the Home Connect app. The Home Connect app guides you through the entire registration process. Follow the instructions, noting the information in the Home Connect app.

Notes

■ Note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect app.
- Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the Home Connect app during this time.

12.1 Setting up Home Connect Requirements

■ The Home Connect app is installed on your mobile device.
■ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the Home Connect app and scan the following QR code.

QR code image with a blue border, no visible text or symbols beyond the matrix pattern

1. Follow the instructions in the Home Connect app.

Note: The Home Connect assistant is also available in the basic settings and guides you through the individual steps.

12.2 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

Here is an overview of the Home Connect settings and network settings.

Basic setting Select Description
Wi-Fi connection On	Off	Switch off the wireless module during long absences or to save energyNote: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and offNote: With the Home Connect app you can only switch off the remote start.
Add mobile device	- Connect the appliance to the Home Connect app or additional accounts
Network information	- Display network information and appli-ance information
Delete network settings	-	Note: You cannot operate your appli-ance via the "Home Connect" app with-out a network connection.
Software update -		Note: This setting is only available with a software update.

12.3 Remote diagnostics

Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the Home Connect server and if Remote Diagnostics is available in the country where you are using the appliance.

Tip: Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.home-connect.com.

12.4 Data Protection

Please read this information on data protection.

The first time your appliance is registered on a home network connected

to the Internet, your appliance trans- mits the following types of data to the Home Connect server (initial registra- tion):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
  ■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
  ■ The current software and hardware version of your home appliance.
  ■ Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to

en-us Basic settings

use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be used in conjunction with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

13 Basic settings

You can configure the basic settings for your appliance to meet your

13.2 Overview of the basic settings

Here is an overview of the basic settings.

needs and call up additional functions.

13.1 Changing the basic settings

1. Change the desired basic setting.
   √ The appliance saves the basic setting automatically.
2. To exit the basic settings, press ←.

Beverage setting Brewing temperature Set the brewing temperature.
	Milk sequence Select the sequence for milk and coffee.
	Latte macchiato pause Select the pause between milk and coffee.
	Reset beverage parameters Reset the beverage settings.
Appliance setting Cup heater1	Switch the cup heater1 on or off.
	Automatic switch-off Set the length of time after which the appliance will turn off.
	Display brightness Set the brightness in steps.
	Tones Switch sounds on and off.■ Set the volume.
	Water hardness Set the water hardness.
	Language Set language.
	Factory settings Reset appliance to factory settings.
Customization

	Operation after switch-on	Set the display screen for "Favorites", "Classics" or "coffeeWorld".
	Sort favorites Set the sequence of favorites.
Home Connect Information about Home Connect
Appliance information Drink counter Display the number of beverages dispensed.
	Cleaning information Time	until the water filter should next be changed or a machine care cycle started.
	Version information Display	network information and appliance information.
	License information Display	FOSS license text.
	Mode for demo purposes	Switch "Demo mode" on or off.

14 Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

14.1 Dishwasher-safe components

Here is an overview of the components you can clean in the dishwasher.

NOTICE

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

▶ Follow the operating instructions of the dishwasher.
▶ Only clean dishwasher-safe components in the dishwasher.
▶ Only use programs that do not heat the components above 140 °F ( 60 °C ).

Suitable:

• Drip tray
• Drip plate
• Coffee dregs container
  ■ Milk system with adapter

Not suitable:

■ Water tank
- Lid for water tank
■ Brewing unit
■ Beverage dispenser cover

14.2 Cleaning agents

Only use suitable cleaning agents.

NOTICE

Unsuitable cleaning agents may damage the surfaces of the appliance.

• Do not use strong or abrasive cleaning agents.
• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to descale the appliance.
• Do not use descaling agent with phosphoric acid.
  ▶ Only use cleaning tablets and descaling tablets that have been specially developed for the appliance.

→ "Accessories", Page 12

Four abstract icons: a rolled document, a rectangular block with X marks, a rolled cloth, and a textured circular object (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

14.3 Cleaning the appliance

WARNING

Moisture intrusion may cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

WARNING

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
- Allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with a microfiber cloth.
2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
3. Rinse the water tank with fresh, clean water.
4. If the appliance has not been used for a long time, e.g. after a vacation, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. In other words the system cleans itself.

14.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

1. Pull the drip tray and the coffee dregs container forwards and out.

- Insert the coffee dregs container in the drip tray and put the drip plate on top.

Diagram illustrating a device's internal components and airflow direction, showing fluid flow from a rack to a plastic container with upward arrows.

1. Clean and dry all parts.

2. Insert the coffee dregs container in the drip tray and put the drip plate on top.

3. Insert the drip tray with the coffee dregs container in the appliance.

Diagram illustrating a cleaning or disinfection procedure with labeled components and a checkmark indicating inspection.

14.5 Machine care cycles

Use the machine care cycles if you insert or remove a water filter or in

Overview of machine care cycles

Here is an overview of the machine care cycles.

Note: The start image shows the remaining number of beverages that can be dispensed until running the program and the duration.

order to clean your appliance thoroughly. Your appliance will tell you when you need to perform a machine care cycle, e.g. cleaning.

NOTICE

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Immediately perform the descaling process in accordance with the instructions.
• Only use cleaning tablets in the tablet compartment.
• Do not put descaling tablets or other products in the tablet compartment.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tips

• In addition to the automatic rinsing process, also remove and clean the brewing unit regularly.
  ■ Use lukewarm water for the service programs.

Using the machine care cycles

Press
√ The display will guide you through the program.

	INTENZA filter Insert, replace, or remove the water filter
	Milk system cleaning Rinse the milk system automatically.
	Calc'n Clean Combine cleaning and descalingRemove residues of limescale and coffee from the pipes
	Cleaning Remove residues of coffee from the pipes
	Descaling Remove residues of limescale from the pipes
	Brewing unit cleaning The display shows optimum cleaning of the brewing unit step by step.
	Beverage outlet cleaning The display shows optimum cleaning of the outlet step by step.
	Residual water drainage Drain the pipes to protect the appliance during transport or storage
	Special rinsing If a machine care cycle is interrupted,e.g. due to a power failure, the appliance will rinse itself automatically. The appliance is then ready for use again.
TipsIf you are starting the "Descaling" or "Calc'n Clean" cycle, keep a container with a capacity of min.1 l at the ready.		If you use a water filter, this will increase the length of time until you have to run a machine care cycle.You can combine "Descaling" and "Cleaning" with the "Calc'n Clean" machine care cycle.

15 Troubleshooting

WARNING

To avoid risk of injury from improper repairs, observe the following.

• Only qualified technicians or authorized service providers should perform repairs.
  ▶ Only genuine spare parts may be used to repair the appliance.

- If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury.

Fault Cause and troubleshooting
Appliance no longer responds.	Appliance has an error.1. Unplug the appliance and wait 60 seconds.2. Plug it back in.
Home Connect is not working properly.	Various causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the type of coffee.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system in the dishwasher.
	Milk inlet tube not immersed in milk.► Use more milk.► Check whether the milk inlet tube is immersed in the milk.
	Heavy build-up of limescale in the appliance.► Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly.► Assemble the milk system correctly.
	Milk inlet tube not immersed in milk.► Use more milk.► Check whether the milk inlet tube is immersed in the milk.
Milk froth is too cold.	Milk is too cold.► Warm the milk.
Coffee is too cold. Brewing temperature is too low.► Set the brewing temperature higher.→ "Overview of the basic settings", Page 24
Cold-brewed beverage is not cold enough.	Water in water tank is warm.1. Fill the water tank with fresh, cold, non-carbonated drinking water.2. You can add ice cubes to cool the beverage down even more.
Appliance is not dispensing hot water.	Milk system is soiled.► Clean the milk system in the dishwasher.
Appliance is not dispensing drinks.	Air in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.► Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
Water has dripped inside at the base of the appliance.	Drip tray was removed too soon.► Wait a few seconds after the last drink was dispensed before removing the drip tray.
Brewing unit cannot be removed.	Locking mechanism cannot be released, brewing unit is jammed.► Switch the appliance off and back on after 3 minutes.
Grinder will not start. Appliance is too hot.1. Disconnect the appliance from the power supply with the mains switch.2. Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the type of coffee.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies considerably.	Build-up of limescale in the appliance.► Descale the appliance.
Milk froth quality varies considerably.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimize the result through the selection of the milk or plant-based drink type.
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.→ "Setting the grinding level", Page 20
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.
Coffee is too acidic. Grinding level is set too coarse.► Adjust the grinder to a finer setting.→ "Setting the grinding level", Page 20
Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.
Coffee is too bitter. Grinding level is set too fine.► Set a coarser grinding level.→ "Setting the grinding level", Page 20
Type of coffee is not optimal.► Change the type of coffee.
Coffee tastes burnt. Grinding level is set too fine.► Set a coarser grinding level.→ "Setting the grinding level", Page 20
Coffee tastes burnt. Brewing temperature is too high. ▶ Set the brewing temperature lower.
Coffee grounds are not compact and are too wet.	Grinding level is not set correctly. ▶ Adjust the grinder to a coarser or finer setting. → "Setting the grinding level", Page 20
	Coffee beans are too oily. ▶ Use a different type of bean.
Display shows "Please insert the brewing unit".	Cover is inserted wrong. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover.
Display shows "Please fill the water tank" despite the water tank being full.	Water tank is inserted wrong. ▶ Insert the water tank correctly.
	Carbonated water is in the water tank. ▶ Fill the water tank with fresh drinking water.
	Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation.
	Air in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Water filter is old. ▶ Insert a new water filter.
	Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly. 2. Start the descaling program.
Display shows "Please clean brewing unit. Instructions in Use and Care Manual".	Brewing unit is soiled. ▶ Clean the brewing unit.
	Mechanism of brewing unit is stiff. ▶ Clean the brewing unit.
Display shows "Over-voltage or undervoltage".	There are problems with the power supply. ▶ Only operate the appliance at 120 V ~.

Fault Cause and troubleshooting

Display shows "Error in water system. Unplug the appliance, wait one minute and plug in again.".	Appliance has an error.1. Unplug the appliance and wait 60 seconds.2. Plug it back in.
Display shows "Please run Calc'n Clean program!" very frequently.	Decalcified water still contains small amounts of lime.1. Insert a new water filter.2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used.► When descaling, only use suitable tablets.
	Machine care cycle has not been carried out in its entirety.► Start the "Special rinsing" machine care cycle.→ "Machine care cycles", Page 27

16 Transportation, storage and disposal

16.1 Activate frost protection

Protect your appliance from frost during transport and storage.

NOTICE

Residues of liquid in the appliance may damage it during transport or storage.

• Empty the pipe system before transport or storage.
• Run the "Frost protection" program.
• Disconnect the appliance from the power supply.

16.2 Disposal of your old appliance

Environmentally compatible disposal allows valuable raw materials to be recycled.

1. Unplug the appliance from the power supply.

2. Cut through the power cord.

3. Dispose of the appliance in an environmentally responsible manner. Information about current disposal methods can be obtained from your specialist dealer or local authority.

17 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.

Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.

If you contact Customer Service, you will need the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

USA:

1-800-701-5231

www.bosch-home.com/us/owner-support/get-support
www.bosch-home.com/us/shop CA:
1-800-701-5231
www.bosch-home.ca/en/service/get-support
www.bosch-home.ca/en/service/cleaners-and-accessories
For assistance with connecting to Home Connect, you can also view instructions here:
www.home-connect.com/us/en/help-support/set-up

Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.

18 Technical specifications

Voltage 120 V ~
Frequency 60 Hz
Power rating 1600 W
Maximum static pump pressure	19 bar
Maximum capacity of water tank (without filter)	81 fl oz.(2.4 l)
Maximum capacity of bean container	11.3 oz.(320 g)

Power cord length 39 3/8" (1 m)
Appliance height 15"	(380 mm)
Appliance width 13 6/7"	(352 mm)
Appliance depth 18 2/5"	(467 mm)
Weight, empty 20 lbs	(9 kg)
Type of grinding unit Ceramic

18.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable license information is stored on your home appliance. You can also access the applicable license information via your

Home Connect app: "Profile -> Legal information -> License Information". ^1

You can download the license information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSREQUEST“

The cost of performing your request will be charged to you. This offer is

valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

19 STATEMENT OF LIMITED PRODUCT WARRANTY

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

19.1 What this warranty covers & Who it applies to

The limited warranty provided by BSH Home Appliances (“Bosch”) in this Statement of Limited Product Warranty applies only to the Bosch appliance (“Product”) sold to you provided that the Product was purchased:

• For your normal, household (non-commercial) use (i.e., no more than 7,000 cups during the warranty period), and has in fact at all times only been used for normal, non-commercial household purposes.
• New at retail from a BSH authorized dealer or directly from BSH (not a display, floor, “As Is”, or “B” stock appliances), and not for resale, or commercial use.
  ■ Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein purchased for ordinary household use during the term of the warranty.

Please make sure to register your product; failure to register will not affect your warranty rights. Registering your product is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

Upon purchase or receipt of the product, it is recommended to register it using the QR code on the side of the machine or at https://registerbosch.com/

19.2 Obtaining warranty service

To obtain warranty service for your product, you should contact Bosch Customer Service at [phone] to arrange a repair.

19.3 How long the warranty lasts

Bosch warrants that the Product is free from defects in materials and workmanship for a period of seven hundred thirty (730) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery.

The warranty shall only be extended for the time that elapsed between the date of your warranty claim and the date of the completed repair or replacement.

This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery. This cosmetic warranty excludes slight color variations due to inherent differ-

ences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances. UNDER THIS SPECIFIC WARRANTY, A PROOF OF PURCHASE (E.G., RECEIPT) IS REQUIRED. If proof of purchase cannot be provided, date of production plus three months will be used as the purchase date. You may be required to provide clear images (e.g., pictures of the Product and/or including the data tag showing model and serial number), but failure to do so will not diminish your warranty rights.

19.4 Repair/replace as your exclusive remedy

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) under a valid warranty claim under the terms of the applicable warranty. Bosch will cover the cost of returning the Bosch Product to Bosch via ground shipping, and the original Product (removed parts and components) shall become the property of Bosch. CONSUMERS MUST USE THE SHIPPING TOTE OR SPECIAL PACKAGING INSTRUCTIONS PROVIDED BY BOSCH. This warranty does not cover for shipping damage or loss of product during shipping.

If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product with a new or factory certified (i.e., refurbished) replacement (upgraded models may be available to you, in Bosch's sole dis-

cretion, for an additional charge). Bosch may repair a part of the original Product with a factory certified (i.e., refurbished) part. You have the right to reject a replacement Product that materially differs from the original Product.

Bosch's sole liability and responsibility hereunder is to repair the Product under a valid warranty claim, using a Bosch technician or one of its authorized service providers during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider;

Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Nevertheless, having your roduct serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty.

Also, using third-party parts will not void this warranty.

19.5 Out of warranty product

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired.

19.6 Warranty exclusions

This Limited Warranty does not cover any of the following:

■ Products sold outside of the United States of America, USA Territories, and Canada
■ Consumables (e.g., water filter)
■ Repairs made by non-authorized retailer or dealers
■ Products purchased on eBay or auctions
■ Shipping damage or loss of product during shipping
■ Use and care related repairs
■ Use of care products not sold by Bosch (e.g., descalers, cleaners, etc.)

The warranty coverage described herein excludes all defects or damage caused by, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, household (non-commercial), and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
  ■ Use of the Product with voltage or frequency outside of the dataplate rating.
  ■ Use of the product on a generator, solar, inverter, or DC to AC converter.
• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain according to Use & Care Manual, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or

exploration of the appliance's internal workings).

■ Adjustment, alteration or modification of any kind.
- A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
■ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
- Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
■ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses, or correct house wiring.
■ Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Bosch before service is performed.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; any type of service to teach you how to use the

Product, or servicing where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BOSCH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

19.7 Product information

For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation.

Model number (E-Nr.)
Production number (FD)
Date of delivery

Line drawing of a laboratory instrument with a screen and base (no text or symbols)

A

[Non-Text]

G

1

H

E

[Non-Text]

Labeled diagram of a 16-pin appliance with numbered parts for identification

① ② ③ CLICK

1. Retirer le film.

Diagram of a car interior showing a seatbelt and dashboard with a blue cover, no text or symbols present

Illustration showing a hand pouring liquid into a glass with three labeled steps: 1 minute, 1 hour, and eye detection.

Illustration showing two steps of cleaning a battery: one with upward arrows indicating cleanliness, the other with a hand cleaning water.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows

Diagram illustrating a water tap and its effectiveness in handling a container with liquid, showing fluid flow and downward force.

Illustration of a printer with coins being inserted into a tray, showing a blue cover and black arrows indicating process (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or system.

Diagram showing a device with a numbered component labeled '3' and an arrow indicating direction, likely illustrating a process or operation.

Diagram showing a mechanical device with labeled parts and an attached cable, marked as ① and ②.

Diagram illustrating a water spray system with labeled components and a checkmark indicating inspection or verification.

Illustration of a box containing blue objects with an arrow pointing upward (no text or symbols)

Diagram of a cable being inserted into an electrical component, showing a blue cable and black arrow indicating direction (no text or symbols present)

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

7.3 "doubleShot" et "tripleShot"

12.1 Configurer Home Connect

Exigences

QR code image with a blue border, no visible text or symbols beyond the matrix pattern

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up cloth, and a textured surface (no text or symbols)

Conseils

Diagram illustrating a device's internal structure with arrows indicating movement or assembly, showing components like a rack and storage tray.

Diagram illustrating a cleaning or disinfection procedure with labeled components and a checkmark indicating inspection.

www.bosch-home.com/us/owner-support/get-support

www.bosch-home.com/us/shop

CA:

1-800-701-5231

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/

cleaners-and-accessories

QR code image containing encoded data, no visible human-readable text

BOSCH

Line drawing of a laboratory instrument with a screen and base (no text or symbols)

A

[Non-Text]

G

[Non-Text]

E

1

H

Cafetera automática

Tubo para la leche

Labeled diagram of a 16-pin appliance with numbered parts for identification

① ② ③ CLICK

1. Retirar la lámina.

Diagram of a toilet interior showing a piston and seat, with a blue plastic bag being inserted (no text or symbols)

Illustration showing two steps of cleaning a battery: one with upward arrows indicating improvement, and another with a hand cleaning the water.

Diagram illustrating a mechanical device with labeled components and a close-up of its internal structure.

Diagram illustrating a water tap and its impact on a water container with downward flow arrows indicating water movement.

Illustration of a printer with a blue cover and black arrows indicating process flow (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or system.

Diagram showing a device with a numbered component labeled '3' and directional arrow, likely illustrating a process or operation.

Diagram showing a device with labeled parts and connection arrows, likely illustrating a cable or cable connection.

Diagram illustrating a water spray system with faucet, pipe, and cleaning components, accompanied by a checkmark indicating inspection.

Illustration of a box containing blue objects with an upward arrow, no text or symbols present

Diagram showing a cable being inserted into an electrical connector (no text or symbols present)

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

7.3 "doubleShot" y "tripleShot"

QR code image with a blue border, no visible text or symbols beyond the matrix pattern

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up dough, and a textured surface (no text or symbols)

Consejos

Diagram illustrating airflow or ventilation process of a washing machine, showing air intake and exhaust components with directional arrows.

Diagram illustrating a water spray cleaning procedure: dropping from a drain to a container, then adding a filter into a monitor.

Register your appliance to enjoy customized benefits.

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

• Discount for filters, cleaners, accessories & parts
• Easy access to manuals & appliance specifications
• Easy access to part lists
• Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch services at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-701-5231

© 2025 BSH Home Appliances Corporation

8001324419 (050915)

en-us, fr-ca, es-mx
