USER MANUAL JUICER DUAL Create

Line drawing of a mechanical device with a central component and two side ports (no text or symbols)

DOUBLE ELECTRIC JUICER

EXPRIMIDOR ELÉCTRICO DOBLE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CRE

CREATE

JUICER DUAL

INDEX

ENGLISH

Security instructions 6

Parts list 7

Assembly 7

Cleaning and maintenance 8

Operating instructions 8

PORTUGUÊS

Thank you for choosing our juicer. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident-prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SECURITY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be observed.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the outlet is grounded.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Unplug the appliance from the main power supply when not in use.

WARNING: If the appliance falls accidentally in water, unplug it immediately. Do not reach into the water.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service, in order to avoid any type of danger.

WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.

• Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cord, to disconnect it from the outlet.
• This appliance is intended for domestic use only. It is not suitable for commercial or industrial use. Do not use it outdoors.
• Do not use any accessory that has not been recommended by the manufacturer, as they might cause injuries or damage.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
• This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• Keep the appliance and its cord out of reach of children under the age of 8. Place the appliance on a dry, stable, flat, heat-resistant surface.
• Do not use the appliance under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames. On soft surfaces (such as carpets) or where it may tip over during use. Outdoors or in areas with high humidity levels.

- The temperature of accessible surfaces may be high while in use and could cause burns.

- Do not touch hot surfaces while in use or immediately after.

- Do not cover the appliance while in use.

- Do not leave the appliance unattended while in use. Unplug it from the mains supply when you finish using it or when you leave the room.

- Do not try to repair the appliance by yourself. Contac the official Technical Support Service for advice.

- Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it.

- Cleaning and maintenance tasks must not be carried out by children. Do not wash the appliance in dishwashers.

- Store the appliance and its instruction manual in a safe and dry place when not in use. No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

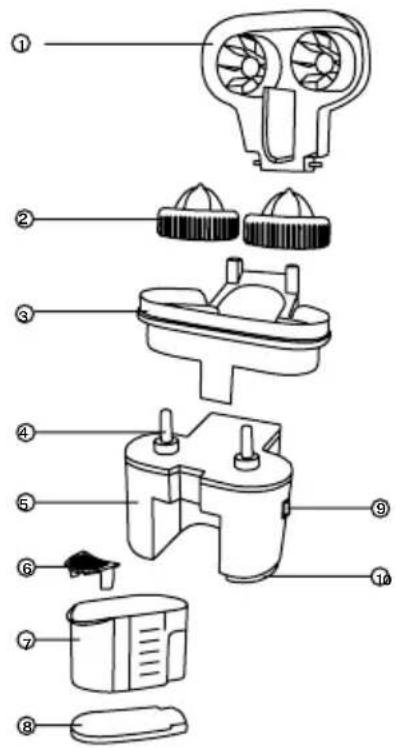

PARTS LIST

1. Cover with citrus cutter

2. Removable squeezer cones

3. Base of the squeezer cones

4. Transmission axis

5. Main body

6. Filter

7. Juicer container

8. Removable base

9. On / Off switch

10. Compartment for storing the power cord

Exploded view diagram of a fire extinguisher with numbered parts for identification

ASSEMBLY

1. Place the main body on a clean, stable, and dry surface.

2. Place the base of the squeezer cones onto the main body using the slots at the back of the main body. Then press gently until it clicks.

3. Insert the squeezer cones on the axis.

4. Insert the lock cones in the slots at the back of the base of the squeezer cones.

5. Insert the juice container in the guides of the main body. Slide it until it locks.

6. Fit the citrus cutter on the top of the base of the squeezer cones.

7. Plug in the appliance. Your juicer is now ready for use.

OPERATING INSTRUCTIONS

Make sure to clean your juicer thoroughly before use.

1. Plug in the device into an electrical socket.
2. Place the lateral power button in the ON position.
3. Place an orange on the cutting compartment.
4. Lower the lid to cut the fruit in half.
5. Place each half of the orange in each one of the squeezer heads.
6. Lower the lid pressing firmly with both hands. You will notice how the juice is deposited in the container.

Important: The juicer will not work until pressure is applied with both hands.

1. Once all the juice from both halves of the orange has been extracted, remove the oranges and discard the shells.
2. Repeat steps 5 and 6 until the juice container is full.
3. Remove the juice container and start enjoying your freshly made juice.

WARNING: If your juicer stops unexpectedly, the squeezer cones could be blocked by an excess of pulp.

Remove the pulp stuck under the squeezer cones.

CLEANING AND MAINTENANCE

After each use, the juicer should be cleaned properly. Keep your juicer in a dry, well-ventilated place. If it is not going to be used for more than 3 days, make sure to wash the parts before the next use.

Dissassembly of your juicer

1. Turn off and unplug your juicer from the power supply before changing accessories.
2. Remove the juice container.
3. Open the top cover completely with both hands placed on each side. Slide the locking rods of the slots in the back of the base of the squeezer heads.
4. Hold the main body with one hand and gently push up the front lever with the other hand until it opens. Slide the base of the squeezer cones off the main body.
5. The squeezer cones can also be extracted by simply sliding them off the drive shafts.
6. Remove the tray from the main body.

IMPORTANT: Do not immerse the main body in water or any other liquid. Instead, use a damp cloth to clean it. Always switch off and unplug the appliance before assembling, disassembling, or cleaning it. Use warm water and soap to wash all non-electrical parts. Never use abrasive cleaning agents, as they may cause damage to your juicer. Non-electric parts can be washed in the dishwasher.

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.

Exploded view diagram of a fire extinguisher with numbered parts for identification

MONTAJE

Exploded view diagram of a fire extinguisher with numbered parts for identification

MONTAGEM

Exploded diagram of a fire extinguisher with numbered parts for identification

ASSEMBLÉE

Exploded diagram of a fire extinguisher with numbered parts for identification

MONTAGGIO

Exploded view diagram of a fire extinguisher with numbered parts for identification

VERSAMMLUNG

Exploded view diagram of a fire extinguisher with numbered parts for identification

BIJEENKOMST

Exploded view diagram of a fire extinguisher with numbered parts for identification

MONTAŻ
