USER MANUAL RSL 75640 SS TEKA

Modern kitchen interior with glossy black cabinets and stainless steel ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

RSL 75640 SS

EN PT ES FR DE

CONTENTS

1 Safety warnings

1.1 Warning 1-2

1.2 Meanings of safety warning symbols 3

1.3 Electricity related warnings 3

1.4 Warnings for using 4

1.5 Warnings for placement 4-5

1.6 Warnings for energy 5

1.7 Warnings for disposal 5

2 Proper use of the refrigerator

2.1 Placement 6

2.2 Door handle installation 7

2.3 Levelling feet 8

2.4 Door Right-Left Change 9 - 10

2.5 Starting 11

2.6 Energy saving tips....11

3 Structure and functions

3.1 Key components 12

3.2 Functions 13 - 14

4 Maintenance and care of the refrigerator

4.1 Overall cleaning 15

4.2 Defrosting 15

4.3 Out of operation 15

5 Trouble shooting

5.1 Trouble shooting 16

6 Parameters

6.1 Technical parameters 17-18

1 Safety warnings

1.1 Warning

Warning sign depicting a flame symbol in yellow and black on a white background

risk of fire / flammable materials Warning:

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. This product contains a light source of energy efficiency class .

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1 3 Electricity related war nings.

Diagram showing hand gesture, checkmark, and cartoon character with speech bubble

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Simple line drawing of a plug with a circular socket and a curved cable, no text or symbols present.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.

- The power plug should be firmly contacted with the socket or else fires might be caused. please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Simple line drawing of a room with a monitor and a box, no text or symbols present

• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.
• Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Simple line drawing of a refrigerator with a door and scroll, no text or symbols present

- It is recommended not to place electrical appliances such as power socket, voltage regulator, rice cooker, microwave oven etc. on the top of the refrigerator.

1 4 War nings for using.

Simple line drawing of a box with a handle and tools, no text or symbols present

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Hand holding a book with a starburst effect, no text or symbols present

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close or open the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a child inside an open refrigerator with no text or symbols

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a distressed trash can with a frowning face and warning symbols (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objects may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 War nings for placement

Illustration showing hands holding a tray with labeled items including 'Egggma' and a warning symbol

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

Blood Cough Biological product

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

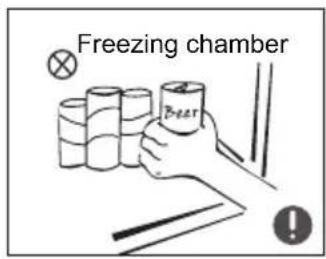

Freezing chamber water !

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;

3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;

4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with

corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product :

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2 1 Placement.

Simple line drawing of a person pushing a large box (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face and sun, next to a potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator with a smiling face next to a door (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

30cm 10cm 10cm

- The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

! Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

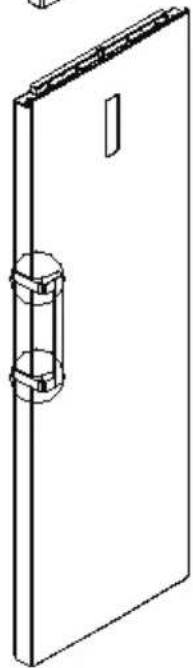

2.2 Door handle installation

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

List of tools to be provided by the user
	Cross screwdriver

Simple line drawing of a circular object with vertical stripes and two small circular features, no text or symbols present.

① Screw hole cover

Isometric line drawing of a rectangular door or cabinet with a handle and side connectors (no text or symbols)

Technical diagram of a mechanical assembly with numbered components (no text or symbols)

② Screw hole
③ Screw

Line drawing of a door with handle and side panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

④ Screw hole cover

Technical line drawing of a door with handle and circular components (no text or symbols)

Pure mechanical part diagram without any text, numbers, or symbols

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Isometric line drawing of a door with a cylindrical component inserted (no text or symbols)

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Assembly steps

a. Remove the screw hole caps ① from the door, and use cross screwdriver to fix screws ③ into the screw hole tightly.
b. Assemble the screw hole cap ④ on the screw hole of handle.
c. The reverse operation is for disassembly.

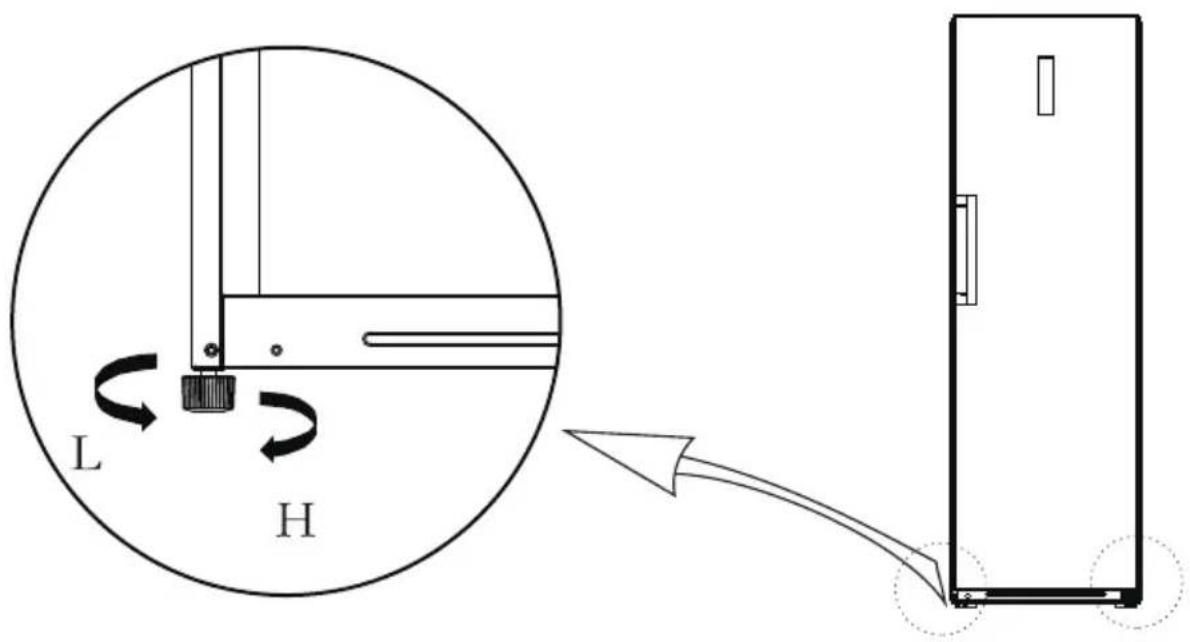

2.3 Levelling feet

Schematic diagram of the levelling feet

L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to the isefrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2 4Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16"socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Dismantle the screw hole caps, screws and handle, and remove the plastic screwhole caps from the other side. please refer to chapter 2.2.

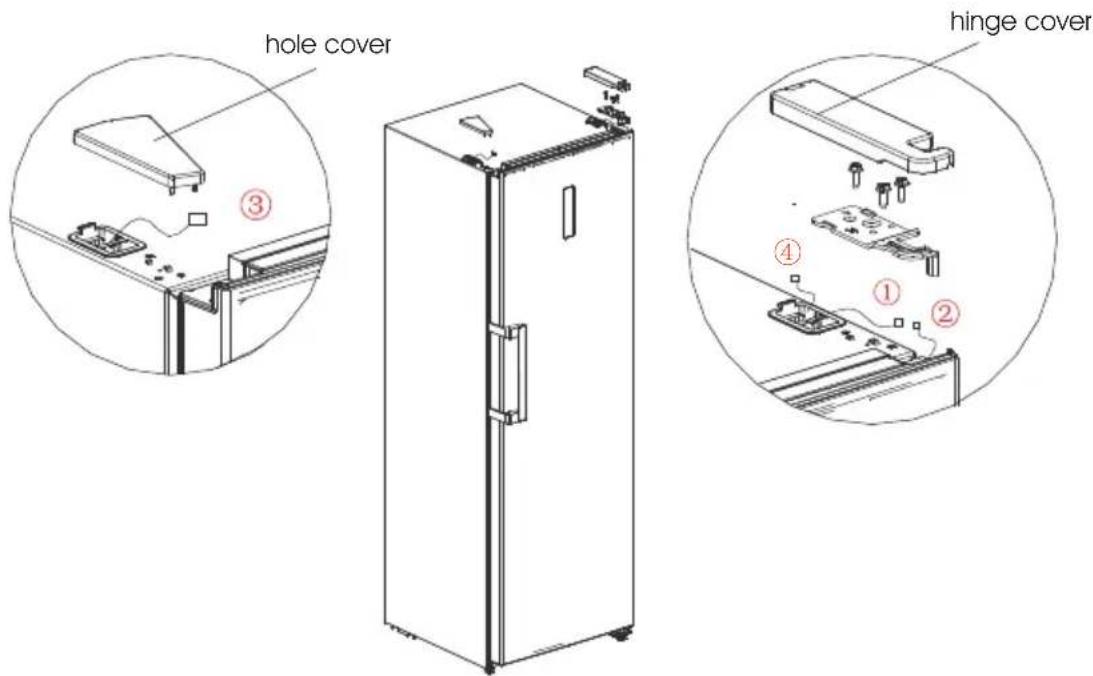

3) Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side. Unplug the wiring connector on the right of refrigerator top ①,② wiring connector).

hole cover hinge cover ③ ④ ① ②

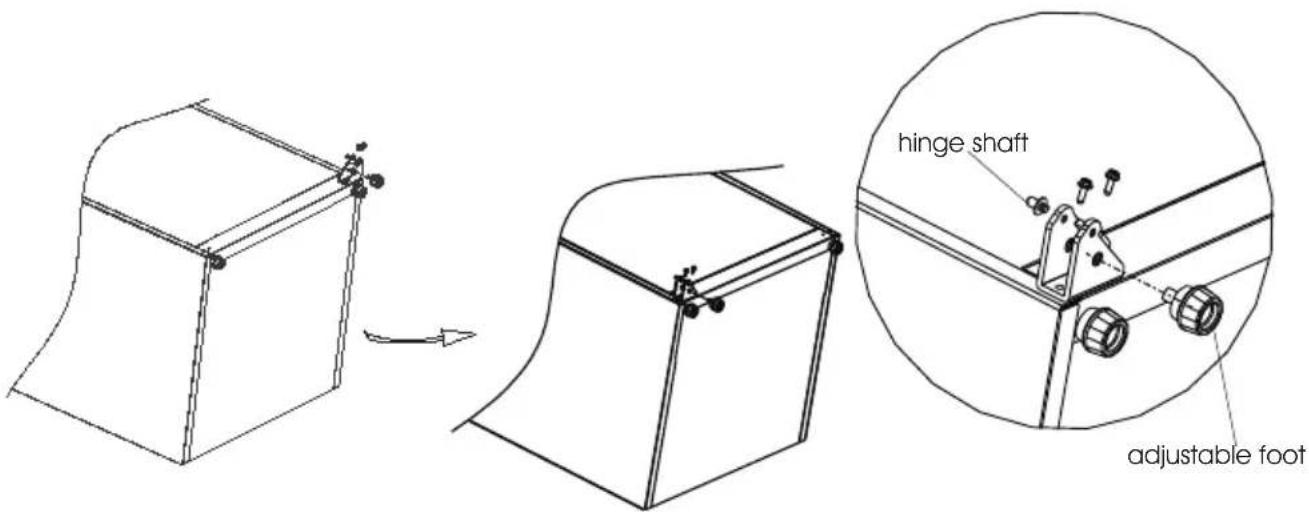

4) Dismantle the door and right bottom hinge assembly(hinge shaft&adjustable foot&hinge), and assemble the hinge shaft and adjustable foot on the other side of hinge, then assemble the whole hinge assembly on the other side of refrigerator.

hinge shaft adjustable foot

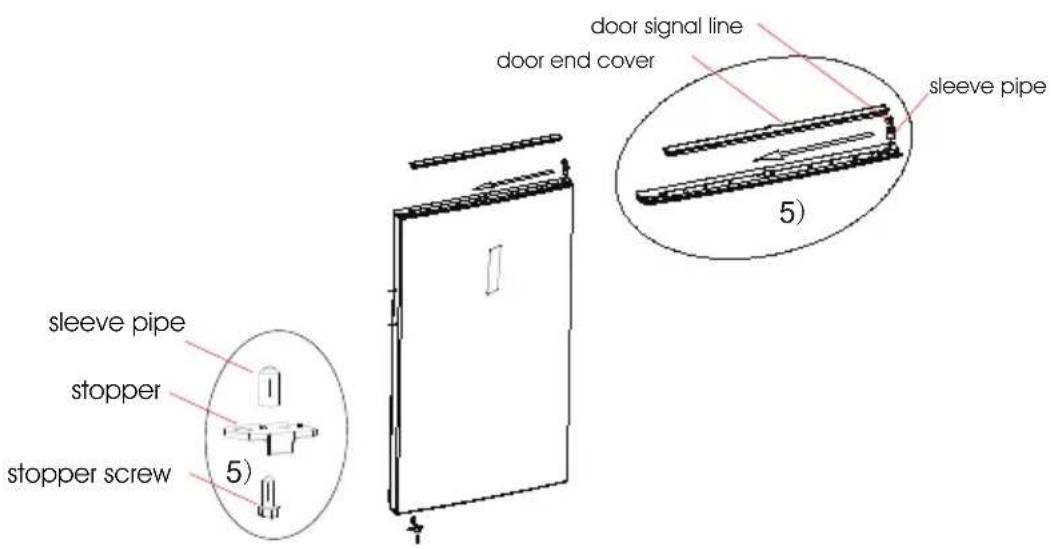

5) Remove the door end cover, install the upper hinge sleeve and door signal line to the other side and install the door end cover.

Dismantle the door stopper, sleeve pipe from the right bottom of door, insert the sleeve pipe into hinge hole of left bottom of door, assemble ordered stopper of door.

door signal line door end cover sleeve pipe 5) sleeve pipe stopper stopper screw 5)

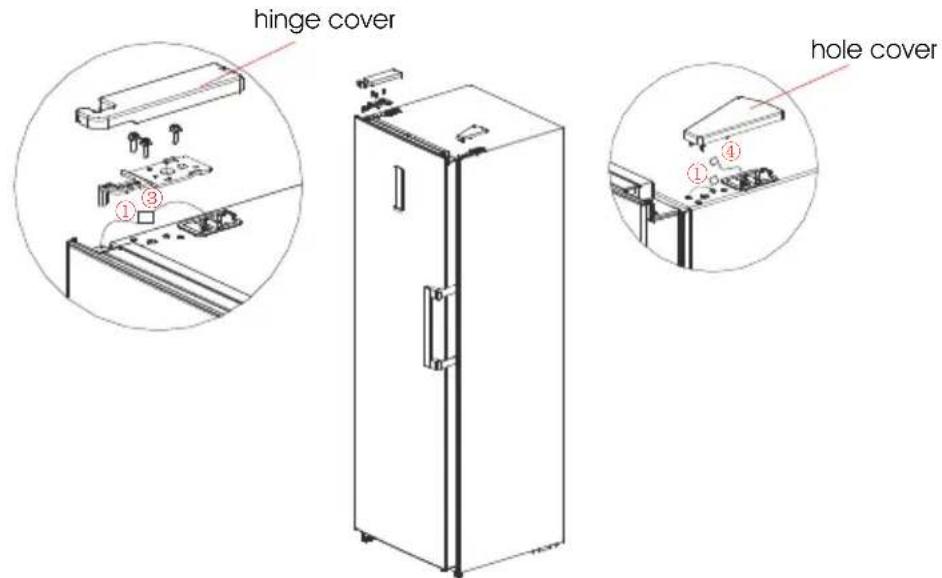

6) Take out the left top hinge, left top hinge cover from accessories package, place the door on bottom hinge, and mount left top hinge. Connect signal lineterminal ③ with signal line terminal ②, connect signal line terminal ① with signal line terminal ④, mount top hinge cover and hole cover.

hinge cover hole cover

7) For the assembly of handle, please refer to chapter 2.2.

Line drawing of a 3D refrigerator with door, front panel, and side door (no text or symbols)

25. Starting

Simple line drawing of a smiling rectangular device connected to a power outlet (no text or symbols)

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

595mm 545mm 13 5° 1025mm 1017mm

- Spare enough space for convenient opening of the doors and drawers or it is subject to distributor statement.

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper t oweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

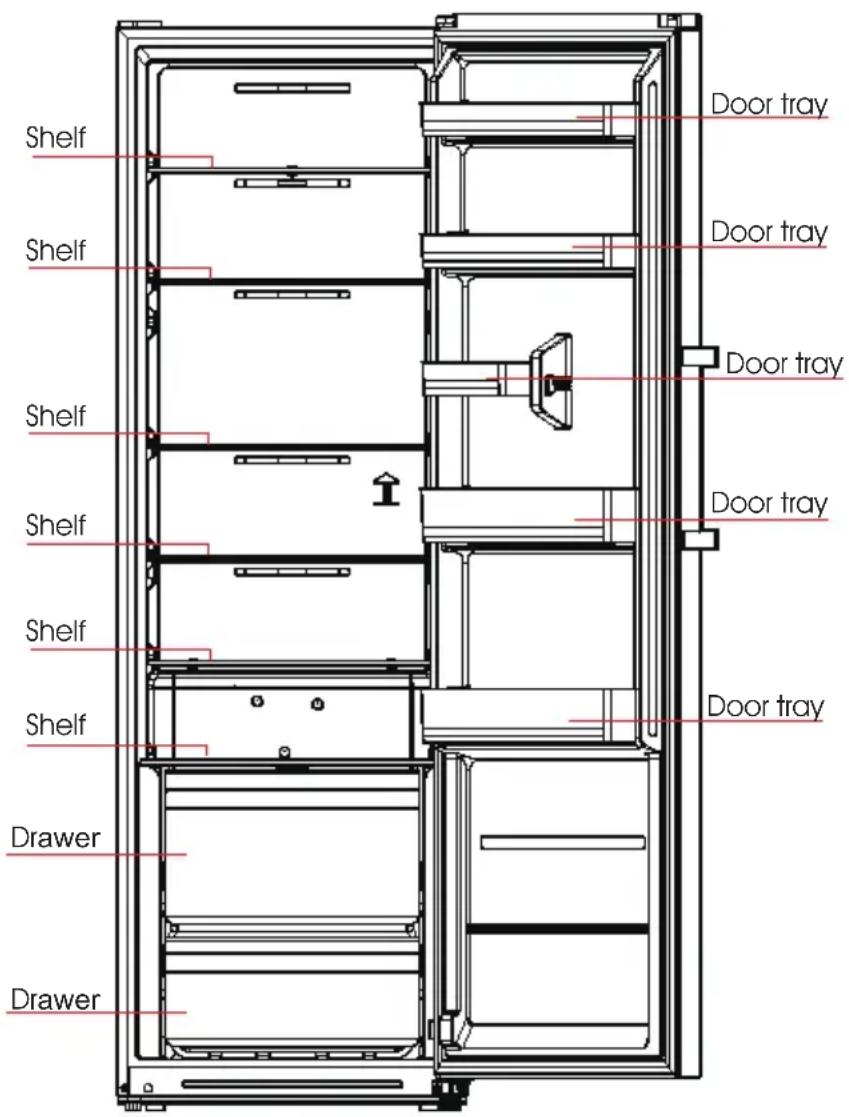

3 1. Key components

Shelf Shelf Shelf Shelf Shelf Shelf Drawer Drawer Door tray Door tray Door tray Door tray Door tray

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
  Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.

- Foods are recommended to be sealed up before putting into the refrigerator.

- The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Note: Usage of water glass shelf:

Glass shelf put aside a frame to take out about 50mm first, the right side raises 30 degrees or so, take out outside refrigerator again.

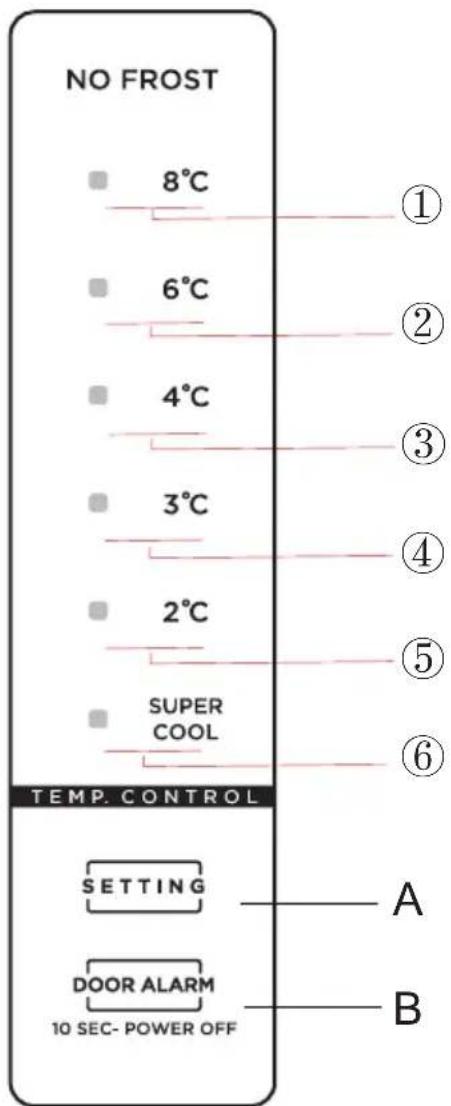

32Functions.

NO FROST 8°C ① 6°C ② 4°C ③ 3°C ④ 2°C ⑤ SUPER COOL ⑥ TEMP. CONTROL SETTING A DOOR ALARM 10 SEC- POWER OFF B

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1) Key

A. Temperature setting button

B. Standby button

2) Temperature icons

①Setting 1: the setting temperature is 8^ C
②Setting 2: the setting temperature is 6°C
③Setting 3: the setting temperature is 4^ C
④Setting 4: the setting temperature is 3^ C
⑤Setting 5: the setting temperature is 2^ C
⑥Setting 6: Super cool

3) When the fridge power is on:

All temperature icons shine within 3s after power on, for power on at the first time, the default set temperature is 4°C.

After that, every time you start the fridge, it will run in accordance with the set temperature before last power off.

Display of normal running

On the occurrence of a failure, the corresponding icons will give a combined blink:

the error codes and types are shown as follows:

Refrigerator:

Error Code	Error Description Display
E1	Temperature sensor of Refrigerator room fail	Icon "SUPER" & Icon"2" shine at same time
E5	Defrosting sensor of Refrigerator room fail	Icon "SUPER" & Icon"3" shine at same time
E6	Communication error	Icon "2" & Icon"4" shine at same time
E7	Ambient temperature sensor fail	Icon "SUPER" & Icon"4" shine at same time

If no failure, the screen displays the setting temperature of the refrigerator room.

Standby function

Long press the standby button DOOR ALARM 10 SEC- POWER OFF for 10 seconds to set the standby function.

Temperature setting

The temperature setting will be changed once you press button( SETTING ). Then, the refrigerator will run according to the new temperature setting after 15s.

Super cool mode

Enter: under refrigerator mode, press the button( SETTING ) until the icon SUPER COOL lighten

During Super cool mode, the refrigerator runs according to the temperatures set at 2^ C, and it will exit this mode automatically after running for 360 minutes or temperature setting or mode setting.

4. Maintenance and care of the appliance

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Please unplug the refrigerator for defrost and cleaning.

Gas Alcohol Water Methanol

4 2 Defrosting.

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4 3 Out of operation.

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

5 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged.Have the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesToo much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water,resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal,when housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1: Climate classes

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from channel _.

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy. (Remember to bring the purchase invoice)

2. If your product breaks down which needs to repair, please contact after-sales service provider.

Telephone:

Email address:

ÍNDICE

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Diagram showing hand gesture, checkmark, and cartoon character with speech bubble

Simple line drawing of a plug with a circular socket and a curved tube, no text or symbols present.

Simple line drawing of a room with a cabinet and monitor, no text or symbols present

Simple line drawing of a refrigerator with a door and side-mounted top (no text or symbols)

Simple line drawing of a refrigerator with a smiling face, accompanied by other items including a pencil, wrench, and no text or symbols.

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a shelf next to an open book (no text or symbols)

Simple line drawing of a distressed, anthropomorphic object with a frowning face and a warning symbol (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, with a warning symbol and an exclamation mark.

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, no text or symbols present

Simple line drawing of a refrigerator and a door (no text or symbols)

Line drawing of a refrigerator with lid and door (no text or symbols)

2.5 Arranque

Simple line drawing of a smiling refrigerator with a small electrical outlet (no text or symbols)

595mm 545mm 135° 1025mm 1017mm

Gas Alcohol dyeing bassoni

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and electrical socket with cartoon face

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and equipment, no text or symbols present

Simple line drawing of a refrigerator with a top-mounted box (no text or symbols)

Simple line drawing of a refrigerator with a smiling face, accompanied by tools and a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

Cartoon illustration of a distressed trash can with a sad face and warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, accompanied by a warning symbol.

Bened Drugs Bened, not !

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, no text or symbols present

Simple line drawing of a refrigerator and a door (no text or symbols)

Line drawing of a rectangular refrigerator with lid and side door (no text or symbols)

2.5 Arranque

Simple line drawing of a smiling refrigerator with a small electrical outlet (no text or symbols)

595mm 545mm 13 5° 1025mm 1017mm

Gas Alcohol Water Bottle 100ml

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing hand gesture, checkmark, and electrical socket with cartoon face

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a computer monitor with an open screen and a control panel, no text or symbols present.

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator with a smiling face, accompanied by other items including a pencil, wrench, and no symbols (no text or labels)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child sitting inside a refrigerator with no text or symbols

Cartoon illustration of a distressed trash can with a frowning face and warning symbols (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, accompanied by a warning symbol.

Piled Drayy drayy drayy

Simple line drawing of a person lifting a large box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, no text or symbols present

Simple line drawing of a refrigerator and a door (no text or symbols)

Isometric line drawing of a refrigerator with handle and door, labeled '10' at bottom (no text or symbols on the diagram itself)

2.5 Mise en route

Simple line drawing of a smiling refrigerator with a small electrical outlet (no text or symbols)

595mm 645mm 13.5° 1025mm 1017mm

Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Diagram showing hand gesture, checkmark, and cartoon character with speech bubble

Simple line drawing of a plug with a circular socket and cable, no text or symbols present

Simple line drawing of a room with a cabinet and monitor, no text or symbols present

Simple line drawing of a refrigerator with a door and handle (no text or symbols)

Simple line drawing of a refrigerator with a smiling face, accompanied by tools and a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Cartoon illustration of a distressed cylindrical object with a frowning face, surrounded by a crossed-out 'X' symbol and an exclamation mark (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, accompanied by a warning symbol.

Line drawing of a 3D refrigerator with handle and door, labeled '10' at bottom (no text or symbols on the diagram itself)

2.5 Inbetriebnahme

Simple line drawing of a smiling refrigerator with a small electrical outlet (no text or symbols)

Gas Alcohol Prelaxant

EN Light source in this product is replaceable only by qualified engineers.

EN Please take out the plug before removal.

Simple line drawing of a cleaning tool with a handle and screwdriver, labeled with number 2 (no text or symbols on the tool itself)

EN Remove the lampshade with a screwdriver.

Illustration of a hand gripping a cylindrical object with a numbered circle (3) above it, no text or symbols present.

EN Take down the lamp panel.

EN Remove the connection terminal.

World map silhouette showing continents and countries, no text or labels present
