USER MANUAL RBF 78720 TEKA

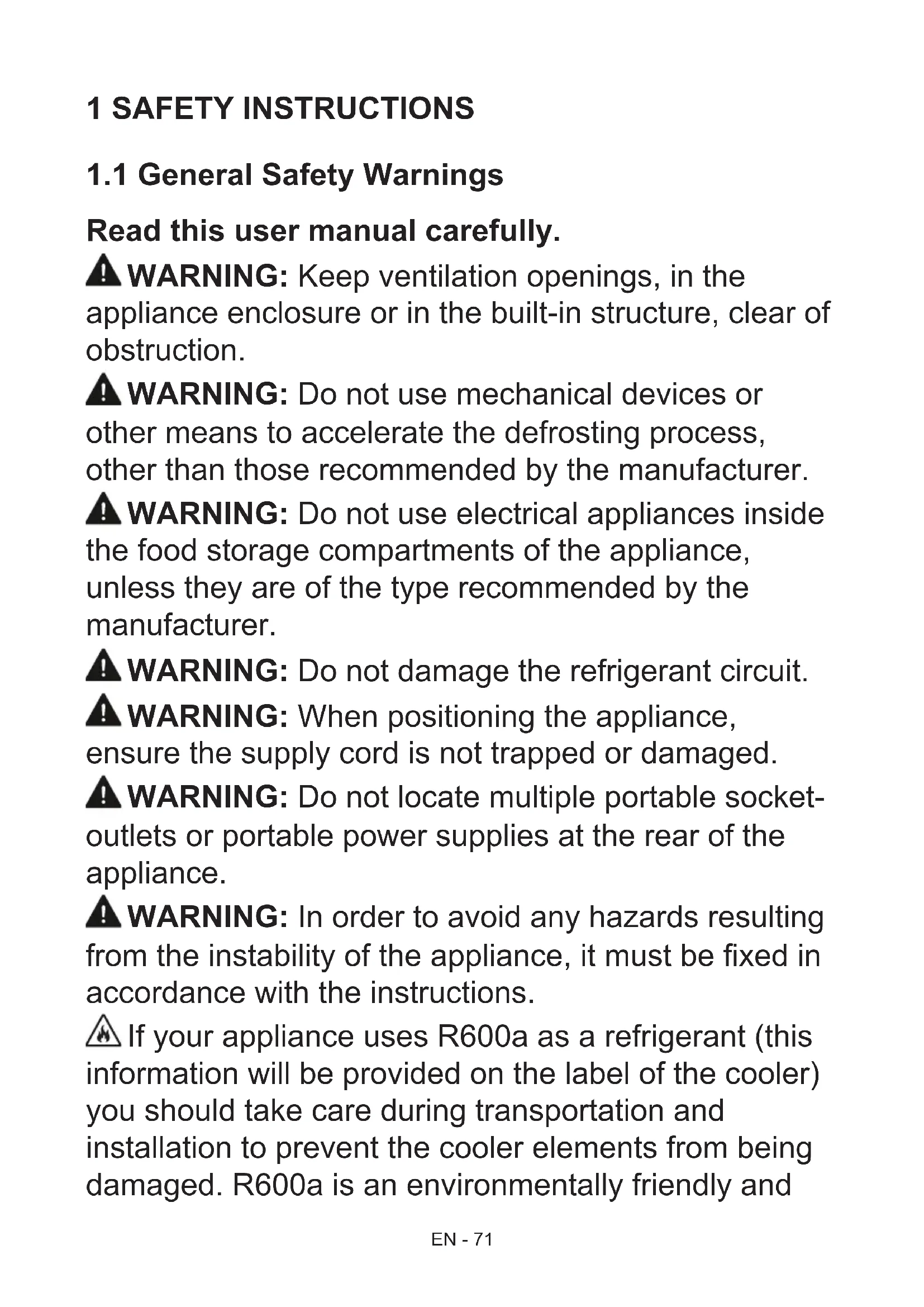

1.1 General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting

from the instability of the appliance, it must be xed in accordance with the instructions. If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly andEN - 72 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open ames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as: – sta󰀨 kitchen areas in shops, o󰀩ces and other working environments. – farm houses and by clients in hotels, motels and other residential type environments. – bed and breakfast type environments; – catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.EN - 73

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN - 74 To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems

• Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch o󰀨, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.EN - 75

1.2 Installation warnings

Before using your fridge freezer for the rst time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge freezer may have an odour when it is operated for the rst time. This is normal and the odour will fade when your fridge freezer starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualied electrician.

• Insert the plug into a socket with an e󰀩cient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualied electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer must never be used outdoors or exposed to rain.

• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will a󰀨ect the performance of your fridge freezer.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance. If your refrigerator includes a fan condenser - The bottom cabinet cover is the plastic The condenser of your fridge is located at the bottom of the cabinet. As a result, the ttings which control the distance between the refrigerator and the wall behind your fridge are located on the cover of the bottom of the cabinet. You can move your fridge toward the back wall until this point. Plastic for distance settingEN - 76 - The bottom cabinet cover is the metal The condenser of your fridge is placed at the bottom of cabinet. As a result of that, assemble the spacer by xing it to holes on the cover bottom panel and turn 90° that’s shown below gure for arranging the distance between the refrigerator and the back wall at where you place the fridge. You can move the fridge towards the back wall until that point. Plastic for distance setting The distance between the appliance and back wall must be a maximum of 75 mm.

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang o󰀨 the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment as they will burst when the contents freeze.

• Do not place explosive or ammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning. Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city o󰀩ce, your household waste disposal service or the shop where you purchased the product.EN - 77 Packaging and the Environment Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

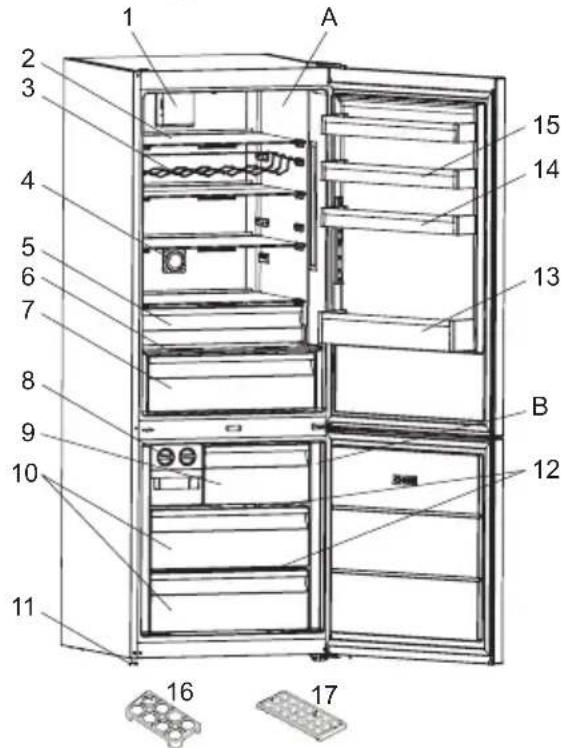

2 DESCRIPTION OF THE

APPLIANCE This appliance is not intended to be used as a built-in appliance.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Refrigerator compartment B) Freezer compartment

9) Freezer room cover * / Upper drawer

• In some models General notes: Fresh Food Compartment (Fridge): Most e󰀩cient use of energy is ensured in the conguration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not a󰀨ect energy consumption. Freezer Compartment (Freezer): Most E󰀩cient use of energy is ensured in the conguration with the drawers and bins are on stock position.EN - 78

Space required in use

the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air. Overall space required in use

the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment. Overall dimensions

the height, width and depth of the appliance without the handle.EN - 79

3 USING THE APPLIANCE

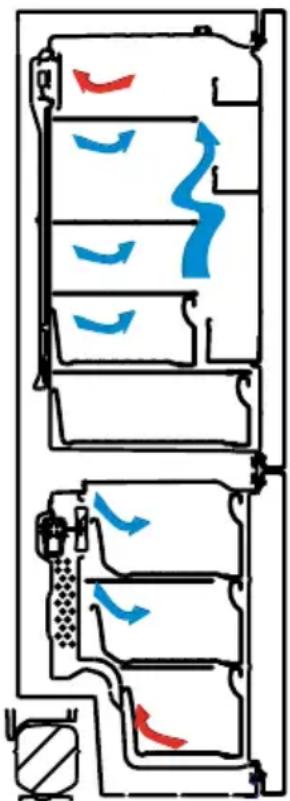

3.1 Information about New Generation

Cooling Technology Fridges with new-generation cooling technology have a di󰀨erent operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such fridges, regular defrosting is required; the fridge must be switched o󰀨, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed. In fridges with new- generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up. In the refrigerator compartment, air blown by the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the refrigerator compartment. There is no air passage between the freezer and refrigerator compartments, therefore preventing the mixing of odours. As a result, your fridge, with new- generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance.

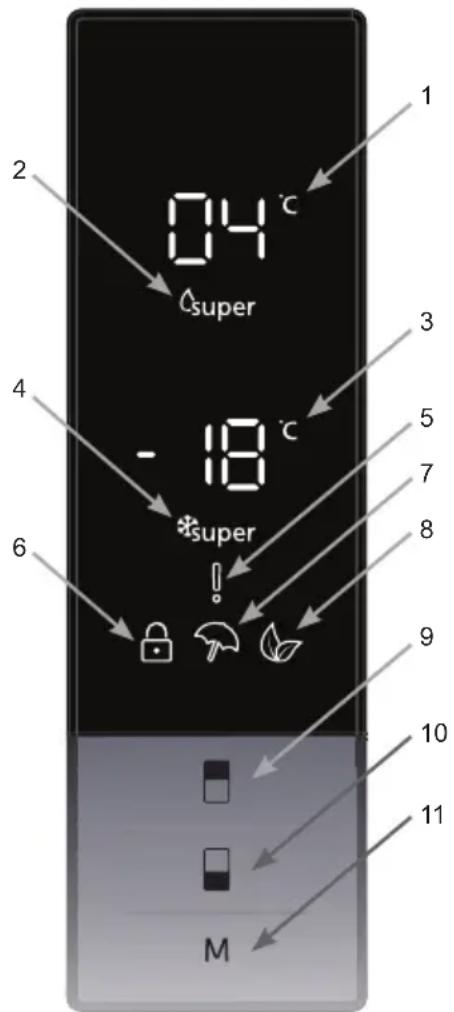

3.2 Display and Control Panel

Using the Control Panel

1. It is cooler set value screen.

2. It is super cooling indicator.

3. It is freezer set value screen.

4. It is super freeze indicator.

5. It is alarm symbol.

6. It is child-lock symbol.

7. It is holiday mode symbol.

8. It is economy mode symbol.

9. It enables the setting value of cooler to

be modied and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super cool.

10. It enables the setting value of freezer

to be modied and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C super freeze.

Lighting (If available) When the product is plugged in for the rst time, the interior lights may turn on 1 minute late due to opening tests.

• To freeze a large quantity of food that cannot t on the fast freeze shelf.

• To freeze prepared foods.

• To freeze fresh food quickly to retain freshness. How Would It Be Used? Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During This Mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.

• Economy and Holiday mode can not be selected.

• Super freeze mode can be cancelled by the same operation of selecting. Notes:

• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.

• For optimal appliance performance in maximum freezer capacity, set the appliance to active super freeze mode 24 hours before you put the fresh food into the freezer.

• Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a su󰀩ciently low temperature.

• To cool and store a large quantity of food in the fridge compartment.

• To quickly cool drinks. How Would It Be Used? Press cooler set button until super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During This Mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.

• Economy and holiday mode can not be selected.

• Super cool mode can be cancelled by the same operation of selecting.

Purpose Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power. How Would It Be Used?

• Push "MODE" button until eco symbol appears.

• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.

• Freezer and refrigerator temperature segments will show "E".

• Economy symbol and E will light till mode nishes.EN - 81 During This Mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button.

How Would It Be Used?

• Push "MODE" button until holiday symbol appears

• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.

• Cooler temperature segment will show "--".

• Holiday symbol and "--" will light till mode nishes. During This Mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button.

3.3.5 Drink Cool Mode

Purpose This mode is used to cool drinks within an adjustable time frame. How Would It Be Used?

• Press freezer button for 3 seconds.

• Special animation will start on freezer set value screen and 05 will blink on cooler set value screen.

• Press cooler button to adjust the time (05 -

• When you select the time the numbers will blink 3 times on screen and sound beep beep.

• If no button is pressed within 2 seconds the time will be set.

• The countdown starts from the adjusted time minute by minute.

• Remaining time will blink on the screen.

Purpose This mode saves energy by switching o󰀨 all control panel lighting when the panel is left inactive. How to Use?

• Screen saver mode will be activated automatically after 30 seconds.

• If you press any key while the lighting of the control panel is o󰀨, the current machine settings will reappear on the display to let you make any change you wish.

• If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain o󰀨. To deactivate the screen saving mode,

• To cancel the screen saving mode, rst of all, you need to press any key to activate the keys and then press and hold the Mode button for 3 seconds.

• To reactivate screen saving mode, press and hold the mode button for 3 seconds. Notes:

• When screen saver mode is active you can also activate child lock.

• If no button is pressed within 5 seconds after child lock is activated, the lights of the control panel will turn o󰀨. You can see latest status of settings or modes after you pres any button. While control panel ‘s light is on, you can cancel child lock as described in the instruction of this mode.

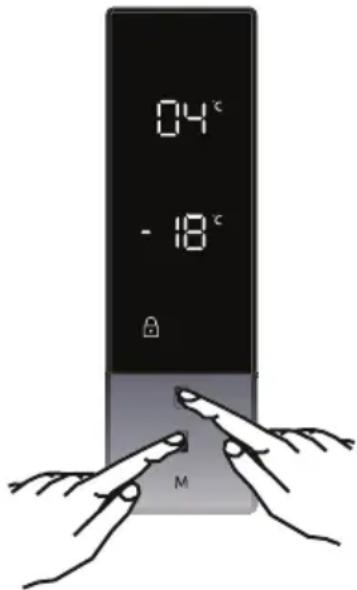

3.3.7 The Child Lock Function

Purpose Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings. Activating Child Lock Press on freezer and cooler buttons simultaneously for 5 seconds. Deactivating Child Lock Press on freezer and cooler buttons simultaneously for 5 seconds. Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

• The initial temperature value for the freezer setting indicator is -18°C.

• Press the set freezer button once.

• When you rst push this button, the last set value will blink on the screen.

• Whenever you press this button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, super freeze).

• When you push the set freezer button until the super freeze symbol appears, and if you do not push any other button within 1 second, super freeze will ash.

• If you continue to press it, it will restart from -16 °C.EN - 83

• The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

3.4.2 Cooler Temperature Settings

• Initial temperature value for the cooler setting indicator is +4 °C.

• Press the cooler button once.

• When you rst push this button, the last value will appear on the cooler setting indicator.

• Whenever you press this button, a lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, super cool)

• When you push the cooler set button until the super cool symbol appears, and if you do not push any button within 1 second, super cool will ash.

• If you continue to press the button, it will restart from +8 °C.

• The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Recommended Settings for the Freezer and Cooler Compartment Temperature Freezer Compartment Cooler Compartment Remarks

For regular use and best performance.

Recommended when environmental temperature exceeds 30 °C. Freezer Compartment Cooler Compartment Remarks SF 4

Must be used when you wish to freeze food in a short period of time.

These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough becuse the door is being opened frequently.

Must be used when the refrigerator compartment is overloaded with food or when food needs to be cooled quickly.

3.5 Temperature Adjustment Warnings

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its e󰀩ciency.

• Do not start another adjustment while you are already making an adjustment.

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your fridge.

• In order to allow your fridge to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge to reach the operating temperature.

• A 5 minute delay function is applied to prevent damage to the compressor of your fridge when connecting or disconnecting to mains, or when an energy breakdown occurs. Your fridgeEN - 84 will begin to operate normally after 5 minutes.

• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling e󰀨ectiveness. Climate class and meaning: T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C. ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C. N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C. SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C. Important installation instructions This appliance is designed to work in di󰀩cult climate conditions and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

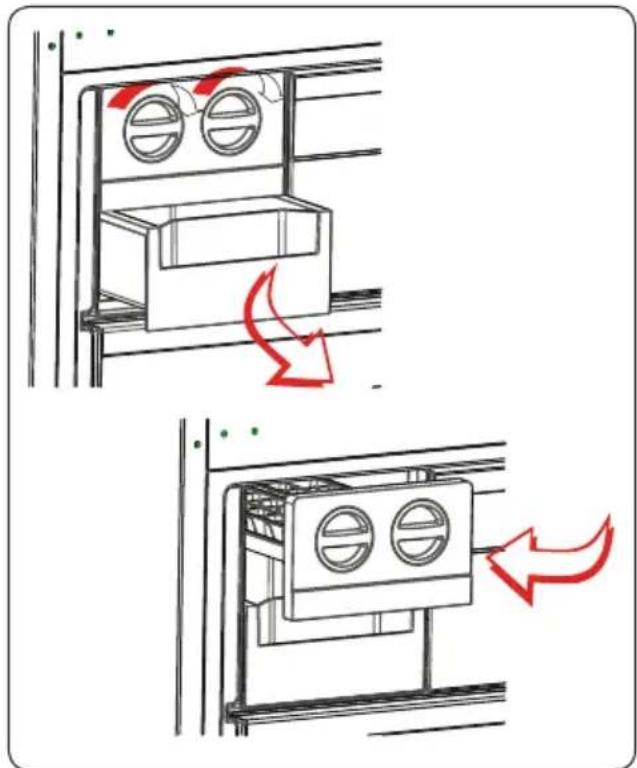

• Pull the lever towards you and remove the ice maker tray

• Fill with water to the marked level

• Hold the left end of the lever and set the ice-tray on the icebox

• When ice cubes have formed, twist the lever to drop the ice cubes into the icebox. Do not ll the icebox with water in order to make ice. It will break.EN - 85

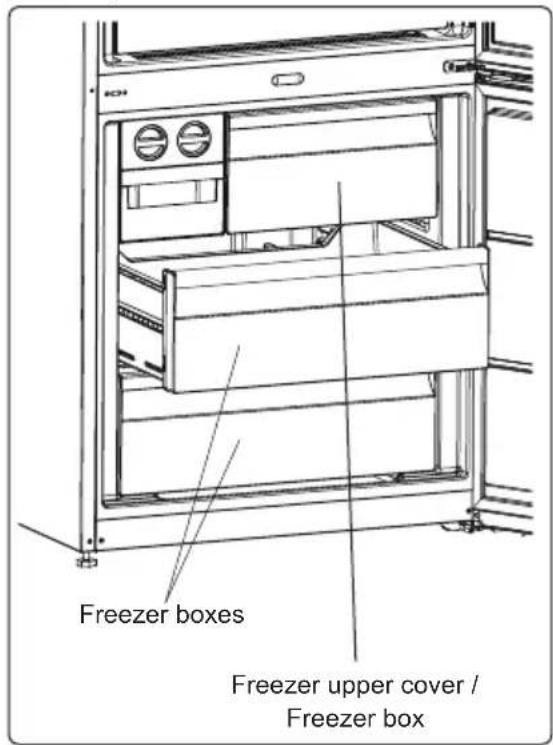

3.6.2 The Freezer Box

The freezer box allows food to be accessed more easily. Freezer boxes Freezer upper cover / Freezer box Removing the freezer box:

• Pull the box out as far as possible

• Pull the front of the box up and out Carry out the opposite of this operation when retting the sliding compartment. Always keep hold of the handle of the box while removing it.

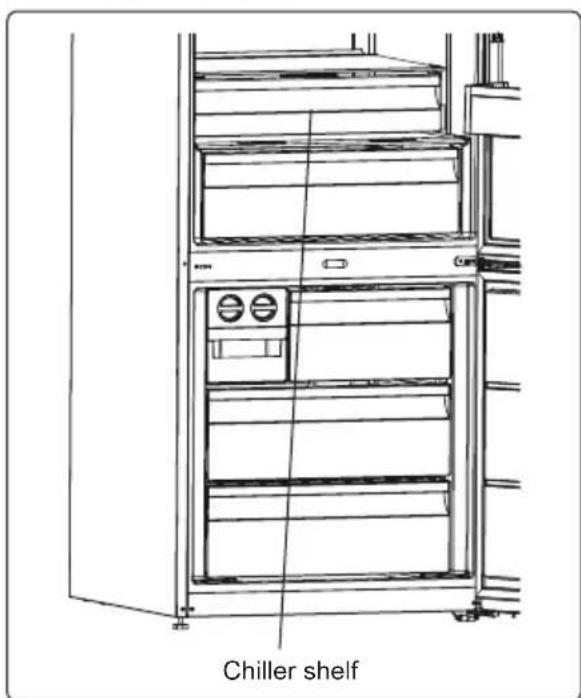

3.6.3 The Chiller Shelf

Chiller shelf Keeping food in the Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and avour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0°C, but food containing salt or sugar freezes at temperatures lower than this). The Chiller compartment is usually used for storing foods such as raw sh, lightly pickled food, rice, and so on. Do not put food you want to freeze or ice trays (to make ice) in the Chiller compartment. To remove the Chiller Shelf:

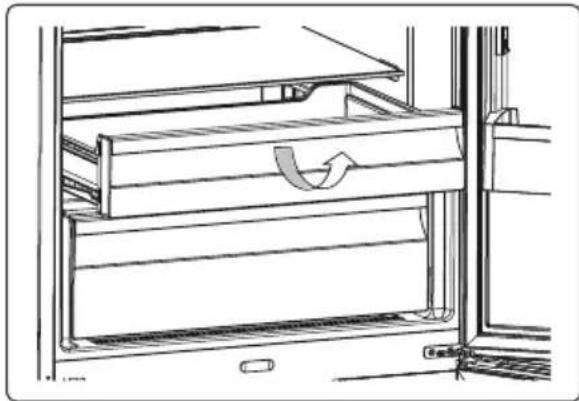

• Pull the chiller shelf towards you by sliding it on the rails.

• Pull the chiller shelf up from the rail and remove it from the fridge.

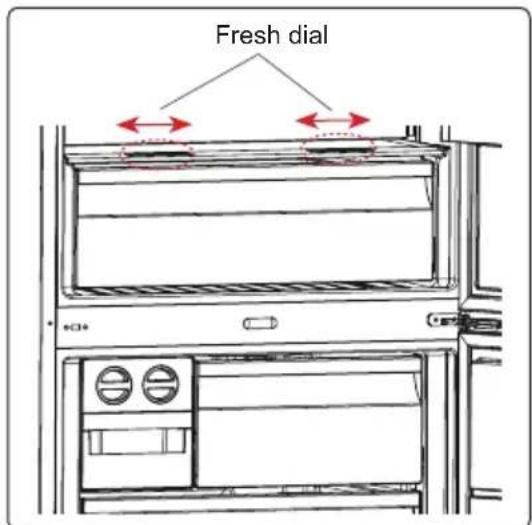

3.6.4 The Fresh Dial

Fresh dial If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.EN - 86 The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

3.6.5 Adjustable Door Shelf

Six di󰀨erent height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow. (Fig.1) Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed. Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall o󰀨 the rails due to the weight. So damage may occur on the door shelf or rails.

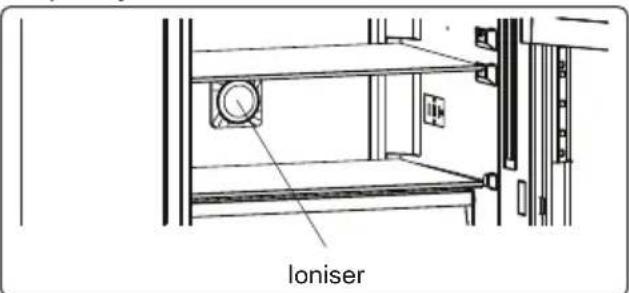

3.6.6 Natural Ion Tech

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air. By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours. Ioniser Fig. 1 Fig. 2

• This feature is optional. It may not exist on your product.

• The location of your ioniser device may vary from product to product.

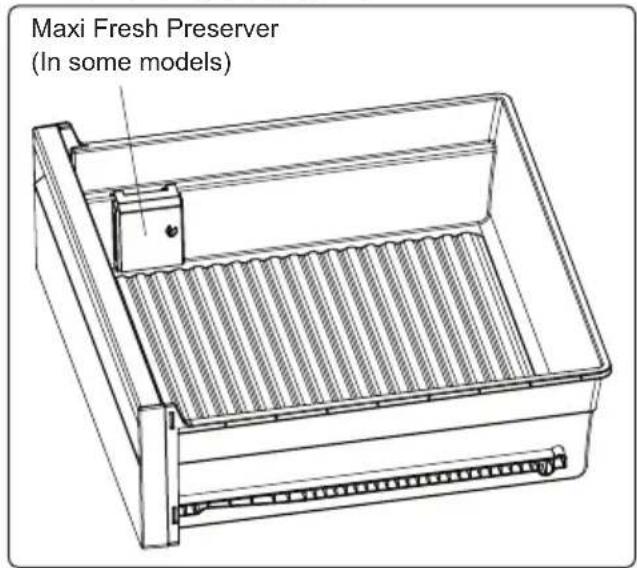

3.6.7 Maxi-fresh preserver

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

• Maxi Fresh Preserver must be cleaned once in a year. The lter should be waited for 2 hours at 65°C in a oven.

• To clean the lter, please remove the back cover of the lter box by pulling it in the direction of the arrow.

• The lter should not be washed with water or any detergent. Maxi Fresh Preserver (In some models)EN - 87 4 FOOD STORAGE

4.1 Refrigerator Compartment

For normal operating conditions, set the temperature of the cooler compartment to +4 or +6

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

• We recommend that meat and clean sh are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Store loose fruit and vegetables in the crisper.

• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being a󰀨ected by ethylene- releaser fruits (banana, peach, apricot, g etc.).

• Do not put wet vegetables into the refrigerator.

• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

• Do not put food in front of the air ow passage.

• Consume packaged foods before the recommended expiry date. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be su󰀩cient to adjust the temperature setting of your refrigerator to +4 °C.

• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

• Meat, sh, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

• To prevent cross contamination, meat products and fruit vegetables are not stored together.

• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors. The table below is a quick guide to show you the most e󰀩cient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Meat and

Wrap in plastic foil, bags, or in a meat container and store on the glass shelfEN - 88 Food Maximum storage time How and where to store Fresh cheese

On the designated door shelf Butter and margarine 1 week On the designated door shelf Bottled products e.g. milk and yoghurt Until the expiry date recommended by the producer On the designated door shelf Eggs 1 month On the designated egg shelf Cooked food 2 days All shelves

4.2 Freezer Compartment

For normal operating conditions, set the temperature of the freezer compartment to -18 or -20

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.

• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

• Do not store fresh food next to frozen food as it can thaw the frozen food.

• Before freezing fresh food, divide it into portions that can be consumed in one sitting.

• Consume thawed frozen food within a short period of time after defrosting

• Never place warm food in the freezer compartment as it will thaw the frozen food.

• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.

• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.

• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf’s greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment. NOTE: If you attempt to open the freezer door immediately after closing it, you will nd that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. Important note:

• Never refreeze thawed frozen food.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added afterEN - 89 the food has thawed.

• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.

• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags. The table below is a quick guide to show you the most e󰀩cient way to store the major food groups in your freezer compartment. Meat and sh Preparation Maximum storage time (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast Wrap in foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packaging without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage/salami Should be kept packaged even if it has a membrane Chicken and turkey Wrap in foil 4 - 6 Goose and duck Wrap in foil 4 - 6 Deer, rabbit, wild boar In 2.5 kg portions or as llets 6 - 8 Freshwater sh (Salmon, Carp, Crane, Catsh) After cleaning the bowels and scales of the sh, wash and dry it. If necessary, remove the tail and head.

Lean sh (Bass, Turbot, Flounder)

Fatty shes (Tuna, Mackerel, Bluesh, Anchovy)

Shellsh Clean and in a bag 4 - 6 Caviar In its packaging, or in an aluminium or plastic container

Snails In salty water, or in an aluminium or plastic container 3 NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Vegetables and Fruits Preparation Maximum storage time (months) String beans and beans Wash, cut into small pieces and boil in water 10 - 13 Beans Hull, wash and boil in water 12 Cabbage Clean and boil in water 6 - 8 Carrot Clean, cut into slices and boil in water 12EN - 90 Vegetables and Fruits Preparation Maximum storage time (months) Pepper Cut the stem, cut into two pieces, remove the core and boil in water

Spinach Wash and boil in water 6 - 9 Cauliower Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while

Eggplant Cut into pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn 12 Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Add 10 % of sugar to the container 12 Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time (months) Thawing time at room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C) Dairy products Preparation Maximum storage time (months) Storage conditions Packet (Homogenized) Milk In its own packet 2 - 3 Pure Milk – in its own packet Cheese - excluding white cheese In slices 6 - 8 Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods. Butter, margarine In its packaging 6 5 CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity. The power supply must be disconnected during cleaning.EN - 91 Replacing LED Lighting To replace any of the LEDs, please contact the nearest Authorised Service Centre. Note: The numbers and location of the LED strips may change according to the model. If product equipped with LED lamp This product contains a light source of energy e󰀩ciency class <E>. If product equipped with LED Strip(s) or LED card(s) This product contains a light source of energy e󰀩ciency class <F>. 6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing

• The original packaging and foam may be kept for re-transportation (optional).

• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.

• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or x them into the appliance against shocks using bands when re-positioning or transporting. Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.

• It is possible to change the opening direction of the door on models without handles.

• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.EN - 92

7 BEFORE CALLING AFTER-SALES SERVICE

Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators. ERROR TYPE MEANING WHY WHAT TO DO E01 Sensor warning Call Service for assistance as soon as possible. E02 E03 E06 E07 E08 Low Voltage Warning Power supply to the device has dropped to below 170 V. - This is not a device failure, this error helps to prevent damages to the compressor. - The voltage needs to be increased back to required levels If this warning continues an authorised technician needs to be contacted. E09 Freezer compartment is not cold enough Likely to occur after long term power failure.

1. Set the freezer temperature

to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.

2. Remove any products which

have thawed/defrosted during this error. They can be used within a short period of time.

3. Do not add any fresh produce

to the freezer compartment until the correct temperature has been reached and the error is no longer. If this warning continues an authorised technician needs to be contacted.EN - 93 ERROR TYPE MEANING WHY WHAT TO DO E10 Fridge compartment is not cold enough Likely to occur after: - Long term power failure. - Hot food has been left in the fridge.

1. Set the fridge temperature to

a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.

2. Please empty the location

at the front area of air duct channel holes and avoid putting food close to the sensor. If this warning continues an authorised technician needs to be contacted. E11 Fridge compartment is too cold Various

1. Check is Super Cool mode is

2. Reduce the fridge

compartment temperature

3. Check to see if vents are clear

and not clogged If this warning continues an authorised technician needs to be contacted. If you are experiencing a problem with your refrigerator, please check the following before contacting the after-sales service. Your refrigerator does not operate Check if:

• Your fridge is plugged in and switched on

• Is the temperature adjustment right?

• The socket is faulty. To check this, plug another working appliance into the same socket. Your refrigerator is performing poorly Check if:

• The appliance is overloaded

• The doors are closed properly

• There is any dust on the condenser

• There is an adequate distance between the appliance and surrounding walls Your refrigerator is operating noisily The following noises can be heard during normal operation of the appliance. Cracking (ice cracking) noise occurs:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Clicking noise occurs: When the thermostat switches the compressor on/ o󰀨. Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is rst activated. Bubbling noise and splashing occurs: Due to the ow of the refrigerant in the tubes of the system. Water owing noise occurs: Due to water owing to the evaporation container. This noise is normal during defrosting. Air blowing noise occurs: During normal operation of the system due to the circulation of air. There is a build-up of humidity inside the fridge Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.

• The fridge doors are opened frequently. Humidity of the room will enter the fridge each time the doors are opened.EN - 94 Humidity increases faster if the doors are opened frequently, especially if the humidity of the room is high.

• There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models). The doors are not opening or closing properly Check if:

• There is food or packaging preventing the door from closing

• The door compartments, shelves and drawers are placed properly

• The door gaskets are broken or torn

• Your fridge is level. The edges of the fridge in contact with the door joint are warm Especially during summer (warm weather), the surfaces in contact with the door joint may become warmer during operation of the compressor. This is normal. Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your refrigerator will destabilise, causing the compressor protective thermal element to open. Your refrigerator will start to operate normally after 5 minutes.

• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and odour.

• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.

• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-

ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.

2. Allow warm food and drinks to cool

before placing them inside the appliance.

3. Place thawing food in the refrigerator

compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.

4. Drinks or other liquids should be

covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

5. Avoid keeping the doors open for long

periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.

6. Keep the covers of the di󰀨erent

temperature compartments (such as the crisper and chiller) closed.

7. The door gasket must be clean and

pliable. In case of wear, replace the gasket.EN - 95 9 TECHNICAL DATA The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to nd the same information in EPREL using the link https:// eprel.ec.europa.eu and the model name and product number that you nd on the rating plate of the appliance. See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST

INSTITUTES Appliance for any EcoDesign verication shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at

Chapter 2. Please contact the manufacturer

for any other further information, including loading plans.EN - 96
