NFL 342 WH - Refrigerator TEKA - Free user manual and instructions
Find the device manual for free NFL 342 WH TEKA in PDF.
| Brand | Teka |
| Model | NFL 342 WH |
| Product type | Combined refrigerator-freezer |
| Energy efficiency class | A++ |
| Annual energy consumption | 224 kWh/year |
| Useful refrigerator volume | 219 L |
| Useful freezer volume | 76 L |
| Total net capacity | 295 L |
| Freezing capacity | 4 kg/24 h |
| Power failure autonomy | 15 h |
| Defrost type | Automatic (No Frost) in both compartments |
| Climate class | N/ST/T (16 °C to 43 °C) |
| Noise level | 40 dB(A) |
| Power supply | 220-240 V, 50 Hz |
| Special functions | Rapid cooling, temperature adjustment, LED interior lighting |
| Included accessories | Adjustable glass shelves, vegetable drawer, freezer compartment with drawer |
| Door reversal possibility | Yes |
| Adjustable feet | Yes (2 front feet) |
| Maintenance and cleaning | Interior cleaning with baking soda, exterior with soft cloth |
| Safety | Child lock (door), automatic shutdown in case of fault, fire safety instructions |
| Reparability | Repairs by approved service only; bulb replaced by a professional |
Frequently Asked Questions - NFL 342 WH TEKA
User questions about NFL 342 WH TEKA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual NFL 342 WH - TEKA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NFL 342 WH by TEKA.
USER MANUAL NFL 342 WH TEKA
NFL 329 L BLANCO / NFL 329 CL INOX / NFL 340 BLANCO VR01
NFL 340 INOX VR01/NFL 430 INOX VR02/NFL 430 S E-INOX VR01
NFL 430 S WH / NFL 342 C E-INOX / NFL 342 WH
NFL 345 C E-INOX/NFL 345 C WHITE
ES PT EN PL
DE RU FR
Indices
5) Remove the screws and remove the parts.
4.3 Changing the Interior Light
6.1 Changing the Interior Light
4.1 Operation Instructions 10 4.2 Noise Inside the Unit! 11 4.3 Tips for Keeping Food in the Unit 11 4.4 Change the Light Bulb 12
- CLEANING 12
5.1 Defrosting. 12 5.2 Cleaning the Interior and the Exterior of the Unit 12 5.3 Cleaning Tips 12
- MAINTENANCE 13
6.1 Changing the Internal Light 13 6.2 Care When Handling / Moving Your Unit 13 6.3 Servicing 13 6.4 Switching Off for Long Periods of Time 13 6.5 Do not shield positions of air outlet and return air inlet of the refrigerator 13
- Troubleshooting 14 7.1 Warm tips: 14
- TIPS FOR ENERGY SAVING 14
- DISPOSAL 15
1. SAFETY WARNINGS
Warning: risk of fire / flammable materials
This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING: Please abandon the refrigerator according to local regulations for it uses flammable blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Do not use extension cords or ungrounded (two-prong) adapters.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The instructions shall include the substance of the following: To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
- One-star, two-star and three-star compartments are not suitable for the freezing of fresh food. (note 3)
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
Note 1,2,3: Please confirm whether it is applicable according to your product compartment type.
2. INSTALLATION
2.1 Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

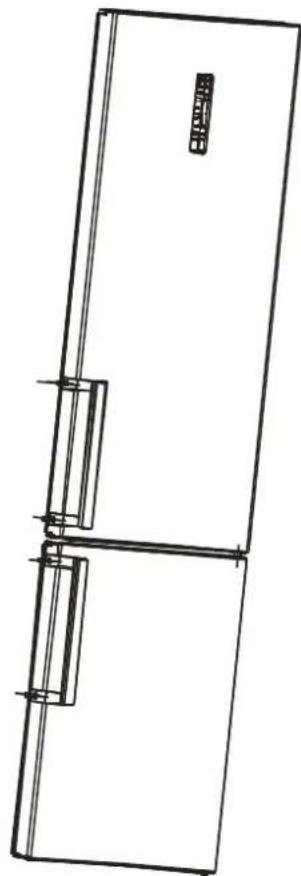

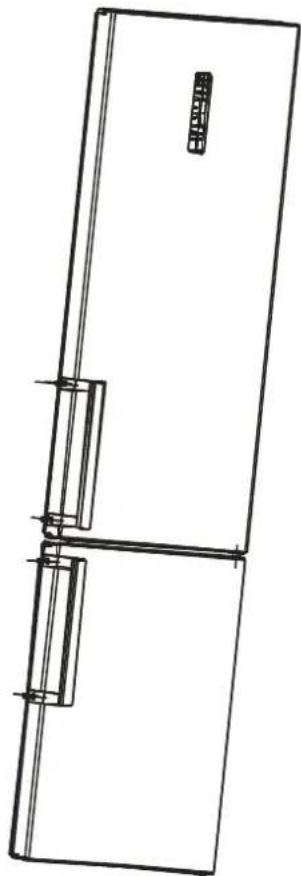

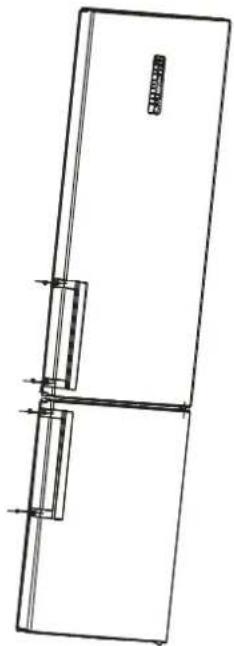

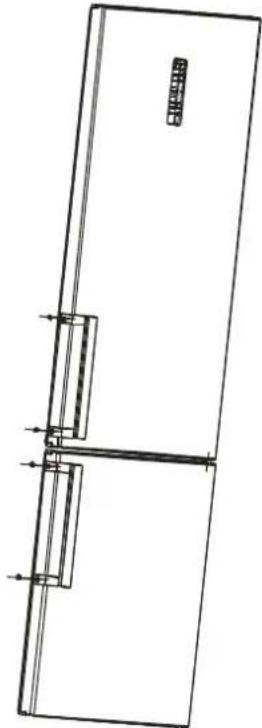

2.2 Door Handle Installation (optional)
1) Take out the screw caps from the door handle holes.
2) Put the handles into the screw holes and then hit them to fix.
3) Cap the screw caps on the handle screws.

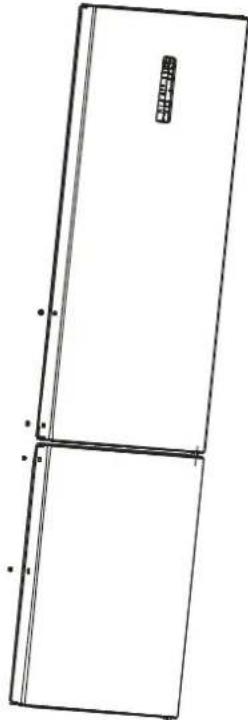

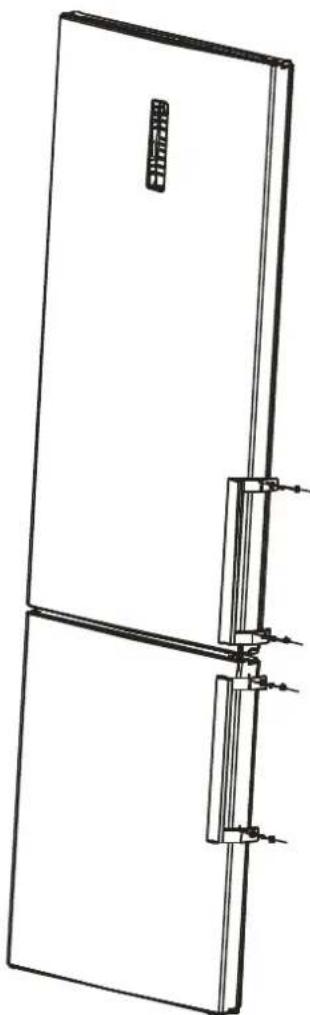

1) Take out the screw caps from the handle screw holes.
2) Remove the screws and take the handles down.
3) Cap the screw caps on the door handle holes again.
4) Install the handles into the door handle holes of the other side in accordance with the handle installation instructions.
2) Take off top hinge.

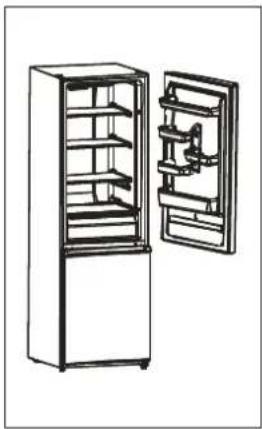

2.3 Reversing the Door Swing
1) Take off knuckle guard.
3) Take off the door of refrigerating chamber
4) Take off middle hinge, left middle beam screw cap and screw with a screw driver
5) Take off the door of freezing chamber
6) Remove the hinge assembly with a screwdriver. Assemble the lower hinge assembly to the left side of the cabinet with a screwdriver. Fix the removed medium beam screw and screw cap to the right screw hole position.
7) Assemble the door of the freezer chamber on the lower hinge.
8) Assemble the middle hinge assembly to the left side of the cabinet.
9) Assemble the door of the refrigerating chamber.
10) Put on the knuckle guard.
2.4 Door Space Requirements
The unit's door must be able to open fully as shown.
W × D ≥ 990 × 1025 mm
2.5 Levelling the Unit
To do this, adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, loosen or tighten clockwise and counterclockwise.
2.6 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information, refer to the Cleaning section.
2.7 Before Using Your Unit
The refrigerator adopts 220 240V / 50Hz AC power. Voltage fluctuations over the range of 187 264 V will cause malfunction or even damage.
Do not damage the power cord under any condition so as to ensure safe use. Do not use when the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile, and highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is a household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs, or biological products.
Do not place items such as bottled or sealed containers of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. Do not damage the power cord under any condition so as to ensure safe use. Do not use when the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile, and highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is a household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs, or biological products.
Do not place items such as bottled or sealed containers of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. Do not store or place dry ice in the refrigerator.
Before Plugging In
You must check that you have a socket which is compatible with the plug supplied with the unit.
Before Turning On!
Do not turn on until two hours after moving the unit.
2.8 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.
*Dotted line represents the position of air outlet and return air inlet.
*All images in this instruction manual are for illustration only; please refer to your individual unit for details.
4. OPERATION
4.1 Operation Instructions

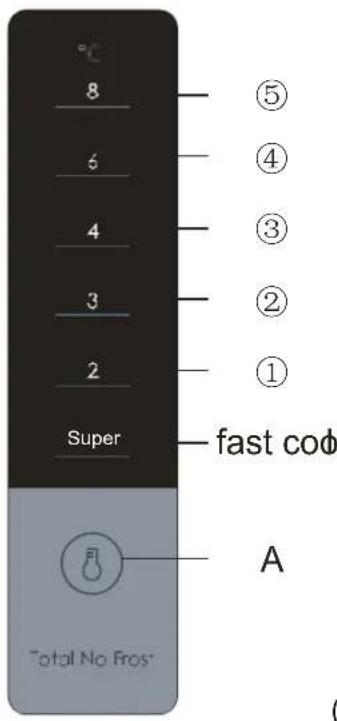

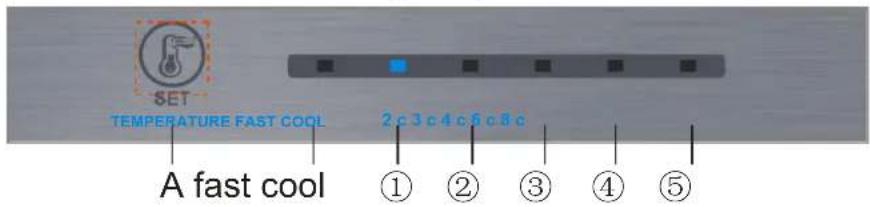

Temperature control
Temperature control of fresh food storage compartment
(Built-in) (External display)
Key
A. SET: gear setting key
Display screen
1 Gear 1 2 Gear 2 3 Gear 3 4 Gear 4
5 Gear 5
Display
For the first power-on, the display screen (including the key light) will be displayed in full for 3s, and then the gear in the middle displays the state of running
Display of normal running
On the occurrence of a failure, the corresponding LED light will give a combined display of failure
code (loop display);
Where there is no failure, the LED light will display the current running gear of the refrigerator.

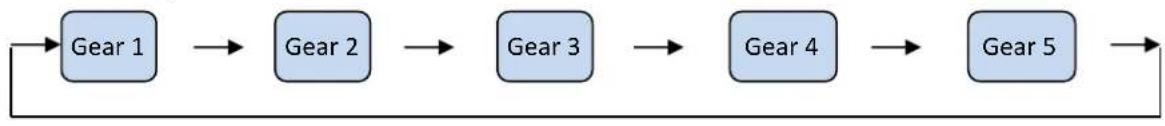

Gear setting
The gear will be changed once every time you press the key SET. Then, the refrigerator will run under the setting value after 15s.
Fast cool function
Enter: Circulating modulation rapid cooling mode
Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2°C.
Exit: 1. Operate 150 minutes under the rapid cooling mode.
- Temperature adjustment can exit from the rapid cooling mode.

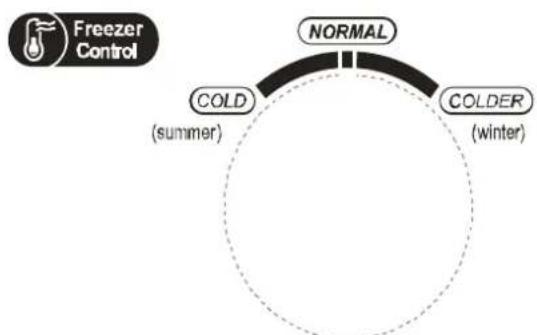

♠ Temperature control of freezing chamber
The freezing temperature is relatively low in "COLDER" position, while the freezing temperature is relatively high in "COLD" position, thus, "NORMAL" position is generally used.
When ambient temperature is high in summer, the temperature shall be in the range from "NORMAL" to "COLD". If the ambient temperature is above 35°C, then "COLD" position shall prevail.
When ambient temperature is low in winter, the temperature shall be in the range from "NORMAL" to "COLDER". If the ambient temperature is below 10°C, then "COLDER" position shall prevail.
Chill compartment description: the temperature of chill compartment is -2 ≤ tcc ≤ 3, the maximum tcc should be as near as possible +3°C which however should not be exceeded. The compartment is not suitable for storing certain fresh vegetables and fruits (which are sensitive to low temperature).
4.2 Noise Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
♠ Cooked meats/fish should always be stored on a shelf above raw meats/fish to avoid bacterial transfer. Keep raw meats/fish in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. ♠ Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool. ♠ To prevent transfer of flavors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped. ♠ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit. ♠ To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.
4.4 Change the Light Bulb
Lamp replacement by professionals
5. CLEANING
5.1 Defrosting
Auto-defrost for Frost-free Refrigerator
5.2 Cleaning the Interior and the Exterior of the Unit
• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. • The interior of the refrigerator should be cleaned regularly to avoid odor. • Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc. • Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power. • For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulate in these areas. • Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food. • Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. • Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry. • Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes),
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.
5.3 Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.
6. MAINTENANCE
6.1 Changing the Internal Light
Lamp replacement by professionals.
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.
6.3 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.
6.4 Switching Off for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
6.5 Do not shield portions of air outlet and return air inlet of the refrigerator. 6.6 Do not keep foods of higher temperature close to temperature sensor. 6.7 Take out drawer of freezing chamber of refrigerator and put foods directly on the glass partition.
7. Troubleshooting
The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.
| Inoperaon | Whether the freezer is plugged and connected to power; Low voltage; Failure power or tripping circuit |
| Odor | Odorous foods should closely wrapped; Whether foods are roen; Whether the interior shall be cleaned. |
| Long-term operon of compressor | It is normal that refrigerator operates for longer me in summer when the ambient temperature is higher; Do not put too much food in the freezer at one me; Do not put foods unl they are cooled; Frequent opening of refrigerator door. |
| Illuminang light does not shine | Whether the refrigerator is connected to power, whether the illuminang light is damaged. |
| The refrigerator door can not be properly closed. | The freezer door is stuck by food packages; Too much food; Tilt refrigerator. |
| Loud noises | Whether the food is leveled, whether the refrigerator is balanced; Whether the refrigerator parts are properly placed. |
7.1 Warm Tips:
♠ The refrigerator enclosure may emit heat during operation, especially in summer. This is caused by the radiation of the condenser, and it is a normal phenomenon. ♠ Condensation: Condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large. This is a normal phenomenon, and the condensation can be wiped away with a dry towel. ♠ Buzz: Buzz will be generated by running compressor, especially when starting up or shutting down.
8. TIPS FOR ENERGY SAVING
Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
In normal temperature conditions, please arrange the thermostat at the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.
If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.
The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight. Let hot foods cool to room temperature before placing them in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil. Be sure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. The appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
9. DISPOSAL
Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.
When disposing of an old unit, break off any old locks or latches and remove the door as a safeguard.
Correct Disposal of this product
For more information, please contact the local authority or your retailer where you purchased the product.
| Product Specification | |
| Brand | TEKA |
| Model | NFL 320 BLANCO VR01/NFL 320 C INOX/NFL 327 BLANCO VR01/NFL 329 L BLANCO/NFL 329 CL INOX/NFL 340 BLANCO VR01/NFL 340 INOX VR01 |
| Category | Refrigerator-freezer |
| Energy Class A+ | |
| Energy consumption of kwh per year, based on standard test results of 24 hours. The actual energy consumption will depend on the mode of use of the apparatus and location. | 286kWh/ year |
| Volume of fridge (L) 219L | |
| Volume of star compartment (L) | * *** |
| Volume of freezer (L) 76L | |
| Volume of other compartments (L) / | |
| Frost Free, fridge compartment (YES/NO) | YES |
| Frost Free, freezer compartment (YES/NO) | YES |
| Temperature rise value(h) 15h | |
| Freezing Capacity(kg/24h) 4kg/24h | |
| Climate Class N/ST/T | |
| This appliance is intended to be used at an ambient temperature between 16°C and 43 °C. | |
| Noise db(A) 40db(A) | |
| Product Specification | |
| Brand TEKA | |
| Model NFL 430 INOX VR02/NFL 430 S E-INOX VR01 | |
| Category | Refrigerator-freezer |
| Energy Class A++ | |
| Energy consumption of kwh per year, based on standard test results of 24 hours. The actual energy consumption will depend on the mode of use of the apparatus and location. | 234kWh/ year |
| Volume of fridge (L) 250L | |
| Volume of star compartment (L) | * * * * |
| Volume of freezer (L) | 76L |
| Volume of other compartments (L) | / |
| Frost Free, fridge compartment (YES/NO) | YES |
| Frost Free, freezer compartment (YES/NO) | YES |
| Temperature rise value(h) 15h | |
| Freezing Capacity(kg/24h) | 4kg/24h |
| Climate Class N/ST/T | |
| This appliance is intended to be used at an ambient temperature between 16°C and 43°C. | |
| Noise db(A) | 40db(A) |
| Brand | TEKA |
| Model | NFL 342 C E-INOX/NFL 342 WH |
| Category | Refrigerator-freezer |
| Energy Class A++ | |
| Energy consumption of kwh per year, based on standard test results of 24 hours. The actual energy consumption will depend on the mode of use of the apparatus and location. | 224kWh/ year |
| Volume of fridge (L) 219L | |
| Volume of star compartment (L) | * *** |
| Volume of freezer (L) 76L | |
| Volume of other compartments (L) / | |
| Frost Free, fridge compartment (YES/NO) | YES |
| Frost Free, freezer compartment (YES/NO) | YES |
| Temperature rise value(h) 15h | |
| Freezing Capacity(kg/24h) 4kg/24h | |
| Climate Class N/ST/T | |
| This appliance is intended to be used at an ambient temperature between 16°C and 43 °C. | |
| Noise db(A) 40db(A) | |
| Product Specification | |
| Brand TEKA | |
| Model NFL 430 S WH | |
| Category | Refrigerator-freezer |
| Energy Class A++ | |
| Energy consumption of kwh per year, based on standard test results of 24 hours. The actual energy consumption will depend on the mode of use of the apparatus and location. | 234kWh/ year |
| Volume of fridge (L) 250L | |
| Volume of star compartment (L) | * * * * |
| Volume of freezer (L) | 76L |
| Volume of other compartments (L) | / |
| Frost Free, fridge compartment (YES/NO) | YES |
| Frost Free, freezer compartment (YES/NO) | YES |
| Temperature rise value(h) 15h | |
| Freezing Capacity(kg/24h) | 4kg/24h |
| Climate Class N/ST/T | |
| This appliance is intended to be used at an ambient temperature between 16°C and 43°C. | |
| Noise db(A) | 40db(A) |
Do not damage the power cord under any condition so as to ensure safe use. Do not use when the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile, and highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is a household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs, or biological products.
Do not place items such as bottled or sealed containers of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
4.3 Tips for storing food
To avoid transferring bacteria, store prepared meat/fish on the shelf above raw meat/fish. Raw meat/fish should be stored in a tightly closed container with enough room for juice. Place the container on the lowest shelf. Leave space between products so that air can circulate inside the refrigerator; make sure all parts of the shelves remain cold. To prevent the spread of odors and drying out of products, pack or cover them individually. Vegetables can be stored without packaging. Before putting prepared food in the refrigerator, let it cool; this will help maintain a constant temperature in the refrigerator. To avoid loss of cold air from the refrigerator, try not to open it unnecessarily. It is recommended to open the refrigerator only when you need to put in or take out products.
4.4 Replacing the lamp
The lamp replacement must be carried out by a specialist.
5. CLEANING
5.1 Defrosting
Automatic defrosting prevents the formation of ice.
5.2 Cleaning the refrigerator inside and outside
- Dust the condenser at least twice a year to improve the cooling and energy-saving effect. - Regularly check the door gasket, make sure there are no food residues on it, and it is not dirty. Clean the door gasket with a soft cloth dampened with soapy water or a diluted detergent. - The interior of the refrigerator should be cleaned regularly to avoid odors. - Please disconnect the power supply before cleaning the refrigerator compartment, remove all food, drinks, shelves, drawers, etc. - Use a soft cloth or sponge to clean the interior of the refrigerator. You can use a solution with two tablespoons of soda per liter of warm water. Then rinse with clean water and wipe dry. After cleaning, open the door and let it dry. Do not reconnect the power until the drying process is fully completed. - For areas that are difficult to clean in the refrigerator (e.g., narrow gaps, crevices, and holes), it is recommended to regularly wipe with a soft cloth, soft brush, etc., and if necessary, in combination with some auxiliary materials (e.g., thin sticks) to ensure the absence of dirt or the accumulation of bacteria in these areas. - Do not use abrasive cleaners, scrapers, steel wool, etc., as they can cause odors inside the refrigerator or damage the food. - Clean the bottle rack, shelves, and drawers with a soft cloth dampened with soapy water or a diluted detergent. After the process, wipe everything dry with a soft cloth or let it air dry, leaving the refrigerator door open. - Wipe the exterior surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry. - Do not use hard brushes, steel wool pads, wire brushes, abrasives (e.g., toothpaste), organic solvents (e.g., alcohol, acetone, banana oil, etc.), acids, or alkaline agents that can damage the surface and the interior compartment of the refrigerator. Boiling water and organic solvents such as benzene can deform or damage plastic parts. - Do not clean the refrigerator directly with water or other liquids to avoid short circuits and water entering the electrical connections. Always use auxiliary materials: a soft cloth or sponge.
5.3 Cleaning Tips
Condensation may appear on the exterior surface of the refrigerator. This may be due to temperature changes in the room. Wipe the condensation dry. If it continues to appear, contact a qualified technician.
6. TECHNICAL MAINTENANCE
6.1 Replacing the Interior Light
The replacement of the bulb should be carried out by specialists.
6.2 Safety Precautions When Lifting/Moving the Refrigerator
When moving the refrigerator, hold it by the sides or the base. Never lift the refrigerator by the top edges.
6.3 Maintenance
Refilling of the refrigerator should be carried out by an authorized specialist, and only original spare parts should be used. Never attempt to repair the refrigerator yourself. Performing repair work by an incompetent person can lead to injuries or serious malfunctions. Contact authorized specialists.
6.4 Switching off the refrigerator during prolonged downtime
If the refrigerator is not used for a long time, disconnect it from the power supply, remove all products from it and wash the appliance. Leave the door ajar to avoid the appearance of an unpleasant odor.
6.5 The air outlet and the air inlet openings must remain open. 6.6 Do not store products with a high temperature near the temperature sensor. 6.7 Pull out the drawer of the freezer compartment of the refrigerator and place the products directly in the glass compartment.
7. TROUBLESHOOTING
The following problems are simple, and the user can solve them independently. If you cannot fix the problem, contact the after-sales service department.
- INDICES
- CHANGING THE INTERIOR LIGHT
- SAFETY WARNINGS
- INSTALLATION
- LOCATION
- DOOR HANDLE INSTALLATION (OPTIONAL)
- REVERSING THE DOOR SWING
- DOOR SPACE REQUIREMENTS
- LEVELLING THE UNIT
- CLEANING BEFORE USE
- BEFORE USING YOUR UNIT
- BEFORE PLUGGING IN
- BEFORE TURNING ON
- INTERIOR ACCESSORIES
- OPERATION
- OPERATION INSTRUCTIONS
- GEAR SETTING
- FAST COOL FUNCTION
- NOISE INSIDE THE UNIT
- CHANGE THE LIGHT BULB
- CLEANING
- DEFROSTING
- CLEANING TIPS
- MAINTENANCE
- CHANGING THE INTERNAL LIGHT
- CARE WHEN HANDLING / MOVING YOUR UNIT
- SERVICING
- SWITCHING OFF FOR LONG PERIODS OF TIME
- TROUBLESHOOTING
- WARM TIPS
- TIPS FOR ENERGY SAVING
- DISPOSAL
- CORRECT DISPOSAL OF THIS PRODUCT
- TIPS FOR STORING FOOD
- REPLACING THE LAMP
- CLEANING THE REFRIGERATOR INSIDE AND OUTSIDE
- TECHNICAL MAINTENANCE
- REPLACING THE INTERIOR LIGHT
- SAFETY PRECAUTIONS WHEN LIFTING/MOVING THE REFRIGERATOR
- SWITCHING OFF THE REFRIGERATOR DURING PROLONGED DOWNTIME
Brand : TEKA
Model : NFL 342 WH
Category : Refrigerator
