USER MANUAL RSL 73385 FI TEKA

Modern kitchen interior with glossy black cabinets and stainless steel ovens, featuring a 'TEKA' logo in the top-right corner (no other text or symbols)

User Manual

RSL 73385 FI

EN ES FR PT

Contents

Important safety instructions....2

Environmental protection.... 5

Install Instruction....6

Door right-left change....7

Installation in cabinet 8

Changing the light 9

Moving the appliance....9

Tips for energy saving....9

Product overview 10

Parts and functions....10

Operation Instructions....11

Use and functions....11

Storing food....12

Maintenance and cleaning....13

Troubleshooting....15

Appendix 17

Special for new European standard 17

Before switching on the appliance for the first time read the following safety hints!

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Explanation of terms/symbols

DANGER

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

WARNING

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

CAUTION

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

ATTENTION

The signal word indicates important information (e.g. damage to property), but not danger.

IMPORTANT: Pay particular attention to messages that contain the words DANGER, WARNING or CAUTION. These words are used to alert you to a potential hazard that can seriously injure you and others.

The instructions will tell you how to reduce the chance of injury and let you know what can happen if the instructions are not followed.

ATTENTION: These operating instructions are general. This means that certain functions apply to your refrigerator/freezer, while others do not.

We are constantly working on the further development and improvement of our appliance types and models. Therefore, we reserve the right to make changes to the design, equipment and accessories of all types and models without prior notice.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS!

WARNING: Risk of fire / flammable material

Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm

WARNING

General Safety

Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Do not use extension cords or ungrounded (two prong) adapters.
To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

CAUTION

daily use

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.
Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.
The power plug should be firmly contacted with the socket or else fires might be caused.
Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.
Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.
The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.
Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

WARNING

Connect to potable water supply only. (Suitable for ice cube maker) (*)
To prevent children from being entrapped, the keys must be keptout of reach of children and not in the vicinity of chest freezer (or refrigerator) (suitable for products with locks).(*)

(*): This feature varies depending on the model purchased.

WARNING

For EU standard:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. (Note 1)(*)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (Note 2)(*)
• 1 star, 2 star and 3 star compartments are not suitable for the freezing of fresh food. (note 3)(*)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)(*)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

(\*): This feature varies depending on the model purchased.

"4 star" symbol: Freezer at -18^ or colder, and it has the ability of quick freezing a certain amount of food

"3 star" symbol: Freezer compartment at -18 °C or colder

"2 star" symbol: Freezer compartment at -12 °C or colder

"1 star" symbol: Freezer compartment with a target temperature and storage conditions of -6^

CAUTION

This product is not recommended for use with sockets or main switch with the A/GFCI function, otherwise it may cause false tripping.

1. It's not pose a safety risk when tripped.
2. If tripping persists, it is recommended to replace the sockets or main switch without a/gfci function.

WARNING

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

Take off the doors.
Leave the shelves in place so that children may not easily climb inside.

ENVIRONMENTAL PROTECTION

Disposing of old electrical devices in an environmentally-friendly manner

This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.

Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

CAUTION

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

INSTALL INSTRUCTION

Before first use

Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.

Avoid placing the cabinet in a narrow recess or near any heat source, direct sunlight, or moisture.

Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home.

A different voltage could damage the appliance.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

Connecting the appliance

After installing the product, please let it stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the product.

2 h

Allow the appliance to run empty for 24 hours so the compartment can cool to the appropriate temperature.

CAUTION

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. When positioning the appliance, ensure the supply cord is not trapped ordamaged.

Ambient Temperature

Depending on the climate class, this refrigerator is intended to be used at an ambient temperature range as specified in the following table.

The product may not operate properly at temperatures outside of the specific range.

You can find the climate class on the product label.

Climate Class Ambient Temperature

SN +10 °C to +32 °CN +16 °C to +32 °CST +16 °C to +38 °CT +16 °C to +43 °C

If you have any doubts regarding installation, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

ATTENTION

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

Door right-left change

List of tools to be provided by the user

	Cross screwdriver
	Putty knife / Thin-blade screwdriver
	Masking tape
	5/16” socket spanner

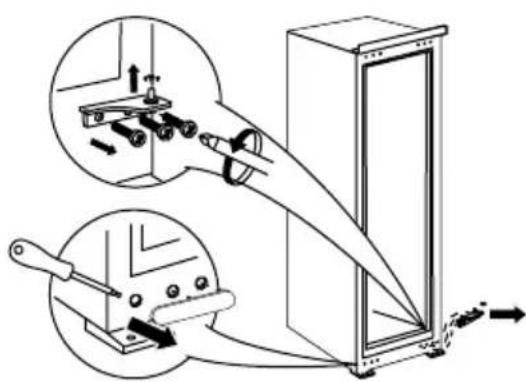

1. Power off the refrigerator, and remove all objects from the door trays.

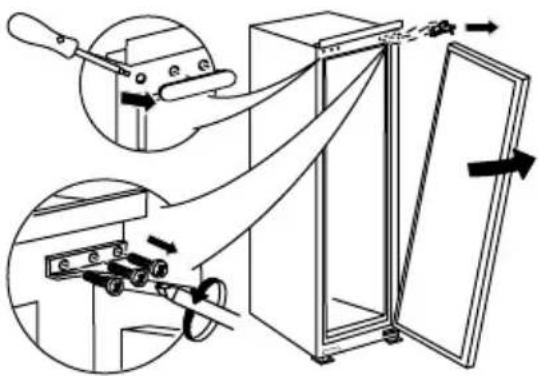

2. Remove the upper hinge and hole caps of refrigerator door.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating motion

1. Remove the refrigerator door, the bottom hinge and the hole cover.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

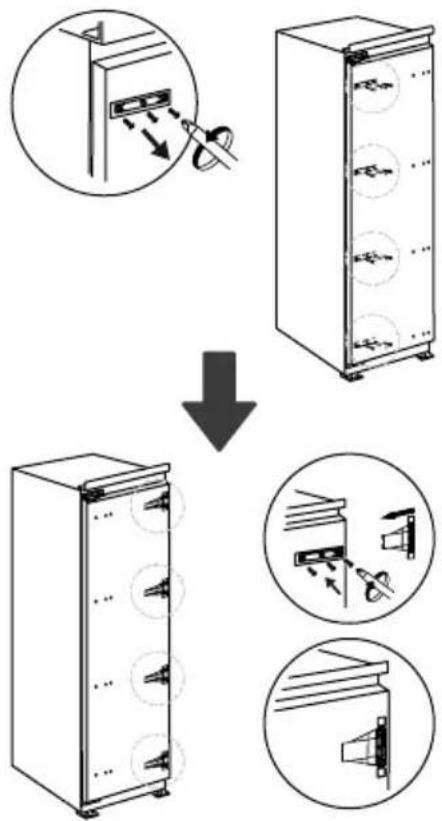

1. Exchange the R: bottom hinge and R: upper hinge, then install them according to below steps, and install the top hole caps.

Diagram illustrating door frame installation with 180-degree angle and mechanical adjustment arrows

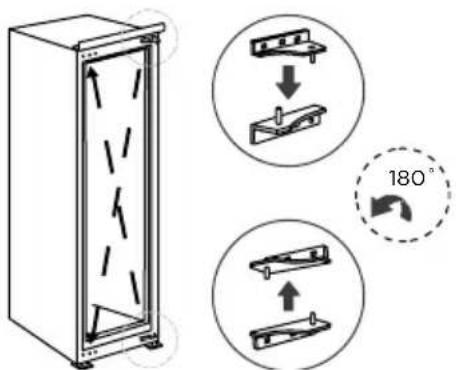

1. Remove the two fixed blocks of refrigerator door and rotate them for 180, and install them on other side of refrigerator door.

Diagram illustrating the process of removing a refrigerator into a rack, with magnified views showing internal components.

ATTENTION

Differences: Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

Installation in cabinet

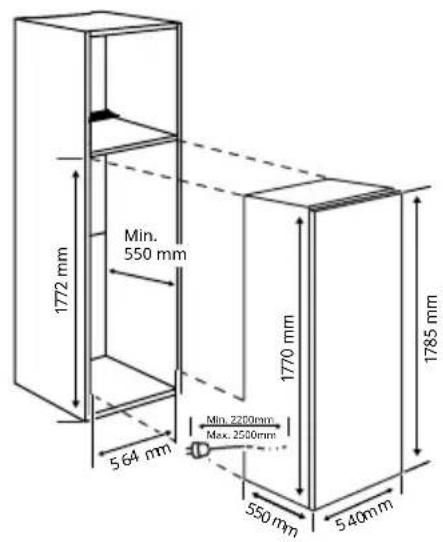

1. Cabinet size requirement.(The skirting board and back of the cabinet shall be provided with a through heat dissipation channel)

1772 mm Min. 550 mm 564 mm 1785 mm Min. 2200mm Max. 2500mm 550 mm 540mm

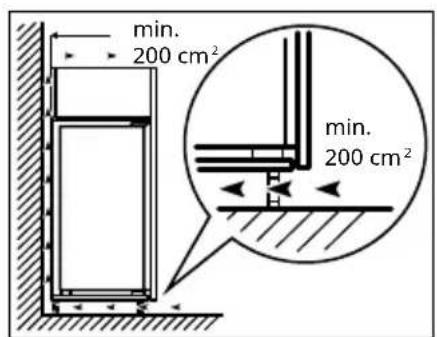

min. 200 cm² min. 200 cm²

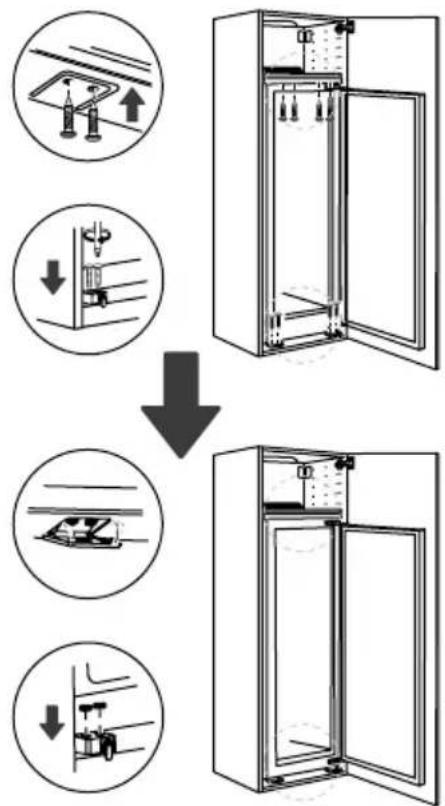

1. Push the refrigerator into the cabinet and adjust it to make sure the edge fold of top baffle completel touch the top edge of the cabinet, and the limit hook of supporting leg completely touch the bottom edge of the cabinet.

Technical diagram showing a door with internal components and directional arrows indicating movement or force directions.

1. Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps.


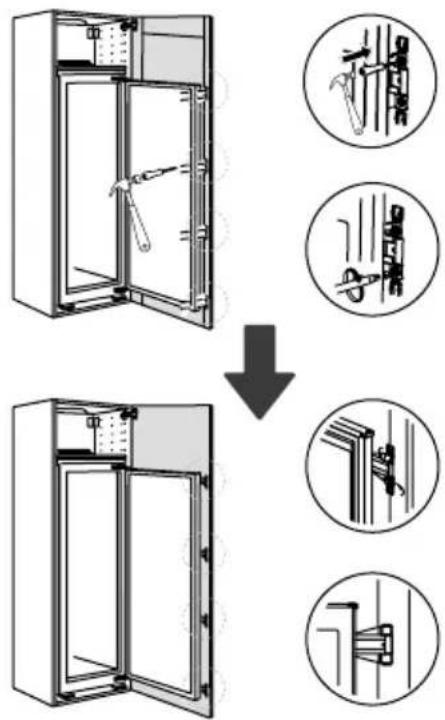

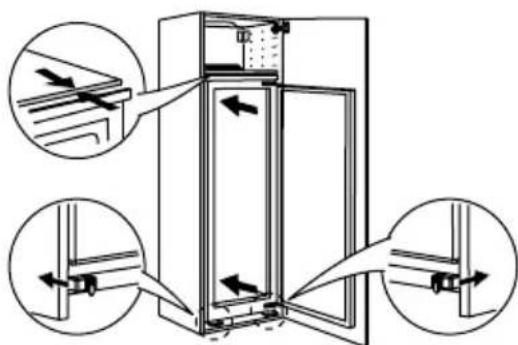

1. Open the door of cabinet the maximum angle, and open the door of the refrigerator to the corresponding position. Sliding the block to make sure inner edge align with the door edge of refrigerator, then fix the block to the door of cabinet with screw and install screw caps.

Diagram illustrating the step-by-step installation of an open refrigerator with labeled parts and directional arrows.

1. Take out the sealing strip from accessory bag, and press it in the gap between the cabinet and the refrigerator. Installation is completed.

ATTENTION

Precautions before installation: Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Changing the light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains a light source of energy efficiency class (F).

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the appliance

1. Remove all items from the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.

Tips for energy saving

Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Please also observe the spacing dimensions in the chapter "Installation".

The arrangement of drawers, shelves and trays as shown in the product overview offers the most efficient use of energy and should be retained as far as possible.

To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers and shelves can be removed. The top and bottom drawers and shelves should be removed last if necessary.

An evenly filled refrigerator/freezer compartment contributes to optimal energy use.

Allow warm food to cool before placing it in the refrigerator/freezer compartment. Food that has already cooled down increases energy efficiency.

Allow frozen food to defrost in the refrigeration compartment The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.

Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.

Setting the temperature no colder than necessary contributes to optimal energy use. The door gaskets of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

PRODUCT OVERVIEW

Parts and functions

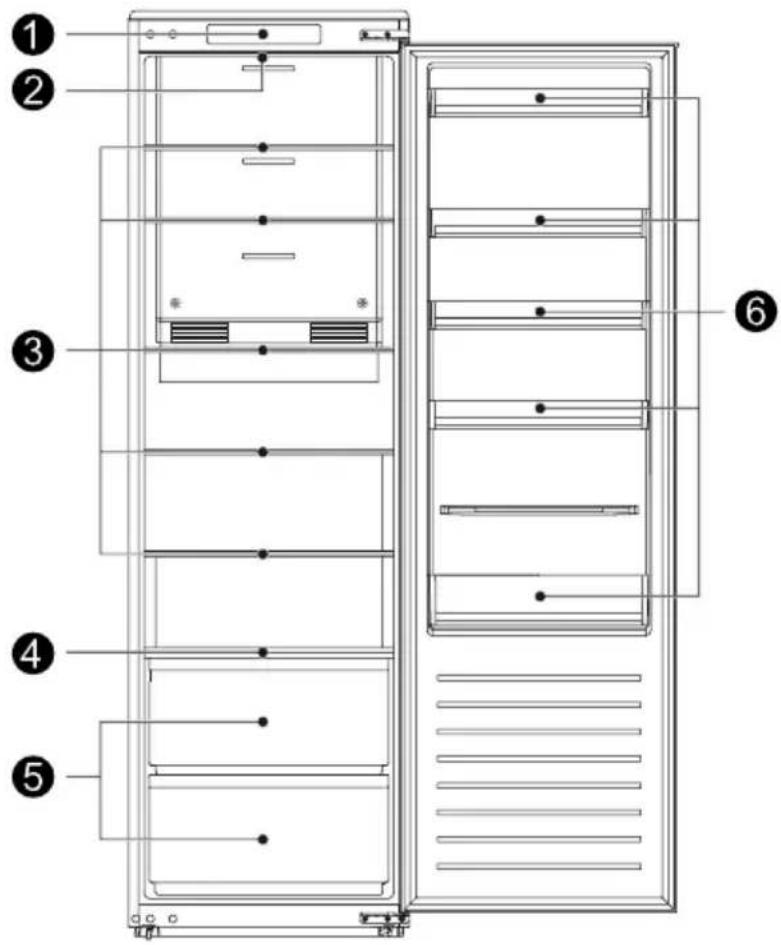

Technical diagram of a refrigerator with numbered components for identification

1 LED lighting

3 Drawer

2 Shelf

4 Door tray

For the most efficient use of energy, please keep the all internal items such as trays, drawers, shelves and ice cube box on the position supplied by manufacturer.

ATTENTION

Differences: Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

OPERATION INSTRUCTIONS

Use and functions

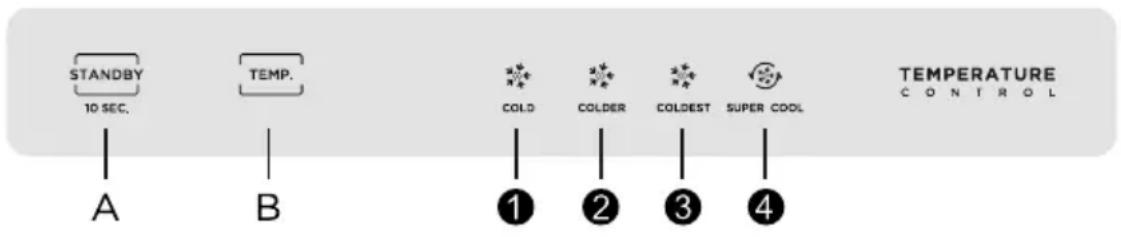

Feature panel

STANDBY 10 SEC. TEMP. COLD COLDER COLOST SUPER COOL A B ① ② ③ ④ TEMPERATURE CONTROL

Button

A Standby button

B Temperature setting button

Display screen

1 Setting 1: the setting temperature is 8 °C

3 Setting 3: the setting temperature is 2 °C

2 Setting 2: the setting temperature is 4 °C

4 Setting 4: Super cool

Display

When powering on for the first time, the display will be displayed for 3 seconds, while the startup bell will ring, and then the display will enter normal operation; (The temperature of the refrigerator is set at 2 gear which mean 4^ C when it is powered on for the first time).

Display the fault code when there is a fault (cyclic display); Display the set temperature of the refrigeration room when there is no trouble.

When the refrigerated door is closed to open, the display board is bright, and it will be extinguished within 30 seconds after the door is closed; Display board off state, press any key, display board light, and then can be adjusted operation

Fault Code Fault Description
The LED “1” and LED “2” lit	Refrigerator temperature sensor circuit
The LED “1” and LED “3” lit	Refrigerator defrost sensor
The LED “2” and LED “4” lit	Commcardfault
The LED “1” and LED “4” lit	Ambient temperature sensor

Lock and unlock

No lock or unlock function.

The setting takes effect 15 seconds after no operation.

ATTENTION

The actual control panel may differ from model to model.

Gear setting

Every time you press the button, the gear will change once. After setting the gear for 15 seconds, the refrigerator will run according to the set value.

Recommended setting temperature: refrigerator room 4°C;

Operation of door opening prompt and alarm control

When the refrigerator door is opened and the door is open for 120 seconds, the buzzer will alarm until the refrigerator door is closed. Or press any key to cancel the buzzer alarm.

Standby mode

Hold down the standby button for 10 seconds to enter the standby mode. All loads are off and the display goes off. In standby mode, hold down the standby button for 10 seconds to restore normal control.

Super cool mode

Mode entry: Under refrigerator mode, press the button "TEMP." until the icon "💡" lighten. Mode exit: During Super cool mode, it will exit this mode automatically after running for 360 minutes or temperature setting or mode setting.

Storing food

Cooling compartment

To reduce moisture and subsequent ice build-up, never put liquid into the fridge compartment in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.

Never put warm foods in the fridge compartment. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the fridge compartment.

Foods or food containers should not touch the back wall of the fridge because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.

Meat and clean fish (packed in a package or plastic foil) can be placed in the fridge compartment, which can be used in 1-2 days.

Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables

MAINTENANCE AND CLEANING

CAUTION

Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the product should be cleaned regularly to avoid odor.

Use a soft cloth or sponge to clean the inside of the product, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean.

After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the product (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Wipe the outer surface of the product with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Illustration of various plastic bottles and containers with a diagonal line crossing over them (no text or symbols)

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

Cleaning of door tray

According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.

After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of two hands holding a transparent container with arrows indicating upward movement (no text or symbols)

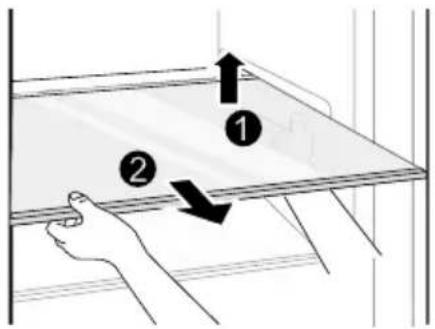

Cleaning of glass shelf

As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.

Adjust or clean the shelves according to your requirement.

Diagram showing a hand holding a ruler with two labeled arrows indicating direction of movement or force, numbered 1 and 2.

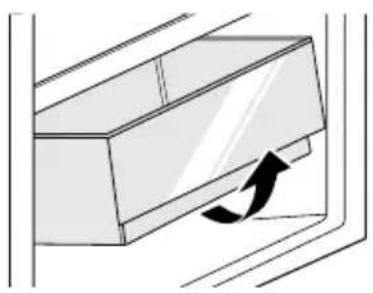

Cleaning the vegetable drawer

Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.

Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Differences: Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible Causes Solution
Not operate	The power supply is not turned on and the plug is not firmly inserted.Low voltage, power failure or part of the circuit tripped.	Insert the power cord plug firmly.Check the power supply at home.
Light not on	The appliance is not powered on.The light is broken.	Unplug and re-plug the power cord.Replace the light with a new one.
Fruits or vegetables are frozen	Has the food been placed at the back of the fridge? The area near the back wall is where the temperatures are coldest.Fruits or vegetables are stored in the Fresh/Chill zone.	Not placing food which may freeze easily at the back of the fridge compartment.The Fresh/Chill zone is only for meat/fish.
Fridge/freezer is over-cooling	Temperature control is not set correctly.	Set the temperature higher.
Compressor working for a long time	High ambient temperature causing long working time.Putting too much food in at one time.Food is put in before it has cooled down.Opening the door too often.The frost layer inside is too thick.	This is normal.Do not put too much food in at one time.Wait until the food has cooled down before putting it in.Do not open the door too often.Need to defrost.
Door does not close properly	Door is stuck with objects.Too much food in.Door gasket deformed.	Do not put in too much food.Place the appliance stably.Heat the door gasket, then cool it for restoration (with an electrical drier or hot water for heating).
Outer wall is hot	When the appliance is operating, heat is dissipated to the outside through the metal tubes inside the cabinet.Higher ambient temperatures in the summer cause the temperature of the outer wall to rise.	Higher temperature on the outer wall is normal.Increase the heat dissipation space, or put the appliance in a ventilated and cool place.
Cross or vertical beams are hot	There are metal tubes inside the beams, and the heat released from the tubes prevents condensation.	This is normal.
Odors	Spoiled foodFood with strong odorsThe interior compartment is dirty.	Clean and remove any spoiled food.Make sure strong smelling food is wrapped airtight.Clean the interior compartment.
Condensation forms on the outside	Condensation may form when the humidity in the room is high.	This is normal. Wipe off the condensation using a dry cloth.
Condensation forms inside the fridge and drawers	The fridge maintains a high humidity to keep vegetables and other food items fresh.Humidity is too high in the room and doors have been opened frequently.The door gasket are not tight.	Wipe off the condensation using a dry cloth.Do not open doors as frequently or do not keep them open too long.Check the door gasket, clean or correct position.

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

Noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
Touching the adjacent piece of furniture - move the refrigerator away.
Creaking of the drawers or shelves - take out and put back the drawer or shelf.
Sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the compressor (switching on) and cooling, system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by Minimum time required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users		At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.
   (Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained through a weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://eprel.ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Contenido

Simple line drawing of a light bulb inside a square socket with an arrow pointing to it (no text or symbols)

Illustration of five different types of screwdrivers and tools (no text or labels)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating motion

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

Diagram illustrating door frame installation with 180-degree angle and mechanical components

Technical diagram showing a door with internal components and directional arrows indicating movement or force directions.

Diagram illustrating the process of installing or maintaining an appliance, showing step-by-step assembly from open door to closed door.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

1 Iluminación LED

3 Cajón

2 Estante

4 Bandeja de puerta

Illustration of various plastic bottles and a glass with a diagonal line crossing over them (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a ruler with two labeled arrows indicating direction of movement or force, numbered 1 and 2.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENCIÓN

Diagram illustrating door handle assembly with tool insertion and component disassembly steps

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

Diagram illustrating door frame installation with 180-degree angle and mechanical components

Technical diagram showing door opening mechanism with labeled components and directional arrows indicating movement or force directions.

Diagram illustrating the step-by-step installation of an open refrigerator with labeled parts and corresponding close-ups.

Technical diagram of a refrigerator with numbered components for identification

1 Éclairage LED

3 Tiroir

2 Étagère

4 Plateau de porte

Illustration of various plastic bottles and a glass with a diagonal line crossing over them (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a ruler with two labeled arrows indicating direction of movement or force, numbered 1 and 2.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Illustration of five different types of screwdrivers and tools (no text or labels)

Chave de fenda cruzada

Technical diagram showing mechanical assembly steps with arrows indicating direction of movement

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

Diagram showing a refrigerator with directional arrows and angle measurement of 180°, including mechanical adjustment icons.

Technical diagram showing door opening mechanism with labeled components and directional arrows indicating movement or force directions.

Diagram illustrating the step-by-step installation of an open refrigerator, showing internal components before and after assembly.

Technical diagram of a refrigerator with numbered components for identification

1 Iluminação LED

3 Gaveta

2 Prateleira

4 Bandeja da porta

Illustration of various plastic bottles and a glass with a diagonal line crossing over them (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

limpeza da prateleira de vidro

Diagram showing a hand holding a tray with two labeled arrows indicating movement or force directions, numbered 1 and 2.

limpeza da gaveta de vegetais

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENÇÃO

World map silhouette showing continents and countries with no text or labels
