USER MANUAL RB440N4GBD HISENSE

QR code image containing encoded data, no visible human-readable text

Before operating this unit, please read this manual thoroughly, and retain for future reference.

This is a short version of the User's Manual. For more information, please scan the QR code above to view the full version of the manual.

NOTE:

1. Please adjust your mobile or tablet device to portrait mode during the browsing of electronic manuals to achieve the best viewing experience.
2. To ensure a smooth experience with the download feature of the electronic manuals, we recommend using Google Chrome, Microsoft Edge, or the Safari browser.

EN

English

SAFETY AND WARNING INFORMATION

Before using the appliance for the first time

Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance. We recommend saving this instruction manual for future reference and attach it to the appliance if it is sold in the future.

Check for any damage or irregularities on your appliance. If you find your appliance is damaged, notify the retailer from which you have purchased the appliance.

Before connecting the appliance to the power mains, let the appliance rest in a vertical position for a minimum of 2 hours. This will reduce the possibility of operation faults due to the effect of transport on the cooling system.

Important safety instructions

WARNING Risk of fire/flammable materials

The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet).

⚠ WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

SAFETY AND WARNING INFORMATION

WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor stability of the appliance, make sure it is installed as instructed.

Freeze burn hazard

To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food.

Safety of children and vulnerable persons

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Remove the packaging intended to protect the appliance or particular parts during transport and keep it outside the reach of children. It presents danger of injury or suffocation.

When removing a used appliance, disconnect the power cord, remove the door, and leave the shelves in the appliance. This will prevent children from locking themselves in the appliance.

For European markets only

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

SAFETY AND WARNING INFORMATION

Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Warning regarding the refrigerant

The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.

In case of a gas leak, ventilate the room thoroughly, disconnect the appliance from the power mains, and call a service technician.

Important information on the use of appliance

WARNING! This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

If the appliance will be out of use for an extended period of time, switch it off using the relevant button, and unplug it from the power mains. Empty the appliance, defrost it, clean it, and leave the door ajar.

In case of an error or power supply failure, do not open the freezer compartment unless the freezer has not operated for over 16 hours. After this period, use the frozen food or provide sufficient cooling (e.g. a replacement appliance).

Technical information on the appliance

Rating plate can be found in the appliance interior. It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes.

SAFETY AND WARNING INFORMATION

If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied.

⚠ WARNING! Do not damage the refrigerant circuit.

INSTALLING YOUR NEW APPLIANCE

• Stand your appliance in a dry and well ventilated place. Keep the appliance out of direct sunlight, rain or frost.
• The diagram shows the temperature range of each climate class. The climate class of this appliance is specified on the rating plate. Use beyond this range may result in poor performance.

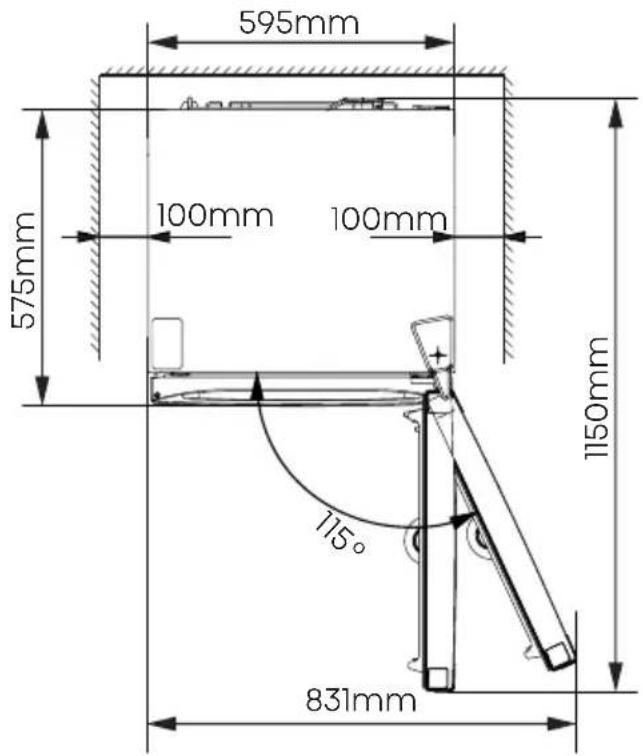

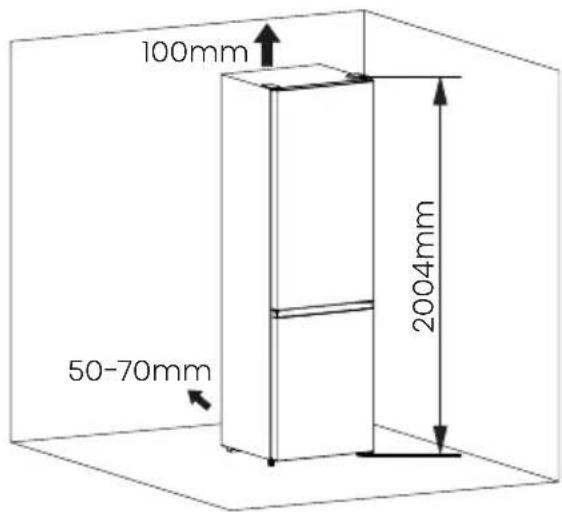

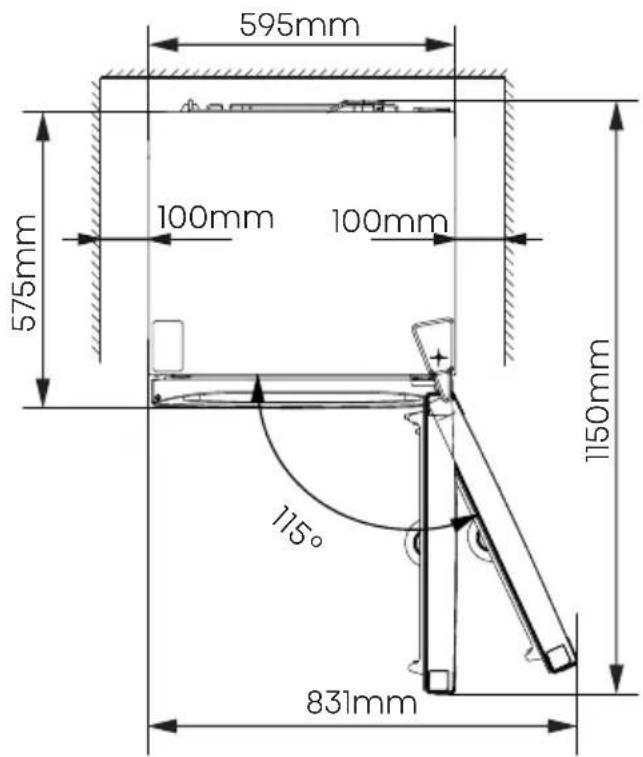

• Sufficient clear space should be available around the appliance to facilitate ventilation and heat dissipation.
• Suggested space is indicated in the figure.

100mm 50-70mm 2004mm

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

595mm 100mm 100mm 575mm 1150mm 831mm 115°

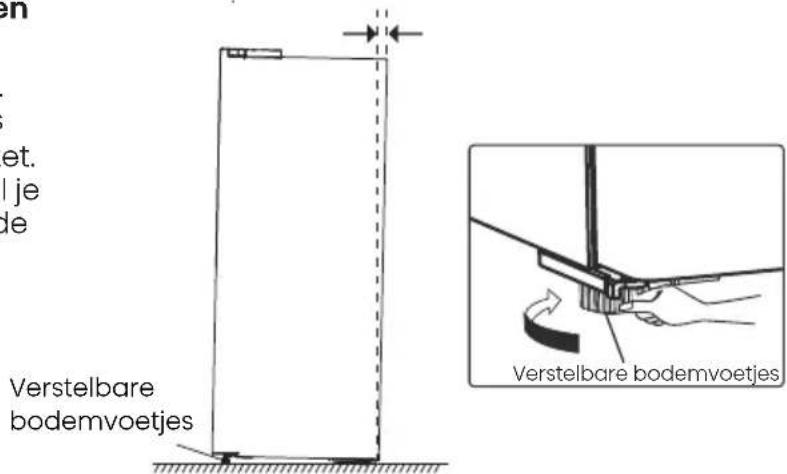

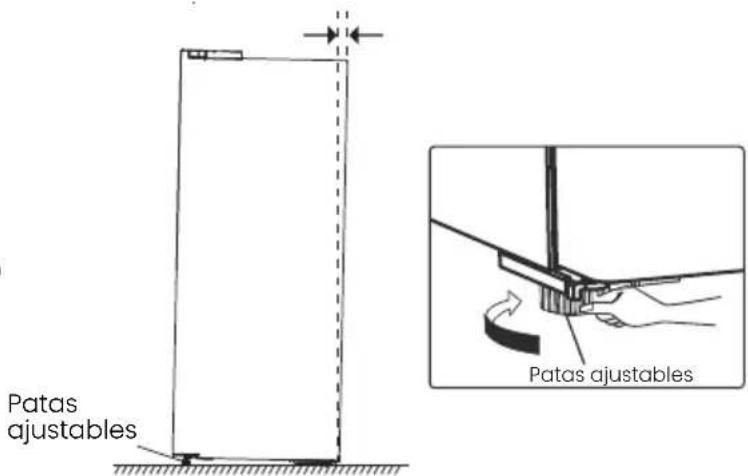

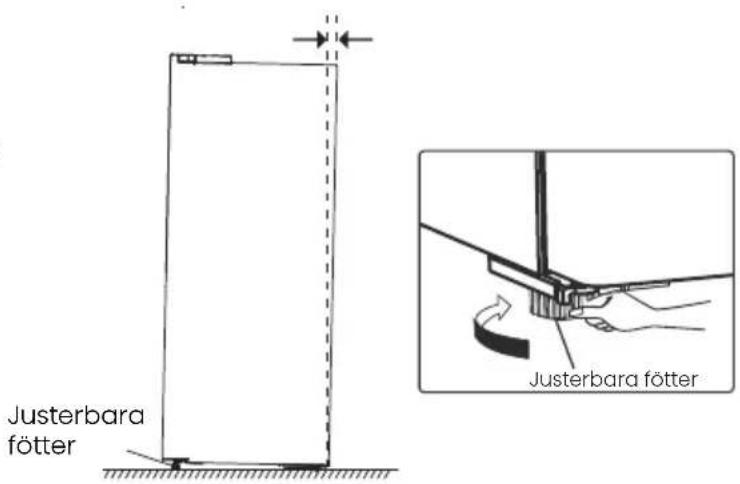

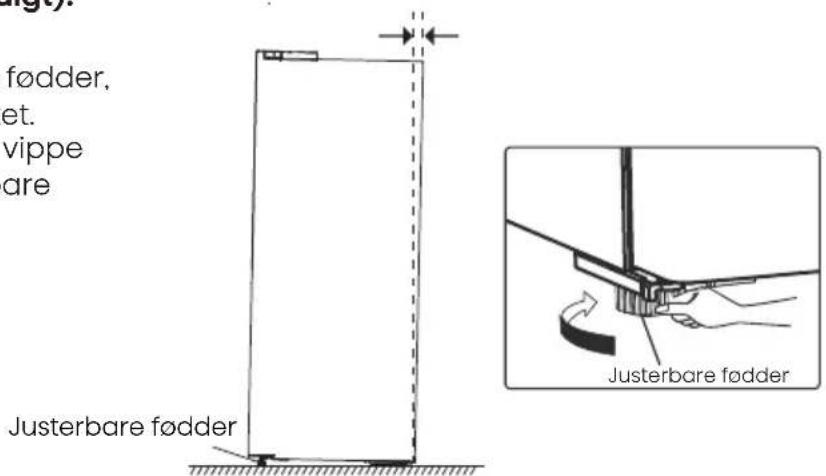

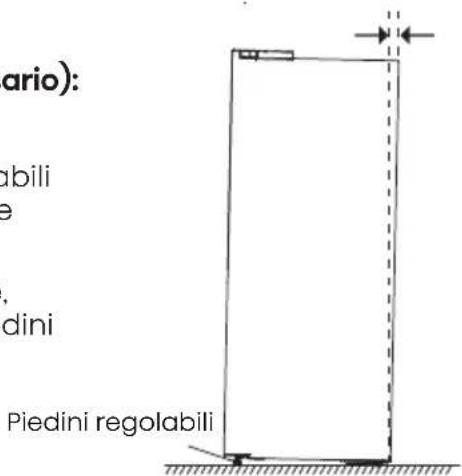

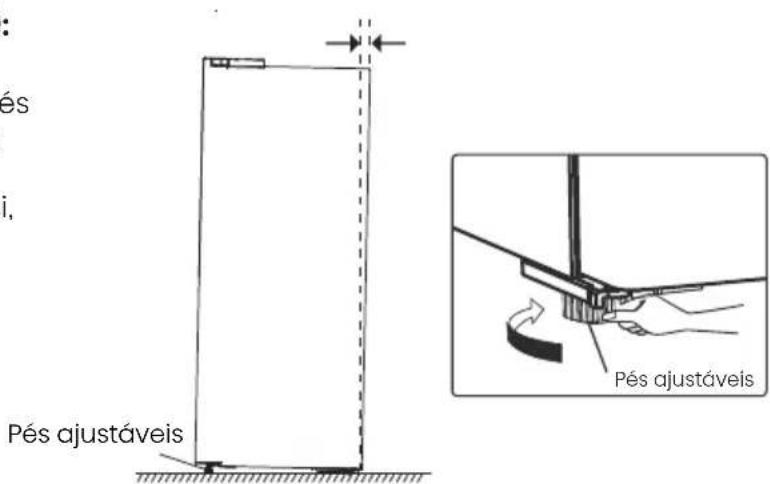

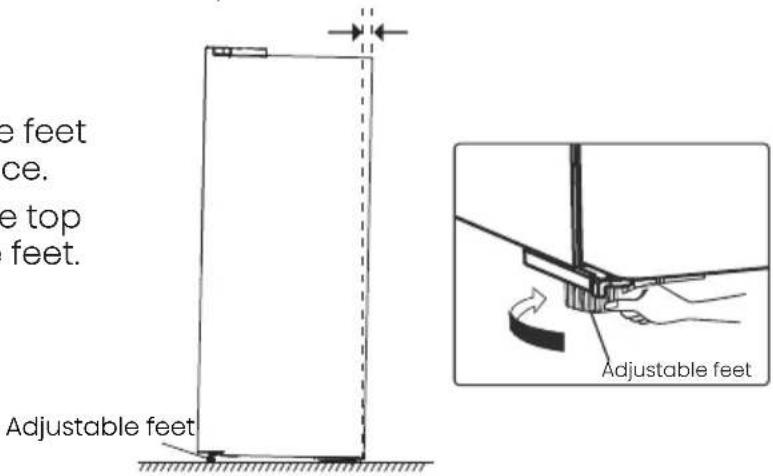

Leveling of appliance (if needed):

• The figure is for reference only.
- The appliance is fitted with adjustable feet that can be used to level the appliance.
- To allow the doors to self-close, tilt the top backwards by turning the adjustable feet.

e feet ce. e top feet. Adjustable feet Adjustable feet

INSTALLING YOUR NEW APPLIANCE

WARNING

• For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.
• The rollers should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Simple line drawing of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow

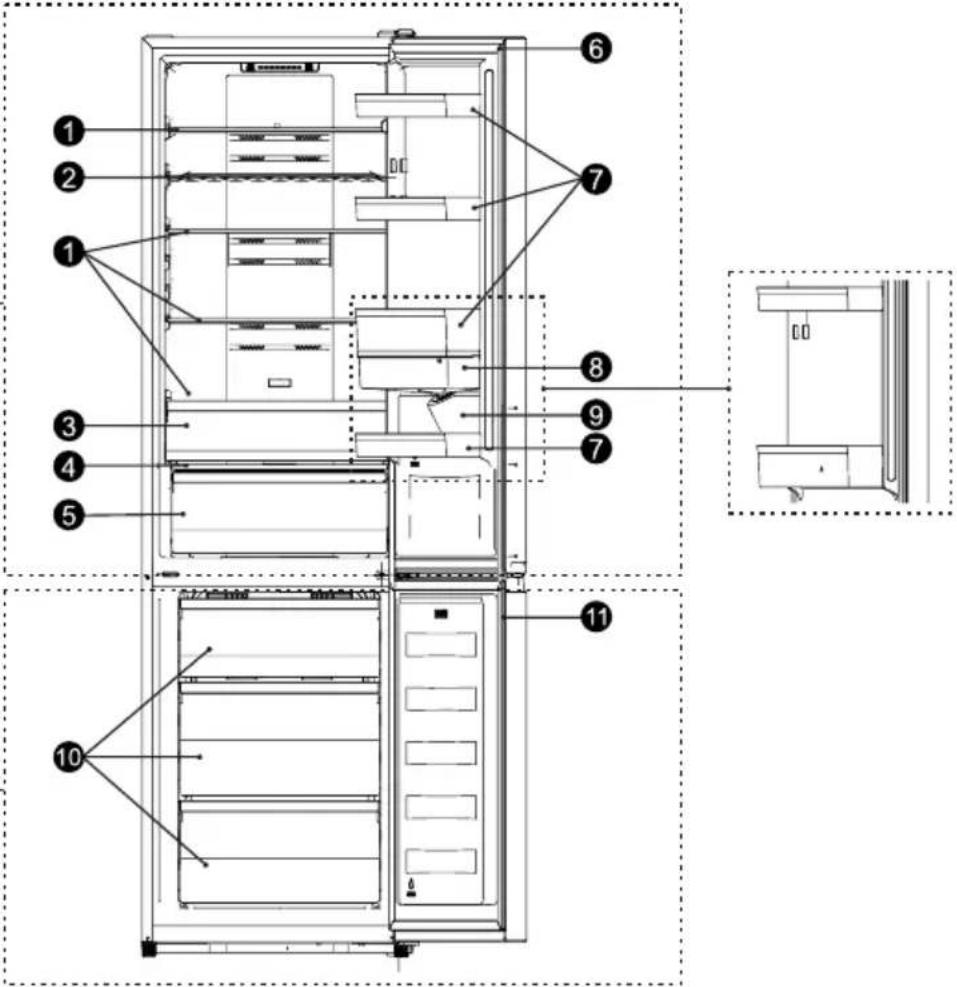

DESCRIPTION OF THE APPLIANCE

• Appliance interior equipment may change according to the appliance model.
• The diagram may slightly differ from the appliance you purchased, please get more information in the E-manual.

A: Fridge

1. Glass shelves
2. Bottle Rack *
3. Drawer
4. Crisper drawer cover
5. Crisper drawer
6. Door gasket
7. Door rack
8. Water tank **
9. Water dispenser *

B: Freezer

1. Drawer
2. Door gasket

A

Technical diagram of a refrigerator with numbered components and exploded view, showing internal layout and labeling.

B

* : Only in some models.
**: If the model is without a water dispenser, the water tank is replaced with a door rack.

CONTROL PANEL

NOTE: The control panel may differ by model, so choose according to your appliance.

For optimum food preservation, we recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 4°C. If you want to change the temperature, follow the instructions below.

NOTE: High temperature setting will accelerate food waste.

Caution!

When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

TYPE 1: Display panel in door

°C 2 3 4 5 6 8

Fridge

- Press “°C” to set fridge temperature between 2°C and 8°C as needed, and display panel will display corresponding values according to the following sequence.

Super Freeze(※)

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster.

• You can press “℃” for 3 sec to get into super freeze mode, freezer temperature will be set at -24°C.
• Super freeze automatically switches off after 52 hours and then the freezer temperature setting will revert back to the previous setting.

Holiday ( )

If you are going to be away for a long period of time, press “☐”, you can activate this function.

- When Holiday Mode is activated, the light will be illuminated. The freezer temperature will be set at -18^ and the fridge temperature will be set at 15^ .

Important!

Do not store any food in the fridge during this time.

Switch (☐) (display panel inside door)

You can switch on or switch off your appliance by press this button.

• Press “☐” for 1 seconds, after a buzzer sound, the appliance will be turned on.
• Press “💡” for 3 seconds, after a buzzer sound, the appliance will be turned off.

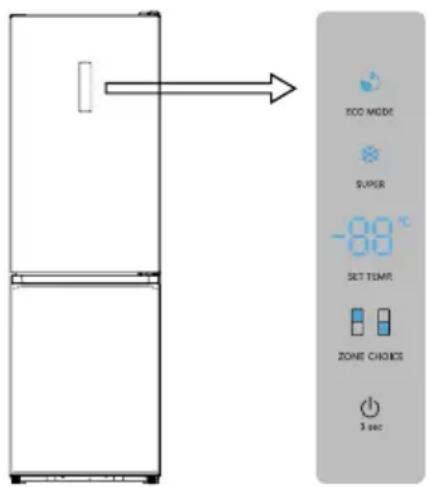

TYPE 2: Display panel on door

ECO MODE SUPER -88°C SET TIME ZONE CHOICE 3 sec

Fridge

Press "ZONE CHOICE", the "☐" light will turn on. Then press "SET TEMP.", you can set fridge temperature between 2°C and 8°C as needed.

Freezer

Press “ZONE CHOICE”, when the “☐” light turns on. Then press “SET TEMP”, you can set freezer temperature between -14^ and -24^ as needed, and the display panel will display corresponding value according to the following sequence.

Super Freeze(\*)

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster.

- You can press "SUPER" to get into super freezer mode, freezer temperature will be set at -24^ .

CONTROL PANEL

- Super freeze automatically switches off after 52 hours and then the freezer temperature setting will revert back to the previous setting.

Eco energy

This function makes the freezer work in a power saving mode which is useful for reducing energy consumption when you are away.

- You can press "ECO MODE" to get into economic energy mode.

- When economic energy Mode is activated, the freezer temperature will be set at -17^ and the fridge temperature will be set at 6^ .

Switch

You can switch on or switch off your appliance by press this button.

- Press “💡” for 3 seconds, after a buzzer sound, meanwhile the digital light shows “OF”, the appliance will be turned off. - Press “💡” for 3 seconds, after a buzzer sound, the appliance will be turned on.

Alarm

- When the door of fridge has been opened for over 2 minutes, the door alarm will sound. Buzzer will stop alarming automatically after 8 minutes. - To save energy, please avoid keeping the door open for a long time.

USING THE APPLIANCE

NOTE: This feature is only available on models with water dispenser.

Water Dispenser

The water dispenser provide chilled water without opening the refrigerator.

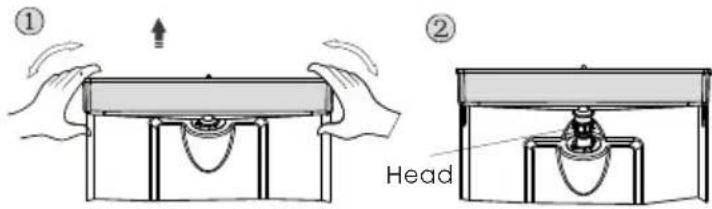

Before using

Clean the water dispenser before using it for the first time.

1. Remove the water tank by holding its two sides and shaking it.
2. Unscrew the head, clean it and the inside of the tank (including both lids).
3. Dry it in natural way or using a dryer.

Diagram illustrating a mechanical setup with labeled components and directional arrows, including 'Head' label.

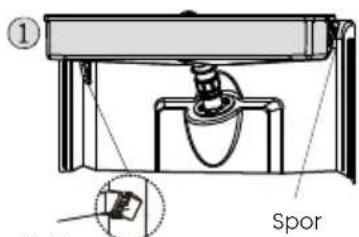

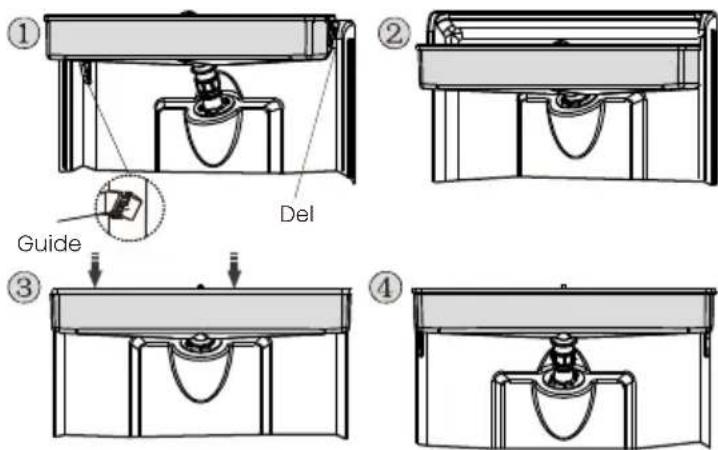

Assembling

After cleaning, reassemble the parts in reverse order of cleaning and fit them on the door.

1. Insert the head into the hole.
2. Fit the tank along the guides.
3. Press down on the two side of the tank.
4. The installation is completed with a click sound.

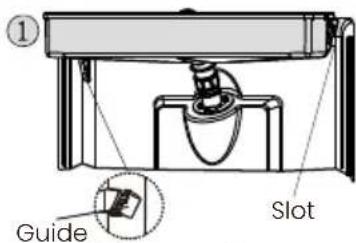

① Guide Slot

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical setup with a beam and pulley, no text or symbols present

Technical line drawing of a mechanical component with a central bracket and top plate (no text or symbols)

Warning

1. Be careful not to press on the head.
2. When fitting the water tank, ensure the head inserted into the hole first.

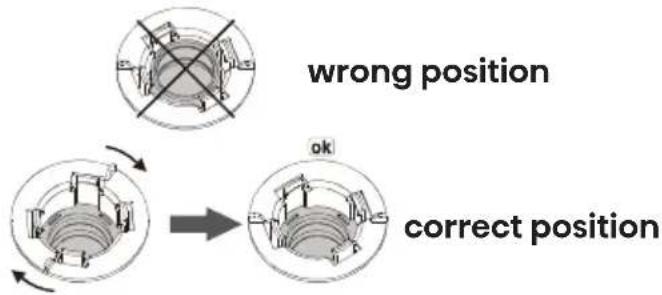

3. If the washer is reversed or loose when removing the tank, first unscrew the fixed holder, reposition the washer, and finally reinstall the holder.

fixed holder

washer

Technical line drawing of a mechanical assembly with no visible text or symbols

USING THE APPLIANCE


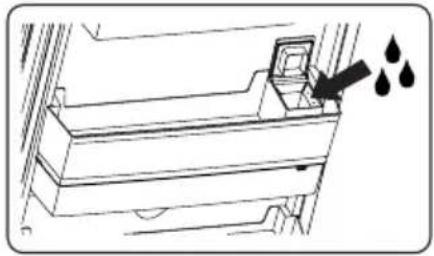

Filling water

1. Before filling the tank, make sure it's stable and correctly positioned.
2. Fill it up to the suggested 4L to avoid overflow, either by removing the small lid and filling through the large lid's inlet, or by removing the tank cover and filling directly.

Line drawing of a door with a lid and water droplets (no text or symbols)

Warning

1. Other beverages (milk, juice, carbonated beverage etc.) are not suggested to be filled in except for drinking water.
2. Hot water is forbidden to be filled into the water tank.
3. To avoid cold air leakage, the water dispenser parts (especially the water tank and head) should be installed even when not in use.
4. Clean the tank with dry towel regularly before overflow.

Receiving tank

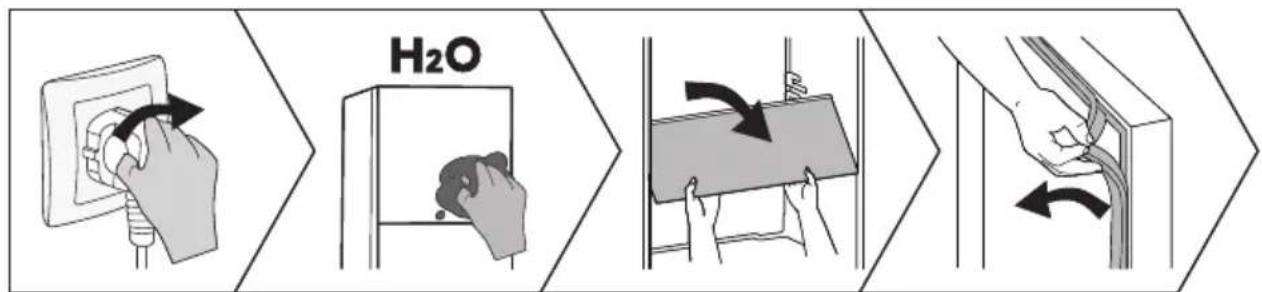

CLEANING AND CARE

• For hygiene, clean the appliance (exterior and interior accessories) regularly at least every two months.
• Ensure the appliance is completely dry before switching back on and plugging back into the mains socket.
• Wipe the inside of the appliance with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth.
  • Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning.
  • This product contains a light source of energy efficiency class F.
• For more cleaning details, please refer to the E-manual.

HELPFUL HINTS AND TIPS

Energy saving tips

We recommend that you follow the tips to save energy.

• Try to avoid keeping the door open for long periods.
• Ensure the appliance is away from any sources of heat.
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.
5. Please refer to the E-manual for more information.

TROUBLESHOOTING

- If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out the following easy checks before calling for service.

- NOTE: You can find more relevant information in the E-manual.

WARNING

Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

DANGER

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.

TROUBLESHOOTING

Problem	Possible cause & Solution
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that the door can be fully closed.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Unable to connect appliance to Wi-Fi network	The Wi-Fi password was entered incorrectly, or the network could not be found.For specific network configuration operations, please refer to the electronic manual.

DISPOSAL OF THE APPLIANCE

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.

WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This marking indicates that this product should no be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SUGGESTION OF USING THE APPLIANCE

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.(Special for models with water tanks)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• NOTE: The information below is for reference only, as functions may vary by models. Please get more details in the E-manual.

Order	Compartments type	Target storage temp.[°C]	Appropriate food	Storage life
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing	/
2	Four-star	≤-18	Seafood, freshwater aquatic products and meats	≤3 months
3	Three-star	≤-18
4	Two-star	≤-12		≤2 months
5	One-star	≤-6		≤1 month
6	Zero-star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. Partially packed/wrapped up encapsulated processed foods (non-freezable foods)	≤3 days
7	Chill	-3~+3	Seafood, pork, beef, chicken, freshwater aquatic products, etc.	2~7 days
8	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc.	≤3 days
9	Wine	+5~+20	Red wine, white wine, sparkling wine, etc.	/

Hisense

life reimagined

QR code image containing encoded data, no visible human-readable text

MANUEL D'UTILISATION DE L'UTILISATEUR

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow

DESCRIPTION DE L'APPAREIL

FCD MEDIUM SUPER -88°C SET TEM ZONE CHOICE 3 sec

Réfrigérateur

Diagram of a door handle with a water drop symbol indicating water release (no text or labels present)

Avertissement

Line drawing of a rectangular frame with a central recess and two side slots (no text or symbols)

Bac de réception

NETTOYAGE ET ENTRETIEN

CONSEILS ET ASTUCES UTILES

Warning symbol with exclamation mark and circular dot, likely indicating alert or hazard level

OK

QR code image containing encoded data, no visible human-readable text

BEDIENUNGSANLEITUNG

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

Technical line drawing of a mechanical device with a handle and base (no text or symbols)

Warnung

Line drawing of a mechanical device with a downward arrow and droplet symbols (no text or labels)

Warnung

QR code image containing encoded data, no visible human-readable text

MANUALE OPERATIVO PER L'UTENTE

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

DESCRIZIONE DELL'APPARECCHIO

Technical diagram of a refrigerator with numbered components and exploded view, showing internal layout and interior details.

TOD WORK SAPER -88° SET TIME ZONE CHOICE 3 sec

Frigorifero

Diagram of a mechanical device with a component and water droplets (no text or symbols)

Avvertenza

Line drawing of a rectangular device with a recessed top and side slots (no text or symbols)

QR code image containing encoded data, no visible human-readable text

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Patas ajustables Patas ajustables

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

Technical diagram of a refrigerator interior with numbered components and an inset view of the front portion.

ECO MODE SOUR -88° SET TEM ZONE CHOICE 3 sec

Frigorífico

Line drawing of a mechanical device with a control panel and water droplets (no text or symbols)

Advertencia

Tanque receptor

LIMPIEZA Y CUIDADO

QR code image containing encoded data, no visible human-readable text

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow

Diagram of a mechanical device with a droplet symbol pointing to a component (no text or labels present)

Aviso

Line drawing of a rectangular device with a recessed top and internal cavity (no text or symbols)

SUGESTÕES E DICAS ÚTEIS

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

BESCHRIJVING VAN HET APPARAAT

Diagram illustrating two experimental setups labeled ① and ② showing a mechanical setup with a central component labeled 'Kop'.

Monteren

Diagram of a refrigerator with a door and water droplets (no text or symbols)

Waarschuwing

Line drawing of a tankopslag device with no text or symbols on the diagram itself

REINIGEN EN ONDERHOUD

QR code image containing encoded data, no visible human-readable text

BRUKSANVISNING

Brandrisk/brandfarliga material

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Justerbara fötter Justerbara fötter

INSTALLATION AV DIN NYA APPARAT

WARNING

Simple line drawing of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and two arrows indicating direction or flow.

BESKRIVNING AV APPARATEN

TOD MODE SUPER -88° SET TEM ZONE CHOICE 3 sec

Kylskåp

Line drawing of a window with a control panel and water droplets (no text or symbols)

Varning

Mottagande tank

RENGÖRING OCH SKÖTSEL

ANVÄNDBARA TIPS OCH RÅD

Energibesparingstips

QR code image containing encoded data, no visible human-readable text

BRUGERMANUAL

INSTALLATION AF DIT NYE APPARAT

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

fodder, et. vippe are Justerbare fødder Justerbare fødder

INSTALLATION AF DIT NYE APPARAT

ADVARSEL

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

BESKRIVELSE AF APPARATET

ECO MODE SAPR SET TEMT ZONE CHOICE 3 sec

Køleskab

① Hoved ②

Advarsel

Line drawing of a window with a door and a water droplet symbol (no text or labels)

Advarsel

NYTTIGE RÅD OG TIPS

Energibesparende tips

QR code image containing encoded data, no visible human-readable text

BRUKERVEILEDNING

100mm 50-70mm 2004mm

Klimaklasse	Omgivelsestemperatur
SN	+10°C til +32°C
N	+16°C til +32°C
ST	+16°C til +38°C
T	+16°C til +43°C

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Nivellering av apparatet (om nødvendig):

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow

BESKRIVELSE AV APPARATET

Technical diagram of a refrigerator interior with numbered components and an inset view of the front portion.

B

*: Kun i noen modeller.
**: Hvis modellen er uten vanndispenser, erstattes vanntanken med en dørramme.

KONTROLLPANEL

Super Freeze (Superfrys) (※)

ECO MODE SLANS -88°C SET TEM ZONE CHOICE 3 sec

Kjøleskap

Super Freeze (Superfrys) (※)

Diagram illustrating two mechanical setups: (1) a hand pressing a component on a base, and (2) a hand holding a housing with a labeled 'Hode' component.

① Spor

Technical line drawing of a mechanical assembly with no visible text or symbols

Guide ③

Technical line drawing of a mechanical assembly with a central component and base (no text or symbols)

Advarsel

Line drawing of a door with a water droplet symbol pointing to the interior (no text or labels)

Advarsel

NYTTIGE TIPS OG RÅD

Energisparetips

QR code image containing encoded data, no visible human-readable text

KÄYTTÖOHJEET

100mm 50-70mm 2004mm

595mm 100mm 100mm 575mm 1150mm 115° 831mm

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

LAITTEEN KUVAUS

FCO MICE SUPER -88°C SET TIME ZONE CHOICE 3 sec

Jääkaappi

Diagram illustrating two mechanical setups with labeled components and motion indicators

Kokoonpano
