USER MANUAL DWV900L DEWALT

English (original instructions) 20

Illustration of a hand using a tool to clean or wash material in a bucket (no text or symbols visible)

Figure 3

Close-up of a mechanical component with a circular feature and a connector (no visible text or symbols)

Figure 4 Figure 5

Technical diagram showing a mechanical component with labeled point C (no text or symbols beyond label)

Technical diagram showing exploded view of a connector with labeled parts p and q, including a lock mechanism indicated.

Figure 6

3D mechanical component diagram showing a cylindrical structure with internal grid pattern and labeled 'S' (no text or symbols beyond label)

Figure 7

Illustration of a hand pressing down on a cylindrical object with a curved arrow, no text or symbols present

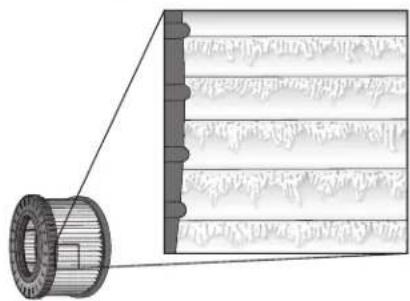

Diagram showing a mechanical component with a spool and layered structure, no text or symbols present

Figure 8

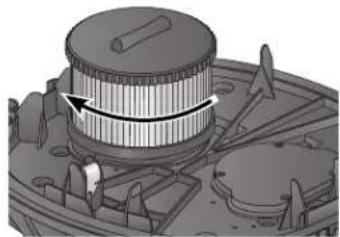

Diagram of a mechanical assembly with a cylindrical component and directional arrows indicating motion (no text or symbols)

Figure 9

Technical diagram showing screw fastening process with magnified view of internal component and assembly details

EKSTRA KRAFTIG BYGGEPLADSST∅VSUGER DWV900L

Tillykke!

EKSTRA KRAFTIG BYGGEPLADSST∅VSUGER

SÅDAN T∅MMES BEHOLDEREN (FIG. 1, 6)

DWV9340-XJ Filter DWV9315-XJ Trykfast slange DWV9401-XJ Papirpose DWV9402-XJ Skindpose DWV9500-XJ Vac Rack

DEWALT AirLock system

DWV9000 Drejelås tilslutning DWV9110 29-35 mm konisk gummiadapter

DWV9120 35-38 mm trindelt gummiadapter

DWV9130 35 mm OD adapter DWV9150 35 mm OD

vinkeladapter

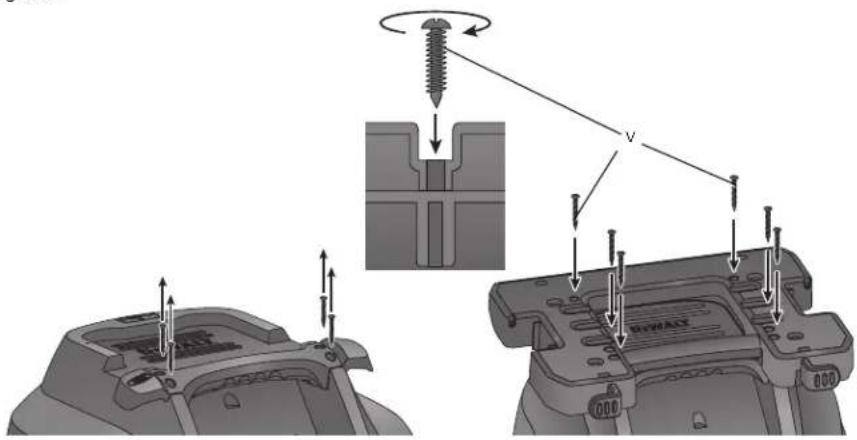

INSTALLATION AF VAC RACK DWV9500 (FIG. 9)

You have chosen a DEWALT product. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DWV900L-QS/GB
Voltage V 230
Type 1
Rated power W 1400
Max power W 3600/3000
Power, normal operation (EN 60335-2-69) W 1200
Frequency Hz 50
Protective class IPX4
Container capacity I 30
Filling quantity (liquid) I 17.5
Flow rate (max at blower)	I/s 68
Negative pressure (max at blower)	kPa	21
Flow rate (EN 60335-2-69)	I/s	29.5
Negative pressure (EN 60335-2-69)	kPa	11.4
Filter surface	m^2	0.3
Power connection data of power tool	W 2200/1600
Hose length	m 2.4
Hose diameter	mm	32
Weight	kg	9.5
Sound values determined according to EN 60335-2-69:
L_PA (sound pressure)	dB(A)	79
K_PA (sound pressure uncertainty)	dB(A)	3
L_WA (sound power)	dB(A)	93
K_WA (sound power uncertainty)	dB(A)	3

NOTE: Switching activity may produce short-term voltage changes or fluctuations. Under unfavorable conditions in public low-voltage supply systems impairment of other appliances might appear. Disturbances will not occur if the impedance is less than 0.450 Ohms.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if

not avoided, may result in property damage.

Denotes risk of electric shock.

risk of fire.

EC-Declaration of Conformity

MACHINERY DIRECTIVE

HEAVY-DUTY CONSTRUCTION DUST EXTRACTOR DWV900L

DEWALT declares that these products described under Technical Data are in compliance with: 2006/42/EC, EN 60335-2-69.

These products also comply with Directive 2014/30/EC and 2011/65/EU. For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

H. Jopsmann

Horst Grossmann

Vice President Engineering

DEWALT, Richard-Klinger-Strasse 11,

D-65510, Idstein, Germany

29.08.2014

WARNING: To reduce the risk of injury, read the instruction manual.

Important Safety Instructions

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

BEFORE USING THIS APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS.

WARNING: Operators shall be adequately instructed on the use of these machines.

WARNING: To reduce the risk of electric shock. Do not expose to rain. Store indoors.

• Before use, operators shall be provided with information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of removal and disposal of the material collected.
• Operators should observe any safety regulations appropriate to the materials being handled.
• Do not leave the appliance when it is connected to a power source. Unplug it from outlet when not in use and before servicing.
• Do not allow the appliance to be used as a toy. Pay close attention when the appliance is used by or near children.
• Use this appliance ONLY as described in the manual. Use only DEWALT recommended attachments.
• Do not use this appliance with a damaged cord or plug. If the appliance is not working correctly, or if it has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.
• Do not pull or carry this appliance by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep cord away from heated surfaces.
• Do not unplug this appliance by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce air flow.
• Keep hair, loose clothing, fingers, and all body parts away from the openings and moving parts.
• Turn off all controls before unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids are present.
• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum.

ENGLISH

- To avoid spontaneous combustion, empty canister after each use.

SAVE THESE INSTRUCTIONS

Additional Safety Rules

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to vacuum combustible explosive materials, such as coal, grain, or other finely divided combustible material.
• Do not use to vacuum hazardous, toxic or carcinogenic materials, such as asbestos or pesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel, heating oil, paint thinner, etc.), acids or solvents.
• Do not use vacuum without filter in place, except as described under Wet Pickup Applications.
• Some wood contains preservatives which can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials. Request and follow any safety information available from your material supplier.
• Do not use vacuum as a step ladder.
• Do not place heavy objects on vacuum.

Markings on Dust Extractor

The following pictograms are shown on the appliance:

Read instruction manual before use.

WARNING: This appliance contains harmful dust. The emptying and maintenance, including the removal of the dust bag, may only be executed by trained personnel wearing suitable protection equipment. Do not switch on until the complete filter system has been installed.

Class L dust extractors are suitable to extract dry, non-combustable dusts with workspace limit values of >1 mg/m ^3 .

DATE CODE POSITION

The date code, which also includes the year of manufacture, is printed into the housing.

Example:

2014 XX XX

Year of Manufacture

Package Contents

The package contains:

1 Dust extractor
1 Hose
1 DWV9130 connector
1 Filter
1 Instruction manual
- Check for damage to the dust extractor, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

WARNING: Never modify the power appliance or any part of it. Damage or personal injury could result.

a. Top handle/cord wrap
b. Power cord
c. On/off power switch
d. Vacuum head
e. Canister latch

f. Canister

g. Suction hose

h. Casters

i. Filter

j. Threaded hose inlet

k. Hose strap

I. Outlet for power tool

m. Bag

These vacuums are used for fine particulate pick-up, like wallboard or surface dust.

This appliance can be used as industrial vacuum cleaner and dust extractor for mobile operations to take up all types of dry, non-combustible dusts up to dust Class L with limit values for occupational exposure greater than 1 mg/m ^3 .

DO NOT use in rain or in presence of flammable liquids or gases.

These heavy-duty vacuums are for professional use. DO NOT let children come into contact with this appliance. Supervision is required when inexperienced operators use this appliance.

DO NOT use the dust extractor for combustible dust.

DO NOT use the dust extractor in explosive atmospheres.

NOTE: This appliance is suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, rental companies, and on construction sites.

- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by DEWALT service organisation by a specially prepared cord which is available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Using an Extension Cable

If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this appliance (see Technical Data). The minimum conductor size is 1.5mm^2 ; the maximum length is 30m .

When using a cable reel, always unwind the cable completely.

ASSEMBLY AND ADJUSTMENTS (FIG. 1–3)

IG: To reduce the risk of injury, turn appliance off and disconnect appliance from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. An accidental start-up can cause injury.

WARNING: The filter (i) must always be in place while vacuuming, except as described under Wet Pick Up Applications under Operation. When vacuuming fine dust, you may also use an additional paper bag or fleece bag to make emptying the canister easier.

1. If optional paper or fleece bag (m) is to be used, install as shown in figure 2.
   NOTE: Be careful not to tear the bag. Place bag securely onto inlet (j) to provide a tight seal for maximum dust collection performance.
2. Place the vacuum head (d) onto the canister and secure it by closing the canister latches (e).
3. Insert end of hose (g) into threaded hose inlet (j) and tighten the end of hose on to the tank.

OPERATION

Instructions for Use (fi g. 1, 4)

VG: Always observe the safety instructions and applicable regulations.

NG: To reduce the risk of injury, turn appliance off and disconnect appliance from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. An accidental start-up can cause injury.

1. Plug the power cord into an appropriate outlet.
2. Turn the on/off switch (c) to the ON position (Ⅱ).
3. Follow the direction under Connecting to Power Tools to connect to the power tool to be used.

ENGLISH

CONNECTING TO POWER TOOLS (FIG. 1, 4, 5)

WARNING: Only use the outlet (I) for purposes specified in the instructions.

1. Plug the vacuum power cord into an appropriate outlet.
2. Plug the power tool into the outlet (I).

NOTE: See Power connection data of power tool under Technical Data for the power allowance of the tool to be plugged into the outlet (I).

1. Turn on/off switch (c) to the ON position (1).
2. Your DEWALT construction dust extractor is fitted with the DEWALT AirLock connection system. The AirLock allows for a fast, secure connection between the suction hose (g) and power tool. The AirLock connector (o) connects directly to DEWALT compatible tools or through the use of an AirLock adapter (available from your local DEWALT supplier). Refer to the Accessories section for detail on available adapters.

NOTE: If using an adapter ensure it is firmly attached to the tool outlet before following the steps below.

a. Ensure the collar on the AirLock connector is in the unlock position. Align notches (q) on collar and AirLock connector as shown for unlock and lock positions.
b. Push the AirLock connector onto the adapter connector point.
c. Rotate the collar to the locked position.

NOTE: The ball bearings inside collar lock into slot and secure the connection. The power tool is now securely connected to the dust extractor.

REMOVE / CHANGE USED DUST COLLECTION BAG (FIG. 1)

VG: Appropriate personal protective equipment like dust mask and gloves should be used while handling used dust bags.

1. Turn off vacuum and unplug cord from outlet.
2. Unlatch canister latches (e) and remove vacuum head (d).
3. Pull the collection bag carefully from inlet (j).
4. Seal the collection bag opening tightly when removing it from the machine.
5. Dispose of collection bag in appropriate container according to statutory provisions.

WET PICK UP APPLICATIONS (FIG. 1, 6)

IG: DO NOT connect power tools to outlet (I) when using the vacuum for wet pick up.

WARNING: Plug vacuum into residual current device (RCD) protected outlet when using the vacuum for wet pick up.

WARNING: If foam or liquid escapes from the machine, switch off immediately.

CAUTION: Clean the water level limiting device regularly and examine it for signs of damage Refer to Fig. 6.

NOTICE: DO NOT remove ball float (s), doing so will cause damage to the vacuum. The ball float keeps water from entering the motor.

Before using the vacuum for wet pick up:

• Ensure the canister is empty and free of excessive dust.
• Remove filter (i).
• Plug vacuum into a RCD protected outlet.

IG: Do not use the machine with this set up for dust Class L.

TO EMPTY CANISTER (FIG. 1, 6)

The ball float valve (s) will block air to the motor when the canister is full and the sound of the motor will change at once. When the motor has a high pilched sound and air/water flow stops, empty the canister.

1. Turn off vacuum and unplug cord from outlet.
2. Unlatch canister latches (e) and remove vacuum head (d).
3. Empty contents of canister (f) into a suitable container or drain.

TO CONVERT BACK TO DRY VACUUM OPERATION (FIG. 1)

1. Empty Canister, refer to To Empty Canister instructions.
2. Place canister upside down position until dry. DO NOT use wet canister for dry pick up.
3. Place vacuum head (d) on a level surface until dry.
4. Reinstall filter when vacuum head is dry. See Filter under Maintenance.
5. When canister is dry place the vacuum head (d) onto the canister and secure it by closing the canister latches (e).

Shut Down/Transportation (fi g. 1)

1. Turn on/off control switch (c) to the OFF position.
2. Unplug the unit.
3. Store the power cord (b) wrapping it around the top handle/cord wrap (a) as shown.
4. When transporting in vehicles, secure the machine.

MAINTENANCE

Your DEWALT appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

WARNING: To reduce the risk

of injury, turn appliance off and disconnect appliance from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. An accidental start-up can cause injury.

WARNING: For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include, decontamination before dismantling, provision for local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

• The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting of, for example, inspection of the filter for damage, air tightness of the machine and proper function of the control mechanism.

- When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned, are to be disposed of; such items shall be disposed of in impervious bags in accordance with any current regulation for the disposal of such waste.

• For dust extractors it is necessary provide for an adequate air change rate L in the room if the exhaust air is returned to the room.

(NOTE: Reference to National

Regulations is necessary.)

Filter (fi g. 1, 7, 8)

FILTER CARE

The filter included with this vacuum is a long life filter. To be effective in minimizing dust recirculation, the filter MUST be installed correctly and in good condition.

WARNING: Appropriate personal protective equipment like dust mask and gloves should be used while handling the filter.

To Remove Filter

1. Turn on/off control switch (c) to the OFF position (O) and unplug cord from outlet.
2. Release canister latches (e) and remove vacuum head (d) from canister. Place vacuum head on a level surface upside down.
3. Turn filter (i) counterclockwise by gripping it on the plastic end cover as shown, and carefully remove from head, ensuring debris does not fall into mounting hole.

NOTE: Use care to not damage filter material.

4 If the bottom side of the vacuum head (d) needs to be cleaned, use a cloth dampened with water and mild soap and allow it to dry. Dispose of cloth in an appropriate container.
5. Inspect filter for wear, tears or other damage. DEWALT filter membranes are teflon coated. A type of damage or wear could be this teflon coating flaking off the membrane, refer to fig 8.

NOTE: If there is any doubt on the condition of the filter, it MUST be replaced. DO NOT continue use if filter is damaged.

VG: Never use compressed air or a brush to clean filter, otherwise damage to the filter membrane will occur which will allow dust to pass through the filter. If needed, gently tap against a hard surface or rinse with room temperature water and let air dry. If visual damage to the filter membrane exists, replace filter. A filter typically last between six and twelve months depending on use and care.

To Install Filter

1. Ensure filter seal (t) is in place and is secure.
2. Line up filter threads (u) to vacuum head threads and using moderate force, turn filter clockwise until tight.

ENGLISH

NOTE: Use care to not damage filter material.

1. Place the vacuum head (d) onto the container and secure it by closing the canister latches (e).

Lubrication

Your appliance requires no additional lubrication.

Cleaning

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the appliance. These chemicals may weaken the materials used in these parts. Never let any liquid get inside the machine; never immerse any part of the appliance into a liquid.

1. Vacuum the outside of the dust extractor. For further cleaning use a cloth dampened only with water and mild soap if necessary.

2. After use dispose of cloth in an appropriate container.

Storage (fi g. 1)

1. Empty the canister, refer to To Empty Canister under Operation.
2. Clean the vacuum inside and outside. Refer to Cleaning.
3. Clean or replace filter, refer to Filter.
4. Store the suction hose and the power cord (b) as shown in the illustration. Place the unit in a dry room and secure it from unauthorized use.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this appliance could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

ACCESSORIES

DWV9340-XJ Filter

DWV9315-XJ Crush-proof hose

DWV9401-XJ Paper bag

DWV9402-XJ Fleece bag

DWV9500-XJ Vac Rack

DEWALT AirLock System

DWV9000 Twist-Lock

connection

DWV9110 29-35 mm tapered

rubber adapter

DWV9120 35-38 mm stepped

rubber adapter

DWV9130 35 mm OD adapter

DWV9150 35 mm OD angle

adapter

VAC RACK DWV9500 INSTALLATION (FIG. 9)

NOTE: The DWV900LT comes with DWV9500 vac rack attachment already installed,

1. Remove the 4 carry handle screws using a T-25 star bit and remove the carry handle.
2. Install the vac rack reusing the carry handle screws. Put them back in their original holes and tighten.)
3. Use the 2 screws (v) provided by placing them in the rear holes of the vac rack. Push down and turn each screw to break through the material and into the hidden screw boss below. Tighten.

CAUTION: Do not exceed 9 kg (20 lb) in each 14 liter storage unit, maximum 2 storage units per dust extractor. Do not exceed 18 kg (40 lb) in a 28 liter storage unit, 1 storage unit per dust extractor. Exceeding the recommended height and/or weight could result in an unstable dust extractor would could cause injury or damage.

NOTICE: Do not remove dust extractor head from tank with T-stack storage units attached. Doing so could result in damage to the dust extractor filter.

SECURING THE POWER CORD TO THE HOSE (FIG. 1)

The power cord (b) can be secured to the suction hose (g) using the D279058CL hose clip (available from your local DEWALT supplier).

Consult your dealer for further information on the appropriate accessories.

Troubleshooting

PROBLEM SOLUTION
Motor does not run	Check power cord, plugs and outlet.
	Ensure the on/off switch is in the ON position (I).
Suction capacity decreases	Remove blockages in the suction nozzle, suction tube, suction hose or filter.
	Replace the paper or fleece bag.
	Check for proper installation of the filter.
	Clean or replace the filter.
	Empty canister, refer to Empty Canister under Operation.
Vacuum stops running	Thermal overload has been tripped:1. Turn the vacuum off and disconnect vacuum cleaner from power source.2. Empty the canister, if needed.3. Allow the unit to cool.4. Plug the power cord into an appropriate outlet and turn on/off switch to the ON position (I) to test. If vacuum will not restart contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DeWALT office at the address indicated in this manual.
Dust comes out while vacuuming	Check for proper installation of the filter.
	Ensure filter are not damaged; replace if necessary.
	Ensure filter seal are in place and are secure.
Power tool does not turn on.	Ensure the on/off switch is in the ON position (I).

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

ESPAÑOL

ENSAMBLAJE Y AJUSTES (FIG. 1-3)

ASSEMBLAGE ET AJUSTEMENTS (FIG. 1–3)

FIXATION DU CORDON D'ALIMENTATION AU TUYAU (FIG. 1)

WAARSCHUWING: Lees de

WAARSCHUWING! Lees alle

WAARSCHUWING: Breng nooit

Filter (afb. 1, 7, 8)

VERZORGING VAN FILTERS

VAC RACK DWV9500 INSTALLATIE (AFB. 9)

KRAFTIG BYGG-ST∅VSUGER DWV900L

Gratulerer!

DWV9340-XJ Filter
DWV9315-XJ Trykkfast slange
DWV9401-XJ Papirpose
DWV9402-XJ Fleece-pose
DWV9500-XJ Vac Rack

DEWALT AirLock System

DWV9000 Vri-lås tilkopling
DWV9110 29-35 mm konisk gummiadapte

DWV9120 35-38 mm trinnvis

gummiadapter

DWV9130 35 mm OD adapter

DWV9150 35 mm vinkel adapter

INSTALLERING AV VAC RACK DWV9500 (FIG. 9)

MONTAGEM E AJUSTES (FIG. 1–3)
