USER MANUAL HUVUDSAKLIG 904.660.04 IKEA

Please record your model and serial numbers below for reference.

Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.

Please attach sales receipt here for future reference.

IMPORTANT SAFETY INSTRUCTIONS .... 3

FEATURES & SPECIFICATIONS....7

BEFORE OPERATING 8

MANUAL OPERATION....9

SENSOR OPERATIONS....11

CONVENIENT FEATURES....12

CLEANING AND CARE ....13

BEFORE YOU CALL....13

IKEA LIMITED GUARANTEE ....14

IMPORTANT SAFETY INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in the Advice & Instruction are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining or operating a microwave.

Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER - Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION - Hazards or unsafe practices which COULD result in minor personal injury.

CAUTION

To avoid personal injury or property damage, observe the following:

1. Do not deep fat fry in oven. Fat could overheat and be hazardous to handle.
2. Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin is pierced, steam escapes evenly.
4. Do not operate oven without load or food in oven cavity.
5. Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch or burn. Do not leave oven unattended.

CAUTION

1. Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and may cause an electrical arc, malfunction, or damage to oven.
2. Do not use metal utensils in oven.
3. Never use paper, plastic, or other combustible materials that are not intended for cooking.
4. When cooking with paper, plastic, or other combustible materials, follow manufacturer's recommendations on product use.
5. Do not use paper towels which contain nylon or other synthetic fibers. Heated synthetics could melt and cause paper to ignite.
6. Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open container or bag before cooking.
7. To avoid pacemaker malfunction, consult physician or pacemaker manufacturer about effects of microwave energy on pacemaker.

SAVE THESE INSTRUCTIONS

WARNING

Improper use of the grounding can result in electric shock.

To avoid risk of electrical shock or death, this oven must be grounded and plug must not be altered.

GROUNDING

INSTRUCTIONS

Oven MUST be grounded.

In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape

wire for the electric current. This oven is equipped with a cord having a grounding wire with a grounding plug. The plug mus be plugged into an outlet that is properly installed and grounded. See assembly instruction.

Consult a qualified electrician or servicer if grounding instructions are not completely understood, or if doubt exists as to whether the oven is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug and a 3-slot. This oven should be plugged into a separate 60 hertz circuit with the electrical ratting as shown in specifications table. When the oven is on a circuit with other equipment, an increase in cooking times may be required and fuses can be blown.

Microwave operates on standard household current, 120V.

WARNING

a. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
b. Longer cord sets or extension cords may be used if care is exercised in their use.
c. If a long cord or extension cord is used:
1. The marked electrical rating of the cord set or extension cord set should be at least as great as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord.
3. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be tripped over, snagged, or pulled on by children or tripped over unintentionally.

Federal Communications Commission Radio Frequency Interference Statement (U.S.A. Only)

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment, pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:

Reorient the receiving antenna of the radio or television.

Relocate the microwave oven with respect to the receiver.

Move the microwave oven away from the receiver.

Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits.

The manufacturer is not responsible for any radio or television interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference.

SAVE THESE INSTRUCTIONS

Radio Interference

1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
   1) Clean door and sealing surface of the oven
   2) Reorient the receiving antenna of radio or television.
   3) Relocate the microwave oven with respect to the receiver.
   4) Move the microwave oven away from the receiver.
   5) Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

WARNING

Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through heating it.
3. Do not use straight-sided containers with narrow necks.
4. After heating, allow the container to stand in the microwave oven for a short time before removing the container.
5. Use extreme care when inserting a spoon or other utensils into the container.

SAVE THESE INSTRUCTIONS

WARNING

When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shocks, fire or injury to persons or exposure to excessive microwave energy.

1. READ ALL instructions before using oven.
2. READ AND FOLLOW the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 3.
3. This appliance must be grounded. Connect only to properly grounded outlet. See GROUNDING INSTRUCTIONS found on Page 4.
4. Install or locate this oven ONLY in accordance with the assembly instructions in this Advice & Instruction.
5. Some products such as whole eggs and sealed containers -(for example, closed jars) -are abl e to explode and SHOULD NOT be HEATED in this oven.
6. Use this oven ONLY for its intended use as described in this Advice & Instruction. corrosive chemicals or vapors in this oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. This appliance should not be used by children.
8. DO NOT operate this oven if it has a damaged cord or power plug, if it is not working properly, or if it has been damaged or dropped.
9. This oven, including power cord, must be serviced ONLY by qualified service personnel. Special tools are required to service oven. Contact [phone] for examination, repair or adjustment.
10. DO NOT cover or block any vents or openings on the oven.
11. DO NOT store this oven outdoors. DO NOT use this appliance near water -(for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations.)
12. DO NOT immerse cord or plug in water.
13. Keep cord AWAY from HEATED surfaces.

14. DO NOT let cord hang over edge of table or counter.

15. Review the door cleaning instructions in the Care & Cleaning section.

16. To avoid the risk of fire in the oven cavity, injury to persons, or exposure to excessive microwave energy.

a. DO NOT overcook food. Carefully attend oven when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven ignite, keep oven door CLOSED, turn oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
d. DO NOT use this oven cavity for storage. DO NOT leave paper products, cooking utensils or food in the cavity when not in use.

1. Liquids such as water, coffee, or tea are able overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON THE CONTAINER IS DISTRURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

2. DO NOT heat baby bottles in oven.

3. Jars must be open when heated and the contents stirred or shaken before consumption, in order to avoid burns.

4. DO NOT use this oven for commercial purposes. It is made for household use only.

SAVE THESE INSTRUCTIONS

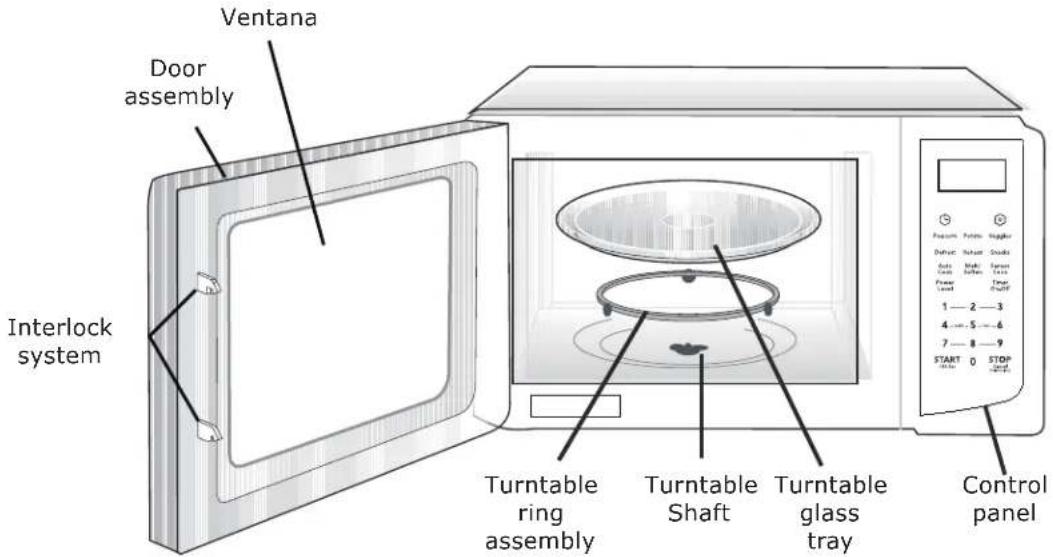

Microwave features

Ventana Door assembly Interlock system Turntable ring assembly Turntable Shaft Turntable glass tray Control panel

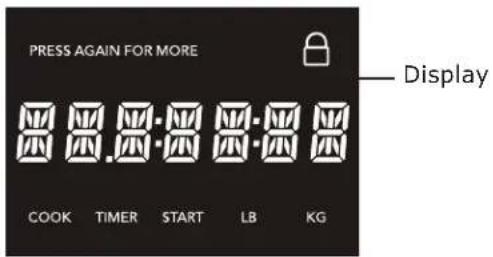

PRESS AGAIN FOR MORE COOK TIMER START LB KG Display

Control panel

(1) (2) (3) (4) (5) (6) (7) (8) Popcorn Potato Veggies (9) Defrost Reheat Snacks (10) Auto Cook Melt/ Soften Sensor Cook Power Level Timer On-Off (11) 1 — 2 — 3 4 — Quick — 5 — Start — 6 7 — 8 — 9 START +30 Sec 0 STOP Cancel Held to Nick (12) (13) (14)

(1) Clock
(2) Potato
(3) Popcorn
(4) Reheat
(5) Defrost
(6) Melt/Soften
(7) Auto Cook
(8) Power level (10 power level available)
(9) User Pref
(10) Veggies
(11) Snacks
(12) Sensor Cook
(13) Timer On-Off
(14) Number Keys
(15) Start/+30Sec.
(16) Stop/Cancel: clears all previous settings pressed before cooking starts.
During cooking: press once to stop oven; twice to stop and clear all entries.

Learn more about your microwave oven

CAUTION

To avoid risk of personal injury or property damage, do not operate the microwave oven empty.

To avoid risk of personal injury or property damage, do not use stoneware, aluminum foil, metal utensils, or metal trimmed utensils in the microwave oven.

Setting the clock

Example: setting clock display for 9:00:

1. Press clock pad once for 12 hour clock system.
2. Enter time using number pads.
3. Press START/+30sec pad.

900

START

+30 Sec

Microwave utensil guide

Use

- Oven proof alass (specifically treated for high intensity heat):

Utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim.

- China:

Bowls, cups, serving plates and platters without metallic trim.

- Plastic:

Plastic must be rated as microwave-safe.

Plastic wrap (as a cover) - lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. Use plastic dishes, cups, semi-rigid freezer containers and plastic bags for short cooking times. Use these with care because the plastic may soften from the heat of the food.

Look for the manufacturer's label for any special instructions for use in the microwave oven.

- Paper:

Paper towels, waxed paper, paper napkins and paper plates with no metallic trim or design. Look for the manufacturer's label for any special instructions for use in the microwave oven.

Do not use

• Metal utensils:

Metal shields the food from microwave energy and produces uneven cooking. Also, avoid metal skewers, thermometers or foil trays. Metal utensils can cause arcing, which can damage your microwave oven.

• Metal decoration:

Bowls, cups, serving plates and platters with metallic trim.

- Aluminum foil:

Avoid aluminum foil.

- Wood:

Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets made of wood will react in the same way.

• Tiahtly covered utensils:

Be sure to leave openings for steam to escape from covered cookware.

Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches may explode.

Look for the manufacturer's label for any special instructions for use in the microwave oven.

- Brown paper:

Avoid using brown paper bags. They absorb heat and can burn.

- Flawed or chipped cooking utensils:

Any utensil that is cracked, flawed or chipped may break in the oven.

- Metal twist ties:

Remove metal twist ties from plastic or paper bags. They become hot and could cause a fire.

Setting the timer

Example: setting timer for 5 minutes

1. Press Timer pad once.

Timer On-Off

1. Enter desired time using number pads. (timer may be set up to 99 minutes and 99 seconds).

500

1. Press Timer pad again.

Timer On-Off

When finished, you will hear a series of beeps.

Safety Lock

You may lock the control panel to prevent the microwave from being accidentally started or used by children.

The safety lock feature is very useful when cleaning the control panel. The lock will prevent accidental programming when wiping the control panel.

Example: to set the safety lock ON:

Press and hold the Stop/Cancel pad for more than 3 seconds. The lock icon will appear in the display window with 1 beep.

STOP Cancel Hold to lock

Example: to change the safety lock from ON to OFF

Press and hold the Stop/Cancel pad for more than 3 seconds. The lock icon will disappear in the display window with 1 beep.

STOP Cancel Hold to lock

Using Quick Start

1 —2 —3 4 -Quick-5 -6 7 —8 —9

Microwave heating or cooking may be quickly set at 100% power level for 1 -9 mi nu tes. Use the number keys 1-9 to choose the desired minutes of cook time (this option will only work using the 1-9 num eric pads.)

Example: to quickly heat for 2 minutes at 100% power:

Press number pad for desired minute(s). The microwave will start at once.

2

Heating with high power level

Example: to heat for 5 minutes and 30 seconds at 100% power:

1. Use the number pads to enter desired heating time.

530

NOTE: For time sets that start with numbers 1 - 9, the remaining numbers must be entered within 2 second from the first key press, otherwise the Quick Start time will be used.

1. Press START/+30sec pad.

START +30 Sec

When finished, you will hear a series of beeps.

Heating with lower power levels

Using the highest power level to heat foods does not always give the best results when some types of food need slower cooking, such as roasts, baked goods or custards.

Your oven has nine other power levels you may choose.

Example: to heat for 4 minutes and 30 seconds at 70% power:

1. Enter cook time.

430

1. Press Power Level pad once for power level PL-HI.

Power Level

1. Press Power Level four times to change to 70% power level. PL-70 appears in the display.

NOTE: For time sets that start with numbers 1 - 9, the remaining numbers must be entered within 2 second from the first key press, otherwise the Quick Start time will be used.

1. Press START/+30sec pad.

START +30 Sec

When finished, you will hear a series of beeps.

Heating with multiple cooking stages

For best results, some microwave recipes call for different power levels or different lengths of time for cooking. Your microwave may be set to change from one stage to another automatically (2 stages maximum).

Example: to cook food at 80% power for 3 minutes and then 50% power for 6 minutes 30 seconds:

1. Use the number pads to enter heating time for the 1st stage.

2. Press Power Level pad.

300

1. Press Power Level three times to change to 80% power level. PL-80 appears in the display.

Power Level

1. Use the number pads to enter heating time for the 2nd stage.

630

Manual Operation

EN

1. Press Power Level (within 1 second) for the 2nd stage.

Power Level

1. Press Power Level six times to change to 50% power level for the 2^nd stage. PL-50 appears in the display.

START +30 Sec

1. Press START/+30 sec pad.

When finished, you will hear a series of beeps.

NOTE:

The "Convenience operation" can't be set as one of multiple cooking.

Adding cook time (+30sec)

Pressing the START/+30sec pad once starts 30 seconds of cooking at a 100% power level.

Pressing the START/+30sec pad during cooking adds 30 seconds (for each press) to the cook time.

Example: to add 1 minute of cook time at the power level of 100%:

1. Press START/+30sec pad 2 times.

NOTE: The "+30sec" function is not available when using the "weight defrost" or any of the "convenience operation" features.

Auto Cook

Do not leave microwave unattended during any of auto cook selections.

Key Press Food Amount		Key
Auto Cook x1	Bacon 1 - 3 slices	1 - 3
Auto Cook x2	Frozen Entree	10 oz20 oz	-
Auto Cook x3	Rice	1 cup2 cups	-

Example: to cook Rice.

1. Press Auto Cook pad 3 times.

Auto Cook

1. Press START/+30sec

START +30 Sec

The microwave will beep when finished.

USING AUTO DEFROST

Three defrost sequences are preset in the oven.

The auto defrost feature provides you with the best defrosting method for frozen foods.

The cooking guide will show you which defrost sequence is recommended for the food you are defrosting.

For added convenience, the Auto Defrost includes a built-in beep mechanism that reminds you to check, turn over, separate, or rearrange the food in order to get the best defrost results. Three different defrosting levels are provided:

1. MEAT

2. POULTRY

3. FISH

Available weight is 0.1-6.0 lbs.

Suppose you want to defrost 2.0 Ibs of meat.

1. Press Defrost pad.

Defrost

1. Press START/+30 sec pad.

START +30 Sec

3 Enter cook weight

20

1. Press START/+30 sec pad. (Refer the table on next page)

START +30 Sec

KEY PRESS	Category	WEIGHTS YOU CAN SET (tenths of a pound)
Defrost	Meat	0.1 to 6.0
Defrost	Poultry 0.1	to 6.0
Defrost	Fish	0.1 to 6.0

Popcorn

CAUTION

DO NOT leave microwave oven unattended while popping corn.

The popcorn feature lets you pop 3 different commercially packaged microwave popcorn sized bags. Use the table below to determine the setting to use:

Key	Food
Popcorn x1	3.3 oz. (default)
Popcorn x2	3.0 oz.
Popcorn x3	1.75 oz.

Example: to pop a 1.75 oz. bag of popcorn automatically:

1. Press POPCORN pad 3 times (refer to table above).

POPCORN

1. Press START/+30sec pad.

START +30 Sec

When finished, you will hear a series of beeps.

EN

SETTING VEGGIES

The Veggies quick touch pad lets you cook fres\h and frozen vegetables.

Key Food
Veggies x1 Fresh
Veggies x2 Frozen

Suppose you want to cook frozen veggies.

1. Press Veggies pad 2 times (refer to table above).

Veggies

1. Press START/+30 sec pad.

START

+30 Sec

SETTING MELT/SOFTEN

The oven uses low power to melt and soften items.

See the following table.

Key Food Amount Key
Melt / Soften x1 Melt Butter		1 stick 1
		2 sticks 2
Melt / Soften x2 Melt Chocolate		2 oz. 2
		4 oz. 4
		8 oz. 8
Melt / Soften x3	Soften Ice Cream	1 Pint 1
		1.5 Quart 2
Melt / Soften x4	Soften Cream Cheese	3 oz. 3
		8 oz. 8

Suppose you want to melt 8 oz. of Chocolate.

1. Press Melt/Soften pad 2 times (refer to table above).

Melt/

Soften

1. Press START/+30 sec pad.

START

1. Enter cook weight

+30 Sec

1. Press START/+30 sec pad.

8

START

+30 Sec

SETTING SNACKS

The Snacks quick touch pad lets you cook frozen pizza, hot dog, meal in a cup and frozen kids meal.

Key	Food	Amount	Key
Snacks x1	Frozen MW Pizza	6-8 oz	Default
Snacks x2	Hot Dog	1-6	1-6
Snacks x3	Meal in a Cup	1 cup	Default
Snacks x4	Frozen Kids Meal	1,2	1,2

Suppose you want to cook a hot dog.

1. Press Snacks pad 2 times (refer to table above).

Snacks

1. Press START/+30 sec pad.

START

1. Enter number of hot dogs.

+30 Sec

1. Press START/+30 sec pad.

1

START

+30 Sec

Sensor Operations

Sensor Cook Operating Tips

The Sensor Cook categories are designed to detect the increasing humidity released by the food during the cooking process. The microwave oven sensor will automatically adjust the cooking time to the type and amount of food. The food categories that are controlled with the humidity sensor are:

Key Food
Sensor Cook x1	Frozen Breakfast (8-12oz)
Sensor Cook x2 Ground Meat
Sensor Cook x3 Fish	Seafood
Sensor Cook x4	Chicken Breast

For best results, do not use one of the Sensor Cook categories twice in succession on the same food portion.

This may result in severely overcooked or burnt food. If the food appears to be undercooked, use one of the Easy Set pads or cook time pads to add more time.

Additional sensor cook suggestions are:

Never start with less than 4 oz. of food.

Use proper containers and covers for best sensor cooking results.

Always use microwave-safe containers.

Never usetight sealing plastic containers.

They will prevent steam from escaping and this will mislead the sensor, usually causing the food to overcook.

Be sure the outside of the cooking containers and the cavity of the microwave oven are dry before placing food in the oven. Excessive moisture turning into steam that does not result from the food cooking can mislead the sensor.

Suppose you want to cook Frozen Breakfast.

1. Press the Sensor Cook pad.
2. Press START/+30sec pad.

START

+30 Sec

Suppose you want to cook Fish Seafood.

1. Press the Sensor Cook pad.
2. Press START/+30sec pad.

Sensor

Cook

START

+30 Sec

Reheat

The reheat feature is designed to detect the increasing humidity released by the food during the cooking process. The microwave oven sensor will automatically adjust the cooking time to the type and amount of food.

Key Selection Amount Key
Reheat x1	Beverage 1-3 cups 1-3
Reheat x2	Dinner Plate	1-2 plates	Default
Reheat x3	Soup - Sauce	1-2 cups 1-2
Reheat x4	Casserole	1-4 servings	Default

Notes concerning sensor reheat:

• For casseroles, add 2-3 tablespoons of liquid, cover with lid or vented plastic wrap. Stir when instructed from display.
• For canned foods, empty contents of can into a casserole dish or serving bowl. Cover dish with lid or vented plastic wrap. Let stand a few minutes before serving.
• For plates of food, arrange food on plate and add any butter or gravies, etc. Cover with loose-fitting lid or vented plastic wrap. After reheating, let stand a few minutes be

Example: suppose you want to reheat 1 cup beverage.

1. Press Reheat pad.

Reheat

1. Press START/+30sec pad.

START

1. Enter 1.

+30 Sec

1. Press START/+30sec pad.

1

START

+30 Sec

Baked Potato

The potato feature cooks 1-4 baked potato automatically (starting from room temperature).

1. Press the Potato pad.

Potato

1. Press START/+30sec pad.

START

+30 Sec

Convenient Features

USER REFERENCE

This section gives instructions for operating each function. Please read this section carefully.

USER PREF

The microwave oven has settings that allow you to customize the operation for your convenience. Below is the table showing the various settings. Touch the User Pref key multiple times to scroll to the desired setting function.

Key Function
User Pref x 1 Volume
User Pref x 2 Weight
User Pref x 3 Power	Save
User Pref x 4 Demo	Mode

SETTING AUDIO LOW/MED/HIGH/OFF

Suppose you want to turn on the Volume Off.

1. Press the User Pref pad.
2. Press START/+30sec pad when display indicates volume level is off.

START

+30 Sec

SETTING WEIGHT LBS/KG

Suppose you want to toggle weight between pounds & kilograms.

1. Press the User Pref pad twice.
2. Press START/+30sec pad.

START

+30 Sec

SETTING ENERGY SAVINGS

Suppose you want to set the energy savings.

1. Press the User Pref pad three times.
2. Press START/+30sec pad.

START

+30 Sec

SETTING DEMO MODE

Suppose you want to enter Demo Mode.

1. Press the User Pref pad four times.
2. Press START/+30sec pad.

START

+30 Sec

Care & Cleaning Before You Call

Cleaning suggestions

For best performance and for safety reasons, keep the oven clean inside and outside. Take special care to keep the inner door panel and oven from frame free of food and grease build-up.

Never use rough scouring powder or pads on the microwave. Wipe the microwave oven inside and out with a soft cloth and warm (not hot) mild detergent solution. Then rinse and wipe completely dry.

Wipe spatters immediately with a wet paper towel, especially after cooking greasy foods like chicken or bacon.

Follow these instructions to clean and care for your microwave oven:

Keep the inside (cavity) of the oven clean. Food particles and spilled liquids can stick to the oven walls, causing the oven to work less efficiently.

Wipe up spills immediately. Use a damp, clean cloth and mild detergent. DO NOT use harsh detergents or abrasive cleaners.

To help loosen baked-on food particles or liquids, heat 2 cups of water (add the juice of 1 lemon if you desire to keep the oven fresh smelling) in a 4 cup measuring glass at High power for 5 minutes or until boiling. Let stand in oven cavity for 1 or 2 minutes.

Remove the glass turntable tray from the oven when cleaning the oven cavity or tray. To prevent the glass turntable from breaking, handle with care and do not put it in water immediately after cooking. Wash the turntable tray with mild detergent.

Clean the outside surface of the microwave with mild detergent and a clean damp cloth. Dry with a clean soft cloth. To prevent damage to the operating parts of the oven, do not let water seep into any vents or openings.

Wash the oven door window with very mild soap and water. Be sure to use a soft clean cloth to avoid scratching.

If steam accumulates inside or outside the oven door, wipe with a soft cloth. Steam can accumulate when operating the oven in high humidity and in no way indicates microwave leakage.

Never operate the oven without food in the oven cavity; this can damage the magnetron tube or glass tray.

Solutions to Common Problems Troubleshooting guide

If you have a problem you cannot solve, please do not hesitate to call our service line:

Questions or for Service Call: [phone]

Before you call a repair person for your microwave, check the list below for possible easy solutions to some common problems.

Neither the microwave's display or oven operates - Properly insert the plug into a grounded power outlet.

Remove the plug from the outlet, wait 10 seconds, then plug the microwave in again.

Check the household circuit breaker.

Plug the microwave into a different power outlet.

The oven display works, but the oven will not operate -

Make sure the oven door is closed securely and completely.

Check to see if packing material or other materials are stuck to the door seal.

Check for damage to the oven door. Contact service if dagered.

Press the STOP pad twice and attempt to re-enter cooking instructions.

Plug the microwave into a different power outlet.

The power goes off before the cook time has elapsed -

If there has been a power interruption, remove the plug from the outlet; wait 10 seconds, then plug the microwave in again. If there was a power outage, the time indicator in the display will show 00:00.

Reset the clock and any cooking instructions

Check the household circuit breaker.

Press the STOP pad twice and attempt to re-enter cooking instructions.

Plug the microwave into a different power outlet.

Food is cooking too slowly -

Make sure the oven is on a separate 20 amp circuit line. Operating another appliance on the same circuit can cause a voltage drop.

You see sparks or arcing -

Remove any metallic utensils, cookware or metal ties from the oven cavity.

The turntable makes noises or sticks -

Clean the turntable, roller ring and oven cavity bottom. Make sure the turntable and roller ring are positioned correctly.

Using your microwave causes TV or radio interference -

This is similar to the interference caused by other small appliances, such as hair dryers. Move your microwave further away from other appliances.

Please note: If the oven is set to cook for more than 30 minutes at 100% power level, it will automatically adjust itself to a 80% power level after 30 minutes to avoid overcooking

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN or TILLREDA in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA "Service Provider" will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. Some exceptions not guaranteed are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault (e.g., repairs, parts, labour and travel) will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.
- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
- Cases where no fault could be found during a technician's visit.
- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
- Repairs caused by installation which is faulty or not according to specification.
- The use of the appliance in a non-domestic environment i.e. professional use.
- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.
- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

How country law applies

The IKEA guarantee gives you specific legal rights, and you may also have other rights which vary from state to state or jurisdiction to jurisdiction. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in United States or Canada, or moved to one of the mentioned countries, the services will be provided in the framework of the guarantee conditions normal in the specified country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;
• ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
• ask for clarification on functions of IKEA appliances.

IKEA

Phone number:

[phone]

Opening hours:

Monday - Friday

8:30 am - 8:00 pm EST

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

In order to provide you a quicker service, we recommend to use the specific phone

numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for.

Please also always refer to the IKEA article number (8 digit code) placed on the rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliancedocumentation carefully before contacting us.

CONTENU

FR

CONSIGNES DE SÉCURITÉ IMPORTANTES .....16

CARACTÉRISTIQUES ET SPÉCIFICATIONS .....20

AVANT UTILISATION....21

UTILISATION MANUELLE 22

UTILISATIONS DU CAPTEUR. 24

CARACTÉRISTIQUES PRATIQUES ..... 25

ENTRERIEN ET NETTOYAGE 26

AVANT D'APPELER....26

GARANTIE LIMITÉE IKEA 28

CONSIGNES DE SÉCURITÉ IMPORTANTES

PRÉCAUTIONS POUR ÉVITER L'EXPOSITION POSSIBLE À UNE ÉNERGIE MICRO-ONDES EXCESSIVE

(15) Demarrer/+30Sec.

STOP Cancel Hold to lock

STOP Cancel Hold to lock

Touche Aliments
Veggies x1 Fresco
Veggies x2 Conge	lado
