305029 - Soda maker Arendo - Free user manual and instructions

Brand	Arendo
Model	305029
Product type	Water carbonating machine
Bottle capacity	Approximately 850 ml
Operating temperature	0 °C to 40 °C
Material	PET and ABS
Package contents	Water carbonator, 2 water bottles, 2 lids, instruction manual
Power supply	CO2 gas bottle (not included)
Main function	Carbonation of water by CO2 injection
Carbonation level	Adjustable by number of presses (1x: low, 2x: medium, 3x: high)
Usage	Cold water only, no additives before carbonation
Maintenance and cleaning	Clean the bottle with warm water and mild detergent; do not use in dishwasher; do not use alcohol, acetone, benzene
Safety	Do not open the appliance; avoid moisture; do not expose to high temperatures; keep out of reach of children
Spare parts	Replacement water bottles available (not specified)
Repairability	Any repair not carried out by the supplier voids the warranty
Weight (estimated)	Approximately 1.5 kg
Dimensions (estimated)	Approximately 25 x 15 x 40 cm
Warranty	Warranty valid when used in accordance; unauthorized repair voids warranty
General information	Manufactured by WD Plus GmbH, Hanover; conforms to European requirements

Frequently Asked Questions - 305029 Arendo

How to use the Arendo 305029 water carbonating machine?

Fill the bottle with cold water up to the fill line. Screw the bottle onto the sleeve. Press the button one or more times depending on the desired carbonation level. Wait for the residual pressure to escape, then unscrew the bottle.

What liquids can I carbonate?

Only plain water. Never carbonate juice, milk, wine or any other beverage. Do not add fruits, syrup, ice or flavors before carbonation. Add them to a glass afterwards.

How to clean the water bottle?

Wash the bottle with warm water and mild detergent. Use a non-abrasive brush to avoid scratching the plastic. Never put it in the dishwasher, as high temperatures can weaken the plastic.

What if the water is not carbonated enough?

Check that the gas bottle is not empty. Try screwing the gas bottle more tightly. Make sure to press the button fully. If the problem persists, the gas bottle seal may be defective.

Can I add fruits or syrup before carbonation?

No, never add additives to the water bottle before carbonation. Residues can clog the valves and cause malfunction. Add flavors directly to your glass after carbonation.

How to install the CO2 gas bottle?

Remove the grid and place the appliance on its side, button facing up. Unscrew the plastic seal from the gas bottle. Insert the gas bottle through the bottom hole and screw it clockwise until it is fixed. Do not overtighten to avoid damaging the thread.

Why does gas escape when screwing the gas bottle?

This likely indicates a leak. Try screwing the gas bottle a bit more firmly. If the problem persists, the gas bottle seal may be damaged.

Can I put the water bottle in the dishwasher?

No, the water bottle cannot withstand the high temperatures of the dishwasher (above 40 °C). Wash it by hand with warm water.

What is the maximum temperature for the water bottle?

The water bottle withstands a maximum temperature of 40 °C. Beyond that, the plastic may weaken. Do not expose it to direct sunlight, near a radiator or in an oven.

Where to find spare parts?

Replacement water bottles and other parts are available on www.ganzeinfach.de or from your retailer.

USER MANUAL 305029 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganziinfach.de in our download area.

Usage and safety instructions

• Please read the user manual completely before using the product for the first time.
• This manual contains important information for your safety as well as for using and maintaining the product.
• Keep the user manual for future reference and pass it on when giving the product to others.
  Note all the additional warnings on the product and in this user manual.
• Never carbonise anything other than normal water.
• During carbonation, a small amount of liquid could bubble up through the valves. If the water contains sugar or other compounds, the valves could malfunction and the product could

be potentially dangerous to use. Never add fruit slices, ice and flavouring agents to the water bottle. Use a jug or mix it directly into your glass. Rinse the water bottle carefully before you fill it with water.

• Do not add fruits, vegetables or herbs to the water bottle before carbonation.
• Do not add any flavours or syrup to the water bottle before carbonation.
• Wine should not be carbonated.
• Do not carbonate juice or milk.
• Do not add ice to the water bottle before carbonation.
• Never clean the water bottle in the dishwasher.

• The water bottle is designed to withstand a pressure up to twice the operating pressure of the carbonator. However, this property is quickly destroyed if the bottle is exposed to temperatures over 40 degrees Celsius. Most dishwashers operate at very high temperatures, so the bottle should never be cleaned in the dishwasher.

• Keep the carbonator away from potential sources of heat.

• According to the laws of physics, the pressure in the gas cylinder depends on the outside temperature. The carbonator is optimised for using the gas

cylinder at room temperature. If the cylinder becomes too hot, it could be dangerous to use the appliance.

• Do not place the carbonator in front of a sunny window.
• Do not place the carbonator near a hot radiator.
• Do not place the carbonator near an open flame.
• Do not use the carbonator in very hot conditions.
• Do not transport the carbonator with the gas cylinder attached.
• Always remove the gas cylinder during transport.
• Do not use the water bottle after the expiry date.

arend

• After the expiry date, the plastic bottle may not be strong enough and it should be replaced with a new bottle for safety reasons.
• Never use a bottle that is deformed, discoloured or scratched.
• Never put the bottle in the freezer.
• Prevent bacteria and bad smell by keeping the bottle always clean and storing it without the cap screwed on.
• Never add gas to an empty water bottle.
• Using an empty water bottle can increase the pressure in the water bottle, which could result in a safety risk.

• Keep the carbonator out of the reach of children.

• Children are much too creative to use this product.
  Always use your carbonator in an upright position.

• If you do not use the appliance upright, dangerous amounts of CO2 may accumulate in the water bottle during carbonation.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Carbonator
  2 water bottles
• 2 lids
• User manual

2. Technical data

maximum bottle capacity Approx. 850 ml
Operating temperature 0-40°C
Material PET + ABS

3. Before initial use

Take the appliance out of the package and remove all the packaging material. Check the product and water bottles for damage. Place the product only on a firm, even and dry surface.

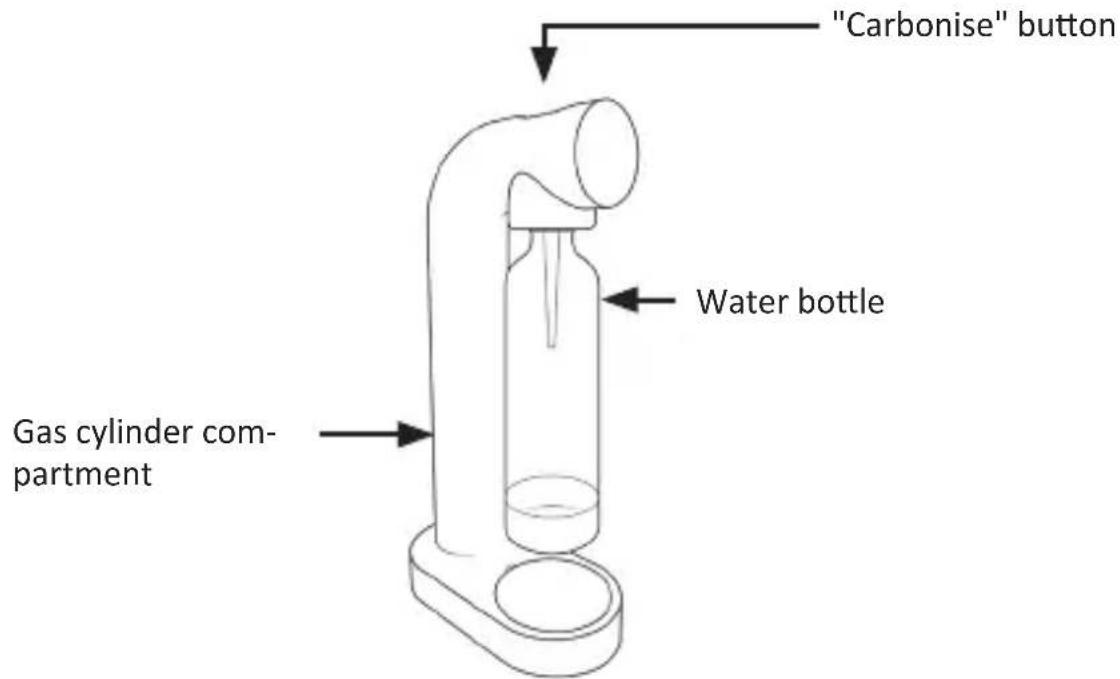

4. Product details

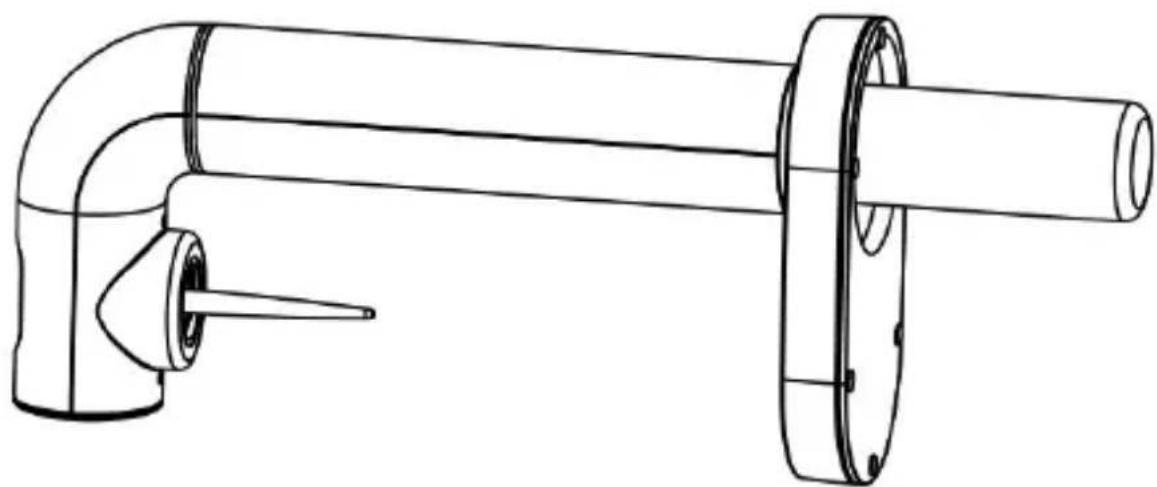

5. Installing the pressurised cylinder

Slide the pressurised cylinder into the compartment provided and tighten it.

Caution! Be careful when using gas cylinders! Gas cylinders are pressurised and can explode if heated! Therefore, please store them in a well-ventilated room!

Remove the mesh of the drip pan and then place the carbonator carefully on its side with the knob facing up.

Remove the plastic seal from the top of the gas cylinder. Guide the gas cylinder carefully through the hole at the bottom. Do not drop the cylinder into the hole. If you feel that it has reached the bottom, start turning the cylinder clockwise until it is fixed. Do not tighten too much as this could break the thread that holds the gas cylinder in place.

When replacing the gas cylinder, place the carbonator on its side with the knob facing up and remove it by turning counter-clockwise. Then take it out carefully from the compartment.

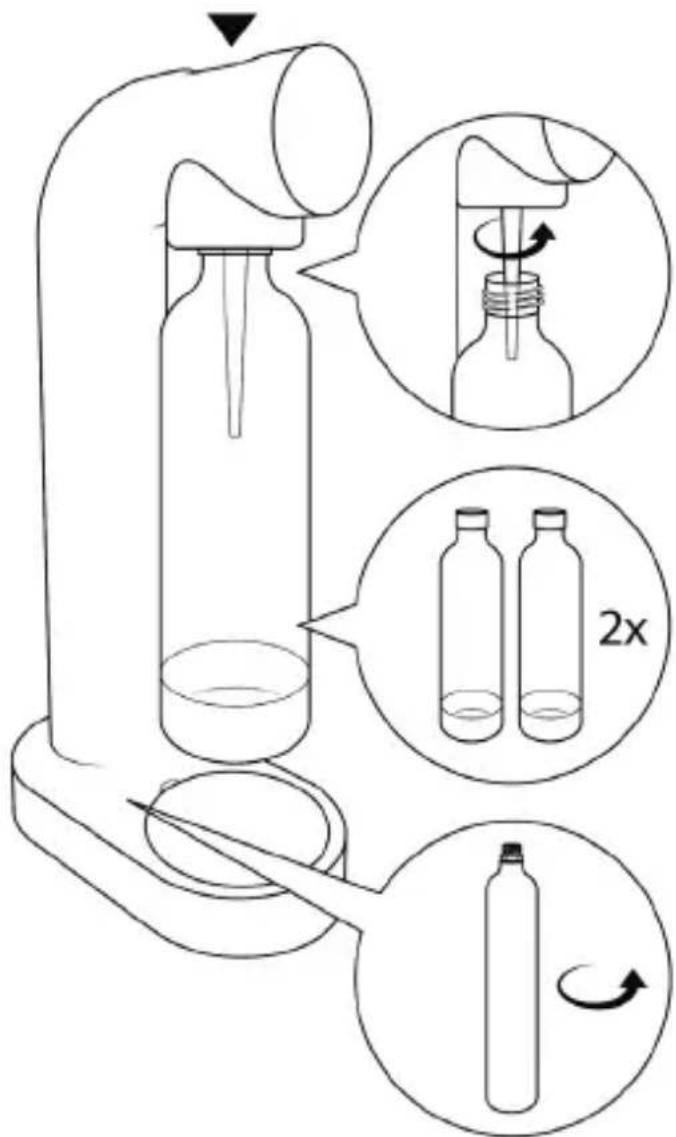

6. Usage and function

1. Rinse the water bottle with lukewarm water before using it for the first time. Fill the water bottle with cold, clean water up to the filling line that is marked. If you fill too much, there will be a lot of water in the drip pan during carbonation.

2. Screw the water bottle into the water bottle neck. If viewing from above, please screw it counter-clockwise. Do not tighten too much. just make sure that the water bottle is properly fixed.

3. Press the button down until you hear a sound from the valve.

4. Then release the button again. The residual pressure in the water bottle is released with a noise. Then unscrew the water bottle.

7. Carbon dioxide content

With the carbonator you can easily learn how to adjust the degree of carbonation or the desired quantity of carbon dioxide. The degree of carbonation depends on many factors such as water temperature and the amount of gas in the gas cylinder.

A sample for dispensing quantity:

Press 1 time: small quantity of carbon dioxide Press 2 times: medium quantity of carbon dioxide Press 3 times: large quantity of carbon dioxide

8. Cleaning and Care

Caution! Never use alcohol, acetone, benzene or any other aggressive cleaning agents to clean the plastic components. Do not use hard brushes or metallic objects. The appliance is not suitable for cleaning in dishwashers!

To clean the water bottle, use clean lukewarm water with a mild cleaning agent. If you are using a dish washing brush, make sure the brush is meant for cleaning plastic bottles and does not scratch the surface. Do not use solvents, strong cleaning agents or cleaning agents containing scouring substances.

Water that is flushed through the machine during carbonation ends up in the drip pan. This happens often if there is too much water in the water bottle. Make sure that the water is not filled above the filling line and empty the bottle regularly.

9. Troubleshooting

Error Cause of error/ Troubleshooting
No gas or too little gas comes out when the button is pressed	Check if the gas cylinder is emptyTry to tighten the cylinder a bit more and try again. Some old cylinders require this to be done.Make sure that you press the button down fully (without applying too much force).
When the button is pressed, gas enters the bottle but the water is not carbonated.	Try to tighten the cylinder a bit more.Something could be wrong with the gas cylinder seal.
Gas starts to enter the machine when tightening the cylinder even though the button is not pressed	There may be a leak between the cylinder and the machine. Try to tighten the cylinder a bit more.Something could be wrong with the gas cylinder seal.

10. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions.

Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

The company WD Plus GmbH hereby certifies that the appliance 305029/20200930NB163 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
