305595 - Soda maker Arendo - Free user manual and instructions

Product Type	Water carbonator (sparkling water maker)
Brand	Arendo
Model	305595
Maximum bottle capacity	Approx. 850 ml
Material	PET (bottle) + ABS (body)
Operating temperature	0 to 40 °C
Package contents	1 carbonator, 2 water bottles, 2 lids, instruction manual
Power supply	Mechanical (pressurized CO2 cartridge)
Operation	Carbonation by gas pressure – press the “Bubbles” button
Carbonation level	Adjustable by number of presses (1x = low, 2x = medium, 3x = high)
Safety	Only carbonate pure water; do not add sugar, fruits, ice before carbonation; bottle withstands double working pressure; do not expose to temperatures above 40 °C
Maintenance and cleaning	Bottle: warm water and mild detergent, non-abrasive brush; body: damp wipe; do not put in dishwasher
Spare parts and repairability	Replacement bottles available; unauthorized repairs void warranty
Warranty	Manufacturer warranty according to terms (any unauthorized modification voids warranty)
Compliance	Compliant with essential requirements (declaration available from WD Plus GmbH)

Frequently Asked Questions - 305595 Arendo

Which liquids can I carbonate with the Arendo 305595?

Only pure water. Never carbonate juice, milk, wine, or any liquid containing sugar, flavors, or fruit, as this can damage the valves and pose a safety risk.

How to adjust the carbonation level?

The level depends on the number of presses on the button: 1 time = lightly carbonated, 2 times = moderately carbonated, 3 times = highly carbonated. The water temperature and the amount of CO2 in the cartridge also affect the result.

Can I add flavors or ice cubes before carbonating?

No. Never add flavors, syrup, fruit, herbs, vegetables, or ice to the bottle before carbonation. Add them afterwards, directly to your glass.

How to install the CO2 cartridge?

Place the carbonator on its side, button facing up. Remove the plastic seal from the cartridge, insert it into the compartment through the bottom hole and screw it clockwise until it is secure. Do not overtighten.

What to do if the water is not carbonated enough?

Check that the CO2 cartridge is not empty. Screw it a little tighter. Make sure to press the button all the way down. If the problem persists, the cartridge seal may be defective.

Can I put the bottle in the dishwasher?

No. The bottle is pressure-resistant, but temperatures above 40 °C weaken it. Dishwashers reach high temperatures. Wash it by hand with warm water and a mild detergent.

How to clean the carbonator?

Never use alcohol, acetone, benzene, or harsh products. Wipe the body with a damp cloth. Clean the bottle with a non-abrasive brush and mild dish soap. Rinse thoroughly.

Can I use an expired or scratched water bottle?

No. A bottle past its expiration date may be weakened. Replace it. Also, never use a deformed, discolored, or scratched bottle for safety reasons.

Where to place the carbonator?

Place it on a firm, flat, dry surface away from heat sources (radiator, flame, sunny window). Do not use it at extreme temperatures and always in an upright position.

What to do if gas escapes when screwing in the cartridge?

This likely indicates a leak between the cartridge and the machine. Try screwing the cartridge a little tighter. If that does not solve the problem, the cartridge seal may be defective – replace it.

USER MANUAL 305595 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Symbolic diagram with a black 'X' over a wave and dashed lines, enclosed in a square frame (no text or labels)

Symbolic diagram with a black 'X' over a grid of circles and stars, enclosed in a square frame (no text or labels)

⚠️ Usage and safety instructions

• Please read the user manual completely before using the product for the first time.
• This manual contains important information for your safety as well as for using and maintaining the product.
• Keep the user manual for future reference and pass it on when giving the product to others.
• Note all the additional warnings on the product and in this user manual.
• Never carbonise anything other than normal water.
• During carbonation, a small amount of liquid could bubble up through the valves. If the water contains sugar or other compounds, the valves could malfunction and the product could

be potentially dangerous to use. Never add fruit slices, ice and flavouring agents to the water bottle. Use a jug or mix it directly into your glass. Rinse the water bottle carefully before you fill it with water.

• Do not add fruits, vegetables or herbs to the water bottle before carbonation.
• Do not add any flavours or syrup to the water bottle before carbonation.
• Wine should not be carbonated.
• Do not carbonate juice or milk.
• Do not add ice to the water bottle before carbonation.
• Never clean the water bottle in the dishwasher.

Symbolic diagram with a black 'X' over a grid of circles and dashed lines, enclosed in a square frame (no text or labels)

- The water bottle is designed to withstand a pressure up to twice the operating pressure of the carbonator. However, this property is quickly destroyed if the bottle is exposed to temperatures over 40 degrees Celsius. Most dishwashers operate at very high temperatures, so the bottle should never be cleaned in the dishwasher.

• Keep the carbonator away from potential sources of heat.
• According to the laws of physics, the pressure in the gas cylinder depends on the outside temperature. The carbonator is optimised for using the gas

cylinder at room temperature. If the cylinder becomes too hot, it could be dangerous to use the appliance.

• Do not place the carbonator in front of a sunny window.
• Do not place the carbonator near a hot radiator.
• Do not place the carbonator near an open flame.
• Do not use the carbonator in very hot conditions.
• Do not transport the carbonator with the gas cylinder attached.
• Always remove the gas cylinder during transport.
• Do not use the water bottle after the expiry date.

arenio

• After the expiry date, the plastic bottle may not be strong enough and it should be replaced with a new bottle for safety reasons.
• Never use a bottle that is deformed, discoloured or scratched.
• Never put the bottle in the freezer.
• Prevent bacteria and bad smell by keeping the bottle always clean and storing it without the cap screwed on.
• Never add gas to an empty water bottle.
• Using an empty water bottle can increase the pressure in the water bottle, which could result in a safety risk.

• Keep the carbonator out of the reach of children.

• Children are much too creative to use this product.

• Always use your carbonator in an up-right position.
• If you do not use the appliance up-right, dangerous amounts of CO2 may accumulate in the water bottle during carbonation.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Carbonator
• 2 water bottles
• 2 lids
• User manual

2. Technical data

maximum bottle capacity Approx. 850 ml
Operating temperature 0-40°C
Material PET + ABS

3. Before initial use

Take the appliance out of the package and remove all the packaging material. Check the product and water bottles for damage. Place the product only on a firm, even and dry surface.

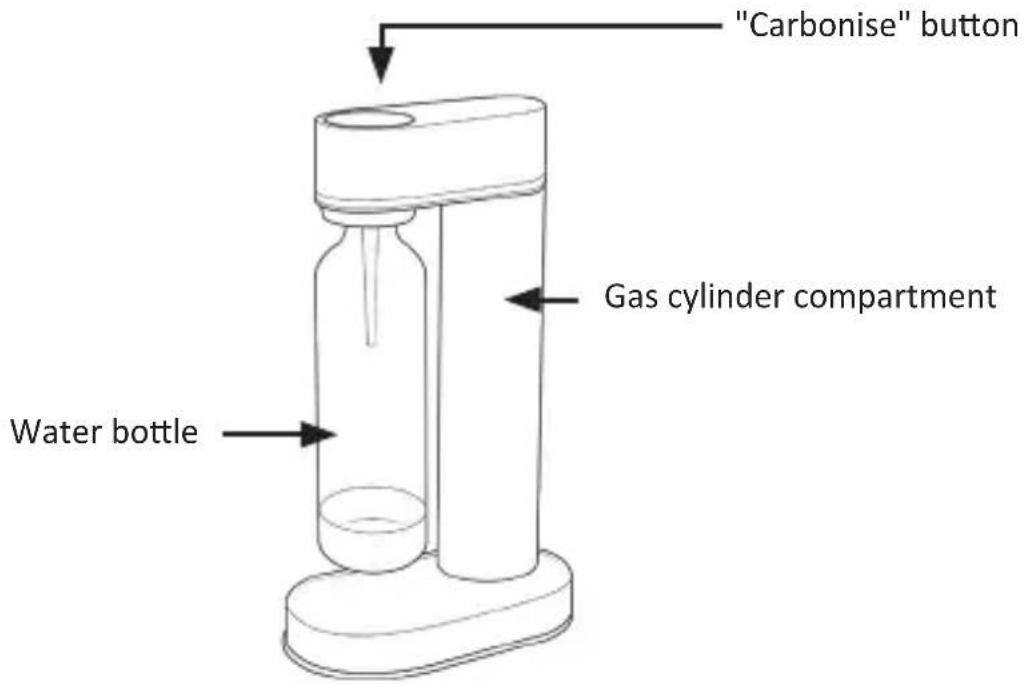

4. Product details

5. Installing the pressurised cylinder

Slide the pressurised cylinder into the compartment provided and tighten it.

Caution! Be careful when using gas cylinders! Gas cylinders are pressurised and can explode if heated! Therefore, please store them in a well-ventilated room!

Remove the mesh of the drip pan and then place the carbonator carefully on its side with the knob facing up.

Remove the plastic seal from the top of the gas cylinder. Guide the gas cylinder carefully through the hole at the bottom. Do not drop the cylinder into the hole. If you feel that it has reached the bottom, start turning the cylinder clockwise until it is fixed. Do not tighten too much as this could break the thread that holds the gas cylinder in place.

When replacing the gas cylinder, place the carbonator on its side with the knob facing up and remove it by turning counter-clockwise. Then take it out carefully from the compartment.

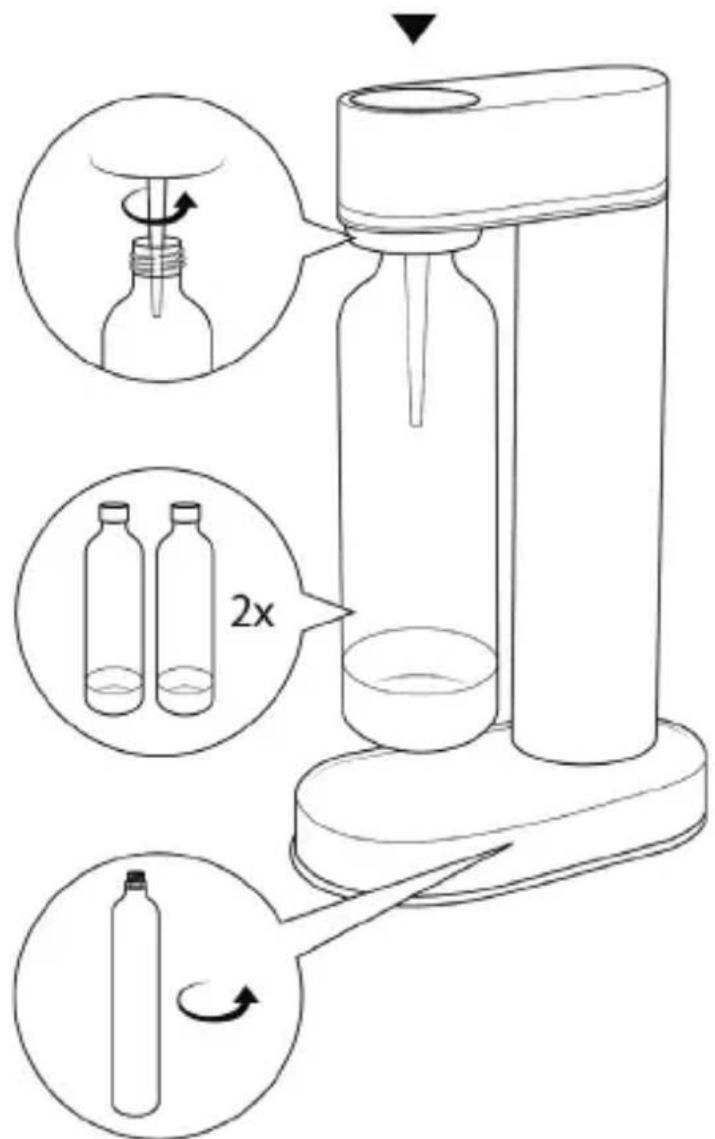

6. Usage and function

1. Rinse the water bottle with lukewarm water before using it for the first time. Fill the water bottle with cold, clean water up to the filling line that is marked. If you fill too much, there will be a lot of water in the drip pan during carbonation.

2. Screw the water bottle into the water bottle neck. If viewing from above, please screw it counter-clockwise. Do not tighten too much. just make sure that the water bottle is properly fixed.

3. Press the button down until you hear a sound from the valve.

4. Then release the button again. The residual pressure in the water bottle is released with a noise. Then unscrew the water bottle.

7. Carbon dioxide content

With the carbonator you can easily learn how to adjust the degree of carbonation or the desired quantity of carbon dioxide. The degree of carbonation depends on many factors such as water temperature and the amount of gas in the gas cylinder.

A sample for dispensing quantity:

Press 1 time: small quantity of carbon dioxide

Press 2 times: medium quantity of carbon dioxide

Press 3 times: large quantity of carbon dioxide

8. Cleaning and Care

Caution! Never use alcohol, acetone, benzene or any other aggressive cleaning agents to clean the plastic components. Do not use hard brushes or metallic objects. The appliance is not suitable for cleaning in dishwashers!

Symbolic diagram with a black 'X' over a grid of circles and stars, enclosed in a square frame (no text or labels)

To clean the water bottle, use clean lukewarm water with a mild cleaning agent. If you are using a dish washing brush, make sure the brush is meant for cleaning plastic bottles and does not scratch the surface. Do not use solvents, strong cleaning agents or cleaning agents containing scouring substances.

Water that is flushed through the machine during carbonation ends up in the drip pan. This happens often if there is too much water in the water bottle. Make sure that the water is not filled above the filling line and empty the bottle regularly.

9. Troubleshooting

Error Cause of error/ Troubleshooting
No gas or too little gas comes out when the button is pressed	Check if the gas cylinder is emptyTry to tighten the cylinder a bit more and try again. Some old cylinders require this to be done.Make sure that you press the button down fully (without applying too much force).
When the button is pressed, gas enters the bottle but the water is not carbonated.	Try to tighten the cylinder a bit more.Something could be wrong with the gas cylinder seal.
Gas starts to enter the machine when tightening the cylinder even though the button is not pressed	There may be a leak between the cylinder and the machine. Try to tighten the cylinder a bit more.Something could be wrong with the gas cylinder seal.

10. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions.

Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

The company WD Plus GmbH hereby certifies that the appliance 305595/305596 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

Symbolic diagram with a black 'X' over a star and surrounding geometric shapes (no text or labels)

Symbolic diagram with a black 'X' over a star and surrounding geometric shapes (no text or labels)

Symbolic diagram with a black 'X' over a wave, surrounded by dashed lines and circles (no text or labels)

Symbolic diagram with a black 'X' over a grid of circles and dashed lines, no text or labels present.

Symbolic diagram with a black 'X' over a grid of circles and dashed lines, no readable text or labels

Symbolic diagram with a black 'X' over a grid of circles and dashed lines, enclosed in a square frame (no text or labels)
