USER MANUAL ND5520 LG

OWNER'S MANUAL MUSIC IN STYLE DOCKING SPEAKER Please read this manual carefully before operating your set and retain it for future reference

d CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products

enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: Do not install this equipment in à confined space such as a book case or similar unit.

NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom of the apparatus.

ND5520-FM.BDEULLK_ENG.indd 2

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

Thatis, a single outlet circuit which powers only. that appliance and has no additional outlets or branch circuits. Check the specification page of this owners manual to be certain. Do not overload wall outlets, Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous Any ofthese conditions could result in electric shock or fre. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door or walked upon. Pay particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps

in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do

not dispose of batteries or battery together with other waste. is recommended that you use local free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquid, such as vases, shall be placed on the apparatus.

Disposal of your old appliance When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by

Le = the European Directive 2002/96/EC.

2. Allelectrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product

Disposal of waste batteries/accumulators 1. When this crossed-out wheeled D bin symbol is attached to batteries/ accumulators of Your product it means they are covered by European Directive 2006/66/EC.

2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) ifthe battery Contains more that 0.0005% of mercury,0.002% of cadmium or 0.004% of lead.

3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities

4. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health

5. For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product

ND5520-FM.BDEULLK_ENG.indd 3

CE For Wireless product European Union Notice

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2004/108/EC, 2006/95/EC

and 2009/125/EC Please contact to the following address for obtaining a copy of the Doc (Declaration of Conformity)

European Standards Centre:

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

+ Please note that this is NOT à Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

5 - Made for iPod/iPhone/iPad 5 - Portable in

10 Connecting the AC Adapter

10 Setting the Clock

10 - Setting the Clock Automatically 11 Setting the Clock Manually

ND5520-FM.BDEULLK_ENG.indd 4

12 - iPod/iPhone/iPad Operation

12 - Compatible iPod/iPhone/iPad

14. - Listening to Music from Your External Device

15 - Antenna Connection

15 Listening to the Radio

15 - Presetting the Radio Stations

15 - Deleting All the Saved Stations

15 - Improving Poor FM Reception

16 Using a Bluetooth Wireless Technology

16 - Listening to Music of a Bluetooth Device

17 - Using Bluetooth App

19 - Using Your Unit as an Alarm Clock

19 _- Playing Repeatedly or Randomly

22 Trademarks and Licenses

Main Features Accessories

Please check and identify the supplied accessories.

Made for iPod/iPhone/iPad > N 1 Enjoys music from iPod/iPhone/iPad with simple 5 © connection 5 5

Portable In 2 Remote control (1) Battery (1) i

Listens to music from your portable device. &

Enjoys music from USB with simple connection.

L Z. Alarm AC adapter (1) Sets alarm which go off at desired time Radio (FM) Listens to the radio. FM antenna (1) Stand for iPad (1)

Sets this units clock automatically by connecting iPod/Phone/iPad or by activating Bluetooth connection through "LG Bluetooth Remote" app.

LG Bluetooth Remote Ferrite Core (1)

You can control this unit with your iPod touch/ iPhone/Pad or Android device via Bluetooth, This unit and your device must be paired for Bluetooth. Visit'Apple App Store" or“Google Androïd Market (Google Play Store)"or use the QR code shown below to search for"LG Bluetooth Remote" app. For

718 : : detailed information, refer to page 17-1 Symbol Used in This Manual

Indicates special notes and operating features.

Requirement L dl MP3/WMA Music File & Requirement Ed MP3/ WMA file compatibility with this unit is limited 3 asfolows El

Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)

Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA)

MP3 Player : Flash type MP3 player. USB Flash Drive Devices that support USB1.1

The USB function of this unit does not support all USB devices.

USB Device Requirement

Devices which require additional program installation when you have connected it to à computer, are not supported.

Do not extract the USB device while in operation.

For a large capacity USB, it may take longer than a few minutes to be searched.

To prevent data loss, back up all data

Ifyou use a USB extension cable or USB hub, the USB device is not recognized

Using NTFS file system is not supported. (Only FAT(16/ 32) file system is supported)

This unit is not supported when the total number offiles is 1 000 or more.

External HDD, Card readers, Locked devices, or hard type USB devices, mobile phone are not supported.

USB port of the unit cannot be connected to

PC. The unit cannot be used as a storage device. Some USB may not work with this unit.

This unit can charge iPod/iPhone by connecting it to USB port in power on.

This unit cannot charge iPad by connecting it to USB port even in power on.

When you connect smart phone by using USB port, you can only charge it in power on. (Some smart phone may not be charged.)

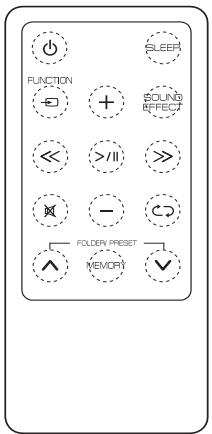

= Skips Fast backward or Forward = Searches for a section within a file.

C9: Selects a play mode. (ONE/DIR/ALL/ RAND(RANDOM)/OFF)

- Select the folder or file you want to play.

= Chooses a preset number for a radio station. MEMORY

- Stores the preset stations.

= Deletes the preset stations.

‘The battery used in this device may present à fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100 C (212 °F). Replace the battery part no. CR2025 only. Use of another battery may present a risk of fire or explosion. Dispose of used battery. Keep battery away from children: Do not disassemble or dispose of in fire.

ND5520-FM.BDEULLK_ENG.indd 7

Battery Installation

1. Turn the battery compartment lid counterclockwise by using a coin. Then take the battery compartment lid out.

2. Insert and fix the battery with the plus(+) facing in the same direction as the plus(+) on the battery compartment lid

3. Putthe battery compartment lid on the remote control and turn it clockwise to close.

Do not open the battery compartment lid by using your finger Or else, your nail would be broken.

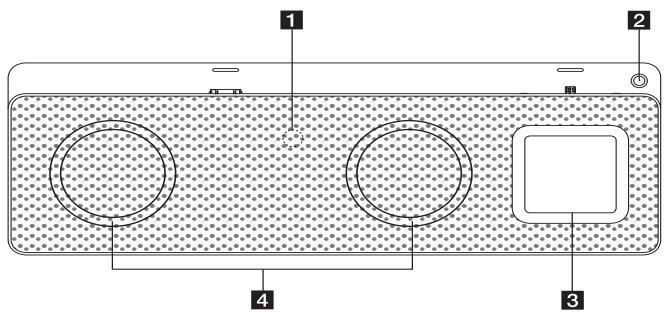

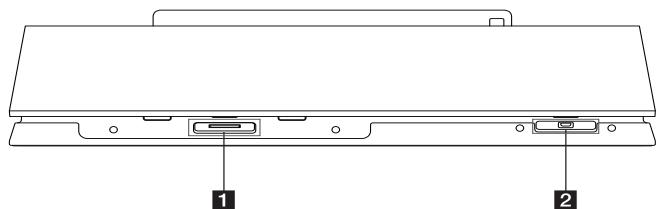

Control panel Speaker

EX Alarm on/off - Sets the alarm timer. =Turns off the alarm - Displays alarm setting, Clock Sets the clock and checks the time.

PORTN (3.5 mm) Listens to music from your portable device.

USB Port Plays music file by connecting the USB device

HG oc 18v .67 À (AC adapter input)

EX iPod/iPhone/iPad Dock Connects an iPod/iPhone/iPad

+ Skip/Search: + -/+ (Volume): = Skips Fast backward or Forward Adjusts speaker volume = Searches for a section within a fille

+ Up/Down: = Selects the folder or file you want to play. = Chooses a preset number for a radio station:

ND5520-FM.BDEULLK_ENG.indd 9 12.5.31. 001200

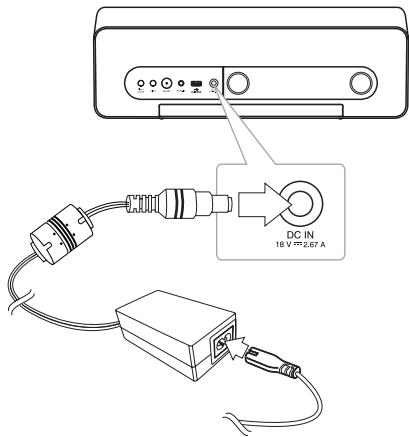

Connecting the AC Adapter

1. Connect the supplied AC power cord to the AC adapter.

2. Connect the AC adapter cable to DC IN adapter input.

3. Plug the AC power cord into an AC outlet. Then the unit goes into standby mode.

Only use the AC adapter supplied with this device. Do not use à power supply from another device or manufacture. Using any other power cable or power supply may cause damage to the device and void your warranty.

ND5520-FM.BDEULLK_ENG.indd 10

Setting the Clock —@ Note

Ithe power has been interrupted or the power plug has been disconnected, the clock setting is erased.

Setting the Clock Automatically

+ Make sure that our iPod/iPhone/iPad or your Android device has set the clock correctly.

In standby mode, the clock will not synchronize with your iPod/iPhone/iPad or your Android device.

In auto clock synchronization, "LG Bluetooth Remote” app has priority over the docking system.

The 24 hour format can be set only for Android OS.

Setting the Clock by Synchronizing with Your iPod/iPhone/iPad

Connect the iPod/iPhone/iPad firmly. Then the lock setting in the control panel will synchronize with your iPod/iPhone/iPad

The synchronized time may be slightly different from that of your iPod/Phone/iPadl

Setting the Clock through "LG Bluetooth Remote” App

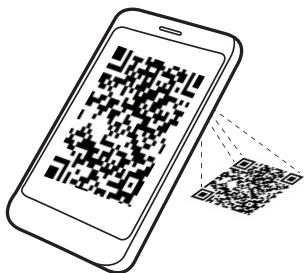

Install*LG Bluetooth Remote’ app on your iPod/ iPhone/iPad or your Android device. (see page 17- 18)

Your units clock will be automatically synchronized with your device by activating Bluetooth connection through "LG Bluetooth Remote‘ app.

Setting the Clock Manually

Inecessary, you can setthe clock manually. 1. Press and hold Clock on the back panel for two

5. Press >/Il = The minutes digits begin to blink

6. Press / 3> to setthe minute. Press >/M

© Note Lu want to reset the clock, repeat steps 1-7.

NDS520-FM.BDEULLK_ENG.indd 11 12.5.31. 001200

iPod/iPhone/iPad Operation

You can enjoy the sound from your iPod/iPhone/ iPad through this unit, For details about iPod/ iPhone/iPad, refer to the iPod/iPhone/iPad User Guide.

Install the supplied stand for Pad to keep iPad stable before you place the iPad

1. Connect the iPod/Phone/iPad firmiy. When this unit is connected to power, your iPod/iPhone/ iPad is automatically turned on and starts recharging even in standby mode.

2. Press ÆDFUNCTION or Æ) to select IPOD function

To Dothis Play Press >/II Pause | During playback, Press >/1

During playback, press < />>

to go to the next file or to return to the beginning ofthe current

During playback, press < twice

brief to step back to the previous fille

ND5520-FM.BDEULLK_ENG.indd 12

Press and hold << / 3> during playback and release it at the point you want to listen to.

Compatible iPod/iPhone/iPad

The unit supports the models as follows ; +_iPod touch 1G, 26, 3G,4G

+ An error message "ERROR"appears when

= youriPod/iPhone/Pad is not connected frmiy. = this unit recognizes your iPod/Phone/iPad 25 an unknown device = youriPod/iPhone/Pad is exceptionally lowr in power. > The battery needs to be charged. you charge the battery while iPod/ iPhone/iPad is extremely low in power, it may take longer to be charged

You may not control your iPod/iPhone/iPad from this unit due to malfunction of iPod/ iPhone/iPad.

Depending on your iPod/iPhone/iPad's software version, it may not be possible to control your iPod/iPhone/Pad from this unit. We recommend installing the latest software version.

Ifyou use an application, make à call, or send and receive SMS text message, etc. on iPod touch/iPhone/iPad, disconnect it from iPod/Phone/iPad dock of this unit and then use it

If you have a problem with your iPod/ iPhone/iPad, please visit wwwapple.com/ support.

iPod touch, iPhone and iPad have any difference in operation other than iPod

You may need any additional control to use them with this unit. (8.g."slide to unlock”

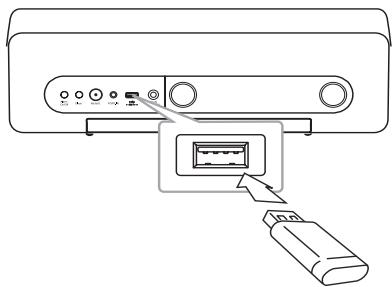

USB Operation 1. Connect the USB device to the USB port.

2. Select the USB function by pressing ÆDFUNCTION or Æ).

Removing the USB Device from the unit. 1. Choose a different function/mode. 2. Remove the USB device from the unit.

To Do this Play | Press >/l Pause | During playback press >/1

During playback, press &</>>

to go to the next file or to return to the beginning ofthe current

During playback, press twice

brief to step back to the previous fille

Press and hold / 3> during playback and release it at the point you want to listen to.

ND5520-FM.BDEULLK_ENG.indd 13

During playback, if you change to another function, then return to the USB function, and then press >/II you can listen to music from last point you played.

The playing time is displayed until 59 minutes and 59 seconds.

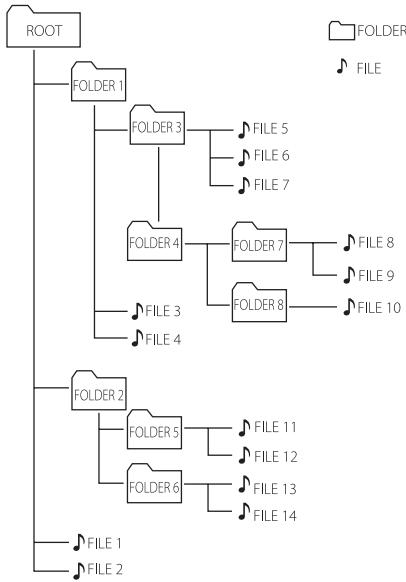

USB Folders/Files are recognized as below.

Ithere is no file in a folder, the folder will not appear.

Folders will be presented as the following order;

ROOT => FOLDER 1 => FOLDER 3 > FOLDER 7 — FOLDER 8 FOLDER 5 -> FOLDER 6

File will be played from J' file No.l to D file No.14 one by one.

Files and folders will be presented in order recorded and may be presented differentiy according to the record circumstances. *ROOT : The first screen you can see when à computer recognize the USB is*ROOT"

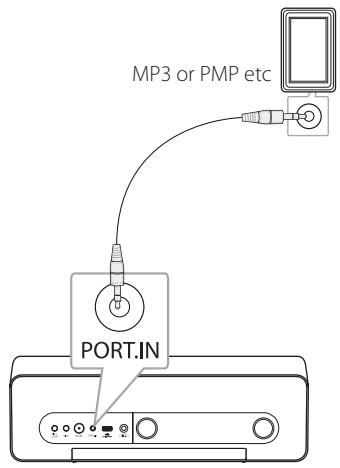

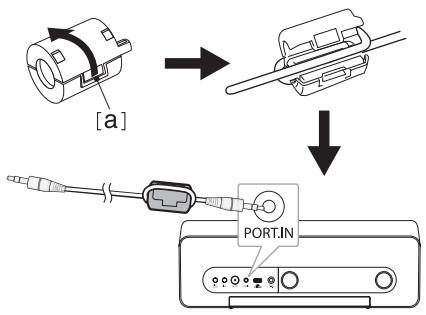

Listening to Music from Your How to Affix the Ferrite Core External Device You must affix a core (supplied with the model you purchased) in order to reduce or eliminate electrical The unit can be used to play the music from many interference

types of external device. (Portable cable is not

supplied as an accessory with this unit.) 1. Pull the stopper [a] ofthe ferrite core to open.

2. Windthe portable cable around the ferrite core

once MP3 or PMP etc 3. Close the ferrite core until it clicks.

JA Connect the external device to the PORT.IN connector of the unit.

2. Tumthe power on by pressing €).

3. Select the PORT (PORTABLE) function by pressing ÆJFUNCTION or €)

4. Turn the external device on and start playing it.

NDS520-FM.BDEULLK_ENG.indd 14 125.31

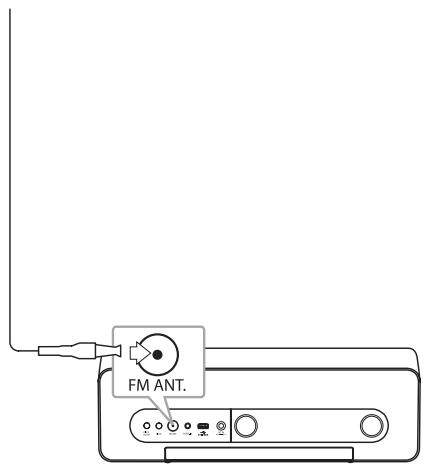

Connect the FM wire antenna to FM antenna connector.

Listening to the Radio

Press ÆDFUNCTION or € repeatedly until FM appears in the control panel. The last received station is tuned in.

Auto tuning : Press <& / 3> for about 2 seconds until the frequency indication starts changing, then release. Scanning stops when the unit tunes in a station.

Manual tuning : Press / >> repeatedly. Adjust the volume by pressing -/+ (Volume).

NDS520-FM.BDEULLK_ENG.indd 15

Presetting the Radio Stations

You can store up to 10 FM preset stations.

Before tuning, make sure that you have tumed

1. Press ÆDFUNCTION or Æ) repeatediy until FM appears in the control panel

2. Select the desired frequency by using / >>.

3. Press MEMORY. À preset number wil blink in the control panel

4. Press FOLDER/PRESET A/V to select the preset number you want.

5. Press MEMORY. The station is storedl

6. Repeat the steps 2 to 5 to store other stations.

Press FOLDER/PRESET A/V to select a preset station.

Deleting All the Saved Stations Press and hold MEMORY for two seconds."CLR'will

flash up. Press MEMORY again. Then all the saved stations are deleted.

Improving Poor FM Reception

Press >. This will change the tuner from stereo to mono and usually improve the reception:

+_lfall stations have already been preset, “FULL'wil appear in the control panel for a moment and then a preset number will blink,

Although all stations were preset, you can preset a station by overwriting the previous station.

You can not delete the preset stations one by one.

Bluetooth® is wireless communication technology. for short range connection:

The available range is within 10 meters.

{The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.) Connecting individual devices under Bluetooth® wireless technology does not incur any charges. À mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology. Available Devices : Mobile phone, MP3, Laptop, PDA.

In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profil.

A2DP (Advanced Audio Distribution Profile)

ND5520-FM.BDEULLK_ENG.indd 16

Listening to Music of a Bluetooth Device

Before you start the pairing procedure, make

sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth devices user guide. Once a pairing operation is performed, it does not need to be performed again:

1. Selectthe Bluetooth function by using the ÆDFUNCTION or €) Appears "BT"and"BT READY"in the control panel

2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list ofthe devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as "LG AUDIO ND5520°

3. Enterthe PIN code PIN code : 0000

4. When this unit successfully is connected with your Bluetooth device, Bluetooth LED of this unitlights up and'PAIR" appears in the control panel

Depending on the Bluetooth device type, some device have a different pairing way.

5. Listen to music To play a music stored on your Bluetooth device, refer to your Bluetooth devices user guide.

+_ The sound may be interrupted when

the connection interfered by the other About "LG Bluetooth Remote” App electronic wave.

“LG Bluetooth Remote’ app brings a suite of new features to this unit.

You cannot control the Bluetooth device

with this unit. To enjoy more features, you are recommended to + Païring is limited one Bluetooth device per download and install free "LG Bluetooth Remote one unit and multi-pairing is not supported. app. + Although the distance between your n h Bluetoatn and the sets ess than Om, there Install “LG Bluetooth Remote” App are obstacles between both, your Bluetooth onto Your Bluetooth Device 9 device cannot be connected 1. Install" LG Bluetooth Remote” app through QR $ + Depending on the type of the device, code. Use the scanning software to scan the QR 5 you may not be able to use the Bluetooth code. 2 function

When not connected the Bluetooth, "BT" and"BT READY" appears on the control panel

The electrical malfunction due to devices using same frequency such as Medical equipment, Microwaves or wireless

LAN devices, the connection will be disconnected.

When someone stands and interrupts communication between Bluetooth device and the player the connection will be disconnected.

Ifthe gotten away of the distance between Bluetooth and the unit, the sound quality is lower and lower. The connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth

{Androïd OS) (Apple OS) +_ The device with Bluetooth wireless technology is disconnected, if you turn off 2. Tap an icon for installation the main unit or put the device away from 3. Tap an icon for downloading, tt it tl 10: he main unit more than 10m. C1] Note

Ifthe Bluetooth device is disconnected, you should connect the Bluetooth device to your unit

+ Make sure that your Bluetooth device is connected to the Internet.

+ Make sure that your Bluetooth device has à scanning software application. If you don't have one, download one from ‘Apple App Store" or“Google Android Market (Google

by Docking Your iPod/iPhone/iPad

1. Connect your iPod/iPhone/iPad to iPod/iPhone/

iPad Dock. The display for downloading"LG Bluetooth Remote"will be linked automatically (Apple i0S only)

2. Tap an icon for installation: 3. Tapan icon for downloading

Install “LG Bluetooth Remote” App through “Apple App Store” or “Google Android Market (Google Play Store)”

1. Tap the‘Apple App Store”icon or"Google Android Market (Google Play Store)"icon.

2._ In the search bar, type in the"LG Bluetooth Remote"and search it.

3. Inthe search result list, find and tap'LG Bluetooth Remote” to start downloading Bluetooth app.

4. Tap an icon for installation 5. Tapan icon for downloading

+ Make sure that your Bluetooth device is connected to the Internet.

+ Make sure that your Bluetooth device is equipped with"Apple App Store‘ or "Google Androïd Market (Google Play Store)

Activate Bluetooth with LG Bluetooth Remote” App

“LG Bluetooth Remote’ app helps to connect your bluetooth device to this unit.

1. Tap“LG Bluetooth Remote” app icon on the home screen to open'"LG Bluetooth Remote" app, and go to the main menu

2. Tap [Setting] and select the unit you want

3. lf you want to get more information to operate, ap [Settingl and [Help]

ND5520-FM.BDEULLK_ENG.indd 18

+_lfyou place your iPod/iPhone/iPad into the dock ofthis unit whlie your iPod/iPhone/ iPad is connected to this unit by Bluetooth connection, the Bluetooth connection is deactivatedl

Ithis unit is BT mode and you connect your iPod/iPhone/iPad to this unit after connecting your iPod/iPhone/iPad to this unit by Bluetooth connection, the function is automatically switched to IPOD mode. Then if you disconnect your iPod/iPhone/ iPad from this unit, itis automatically connected to this unit by Bluetooth connection:

The Bluetooth connection of iPod/iPhone/ iPad is not activated whlie iPod/iPhone/iPad is placed into the dock of this unit.

This unit does not support the multi-pairing, Ithis unit is already connected with other Bluetooth device, disconnect that device and then try again.

If you use "LG Bluetooth Remote‘ app for operation, there would be some differences between“LG Bluetooth Remote" app and the supplied remote control. Use the supplied remote control as necessary.

Depending on the Bluetooth device, "LG Bluetooth Remote" app may not work.

“LG Bluetooth Remote” app for Apple iOS is slightiy different from that of Android OS.

The connection youve made may be disconnected if you select other application or change the setting ofthe connected device via"LG Bluetooth Remote‘ app. In such a case, please checkthe connection status

Using Your Unit as an Alarm

1. Make sure that you have set the clock correctly. (See“Setting the Clock’ on page 10-11.)

2. Press and hold Alarm On/Off on the back panel

3. The alarm sound sources blink. (FM (Tunen/ USB/IPOD) While each of sound sources blinks, select the one you want by pressing >/II. If you select FM (Tuner) mode, you can select the station you preset by pressing <K / >>.

4. "ON (Time)"setting is displayed The hour setting blinks. Press << /3> to select the hour and then press >/II to save.

5. The minute setting blinks. Press </3> to select the minute and then press >/II to save.

6. The volume setting blinks. Press << / >> to change the volume and then press >/II to save.

=" When the alarm rings, press Alarm On/Off on the back panel or press (D. = The alarm stops but the alarm settings remain.

+_ lou don't set clock on your iPod/Phone/ iPad, the unit will not be synchronized for the clock with your iPod/iPhone/iPad.

If you unplug the cord from an outlet, the alarm setting you set is not stored.

After setting a clock function, you can set alarm function.

If you do not press any button for 30 minutes after the alarm goes off, the alarm will shut off automatically.

If you set the clock and alarm, you can check the time and alarm icon “* by pressing Alarm On/Off although the unit is standby mode.

Ifthe time you set is up, the unit will be tumed on automatically.

You can only set 12 hour format. (for a PM display)

+_ Alarm function only works when this unit is tumed off.

+ You can check the setting status by pressing Alarm On/Off on the back panel two times.

+_Ifyou want to reset the alarm, repeat steps 26.

Activate and Deactivate the Alarm Timer

Press Alarm On/Off repeatedly on the back panel to activate or deactivate the timer.

= ifthe timer is activated," M "is displayed

-_lfthe timer is deactivated,*.

ND5520-FM.BDEULLK_ENG.indd 19

The snoozing function wakes you up every 10 minutes if you tap anywhere on the control panel while the alarm activates.

*ZZL' appears and” M" blinks. To cancel the snoozing function, press Alarm On/Off or ()

Resume Playback The unit memorizes the point where you pressed DA. Press DA to resume playback.

Playing Repeatedly or Randomly

Press CD repeatediy. Then the current file will be played back repeatedlÿ or randomiy. (ONE/DIR/ALL/ RAND(RANDOM)/OFF)

Press SLEEP once. The control panel will be darkened by half. To cancel it, press SLEEP repeatedly until the control panel get bright.

While listening to music or radio, press SLEEP repeatedly to select delay time between 10 and 180 minutes. After delay time, the unit will turn of. (You can see the following order, 180 -> 150-> 120 => 90-> 80-> 70-> 60-> 50-> 40-> 30-> 20-> 10)

To cancel the sleep function, press SLEEP repeatedly until the control panel get bright.

+_ You can check the remaining time before the unit turns off by pressing SLEEP.

+ Sleep function will work after dimmer function.

Setting the Sound Mode

This system has à number of pre-set sound fields, You can select a desired sound mode by using SOUND EFFECT.

The displayed items for the equalizer may be different depending on sound sources and effects

Turning off the Sound Temporarily

Press J& to mute the sound. You can mute

the sound in order, for example, to answer the telephone. And MUTE" will appear in the control panel. To cancel mute function, press Hé again or adjust volume level by pressing +/- (Volume)

Charging Your Android Phone

+_ By docking your Androïd phone, this unit can only charge it

+_ You can enjoy music from your Android device via Bluetooth.

To charge your Android phone, you need to connect it in the dock for Android phone.

1. Check the orientation ofthe micro USB connector on your Android phone:

+ 2. Connect your Android phone in the dock for Android phone.

Maybe you need to reset the sound mode, after switching the input, sometimes even after the sound file is changed

On Display Description This program lends an POP enthusiastic atmosphere to the CLASSIC JAZZ sound, giving you the feeling Rock | YOU are atan actual rockpop, f | jazz or classic concert. | | gvass | YOU canenjoy the sound without equalizer effect.

Depending on the position and orientation ofthe micro USB connector on your Android phone, connect it in portrait or landscape position

Problem Cause & Correction

+ Plug in the power cord

No Power. + Checkthe condition by operating other electronic devices. +_ Press ÆJFUNCTION or ÆJ and check the selected function. No sound + Adjust the volume

Check that the sound of the unit is muted.

Adjust its position. Radio stations cannot be tuned in properly.

Tune to the station manuall.

+ Preset some radio stations, see page 15 for details. 3

iPod/iPhone/iPad does | Connect iPod/iPhone/iPad to the unit correctly. 5

Clock does not +_ Power has been interrupted or the power plug has been disconnected £

displayed *_Reset the clock (see page 10-11) Es a

The control panel is not | Check that the dimmer function is activated!

The remote control There is an obstacle in the path ofthe remote control and the unit.

does not work proper.

NDS520-FM.BDEULLK_ENG.indd 21 12.5.31. 001200

Trademarks and Licenses

Madete BiPod ÜiPhone [JiPad

“Made for iPod!" Made for iPhone! and‘Made for iPad” mean that an electronic accessory has been designed to connect specificall} to iPod, iPhone, or iPad, respectively, and has been certified

by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Bluetooth® wireless technology is a system which allows radio contact between electronic devices within à max. range of 10 meters.

Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless. technology.

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license

Other trademarks and trade names are those of their respective owners.

NDS520-FM.BDEULLK_ENG.indd 22

When Shipping the Unit

Please save the original shipping carton and packing materials. If you need to ship the unit for maximum protection, re-pack the unit as it was originally packed at the factory.

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

To clean the player, use a soft, dry cloth. Ifthe surfaces are extremely dirty, use à soft cloth lightiy moistened with a mild detergent solution, Do not use strong solvents such as alcohol, benzine, or thinner, as these might demage the surface of the unit.

Operating humidity 5 % to 90% USB/Micro USB iPod/iPhone/iPad

PORT. IN [0.5 Vims (3.5 mm stereo jack)

FM Tuning Range [87.5 MHz to 1080 MHz or 8750 MHz to 10800 MHz > 3

Output Power 15WX2ch(80Q at 1 kHz)

+_ Design and specifications are subject to change without notice
