USER MANUAL XA16 LG

Please read this manual carefully before operating your set and retain it for future reference.

XA16 (XA16, XAS16F)

P/NO:MFL67161617

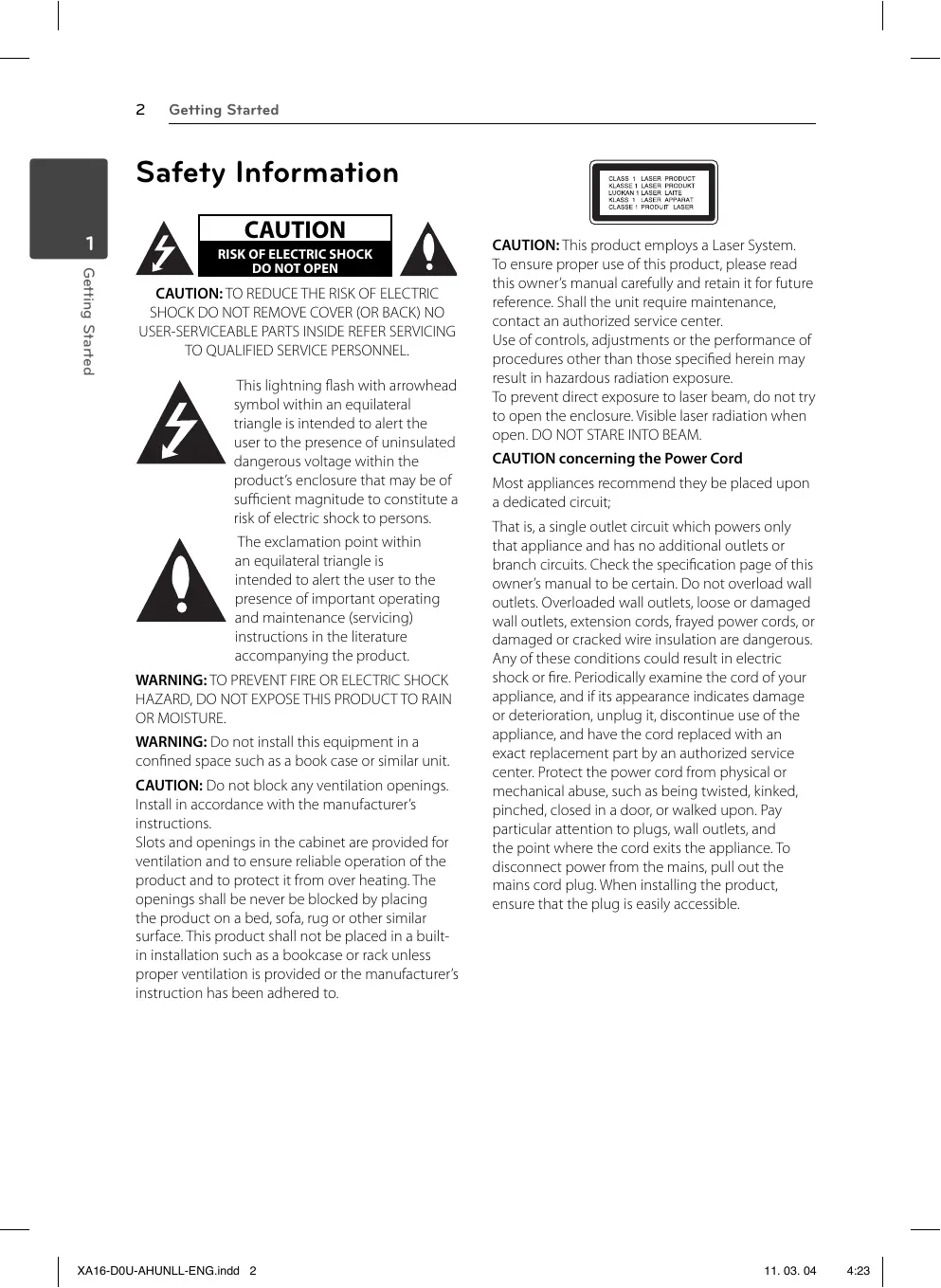

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.

European representative :LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31- (0)36- 547- 8888)

Table of Contents

1 Getting Started

2 Safety Information
5 Unique Features
5 Accessories
5 Playable file Requirement
5 - MP3/WMA music file requirement
5 -Compatible USB Devices
5 - USB device requirement
6 Remote control
7 Front panel
7 Rear panel

2 Connecting

8 Connecting to speakers
8 - Attaching the speakers to the unit
8 Optional Equipment Connection
8 - USB Connection
8 - PORT. IN Connection

3 Operating

9 Basic Operations
9 - CD/ USB Operations
9 - Selecting a folder
9 Other Operations
9 - Programmed Playback
9 - Displaying file information (ID3 TAG)
10 Radio Operations
10 - Listening to the radio
10 - Presetting the Radio Stations
10 - Deleting all the saved stations
10 - Improving poor FM reception
10 - Seeing information about a Radio station
11 Sound adjustment
11 - Setting the surround mode

11 Advanced Operations
11 - Listening to music from your external device
11 - Recording to USB
12 - To select recording bit rate and speed

4 Troubleshooting

13 Troubleshooting

5 Appendix

14 Specifications
15 Maintenance
15 - Handling the Unit
15 - Notes on Discs
15 Trademarks and Licenses

Unique Features

USB Direct Recording

Records music to your USB device.

Portable In

Listens to music from your portable device. (MP3, Notebook, etc)

Accessories

Please check and identify the supplied accessories.

Remote Control (1)

Battery (1)

Playable file Requirement

MP3/WMA music file requirement

MP3/WMA file compatibility with this unit is limited as follows :

• Sampling Frequency: 32 - 48 kHz (MP3), 32 - 48 kHz (WMA)
• Bit rate: 32 - 320 kbps (MP3), 40 - 320 kbps (WMA)
  Maximum files : Under 999
• File extensions :".mp3"/".wma"
• CD-ROM file format : ISO9660/ JOLIET
• We recommend that you use "Easy-CD Creator", which creates an ISO 9660 file system.

Compatible USB Devices

• MP3 Player: Flash type MP3 player.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
• The USB function of this unit does not support all USB devices.

USB device requirement

Devices which require additional program installation when you have connected it to a computer, are not supported.
- Do not extract the USB device while in operation.
- For a large capacity USB, it may take longer than a few minute to be searched.
- To prevent data loss, back up all data.
- If you use a USB extension cable or USB hub, the USB device is not recognized.
- Using NTFS file system is not supported. (Only FAT(16/ 32) file system is supported.)
- This unit is not supported when the total number of files is 1000 or more.
- External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
- USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

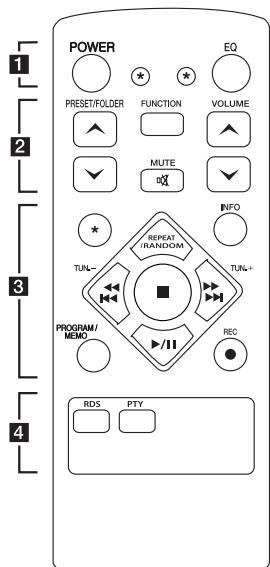

Remote control

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert one (size AAA) battery with and matched correctly.

1

POWER: Switches the unit ON or OFF.

: The button is not available for any function.

EQ: Chooses sound impressions.

2

Searches for a folder of MP3/WMA files. When a CD/USB containing MP3/WMA files in several folders is being played, press PRESET/FOLDER /V selects to the folder you want to play. Choose a 'preset number' for a radio station.

FUNCTION: Selects the function and input source.

VOLUME / V : Adjusts speaker volume.

MUTE:Mutes the sound.

3

INFO: Checks information about your music. MP3 files often come with tags. The tag gives the Title, Artist, Album or Time information.

REPEAT/RANDOM: Listens to your tracks repeatedly or randomly. (only in CD/USB)

TUN. - / + : Selects the radio station.

(Shift/

Search):

• Skips Fast backward or Forward.
• Searches for a section within a track.

: Stops playback or recording.
▶/II (Play/Pause): Starts or pauses playback.

PROGRAM/MEMO :

• For storing radio stations if you have saved radio stations using PROGRAM/MEMO, you can scroll through them and select one.
• Listens to your tracks in any order.
  REC: USB direct recording.

4

RDS/PTY:RDS (Radio Data System)/Searches radio stations by radio type.

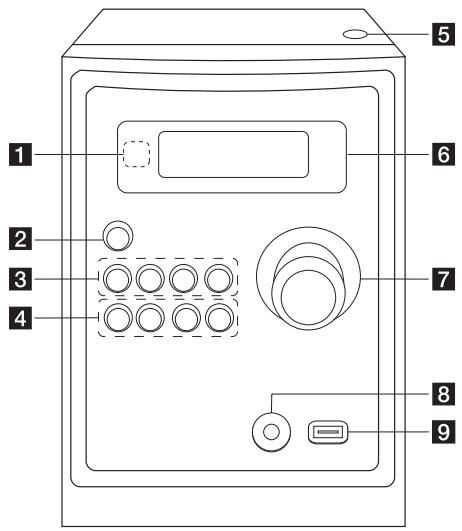

Front panel

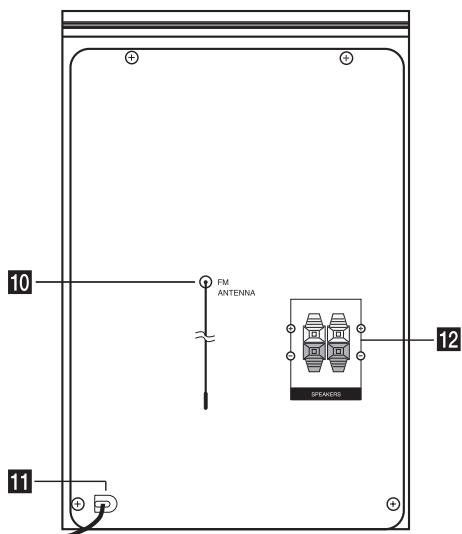

Rear panel

Remote sensor
2 (Power ON/OFF))
3 FUNC. Selects the function or input source.

EQ

Chooses sound impressions.

//II/PRESET -

Starts playback and pauses.

Chooses a preset number for a radio station.

STOP/PRESET +

Stops playback or recording.

Chooses a preset number for a radio station.

4 PRO./MEMO.

On the CD/USB mode, you can make your own playlist.

On FM mode, you can save radio stations.

USBREC.

Recording to USB.

(Skip/Search)/TUNING -
▶▶(Skip/Search)/ TUNING +

5 Open

You can use it when inserting or removing CDs.

6 Display window
7 VOLUME
8 PORT.IN jack
9 USB Port

You can play or recording sound files by connecting the USB device.

10 ANTENNA (FM)
11 Power cord
12 Speaker terminal

Connecting to speakers

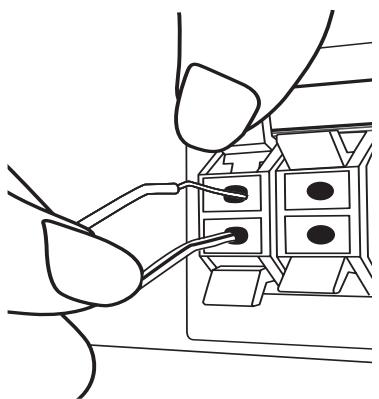

Attaching the speakers to the unit

To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad.

Connect the black stripe of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

Caution

The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

Color	Speaker	Position
Red	Front	Front right
White	Front	Front left

Optional Equipment Connection

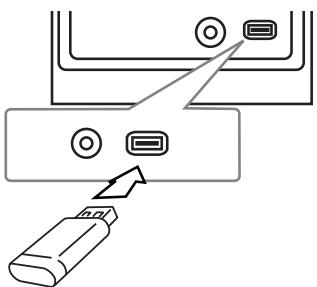

USB Connection

Connect the USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

! Note

Removing the USB Device from the unit

1. Choose a different function/mode or press twice in a row.
2. Remove the USB device from the unit.

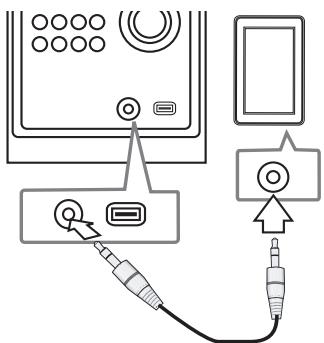

PORT. IN Connection

Connect an output (earphone or line out) of portable device (MP3 or PMP etc) to the PORT. IN connector.

Basic Operations

CD/USB Operations

1. Insert the disc by pressing Open or connect the USB device to the USB port.
2. Select the CD or USB function by pressing FUNCTION on the remote control or FUNC. on the unit.
3. Select a file (or track) you want to play by pressing 1 / .

To	Do this
Stop	Press■
Playback	Press▶/■
Pause	During playback, press▶/■
Skipping to the next/ previous track/ file	During playback, press▶/■/▶▶→1 to go to the next track/ file or to return to the beginning of the current track/ file. Press▶/■ twice briefly to step back to the previous track/ file.
Searching for a section within a track	Press and hold▶/■/▶▶▶1 during playback and release it at the point you want to listen to.
Playing repeatedly or randomly	Press REPEAT/RANDOM on the remote control repeatedly, the display change in the following order, RPT1 -> RPT DIR (only MP3/WMA) -> RPT ALL -> RANDOM -> OFF

Selecting a folder

1. Press PRESET/FOLDER / V on the remote control repeatedly until a desired folder appears.
2. Press / to play it. The first file of folder will play.

Other Operations

Programmed Playback

The program function enables you to store your favorite files from any disc or USB device.

A program can contain 20 tracks.

1. Insert a CD or USB and wait for it to be order.
2. Press PROGRAM/MEMO on the remote control in stop status.
3. Press 1 on the unit or 1 on the remote control in stop status.
4. Press PROGRAM/MEMO again to save and select a next track.
5. Press / to play the programmed music files.
6. To clear your selection, press twice.

! Note

The programs are also cleared when the disc or USB device is removed, the unit is powered off or the function is switched to others.

Displaying file information (ID3 TAG)

While playing an MP3 file containing file information, you can display the information by pressing INFO.

Turn off the sound temporarily

Press MUTE to mute your unit.
You can mute your unit, for example, to answer the telephone, the "MIX" is displayed in the display window.

Radio Operations

Listening to the radio

1. Press FUNCTION until FM appears in the display window. The last received station is tuned in.
2. Press and hold TUN. - / + for about 0.5 seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.

Or

Press TUN. - / + repeatedly.
3. Adjust the volume by rotating VOLUME on the unit or by pressing VOLUME / V on the remote control repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM .

Before tuning, make sure to turn down the volume.

1. Press FUNCTION until FM appears in the display window.
2. Select the desired frequency by pressing TUN. - / +
3. Press PROGRAM/MEMO a preset number will flash in the display window.
4. Press PRESET / to select the preset number you want.
5. Press PROGRAM/MEMO. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press PRESET / .

Deleting all the saved stations

1. Press and hold PROGRAM/MEMO for two seconds. "ERASE ALL" will flash up on the unit display.
2. Press PROGRAM/MEMO to erase all saved radio stations.

Improving poor FM reception

Press on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Seeing information about a Radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types.

PS (Programme Service Name)	The name of the channel will appear in the display.
PTY (Programme Type Recognition)	The programme type (e.g. Jazz or News) will appear in the display.
RT (Radio Text)	A text message contains special information from the broadcast station. This text may scroll across the display.
CT (Time controlled by the channel)	This shows the time and date as broadcast by the station.

You can search the radio stations by programme type by pressing RDS. The display will show the last PTY in use. Press PTY one or more times to select your preferred programme type. Press and hold I/II. The tuner will search automatically. When a station is found the search will stop.

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround sound fields. You can select a desired sound mode by using EQ.

The displayed items for the Equalizer may be different depending on sound sources and effects.

On Display	Description
AUTO EQ	Sets the sound equalizer on the mode that is the most similar to the genre which is included in the MP3 ID3 tag of song files.
POP CLASSIC ROCK	This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual pop, classic or rock concert.
BASS BLAST	Reinforce the treble, bass and surround sound effect.
BYPASS	You can enjoy the sound without equalizer effect.

Note

Maybe you need reset the surround mode, after switching the input, sometimes even after the sound track changed.

Advanced Operations

Listening to music from your external device

The unit can be used to play the music from many types of external device.

(Refer to the page 8)

1. Connect the external device to the PORT.IN connector of the unit.
2. Turn the power on by pressing ( 1 0 ) / ( 1 0 ) (Power).
3. Select the PORTABLE function by pressing FUNC. on the unit or FUNCTION on the remote control.
4. Turn the external device and start it playing.

Recording to USB

1. Connect the USB device to the unit.
2. Select a function by pressing FUNC. on the unit or FUNCTION on the remote control.

One track recording - You can record to USB after playing a file you want.

All tracks recording - You can record to USB after stop.

Program list recording - After showing the programmed list, you can record it to USB.

1. Start the recording by pressing USB REC. on the unit or REC on the remote control.
2. To stop recording, press

Pausing recording

During recording, press USB REC. on the unit or REC on the remote control to pause recording. Press it again to restart recording. (Only Radio, Portable)

To select recording bit rate and speed

1. Press USB REC. on the unit or REC on the remote control for longer than 3 seconds.
2. Use 1 on the unit or remote control to select the bit rate.
3. Press USB REC. on the unit or REC on the remote control again to select the recording speed.
4. Press 1 on the unit or on the remote control to select a desired recording speed; (Only AUDIO CD)

X1 SPEED

• You can listen to music while recording it.

X2 SPEED

• You can just record the music file.

• Press USB REC. on the unit or REC on the remote control to finish the setting.

• To stop recording, press

Note

• You can check the recording percentage rate for the USB record on the display window during the recording. (MP3/ WMA CD Only)
• During recording MP3/WMA, there is no sound.
• When you stop recording during playback, the file that has been recorded at that time will be stored. (AUDIO CD Only)
• Do not remove the USB device or turn off the unit during USB recording. If not, an incomplete file may be made and not deleted on PC.
• If USB recording does not work, the message like "NO USB", "ERROR", "FULL" or "NO REC" is displayed on the display window.
• Multi card reader device or External HDD can not be used for USB recording.
• A file is recorded by about 512 Mbyte when you record for a long term.
• When you stop recording during playback, the file will not be stored.
• You may not store more than 999 files.
  It'll be stored as follows.

AUDIO CD	MP3/ WMA	The other source*
CD_REC	FILE_REC	EXT_REC
TRK_001	ABC(File name)	AUDIO_001
TRK_002	DEF(File name)	AUDIO_002

*:TUNER, PORTABLE and the like.

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense.

This equipment should not be used for such

purposes.

Be responsible

Respect copyrights

Troubleshooting

Problem	Cause & Correction
No Power.	·The power cord is not plugged in. Plug in the power cord. ·Check whether electricity failed. Check the condition by operating other electronic devices.
No sound.	·Check whether you select right function. Press FUNCTION and check the selected function. ·Speaker cables are not connect correctly. Connect the speaker cables correctly. ·The volume is set to minimum. Use the volume controller to adjust the volume.
The unit does not start playback.	·An unplayable disc is inserted. Insert a playable disc. ·No disc is inserted. Insert a disc. ·The disc is dirty. Clean the disc. (Refer to the page 15) ·The disc is inserted upside down. Place the disc with the label or printed side facing upwards.
Radio stations cannot be tuned in properly.	·The antenna is positioned poorly. Adjust its position. ·The signal strength of the radio station is too weak. Tune to the station manually. ·No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels). Preset some radio stations, see page 10 for details.
The remote control does not work properly.	·The remote control is not pointed at the remote sensor of the unit. Point the remote control at the remote sensor of the unit. ·The remote control is too far from the unit. Operate the remote control within about 16 ft (5 m). ·There is an obstacle in the path of the remote control and the unit. Remove the obstacle. ·The battery in the remote control is exhausted. Replace the battery with new one.

Specifications

General
Power supply	Refer to main label.
Power consumption	Refer to main label.
Net Weight	1.7 kg
External dimensions (W x H x D)	150 x 207 x 217 mm
Operating conditions Temperature	5 °C to 35 °C (41 °F to 95 °F) Operation status: Horizontal
Operating humidity	5 % to 85 %

Tuner
FM Tuning Range	87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplifier
Output Power	5 W + 5 W

CD
Frequency Response	40 Hz to 20 kHz
Signal-to-noise ratio	70 dB
Dynamic range	55 dB

USB
USB Version	USB 2.0 or USB 1.1
Bus Power Supply	DC 5 V = 500 mA

Speakers
Type	1 Way 1 Speaker
Impedance	6 Ω
Rated Input Power	5 W
Max. Input Power	10 W
Net Dimensions (WxHxD)	132 x 207 x 156 mm
Net Weight(1EA)	1.04 kg

• Design and specifications are subject to change without notice.

Maintenance

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Trademarks and Licenses

LG

Life's Good
