USER MANUAL 303826 Arendo

Whipped cream dispenser 500 ml

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Warning symbol with exclamation mark inside triangle

Warning symbol with exclamation mark inside triangle

Illustration of two hand positions with arrows indicating motion or rotation (no text or symbols)

12 Deutsch

Illustration of two hand tools: a spray gun and a ring-shaped tool, both with arrows indicating motion (no text or symbols)

Diagram illustrating a mechanical process with tool manipulation and rotation, showing hand positioning and assembly steps.

Illustration of a hand holding a tool with a curved arrow indicating rotational motion (no text or symbols)

Warning symbol with exclamation mark inside triangle

Important safety guidelines for this ap- pliance

- Read the user manual completely before using this appliance. This will help to prevent operating errors! Otherwise, there is risk of injury if used incorrectly!

- You can be seriously or fatally injured if you do not follow these instructions.

- This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental abilities as well as inexperienced and uninformed people. Such people may use the appliance only under supervision or with instructions on safe use of the appliance and the associated risks.

• This appliance can be operated by

children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Check the appliance for damage every time before use. The product should not be used if it is damaged. Do not use the appliance if it has malfunctioned or has fallen down.
• Do not alter the product and make any modifications as this affects the product safety. There is a risk of injury!
• Any modifications and repairs to the product or accessories should only be carried out by the manufacturer

or by technicians who are expressly authorized for this purpose.

- Always handle the product carefully. Jolts, impacts or a fall even from a low height can damage the appliance.

- Keep the appliance away from humidity and extreme heat.

- Use the product only in the intended manner. Any other use may cause damage to the product or within the product.

- Always make sure that the parts of the product are assembled properly before each use.

- Open the whipped cream dispenser only after the gas has escaped com-

pletely and the container is depressurised.

• Operate only an appliance that is filled.
• Always keep the appliance out of reach of children.
• If the valve is blocked by incorrectly filled solid materials, first stop using the whipped cream dispenser so that the solid materials can settle down in the container. Then place a cloth around the nozzle and allow the gas to escape completely by pressing the handle. Only then unscrew the head of the container.
• Supervise children to prevent them from playing with the appliance.
• Use the appliance only in accordance with the appliance data!
• Do not use force!

• Always store and use the appliance only in dry places.
- Use the appliance only with accessories approved by the manufacturer!
• Make sure that the appliance head is always mounted correctly!
- Do not bend over the appliance when closing the capsule. Keep it away from the body and make sure that other people or animals are not around. There is a risk of injury!

• Any fall or damage (such as deformation or cracks etc.) make the appliance a potential source of danger and it should no longer be used!
- Caution! Failure to follow these safety instructions and any recommendations on handling and maintenance of the products can result in malfunction, injury and / or property damage.

arendio

• Never use the lever as a handle.
• Proper cleaning is very important to prevent the appliance from clogging. Before each use, check whether the appliance has been cleaned properly!
• Do not make any modifications to the appliance. This will void the warranty and exclude the liability!
• Never remove the head from a pressurized appliance!
• Never use more capsules than specified and never overfill the appliance! This ensures that the specified maximum operating pressure is not exceeded!
• The appliance is intended for domestic use only.
• Technical changes and printing errors are reserved.

- CAUTION! When inserting the gas cartridge, ensure that you do not point it in the direction of your body or at others or animals.

- The appliance should not be externally heated in any case (e.g., microwave, stove, Bain-marie oven, etc.)! Never place the whipped cream dispenser in the Bain-marie oven or in the water bath.

Warning symbol with exclamation mark inside triangle

Thank you for choosing an Arendo product. Please read the following user manual carefully to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Whipped cream dispenser
• User manual
• Spray attachments

2. Technical data

Compatible N_2O capsules	Compatible with all brands of nitrous oxide ( N_2O ) 8 g N_2O capsules including iSi, mosa, Whip It!, Kayser, ICO, Mr. Whip, Ultra Purewhip, Liss etc.
Capacity approx. 500 ml (requires one	8 g N_2O capsule)

3. Initial use

Take the appliance out of the package and remove all the packaging material. Clean the appliance and the spray attachments. The spray attachments can be cleaned in the dishwasher, and the rest, for example, in rinsing water. Do not use any aggressive or strong cleaning agents.

Rinse the whipped cream container first with cold water once. Ensure that all the parts are mounted correctly.

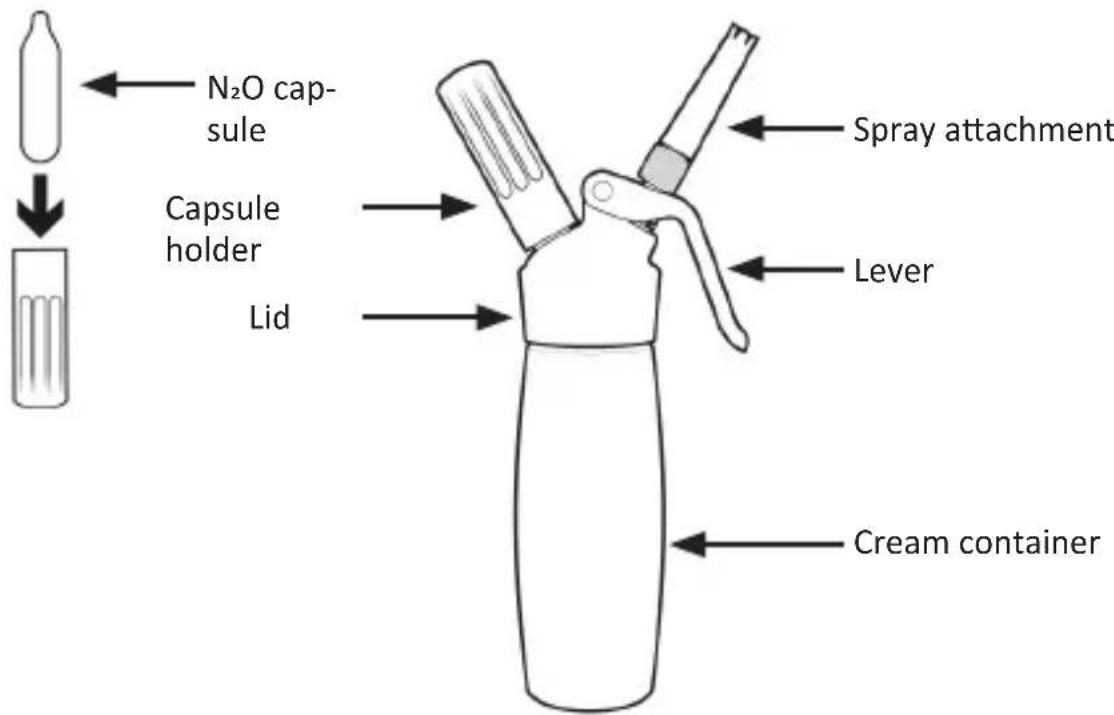

4. Product details

N₂O cap- sule Capsule holder Lid Spray attachment Lever Cream container

5. Use / operation

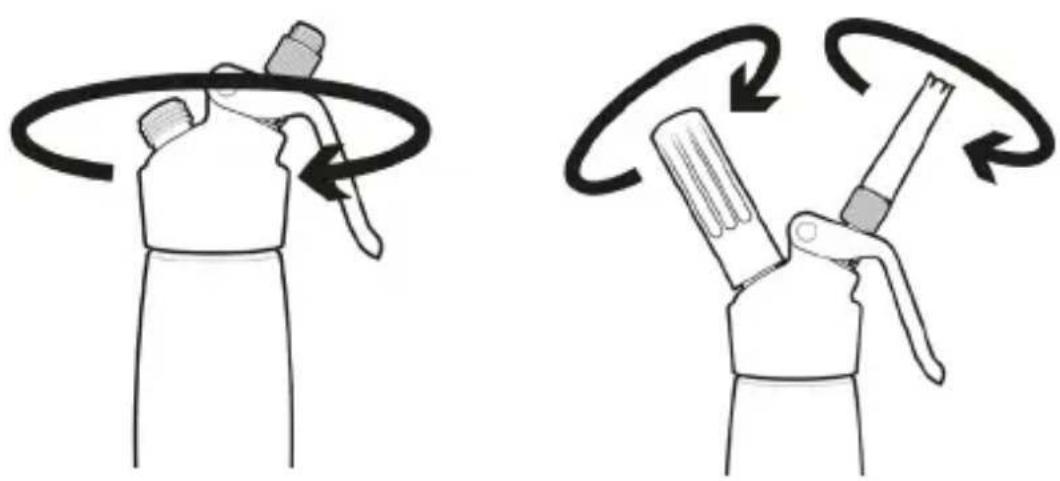

1. Ensure that there is no pressure inside the appliance by pressing the lever. Remove the lid of the appliance, the spray attachment and the capsule holder and fill the container with well cooled cream. Note the level indicator on the container. Make sure that you do not exceed the maximum mark when filling the container.

Illustration of two hand positions showing a tool being twisted, with no text or symbols present.

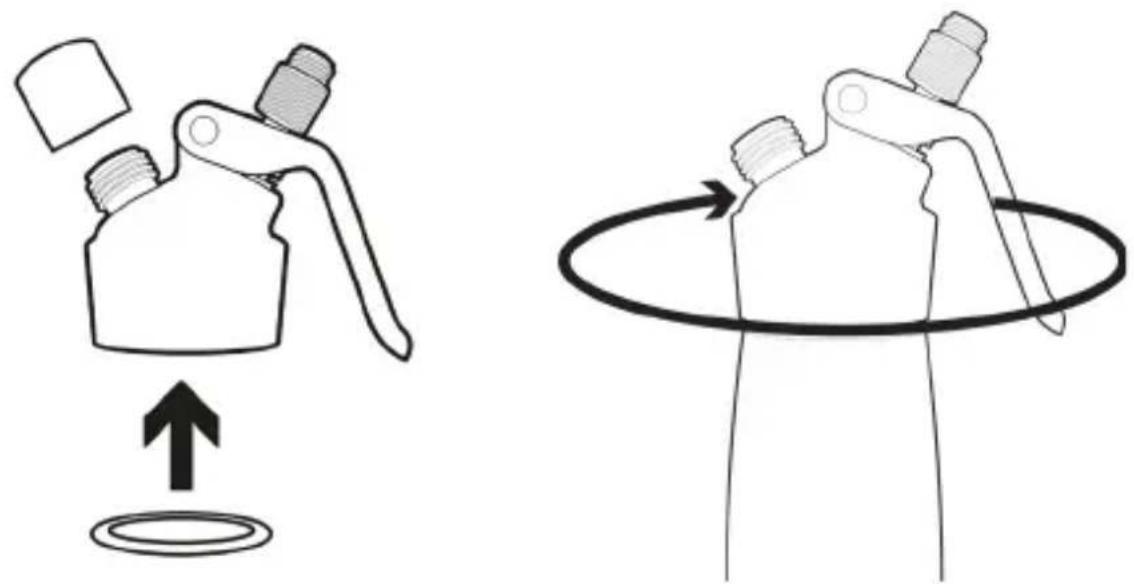

1. Insert the sealing ring in the lid of the whipped cream dispenser and screw the lid onto the cream container. The lid is correctly mounted if the thread is no longer visible. Make sure that you do not screw the lid on too tightly!

Illustration of two hand tools: a spray gun and a circular tool holder, both with arrows indicating motion (no text or symbols)

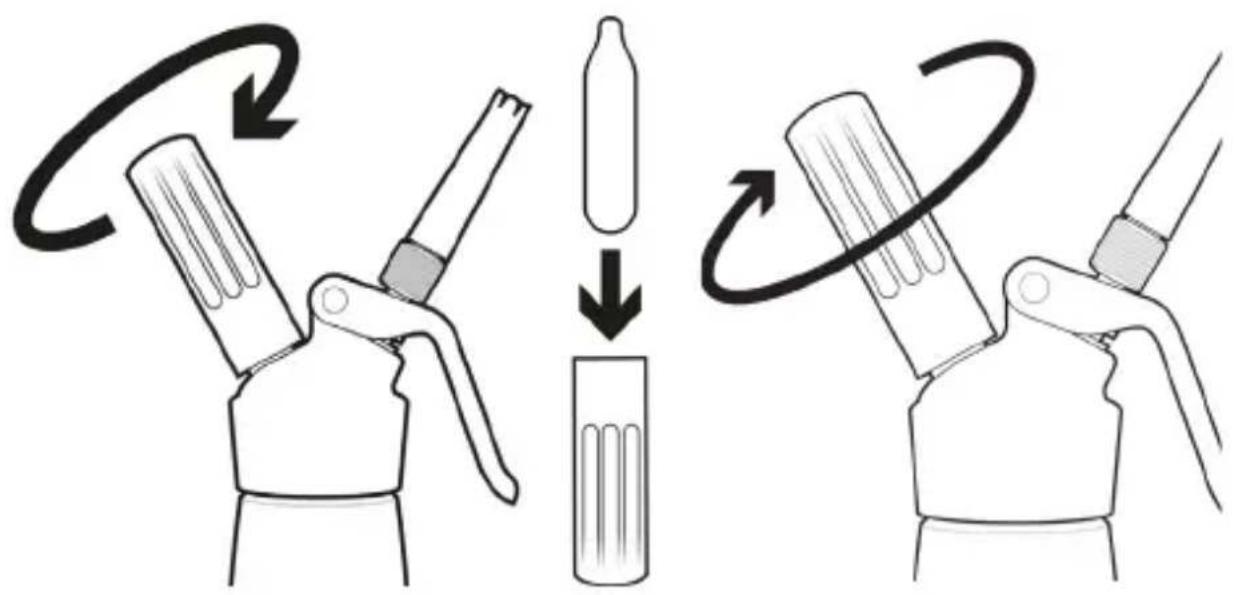

1. Then insert the N_2O -capsule into the capsule holder. Screw the capsule container onto the valve. The gas is transferred to the container with a slight "hissing" sound.

Diagram illustrating a mechanical process with tool manipulation and rotation, showing hand positioning and assembly steps.

CAUTION! The appliance is pressurized!

Do not bend over the appliance when closing the capsule and keep it away from your baby parts. Make sure that other people or animals are not around. There is a risk of injury!

1. Then shake the whipped cream dispenser adequately in an upright position. (about 5-10 times)

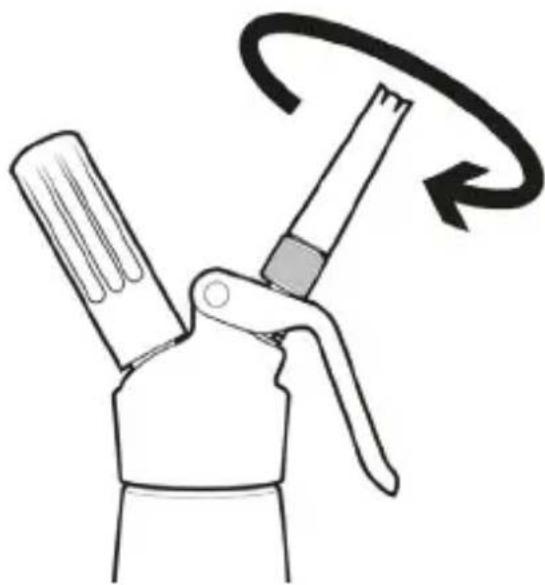

2. Now place the desired Spray attachment on the lid of the whipped cream dispenser and tighten it firmly.

Illustration of a hand holding a tool with a curved arrow indicating rotational motion (no text or symbols)

NOTE: It is advisable to unscrew the capsule holder slowly and carefully after pressurised filling and to protect the valve against rust, dirt and other external influences, by screwing on the cap. You will hear a slight hissing sound when unscrewing.

To dispense the cream from the appliance, hold the cream dispenser upside down with the lid facing down. Maintain a distance of about 1-2 cm from the surface that you want to spray. Press and hold the lever gently. If the cream is not firm enough, shake the product again.

Remove the Spray attachment after use, and clean it under running water. You can then mount it on the appliance again.

NOTE: The whipped cream dispenser can be kept with fresh cream for about 1 week in the refrigerator. This can vary depending on the type of cream and expiry date.

Tip: To obtain optimum results, the appliance should be previously cooled, or rinsed with cold water before use.

6. Cleaning and Care

Before cleaning, check if the cleaning and / or disinfectant is compatible with the materials of the whipped cream dispenser.

Empty the whipped cream dispenser and allow the gas left over in the container to escape, by pressing and holding the handle.

Remove the spray attachment, the capsule holder, the lid (including the sealing ring) from the cream container.

Clean the cream container and the accessories using warm rinse water. It is advisable to clean the container using a cleaning brush.

Then rinse all the parts using hot water and allow them to dry completely.

Make sure that the N_2O -capsules are inserted just before using the appliance.

7. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the appliance away from high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier will void any warranty and guarantee claims.

The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 303826/20190730NB111 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
