ND5430 - Bluetooth speaker LG - Free user manual and instructions

Product Type	Bluetooth Speaker with Docking Station
Dimensions (W x H x D)	436 x 152 x 115 mm
Net Weight	2.3 kg
Power Supply	DC 18 V, 2.67 A AC adapter (100-240 V, 50/60 Hz)
Power Consumption	40 W
Output Power	15 W x 2 channels (8 Ω, 1 kHz, 10% distortion)
Speakers	Built-in type, impedance 8 Ω, nominal power 15 W, max power 30 W
Auxiliary Input	PORT. IN (3.5 mm) 0.5 Vrms
Bluetooth	Version A2DP, range 10 m, codec SBC
Integrated Docks	Lightning connector (Apple) and Micro USB (Android)
USB Port	For charging and playback (iPod/iPhone/iPad): 5 V, 2.1 A
Apple Device Compatibility	iPod touch 3G-5G, iPod nano 4G-7G, iPhone 3GS-5, iPad 2G-4G, iPad mini
Android Compatibility	Android 4.1 or later with micro USB and AOA 2.0 support
Special Features	LG Bluetooth Remote App, LG Tag On (NFC), BASS BLAST effect, auto standby, device charging
Supplied Accessories	Remote control (CR2025 battery included), AC adapter, power cord, Apple support, rubber pad
Operating Temperature	5 °C to 35 °C
Operating Humidity	5 % to 90 %
Maintenance and Cleaning	Soft, dry cloth; avoid solvents, alcohol, benzene
Safety	Do not expose to water, do not open, use supplied adapter, keep at least 20 cm from body for RF
Remote Control Battery	Type CR2025; replace with same model

Frequently Asked Questions - ND5430 LG

How do I connect my iPhone/iPad to the speaker?

Place your device in the Lightning dock (or use the USB port with the appropriate cable). Press FUNCTION or F to select the iPod or USB function. Playback starts automatically.

Can I use my Android smartphone with the dock?

Yes, if your Android runs Android 4.1 or later and supports the AOA 2.0 protocol. Connect it to the Micro USB dock and select the ANDROID function with the FUNCTION button.

How do I pair a Bluetooth device?

Select the Bluetooth function with FUNCTION. Turn on Bluetooth on your device and search for 'LG Docking (XX:XX)'. Enter PIN 0000 if necessary. The Bluetooth LED stops blinking when connected.

What to do if there is no sound?

Check that the correct source is selected (FUNCTION). Increase the volume on the speaker and your device. Ensure the sound is not muted (MUTE button). If using the dock, check the connection.

The speaker turns off by itself, why?

This is normal: the speaker automatically enters standby after 25 minutes of inactivity or 6 hours on an analog input. To turn it back on, press the Power button.

The remote control does not work, what to do?

Check the battery (CR2025). Replace if necessary. Ensure there is no obstacle between the remote and the sensor, and that the distance does not exceed 7 meters. Point the remote at the sensor.

How do I use the LG Bluetooth Remote app?

Download the app from the App Store or Google Play Store. Turn on Bluetooth on your device, open the app, go to Settings and select the speaker. You can control playback and settings from the app.

Can I charge my device via the speaker?

Yes, the USB port (5 V, 2.1 A) and the Micro USB dock (5 V, 1 A) allow charging your devices, even in standby. The Lightning dock also charges iPod/iPhone/iPad.

What does the blinking LED light mean?

The LED light varies depending on the function and status. For example, in Bluetooth, slow blinking means 'ready to pair', steady light indicates 'connected'. Refer to the LED table in the manual for more details.

How do I clean the speaker?

Use a soft, dry cloth. For stubborn dirt, lightly moisten the cloth with a mild detergent solution. Never use solvents like alcohol, benzene, or abrasive products.

USER MANUAL ND5430 LG

Wireless Speaker With Dual Dock

Please read this manual carefully before operating your set and retain it for future reference.

ND5430

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom of the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION:

• The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Only use the AC adaptor supplied with this device. Do not use a power supply from another device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.
• To avoid fire or electric shock, do not open the unit. contact to qualified personnel only.
• Do not leave the unit in a place near the heating appliances or subject to direct sunlight, moisture, or mechanical shock.
• Do not leave the unit on an unstable place such as high shelves. It may fall down because of the vibration of the sound.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled bin symbol is attached to batteries/ accumulators of Your product it means they are covered by European Directive 2006/66/EC.
2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
4. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
5. For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product.

C€ 0984

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

Please contact to the following address for obtaining a copy of the DoC (Declaration of Conformity).

Contact office for compliance of this product:

LG Electronics Inc.

EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands

• Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

In door use only.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Table of Contents

1 Getting Started

2 Safety Information
6 Main Features
6 Accessories
6 Introduction
7 Remote Control
8 Front Panel
9 Back Panel
9 Top Panel
10 Connecting the AC Adapter
10 About Ferrite Core (Optional)

2 Operating

11 Basic Operations
11 - iPod/iPhone/iPad Operation
12 -Compatible iPod/iPhone/iPad
13 -Android device Operation

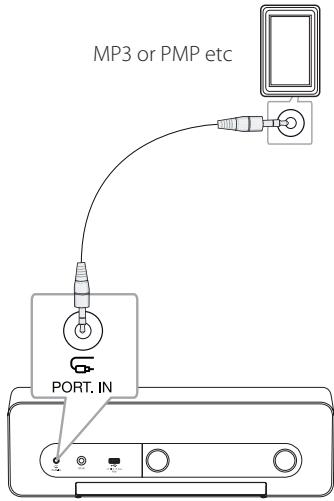

14 - Listening to Music from Your External Device
15 Using a Bluetooth Wireless Technology
15 - Listening to Music of a Bluetooth Device
17 - Using Bluetooth App
19 Other Operations
19 - LG Tag On
19 - Setting BASS (BASS BLAST) sound effect
19 - Turning Off the Sound Temporarily
19 - Auto Power Down

3 Troubleshooting

20 Troubleshooting

4 Appendix

21 About LED condition
22 Trademarks and Licenses
22 Handling the Unit
23 Specifications

Main Features

Made for iPod/iPhone/iPad or Android device

Enjoys music from iPod/iPhone/iPad or Android device with simple connection.

Portable In

Listens to music from your portable device.

LG Bluetooth Remote

You can control this unit with your iPod touch/ iPhone/iPad or Android device via Bluetooth. This unit and your device must be paired for Bluetooth. Visit "Apple App Store" or "Google Android Market (Google Play Store)" or use the QR code shown below to search for "LG Bluetooth Remote" app. For detailed information, refer to page 17-18.

(Apple iOS)

(Android OS)

Accessories

Please check and identify the supplied accessories.

Remote control (1)

Battery (1)

AC adapter (1)

Power cord (1)

Stand for iPod/iPhone/ iPad (1)

Rubber pad (1)

Introduction

Symbol Used in This Manual

Note

Indicates special notes and operating features.

Caution

Indicates cautions for preventing possible damages from abuse.

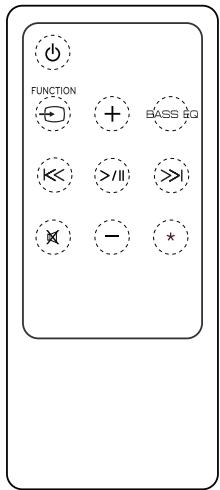

Remote Control

(Power): Switches the unit ON or OFF.

FUNCTION: Selects the function and input source.

+/- (Volume) : Adjusts volume of speaker.

BASS EQ: Reinforce BASS (BASS BLAST) sound effect.

/ > (Skip/Search) :

• Skips fast Backward or Forward.
• Searches for a section within a file.

  II (Play/Pause) : Starts or pause playback
  Mutes the sound.
  : The button is not available for any function.

Caution

The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100^ (212^) . Replace the battery part no. CR2025 only. Use of another battery may present a risk of fire or explosion. Dispose of used battery. Keep battery away from children. Do not disassemble or dispose of in fire.

Battery Installation

You have two ways to open the battery cover.

1. Turn the battery cover counterclockwise by using a coin or your finger. Then take the battery cover.

Coin

Finger

1. Insert and fix the battery with the plus (+) facing in the same direction as the plus (+) on the battery cover.

1. Put the battery cover on the remote control and turn it clockwise to close.

Coin

Finger

Caution

If you have long nails, do not open the battery cover by using your finger. Or else, your nail would be broken.

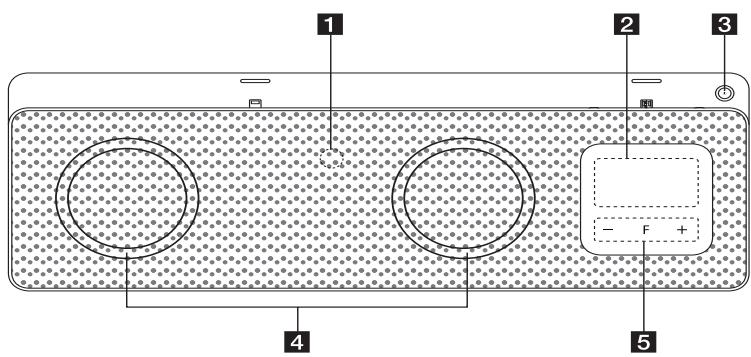

Front Panel

Remote Sensor
2 Display window

Displays each of functions.

3 :Switches the unit ON or OFF.
4 Speaker
5 F: Selects the function and input source.

+/- (Volume): Adjusts speaker volume.

Caution

Precautions in using the touch buttons

• Use the touch buttons with clean and dry hands.

• In a humid environment, wipe out any moisture on the touch buttons before using.

• Do not press the touch buttons hard to make it work.

• If you apply too much strength, it can damage the sensor of the touch buttons.
• Touch the button that you want to work in order to operate the function correctly.
• Be careful not to have any conductive material such as metallic object on the touch buttons. It can cause malfunctions.

Back Panel

1. 2. 3

1 PORT.IN (3.5 mm)

Listens to music from your portable device.

2 DC IN (AC adapter input)

Connects the supplied AC adapter.

3 USB Port

• Plays music file by using your USB cable for iPod/iPhone/iPad.
• Charges your portable device.

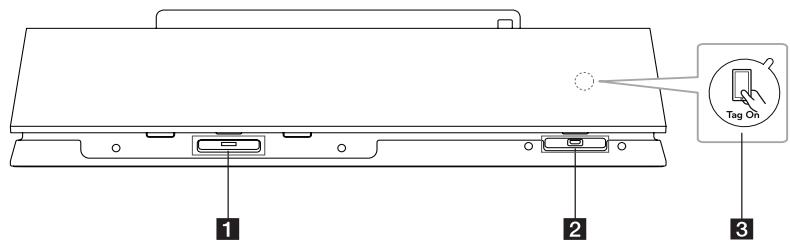

Top Panel

1 iPod/iPhone/iPad Dock (Lightning Connector) Connects your iPod/iPhone/iPad.
2 Android device Dock (Micro USB) Connects your Android device.

3 Tag on

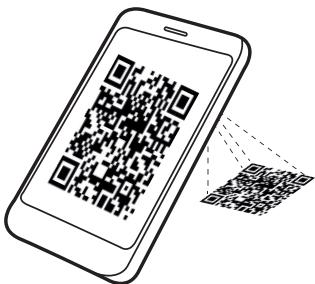

LG Tag On allows you to install and open "LG Bluetooth Remote" app to NFC-enabled phone.

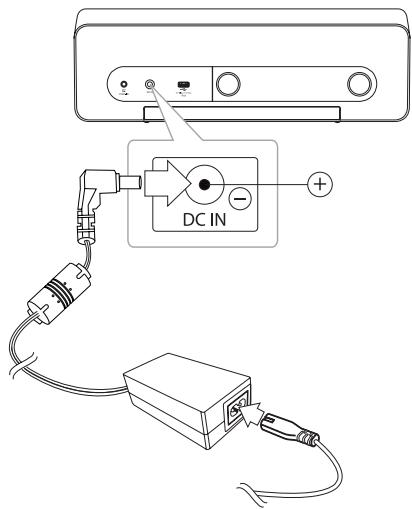

Connecting the AC Adapter

1. Connect the supplied AC power cord to the AC adapter.
2. Connect the AC adapter cable to DC IN adapter input.
3. Plug the AC power cord into an AC outlet. Then the unit goes into standby mode.

Caution

Only use the AC adapter supplied with this device. Do not use a power supply from another device or manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

About Ferrite Core (Optional)

This ferrite core can reduce noises.

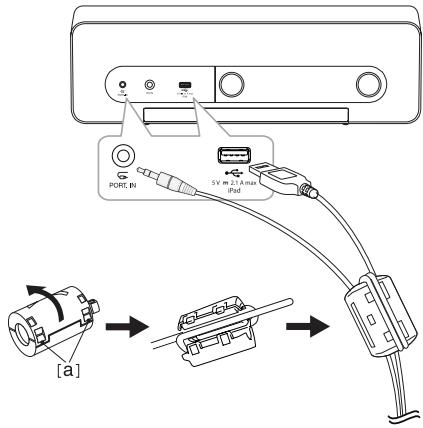

How to attach the ferrite core

1. Pull the stopper [a] of the ferrite core to open.
2. Wind the portable cable and USB cable on the ferrite core.
3. Close the ferrite core until it clicks.

Basic Operations

iPod/iPhone/iPad Operation

You can enjoy the sound from your iPod/iPhone/ iPad through this unit. For details about iPod/ iPhone/iPad, refer to the iPod/iPhone/iPad User Guide.

! Note

• You are recommended to remove the case for your iPod/iPhone/iPad before you place your iPod/iPhone/iPad into the dock.
• Install the supplied stand for iPod/iPhone/ iPad to keep iPod/iPhone/iPad stable before you place the iPod/iPhone/iPad.

Connecting an iPod/iPhone/iPad (Lightning connector) to Dock

1. Connect your iPod/iPhone/iPad (Lightning connector) to Dock firmly.

When this unit is connected to power, your iPod/iPhone/iPad is automatically turned on and starts recharging even in standby mode.

1. Press FUNCTION or F to select iPod function.

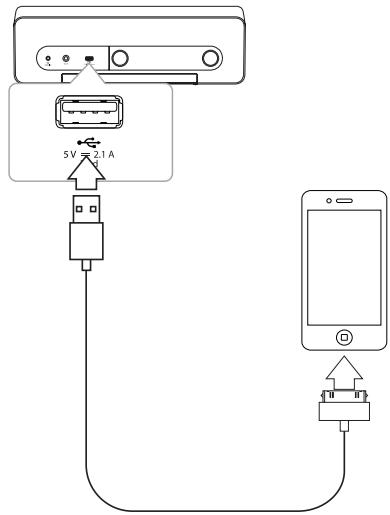

Connecting an iPod/iPhone/iPad (30-Pin/Lightning connector) to USB port

1. Connect your iPod/iPhone/iPad (30-pin/ Lightning connector) to USB port using the appropriate cable.

When this unit is connected to power, your iPod/iPhone/iPad is automatically turned on and starts recharging even in standby mode.

1. Press FUNCTION or F to select (USB) function.

To	Do this
Play	Press >/II.
Pause	During playback, Press >/II.
Skip	During playback, press [/ >> / >>] to go to the next file or to return to the beginning of the current file. Playing less than 2 seconds, press [/ << to go to the previous file. Playing after 3 seconds, press [/ << to go to the beginning of the file.
Search	Press and hold [/ >> / >>] during playback and release it at the point you want to listen to.

Compatible iPod/iPhone/iPad

The unit supports the models as follows;

• iPod touch 3G, 4G, 5G
• iPod nano 4G, 5G, 6G, 7G
  iPhone 5
  iPhone 4S
  iPhone 4
  iPhone 3GS
• iPad mini
• iPad 2G, 3G, 4G
• iPad

! Note

• When you disconnect your iPod/iPhone/ iPad during playback, the playback pauses.
• When your iPod/iPhone/iPad is docked, you cannot control the volume button of your iPod/iPhone/iPad.
• If the connection has an error, check these problems as follows;
• Your iPod/iPhone/iPad is not connected firmly.
• This unit recognizes your iPod/iPhone/iPad as an unknown device.
• Your iPod/iPhone/iPad is exceptionally low in power.

The battery needs to be charged.
If you charge the battery while iPod/ iPhone/iPad is extremely low in power, it may take longer to be charged.

• You may not control your iPod/iPhone/iPad from this unit due to malfunction of iPod/ iPhone/iPad.
• Depending on your iPod/iPhone/iPad's software version, it may not be possible to control your iPod/iPhone/iPad from this unit. We recommend installing the latest software version.
• If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch/iPhone/iPad, disconnect it from iPod/iPhone/iPad dock of this unit and then use it.
• If you have a problem with your iPod/ iPhone/iPad, please visit www.apple.com/support.
• iPod touch, iPhone and iPad have any difference in operation other than iPod. You may need any additional control to use them with this unit. (e.g. "slide to unlock")
• Do not connect two iPad for charge at the same time.

Android device Operation

You can enjoy the sound from your LG Android device through the dock for Android device of this unit. For details about Android device, refer to the Android device User Guide.

To stream audio from your Android device through this unit, you need :

• With Android operation system : Ver 4.1 (or later)
• With a micro USB connector

With Android operation system (Version 4.0 or below), this unit can only charge it and you can enjoy audio through Bluetooth.

Note

• This unit may not compatible with the device that does not support the *AOA (Android Open Accessory) 2.0 version. It is possible that certain devices may not support or be compliant with the AOA2.0 USB audio standard, resulting in the device freezing or rebooting after being connected and detached from the speaker system. If you experience this problem, please contact your device manufacturer. Your device may need to be updated with the latest Jellybean software and or the correct AOA2.0 USB audio standard.

*About AOA (Android Open Accessory) 2.0 version ;

Audio output from Android device to the Accessory and HID (Human Interface Device)

• You are recommended to remove the case for your Android device before you connect your Android device into the dock.

• Check the orientation of the micro USB connector on your Android phone.

1. Connect your Android device firmly.

Note

If the size of your Android device is big or the screen of your Android device does not face you, insert the supplied rubber pad to keep your Android device stable before you place your Android device, as illustrated.

1. Press FUNCTION or F to select (ANDROID) function.

To	Do this
Play	Press >/II.
Pause	During playback, Press >/II.
Skip	During playback, press >/II. >>| to go to the next file or to return to the beginning of the current file. Playing less than 2 seconds, press >/ to go to the previous file. Playing after 3 seconds, press >/ to go to the beginning of the file.

! Note

• If the connection has an error, check these problems as follows;
• Your Android device is not connected firmly.
• This unit recognizes your Android device as an unknown device.
• Your Android device is not booted.
• Check the setting of USB connection type on your Android device.
• When you disconnect your Android device from the dock during playback, the playback may continue.
• In case of no sound from this unit, adjust the volume of your Android device.
• The charging time may vary depending on your Android device.
• Some Android devices may not be charged.
  Depending on the position and orientation of the micro USB connector on your Android device, connect it in portrait or landscape position.
• You may not control your Android device from this unit due to malfunction of Android device.
• Depending on your Android device's software version, it may not be possible to control your Android device from this unit. We recommend installing the latest software version.
• If you use an application, make a call, or send and receive SMS text message, etc. on Android device, disconnect it from Android device dock of this unit and then use it.
• If your Android device does not support AOA (Android Open Accessory) 2.0 version, this unit can only charge your Android device even though Android device has OS 4.1 (or later).

Listening to Music from Your External Device

The unit can be used to play the music from many types of external device. (Portable cable is not supplied as an accessory with this unit.)

1. Connect the external device to the PORT.IN connector of the unit.
2. Turn the power on by pressing
3. Select the (PORTABLE) function by pressing FUNCTION or F.
4. Turn the external device on and start playing it.

Using a Bluetooth Wireless Technology

About Bluetooth

Bluetooth® is wireless communication technology for short range connection.

The available range is within 10 meters.

(The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.)

Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology.

Available Devices : Mobile phone, MP3, Laptop, PDA.

Bluetooth Profiles

In order to use Bluetooth® wireless technology, devices must be able to interpret certain profiles.

This unit is compatible with following profile.

A2DP (Advanced Audio Distribution Profile)

Listening to Music of a Bluetooth Device

Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device's user guide. Once a pairing operation is performed, it does not need to be performed again.

1. Select the Bluetooth function by using the FUNCTION or F.

Bluetooth LED (X) blinks.

1. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as "LG Docking (XX:XX)".

! Note

XX:XX means the last four digits of BT address. For example, if your unit has a BT address such as 9C:02:98:4A:F7:08, you will see "LG Docking (F7:08)" on your Bluetooth device.

1. Enter the PIN code.

PIN code:0000

! Note

Depending on the Bluetooth device type, some devices do not require a PIN code.

1. When this unit successfully is connected with your Bluetooth device, Bluetooth LED (X) stop blinking.

! Note

Depending on the Bluetooth device type, some devices have a different pairing way.
- Try pairing procedure if your device name is not in the device list.

1. Listen to music.

To play a music stored on your Bluetooth device, refer to your Bluetooth device's user guide. According to your Bluetooth device's volume level, the volume level of Bluetooth will be adjusted.

! Note

• Sound from the main set can be distorted if you raise the volume of Bluetooth device up to two-thirds or more.
• When you use the Bluetooth function, adjust the volume of a Bluetooth device to a proper level to listen to.
• After your device is connected to the unit via Bluetooth, the function switches to BT automatically.
• After searching for this unit on your Bluetooth device, connect the Bluetooth device to this unit. Then play music you want.
• The sound may be interrupted when the connection interfered by the other electronic wave.
• You cannot control the Bluetooth device with this unit.
• Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported.
• Although the distance between your Bluetooth and the set is less than 10m , there are obstacles between both, your Bluetooth device cannot be connected.
  Depending on the type of the device, you may not be able to use the Bluetooth function.
• You can enjoy wireless system using phone, MP3, Notebook, etc.
• When not connected the Bluetooth, Bluetooth LED (®) blinks.
• The electrical malfunction due to devices using same frequency such as Medical equipment, Microwaves or wireless LAN devices, the connection will be disconnected.
• When someone stands and interrupts communication between Bluetooth device and the player, the connection will be disconnected.

! Note

• If the gotten away of the distance between Bluetooth and the unit, the sound quality is lower and lower. The connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth.
• The device with Bluetooth® wireless technology is disconnected, if you turn off the main unit or put the device away from the main unit more than 10 m.
• If the Bluetooth device is disconnected, you should connect the Bluetooth device to your unit.

Using Bluetooth App

About "LG Bluetooth Remote" App

"LG Bluetooth Remote" app brings a suite of new features to this unit.

To enjoy more features, you are recommended to download and install free "LG Bluetooth Remote" app.

Install "LG Bluetooth Remote" App through "Apple App Store" or "Google Android Market (Google Play Store)"

1. Tap the "Apple App Store" icon or "Google Android Market (Google Play Store)" icon.
2. In the search bar, type in the "LG Bluetooth Remote" and search it.
3. In the search result list, find and tap "LG Bluetooth Remote" to start downloading Bluetooth app.
4. Tap an icon for installation.
5. Tap an icon for downloading.

Note

• Make sure that your Bluetooth device is connected to the Internet.
• Make sure that your Bluetooth device is equipped with "Apple App Store" or "Google Android Market (Google Play Store)".
• If you want to get more information, refer to explanation of BT app in "Apple App Store" or "Google Android Market (Google Play Store)".

Install "LG Bluetooth Remote App" by using QR code

1. Install "LG Bluetooth Remote" app through QR code. Use the scanning software to scan the QR code.

(Apple iOS)

(Android OS)

1. Tap an icon for installation.
2. Tap an icon for downloading.

Note

• Make sure that your Bluetooth device is connected to the Internet.
• Make sure that your Bluetooth device has a scanning software application. If you don't have one, download one from "Apple App Store" or "Google Android Market (Google Play Store)".

Activate Bluetooth with "LG Bluetooth Remote" App

"LG Bluetooth Remote"app helps to connect your bluetooth device to this unit.

! Note

In case of iOS device ;

After performing the pairing operation, activate Bluetooth with LG Bluetooth Remote App.

1. Tap "LG Bluetooth Remote" app icon on the home screen to open "LG Bluetooth Remote" app, and go to the main menu.
2. Tap [Setting] and select the unit you want.
3. If you want to get more information to operate, tap [Setting] and [Help].

! Note

• BT app will be available in the software version as follow;
• iOS O/S:Ver 4.3 (or later)
  Android O/S:Ver 2.3.3 (or later)
• If you place your iPod touch/iPhone/iPad into the dock of this unit while your iPod touch/iPhone/iPad is connected to this unit by Bluetooth connection, and you switch this unit to iPod mode, the Bluetooth connection is deactivated.
• If you place your Android device into the dock of this unit while your Android device is connected to this unit by Bluetooth connection, and you switch this unit to ANDROID mode, the Bluetooth connection is deactivated.
• This unit does not support the multi-pairing. If this unit is already connected with other Bluetooth device, disconnect that device and then try again.
• If you use "LG Bluetooth Remote" app for operation, there would be some differences between "LG Bluetooth Remote" app and the supplied remote control. Use the supplied remote control as necessary.
• Depending on the Bluetooth device, "LG Bluetooth Remote" app may not work.
• "LG Bluetooth Remote" app for Apple iOS is slightly different from that of Android OS.
• The connection you've made may be disconnected if you select other application or change the setting of the connected device via "LG Bluetooth Remote" app. In such a case, please check the connection status.
• To prevent a malfunction, you are recommended to connect only one device to this unit.
• Don't connect your smart device by using a cable to USB port. Or else the Bluetooth connection will be disconnected.
  After connection of BT app, music may be output from your device. In this case, try connecting procedure again.

Other Operations

LG Tag On

LG Tag On allows you to install and open "LG Bluetooth Remote" app to NFC-enabled phone.

1. Activates the NFC feature of your NFC-enabled phone.
2. Turn on the unit.
3. Tag the back of your NFC-enabled phone over the unit.

• If "LG Bluetooth Remote" app is not installed on your NFC-enabled phone, the linked screen with "LG Bluetooth Remote" app is displayed.
• If "LG Bluetooth Remote" app is installed on your NFC-enabled phone, "LG Bluetooth Remote" app is activated.

Note

• You must activate the NFC feature of your NFC-enabled phone.
• If your NFC-enabled phone's screen is locked, it will not read the NFC.
• If your smart phone case is plated with chrome, NFC is unavailable. Depending on your case's material or thickness, NFC may not be read well.

Setting BASS (BASS BLAST) sound effect

You can listen to music by setting BASS (BASS BLAST) sound effect. Press BASS EQ repeatedly. Then you can reinforce BASS (BASS BLAST) sound effect.

BASS (BASS BLAST) < > BYPASS

Turning Off the Sound Temporarily

Press to mute the sound. You can mute the sound in order, for example, to answer the telephone. To cancel mute function, press again or adjust volume level by pressing +/-(Volume).

Auto Power Down

This unit will power itself down to save electronic consumption in case main unit is not connected to external device and is not used for 25 minutes.

Also this unit will power down if no input is connected using the analogue input after six hours.

Troubleshooting

Problem	Cause & Correction
No Power.	Plug in the power cord. Check the condition by operating other electronic devices.
No sound.	Press FUNCTION or F and check the selected function. Adjust the volume of your portable device. Check that the sound of the unit is muted.
iPod/iPhone/iPad does not work.	Connect iPod/iPhone/iPad to the unit correctly.
Audio is not output from your docked Android device.	Make sure that you are using Android system of version 4.1 or later. Connect Android device to the unit correctly.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the unit. The remote control is too far from the unit. There is an obstacle in the path of the remote control and the unit. The battery in the remote control is exhausted.
Bluetooth pairing does not work well.	Switch Bluetooth off and on again on your Bluetooth device, then try pairing again. Be sure your Bluetooth device is on. Remove the obstacle in the path of the Bluetooth device and the unit. Depending on the type of the Bluetooth device or surrounding environment, your device may not be paired with the unit. When your Bluetooth device have been already connected with other unit, disconnect the Bluetooth connection first. Then you can control your unit through BT app. Depending on the Bluetooth device, BT app may work restrictively not work. The connection you've made may be disconnected if you select other application or change the setting of the connected device via BT app. In such case, please check the connection status.

About LED condition

Function	Condition	LED	Description
iPod	iPod Connected	iPod
	No iPod	iPod ⇌ iPod	Blinks Slowly
Android	Android Connected
	Android Loading		Blinks Quickly
	No Android		Blinks Slowly
USB	USB
	No USB		Blinks Slowly
Bluetooth	Bluetooth Paired
	Bluetooth Ready		Blinks Slowly
Portable	Portable In

Trademarks and Licenses

Made for

iPod

iPhone

iPad

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Bluetooth

Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters.

Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology.

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by LG Electronics is under license.

Other trademarks and trade names are those of their respective owners.

Handling the Unit

When Shipping the Unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the Exterior Surfaces Clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the Unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Specifications

General
AC adapter requirements	DC 18 V - 2.67 A, 100 - 240 V, 50/60 Hz
Power consumption	40 W
Dimensions (W x H x D)	(436 x 152 x 115) mm
Net Weight (Approx.)	2.3 kg
Operating temperature	5 °C to 35 °C (41 °F to 95 °F)
Operating humidity	5 % to 90 %
Bus Power Supply	USB/iPod/iPhone/iPad : 5 V - 2.1 A Micro USB : 5 V - 1.0 A

Inputs
PORT. IN	0.5 Vrms (3.5 mm stereo jack)

Amplifier
Output Power	15 W X 2 ch (8 Ω at 1 kHz)
T.H.D	10 %

Speakers
Type	built-in
Impedance	8 Ω
Rated Input Power	15 W
Max Input Power	30 W

• Design and specifications are subject to change without notice.

LG

Life's Good
