USER MANUAL 300431 CSL

Programmname: Setup.exe

Herausgeber:

Unbekannt

Dateiursprung:

CD/DVD-Laufwerk

Details anzeigen

Nein

Welcome to the IT9130 BDA

Driver - 12.10.4.2 Setup

This will install IT9130 BDA Driver

-12.10.4.2 on

your computer.

It is recommended that you close all other

application before continuing.

Click Next to continue, or Cancel to exit Setup.

Cancel

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of supply

• CSL DVB-T Android Stick
• Rod antenna
• Telescopic antenna
• MCX adapter
  USB OTG adapter cable
• Driver CD
• User manual

2 Technical data

Interface	MicroUSB OTG (also USB type A is included with an adapter)
Antenna port MCX connector
supported TV signal DVB-T
TV software	iDTV (Android) Arcsoft TotalMedia 3.5 (Windows)
Features	Rod antenna and telescopic antenna included MCX-Adapter to connect antennas with coax plug USB OTG adapter cable for connecting to tablets and Windows computers included in the delivery

3 Initial use in case of Android devices:

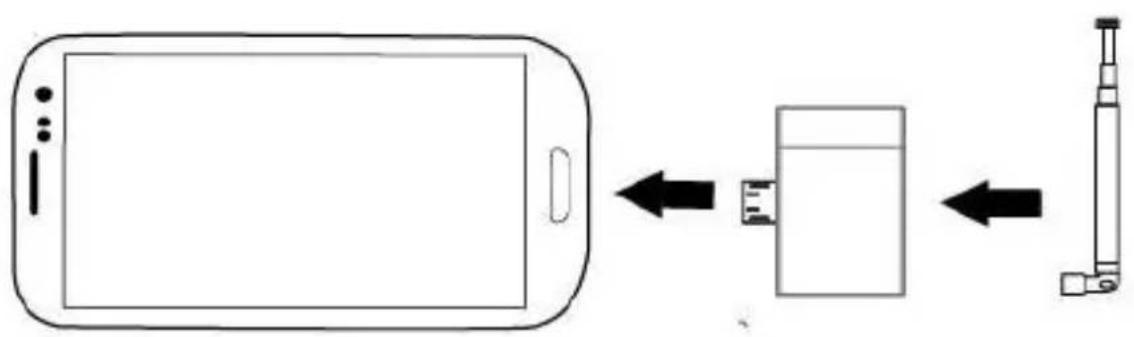

Connect one of the supplied antennas to the MCX connector. Then connect your DVB-T Android stick to your mobile phone using the Mirco-USB connector.

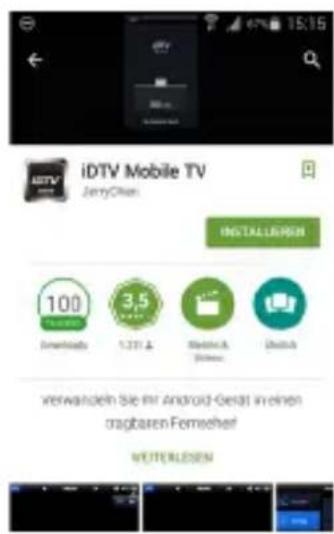

Now install the "iDTV" free app on your smartphone.

With the DVB-T receiver connected to your smartphone, open the app. The setup wizard guides you through the necessary configuration steps. Ensure that you select the correct country code when choosing your location.

The device is ready for use as soon as the initial setup is completed.

4 Using on a Windows computer

Remove the CSL DVB-T Android stick from the packaging and connect one of the supplied antennas to the MCX connector of the receiver. Now connect the DVB stick using the supplied USB OTG adapter cable to a free USB port on your computer.

Insert the driver CD into your drive and close the drive. The autoplay screen is displayed depending on the configuration and version of the operating system.

Click on "Run Autorun.exe" to access the installation menu.

Programmname: Setup.exe

Select "Driver Installation" to start the installation wizard. A confirmation prompt is displayed that needs to be accepted by clicking "Yes".

Welcome to the IT9130 BDA Driver - 12.10.4.2 Setup

This will install IT9130 BDA Driver -12.16.4.2 on your computer.

It is recommended that you close all other application before continuing.

Click Next to continue, or Cancel to exit Setup.

Cancel

Now click "Next" to continue with the installation.

The driver will now be installed. Wait till the process is completed and then select "Finish". The device driver has been installed properly and the DVB-T receiver is ready to be used.

5 TotalMedia 3.5 installation

Insert the driver CD into your drive and close the drive. The autoplay screen is

displayed depending on the configuration and version of the operating system. Click on "Run Autorun.exe" to access the installation menu.

Select "Arcsoft TotalMedia" to start the installation wizard.

A confirmation prompt is displayed that needs to be accepted by clicking "Yes".

Now follow the instructions of the installation wizard to complete the process properly.

Benutzername:

Lizenzschlüssel

Note: The license key has to be entered for installing the software. The key can be found on the CD slave. Any value can be entered in the user name field.

Start the program after installing by double clicking on the desktop shortcut. Now select the item "TV" in the main menu. The setup wizard for the TV signal will now guide you through the software configuration for receiving the TV signal.

Select the "Manual" option in the driver CD menu to get additional information

about ArcSoft TotalMedia 3.5. Now open the "Total Media Manual" folder and then the directory that corresponds to your preferred language. You can access the operating manual of the software by double clicking on the "TotalMedia.chm" file.

Note: If only a few or no stations are found during scanning, then this is mostly likely because of the antenna alignment. Check if the cable is connected to the DVB-T stick, change the position of the antenna and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T signal.

There are different websites in the internet which could display the signal strength of the DVB-T signal in your region. In case you have a weak signal, please also check those websites. Please do not hesitate to contact our customer support if there are any questions or problems.

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must

be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 24029/20150810TW004 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover
