USER MANUAL 303184 Liam&Daan

LIA DAAN LIAM M&DA STUDIO PREMIUM PODCAST SET

LIAM&DAAN "STUDIO"

MOD.-NR.: 303184

DEUTSCH

Lieferumfang....3

Scope of delivery....12

Technical data....12

Product details....13

Initial use.... 14

Safety information....16

FRANÇAIS

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Diagram showing six labeled parts of a mechanical device with numbered annotations indicating assembly or installation steps.

Technical diagram of a robotic arm with numbered components and a zoomed-in view showing adjustment steps.

Thank you for choosing a LIAM&DAAN product. Please read the following user manual carefully so as to get the most from the product you have purchased.

SCOPE OF DELIVERY

• LIAM&DAAN "STUDIO"
- Microphone shock mount
- Pop protection
- Threaded adapter
• Table bracket and microphone arm
- Connection cable
- User manual

TECHNICAL DATA

Connections	• XLR (Microphone)• XLR to 3.5mm jack (connection cable)
SPL sensitivity -38dB (±2dB)
Max. Sound pressure 120dB
Frequency response 20Hz - 16kHz
Signal-to-noise ratio >70dB
Cable length 2.5m
Features	• Pop protection• Table bracket• Microphone arm• Microphone shock mount
Ambient temperature 0-40°C

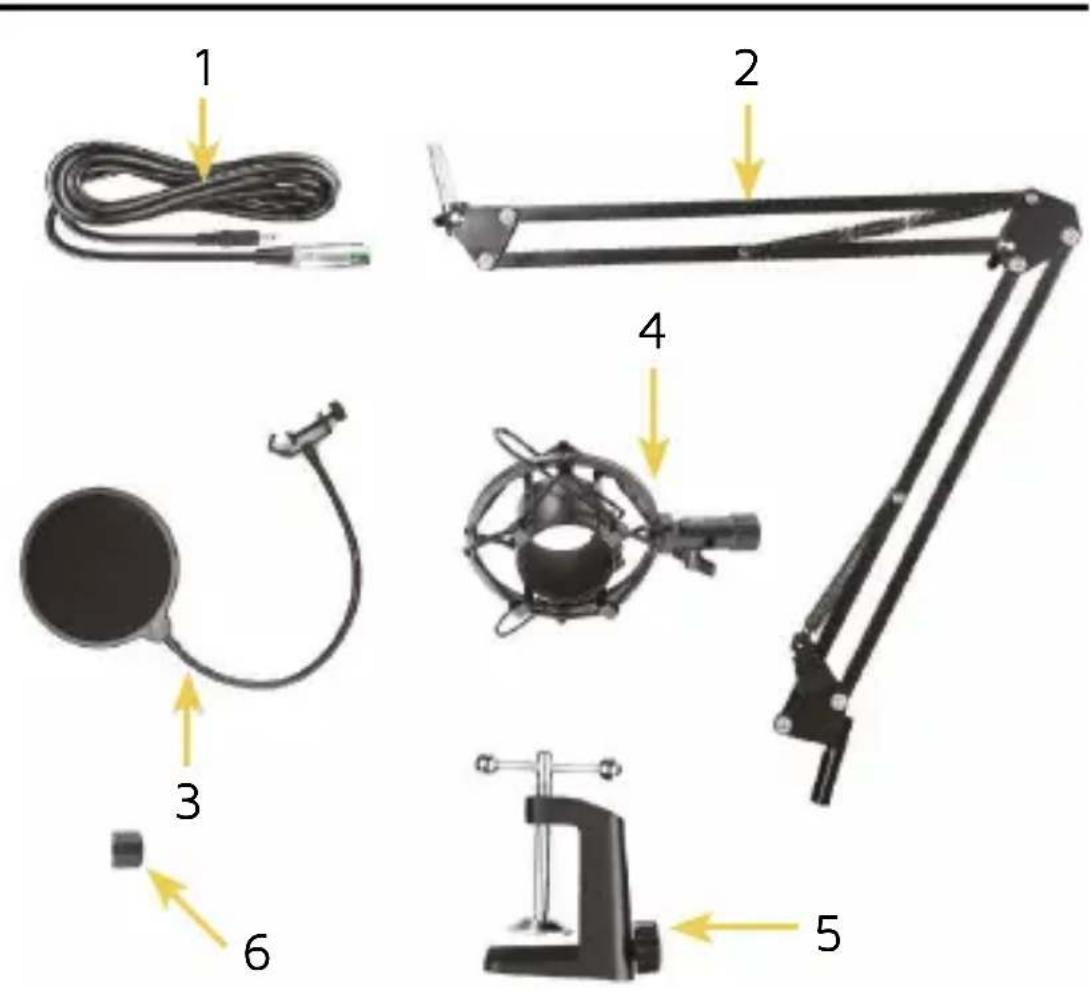

Diagram showing six labeled parts of a mechanical device with numbered annotations indicating assembly or installation steps.

No. Description
1 Microphone	connection cable
2 Microphone	arm
3 Pop protection
4 Microphone	shock mount
5 Bracket for	microphone arm
6 Threaded adapter

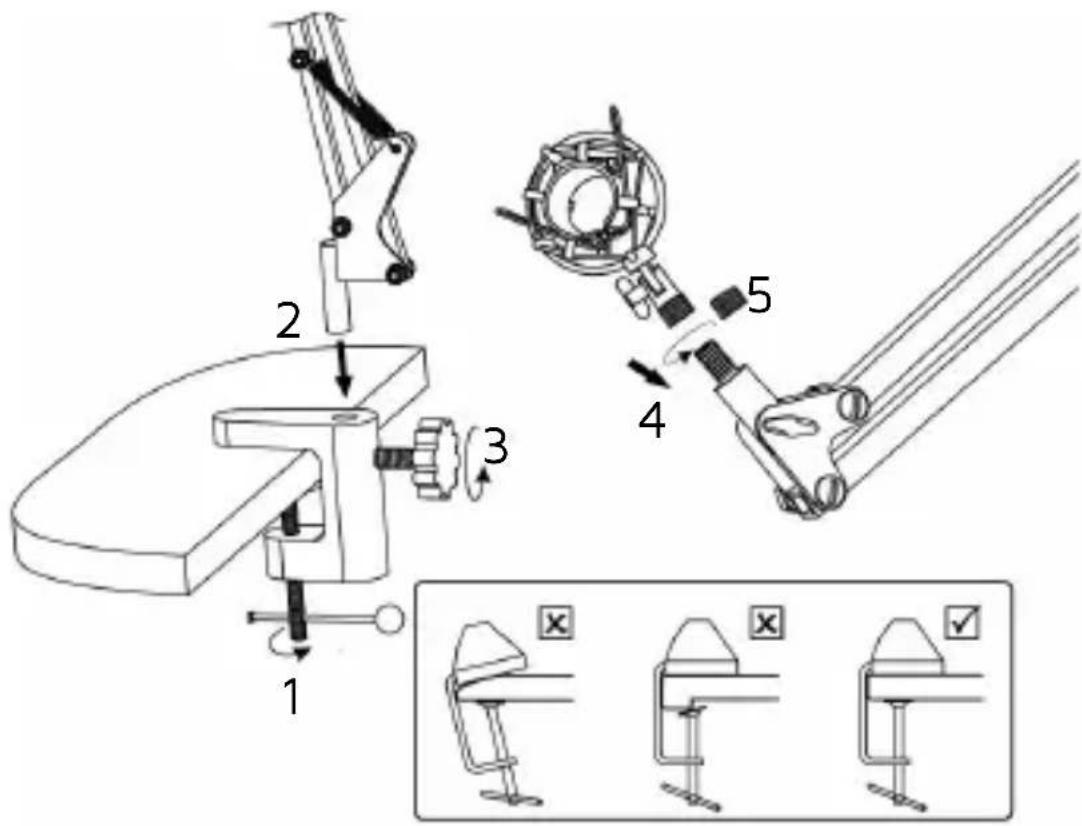

Technical diagram of a robotic arm with numbered components and a zoomed-in view showing adjustment steps.

Take the product out of the package and remove all the packaging material. First of all, fix the microphone arm bracket to a suitable table (1). Ensure that it is attached correctly (see picture). Then mount the microphone arm into the bracket provided (2). Tighten the locking screw (3) so that the microphone arm is adequately fixed.

Finally, firmly screw the microphone shock mount, including the bracket, using the threaded adapter (5) to the provided thread at the end of the microphone arm (4).

Now insert the microphone properly into the

microphone shock mount and then connect it. To do this, use the XLR to 3.5mm jack cable. Plug the XLR connector into the microphone and then connect the 3.5 mm jack cable to the desired recording device.

In order to ensure the perfect sound of your microphone, we recommend that you test the device in the studio at different positions and fix it only after locating the right position.

SOUND	LEVEL IN DB	EFFECT
Whispering 30 harmless
normal conversation, sewing machine	55-60	harmless but may impair concentration
Lawn mower 70 mostly harmless
Hand grinder, mixer	85-90	hearing may be damaged above 85 dB
Circular saw 100		dangerous if exposed continuously. Do not to expose yourself for more than 15 minutes to this level without hearing protection
Chainsaw 110		dangerous if exposed continuously
Rock concert, jet engine starting	110-130	Pain threshold above approximately 120 dB

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect. Do not use headphones in noisy hazardous areas. The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling.

The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU WEEE register number: DE 678967611

WD Plus GmbH, herewith declares that this product 303184 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
