USER MANUAL 303214 Liam&Daan
SCOPE OF DELIVERY
• inEAR LIAM&DAAN "MIC"
- User manual
TECHNICAL DATA
| Connection | 1x 3,5mm 4-pin jack plug2x 3,5mm jack |
| SPL Sensitivity -30dB (±3dB) | |
| Frequency response 65Hz - | 18kHz |
| Signal-to-noise ratio >74dB | |
| Cable length 2.5m | |
| Features | Microphone and headphone jackBuilt-in microphone |


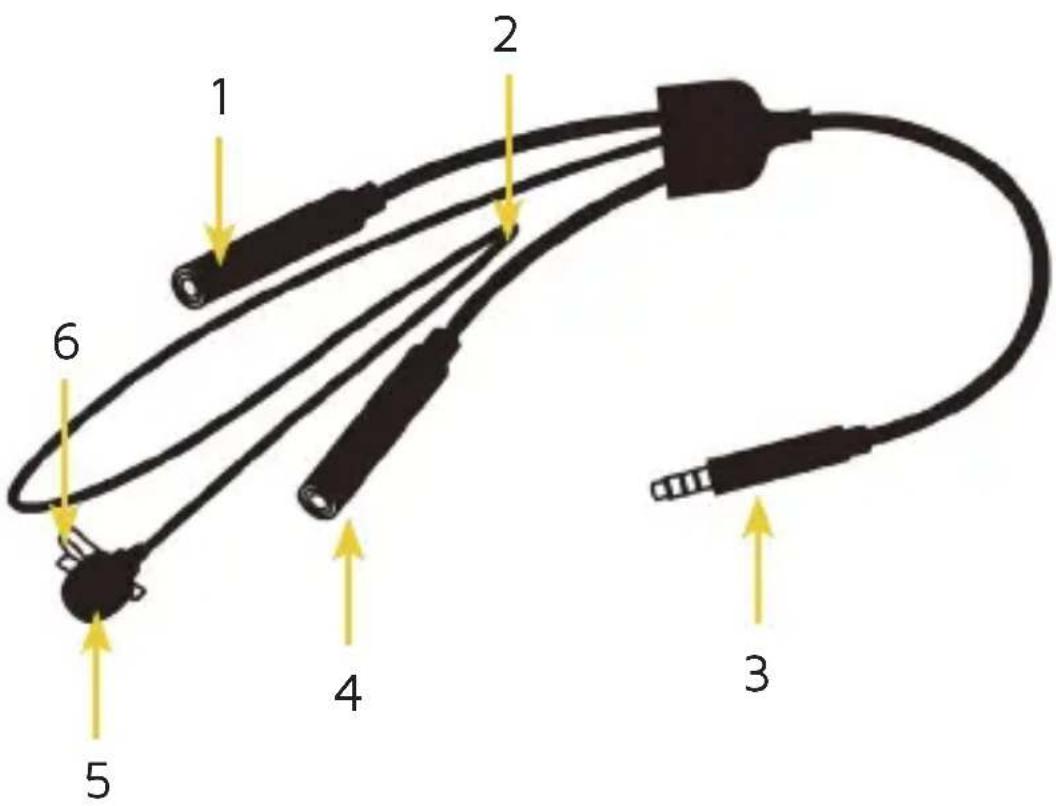

1 2 6 4 3 5| No. Description | |
| 1 Headphone jack | |
| 2 2.5m cable | |
| 3 AUX port | |
| 4 Microphone port | |
| 5 Microphone | |
| 6 Microphone Bracket Clip |
| SOUND | LEVEL IN DB | EFFECT |
| Whispering 30 not dangerous | ||
| Normal conversation, sewing machine | 55-60 | not dangerous but can break concentration |
| Lawnmower 70 | usually not dangerous | |
| Hand-held grinder, mixer | 85-90 | hearing can be damaged from a level of 85 dB upwards |
| Circular saw 100 | dangerous in the event of long exposure. It is recommended not to expose yourself to such volumes for more than 15 minutes without wearing ear plugs. | |
| Chainsaw 110 | dangerous in the event of long exposure | |
| Rock concert, jet aircraft taking off and landing | 110-130 | pain threshold around 120 dB |
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.
Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
Do not use headphones in noisy hazardous areas.
The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly.
As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.
WD Plus GmbH, herewith declares that this product 303214/20200428SZ215 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
