USER MANUAL 303882 Liam&Daan

LIA DAAN LIAM M&DA STUDIO PREMIUM PODCAST SET

LIAM&DAAN "STUDIO 2"

MOD.-NR.: 303882

TABLE OF CONTENTS

DEUTSCH....3

ENGLISH....11

FRANÇAIS....19

ESPAÑOL....27

ITALIANO....35

Line drawing of a desktop microphone with a side mirror and stand (no text or symbols)

HINWEIS:

Thank you for choosing a LIAM&DAAN product. Please read the following user manual carefully so as to get the most from the product you have purchased.

SCOPE OF DELIVERY

• LIAM&DAAN "STUDIO 2"
- Microphone spider
- Pop protection
- Table holder
- Connecting cables
- Quick manual

TECHNICAL DATA

Connection USB
Sensitivity -38 dB+/-2dB(0dB=1V/Pa at 1KHz)
Max. Sound pressure level	132 dB
Frequency response 20 Hz	- 16 kHz
Signal-to-noise ratio >78 dB
Sampling rate 44,1 kHz/48 kHz/96kHz;16bit/24bit
Cable length 2,5 m
Features	• Pop protection• Table ageing• Microphone spider
Ambient temperature 0-40°C

1 2 3 4 5

1

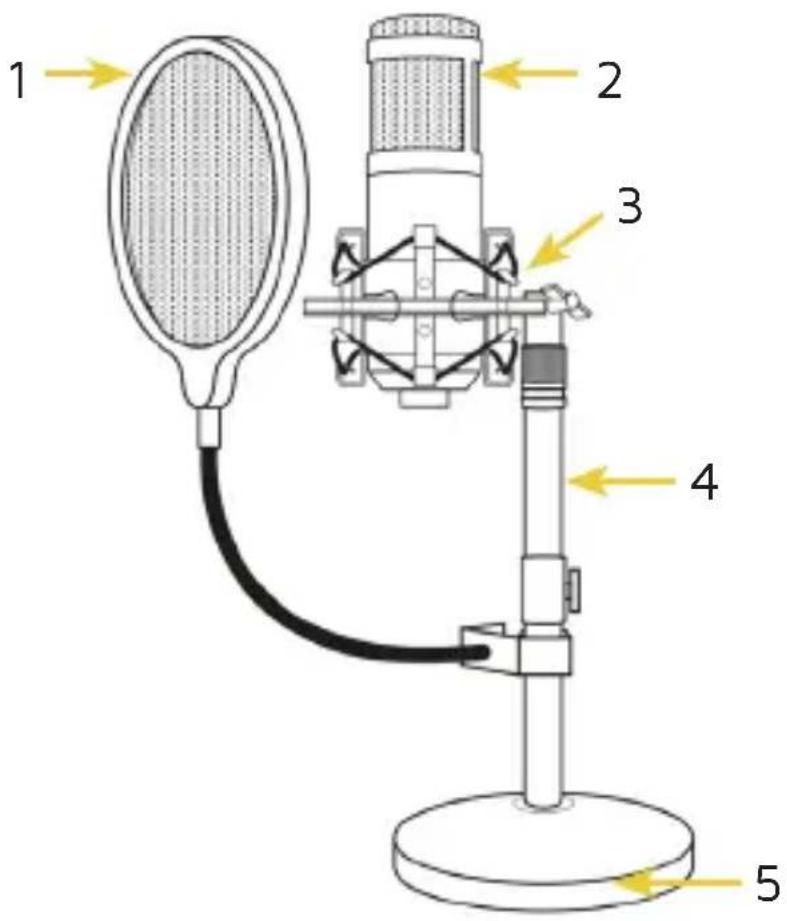

No. Description
1 Pop protection
2 Microphone
3 Microphone	spider
4 Base rod
5 Base of the	microphone holder

2 3 4 5

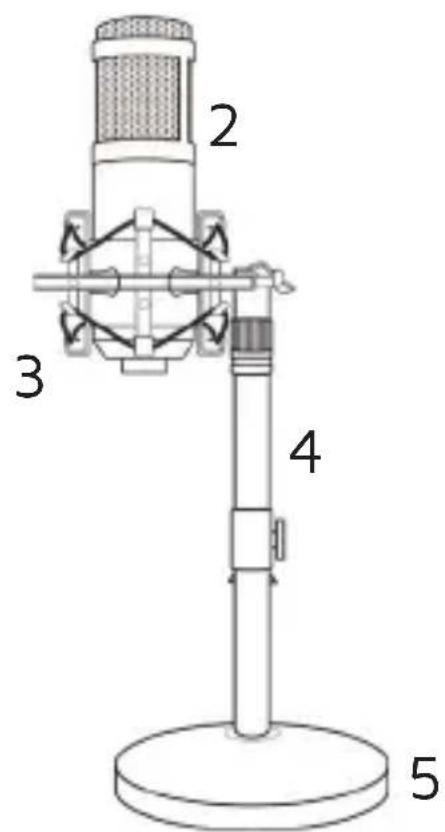

Take the product out of the packaging and remove any packaging material. First screw the base rod (4) to the base of the microphone holder (5). Make sure that it is not mounted incorrectly (see picture). Then screw the microphone spider (3) to the base rod.

Place the microphone correctly into the microphone spider and connect it with the included USB cable.

Attention! Always make sure that the micro-phone with the logo is directed to the front where you want to record the sounds!

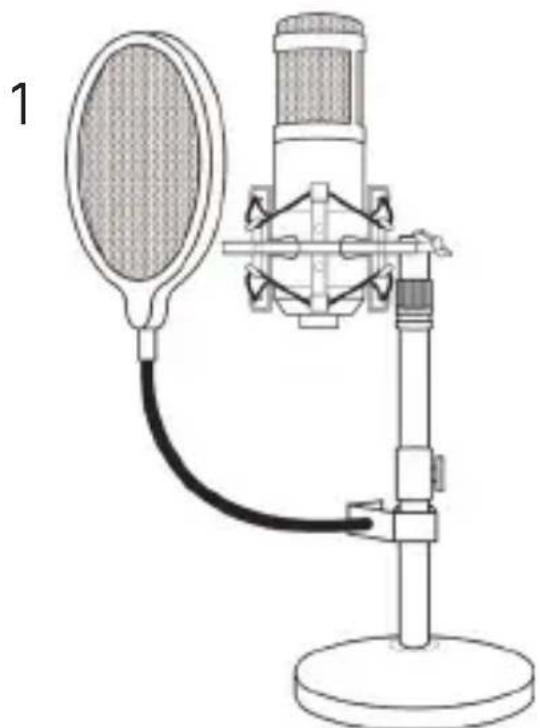

Finally, attach the pop screen (1) to the base rod as shown in the following figure. The distance from the microphone to the pop guard should be approximately 5-10 cm.

Line drawing of a desktop microphone with a side-mounted screen and stand (no text or symbols)

NOTE:

In order to ensure the perfect sound of your microphone, we recommend that you test the device in the studio at different positions and fix it only after locating the right position.

SOUND	LEVEL IN DB	EFFECT
Whispering 30 harmless
normal conversation, sewing machine	55-60	harmless but may impair concentration
Lawn mower 70 mostly harmless
Hand grinder, mixer	85-90	hearing may be damaged above 85 dB
Circular saw 100		dangerous if exposed continuously. Do not to expose yourself for more than 15 minutes to this level without hearing protection
Chainsaw 110		dangerous if exposed continuously
Rock concert, jet engine starting	110-130	Pain threshold above approximately 120 dB

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.

Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

Do not use headphones in noisy hazardous areas.

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for

DISPOSAL NOTE

recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 678967611

WD Plus GmbH, herewith declares that this product 303882 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
