305851 - Measuring equipment Bearware - Free user manual and instructions

Product type	Energy cost meter
Supply voltage	230 V AC, 50 Hz
Maximum power	3680 W
Maximum current	16 A
Power measurement range	0.1 - 3680 W
Current measurement range	0.005 - 16 A
Voltage measurement range	200 - 276 V
Consumption measurement range	0.0 - 9999 kWh
Cost measurement range	0.00 - 9999 €
Precision	± 2%
Display modes	Power, voltage, current, consumption (kWh), total cost (€), cost per kWh (€/kWh)
Data memory	Yes, saves even without power
Reset function	Yes, via Reset button
Operating temperature	0°C - 40°C
Usage	Indoor only
Overvoltage category	CAT II
Package contents	Measuring device, instruction manual
Maintenance	Clean with a dry cloth
Safety	Do not connect in series, do not immerse, do not open

Frequently Asked Questions - 305851 Bearware

How to set the price per kilowatt-hour?

Press and hold the MODE button for about 4 seconds until the first digit blinks. Use the MODE button to navigate between digits and the UP button to adjust the value. Confirm by holding MODE for 4 seconds.

How to reset the device?

Use a pointed object to press the RESET button on the front of the device. This clears all calculated data.

What does the 'OVERLOAD' display mean?

The OVERLOAD display indicates that the connected load exceeds the maximum power of 3680 W or the maximum current of 16 A. Unplug the device immediately.

Can I connect a 3000 W device?

Yes, as long as the power does not exceed 3680 W and the current does not exceed 16 A. A 3000 W device is within the limit.

Does the device work without batteries?

Yes, the device has no built-in battery. It only works when plugged into a power outlet. Data is retained in memory even without power.

What to do if the screen stays off?

Check that the device is properly plugged into a working power outlet. If the screen remains off, the device may be defective. Contact customer service.

How to change the display mode?

Briefly press the MODE button to cycle through modes: power, voltage, current, consumption (kWh), total cost (€), cost per kWh (€/kWh).

What is the measurement accuracy?

The accuracy is ± 2%.

Can I use the device outdoors?

No, the device is designed for indoor use only. Protect it from moisture, water, and snow.

Where can I find the declaration of conformity?

The complete declaration of conformity is available from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover.

USER MANUAL 305851 Bearware

1. Scope of delivery....10
2. Technical data....10
3. Commissioning....10
4. Displays and control....11
   4.1 Display ....11
5. Settings....11
   5.1 Changing the modes....11
   5.2 Cost settings....12
6. Resetting the device....12
7. Safety instructions and Disclaimer....13
8. Disposal instructions....14
9. Instructions for battery disposal....15

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Energy cost meter
• User manual

2. Technical data

Electric voltage 230 V AC~ 50 Hz
Maximum current 16 A
Maximum power 3680 W
Operating temperature	0°C to 40°C
Accuracy +/-2%
Range/ Measurement range	0.1 - 3680 W (power)0.005 A - 16 A (amperage)200 V - 276 V (voltage)0.0 KWh - 9999 KWh (consumption)0.00 € - 9999 € (electricity costs)
Features	Measurement and calculation of information regarding energy consumption of the connected device

3. Commissioning

Take the product out of the package and remove all the packaging material. Then plug the energy cost meter into a properly installed shockproof socket.

The device is now ready to be used. Detailed information regarding the operation and settings is given in the following sections in this user manual.

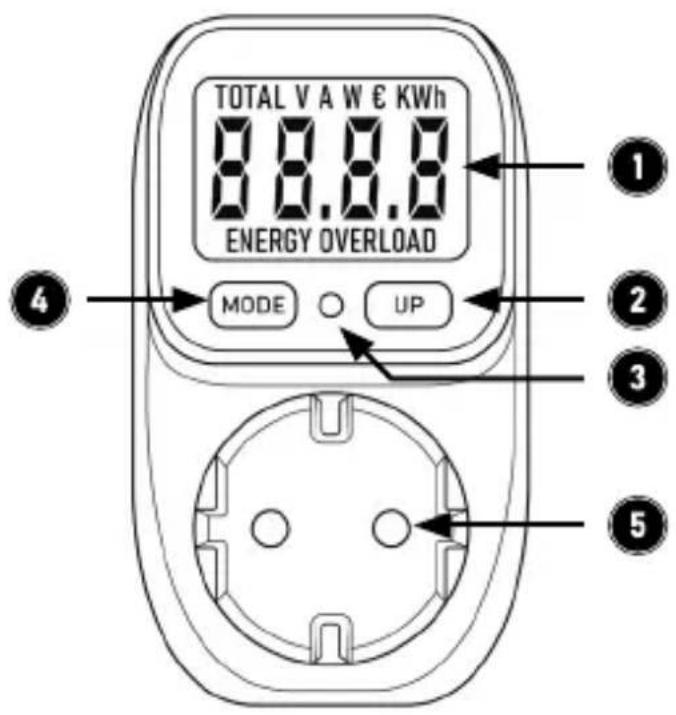

4. Displays and controls

TOTAL V A W € KWh ENERGY OVERLOAD MODE UP ① ② ③ ④ ⑤

1 Display
2 Reset button
3 Up button
4 Mode button
5 Socket

4.1 Display

Display:

The display shows information on consumption, the costs, the mains voltage and power.

5.2 Cost settings

To calculate the energy costs, set the kilowatt price per hour. The value to be set represents the cost per kilowatt-hour. The energy cost meter returns to the standard display after 10 seconds of inactivity.

Example: For a kWh price of 0.24 €/kwh, proceed as follows:

1. Press and hold the „MODE“ button for about 4 seconds until the first number on the display starts flashing.
2. The first number of the display flashes, skip it to set 24 cents per KWh.
3. Press the „MODE“ button twice to flash the first digit after the decimal point.
4. Press the „UP“ button until the display shows the desired value.
5. Press the „MODE“ button again and set the second decimal point.
6. Accept the settings by pressing the „MODE“ button again for approx. 4 seconds.

This product does not have an integrated battery. While the device is connected to a power outlet, the cost settings must be configured.

6. Reset device

The energy cost measuring device stores the relevant data and inputs. costs and consumption are stored in 0.10 steps and are maintained even without electricity. This includes the costs per KWh as well as the recording of „total costs & total consumption in KWh“. To restart the device or delete all recorded data, press the „RESET“ button on the front of the device using a pointed object.

Attention! Make sure that you do not injure yourself with the object!

5 Settings

5.1 Changing the modes

Press the "MODE" button to switch between the different modes. The change sequence is as follows:

1. power; 2. voltage; 3. amperage 4. consumption in KWh; 5. electricity costs (total); 6. electricity costs in Euro(€) per KWh

CAUTION!

• Do not connect in series!
  • Zero voltage only when the plug is removed!
• Only for use in indoor spaces!
• Do not connect any device in which the load exceeds 16A.
• Ensure that the plug is fully and correctly inserted.
• Clean the device with a dry cloth only.
• Do not immerse the device in water! This product has a Power Down protection. All data is automatically saved when disconnecting the power.
• The manufacturer gives a warranty in accordance with the laws applicable in your country, however, at least for 1 year (2 years in Germany). The warranty period starts on the date of sale to the end user.

7. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner.

Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

Earth conductor terminal

Alternating current

For use in indoor spaces only

CAT II

Overvoltage category

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to

return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard.

The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

9. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305851 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
