Product type	Electric energy meter
Brand	Bearware
Model	305764
Power supply	230 V AC, 50 Hz
Maximum current	16 A
Maximum power	3680 W
Backup battery	Ni-MH 3.6 V 40 mAh (built-in)
Displays	Voltage, current, power, frequency, power factor, consumption (kWh), cost (€), CO2, time
Voltage range	0.0 V - 9999 V
Current range	0.005 A - 9999 A
Power range	0.5 W - 9999 W
Frequency range	0 - 9999 Hz
Power factor range	0.00 - 1.00
Consumption range	0.000 kWh - 9999 kWh
Price setting	Yes, via SET button
Overload protection	Yes, OVERLOAD display
Ambient temperature	0 - 40 °C
Usage	Indoor only
Cleaning	Dry cloth, unplug before
Weight (estimated)	150 g
Dimensions (estimated)	120 x 60 x 38 mm

Frequently Asked Questions - 305764 Bearware

How to set the price per kWh?

Press the SET button for 3 seconds. The COST display appears. Use the UP button to change each digit, then SET to go to the next. Finish by pressing COST.

What is the maximum supported power?

The maximum power is 3680 W. Do not exceed this value and do not set the overload limit above.

How to reset the device?

In case of abnormal display or unresponsive buttons, press the RESET button.

What to do if the display is abnormal?

Perform a reset by pressing the RESET button. If the problem persists, charge the internal battery by plugging in the device for 24 hours.

How to charge the internal battery?

Plug the device into a mains socket for about 24 hours to recharge the built-in 3.6 V Ni-MH battery.

Can I use the device outdoors?

No, the device is designed only for indoor use. It is not waterproof and must be protected from moisture.

What does the 'OVERLOAD' flashing mean?

Flashing OVERLOAD indicates that the power consumption exceeds the set overload limit. Unplug the device immediately.

How to clean the device?

Unplug the device, then wipe it with a dry cloth. Do not use liquids or abrasive products.

What is the warranty period?

The warranty is 2 years on manufacturing and material defects, provided you present the original invoice.

How to dispose of the device at end of life?

Do not throw the device with household waste. Drop it off at a WEEE collection point or return it to the store. Used batteries must be removed and recycled separately.

USER MANUAL 305764 Bearware

Thank you for choosing an Bearware product. Please read the following user manual carefully so that you can get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Energy cost meter
• User manual

2. Technical data

Electric supply 230 V AC; 50 Hz
Maximum current 16 A
Maximum power 3680 W
Power supply data storage Ni-MH	3.6 V 40 mAh (inbuilt)
Storage system Works on battery	(in case of power failure)
Ambient temperature 0-40°C

3. Display/Measuring range

Voltage 0.0 V - 9999 V
Current 0.005 A - 9999 A
Power 0.5 W - 9999 W
Frequency 0-9999 Hz
Power factor 0.00 - 1.00
Consumption	0.000 kWh - 9999 kWh
Price	€ 0.00 - € 9999
CO2	0.00 - 9999 Kg
Time	0-9999 days

4. Initial use

Check if the product and the components are intact and if the device is working properly when using it for the first time. Remove the product from the packing and remove the plastic strip, which is protruding out of the battery compartment on the back side of the energy cost meter.

Connect the electrical devices, whose energy consumption has to be recorded, to the meter. Then plug the energy cost meter into a properly installed earthed socket.

The device is now ready for use. Detailed information regarding the operation and settings is given in the following sections in this user manual.

Caution! The time measurement stops when the consumption value is below 0.5 W.

If the energy cost meter does not start, plug the device into the socket for 24 hours and press the "Reset" button for a few seconds.

4.1 Resetting the device

The device can be reset if an abnormal reading appears or the buttons do not respond. Press the RESET button for this purpose.

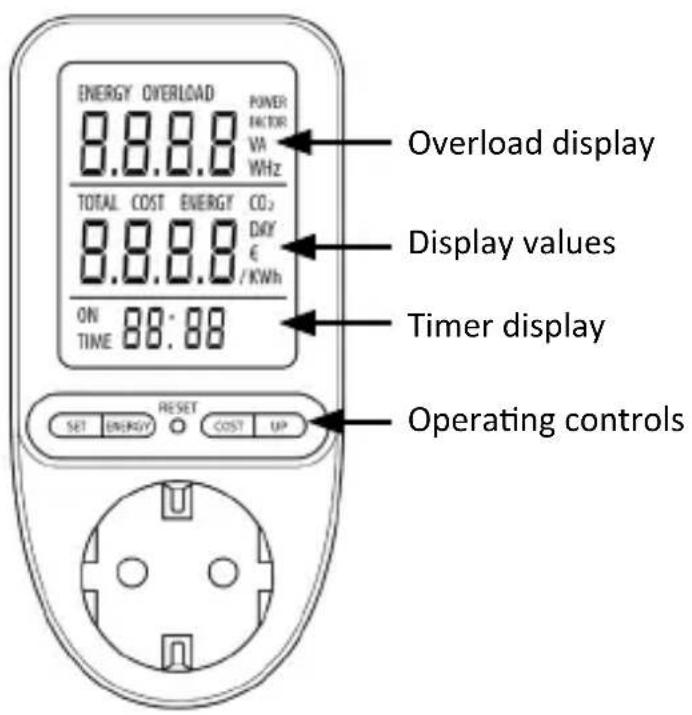

5. Displays and controls

Display Displayed value
V Electrical voltage
A Current
Hz Frequency
POWER FACTOR Power factor
OVERLOAD Overload limit
W Power
KW/h Kilowatt hours
COST/kWh Price per kilowatt hour
Day	Time (in days), during which the energy was consumed; the value is incremented by 1 once the reading counts 24 hours

5.1 Timer display

The timer display shows the duration in which the power was consumed. The following points should be noted:

• The power consumption of the connected device must be at least 0.5 W for the time measurement to continue.
• The display is reset after 24 hours. The "Day" value of the COST display is incremented by 1 in this case.
• The display shows "0:00". The digits in front of the colon indicate the minutes, the ones after it indicate the seconds. After 60 minutes, "0:00" is displayed again, with the digits in front of the colon indicating the hours and the ones after it indicating the minutes.

5.2 Scrolling through the displays

After plugging in, the entire display is shown for about 1 second. The device then switches over automatically.

The first line of the display shows the power. Press the "ENERGY" button to change between the modes. The data is shown as follows:

Power → Voltage → Current → Frequency → Power Factor → Power

The second line of the display shows the accumulated costs. Press "COST" to display the following data:

Cumulative kWh → Cumulative electrical costs → Cumulative amount of CO2 → Cumulative time DAY (days) → Cost € / kWh → Cumulative kWh

6. Entering the energy price

1. Press the "SET" button for 3 seconds to access the electricity costs setting in €/kWh. The display shows "COST" and the set value (e.g. €1.00/kWh).
2. Press the "UP" button to set the first value.
3. Press the "SET" button to select the next digit. Use the "UP" button to set the digit again.
4. Repeat the process until the desired data is set.
5. Press the "COST" button to end the setting.

Note: After 10 seconds, the device automatically returns to the default display mode without having to press any button.

6.1 Overload limit

Note: The energy cost meter is designed for a maximum power of 3680 watts. Do not set the overload limit above this value and do not connect any devices whose energy consumption is more than 3680 watts.

If the energy consumption exceeds the overload limit, then this is indicated by a flashing "OVERLOAD" in the overload display.

7. Warranty declaration

The manufacturer provides a warranty of 2 years for this product with respect to workmanship and material. Warranty repairs should only be carried out by an authorized customer service centre. The original sales document should be enclosed as proof.

The following are excluded from warranty: normal wear and tear, modifications, reworks, damage caused by carelessness, external influences, applications for which the product was not designed or products dismantled completely or partially.

8. Important tips

• The meter is only suitable for indoor use.
• Please do not connect in series.
• Disconnected only when the plug is removed.
• Use the meter only in dry condition.
• The specified maximum electric power should not be exceeded.
• There are no special ventilation requirements for this product. For safety reasons, please ensure that the product is not covered or exposed directly during use
• If the device is not used for a long period of time or if the readings are incorrect, then the internal battery may be empty. Plug the device into the socket for approx. 24 hours to charge the integrated battery.

- Do not connect any device whose load exceeds 16 A. Always make sure that the device plug is completely inserted into the socket of the meter. If the meter needs to be cleaned, disconnect it from the power supply and wipe it with a dry cloth.

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic products to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of appliances that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the product 305764 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
