USER MANUAL 303483 Arendo

Exterior view of a modern stainless steel waste bin with 'arendo' branding and ventilation grille (no other text or symbols)

Arendo COFFEE MILL MOSA, filling capacity 50g

Mod. No.: 303483

Table of contents

1. Deutsch .... 3
2. English 12
3. Français 21
4. Italiano .... 30
5. Español....39

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Important safety instructions for this device

• Only use the device if you have read and understood the manual completely.
• Do not use the product for purposes other than those described in this manual.
• Never leave the coffee grinder unattended and select the location so that no animals or children are within reach.
• Children are not allowed to play with the device.

- The device may not be used by children. Keep the device and its connecting cable away from children.

- This equipment may be used by persons with limited physical, sensory or mental abilities or lack of experience and/or knowledge, provided they are supervised by a person responsible for their safety or have received instructions from that person on how to operate this equipment safely and have understood the hazards involved.

- Keep the coffee grinder out of the reach of children.

arendic

• Choose a suitable underlay to prevent the unit from tipping over.
• Do not place the coffee grinder directly next to heat sources (e.g. electric cooker).
• Unplug the power cord from the wall outlet when not in use or for cleaning.
• Switch off the device and let it cool down completely before cleaning.
• Do not move the product while it is in use.
• Make sure that the power cord does not touch any hot surfaces.
• If you want to pull the plug out of the socket, please pull the plug and not the cable.
• Never handle the plug with wet hands.
• Protect the device from fire.
• Do not immerse the cord, plug, or en-

tire appliance in water or other liquids.

• This product is intended for household use only.
• The coffee grinder is not designed for commercial use.
• Check whether the mains voltage indicated on the type plate corresponds to that of your household.
• Connect the device only to properly connected sockets.
• To avoid overheating of the motor, the device must cool down for 10 minutes after 1 minute of use.
• If the power cord is damaged, it must be replaced by the manufacturer, its dealer or a similarly qualified person to avoid danger.
• Do not put any body parts or hair into the knife unit!

arendic

• The knife unit is sharp, please take care with this unit at any time!
• Do not overfill the coffee grinder!

Thank you for choosing a product from Arendo. Please read the following manual carefully to ensure that you will enjoy your purchased device for a long time. Before putting the delivered product into use, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Arendo Coffee grinder
• User manual

2. Technical data

Operating voltage 220V - 240V AC 50/60 Hz
Power consumption 200 W
Weight 771 g
Protection class 2
Features • integrated safety circuit	• transparent lid• Stainless steel impact knife

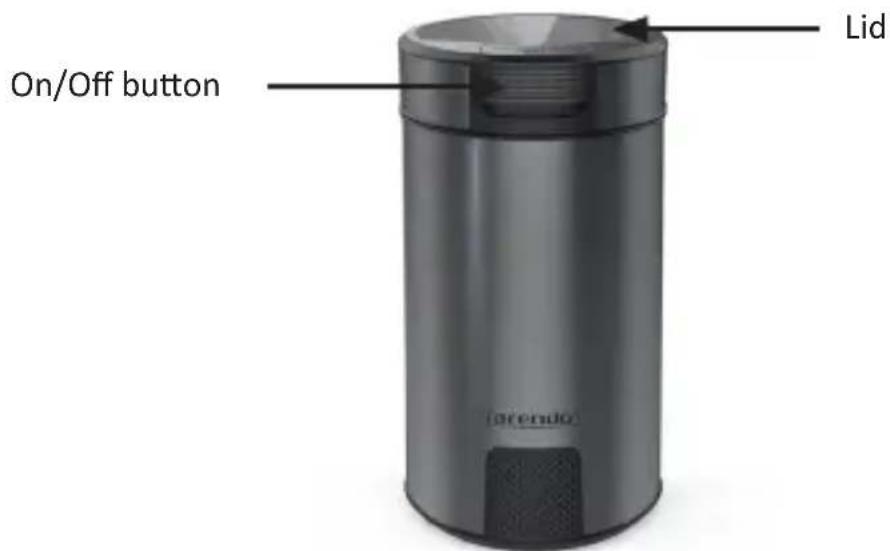

3. Product details

On/Off button Lid (brendo)

4. Start-up

Take the device out of its packaging and remove any packaging material. Clean the grinder and the lid as described in the 5th section "Cleaning and Care".

Place the machine on a straight and level surface and ensure that the grinder has a secure standing position.

• Open the lid by turning it counterclockwise and fill the grinder with approx. 50g coffee beans. Take care not to overfill the grinder.
• You must replace the cover by unscrewing it clockwise. A safety circuit will prevent the device from starting if the cover is not fitted correctly. If the cover is correctly seated, connect the mains plug to a properly connected socket.
• Press the on/off button until the material to be ground has achieved the desired result. In the next step, all you have to do is open the mill and remove the ground material.

Note: If you want to grind again immediately after the grinding process, we recommend that you allow the device to cool down completely before the next use in order to avoid possible damage. To prevent the motor from overheating, the machine should cool down for 10 minutes after 1 minute of use.

- After use, unplug the power cord from the wall outlet and wrap the cable in the cable compartment if necessary. This is located on the underside of the device.

5. Cleaning and care

1. Make sure that the device is disconnected from the power supply for cleaning and when not in use.
2. Clean the device and the lid with a soft, damp cloth. Use a mild detergent only. Do not use aggressive cleaning agents! Dry the device thoroughly after cleaning
3. Use a soft brush to clean stubborn dirt.

Attention! Clean the grinding chamber particularly carefully, because the knife element is very sharp! Do not immerse the device in water!

6. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE Directive 2012/19/EU

WEEE Register No: DE 67896761

WD Plus GmbH hereby declares that the device 303483 complies with the essential requirements and other relevant regulations. A complete declaration of conformity is available from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

Tasto On/Off Coperchio (brendo)
