301149 - Coffee machine Arendo - Free user manual and instructions

Product type	Coffee grinder
Brand	Arendo
Model	301149
Supply voltage	220-240 V ~50 Hz
Power consumption	180-220 W
Weight	1010 g
Max filling capacity	65 g
Protection class	II
Blade types	2 and 4 compartments
Blade material	Stainless steel
Lid	Transparent
Safety circuit	Yes (only works with lid closed)
Non-slip base	Yes
Maximum operating cycle	30 seconds
Recommended cooling time	2 minutes
Intended use	Grinding coffee beans and dry food
Cleaning	Soft damp cloth, mild detergent
Child safety	Use from 8 years under supervision
Number of manual pages	52 pages
Available languages	FR, DE, EN, ES, IT

Frequently Asked Questions - 301149 Arendo

How to use the Arendo 301149 coffee grinder?

Choose the desired blade unit (2 compartments for fine grind, 4 for coarse). Install it by turning clockwise until it clicks. Fill the bowl up to the MAX mark (65 g), close the lid, and hold down the On/Off button until the desired grind is achieved. The appliance only operates when the lid is properly closed thanks to the safety circuit.

What types of food can I grind?

This appliance is designed for grinding dry foods, mainly coffee beans, but also nuts, spices, etc. Avoid foods with high liquid content to prevent overflow. Use the 2-blade unit for fine grinding and the 4-blade unit for coarser grinding.

How to clean the blades and the appliance?

Unplug the appliance and let it cool. Clean the body with a soft damp cloth and a mild detergent. For the blades, clean very gently as they are very sharp. Never immerse the appliance, cable, or plug in water.

What to do if the appliance does not work?

Check that the lid is properly closed: the safety circuit prevents operation if the lid is not correctly engaged. Also ensure the plug is connected and the voltage matches. If the problem persists, contact the manufacturer.

Can I grind liquid foods?

It is not recommended to grind foods with high liquid content. The manual recommends grinding only dry or low-moisture foods to avoid spills. If you must grind moist foods, do not overfill and be careful.

What is the maximum operating time?

The maximum operating cycle is 30 seconds. After each use, let the appliance cool for at least 2 minutes before using it again to avoid motor overheating.

How to replace the blades?

The blade units are removable: remove them by turning counterclockwise and install the new unit by turning clockwise until it clicks. Be careful not to touch the blades as they are very sharp.

Is the appliance suitable for children?

Children aged 8 and above can use the appliance under adult supervision. Children must not play with the appliance. Keep it out of reach of children and pets.

What are the important safety precautions?

Never touch the plug with wet hands, do not immerse the appliance, keep it out of reach of children, do not use near heat sources, and unplug after use. The blades are very sharp: handle with care.

How to store the appliance?

Store the coffee grinder in a dry place away from dust. Make sure it is completely cool and clean before storing. Avoid high temperatures and humidity.

USER MANUAL 301149 Arendo

Close-up of a stainless steel kitchen brush holder with clear glass cover (no text or symbols visible)

Arendo Macinacaffè

Mod.-Nr.: 301149

Table of contents

1. Deutsch .... 3
2. Englisch 13
3. Français 22
4. Italiano 32
5. Español....42

Close-up of a kitchen mixer with a needle inserted into the center (no visible text or symbols)

Close-up of a kitchen mixer with a blade and central knob (no visible text or symbols)

Close-up of a stainless steel kitchen mixer on a portable stove (no visible text or symbols)

5 Inbetriebnahme

Important safety guidelines for this device

• Never keep the coffee grinding machine unattended; keep it out of reach of animals and children wherever you use or store it.
• Children shall not play with the device.
• Children over 8 years of age and persons with restricted physical, sensory and mental abilities may use the device only if they are instructed or supervised by a person, who is responsible for the safety.
• Keep the coffee grinding machine out of reach of children.
• Keep it on an appropriate surface

so that it does not tip over.

• Do not keep the coffee grinding machine directly on heat sources (e.g. electric cooker).
• Unplug the power plug when the device is not in use or during cleaning.
• Switch off the device and allow it to cool down completely before cleaning it.
• Do not move the device when it is in operation.
• Ensure that the power cable does not touch any hot surfaces.
• If you want to pull out the plug from the socket, pull by holding the plug and not the cable.

• Never touch the plug with wet hands.

• Protect the device against fire.

• Do not immerse the cable, the plug or the entire device in water or other liquids.
• This device is exclusively meant for domestic use.
• This device is not intended for commercial use.
• Check if the mains voltage specified on the nameplate corresponds with the voltage in your home.
• Connect the device only to properly installed sockets.

• In order to prevent the motor from overheating, it is recommended that you allow the device to cool down after an operating period of 30 seconds.

• This device may only be used for crushing food items.

• If the power cable is damaged, it should be replaced by the manufacturer, his specialist dealer or an equally qualified person, so as to prevent any risk.

Attention! The blades of the knives are sharp!

Thank you for choosing this product from Arendo and for placing your trust in our company. Please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of supply

• Arendo Macinacaffè
  • 2-fold and 4-fold blade assembly
• User manual

2 Technical specifications

Operating voltage 220 - 240V~ 50Hz
Power input 180 - 220W
Net weight 1010g
Protection class 2
Actual capacity 65g
Features • In-built safety circuit• Transparent lid• Stainless steel milling cutter• 2-fold and 4-fold blade assembly• Anti-skid base

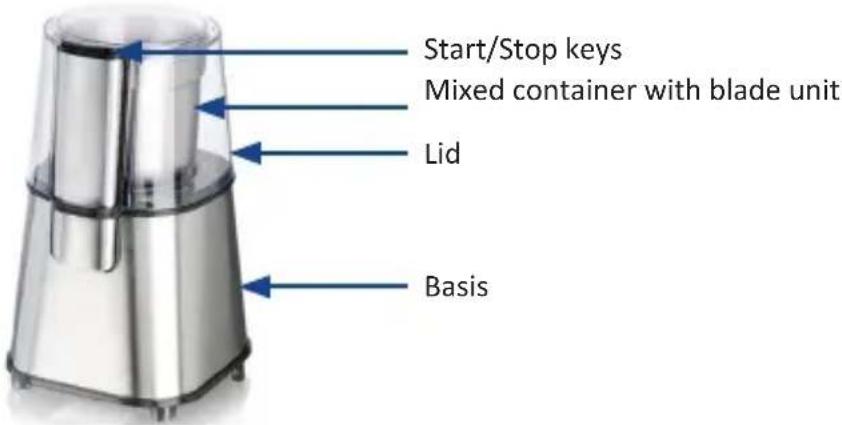

3 Product details

4 Getting started

Take the device out of the package and remove all packaging material. Clean the device and accessories as described in chapter 6 under "Cleaning and maintenance".

Then, select the desired blade unit.

Close-up of a stainless steel kitchen mixer with a handle and central knob (no visible text or symbols)

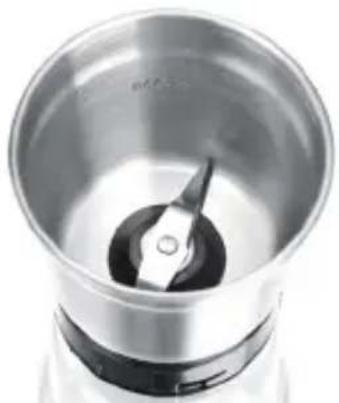

The 2-fold blade unit is suitable for fine grinding, e.g. of coffee beans.

Close-up of a metallic kitchen mixer with a triangular blade and central knob (no text or symbols visible)

The 4-fold blade unit is suitable for coarse grinding of other food items, e.g. nuts.

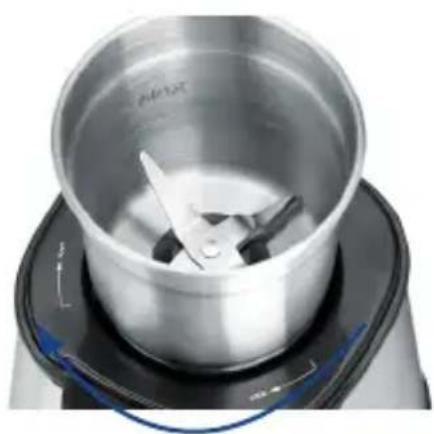

Open the cover of the device and insert the blade unit. Ensure that the blade unit locks in place. Once the blade unit has been mounted, turn it in the clockwise direction until it locks in place.

Close-up of a stainless steel kitchen mixer on a black stand, no visible text or symbols

5 Initial use

Next, fill the food item into the grinding bowl. Pay attention to the maximum mark ("MAX"). Do not exceed this mark.

Then, replace the cover and press the On/Off key until the item to be ground has achieved the required fineness. In the next step, simply open the grinder and remove the ground product. Thanks to the safety circuit, the device functions only works when the cover is fixed properly.

Note: If you want to use the grinder once again immediately after the grinding process, allow the device to cool down before the next use; this will help prevent damage. Please note that this device is only suitable for a operation of maximum 30 seconds. Let the device cool down for at least 2 minutes.

After the operation, pull out the power plug from the socket. Open the cover of the device and remove the blade unit. Then, clean the blade unit as described in chapter 6.

Note: When you are using the device to crush food items with a high liquid content, ensure that you do not overfill the container, else it may overflow. It is recommended that the device should be used to crush only dry foodstuff or food items with a low liquid content.

6 Cleaning and care

Clean the device and its accessories with a soft damp cloth. Use a mild cleaning agent. Do not use aggressive cleaning agents! Dry the device thoroughly after use.

Attention! Clean the blade units very carefully, as the blades are sharp!

7 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the network card. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

8 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 301149 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover

Close-up of a stainless steel kitchen mixer with a handle and central knob (no visible text or symbols)

Close-up of a metallic kitchen mixer with a triangular blade and central knob (no text or symbols visible)

Close-up of a stainless steel kitchen mixer on a black stand, no visible text or symbols

5 Mise en service

Close-up of a kitchen mixer with a black handle and metallic casing (no visible text or symbols)

Close-up of a metallic kitchen mixer with a triangular blade and central knob (no text or symbols visible)

Close-up of a stainless steel kitchen mixer on a stovetop (no visible text or symbols)

5 Messa in funzione

Close-up of a kitchen mixer with a needle inserted into the center (no visible text or symbols)

Close-up of a kitchen mixer with a blade and central knob (no visible text or symbols)

Close-up of a stainless steel kitchen mixer on a black stand (no visible text or symbols)
