USER MANUAL 302618 Arendo

MINI PORTABLE ESPRESSO MAKER

User Manual

Abstract blue curved shape on white background (no text or symbols)

Table of contents

1. Deutsch....3
2. English....9
3. Français....15
4. Italiano....21
5. Español....27

Line drawing of a hand holding a mechanical device with a circular component (no text or symbols)

Line drawing of a hand holding a thermos flask with rotating motion arrows (no text or symbols)

Line drawing of a hand holding a cup and a mug, no text or symbols present

Line drawing of a hand holding a camera and a circular button, with no text or symbols present.

Line drawing of a hand holding a ball bearing (no text or symbols)

Line drawing of a hand holding a paint can with a lid (no text or symbols)

Line drawing of two hands holding a container and a measuring cup (no text or symbols)

Hand-drawn sketch of two hands holding a cylindrical object with a looped edge, no text or symbols present

Line drawing of a hand holding a cylindrical object with a handle, no text or symbols present

Line drawing of two hands holding a container with a lid (no text or symbols)

Simple line drawing of a container and a curved object (no text or symbols)

Line drawing of a hand holding a thermos flask (no text or symbols)

Line drawing of a hand holding a thermospan (no text or symbols)

Line drawing of hands holding a mechanical component (no text or symbols)

Line drawing of hands holding a cylindrical object with a cap (no text or symbols)

Line drawings of five different types of spray canes or containers, shown from top to bottom (no text or symbols)

Thank you for choosing an Arendo product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Espresso machine including measuring spoon
• User manual

2 Technical data

Water capacity approx. 80ml
Powder capacity approx. 10g
Average pressure approx. 8 bar
Weight 370g
Dimensions (H x W x D) 19cm	x 7cm x 9.5cm

3 Product details

Water tankBaseFilterSpoutCup

*Measuring spoon is in the water tank Pump

4 Additional information about this appliance

• Carry out the first two rounds with hot water only. Do not use coffee powder.
• Be careful when using hot water. There is a risk of burns!
• Do not press the coffee powder too firmly into the filter. You can use the back of the measuring spoon for this purpose. Ensure that you do not overfill the filter.

5 Setting up

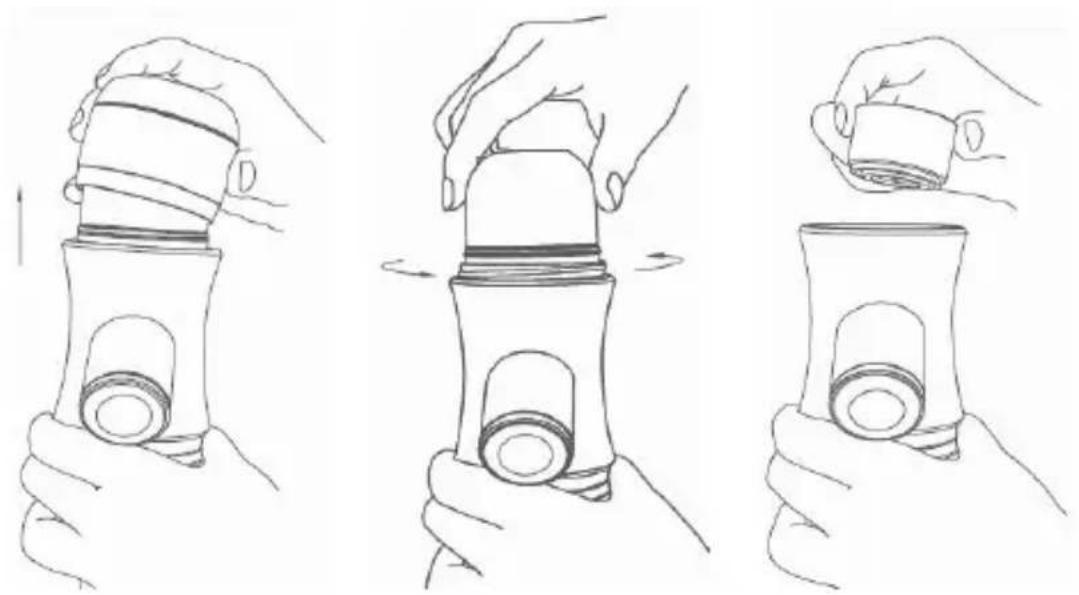

Remove the cup from the espresso machine.
Unscrew the spout. Then remove the filter.

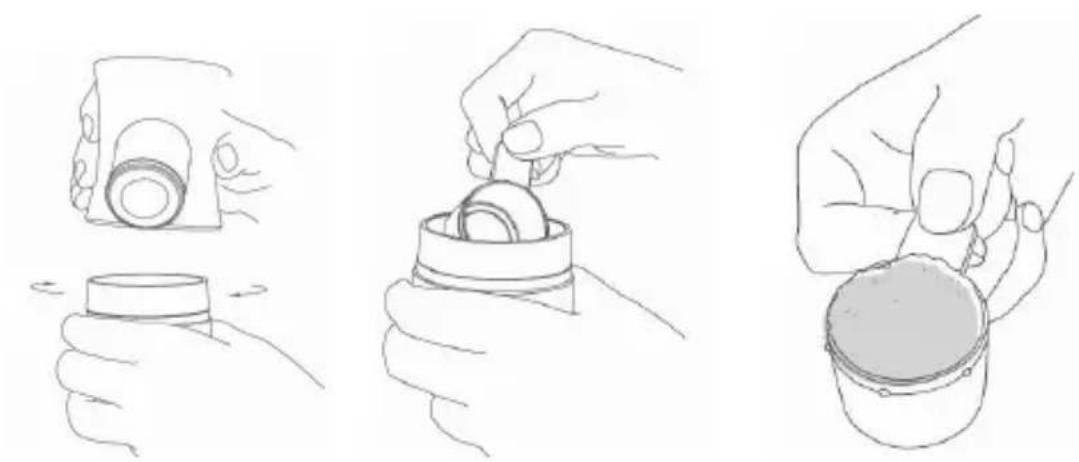

Unscrew the water tank. Remove the measuring spoon from the water tank.
Fill the measuring spoon with the desired coffee powder.

Line drawing of two hands holding a container and a measuring cup (no text or symbols)

Place the filter on the measuring spoon.

Hand-drawn sketch of two hands holding a cylindrical object with labeled points (no text or symbols beyond labels)

Turn both the parts in order to get the coffee powder in the filter.

Line drawing of a hand holding a cylindrical object with a handle, no text or symbols present

Then, insert the filter into the base. Ensure that you clean the base of any coffee powder residues.

Line drawing of two hands holding a container with a lid (no text or symbols)

Screw the spout to the base unit.

Simple line drawing of a container and a curved object (no text or symbols)

Pour boiled water into the water tank up to the maximum mark.

Line drawing of a hand holding a thermos flask (no text or symbols)

Then carefully screw the base onto the water tank. Be careful not to scald yourself!

(arendo)

Line drawing of a hand holding a thermos flask (no text or symbols)

Unlock the pump by turning in the appropriate direction.

Line drawing of a hand holding a mechanical component (no text or symbols)

Position the espresso machine with the spout facing down over the cup and start pumping.

Line drawing of two hands holding a cylindrical object (no text or symbols)

The filter fills with water after pumping for about 6 times. Pump until the espresso fills the cup completely.

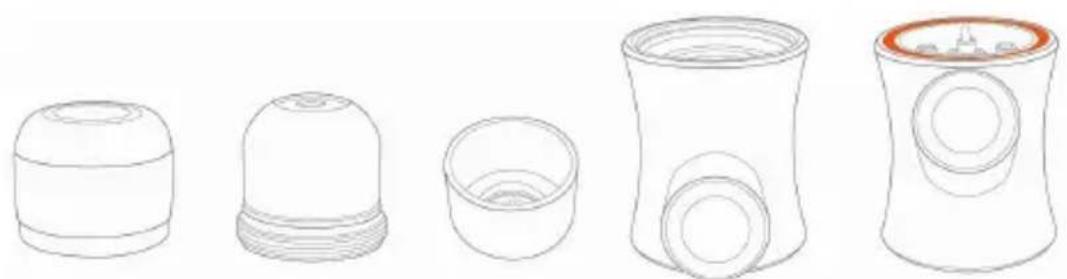

6 Cleaning and Maintenance

Never clean the appliance in the dishwasher. Clean the parts of the espresso machine under running water to remove dirt and coffee residues. Clean the outside of the espresso machine with a damp and soft cloth.

Line drawings of five different mechanical components or containers, including a dome-shaped lid and cylindrical housing (no text or symbols)

• Do not clean the espresso machine and accessories in a dishwasher.
• Ensure that you do not fill water in the marked area!

Please note!

7 Safety instructions and liability disclaimer

This appliance is suitable only for personal use. Do not apply a lot of pressure if the pump is stuck. Be careful when using hot water to avoid burns! Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302618/20161110SZ179 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
