303333 - Soundcard CSL - Free user manual and instructions

Brand	CSL
Model	303333
Product type	External USB sound card
Interfaces	USB 2.0 (3 ports), 1 microphone input (3.5mm jack), 1 headphone output (3.5mm jack), 1 headset connector (3.5mm jack)
Cable length	Approximately 1.2 m
Audio frequency	20 Hz - 20 kHz
Power consumption	Max. 80 mW
Chipset	SSS1629
Compatible operating systems	Windows 7, 8, 8.1, 10, 11
Operating temperature	0 °C to 40 °C
Button functions	Volume, Next track, Microphone mute, Play/Pause, Equalizer (4 modes), Previous track
Installation	Plug & Play, driverless (except Windows 7)
Features	Supports analog and USB headsets (touch functions limited on USB)
Maintenance and cleaning	Wipe with a dry, soft cloth, avoid moisture
Safety	Do not open, avoid high temperatures, keep out of reach of children
Spare parts / Repairability	No spare parts available, repair only by the manufacturer
Disposal	Do not dispose of with household waste, take to a recycling center or WEEE collection point

Frequently Asked Questions - 303333 CSL

How to install the CSL 303333 sound card?

Plug the sound card into a USB 2.0 or higher port on your computer. Driver installation is done automatically via Plug & Play. No additional driver is required for Windows 8, 10 and 11.

Which operating systems are compatible?

The sound card is compatible with Windows 7, 8, 8.1, 10 and 11. For Windows 7, a driver may be required.

Why is my microphone not recognized?

First check that the microphone is plugged into the correct jack (microphone input). Make sure it is not defective and that it is enabled in your system's sound settings.

I hear no sound after connecting the sound card, what should I do?

Check that the headset and microphone are connected to the correct jacks. Open the system volume settings and select the USB sound card as the default output device.

The volume, EQ and microphone mute buttons do not work, why?

These buttons are only active with analog devices connected to the 3.5mm jacks. If you are using a USB headset, the functions are not supported.

How to change the sound effect (equalizer)?

Briefly press the EQ button to toggle between the 4 modes: Standard, Music, Movies and Games. Standard mode is activated by default.

Can I use a USB headset with this sound card?

Yes, you can connect a USB headset to the USB ports of the sound card. However, the EQ, microphone mute and volume adjustment buttons will not work.

What is the power consumption of the sound card?

The maximum consumption is 80 mW, powered directly by the USB port. No external power supply is needed.

How to recycle the sound card at end of life?

Do not dispose of the device with household waste. Take it to a WEEE collection point (recycling center, store) for recycling. You can also donate it if it still works.

Can the sound card be used outdoors?

No, the device is designed for indoor use in a dry environment. Avoid humidity, water, snow and extreme temperatures (0-40 °C).

USER MANUAL 303333 CSL

MON-FRI 9:30am - 18pm CET

https://downloads.ganzeinfach.de/

Table of contents

1. Deutsch .... 3
2. English 9
3. Français 15
4. Italiano 21
5. Español....27

Thank you for choosing a CSL product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. When the device is put into operation for the first time, check the intactness of the product or components and their function again.

1. Scope of delivery

• USB Sound card
• User manual

2. Technical data

PC port USB 2.0 High Speed
Audio outputs 2 jacks (headphone output)
Audio inputs 1 jack (microphone input)
Cable length approx. 1.2 m
USB ports 3 x USB 2.0
Frequency 20 Hz - 20 KHz
Power consumption max. 80 mW
Chipset SSS1629
Operating system compatibility Windows	7 / 8 / 8.1 / 10 / 11
Ambient temperature + 0-3°C until 35-40°C

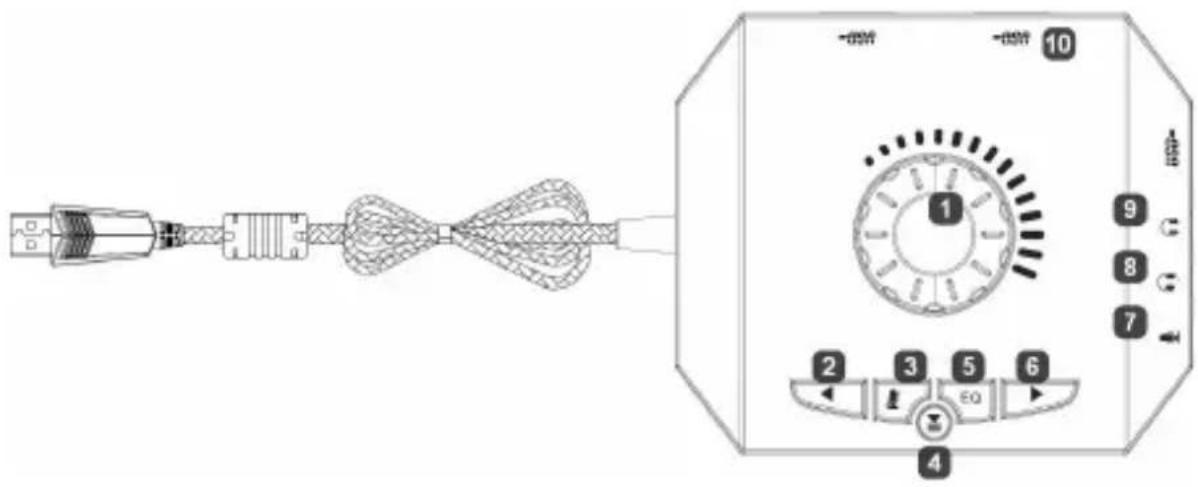

3. Product details

Number Function
1 Volume Control
2 Next track
3 Mute microphone
4 Play/Pause
5 Equalizer
6 Previous track
7 Microphone port
8 Headset port
9 Headset port/audio port
10	USB ports (if a USB headset is connected, then the EQ button, microphone button and the volume control will not work)

This device has four different equalizers:

A: Standard sound effect
B: Music sound effect
C: Movie sound effect
D: Gaming sound effect

The standard sound effect is enabled at the factory. You can briefly press the "EQ" (equalizer) button to change the sound effects.

Note: If a USB headset is connected, then the EQ (equalizer) button and microphone mute as well as the volume control will not work.

4. Initial use

Remove the sound card from its packaging and connect it to a suitable USB 2.0 port (or higher) using a USB cable.

The sound card has many connection options for analogue and digital audio devices. The port assignment is shown on the previous page.

5. Driver installation

The device driver is installed via plug & play and is fully automatic.

1. Troubleshooting

Problem Troubleshooting
The microphone is not recognised	Please check if the connected microphone is faulty.Please check if the microphone is connected to the correct port.Please check if the microphone is enabled in the computer's system settings.
No sound can be heard after connecting the device	Please check if the headset and microphone are connected to the USB sound card. (Please connect the headset and microphone properly.)Open the Control panel → Volume. Change all the default settings on the USB sound card.
The volume control, the "equalizer" and the "microphone" buttons are not working	The two buttons and the controller will not work if you use a USB headphone/headset. These functions are enabled only for devices with 3.5 mm jack.

7. Safety instructions and disclaimer

Never try to repair or modify the device by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way.

Please follow the national regulations and restrictions. Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep

it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The specifications of the device may be changed without prior notification

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the device 303333 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
